Adsorption and transport of uranium in porous sandstone media

doi:10.13745/j.esf.sf.2022.1.30

Abstract

Abstract:

After the decommissioning of a in-situ leach uranium mining site, residual uranium leaching fluid in the aquifer migrates and diffuses downstream posing pollution risks to the surrounding groundwater. In this study, a series of batch and column experiments were designed to investigate the adsorption and migration behavior of uranium in aquifer sandstone in an in-situ leach uranium mining area in northern China. In batch experiments, uranium adsorption on sandstone reached equilibrium within 12 h, and in the process a positive correlation between the initial uranium concentration and sandstone’s uranium adsorption capacity was observed. It was found that the uranium adsorption process was endothermic and the increase in temperature was beneficial for uranium adsorption. The pH of the eluent and $HCO 3 -$ concentration have a strong influence on uranium adsorption. Maximum uranium adsorption was reached at around neutral pH, and higher $HCO 3 -$ concentration led to lower level of adsorption. These effects are due to the alteration of uranium complexation in the solution and the surface charge properties of sandstone. In column experiments, pH, uranium concentration, flow rate, and $HCO 3 -$ concentration were the most important factors affecting uranium migration. Weaker acidity (pH≤7) was found to be associated with fewer late uranium breakthrough in the sandstone column; whereas higher uranium concentration, flow rate, and $HCO 3 -$ concentration might cause early uranium breakthrough. The two-point non-equilibrium model could well describe the uranium migration process in the sandstone column under variable conditions. The partition coefficients obtained from batch experiments were 1.1-6.6 fold higher than those obtained from column experiments. According to the aquifer characteristics and hydrogeochemical characteristics, we suggest that the distribution coefficient of 48.1 mL/g would be suitable for describing uranium migration in sandstone aquifers in the study area. Overall, this study provided a theoretical basis for the reactive transport process and for the natural remediation of polluted groundwater in the in-situ leaching uranium mining areas.

Key words: groundwater, uranium, Adsorption, column experiments, two-site chemical non-equilibrium model, partition coefficient

CLC Number:

X523

CUI Di, YANG Bing, GUO Huaming, LIAN Guoxi, SUN Juan. Adsorption and transport of uranium in porous sandstone media[J]. Earth Science Frontiers, 2022, 29(3): 217-226.

Figures/Tables 11

Table 1 Experimental conditions in column experiments

柱编号	pH值	铀浓度/ (mg·L^-1)	流速/ (mL·min^-1)	$HCO 3 -$ 浓度/ (mmol·L^-1)
1	4	2	0.1	0
2	7	2	0.1	0
3	8.5	2	0.1	0
4	7	1	0.1	0
5	7	5	0.1	0
6	7	2	0.5	0
7	7	2	0.3	0
8	7	2	0.1	0.5
9	7	2	0.1	1.0

Table 1 Experimental conditions in column experiments

柱编号	pH值	铀浓度/ (mg·L^-1)	流速/ (mL·min^-1)	$HCO 3 -$ 浓度/ (mmol·L^-1)
1	4	2	0.1	0
2	7	2	0.1	0
3	8.5	2	0.1	0
4	7	1	0.1	0
5	7	5	0.1	0
6	7	2	0.5	0
7	7	2	0.3	0
8	7	2	0.1	0.5
9	7	2	0.1	1.0

Table 2 Characteristic hydraulic parameters

柱号	饱和含水率θ	流速 v/(cm·min^-1)	弥散系数 D/(cm²·min^-1)	弥散度 λ/cm	R²
1	0.333	0.309	0.011	0.034	0.998
2	0.411	0.308	0.012	0.037	0.998
3	0.457	0.270	0.009	0.034	0.993
4	0.342	0.330	0.028	0.085	0.982
5	0.346	0.342	0.018	0.053	0.995
6	0.420	0.959	0.087	0.091	0.999
7	0.389	0.585	0.011	0.019	0.993
8	0.405	0.297	0.021	0.072	0.985
9	0.447	0.287	0.018	0.064	0.999

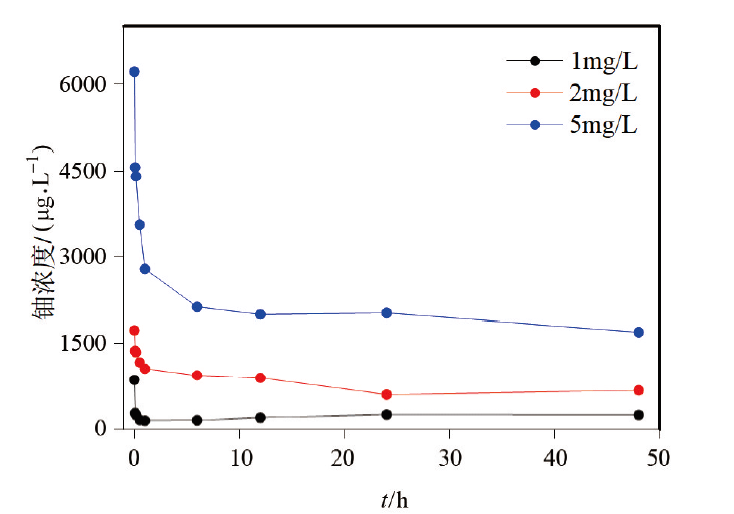

Fig.1 Temporal variation of uranium concentration in solution under different initial uranium concentrations

Table 3 Parameters of psudo first order and psudo second order kinetic models for uranium adsorption on sandstone

U初始浓度/ (mg·L^-1)	实验q'_e/ (10² mg·g^-1)	准一级动力学	准二级动力学
U初始浓度/ (mg·L^-1)	实验q'_e/ (10² mg·g^-1)	R²	q_e/(10² mg·g^-1)	k₂/(g·mg^-1·h^-1)	R²
1	2.763	0.237	2.794	69.973	0.997
2	5.268	0.443	5.357	24.928	0.993
5	22.555	0.338	22.367	12.562	0.999

Table 4 Langmuir and Freundlich constants for uranium adsorption on sandstone at different temperatures

温度/℃	Langmuir等温吸附方程			Freundlich等温吸附方程
温度/℃	K_L	q_max	R²	K_F	1/n	R²
10	4.309	0.088	0.990	0.076	0.582	0.979
25	7.276	0.070	0.980	0.076	0.553	0.994
35	10.263	0.085	0.992	0.088	0.500	0.978
45	30.325	0.105	0.994	0.149	0.453	0.969

Table 5 Thermodynamic parameters for uranium adsorption on sandstone

T/℃	K_L	ΔG⁰/ (kJ·mol^-1)	ΔH⁰/ (kJ·mol^-1)	ΔS⁰/ (J·mol^-1·K^-1)
10	4.31	-3.44	7.10	37.23
25	7.28	-4.92		40.32
35	10.26	-5.96		42.40
45	30.33	-9.02		50.69

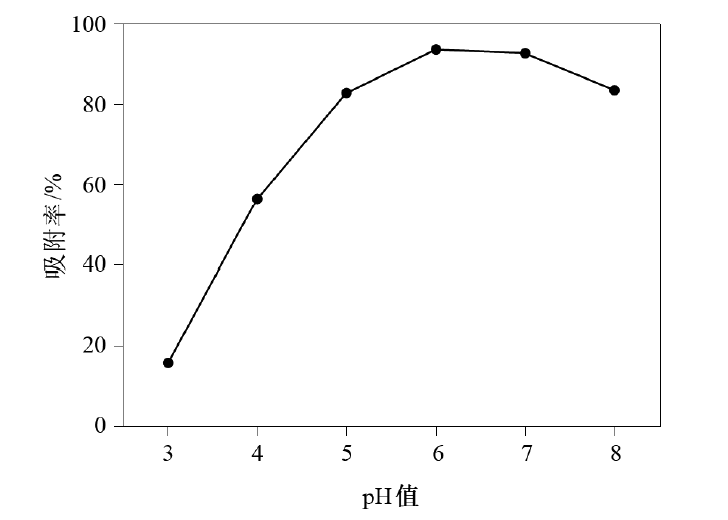

Fig.2 Effects of pH on uranium adsorption on the sandstone

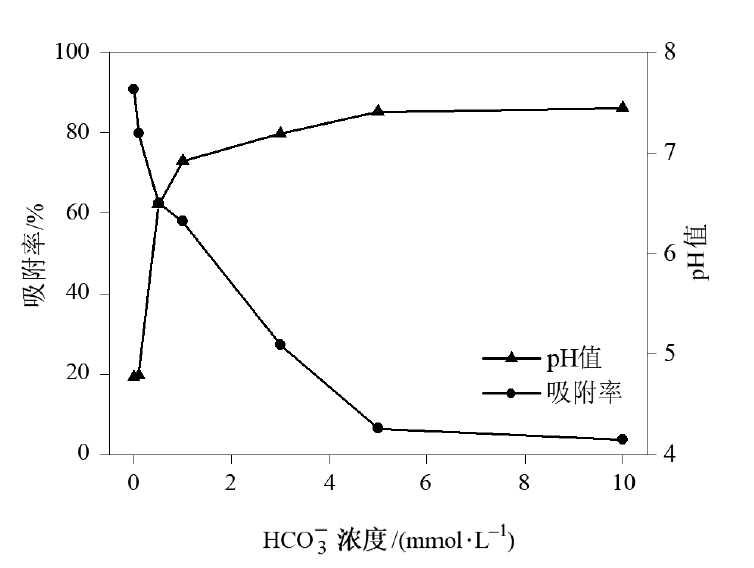

Fig.3 Effects of HCO 3 - concentration on the uranium adsorption capacity of sandstone and pH

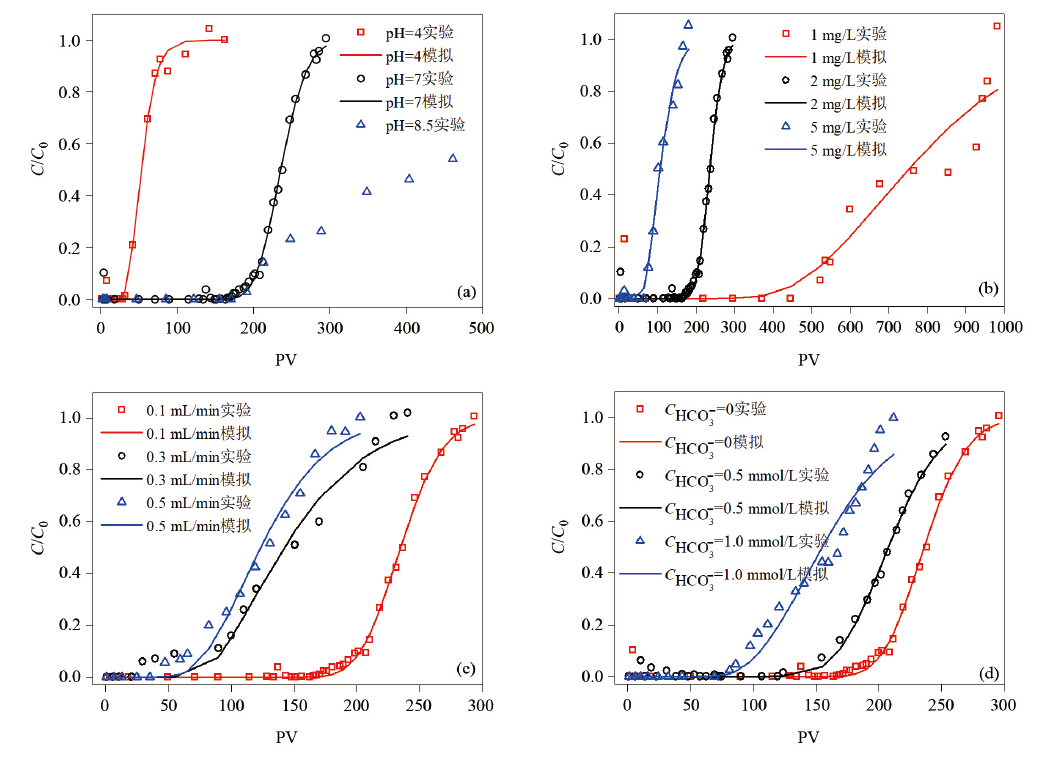

Fig.4 Breakthrough curves of uranium adsorption in sandstone columns under different conditions a—CU=2 mg/L, Q=0.1 mL/min, C H C O 3 -=0; b—pH=7, Q=0.1 mL/min, C H C O 3 -=0 mmol/L; c—pH=7, CU=2 mg/L, C H C O 3 -=0; and d—pH=7, CU=2 mg/L, Q=0.1 mL/min。

Table 6 The fitted parameters of breakthrough curves of uranium adsorption in sandstone column

条件	k'_d/(mL·g^-1)	ω/(10³ min^-1)	R²
pH=4	9.82	1.720	0.995
pH=7	117	0.182	0.997
C_U=1 mg/L	159	0.122	0.936
C_U=2 mg/L	117	0.182	0.997
C_U=5 mg/L	23.9	0.828	0.989
流速0.1 mL/min	117	0.182	0.974
流速0.3 mL/min	49.5	0.604	0.977
流速0.5 mL/min	39.5	1.228	0.997
$C H C O 3 -$ =0	117	0.182	0.997
$C H C O 3 -$ =0.5 mmol/L	58.9	0.483	0.996
$C H C O 3 -$ =1.0 mmol/L	48.1	4.759	0.964

Table 6 The fitted parameters of breakthrough curves of uranium adsorption in sandstone column

条件	k'_d/(mL·g^-1)	ω/(10³ min^-1)	R²
pH=4	9.82	1.720	0.995
pH=7	117	0.182	0.997
C_U=1 mg/L	159	0.122	0.936
C_U=2 mg/L	117	0.182	0.997
C_U=5 mg/L	23.9	0.828	0.989
流速0.1 mL/min	117	0.182	0.974
流速0.3 mL/min	49.5	0.604	0.977
流速0.5 mL/min	39.5	1.228	0.997
$C H C O 3 -$ =0	117	0.182	0.997
$C H C O 3 -$ =0.5 mmol/L	58.9	0.483	0.996
$C H C O 3 -$ =1.0 mmol/L	48.1	4.759	0.964

Table 7 Partition coefficients from column and batch experiments

条件	柱实验分配系数 k'_d/(mL·g^-1)	批实验分配系数 k_d/(mL·g^-1)
pH=4	9.81	65.1
pH=7	117	637
C_U=1 mg/L	159	189
C_U=2 mg/L	117	133
C_U=5 mg/L	23.9	55.5
$C H C O 3 -$ =0	117	133
$C H C O 3 -$ =0.5 mmol/L	58.9	83.1
$C H C O 3 -$ =1.0 mmol/L	48.1	69.0

Table 7 Partition coefficients from column and batch experiments

条件	柱实验分配系数 k'_d/(mL·g^-1)	批实验分配系数 k_d/(mL·g^-1)
pH=4	9.81	65.1
pH=7	117	637
C_U=1 mg/L	159	189
C_U=2 mg/L	117	133
C_U=5 mg/L	23.9	55.5
$C H C O 3 -$ =0	117	133
$C H C O 3 -$ =0.5 mmol/L	58.9	83.1
$C H C O 3 -$ =1.0 mmol/L	48.1	69.0
