Kd-based transport modeling of uranium in groundwater at an acid leaching uranium mine

doi:10.13745/j.esf.sf.2023.2.69

Abstract

Abstract:

Uranium (U) contamination of groundwater at in-situ leaching uranium mines is a global environmental geological problem. Accurately predicting the transport range of U in the groundwater outside the in-situ leaching mining areas is crucial to radiation risk assessment. In this study, the migration range of groundwater U at different production times was quantitatively simulated and predicted by numerical simulation method from an acid in-situ leaching uranium mine. The numerical simulation results showed that the mining activities of in-situ leaching uranium significantly changed the groundwater flow field in the mining area, and depression cones were induced by the high ratio of pumping to injection inside the mining area. On the basis of flow modeling, the transport model of groundwater U without considering adsorption and the retardation transport model based on K_d value were established. According to the groundwater pH of production well and monitoring wells at different distances outside the mining area, different K_d value was assigned by regions. By comparing the simulation results of the two models, it could be found that when considering the adsorption-retardation effect of aqueous medium on groundwater U, the simulation results could be better fitted with the field monitoring data, indicating that the migration of U in groundwater was significantly retarded by the aqueous medium. The U reactive transport model showed that the migration distance and range were reduced by 53% and 41%, respectively. Besides, the model predicted that the migration distance of groundwater U in the mining area was 50 m after 5 years of mining, which was consistent with the monitoring results. It was proven that the numerical simulation method, as an effective tool, could be successfully used to predict the impact of in-situ mining on groundwater environment at the uranium mining site.

Key words: in-situ leaching uranium mine, groundwater environment, numerical simulation, reactive transport

CLC Number:

X523

YANG Bing, MENG Tong, GUO Huaming, LIAN Guoxi, CHEN Shuaiyao, YANG Xi. K_d-based transport modeling of uranium in groundwater at an acid leaching uranium mine[J]. Earth Science Frontiers, 2024, 31(3): 381-391.

Figures/Tables 19

Fig.1 The monitoring well sites of C1-C9 mining areas

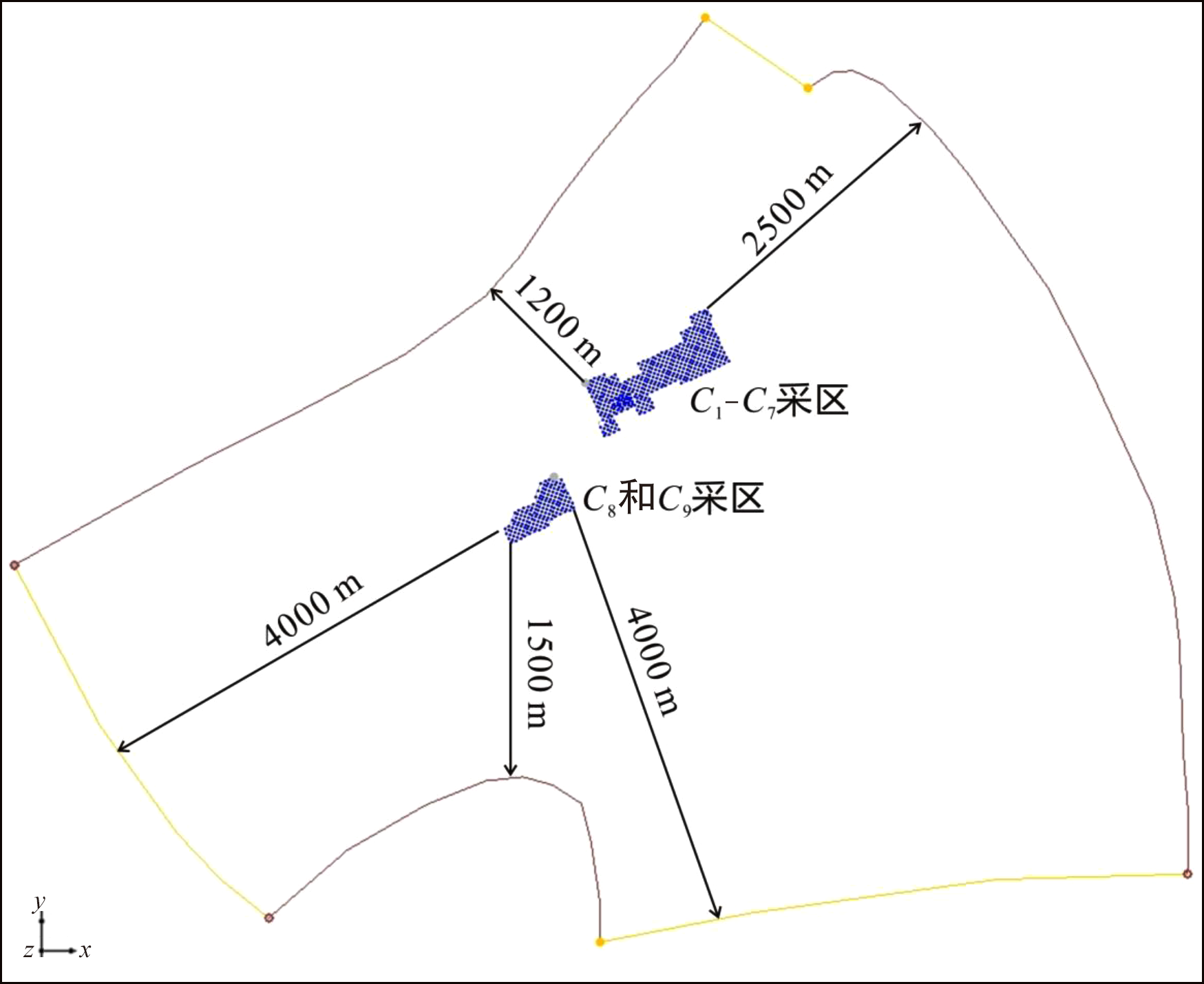

Fig.2 The range of models

Table 1 Main input parameters

序号	参数及其单位	数值
1	渗透系数,m/d	5.76
2	垂直各向异性系数	10
3	孔隙度,%	30
4	纵向弥散度,m	2
5	横向弥散度,m	20
6	弹性释水率,m^-1	10^-5

Fig.3 The conceptualization flow rate of production and injection wells

Fig.4 The horizontal spatial discretization

Fig.5 The vertical spatial discretization

Table 2 The pH value of groundwater in different wells

井编号	井类型	位置	pH
KC9502	抽液井	采区内	1.19
6034-1	监测井	采区边界外10 m	2.15
6034-2	监测井	采区边界外30 m	7.38
6034-3	监测井	采区边界外50 m	7.45
6034-4	监测井	采区边界外100 m	7.35
6034-5	监测井	采区边界外150 m	7.27

Fig.6 The Kd Model partition diagram

Table 3 The fitted parameters

序号	观测/拟合日期	(X_obs)_max	(X_obs)_min	n	$1 n ∑ i = 1 n R i 2$	误差/ %	备注
1	2018-11-06	940.65	938.51		0.32	15.15	模型识别
2	2019-05-10	940.84	938.77		0.33	15.95
3	2019-07-21	941.51	938.00	21	0.47	13.48
4	2019-11-17	941.37	939.15		0.46	20.60	模型验证

Table 3 The fitted parameters

序号	观测/拟合日期	(X_obs)_max	(X_obs)_min	n	$1 n ∑ i = 1 n R i 2$	误差/ %	备注
1	2018-11-06	940.65	938.51		0.32	15.15	模型识别
2	2019-05-10	940.84	938.77		0.33	15.95
3	2019-07-21	941.51	938.00	21	0.47	13.48
4	2019-11-17	941.37	939.15		0.46	20.60	模型验证

Table 4 The fitting distribution of absolute mean errors

观测/拟合日期	平均绝对误差范围	观测井个数	各误差范围观测井个数占总数的比例/%
2018-11-06	<0.5 m	18	85.71
	0.5~1 m	3	14.29
	0 m	0	0
2019-05-10	<0.5 m	18	85.71
	0.5~1 m	3	14.29
	0 m	0	0
2019-07-21	<0.5 m	15	71.43
	0.5~1 m	6	28.57
	0 m	0	0
2019-11-17	<0.5 m	13	61.91
	0.5~1 m	7	33.33
	0 m	1	4.76

Fig.7 The fitting of waterhead in monitoring wells in 2018-2019 (A—in November 2018; B—in May 2019; C—in July 2019; D—in November 2019)

Fig.8 The flow field diagram at different simulation time

Fig.9 Diagram of falling funnel in mining area

Fig.10 The fitting results of U concentration distribution in groundwater from C8 mining area

Fig.11 Comparison of simulated and measured groundwater U concentration

Fig.12 The U migration range when the retardation was considered

Fig.13 The fitting results of U(IV) concentration in 6034-1 monitoring well

Fig.14 The distribution of U concentrations in C8 mining area groundwater at the end of the simulation period when the adsorbent retardation was not considered

Fig.15 The distribution of U concentrations in C8 mining area groundwater at the end of the simulation period when the adsorbent retardation was considered
