SUN Zhe1(), ZHANG Bin1,2,*(), CHEN Dawei1, LI Yutao1, WANG Hanxun1,2
Received:
2022-07-05
Revised:
2022-09-28
Online:
2023-05-25
Published:
2023-04-27
CLC Number:
SUN Zhe, ZHANG Bin, CHEN Dawei, LI Yutao, WANG Hanxun. Two-phase oil/water seepage in fractured granite rock mass: Insight from seepage visualization experiment and numerical simulation[J]. Earth Science Frontiers, 2023, 30(3): 465-475.
组别 | D | R2 | δ/mm | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
a面 | b面 | a面 | b面 | a面 | b面 | ||||||
1 | 2.687 | 2.696 | 0.999 6 | 0.999 8 | 0.975 6 | 0.740 6 | |||||
2 | 2.620 | 2.661 | 0.999 7 | 0.999 7 | 0.565 7 | 0.634 3 | |||||
3 | 2.663 | 2.612 | 0.999 7 | 0.999 7 | 0.888 1 | 0.647 5 | |||||
4 | 2.730 | 2.640 | 0.999 7 | 0.999 7 | 0.634 3 | 0.585 8 | |||||
5 | 2.619 | 2.583 | 0.999 7 | 0.999 8 | 0.888 1 | 0.467 1 | |||||
6 | 2.742 | 2.695 | 0.999 8 | 0.999 6 | 0.922 5 | 1.128 4 |
Table 1 Calculated fractal parameters
组别 | D | R2 | δ/mm | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
a面 | b面 | a面 | b面 | a面 | b面 | ||||||
1 | 2.687 | 2.696 | 0.999 6 | 0.999 8 | 0.975 6 | 0.740 6 | |||||
2 | 2.620 | 2.661 | 0.999 7 | 0.999 7 | 0.565 7 | 0.634 3 | |||||
3 | 2.663 | 2.612 | 0.999 7 | 0.999 7 | 0.888 1 | 0.647 5 | |||||
4 | 2.730 | 2.640 | 0.999 7 | 0.999 7 | 0.634 3 | 0.585 8 | |||||
5 | 2.619 | 2.583 | 0.999 7 | 0.999 8 | 0.888 1 | 0.467 1 | |||||
6 | 2.742 | 2.695 | 0.999 8 | 0.999 6 | 0.922 5 | 1.128 4 |
材料 | 抗压强度/MPa | 弹性模量/MPa | 渗透系数/(m·s-1) |
---|---|---|---|
透明光敏树脂 | 79 | 2 000~3 000 | 10-12~10-10 |
花岗岩 | 75 | 35 000 | 10-8~10-7 |
Table 2 Comparison of physical and mechanical properties of resin materials and granite
材料 | 抗压强度/MPa | 弹性模量/MPa | 渗透系数/(m·s-1) |
---|---|---|---|
透明光敏树脂 | 79 | 2 000~3 000 | 10-12~10-10 |
花岗岩 | 75 | 35 000 | 10-8~10-7 |
参数 | 数值 | 单位 |
---|---|---|
水相黏度 | 0.001 | Pa·s |
油相黏度 | 0.003 4 | Pa·s |
水相密度 | 998 | kg/m3 |
油相密度 | 920 | kg/m3 |
渗流压力 | 50,100,150 | kPa |
隙宽 | 0.3,0.7,1.0 | mm |
分形维数 | 2.3,2.5,2.8 | |
标准差 | 0.5,0.7,1.0 | mm |
相界面张力系数 | 0.031 | N/m |
相界面厚度 | 0.000 5 | m |
Table 3 Parameters used in numerical simulation
参数 | 数值 | 单位 |
---|---|---|
水相黏度 | 0.001 | Pa·s |
油相黏度 | 0.003 4 | Pa·s |
水相密度 | 998 | kg/m3 |
油相密度 | 920 | kg/m3 |
渗流压力 | 50,100,150 | kPa |
隙宽 | 0.3,0.7,1.0 | mm |
分形维数 | 2.3,2.5,2.8 | |
标准差 | 0.5,0.7,1.0 | mm |
相界面张力系数 | 0.031 | N/m |
相界面厚度 | 0.000 5 | m |

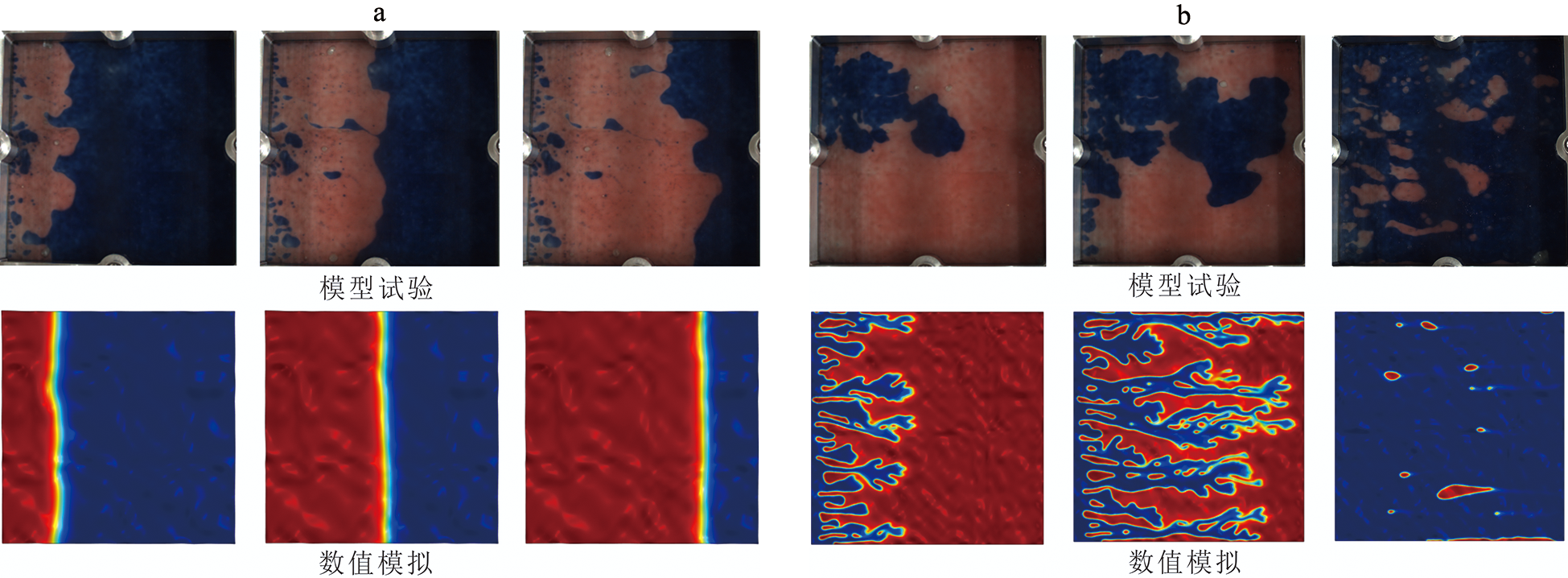

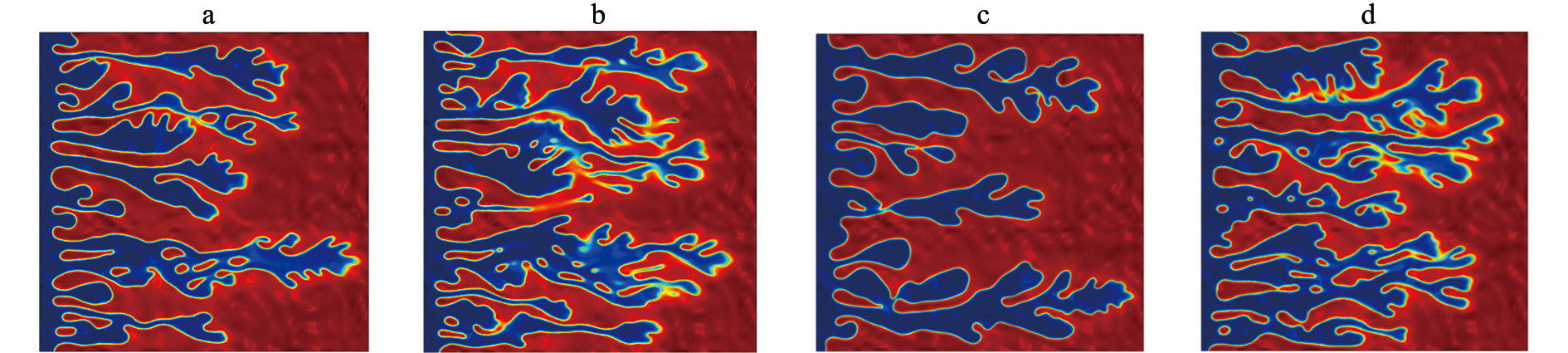

Fig.7 Comparison of observed and simulated oil-flooding (a)/water-flooding (b) fronts at different time points resulting from piston-flow/fingered-flow movements
Fig.10 Variability of water displacement-time under oil flooding as functions of (from left) fluid pressure, fracture width, fractal dimension and fracture roughness
