In-situ microchronology and elemental analysis of pitchblende in the Pajiang uranium deposit, northern Guangdong: Implications for uranium mineralization

doi:10.13745/j.esf.sf.2023.11.70

Abstract

Abstract:

The Pajiang uranium deposit is located in the southern Taoshan-Zhuguang uranium metallogenic belt of the southwestern Fogang pluton. It is a typical granite-related U deposit, the only one found in the Fogang pluton, and uranium mineralization is strictly controlled by fault structures. In this paper, the mineralogy, microgeochemistry and chronology of pitchblende and pyrite in the Pajiang uranium deposit are studied by means of petrography, scanning electron microscopy (SEM), electron probe microanalysis (EPMA) and in-situ laser ablation inductively coupled technique (LA-ICP-MS). In-situ LA-ICP-MS U-Pb dating of pitchblende yielded a weighted mean age of 49.70 ± 0.1 Ma, which corresponds to the Late Cretaceous, and is within the main metallogenic epoch (75-50 Ma) of South China. This indicates that the formation of the Pajiang uranium deposit is consistent with regional metallogeny and belongs to a regional metallogenic event. The total rare earth element (REE) content in pitchblende was (311.5-368.3)×10^-6 and the U/Th ratio was 17067-26524, suggesting that the uranium deposit is of medium-low-temperature hydrothermal origin. The TE_1,3 value of REE was 0.95-1.01, with quasi tetrad effect characteristics, indicating fluorine enrichment in the ore-forming fluids. In addition, the Co/Ni ratio of pyrite ranged between 5-26 in the Pajiang uranium deposit, suggesting the uranium deposit is of hydrothermal origin. Based on the above analysis, it is considered that the Pajiang uranium deposit is of medium-low-temperature hydrothermal type.

Key words: pitchblende, pyrite, chronology, geochemistry, Pajiang uranium deposit

CLC Number:

LI Haidong, TIAN Shihong, LIU Bin, HU Peng, WU Jianyong, CHEN Zhengle. In-situ microchronology and elemental analysis of pitchblende in the Pajiang uranium deposit, northern Guangdong: Implications for uranium mineralization[J]. Earth Science Frontiers, 2024, 31(2): 270-283.

Figures/Tables 12

Fig.1 Geotectonic location, deep and large fractures and uranium ore distribution sketch of the study area. Adapted from [14].

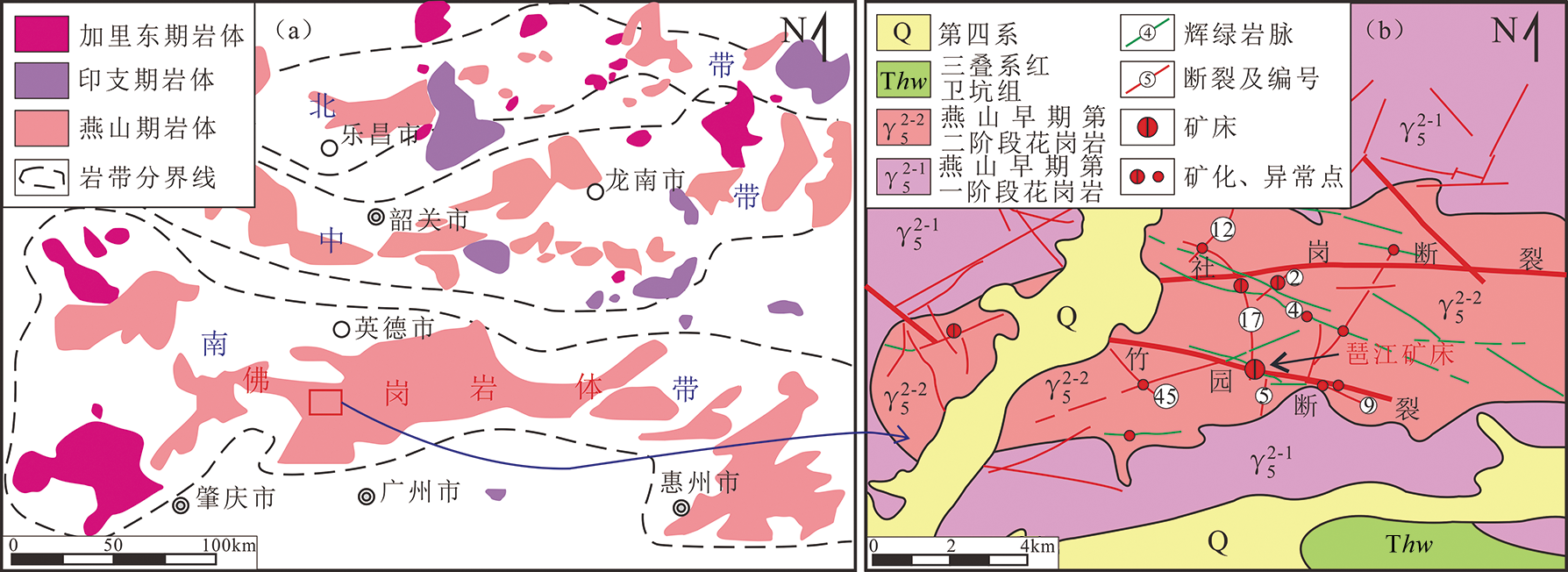

Fig.2 Geological sketch of Pajiang uranium deposit((a)According to Research Institute No.290, CNNC[17];(b)According to No.705 Geological Party[18])

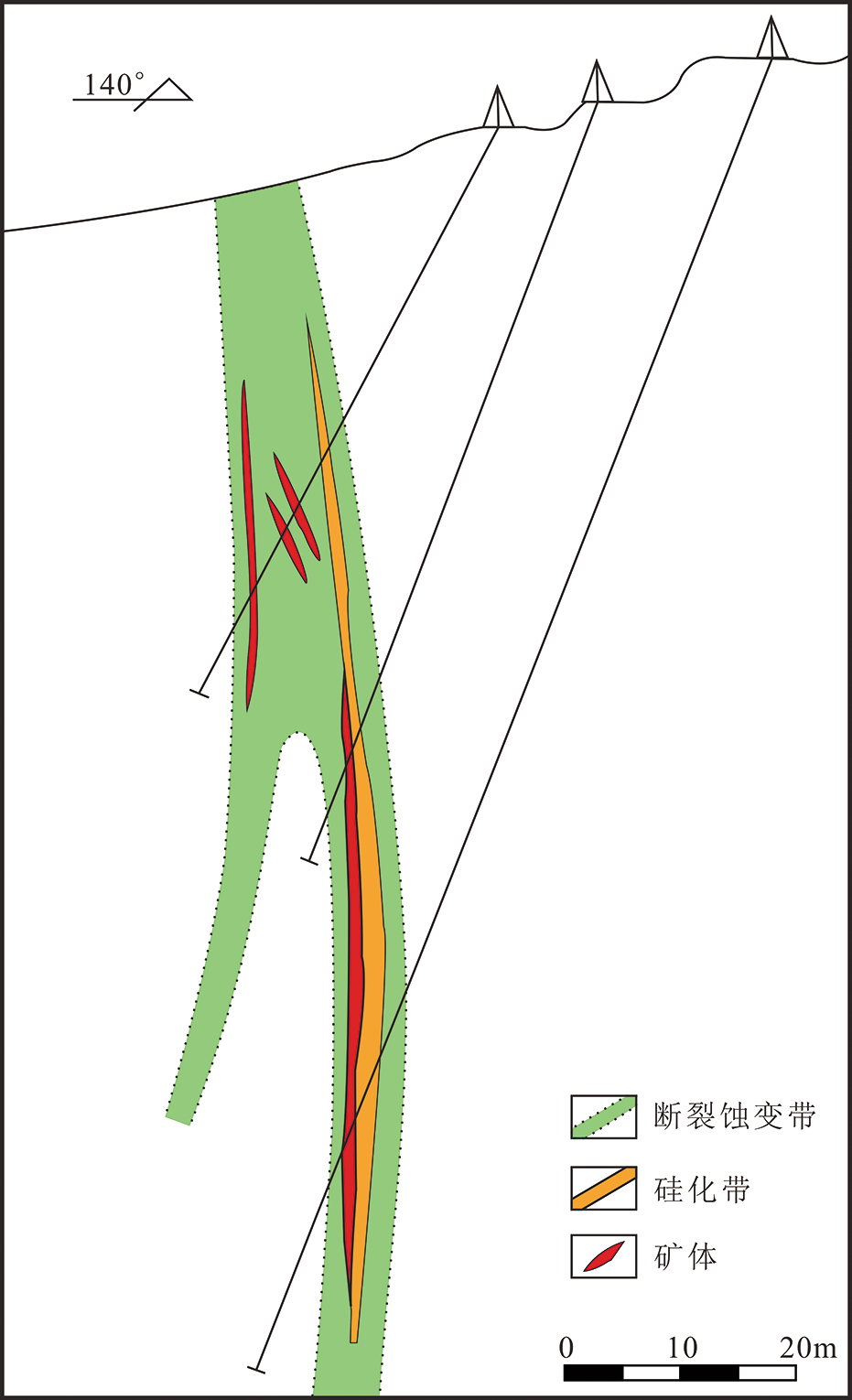

Fig.3 Borehole profile of Zone 2 of the Pajiang uranium deposit (According to No.705 Geological Party[18])

Fig.4 Characteristics of gangue minerals in ore minerals of Pajiang uranium deposit (a,b: mineral hand specimen; c: reflected light; d,e: transmitted light; f-h: backscattered photos)

Table 1 LA-ICP-MS U-Pb dating results of Pitch uranium ore in Pajiang uranium deposit

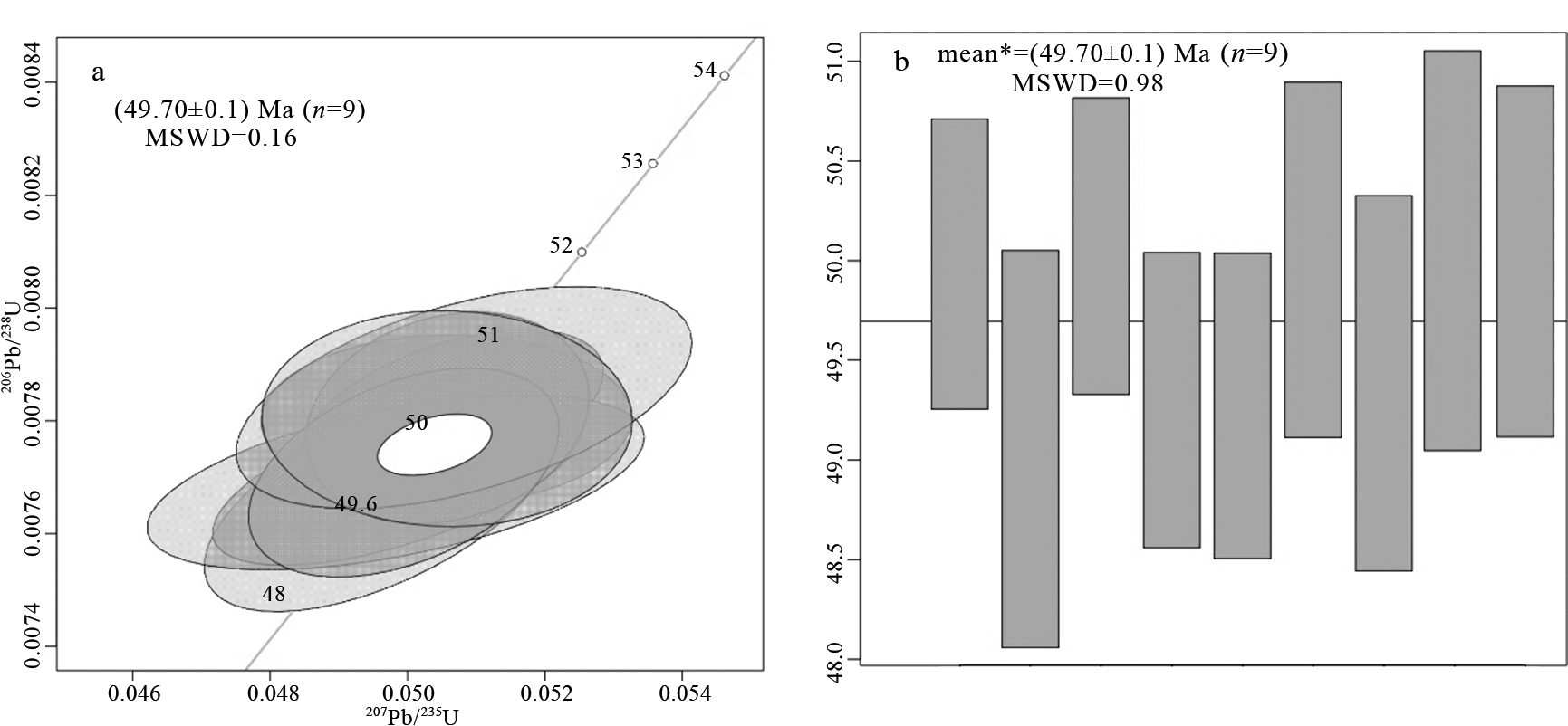

Fig.5 In situ U-Pb age harmony diagram of pitchblende in Pajiang uranium deposit (a) and 207Pb corrected 206Pb*/238U weighted average age (b)

Table 2 Analysis results of major elements of pitchblende in Pajiang uranium deposit

Table 3 Rare earth element analysis results of pitchblende in Pajiang uranium deposit

Table 4 Analysis results of trace and rare earth elements of pyrite in Pajiang uranium deposit

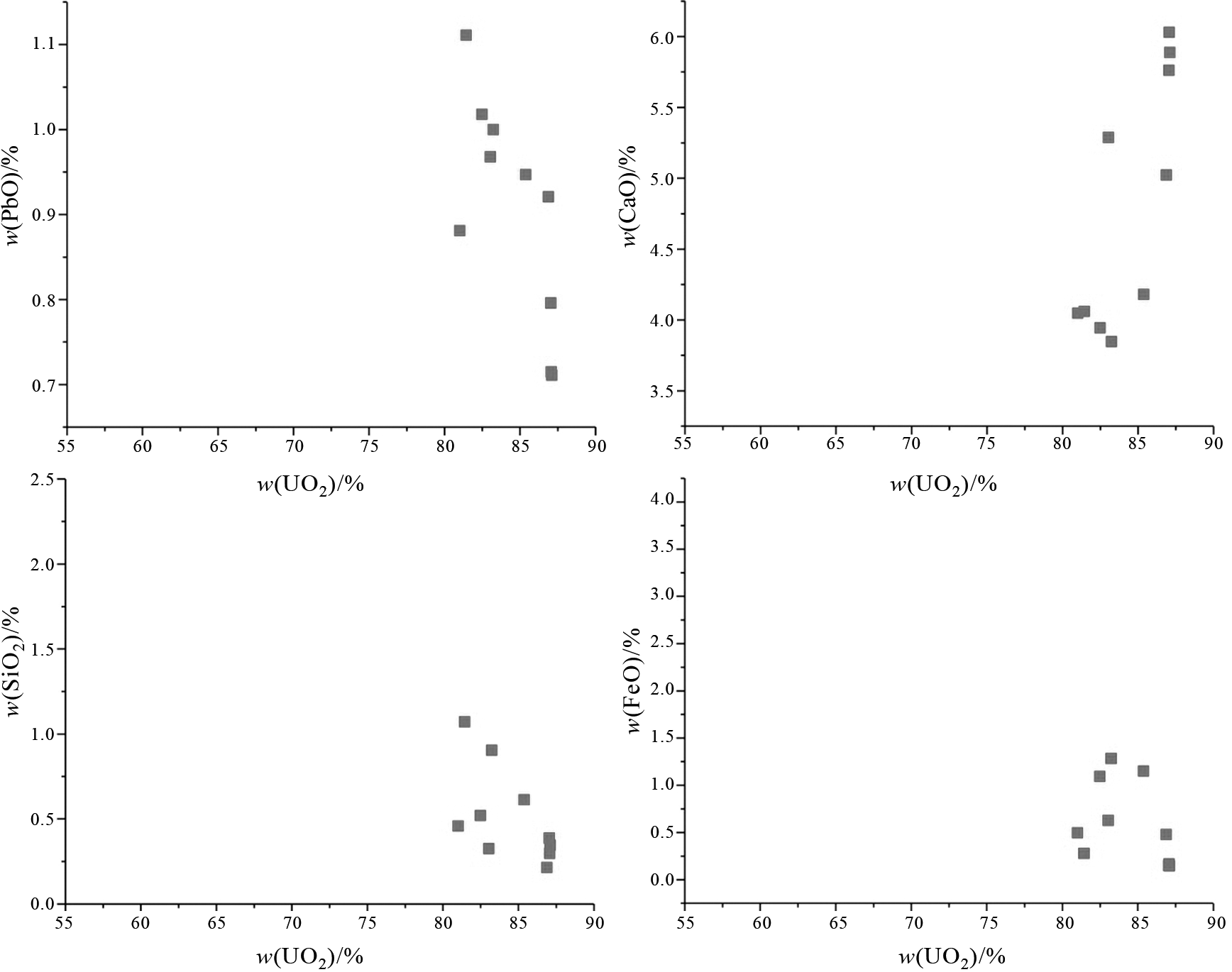

Fig.6 Two dimensional diagram of major elements of pitchblende in Pajiang uranium deposit

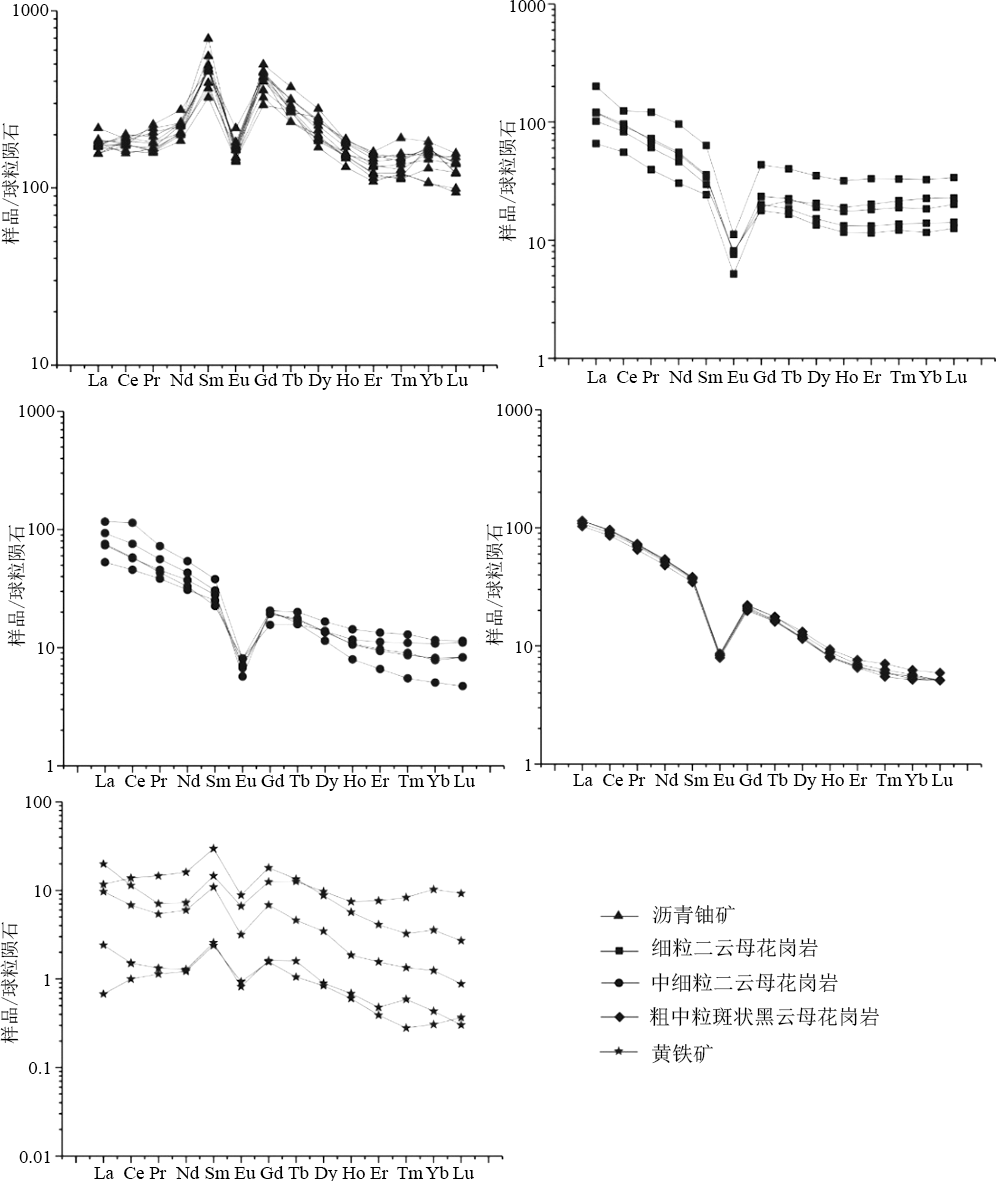

Fig.7 Distribution diagram of surrounding rock and mineral rare earth elements of Pajiang uranium deposit

Fig.8 Two dimensional Co-Ni covariance map of pyrite in Pajiang uranium deposit
