Analysis and discrimination of tectonic settings based on stacking quantum neural networks

doi:10.13745/j.esf.sf.2023.3.3

Abstract

Abstract:

Quantum geoscience represents a cutting-edge interdisciplinary field that leverages quantum computing and quantum machine learning algorithms to revolutionize the analysis of geological data. Among these advancements, the quantum neural network stands out for its efficiency and accuracy in processing complex multi-source data. This study focuses on addressing the challenge of discriminating tectonic settings, enhancing the quantum neural network (S-QNN) with an ensemble strategy to differentiate between basalt, gabbro, and spinel settings. Comparative analyses are conducted with four traditional algorithms (SVM, RF, KNN, NB), artificial neural network (ANN), and traditional quantum neural network (QNN). Results demonstrate that the S-QNN model outperforms the optimal traditional algorithm by 5.67%, 6.19%, and 13.34% in the respective cases, and surpasses the QNN by 3.11%, 4.99%, and 3.84%. The S-QNN model exhibits robustness and versatility, highlighting its superiority in data processing. This study underscores the potential of quantum machine learning algorithms in geoscience research, showcasing the advantages of S-QNN and paving the way for innovative integration of quantum science and geoscience.

Key words: quantum geoscience, tectonic settings discrimination, rock and mineral, geochemistry, stack integration algorithm, stacking quantum neural network (S-QNN)

CLC Number:

ZHANG Jiawen, LI Mingchao, HAN Shuai, ZHANG Jingyi. Analysis and discrimination of tectonic settings based on stacking quantum neural networks[J]. Earth Science Frontiers, 2024, 31(3): 511-519.

Figures/Tables 12

Fig.1 Schematic diagram of quantum neural network

Fig.2 Definitions and matrix representations of quantum gates

Fig.3 Construction of stacking quantum neural network

Fig.4 Correlation matrix of chemical composition of rocks and minerals (a) Basalt; (b) Gabbro; (c) Spinel.

Table 1 Test accuracy of traditional algorithm in basalt discrimination

类别	各传统算法的测试准确率/%
类别	SVM	RF	KNN	NB	MLP
IAB	83.02	83.02	69.81	88.68	84.91
MORB	88.89	88.89	74.07	74.07	81.48
OIB	83.02	90.57	62.26	33.96	90.57
总体	85.00	87.50	68.75	65.63	85.63

Table 2 Test accuracy of traditional algorithm in gabbro discrimination

类别	各传统算法的测试准确率/%
类别	SVM	RF	KNN	NB	MLP
IAG	63.16	80.70	52.63	68.42	73.68
MORG	100.00	100.00	100.00	100.00	100.00
OIG	68.12	66.67	78.26	44.93	69.57
总体	76.11	81.11	76.67	68.89	80.00

Table 3 Test accuracy of traditional algorithm in spinel discrimination

类别	各传统算法的测试准确率/%
类别	SVM	RF	KNN	NB	MLP
CMS	80.00	77.65	61.18	63.53	61.18
OIS	66.00	60.00	64.00	68.00	74.00
SCS	63.04	63.04	76.09	80.43	60.87
总体	71.82	69.06	65.75	69.06	64.64

Fig.5 Confusion matrix of discrimination results of QNN (a) Basalt; (b) Gabbro; (c) Spinel.

Fig.6 Training process QNN model (a) Basalt; (b) Gabbro; (c) Spinel.

Table 4 Parameters of base learners of S-QNN model

元学习机	网络层数	学习速率	批处理数目	迭代步数
QNN-1	6	0.005	10	90
QNN-2	6	0.012	32	90
QNN-3	7	0.008	16	120
QNN-4	8	0.005	20	150
QNN-5	10	0.004	30	150

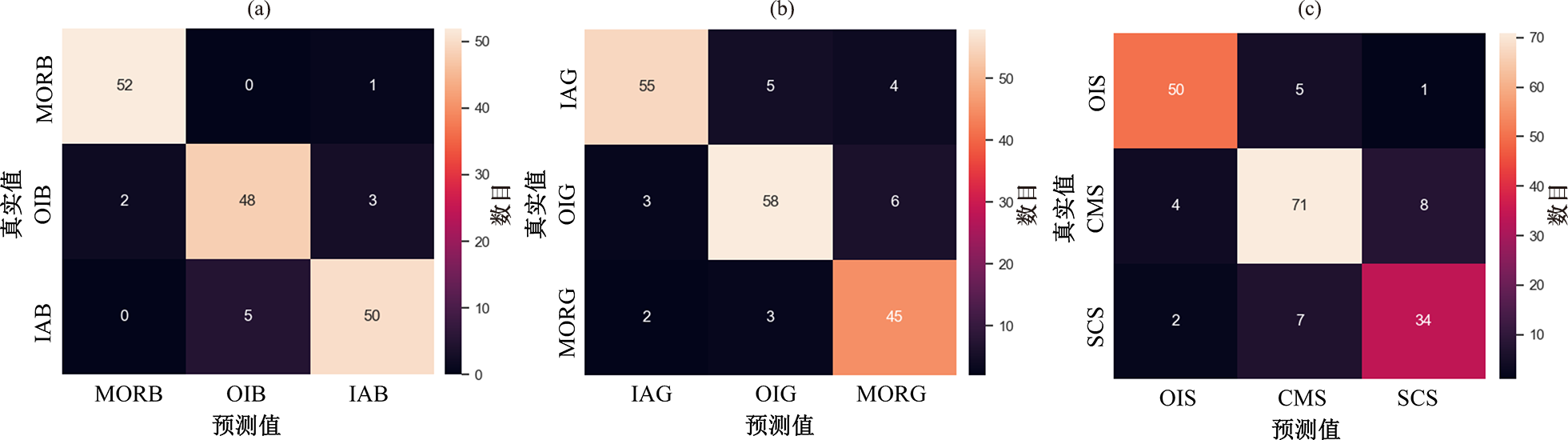

Fig.7 Confusion matrix of discrimination results of S-QNN (a) Basalt; (b) Gabbro; (c) Spinel.

Fig.8 Comparison of discriminant accuracy among different algorithms

References 47
