Degradation of naphthalene by microorganisms in groundwater: Characteristics and kinetics

doi:10.13745/j.esf.sf.2021.2.18

Abstract

Abstract:

The effective naphthalene degrading bacteria Acinetobacter sp. and Pseudomonas sp. were discovered through a screening of petroleum contaminated groundwater in Northeast China. These bacteria had high tolerance to naphthalene and good emulsification effect, and can automatically regulate cell surface hydrophobicity and self-aggregation. The effects of pH, naphthalene initial concentration, temperature and inoculation condition on naphthalene degradation were studied experimentally. We found that the optimal pH range for bacterial growth was 7.0-8.0; the degradation efficiency was positively correlated with the naphthalene initial concentration of 1.00-5.00 mg/L; and the bacteria performed most efficiently between 10-30 ℃. On this basis, the Guass, GuassAmp, LogNomal, Poisson and Pulse models were used to fit the degradation kinetics measurements. In the final analysis, the GuassAmp model gave the best fit and the kinetic equation of naphthalene degradation under the influence of multiple factors was derived.

Key words: groundwater, naphthalene, biodegradation, mixed bacterial community, kinetics

CLC Number:

X523
P593

ZHANG Shengyu, ZHANG Menghuan, WANG Ligang, WAN Yuyu. Degradation of naphthalene by microorganisms in groundwater: Characteristics and kinetics[J]. Earth Science Frontiers, 2021, 28(5): 146-158.

Figures/Tables 18

Table 1 Bacterial culture parameters for naphthalene degradation experiment

pH值	萘初始浓度C/(mg·L^-1)	温度T/℃	菌接种量I/%
4.09.0	5.00	10	5
8.0	1.005.00	10	5
8.0	5.00	1030	5
8.0	5.00	10	15

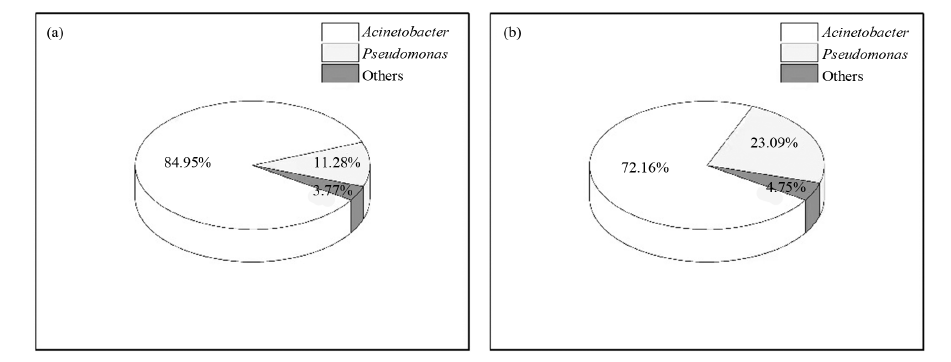

Fig.1 Abundance of bacterial genera at the beginning (a) and after 30 days (b) of biodegradation

Table 2 Statistical table for alpha diversity indices (before and after microbial degradation)

时段	物种数目 OTUnum	多样性指数 Shannon	多样性指数 Simpson	丰度指数 Chao1	覆盖率 Coverage/%	丰度指数 ACE
降解前	1 787	0.67	0.84	194 617.75	0.97	679 207.00
降解后	1 509	0.79	0.76	924 67.58	0.96	383 534.55

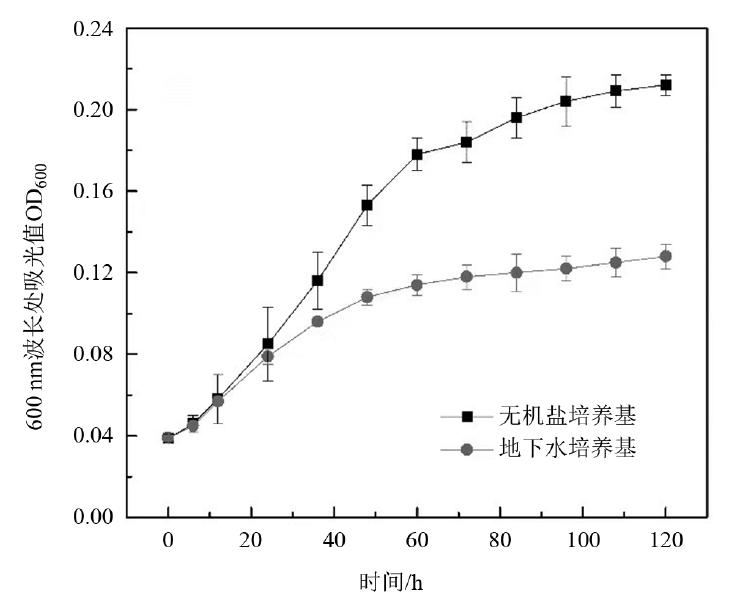

Fig.2 Bacterial growth curves in groundwater medium and MSM

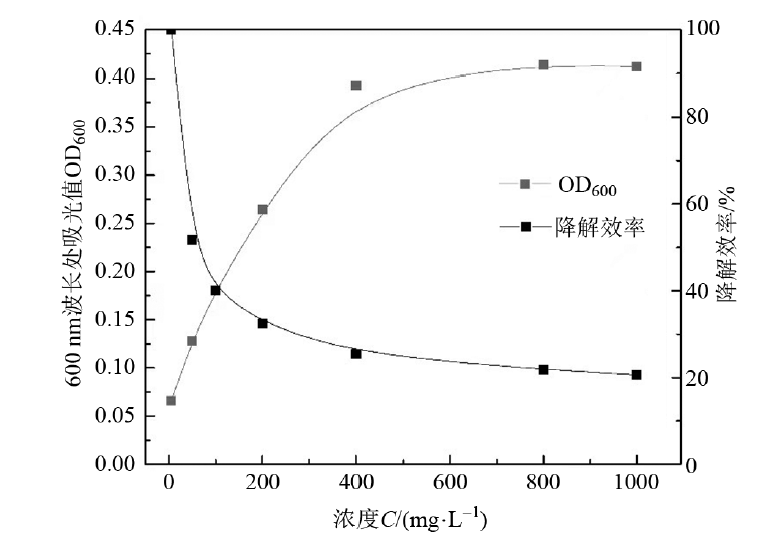

Fig.3 Bacteria growth and degradation efficiency in culture media with different naphthalene concentrations

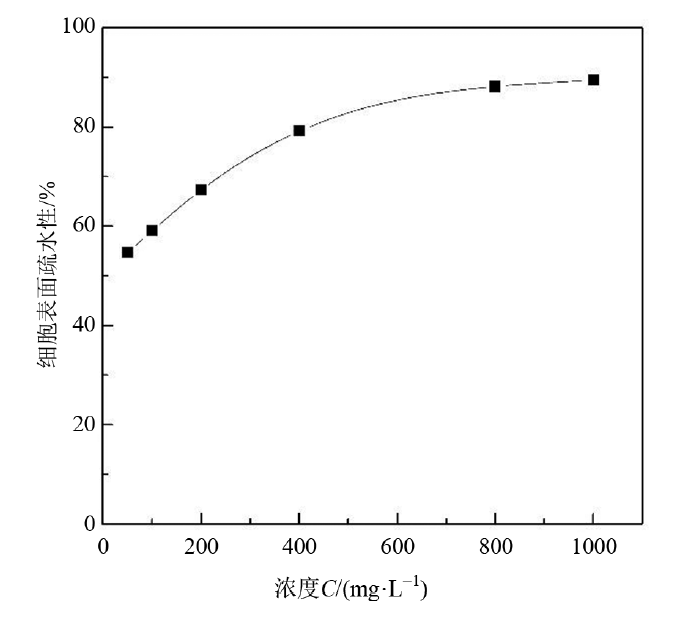

Fig.4 Variation of bacterial cell surface hydrophobicity with naphthalene concentration

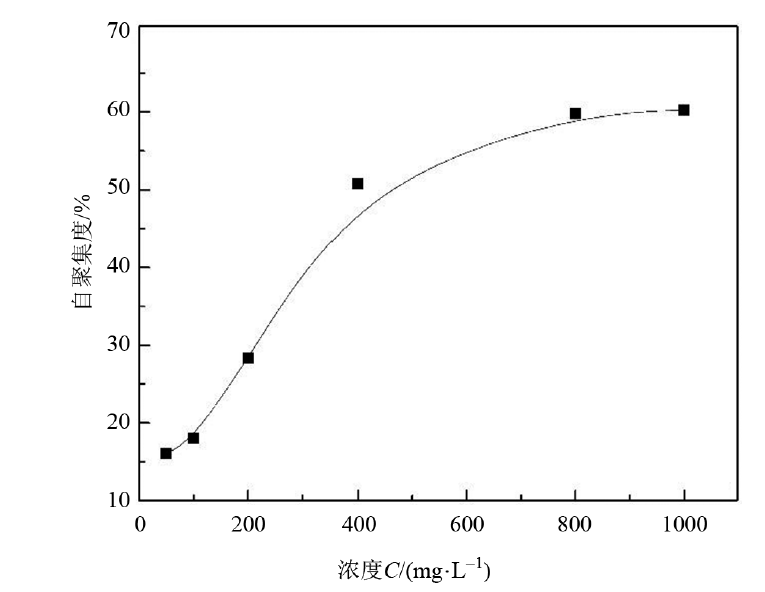

Fig.5 Effect of naphthalene concentration on bacterial auto-aggregation

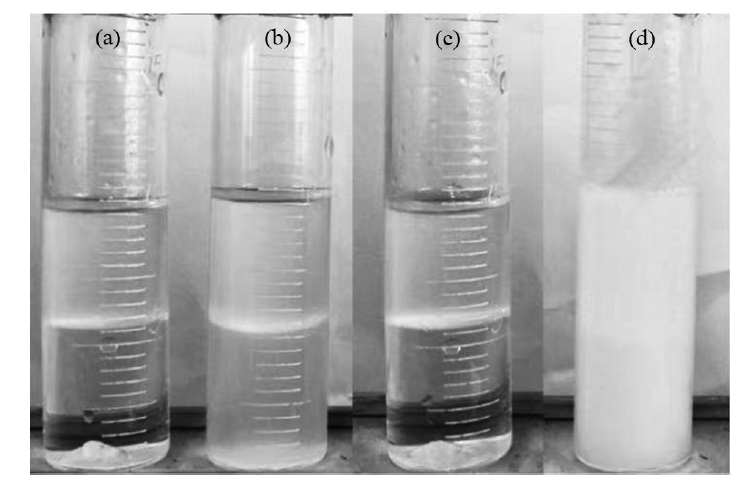

Fig.6 Emulsification of diesel oil by liquid bacteria

Fig.7 Changes of naphthalene concentration and biomass over time

Fig.8 Effect of pH on the naphthalene degradation kinetics (a) and average rate and efficiency of naphthalene degradation at different pH (b)

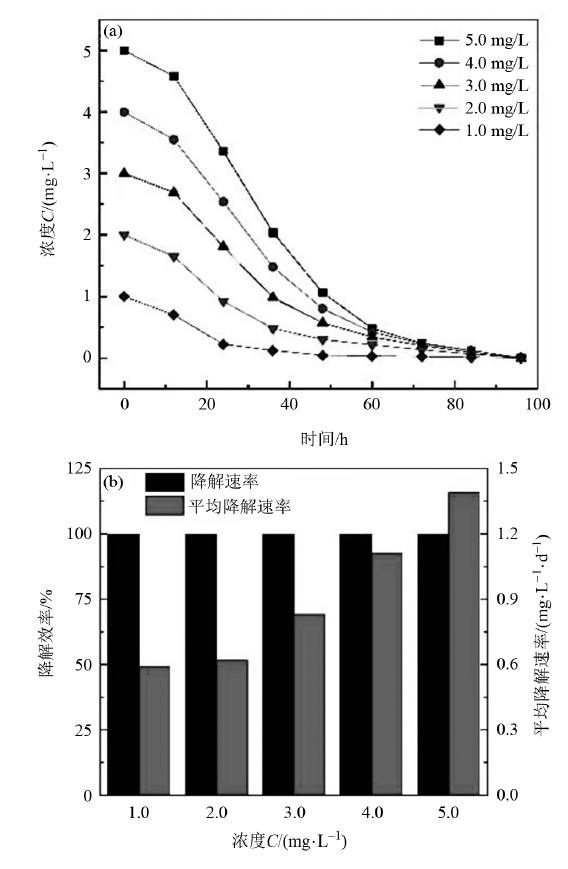

Fig.9 Naphthalene degradation curves (a) and average rate and efficiency of naphthalene degradation (b) under different initial concentrations

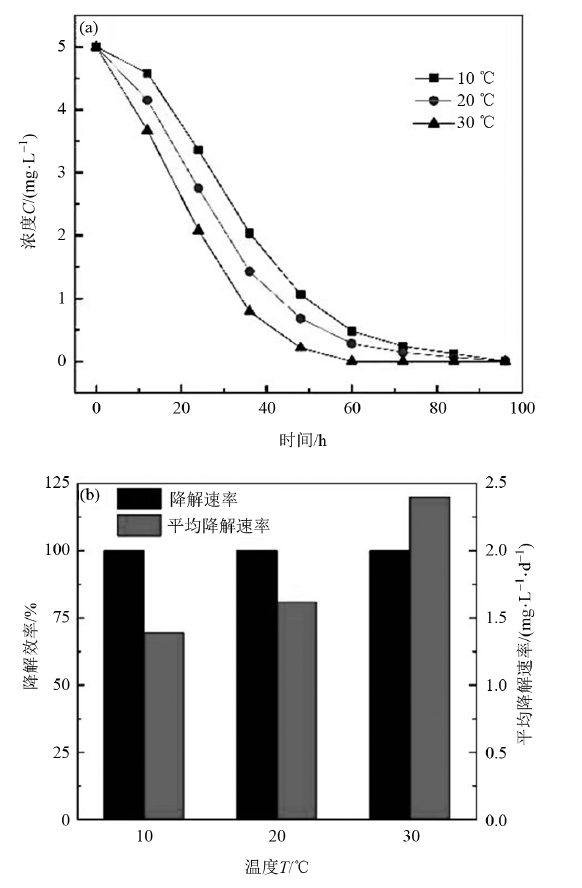

Fig.10 Effect of temperature on naphthalene degradation (a) and average rate and efficiency of naphthalene degradation under different temperatures (b)

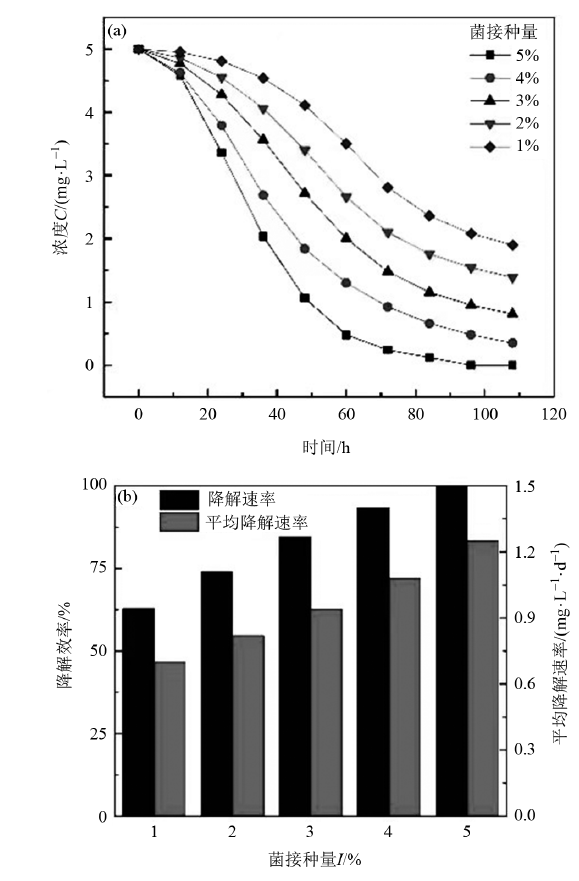

Fig.11 Effect of inoculum concentration on naphthalene degradation (a) and average rate and efficiency of naphthalene degradation under different inoculum concentrations (b)

Table 3 Curve equations

方程名称	方程形式
Guass	y=y₀+ $A w π 2 e - 2 (x - x c) 2 w 2$
GuassAmp	y=y₀+A $e - 2 (x - x c) 2 w 2$
LogNomal	y=y₀+ $A 2 π wx e - ln x x c 2 2 w 2$
Poisson	y=y₀+ $e - r r x x!$
Pulse	y=y₀+A(1- $e x - x 0 t 1$ )^p $e - x - x 0 t 2$

Table 3 Curve equations

方程名称	方程形式
Guass	y=y₀+ $A w π 2 e - 2 (x - x c) 2 w 2$
GuassAmp	y=y₀+A $e - 2 (x - x c) 2 w 2$
LogNomal	y=y₀+ $A 2 π wx e - ln x x c 2 2 w 2$
Poisson	y=y₀+ $e - r r x x!$
Pulse	y=y₀+A(1- $e x - x 0 t 1$ )^p $e - x - x 0 t 2$

Table 4 Degradation kinetics of naphthalene at different pH fitted by GuassAmp model

初始条件								常数						相关系数 R²
萘初始浓度 C/(mg·L^-1)	温度 T/℃		菌接种量 I/%		pH值			α		β		γ		相关系数 R²
5.00		10		5		8.0	2.721		36.14		24.27		0.951
						7.0	2.635		51.13		25.90		0.991
						6.0	2.098		57.57		24.74		0.994
						5.0	1.639		58.89		20.86		0.983

Table 5 Degradation kinetics of naphthalene under different initial concentrations fitted by GuassAmp model

初始条件								常数						相关系数 R²
pH值	温度 T/℃		菌接种量 I/%		萘初始浓度 C/(mg·L^-1)			α		β		γ		相关系数 R²
8.0		10		5		5.00	2.721		36.14		24.27		0.951
						4.00	2.182		33.79		23.59		0.945
						3.00	1.838		30.87		20.46		0.948
						2.00	1.429		25.96		16.45		0.994
						1.00	1.068		21.55		12.35		0.996

Table 6 Degradation kinetics of naphthalene under different temperatures fitted by GuassAmp model

初始条件								常数						相关系数 R²
pH值	萘初始浓度 C/(mg·L^-1)		菌接种量 I/%		温度 T/℃			α		β		γ		相关系数 R²
8.0		5.00		5		30	3.394		25.89		20.32		0.970
						20	2.946		30.30		22.27		0.958
						10	2.721		36.14		24.27		0.951

Table 7 Degradation kinetics of naphthalene under different inoculum concentrations fitted by GuassAmp model

初始条件								常数						相关系数 R²
pH值	萘初始浓度 C/(mg·L^-1)		温度 T/℃		菌接种量 I/%			α		β		γ		相关系数 R²
8.0		5.00		10		5	2.271		36.14		24.27		0.951
						4	2.047		39.80		29.26		0.949
						3	1.654		50.09		34.26		0.972
						2	1.431		56.23		33.94		0.985
						1	1.308		66.63		31.81		0.985
