Nitrogen removal during reclaimed water infiltration in soil aquifer treatment: Experimental simulation using soil column

doi:10.13745/j.esf.sf.2021.2.7

Abstract

Abstract:

Soil aquifer treatment (SAT) is an important method of artificial groundwater recharge. However, when reclaimed water is used as recharging source, the nitrogen species in water may pose pollution risks to groundwater in the recharging area. It is of great significance, therefore, to study the effects of various factors on nitrogen removal from reclaimed water in SAT. In this study, through soil column experiments (using a column of 200 cm in height and 50 cm in inner diameter), the effects of particle size, dry/wet ratio, biochar addition, temperature and infiltration rates on nitrogen removal were studied. The results showed that under the dry/wet ratio of 1∶1, the average removal efficiencies for NH₄-N in the effluents of fine and medium-fine sand columns were 73% and 66%, respectively, by adsorption and nitrification mainly, while NO₂-N was almost totally removed. Nitrification resulted in a NO₃-N concentration increase in the filtration system by 3.0%-4.1% on average in the effluent. Above the depth of 115 cm, nitrification was stronger in the medium-fine sand column than in the fine sand column, which resulted in a higher NH₄-N and lower NO₃-N removal rates. After prolonging the drying period (using dry/wet ratio 3∶1), the filtration system showed a stronger reoxygenation capacity promoting nitrification. It led to a 20% increase in the average NH₄-N removal rate and 3%-4% reduction of NO₃-N, thus increasing the risk of NO₃-N pollution. After adding 5% biochar (by weight) to the medium-fine sand layer, the adsorption performance was enhanced, and the average NH₄-N removal rate was increased by 20%-32%, but the effect on NO₃-N was not obvious. The infiltration rate was negatively correlated with NH₄-N removal and NO₃-N increase. Based on the comprehensive analysis, it can be concluded that the main factors affecting nitrogen removal in SAT are the dry/wet ratio and infiltration rate. When NH₄-N concentration in the water source is high, biochar can be added to the surface layer in SAT to enhance its nitrogen removal efficiency.

Key words: reclaimed water, soil aquifer treatment, nitrogen, adsorption, nitrification, biochar, infiltration rate

CLC Number:

GAO Heng, TAN Hang, REN Yu, ZHU Lecheng, BI Erping. Nitrogen removal during reclaimed water infiltration in soil aquifer treatment: Experimental simulation using soil column[J]. Earth Science Frontiers, 2021, 28(5): 125-135.

Figures/Tables 6

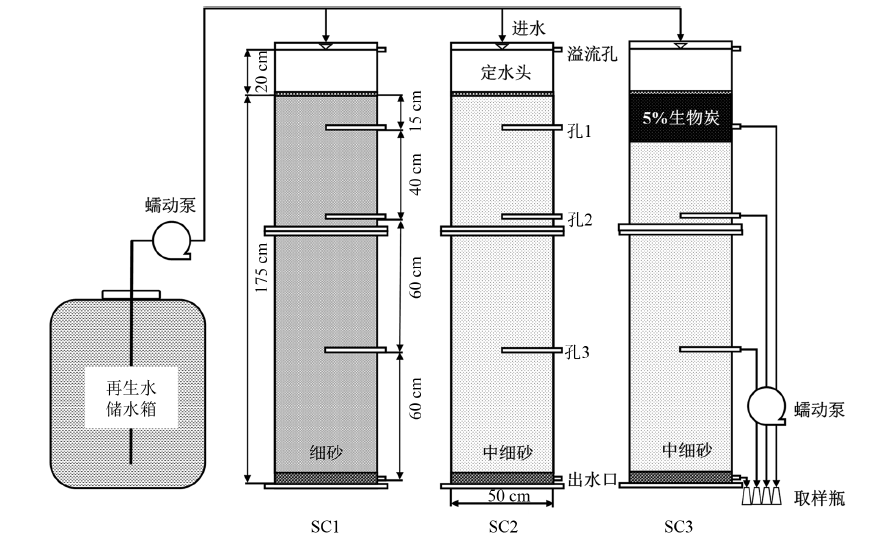

Fig.1 Schematic diagram of the SAT simulation system

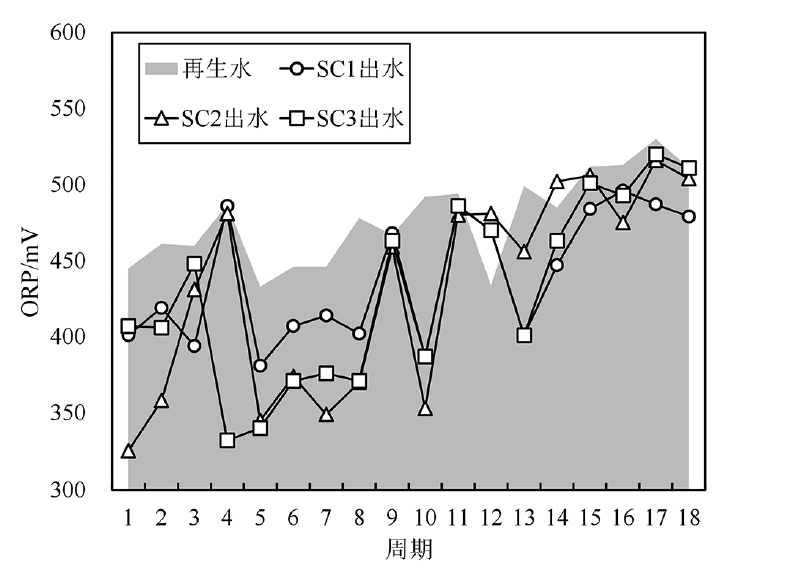

Fig.2 Changes of ORP in reclaimed water and effluent from each column

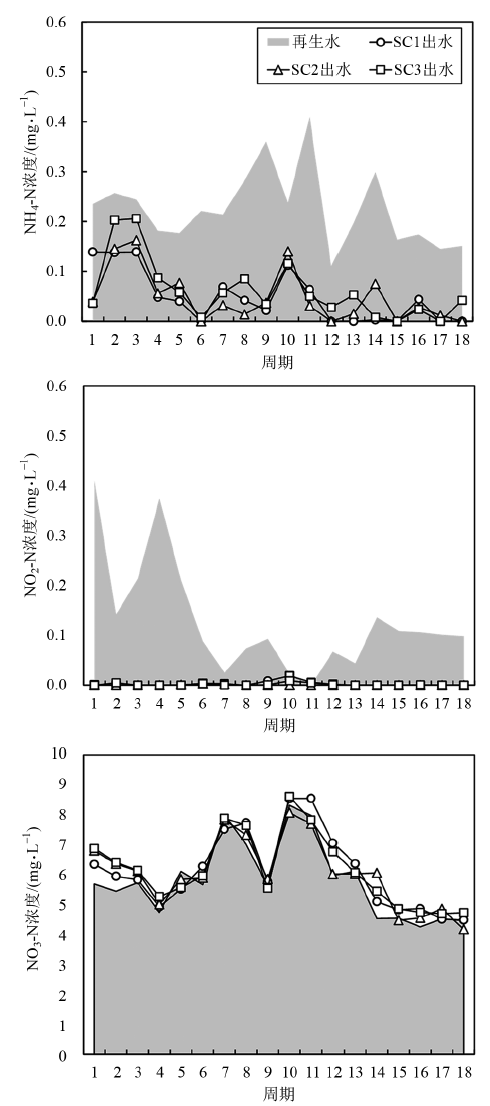

Fig.3 Concentration changes of nitrogen species in reclaimed water and effluent from each column

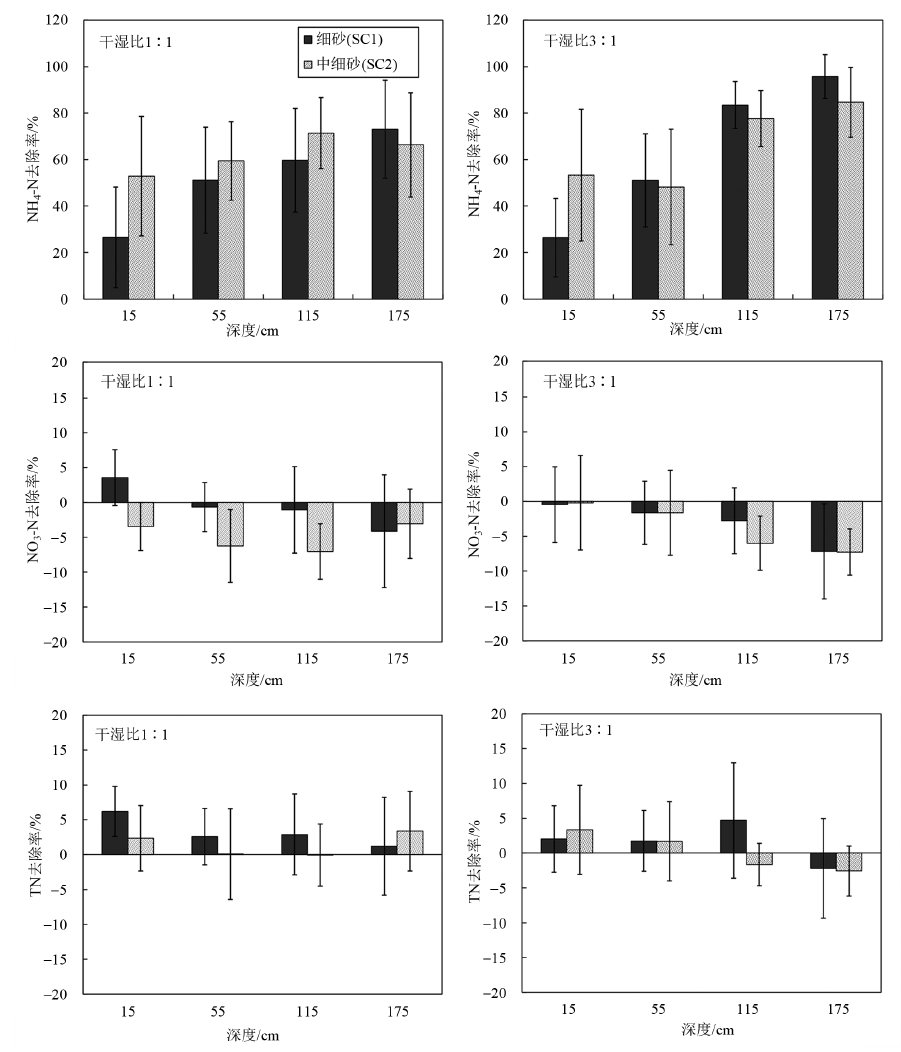

Fig.4 Changes of removal efficiency of nitrogen species with depth in fine sand (SC1) and medium-fine sand (SC2) columns under different dry/wet ratios

Fig.5 Concentrations and removal efficiencies of nitrogen species in SC2 and SC3 columns at the depth of 15 cm under different dry/wet ratios

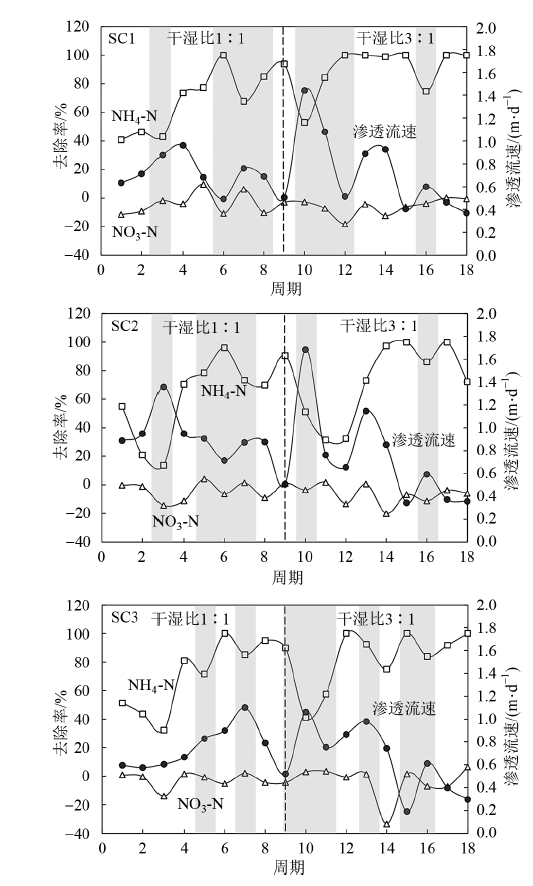

Fig.6 Comparison of removal efficiencies for NH4-N and NO3-N in effluent and column infiltration rates at each column cycle for SC1, SC2 and SC3 columns under two dry/wet ratios

References 40

[1]	张佳新, 李继清, 叶凯华. 北京市再生(中)水开发利用现状及风险分析[J]. 水资源开发与管理, 2017, 15(11):12-16.
[2]	皮运正, 云桂春. 城市污水地下回灌中氮的迁移与预测[J]. 环境科学研究, 2002, 15(1):9-12.
[3]	刘超, 何江涛, 沈杨, 等. 非均质包气带三氮累积转化模拟砂箱试验[J]. 地学前缘, 2012, 19(6):236-242.
[4]	李丛舟. 再生水河道渗透补给下的地下水水质演化特征分析[D]. 北京: 中国地质大学(北京), 2019.
[5]	ZHANG M, HUANG G X, LIU C Y, et al. Distributions and origins of nitrate, nitrite, and ammonium in various aquifers in an urbanized coastal area, South China[J]. Journal of Hydrology, 2020, 582:124528.
[6]	敦宇, 张焓, 杨征伦, 等. 再生水灌溉区农田包气带及地下水中硝酸盐分布特征及来源研究[J]. 中国生态农业学报(中英文), 2019, 27(11):1725-1731.
[7]	SHABANI F, AFLAKI R, MINAMIDE T, et al. Soil aquifer treatment to meet reclaimed water requirements[J]. Water Environment Research, 2020, 92(2):266-277. DOI URL
[8]	HERMES N, JEWELL K S, SCHULZ M, et al. Elucidation of removal processes in sequential biofiltration (SBF) and soil aquifer treatment (SAT) by analysis of a broad range of trace organic chemicals (TOrCs) and their transformation products (TPs)[J]. Water Research, 2019, 163:114857.
[9]	ZOU J L, DAI Y, SUN T H, et al. Effect of amended soil and hydraulic load on enhanced biological nitrogen removal in lab-scale SWIS[J]. Journal of Hazardous Materials, 2009, 163(2/3):816-822. DOI URL
[10]	PAN W Y, HUANG Q Z, XU Z H, et al. Experimental investigation and simulation of nitrogen transport in a subsurface infiltration system under saturated and unsaturated conditions[J]. Journal of Contaminant Hydrology, 2020, 231:103621.
[11]	潘维艳, 黄权中, 张子元, 等. 不同补水方式下砂壤土渗滤系统对硝态氮去除效果[J]. 农业工程学报, 2017, 33(8):197-203.
[12]	张沙莎, 靳孟贵, 孙强, 等. 干湿交替条件下包气带土柱中氮素迁移转化规律试验[J]. 地学前缘, 2010, 17(6):52-58.
[13]	SHARMA S K, KENNEDY M D. Soil aquifer treatment for wastewater treatment and reuse[J]. International Biodeterioration & Biodegradation, 2017, 119:671-677.
[14]	MAO J F, ZHANG K, CHEN B L. Linking hydrophobicity of biochar to the water repellency and water holding capacity of biochar-amended soil[J]. Environmental Pollution, 2019, 253:779-789. DOI URL
[15]	GORSKI G, FISHER A T, BEGANSKAS S, et al. Field and laboratory studies linking hydrologic, geochemical, and microbiological processes and enhanced denitrification during infiltration for managed recharge[J]. Environmental Science & Technology, 2019, 53(16):9491-9501. DOI URL
[16]	VIGLAŠOVÁ E, GALAMBOŠ M, DANKOVÁ Z, et al. Production, characterization and adsorption studies of bamboo-based biochar/montmorillonite composite for nitrate removal[J]. Waste Management, 2018, 79:385-394. DOI URL
[17]	BU X L, XUE J H, ZHAO C X, et al. Nutrient leaching and retention in riparian soils as influenced by rice husk biochar addition[J]. Soil Science, 2017, 182(7):241-247. DOI URL
[18]	GORSKI G, DAILEY H, FISHER A T, et al. Denitrification during infiltration for managed aquifer recharge: infiltration rate controls and microbial response[J]. Science of the Total Environment, 2020, 727:138642.
[19]	ZHANG J, HUANG X, LIU C X, et al. Nitrogen removal enhanced by intermittent operation in a subsurface wastewater infiltration system[J]. Ecological Engineering, 2005, 25(4):419-428. DOI URL
[20]	HE K, ECHIGO S, ITOH S. Effect of operating conditions in soil aquifer treatment on the removals of pharmaceuticals and personal care products[J]. Science of the Total Environment, 2016, 565:672-681. DOI URL
[21]	FRIEDMAN L, MAMANE H, AVISAR D, et al. The role of influent organic carbon-to-nitrogen (COD/N) ratio in removal rates and shaping microbial ecology in soil aquifer treatment (SAT)[J]. Water Research, 2018, 146:197-205. DOI URL
[22]	肖景霓. 膜生物反应器强化除磷脱氮性能研究[D]. 大连: 大连理工大学, 2007.
[23]	郑西来, 张俊杰, 梁春. 石油污染多孔介质水动力效应研究[J]. 中国矿业大学学报, 2011, 40(2):286-291.
[24]	MIENIS O, ARYE G. Long-term nitrogen behavior under treated wastewater infiltration basins in a soil-aquifer treatment (SAT) system[J]. Water Research, 2018, 134:192-199. DOI URL
[25]	ESSANDOH H M K, TIZAOUI C, MOHAMED M H A, et al. Soil aquifer treatment of artificial wastewater under saturated conditions[J]. Water Research, 2011, 45(14):4211-4226. DOI URL
[26]	李默. 氧化-超滤工艺对污水厂二级出水有机物及生物毒性削减效能的研究[D]. 哈尔滨: 哈尔滨工业大学, 2019.
[27]	LI C Z, LI B H, BI E P. Characteristics of hydrochemistry and nitrogen behavior under long-term managed aquifer recharge with reclaimed water: a case study in North China[J]. Science of the Total Environment, 2019, 668:1030-1037. DOI URL
[28]	夏绮文, 李炳华, 何江涛, 等. 潮白河再生水生态补给河道区浅层地下水氮转化[J]. 环境科学研究, 2021, 34(3):618-628.
[29]	倪吾钟, 沈仁芳, 朱兆良. 不同氧化还原电位条件下稻田土壤中15N标记硝态氮的反硝化作用[J]. 中国环境科学, 2000, 20(6):519-523.
[30]	殷士学. 淹水土壤中硝态氮异化还原成铵过程的研究[D]. 南京: 南京农业大学, 2000.
[31]	RÜTTING T, BOECKX P, MÜLLER C, et al. Assessment of the importance of dissimilatory nitrate reduction to ammonium for the terrestrial nitrogen cycle[J]. Biogeosciences, 2011, 8(7):1779-1791. DOI URL
[32]	SCHMIDT C S, RICHARDSON D J, BAGGS E M. Constraining the conditions conducive to dissimilatory nitrate reduction to ammonium in temperate arable soils[J]. Soil Biology and Biochemistry, 2011, 43(7):1607-1611. DOI URL
[33]	杨欢. 基于平衡和非平衡模型的包气带土壤中氨氮运移过程研究[D]. 北京: 中国地质大学(北京), 2015.
[34]	SUN J J, CHEN L, RENE E R, et al. Biological nitrogen removal using soil columns for the reuse of reclaimed water: performance and microbial community analysis[J]. Journal of Environmental Management, 2018, 217:100-109. DOI URL
[35]	熊燕娜. 再生水入渗过程中三氮迁移转化模拟柱试验研究[D]. 北京: 中国地质大学(北京), 2009.
[36]	TEUTSCHEROVA N, HOUŠKA J, NAVAS M, et al. Leaching of ammonium and nitrate from Acrisol and Calcisol amended with holm oak biochar: a column study[J]. Geoderma, 2018, 323:136-145. DOI URL
[37]	YAO Y, GAO B, ZHANG M, et al. Effect of biochar amendment on sorption and leaching of nitrate, ammonium, and phosphate in a sandy soil[J]. Chemosphere, 2012, 89(11):1467-1471. DOI URL
[38]	ABEL C D T, SHARMA S K, BUÇPAPAJ E, et al. Impact of hydraulic loading rate and media type on removal of bulk organic matter and nitrogen from primary effluent in a laboratory-scale soil aquifer treatment system[J]. Water Science and Technology, 2013, 68(1):217-226. DOI URL
[39]	BURGER M, JACKSON L E. Microbial immobilization of ammonium and nitrate in relation to ammonification and nitrification rates in organic and conventional cropping systems[J]. Soil Biology and Biochemistry, 2003, 35(1):29-36. DOI URL
[40]	SCHMIDT C M, FISHER A T, RACZ A J, et al. Linking denitrification and infiltration rates during managed groundwater recharge[J]. Environmental Science & Technology, 2011, 45(22):9634-9640. DOI URL
