Key issues in three-dimensional predictive modeling of mineral prospectivity

doi:10.13745/j.esf.sf.2024.5.9

Abstract

Abstract:

Three-dimensional predictive modeling of mineral prospectivity is an important approach to deep mineral exploration. Although significant advancements have been made in the methodology and application of this approach, several key scientific and technological issues remain unresolved concerning the insufficiencies of multi-scale 3D predictive modeling methodology, uncertainty analysis and optimization of prediction results, mining of key factors in 3D mineralization prediction, and dedicated 3D deep learning models and methodologies tailored for 3D predictive modeling of mineral prospectivity. Focusing on these key issues, this paper conducts a comprehensive review of current research progress in the field, and proposes potential solutions and research directions to address these issues. Future developments in this field include methods for deep mining of 3D predictive information; applicable 3D deep learning models and training methods for enhanced predictive modeling; uncertainty analysis and optimization methods for improving the reliability and accuracy of 3D mineralization prediction; and a methodological framework for multi-scale predictive modeling so as to effectively guide deep mineral exploration at the levels of orebodies, ore fields, and ore deposits. Resolving these key issues will further develop and refine the theoretical and methodological frameworks of 3D mineralization prediction, significantly improve the efficiency of deep mineral exploration, and ultimately facilitate breakthrough in mineral deposit discovery in the deep earth.

Key words: 3D mineral prospectivity prediction, key issues, multi-scale, predictive information discovery, uncertainty, data fusion

CLC Number:

P624
P628

YUAN Feng, LI Xiaohui, TIAN Weidong, ZHOU Guanqun, WANG Jinju, GE Can, GUO Xianzheng, ZHENG Chaojie. Key issues in three-dimensional predictive modeling of mineral prospectivity[J]. Earth Science Frontiers, 2024, 31(4): 119-128.

Figures/Tables 5

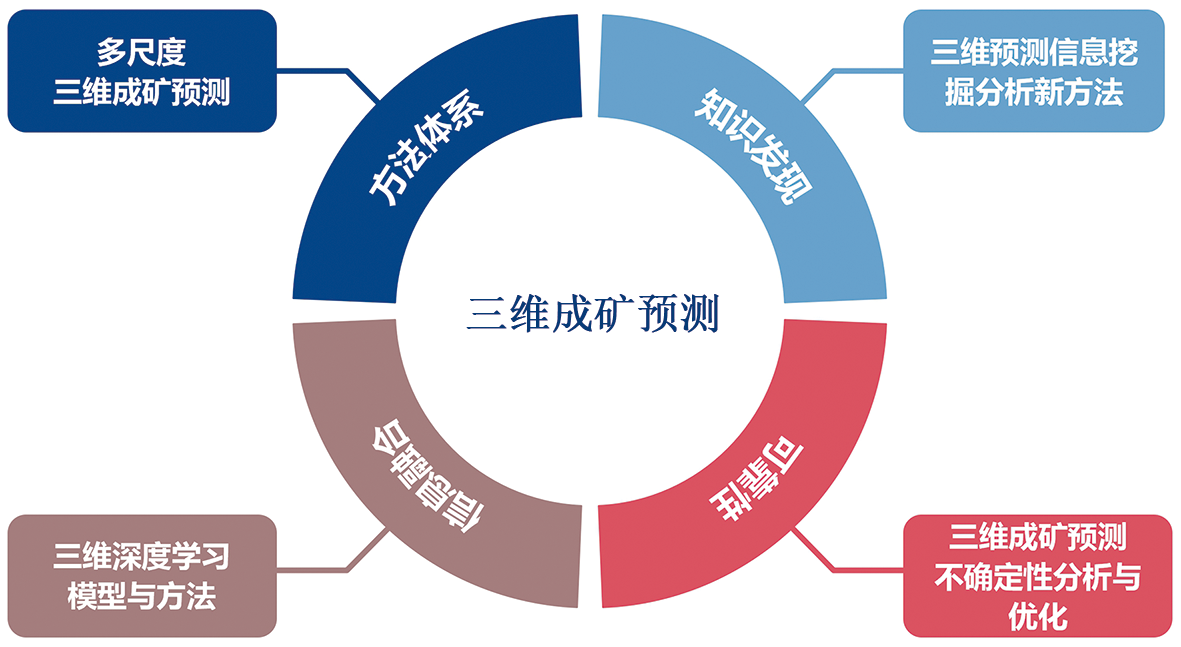

Fig.1 Key issues in 3D mineralization prediction

Fig.2 Mining of key factors in 3D mineral prospectivity prediction. (a) Three-Dimensional physical property inversion (adapted from [26]). (b) Trace elements in altered minerals as an indicator for porphyry system center (adapted from [29]). (c) Numerical simulation of 3D mineralization process and volumetric strain increment (adapted from [16]). (d) Chemical reaction rate and intensity of mineralization (adapted from [32-33]).

Fig.3 Deep learning for mineral prospectivity prediction. (a) Architecture of the proposed multi-scale 3D convolutional neural network. (b) Construction of the 3D sample set. (c) Method for training with a small sample size.

Fig.4 Uncertainty analysis on 3D geological model (a, adapted from [76]), prediction data loss (b, adapted from [78]), and 3D prediction result (c, adapted from [77]).

Fig.5 Multi-scale 3D geological model. Modified after [19,75,88⇓-90].
