Formation age of the Gaofan Group in Wutai area: New evidence from SHRIMP U-Pb zircon dating

doi:10.13745/j.esf.sf.2022.2.6

Abstract

Abstract:

The Gaofan Group in Wutai area is of great significance for the sequence establishment of Early Precambrian metamorphic strata in the North China Craton. This paper carried out the geochemical analysis and SHRIMP U-Pb zircon dating of the Mohe Formation of the Gaofan Group. The metamorphic sedimentary rocks have a total REE (rare earth elements) content of (132.78-231.84)×10^-6 (except for sample W1927, which has a total REE of 1016.55×10^-6), with weak enrichment of LREE (light REE) relative to HREE (heavy REE) ((La/Yb)_N between 4.5-12.5) and obvious negative Eu anomaly (δEu between 0.37-0.62), and are similar in REE composition to post-Archean argillaceous rocks. A muscovite-quartz schist sample (D004) has a large number of detrital zircons aged around 2.7 Ga, 2.5 Ga, 2.54 Ga, 2.3 Ga and 2.18 Ga, with the youngest grains derived probably from contemporary volcanic rocks. A pyrite-bearing muscovite schist sample (W1927) has the youngest zircon age of 2194 Ma, which is considered to represent the deposition time of the rock. Combined with previous studies, it is concluded that the formation age of the Gaofan Group can be constrained between less than 2176 Ma and 2350 Ma, and the detrital materials are mainly derived from Neoarchean-Paleoproterozoic metamorphic basement in Hengshan, Wutai, Fuping, Yunzhongshan, Luliang areas or further afield.

Key words: Gaofan Group, Paleoproterozoic, North China Craton, zircon, SHRIMP U-Pb dating

CLC Number:

P597

WAN Yusheng, DONG Chunyan, LI Pengchuan, MIAO Peisen, WANG Huichu, LI Jianrong. Formation age of the Gaofan Group in Wutai area: New evidence from SHRIMP U-Pb zircon dating[J]. Earth Science Frontiers, 2022, 29(2): 45-55.

Figures/Tables 8

References 35

[1]	KOSITCIN N, KRAPEŽ B. Relationship between detrital zircon age-spectra and the tectonic evolution of the Late Archaean Witwatersrand Basin, South Africa[J]. Precambrian Research, 2004, 129:141-168 DOI URL
[2]	WAN Y S, SONG B, LIU D Y, et al. SHRIMP U-Pb zircon geochronology of Paleoproterozoic metasedimentary rocks in the North China Craton: evidence for a major Late Paleoproterozoic tectonothermal event[J]. Precambrian Research, 2006, 149:249-271. DOI URL
[3]	PENG P, FENG L J, SUNF B, et al. Dating the Gaofan and Hutuo groups: targets to investigate the Paleoproterozoic Great Oxidation Event in North China[J]. Journal of Asian Earth Sciences, 2017, 138:535-547. DOI URL
[4]	李树勋, 冀树楷, 马志红, 等. 五台山区变质沉积铁矿地质[M]. 长春: 吉林科学技术出版社, 1986.
[5]	白瑾. 五台山早前寒武纪地质[M]. 天津: 天津科技出版社, 1986.
[6]	田永清. 五台-恒山绿岩带地质及金的成矿作用[M]. 太原: 山西科学技术出版社, 1991.
[7]	WILDE S A, CAWOOD P, WANG K Y. The relationship and timing of granitoid evolution with respect to felsic volcanism in the Wutai Complex, North China Craton [C]//QIAN X L, YOU Z D, HALLS H C. Proceedings of the 30th International Geological Congress. Precambrian Geology, Metamorphism and Petrology, 1997, 17:75-88.
[8]	WILDE S A, CAWOOD P A, WANG K Y, et al. Granitoid evolution in the Late Archean Wutai Complex, North China Craton[J]. Journal of Asian Earth Sciences, 2005, 24:597-613. DOI URL
[9]	KRÖNER A, WILDE S A, LI J H. Age and evolution of a Late Archean to Paleoproterozoic upper to lower crustal section in the Wutaishan/Hengshan/Fuping terrain of northern China[J]. Journal of Asian Earth Sciences, 2005, 24:577-595. DOI URL
[10]	田永清, 苗培森. 中国古元古代年代地层再划分的若干问题与建议[J]. 现代地质, 1999, 2:216-217.
[11]	杨崇辉, 杜利林, 宋会侠, 等. 华北克拉通古元古代地层划分与对比[J]. 岩石学报, 2018, 34:1019-1057.
[12]	万渝生, 苗培森, 刘敦一, 等. 华北克拉通高凡群、滹沱群和东焦群的形成时代和物质来源: 碎屑锆石SHRIMP U-Pb同位素年代学制约[J]. 科学通报, 2010, 55:572-578.
[13]	WILLIAMS I S. U-Th-Pb geochronology by ion microprobe[J]. Review in Economic Geology, 1998, 7:1-35.
[14]	NASDALA L, HOFMEISTER W, NORBERG N, et al. Zircon M257: a homogeneous natural reference material for the ion microprobe U-Pb analysis of zircon[J]. Geostandards and Geoanalytical Research, 2008, 32:247-265. DOI URL
[15]	BLACK L P, KAMO S L, ALLEN C M, et al. Improved ²⁰⁶Pb/²³⁸U microprobe geochronology by the monitoring of a trace-element-related matrix effect; SHRIMP, ID-TIMS, ELA-ICP-MS and oxygen isotope documentation for a series of zircon standards[J]. Chemical Geology, 2004, 205(1/2):115-140. DOI URL
[16]	LUDWIG K R. User’s manual for Isoplot 3.00, a geochronological toolkit for Microsoft excel[M]. Berkeley: Berkeley Geochronology Center, 2003, 1-70.
[17]	SUN S S, MCDONOUGH W F. Chemical and isotopic systematics of oceanic basalts: implication for mantle composition and processes[J]. Geological Society, London, Special Publication, 1989, 42:313-345. DOI URL
[18]	苗培森, 张振福, 张建中, 等. 五台山区早元古代地层层序探讨[J]. 中国区域地质, 1999, 18:405-413.
[19]	LIU C H, LIU F L, SHI J R, et al. Depositional age and provenance of the Wutai Group: evidence from zircon U-Pb and Lu-Hf isotopes and whole-rock geochemistry[J]. Precambrian Research, 2016, 281:269-290. DOI URL
[20]	杜利林, 杨崇辉, 郭敬辉, 等. 五台地区滹沱群底界时代: 玄武安山岩SHRIMP锆石U-Pb定年[J]. 科学通报, 2010, 55:1-9.
[21]	杜利林, 杨崇辉, 王伟, 等. 五台地区滹沱群时代与地层划分新认识:地质学与锆石年代学证据[J]. 岩石学报, 2011, 27:1037-1055.
[22]	WILDE S A, ZHAO G C, WANG K Y, et al. First precise SHRIMP U-Pb zircon ages for the Hutuo Group, Wutaishan: further evidence for the Paleoproterozoic amalgamation of the North China Craton[J]. Chinese Science Bulletin, 2004, 49:83-90. DOI URL
[23]	DU L L, YANG C H, WANG W, et al. Paleoproterozoic rifting of the North China Craton: geochemical and zircon Hf isotopic evidence from the 2 137 Ma Huangjinshan type granite porphyry in the Wutai area[J]. Journal of Asian Earth Sciences, 2013, 72:190-202. DOI URL
[24]	TAYLOR S R, MCLENNAN S M. The geochemical evolution of the continental crust[J]. Reviews of Geophysics, 1995, 33:241-265. DOI URL
[25]	伍家善, 耿元生, 徐惠芬, 等. 阜平群变质地质[J]. 中国地质科学院地质研究所所刊, 1989, 19:1-213.
[26]	陈斌, 刘树文, 耿元生, 等. 吕梁-五台地区晚太古宙—古元古代花岗质岩石锆石U-Pb年代学和Hf同位素性质及其地质意义[J]. 岩石学报, 2006, 22:296-304.
[27]	程裕淇, 杨崇辉, 万渝生, 等. 太行山中北段早前寒武纪地质和深熔作用对地壳岩石的改造[M]. 北京: 地质出版社, 2004.
[28]	LIU S W, PAN Y M, XIE Q I, et al. Archean geodynamics in the Central Zone, North China Craton: constraints from geochemistry of two contrasting series of granitoids in the Fuping and Wutai complexes[J]. Precambrian Research, 2004, 130:229-249. DOI URL
[29]	KRÖNER A, WILDE S A, O’BRIEN P J, et al. Field relationships, geochemistry, zircon ages and evolution of a Late Archaean to Palaeoproterozoic lower crustal section in the Hengshan Terrain of northern China[J]. Acta Geologica Sinica, 2005, 79:605-629.
[30]	LIU C H, ZHAO G C, LIU F L, et al. Constraints of volcanic rocks of the Wutai Complex (Shanxi Province, northern China) on a giant Late Neoarchean intra-oceanic arc system in the Trans-North China Orogen[J]. Journal of Asian Earth Sciences, 2016, 123:178-212. DOI URL
[31]	GUAN H, SUN M, WILDE S A, et al. SHRIMP U-Pb zircon geochronology of the Fuping Complex: implications for formation and assembly of the North China Craton[J]. Precambrian Research, 2002, 113:1-18. DOI URL
[32]	HAN B F, XU Z, REN R, et al. Crustal growth and intracrustal recycling in the middle segment of the Trans-North China Orogen, North China Craton: a case study of the Fuping Complex[J]. Geology Magazine, 2012, 149:729-742. DOI URL
[33]	路增龙, 宋会侠, 杜利林, 等. 华北克拉通阜平杂岩中~2.7 Ga TTG片麻岩的厘定及其地质意义[J]. 岩石学报, 2014, 30:2872-2884.
[34]	ZHAO G C, WILDE S A, SUN M, et al. SHRIMP U-Pb zircon ages of granitoid rocks in the Lüliang Complex: implications for the accretion and evolution of the Trans-North China Orogen[J]. Precambrian Research, 2008, 160:213-226. DOI URL
[35]	王惠初, 苗培森, 康健丽, 等. 吕梁群时代归属新证据[J]. 岩石学报, 2020, 36:2313-2330.

分析点	²⁰⁶Pb_c/ %	w_B/10^-6		Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	年龄/Ma						不谐和度/%
分析点	²⁰⁶Pb_c/ %	U	Th	Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	²⁰⁶Pb/ ²³⁸U	±1σ	²⁰⁷Pb/ ²⁰⁶Pb		±1σ		不谐和度/%
白云石英片岩(D004)
1.1	0.04	225	116	0.53	81	0.146 3	0.51	8.460	1.8	0.419 6	1.7	0.96	2 259	33		2 303		9	2
2.1	0.02	293	147	0.52	100	0.145 4	0.53	7.960	1.8	0.397 0	1.7	0.96	2 155	31		2 293		9	6
3.1	0.13	312	157	0.52	90	0.143 9	0.57	6.620	1.8	0.333 7	1.7	0.95	1 856	27		2 275		10	18
4.1	0.20	137	58	0.44	48	0.144 0	0.85	8.050	2.0	0.405 6	1.8	0.90	2 195	33		2 276		15	4
5.1	0.15	118	74	0.65	43	0.147 2	0.96	8.470	2.1	0.417 4	1.8	0.89	2 249	35		2 313		16	3
6.1	0.10	136	101	0.77	51	0.148 1	0.79	8.930	2.0	0.437 0	1.8	0.92	2 337	36		2 324		13	-1
7.1	0.30	330	422	1.32	90	0.160 1	0.61	6.980	2.1	0.316 2	2.0	0.95	1 771	30		2 457		10	28
8.1	0.26	101	41	0.42	38	0.147 3	1.10	8.770	2.2	0.431 7	1.9	0.87	2 313	37		2 314		19	0
9.1	0.19	151	158	1.08	39	0.131 8	1.00	5.410	2.1	0.297 7	1.8	0.87	1 680	27		2 122		18	21
10.1	0.24	250	161	0.67	64	0.133 0	0.86	5.460	2.0	0.298 0	1.8	0.90	1 681	26		2 138		15	21
11.1	0.08	100	56	0.58	42	0.166 4	0.77	11.150	2.0	0.486 2	1.8	0.92	2 554	39		2 521		13	-1
12.1	0.14	411	66	0.16	115	0.145 8	0.55	6.570	1.8	0.326 8	1.7	0.95	1 823	27		2 297		10	21
13.1	0.21	374	172	0.47	100	0.179 4	0.57	7.660	1.8	0.309 5	1.7	0.95	1 738	26		2 647		10	34
14.1	0.08	188	168	0.92	66	0.149 8	0.73	8.370	1.9	0.404 9	1.8	0.92	2 192	33		2 344		13	7
15.1	0.54	394	235	0.62	44	0.129 1	1.00	2.313	2.0	0.130 0	1.7	0.85	788	13		2 086		18	62
16.1	0.04	147	115	0.81	49	0.137 6	0.79	7.330	2.0	0.386 2	1.8	0.92	2 105	32		2 198		14	4
17.1	0.35	604	650	1.11	126	0.151 6	0.70	5.050	1.9	0.241 5	1.8	0.93	1 395	22		2 364		12	41
18.1	0.07	244	163	0.69	95	0.148 3	0.48	9.250	1.8	0.452 5	1.7	0.96	2 406	34		2 327		8	-3
19.1	0.08	203	164	0.83	54	0.136 7	0.74	5.830	1.9	0.309 4	1.8	0.92	1 738	27		2 186		13	21
20.1	0.05	140	135	1.00	47	0.136 8	0.77	7.350	1.9	0.389 8	1.8	0.92	2 122	32		2 187		13	3
21.1	0.08	96	40	0.44	37	0.146 4	0.84	9.170	2.0	0.454 1	1.8	0.91	2 413	37		2 305		14	-5
22.1	0.12	184	121	0.68	56	0.135 3	0.69	6.550	2.1	0.351 1	1.9	0.94	1 940	32		2 168		12	11
23.1	0.02	203	100	0.51	71	0.135 3	0.62	7.570	1.8	0.406 1	1.7	0.94	2 197	32		2 167		11	-1
24.1	0.19	169	170	1.04	53	0.136 0	0.76	6.840	1.9	0.364 8	1.8	0.92	2 005	30		2 177		13	8
25.1	0.05	129	89	0.71	45	0.135 5	0.74	7.610	1.9	0.407 6	1.8	0.92	2 204	33		2 170		13	-2
26.1	0.02	148	114	0.80	58	0.155 3	0.57	9.810	1.8	0.458 3	1.7	0.95	2 432	35		2 405		10	-1
27.1	0.18	333	259	0.80	88	0.138 1	0.53	5.820	1.8	0.305 6	1.7	0.95	1 719	25		2 203		9	22
28.1	0.03	163	100	0.63	58	0.136 3	0.61	7.820	1.8	0.416 1	1.7	0.94	2 243	33		2 181		11	-3
29.1	0.21	425	440	1.07	94	0.145 5	0.62	5.146	1.8	0.256 5	1.7	0.94	1 472	22		2 294		11	36
30.1	0.11	249	193	0.80	61	0.134 1	0.70	5.240	1.8	0.283 4	1.7	0.92	1 608	24		2 152		12	25
31.1	0.09	245	139	0.59	79	0.133 2	0.54	6.870	1.8	0.373 8	1.7	0.95	2 047	30		2 141		9	4
32.1	0.15	249	260	1.08	67	0.174 4	0.58	7.500	1.8	0.311 9	1.7	0.95	1 750	26		2 600		10	33
33.1	0.13	207	122	0.61	78	0.167 4	0.92	10.070	2.0	0.436 5	1.7	0.88	2 335	34		2 532		16	8
34.1	0.03	133	106	0.83	59	0.167 0	0.55	11.910	1.8	0.517 3	1.8	0.95	2 688	39		2 528		9	-6
35.1	0.09	71	26	0.37	33	0.180 5	0.77	13.260	2.4	0.533 0	2.3	0.95	2 752	51		2 658		13	-4
36.1	0.19	246	145	0.61	67	0.134 3	0.64	5.900	1.8	0.318 6	1.7	0.94	1 783	27		2 155		11	17
37.1	0.04	123	67	0.56	46	0.151 1	0.65	9.100	1.9	0.436 5	1.8	0.94	2 335	35		2 359		11	1
38.1	0.16	621	431	0.72	149	0.150 2	0.43	5.780	1.8	0.279 2	1.8	0.97	1 587	25		2 349		7	32
39.1	0.06	134	78	0.60	57	0.166 1	0.59	11.270	1.9	0.491 8	1.8	0.95	2 579	38		2 519		10	-2
40.1	0.26	120	68	0.59	44	0.134 9	1.10	7.980	2.1	0.429 2	1.8	0.87	2 302	36		2 163		18	-6
41.1	0.26	85	74	0.91	32	0.160 4	0.92	9.610	2.1	0.434 6	1.8	0.90	2 326	36		2 459		15	5
42.1	0.10	225	180	0.83	108	0.183 2	0.53	14.070	1.8	0.556 8	1.7	0.96	2 854	40		2 682		9	-6
43.1	0.46	310	171	0.57	61	0.129 0	0.94	4.080	2.0	0.229 4	1.7	0.88	1 331	21		2 084		17	36
44.1	0.09	182	141	0.80	62	0.134 8	0.75	7.320	1.9	0.393 6	1.8	0.92	2 140	32		2 162		13	1
45.1	0.13	83	44	0.55	38	0.183 5	0.80	13.400	2.1	0.529 0	1.9	0.92	2 739	42		2 685		13	-2
46.1	0.16	233	147	0.65	63	0.144 1	0.75	6.210	1.9	0.312 6	1.8	0.92	1 754	27		2 278		13	23
47.1	0.09	170	113	0.68	54	0.148 0	0.74	7.530	1.9	0.369 0	1.8	0.92	2 025	31		2 322		13	13
48.1	0.07	100	27	0.28	33	0.136 3	0.95	7.080	2.1	0.376 8	1.9	0.89	2 061	33		2 181		17	6
49.1	0.12	128	124	1.01	50	0.162 0	0.77	10.210	2.0	0.456 8	1.8	0.92	2 425	37		2 477		13	2
50.1	0.24	505	185	0.38	119	0.138 7	0.58	5.222	1.8	0.273 0	1.7	0.95	1 556	24		2 211		10	30
分析点	²⁰⁶Pb_c/ %	w_B/10^-6		Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	年龄/Ma						不谐和度/%
分析点	²⁰⁶Pb_c/ %	U	Th	Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	²⁰⁶Pb/ ²³⁸U	±1σ	²⁰⁷Pb/ ²⁰⁶Pb		±1σ		不谐和度/%
白云石英片岩(D004)
51.1	0.12	235	143	0.63	80	0.145 9	0.61	7.940	1.8	0.394 6	1.7	0.94	2 144	32		2 298		10	7
52.1	0.07	211	143	0.70	82	0.147 1	0.57	9.100	1.8	0.448 9	1.7	0.95	2 390	35		2 312		10	-3
53.1	0.19	338	153	0.47	84	0.134 0	0.63	5.329	1.8	0.288 5	1.7	0.94	1 634	25		2 151		11	24
54.1	0.18	92	116	1.30	37	0.158 6	0.90	10.170	2.1	0.465 0	1.9	0.90	2 462	38		2 440		15	-1
55.1	0.09	196	123	0.65	65	0.146 7	0.66	7.740	1.9	0.382 8	1.8	0.94	2 090	32		2 308		11	9
56.1	0.29	333	223	0.69	78	0.133 8	0.64	5.040	3.6	0.273 4	3.6	0.98	1 558	49		2 148		11	27
57.1	0.05	199	84	0.43	76	0.146 1	0.56	8.920	1.8	0.442 9	1.7	0.95	2 363	34		2 300		10	-3
58.1	0.07	140	157	1.16	43	0.135 5	0.77	6.670	2.0	0.356 9	1.8	0.92	1 967	31		2 170		13	9
59.1	0.08	274	159	0.60	113	0.182 4	0.51	12.090	1.8	0.480 7	1.7	0.96	2 530	36		2 675		9	5
60.1	0.20	144	76	0.54	44	0.134 7	0.79	6.500	2.0	0.349 9	1.8	0.92	1 934	30		2 160		14	10
61.1	0.30	311	165	0.55	84	0.142 5	0.65	6.130	1.8	0.312 3	1.7	0.93	1 752	26		2 257		11	22
62.1	0.07	195	69	0.36	83	0.179 1	0.54	12.160	1.8	0.492 4	1.7	0.95	2 581	37		2 645		9	2
63.1	0.38	373	235	0.65	91	0.151 6	0.60	5.900	1.8	0.282 4	1.7	0.94	1 603	24		2 364		10	32
64.1	0.03	140	112	0.82	59	0.162 6	0.55	10.900	1.8	0.486 4	1.8	0.95	2 555	37		2 483		9	-3
65.1	0.32	355	189	0.55	79	0.140 9	0.64	5.030	1.8	0.258 9	1.7	0.93	1 484	22		2 238		11	34
66.1	0.09	292	116	0.41	116	0.162 4	0.46	10.370	1.8	0.463 2	1.7	0.97	2 454	35		2 481		8	1
67.1	0.03	226	132	0.60	76	0.146 1	0.52	7.900	1.8	0.392 4	1.7	0.96	2 134	31		2 301		9	7
68.1	0.14	129	79	0.63	42	0.134 9	0.87	7.110	2.0	0.382 2	1.8	0.90	2 087	33		2 163		15	4
69.1	0.04	124	61	0.51	45	0.147 5	0.66	8.550	1.9	0.420 2	1.8	0.94	2 261	34		2 318		11	2
70.1	0.02	218	107	0.51	88	0.166 4	0.50	10.810	1.8	0.471 2	1.7	0.96	2 489	36		2 521		8	1
71.1	0.06	272	125	0.48	85	0.145 4	0.66	7.270	1.9	0.362 6	1.7	0.94	1 995	30		2 292		11	13
72.1	0.50	705	555	0.81	119	0.133 8	0.54	3.611	1.7	0.195 7	1.7	0.95	1 152	17		2 149		10	46
73.1	0.02	172	125	0.75	66	0.146 6	0.49	9.080	1.8	0.449 1	1.7	0.96	2 391	34		2 307		8	-4
74.1	1.24	525	75	0.15	148	0.117 5	1.10	5.230	2.1	0.323 1	1.8	0.86	1 805	28		1 919		19	6
75.1	0.42	507	298	0.61	88	0.140 3	0.82	3.895	1.9	0.201 4	1.7	0.90	1 183	19		2 231		14	47
76.1	0.09	168	105	0.65	72	0.167 0	0.52	11.540	2.0	0.501 4	1.9	0.96	2 620	41		2 527		9	-4
77.1	0.14	415	243	0.60	162	0.146 7	0.55	9.190	1.8	0.454 5	1.7	0.95	2 415	34		2 308		9	-5
含黄铁矿白云片岩(W1927)
1.1	4.40	1 564	1 447	0.96	140	0.103 6	4.70	1.409	5.0	0.098 7	2.0	0.40	607	12		1 687		85	64
2.1	12.87	2 286	1 522	0.69	158	0.143 0	8.80	1.330	9.1	0.067 6	2.5	0.28	422	10		2 257		150	81
3.1	-0.05	183	116	0.66	64	0.138 3	0.79	7.720	2.1	0.404 9	1.9	0.93	2 192	36		2 206		14	1
3.2	1.23	627	287	0.47	52	0.127 6	2.60	1.675	3.3	0.095 3	2.0	0.60	587	11		2 064		47	72
4.1	0.12	317	265	0.86	57	0.134 8	0.85	3.850	2.1	0.207 1	1.9	0.91	1 214	21		2 161		15	44
5.1	-0.03	251	173	0.71	86	0.137 6	0.77	7.620	2.0	0.401 5	1.9	0.93	2 176	35		2 197		13	1
6.1	-0.05	195	134	0.71	67	0.138 0	0.72	7.640	2.0	0.401 2	1.9	0.94	2 175	35		2 203		13	1
7.1	0.10	168	94	0.57	55	0.146 1	0.84	7.680	2.1	0.381 2	1.9	0.92	2 082	34		2 301		14	10
10.1	0.40	158	99	0.65	45	0.133 3	0.98	6.040	2.2	0.328 7	1.9	0.89	1 832	31		2 142		17	14
11.1	0.09	172	123	0.74	59	0.149 2	0.77	8.190	2.1	0.398 0	1.9	0.93	2 160	35		2 336		13	8
12.1	0.00	196	94	0.50	67	0.184 1	0.63	10.140	2.0	0.399 7	1.9	0.95	2 168	35		2 690		10	19
13.1	0.15	212	133	0.65	66	0.137 3	0.81	6.840	2.1	0.361 3	1.9	0.92	1 988	32		2 194		14	9
15.1	0.15	253	185	0.75	66	0.137 6	0.72	5.760	2.0	0.303 7	1.9	0.94	1 710	29		2 197		13	22
16.1	1.80	1 158	1 135	1.01	113	0.113 4	1.80	1.735	2.5	0.111 0	1.8	0.73	678	12		1 854		31	63
17.1	0.01	214	142	0.69	73	0.137 0	0.70	7.490	2.0	0.396 8	1.9	0.94	2 154	35		2 189		12	2
19.1	0.02	218	130	0.62	79	0.161 7	0.84	9.440	2.1	0.423 3	1.9	0.92	2 276	37		2 474		14	8
20.1	-0.11	137	64	0.49	49	0.136 5	0.82	7.870	2.1	0.418 0	2.0	0.92	2 252	37		2 184		14	-3
21.1	0.08	243	125	0.53	70	0.153 1	2.30	7.100	3.0	0.336 6	1.9	0.64	1 870	31		2 381		39	21
22.1	1.69	1 162	1 007	0.90	93	0.130 3	1.70	1.633	2.6	0.091 0	2.0	0.76	561	11		2 101		29	73
23.1	1.14	999	838	0.87	109	0.107 7	1.90	1.862	2.7	0.125 5	1.8	0.69	762	13		1 760		35	57
24.1	0.07	178	87	0.51	63	0.136 7	0.71	7.770	2.0	0.412 2	1.9	0.94	2 225	36		2 186		12	-2

分析点	²⁰⁶Pb_c/ %	w_B/10^-6		Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	年龄/Ma						不谐和度/%
分析点	²⁰⁶Pb_c/ %	U	Th	Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	²⁰⁶Pb/ ²³⁸U	±1σ	²⁰⁷Pb/ ²⁰⁶Pb		±1σ		不谐和度/%
白云石英片岩(D004)
1.1	0.04	225	116	0.53	81	0.146 3	0.51	8.460	1.8	0.419 6	1.7	0.96	2 259	33		2 303		9	2
2.1	0.02	293	147	0.52	100	0.145 4	0.53	7.960	1.8	0.397 0	1.7	0.96	2 155	31		2 293		9	6
3.1	0.13	312	157	0.52	90	0.143 9	0.57	6.620	1.8	0.333 7	1.7	0.95	1 856	27		2 275		10	18
4.1	0.20	137	58	0.44	48	0.144 0	0.85	8.050	2.0	0.405 6	1.8	0.90	2 195	33		2 276		15	4
5.1	0.15	118	74	0.65	43	0.147 2	0.96	8.470	2.1	0.417 4	1.8	0.89	2 249	35		2 313		16	3
6.1	0.10	136	101	0.77	51	0.148 1	0.79	8.930	2.0	0.437 0	1.8	0.92	2 337	36		2 324		13	-1
7.1	0.30	330	422	1.32	90	0.160 1	0.61	6.980	2.1	0.316 2	2.0	0.95	1 771	30		2 457		10	28
8.1	0.26	101	41	0.42	38	0.147 3	1.10	8.770	2.2	0.431 7	1.9	0.87	2 313	37		2 314		19	0
9.1	0.19	151	158	1.08	39	0.131 8	1.00	5.410	2.1	0.297 7	1.8	0.87	1 680	27		2 122		18	21
10.1	0.24	250	161	0.67	64	0.133 0	0.86	5.460	2.0	0.298 0	1.8	0.90	1 681	26		2 138		15	21
11.1	0.08	100	56	0.58	42	0.166 4	0.77	11.150	2.0	0.486 2	1.8	0.92	2 554	39		2 521		13	-1
12.1	0.14	411	66	0.16	115	0.145 8	0.55	6.570	1.8	0.326 8	1.7	0.95	1 823	27		2 297		10	21
13.1	0.21	374	172	0.47	100	0.179 4	0.57	7.660	1.8	0.309 5	1.7	0.95	1 738	26		2 647		10	34
14.1	0.08	188	168	0.92	66	0.149 8	0.73	8.370	1.9	0.404 9	1.8	0.92	2 192	33		2 344		13	7
15.1	0.54	394	235	0.62	44	0.129 1	1.00	2.313	2.0	0.130 0	1.7	0.85	788	13		2 086		18	62
16.1	0.04	147	115	0.81	49	0.137 6	0.79	7.330	2.0	0.386 2	1.8	0.92	2 105	32		2 198		14	4
17.1	0.35	604	650	1.11	126	0.151 6	0.70	5.050	1.9	0.241 5	1.8	0.93	1 395	22		2 364		12	41
18.1	0.07	244	163	0.69	95	0.148 3	0.48	9.250	1.8	0.452 5	1.7	0.96	2 406	34		2 327		8	-3
19.1	0.08	203	164	0.83	54	0.136 7	0.74	5.830	1.9	0.309 4	1.8	0.92	1 738	27		2 186		13	21
20.1	0.05	140	135	1.00	47	0.136 8	0.77	7.350	1.9	0.389 8	1.8	0.92	2 122	32		2 187		13	3
21.1	0.08	96	40	0.44	37	0.146 4	0.84	9.170	2.0	0.454 1	1.8	0.91	2 413	37		2 305		14	-5
22.1	0.12	184	121	0.68	56	0.135 3	0.69	6.550	2.1	0.351 1	1.9	0.94	1 940	32		2 168		12	11
23.1	0.02	203	100	0.51	71	0.135 3	0.62	7.570	1.8	0.406 1	1.7	0.94	2 197	32		2 167		11	-1
24.1	0.19	169	170	1.04	53	0.136 0	0.76	6.840	1.9	0.364 8	1.8	0.92	2 005	30		2 177		13	8
25.1	0.05	129	89	0.71	45	0.135 5	0.74	7.610	1.9	0.407 6	1.8	0.92	2 204	33		2 170		13	-2
26.1	0.02	148	114	0.80	58	0.155 3	0.57	9.810	1.8	0.458 3	1.7	0.95	2 432	35		2 405		10	-1
27.1	0.18	333	259	0.80	88	0.138 1	0.53	5.820	1.8	0.305 6	1.7	0.95	1 719	25		2 203		9	22
28.1	0.03	163	100	0.63	58	0.136 3	0.61	7.820	1.8	0.416 1	1.7	0.94	2 243	33		2 181		11	-3
29.1	0.21	425	440	1.07	94	0.145 5	0.62	5.146	1.8	0.256 5	1.7	0.94	1 472	22		2 294		11	36
30.1	0.11	249	193	0.80	61	0.134 1	0.70	5.240	1.8	0.283 4	1.7	0.92	1 608	24		2 152		12	25
31.1	0.09	245	139	0.59	79	0.133 2	0.54	6.870	1.8	0.373 8	1.7	0.95	2 047	30		2 141		9	4
32.1	0.15	249	260	1.08	67	0.174 4	0.58	7.500	1.8	0.311 9	1.7	0.95	1 750	26		2 600		10	33
33.1	0.13	207	122	0.61	78	0.167 4	0.92	10.070	2.0	0.436 5	1.7	0.88	2 335	34		2 532		16	8
34.1	0.03	133	106	0.83	59	0.167 0	0.55	11.910	1.8	0.517 3	1.8	0.95	2 688	39		2 528		9	-6
35.1	0.09	71	26	0.37	33	0.180 5	0.77	13.260	2.4	0.533 0	2.3	0.95	2 752	51		2 658		13	-4
36.1	0.19	246	145	0.61	67	0.134 3	0.64	5.900	1.8	0.318 6	1.7	0.94	1 783	27		2 155		11	17
37.1	0.04	123	67	0.56	46	0.151 1	0.65	9.100	1.9	0.436 5	1.8	0.94	2 335	35		2 359		11	1
38.1	0.16	621	431	0.72	149	0.150 2	0.43	5.780	1.8	0.279 2	1.8	0.97	1 587	25		2 349		7	32
39.1	0.06	134	78	0.60	57	0.166 1	0.59	11.270	1.9	0.491 8	1.8	0.95	2 579	38		2 519		10	-2
40.1	0.26	120	68	0.59	44	0.134 9	1.10	7.980	2.1	0.429 2	1.8	0.87	2 302	36		2 163		18	-6
41.1	0.26	85	74	0.91	32	0.160 4	0.92	9.610	2.1	0.434 6	1.8	0.90	2 326	36		2 459		15	5
42.1	0.10	225	180	0.83	108	0.183 2	0.53	14.070	1.8	0.556 8	1.7	0.96	2 854	40		2 682		9	-6
43.1	0.46	310	171	0.57	61	0.129 0	0.94	4.080	2.0	0.229 4	1.7	0.88	1 331	21		2 084		17	36
44.1	0.09	182	141	0.80	62	0.134 8	0.75	7.320	1.9	0.393 6	1.8	0.92	2 140	32		2 162		13	1
45.1	0.13	83	44	0.55	38	0.183 5	0.80	13.400	2.1	0.529 0	1.9	0.92	2 739	42		2 685		13	-2
46.1	0.16	233	147	0.65	63	0.144 1	0.75	6.210	1.9	0.312 6	1.8	0.92	1 754	27		2 278		13	23
47.1	0.09	170	113	0.68	54	0.148 0	0.74	7.530	1.9	0.369 0	1.8	0.92	2 025	31		2 322		13	13
48.1	0.07	100	27	0.28	33	0.136 3	0.95	7.080	2.1	0.376 8	1.9	0.89	2 061	33		2 181		17	6
49.1	0.12	128	124	1.01	50	0.162 0	0.77	10.210	2.0	0.456 8	1.8	0.92	2 425	37		2 477		13	2
50.1	0.24	505	185	0.38	119	0.138 7	0.58	5.222	1.8	0.273 0	1.7	0.95	1 556	24		2 211		10	30
分析点	²⁰⁶Pb_c/ %	w_B/10^-6		Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	年龄/Ma						不谐和度/%
分析点	²⁰⁶Pb_c/ %	U	Th	Th/U	²⁰⁶Pb^*/ 10^-6	²⁰⁷Pb^/ ²⁰⁶Pb^	±1σ/ %	²⁰⁷Pb^*/ ²³⁵U	±1σ/ %	²⁰⁶Pb^*/ ²³⁸U	±1σ/ %	误差相关系数	²⁰⁶Pb/ ²³⁸U	±1σ	²⁰⁷Pb/ ²⁰⁶Pb		±1σ		不谐和度/%

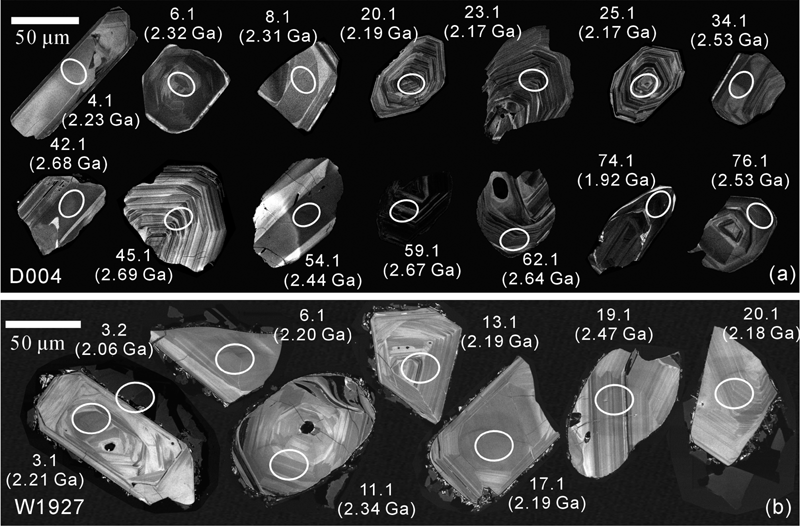

白云石英片岩(D004)
51.1	0.12	235	143	0.63	80	0.145 9	0.61	7.940	1.8	0.394 6	1.7	0.94	2 144	32		2 298		10	7
52.1	0.07	211	143	0.70	82	0.147 1	0.57	9.100	1.8	0.448 9	1.7	0.95	2 390	35		2 312		10	-3
53.1	0.19	338	153	0.47	84	0.134 0	0.63	5.329	1.8	0.288 5	1.7	0.94	1 634	25		2 151		11	24
54.1	0.18	92	116	1.30	37	0.158 6	0.90	10.170	2.1	0.465 0	1.9	0.90	2 462	38		2 440		15	-1
55.1	0.09	196	123	0.65	65	0.146 7	0.66	7.740	1.9	0.382 8	1.8	0.94	2 090	32		2 308		11	9
56.1	0.29	333	223	0.69	78	0.133 8	0.64	5.040	3.6	0.273 4	3.6	0.98	1 558	49		2 148		11	27
57.1	0.05	199	84	0.43	76	0.146 1	0.56	8.920	1.8	0.442 9	1.7	0.95	2 363	34		2 300		10	-3
58.1	0.07	140	157	1.16	43	0.135 5	0.77	6.670	2.0	0.356 9	1.8	0.92	1 967	31		2 170		13	9
59.1	0.08	274	159	0.60	113	0.182 4	0.51	12.090	1.8	0.480 7	1.7	0.96	2 530	36		2 675		9	5
60.1	0.20	144	76	0.54	44	0.134 7	0.79	6.500	2.0	0.349 9	1.8	0.92	1 934	30		2 160		14	10
61.1	0.30	311	165	0.55	84	0.142 5	0.65	6.130	1.8	0.312 3	1.7	0.93	1 752	26		2 257		11	22
62.1	0.07	195	69	0.36	83	0.179 1	0.54	12.160	1.8	0.492 4	1.7	0.95	2 581	37		2 645		9	2
63.1	0.38	373	235	0.65	91	0.151 6	0.60	5.900	1.8	0.282 4	1.7	0.94	1 603	24		2 364		10	32
64.1	0.03	140	112	0.82	59	0.162 6	0.55	10.900	1.8	0.486 4	1.8	0.95	2 555	37		2 483		9	-3
65.1	0.32	355	189	0.55	79	0.140 9	0.64	5.030	1.8	0.258 9	1.7	0.93	1 484	22		2 238		11	34
66.1	0.09	292	116	0.41	116	0.162 4	0.46	10.370	1.8	0.463 2	1.7	0.97	2 454	35		2 481		8	1
67.1	0.03	226	132	0.60	76	0.146 1	0.52	7.900	1.8	0.392 4	1.7	0.96	2 134	31		2 301		9	7
68.1	0.14	129	79	0.63	42	0.134 9	0.87	7.110	2.0	0.382 2	1.8	0.90	2 087	33		2 163		15	4
69.1	0.04	124	61	0.51	45	0.147 5	0.66	8.550	1.9	0.420 2	1.8	0.94	2 261	34		2 318		11	2
70.1	0.02	218	107	0.51	88	0.166 4	0.50	10.810	1.8	0.471 2	1.7	0.96	2 489	36		2 521		8	1
71.1	0.06	272	125	0.48	85	0.145 4	0.66	7.270	1.9	0.362 6	1.7	0.94	1 995	30		2 292		11	13
72.1	0.50	705	555	0.81	119	0.133 8	0.54	3.611	1.7	0.195 7	1.7	0.95	1 152	17		2 149		10	46
73.1	0.02	172	125	0.75	66	0.146 6	0.49	9.080	1.8	0.449 1	1.7	0.96	2 391	34		2 307		8	-4
74.1	1.24	525	75	0.15	148	0.117 5	1.10	5.230	2.1	0.323 1	1.8	0.86	1 805	28		1 919		19	6
75.1	0.42	507	298	0.61	88	0.140 3	0.82	3.895	1.9	0.201 4	1.7	0.90	1 183	19		2 231		14	47
76.1	0.09	168	105	0.65	72	0.167 0	0.52	11.540	2.0	0.501 4	1.9	0.96	2 620	41		2 527		9	-4
77.1	0.14	415	243	0.60	162	0.146 7	0.55	9.190	1.8	0.454 5	1.7	0.95	2 415	34		2 308		9	-5
含黄铁矿白云片岩(W1927)
1.1	4.40	1 564	1 447	0.96	140	0.103 6	4.70	1.409	5.0	0.098 7	2.0	0.40	607	12		1 687		85	64
2.1	12.87	2 286	1 522	0.69	158	0.143 0	8.80	1.330	9.1	0.067 6	2.5	0.28	422	10		2 257		150	81
3.1	-0.05	183	116	0.66	64	0.138 3	0.79	7.720	2.1	0.404 9	1.9	0.93	2 192	36		2 206		14	1
3.2	1.23	627	287	0.47	52	0.127 6	2.60	1.675	3.3	0.095 3	2.0	0.60	587	11		2 064		47	72
4.1	0.12	317	265	0.86	57	0.134 8	0.85	3.850	2.1	0.207 1	1.9	0.91	1 214	21		2 161		15	44
5.1	-0.03	251	173	0.71	86	0.137 6	0.77	7.620	2.0	0.401 5	1.9	0.93	2 176	35		2 197		13	1
6.1	-0.05	195	134	0.71	67	0.138 0	0.72	7.640	2.0	0.401 2	1.9	0.94	2 175	35		2 203		13	1
7.1	0.10	168	94	0.57	55	0.146 1	0.84	7.680	2.1	0.381 2	1.9	0.92	2 082	34		2 301		14	10
10.1	0.40	158	99	0.65	45	0.133 3	0.98	6.040	2.2	0.328 7	1.9	0.89	1 832	31		2 142		17	14
11.1	0.09	172	123	0.74	59	0.149 2	0.77	8.190	2.1	0.398 0	1.9	0.93	2 160	35		2 336		13	8
12.1	0.00	196	94	0.50	67	0.184 1	0.63	10.140	2.0	0.399 7	1.9	0.95	2 168	35		2 690		10	19
13.1	0.15	212	133	0.65	66	0.137 3	0.81	6.840	2.1	0.361 3	1.9	0.92	1 988	32		2 194		14	9
15.1	0.15	253	185	0.75	66	0.137 6	0.72	5.760	2.0	0.303 7	1.9	0.94	1 710	29		2 197		13	22
16.1	1.80	1 158	1 135	1.01	113	0.113 4	1.80	1.735	2.5	0.111 0	1.8	0.73	678	12		1 854		31	63
17.1	0.01	214	142	0.69	73	0.137 0	0.70	7.490	2.0	0.396 8	1.9	0.94	2 154	35		2 189		12	2
19.1	0.02	218	130	0.62	79	0.161 7	0.84	9.440	2.1	0.423 3	1.9	0.92	2 276	37		2 474		14	8
20.1	-0.11	137	64	0.49	49	0.136 5	0.82	7.870	2.1	0.418 0	2.0	0.92	2 252	37		2 184		14	-3
21.1	0.08	243	125	0.53	70	0.153 1	2.30	7.100	3.0	0.336 6	1.9	0.64	1 870	31		2 381		39	21
22.1	1.69	1 162	1 007	0.90	93	0.130 3	1.70	1.633	2.6	0.091 0	2.0	0.76	561	11		2 101		29	73
23.1	1.14	999	838	0.87	109	0.107 7	1.90	1.862	2.7	0.125 5	1.8	0.69	762	13		1 760		35	57
24.1	0.07	178	87	0.51	63	0.136 7	0.71	7.770	2.0	0.412 2	1.9	0.94	2 225	36		2 186		12	-2

岩石名称	经纬度	w_B/%
岩石名称	经纬度	SiO₂		TiO₂			Al₂O₃			Fe₂O₃			FeO			MnO			MgO			CaO			Na₂O			K₂O		P₂O₅				H₂O⁺			CO₂			LOI			Total
千枚岩	N38°59'17.8″/E113°08'52.9″	59.95		0.71			21.76			3.41			0.74			0.07			0.90			0.52			1.98			5.91		0.20				3.06			0.32			—			99.50
千枚岩	N38°59'17.8″/E113°08'52.9″	62.86		0.56			16.66			3.87			1.81			0.09			2.72			2.12			1.79			3.86		0.13				2.88			0.32			—			99.70
石榴云母片岩	N38°59'14.6″/E113°08'59.0″	43.23		0.52			18.13			3.90			21.07			0.44			2.71			1.41			0.09			1.51		0.14				5.98			0.23			—			99.40
含黄铁矿云母石英片岩	N38°58'29.9″/E113°9'29.5″	64.52		0.64			20.11			2.18			0.81			0.06			1.26			0.40			0.13			6.70		0.15				1.98			0.72			—			99.70
云母石英片岩	N38°58'17.9″/E113°9'35.8″	76.71		0.38			12.35			1.44			2.74			0.03			1.50			0.14			0.25			2.52		0.09				—			—			2.29			100.44
绿泥片岩	N38°58'29.9″/E113°9'29.5″	44.88		0.76			17.57			1.11			8.39			0.14			7.84			5.36			2.56			1.50		0.08				5.16			4.64			—			100.00
岩石名称	经纬度	w_B/10^-6
岩石名称	经纬度	Cr	Ni			Sc			Rb			Ba			Sr			Nb			Ta			Hf			Zr		Y		Th		U			La			Ce		Pr
千枚岩	N38°59'17.8″/E113°08'52.9″	32	—			12			178			1 407			95			19.7			1.9			8.9			434		24		20.4		3.40			22.30			63.60		5.57
千枚岩	N38°59'17.8″/E113°08'52.9″	204	—			14			105			1 013			223			12.0			1.2			5.4			234		24		15.2		2.45			32.60			64.00		7.78
石榴云母片岩	N38°59'14.6″/E113°08'59.0″	28	—			18			63			485			25			25.9			1.8			8.5			465		40		22.8		4.50			46.30			89.10		11.70
含黄铁矿云母石英片岩	N38°58'29.9″/E113°9'29.5″	3	3			18			303			1 798			29			44.3			3.8			24.4			757		160		60.0		12.00			215.00			430.00		44.60
云母石英片岩	N38°58'17.9″/E113°9'35.8″	23	12			6			97			473			23			13.9			0.9			8.9			346		23		14.0		3.50			38.99			78.51		8.97
绿泥片岩	N38°58'29.9″/E113°9'29.5″	104	125			24			56			739			148			2.2			0.2			1.6			53		14		1.5		0.30			7.54			14.90		2.04
岩石名称	经纬度	w_B/10^-6																																				(La/Yb)_N				δEu
岩石名称	经纬度	Nd			Sm			Eu			Gd			Tb			Dy			Ho			Er			Tm			Yb			Lu			ΣREE			(La/Yb)_N				δEu
千枚岩	N38°59'17.8″/E113°08'52.9″	20.10			3.97			0.77			3.49			0.67			4.21			0.92			2.93			0.47			3.28			0.50			132.78			4.5				0.62
千枚岩	N38°59'17.8″/E113°08'52.9″	29.70			5.49			1.03			4.50			0.72			4.08			0.90			2.69			0.40			2.77			0.43			157.09			7.8				0.62
石榴云母片岩	N38°59'14.6″/E113°08'59.0″	44.50			8.54			1.28			7.54			1.29			7.31			1.60			5.01			0.82			5.93			0.92			231.84			5.1				0.48
含黄铁矿云母石英片岩	N38°58'29.9″/E113°9'29.5″	189.00			31.90			3.62			27.00			5.05			27.30			5.91			16.70			2.46			15.80			2.21			1 016.55			9.0				0.37
云母石英片岩	N38°58'17.9″/E113°9'35.8″	33.01			6.08			0.84			4.97			0.80			4.35			0.81			2.28			0.33			2.06			0.35			182.34			12.5				0.46
绿泥片岩	N38°58'29.9″/E113°9'29.5″	11.00			2.37			0.76			2.60			0.41			2.46			0.50			1.49			0.21			1.22			0.20			47.70			4.1				0.94

岩石名称	经纬度	w_B/%
岩石名称	经纬度	SiO₂		TiO₂			Al₂O₃			Fe₂O₃			FeO			MnO			MgO			CaO			Na₂O			K₂O		P₂O₅				H₂O⁺			CO₂			LOI			Total
千枚岩	N38°59'17.8″/E113°08'52.9″	59.95		0.71			21.76			3.41			0.74			0.07			0.90			0.52			1.98			5.91		0.20				3.06			0.32			—			99.50
千枚岩	N38°59'17.8″/E113°08'52.9″	62.86		0.56			16.66			3.87			1.81			0.09			2.72			2.12			1.79			3.86		0.13				2.88			0.32			—			99.70
石榴云母片岩	N38°59'14.6″/E113°08'59.0″	43.23		0.52			18.13			3.90			21.07			0.44			2.71			1.41			0.09			1.51		0.14				5.98			0.23			—			99.40
含黄铁矿云母石英片岩	N38°58'29.9″/E113°9'29.5″	64.52		0.64			20.11			2.18			0.81			0.06			1.26			0.40			0.13			6.70		0.15				1.98			0.72			—			99.70
云母石英片岩	N38°58'17.9″/E113°9'35.8″	76.71		0.38			12.35			1.44			2.74			0.03			1.50			0.14			0.25			2.52		0.09				—			—			2.29			100.44
绿泥片岩	N38°58'29.9″/E113°9'29.5″	44.88		0.76			17.57			1.11			8.39			0.14			7.84			5.36			2.56			1.50		0.08				5.16			4.64			—			100.00
岩石名称	经纬度	w_B/10^-6
岩石名称	经纬度	Cr	Ni			Sc			Rb			Ba			Sr			Nb			Ta			Hf			Zr		Y		Th		U			La			Ce		Pr
千枚岩	N38°59'17.8″/E113°08'52.9″	32	—			12			178			1 407			95			19.7			1.9			8.9			434		24		20.4		3.40			22.30			63.60		5.57
千枚岩	N38°59'17.8″/E113°08'52.9″	204	—			14			105			1 013			223			12.0			1.2			5.4			234		24		15.2		2.45			32.60			64.00		7.78
石榴云母片岩	N38°59'14.6″/E113°08'59.0″	28	—			18			63			485			25			25.9			1.8			8.5			465		40		22.8		4.50			46.30			89.10		11.70
含黄铁矿云母石英片岩	N38°58'29.9″/E113°9'29.5″	3	3			18			303			1 798			29			44.3			3.8			24.4			757		160		60.0		12.00			215.00			430.00		44.60
云母石英片岩	N38°58'17.9″/E113°9'35.8″	23	12			6			97			473			23			13.9			0.9			8.9			346		23		14.0		3.50			38.99			78.51		8.97
绿泥片岩	N38°58'29.9″/E113°9'29.5″	104	125			24			56			739			148			2.2			0.2			1.6			53		14		1.5		0.30			7.54			14.90		2.04
岩石名称	经纬度	w_B/10^-6																																				(La/Yb)_N				δEu
岩石名称	经纬度	Nd			Sm			Eu			Gd			Tb			Dy			Ho			Er			Tm			Yb			Lu			ΣREE			(La/Yb)_N				δEu
千枚岩	N38°59'17.8″/E113°08'52.9″	20.10			3.97			0.77			3.49			0.67			4.21			0.92			2.93			0.47			3.28			0.50			132.78			4.5				0.62
千枚岩	N38°59'17.8″/E113°08'52.9″	29.70			5.49			1.03			4.50			0.72			4.08			0.90			2.69			0.40			2.77			0.43			157.09			7.8				0.62
石榴云母片岩	N38°59'14.6″/E113°08'59.0″	44.50			8.54			1.28			7.54			1.29			7.31			1.60			5.01			0.82			5.93			0.92			231.84			5.1				0.48
含黄铁矿云母石英片岩	N38°58'29.9″/E113°9'29.5″	189.00			31.90			3.62			27.00			5.05			27.30			5.91			16.70			2.46			15.80			2.21			1 016.55			9.0				0.37
云母石英片岩	N38°58'17.9″/E113°9'35.8″	33.01			6.08			0.84			4.97			0.80			4.35			0.81			2.28			0.33			2.06			0.35			182.34			12.5				0.46
绿泥片岩	N38°58'29.9″/E113°9'29.5″	11.00			2.37			0.76			2.60			0.41			2.46			0.50			1.49			0.21			1.22			0.20			47.70			4.1				0.94
