Late Mesozoic-Early Cenozoic tectonic events in Daqingshan and Panyangshan, Inner Mongolia, and its implication for the tectonic evolution of the northern margin of the North China Craton

doi:10.13745/j.esf.sf.2023.10.11

Abstract

Abstract:

The Daqingshan and Panyangshan in Inner Mongolia are located in the northern margin of the North China Craton (NCC), and their complex geological structures can provide a constraint on the Mesozoic-Cenozoic tectonic evolution of the northern NCC. To the north of Daqingshan is the Panyangshan thrust system, which formed originally in the Late Permian-Early Triassic by the closure of the Paleo-Asian Ocean and reactivated in the Late Jurassic possibly by the termination of the Mongolia-Okhotsk Ocean. Mesozoic-Cenozoic deformation of Daqingshan passed through four successive stages: the Hohhot metamorphic core complex (MCC) with SE-NW extension; the NW-ward Daqingshan thrust system; domes cored by undeformed granites; and the Daqingshan Front Fault and high-angle normal faults. The SE-NW extension took place from ca. 142 to 132 Ma and formed the Hohhot MCC and the related detachment system. This extension possibly resulted from gravitational collapse of the thickened crust caused by the Panyangshan thrusting. The Daqingshan thrust system formed between ca. 130-120 Ma, indicating a tectonic inversion from competition between plate convergence and crustal load as extension progressed. Another possible cause for the inversion is remote effect of Paleo-Pacific subduction. Since ca. 120 Ma Daqingshan has been in a tectonic-thermal relaxation regime represented by domes cored by undeformed granites of ca. 114 Ma and cooling events of ca. 120-90 Ma. These events might be related to the peak destruction of the NCC. The activation of the Daqingshan Front Fault and high-angle normal faults since the Eocene may be caused by remote effect of the India-Asia collision and change in the Pacific Plate movement. The closure of the Paleo-Asian and Mongolia-Okhotsk Oceans caused crustal thickening along the northern margin of the NCC, giving rise to the Early Cretaceous collapse, extension, and formation of the MCCs. The destruction of the NCC began to impact Daqingshan since 120 Ma, while in the Cenozoic the Neo-Tethys and Pacific realms remotely controlled the tectonic regime of Daqingshan.

Key words: Mesozoic, Cenozoic, thrust, metamorphic core complex (MCC), tectonic inversion, Daqingshan mountain, northern margin of the North China Craton

CLC Number:

P542

ZHANG Jinjiang, ZHENG Jianlei, WANG Haibin, GUO Lei, LIU Jiang, QI Guowei. Late Mesozoic-Early Cenozoic tectonic events in Daqingshan and Panyangshan, Inner Mongolia, and its implication for the tectonic evolution of the northern margin of the North China Craton[J]. Earth Science Frontiers, 2024, 31(1): 127-141.

Figures/Tables 10

Fig.1 Tectonic location (a, after [5]), geological map (b), and geological cross-section (c) of the study area

Fig.2 Main tectonic features of the study area

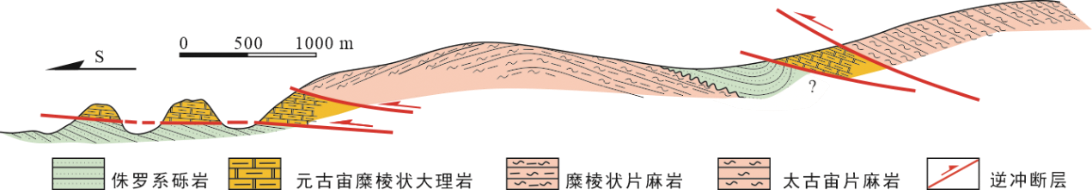

Fig.3 Cross-section of the Panyang Shan thrust system and Liubuquan normal fault (See Fig.1b for the location)

Fig.4 Cross-section of the Panyangshan thrust system in Wulanheya (location see Fig.1b)

Fig.5 Field photos showing typical structural features of the Daqingshan and Panyangshan mountains

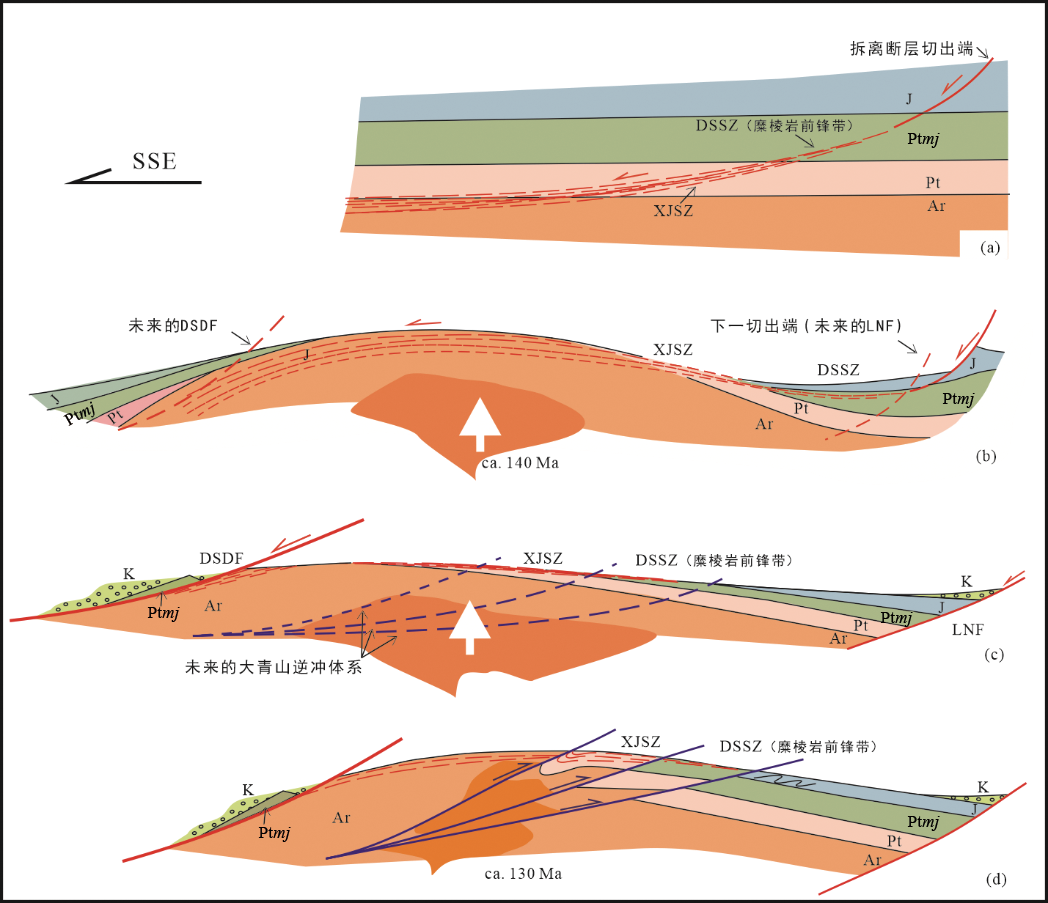

Fig.6 A model for the formation of the shear zones related to the Hohhot MCC. XJSZ: Xiaojing Shear Zone; DSSZ: Deshengying Shear Zone.

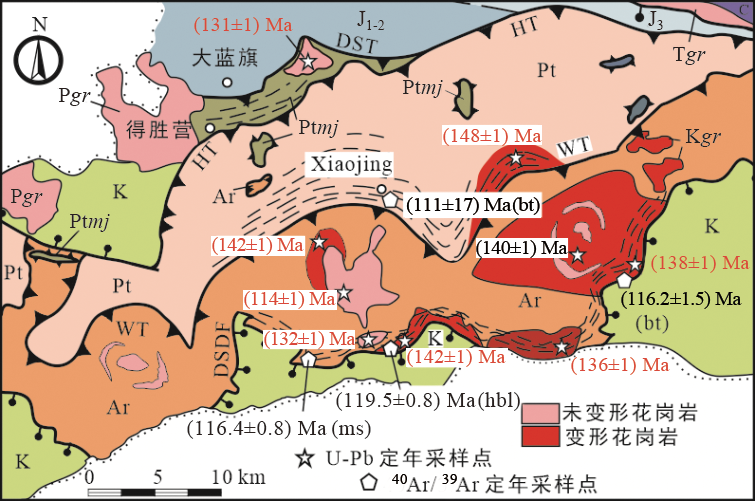

Fig.7 Geological map of domes cored by granite in the Hohhot MCC

Fig.8 Relationship between the Daqingshan thrust and the Daqing Shan detachment fault (locations shown in Fig.1b)

Fig.9 Relationship between the Panyang Shan thrusts and the Liubuquan normal fault (see Fig.1b for the location)

Fig.10 A tectonic model for the Daqingshan and Panyangshan mountains (not scaled)

References 84

[1]	邓晋福, 刘厚祥, 赵海玲, 等. 燕辽地区燕山期火成岩与造山模型[J]. 现代地质, 1996, 10(2): 137-149.
[2]	郑亚东, DAVIS G A, 王琮, 等. 燕山中生代主要构造事件与板块构造背景问题[J]. 地质学报, 2000, 74(4): 289-302.
[3]	马寅生, 崔盛芹, 曾庆利, 等. 燕山地区燕山期的挤压与伸展作用[J]. 地质通报, 2002, 21(4/5): 218-223.
[4]	翟明国, 孟庆任, 刘建明, 等. 华北东部中生代构造体制转折峰期的主要地质效应和形成动力学探讨[J]. 地学前缘, 2004, 11(3): 287-297.
[5]	DAVIS G A, DARBY B J. Early Cretaceous overprinting of the Mesozoic Daqing Shan fold-and-thrust belt by the Hohhot metamorphic core complex, Inner Mongolia, China[J]. Geoscience Frontiers, 2010, 1: 1-20. DOI URL
[6]	朱日祥, 陈凌, 吴福元, 等. 华北克拉通破坏的时间、范围与机制[J]. 中国科学: 地球科学, 2011, 41(5): 583-592.
[7]	朱日祥, 徐义刚, 朱光, 等. 华北克拉通破坏[J]. 中国科学: 地球科学, 2012, 42(8): 1135-1159.
[8]	董树文, 张岳桥, 李海龙, 等. “燕山运动”与东亚大陆晚中生代多板块汇聚构造: 纪念“燕山运动”90周年[J]. 中国科学: 地球科学, 2019, 49(6): 913-938.
[9]	ZHANG Z, ZHENG Q F, ZHANG H, et al. Late Mesozoic multi-plate convergence in East Asia: insights from 3-D global mantle flow models[J]. Tectonophysics, 2022, 845: 229636. DOI URL
[10]	赵越, 徐刚, 张拴宏, 等. 燕山运动与东亚构造体制的转变[J]. 地球科学, 2006, 11(3): 319-328.
[11]	董树文, 张岳桥, 龙长兴, 等. 中国侏罗纪构造变革与燕山运动新诠释[J]. 地质学报, 2007, 11: 1449-1461.
[12]	董树文, 张岳桥, 陈宣华, 等. 晚侏罗世东亚多向汇聚构造体系的形成与变形特征[J]. 地球学报, 2008, 3: 306-317.
[13]	翁文灏. 中国东部中生代造山运动[J]. 中国地质学会志, 1929, 8(1): 33-44.
[14]	ZHENG Y D, ZHANG Q, WANG Y F, et al. Great Jurassic thrust sheets in Beishan (North Mountains): Gobi areas of China and southern Mongolia[J]. Journal of Structural Geology, 1996, 18: 1111-1126. DOI URL
[15]	郑亚东, DAVIS G A, 王琮, 等. 内蒙古大青山大型逆冲推覆构造[J]. 中国科学: D辑, 1998, 28(4): 289-295.
[16]	DAVIS G A, WANG C, ZHENG Y D, et al. The enigmatic Yinshan fold and thrust belt of northern China: new views on its intraplate contractional styles[J]. Geology, 1998, 26: 43-46. DOI URL
[17]	张长厚, 李程明, 邓洪菱, 等. 燕山—太行山北段中生代收缩变形与华北克拉通破坏[J]. 中国科学: 地球科学, 2011, 41(5): 593-617.
[18]	郑亚东, 王士政, 王玉芳. 中蒙边界区新发现的特大型推覆构造及伸展变质核杂岩[J]. 中国科学: D辑, 1990, 12: 1300-1305.
[19]	郑亚东, 张青. 内蒙古亚干变质核杂岩剪切作用类型的初步分析[J]. 地质学报, 1993, 67(4): 301-312.
[20]	王玉芳, 崔文元, 孙承志. 内蒙赤峰南部娄子店—大城子拆离断层及其构造演化[M]. 北京: 地质出版社, 1994: 99-108.
[21]	WEBB L E, GRAHAM S A, JOHNSON C L, et al. Occurrence, age, and implications of the Vagan-Onch Hayrhan metamorphic core complex, southern Mongolia[J]. Geology, 1999, 27: 143-146. DOI URL
[22]	WANG T, ZHENG Y D, ZHANG J J, et al. Pattern and kinematic polarity of late Mesozoic extension in continental NE Asia: perspectives from metamorphic core complexes[J]. Tectonics, 2011, 30: TC6007.
[23]	ZHOU Y Z, HAN B F, ZHANG B, et al. The Yingba shear zone on the Sino-Mongolian border: southwestern extension of the Zuunbayan fault from Mongolia to China and implications for Late Mesozoic intracontinental extension in eastern Asia[J]. Tectonphysics, 2012, 574: 118-132.
[24]	MA Z Q, LU G, YANG J F, et al. Numerical modeling of metamorphic core complex formation: implications for the destruction of the North China Craton[J]. Earth and Planetary Physics, 2022, 6(2): 191-203.
[25]	DAVIS G A, DARBY B J, ZHENG Y D, et al. Geometric and temporal evolution of an extensional detachment fault, Hohhot metamorphic core complex, Inner Mongolia, China[J]. Geology, 2002, 30: 1003-1006. DOI URL
[26]	戚国伟, 张进江, 王新社, 等. 内蒙古大青山中生代逆冲-伸展构造格局及空间关系[J]. 自然科学进展, 2007, 17(3): 329-338.
[27]	韩鹏, 高飞, 王建强. 鄂尔多斯周缘新生代盆地断陷发生时间探讨[J]. 内蒙古石油化工, 2008, 5: 38-39.
[28]	酆少英, 刘保金, 姬计法, 等. 呼和浩特—包头盆地岩石圈细结构的深地震反射探测[J]. 地球物理学报, 2015, 58(4): 1158-1168. DOI
[29]	高泽民, 刘兴旺, 邵延秀, 等. 河套盆地北缘大青山地区构造地貌特征[J]. 地震地质, 2019, 41(6): 1317-1332. DOI
[30]	王海滨, 张进江, 古大祥, 等. 内蒙古中部盘羊山逆冲推覆体系的构造特征、活动时限与构造意义[J]. 大地构造与成矿学, 2021, 45(5): 839-850.
[31]	WANG H B, ZHANG J J, FAN Y S, et al. Tectonic conversion on the northern margin of the North China Craton in the Early Triassic: constraints from geochronology and petrogenesis of the Datan plutonic complex, middle of Inner Mongolia, China[J]. Lithos, 2021, 388/389(4): 106038. DOI URL
[32]	GUO L, WANG T, CASTROA A, et al. Petrogenesis and evolution of late Mesozoic granitic magmatism in the Hohhot metamorphic core complex, Daqing Shan, North China[J]. International Geology Review, 2012, 54: 1885-1905. DOI URL
[33]	刘江, 张进江, 郭磊, 等. 内蒙古呼和浩特变质核杂岩韧性拆离带⁴⁰Ar-³⁹Ar定年及其构造含义[J]. 岩石学报, 2014, 30(7): 1899-1908.
[34]	彭向东, 徐仲元, 刘正宏. 内蒙古大青山地区中、上侏罗统大青山组的修订[J]. 地层学杂志, 2003, 27(1): 66-70
[35]	张浩然. 内蒙古大青山东段逆冲推覆构造[D]. 北京: 中国地质大学(北京), 2009.
[36]	徐翔军, 赵羽君. 内蒙古石拐中生代断陷盆地形成与成因初探[J]. 吉林大学学报(地球科学版), 2005, 1: 33-38.
[37]	张宇, 董树文, 施炜. 呼和浩特热隆伸展构造: 华北“变质核杂岩”再认识[J]. 科学通报, 2023. DOI: 10.1360/TB-2023-0402.
[38]	GUO L, WANG T, ZHANG J J, et al. Evolution and time of formation of the Hohhot metamorphic core complex, North China: new structural and geochronologic evidence[J]. International Geology Review, 2011, 54: 1309-1331. DOI URL
[39]	刘江. 内蒙古大青山晚中生代构造演化[D]. 北京: 北京大学, 2013.
[40]	贺元凯, 吴泰然, 罗红玲, 等. 华北板块北缘中段新太古代的陆-陆碰撞事件: 来自合教S型花岗岩的证据[J]. 北京大学学报(自然科学版), 2010, 46(4): 571-580.
[41]	张进江, 戚国伟, 郭磊, 等. 内蒙古大青山逆冲推覆体系中生代逆冲构造活动的⁴⁰Ar-³⁹Ar定年[J]. 岩石学报, 2009, 25(3): 609-620.
[42]	刘正宏, 徐仲元, 杨振升. 内蒙古大青山逆冲推覆构造带中泥质板岩激光微区⁴⁰Ar/³⁹Ar年龄[J]. 中国地质, 2003, 30(30): 293-296.
[43]	吴中海, 吴珍汉. 大青山晚白垩世以来的隆升历史[J]. 地球学报, 2003, 24(3): 205-210.
[44]	冉勇康, 张培震, 胡博, 等. 大青山山前断裂呼和浩特段晚第四纪古地震活动历史[J]. 中国地震, 2002, 18(1): 15-27.
[45]	冉勇康, 张培震, 陈立春. 河套断陷带大青山山前断裂晚第四纪古地震完整性研究[J]. 地学前缘, 2003, 10(增刊1): 207-216.
[46]	GONG W B, HU J M, YANG Y. Late Mesozoic tectonic evolution and kinematic mechanisms in the Daqing Shan at the northern margin of the North China Craton[J]. Journal of Asian Earth Sciences, 2015, 114: 103-114. DOI URL
[47]	王永超, 董树文, 陈宣华, 等. 内蒙古大青山侏罗纪生长地层对燕山运动“绪动”的制约[J]. 科学通报. 2017, 62(12): 1274-1277.
[48]	WANG Y C, DONG S W, WEI L J. Yanshanian deformation along the northern margin of the North China Craton: constraints from growth strata in the Shiguai Basin, Inner Mongolia, China[J]. Basin Research, 2018, 30: 1155-1179. DOI URL
[49]	杨振宇, 马醒华, 孙知明, 等. 华北地块显生宙古地磁视极移曲线与地块运动[J]. 中国科学: 地球科学, 1998, 28(增刊1): 44-56.
[50]	ENKIN R Z, YANG Z Y, CHEN Y, et al. Paleomagnetic constraints on the geodynamic history of main Chinese blocks from the Permian to the present: a review[J]. Journal of Geophysical Research, 1992, 97: 13953-13989. DOI URL
[51]	ZHAO X X, COE R S, LIU C, et al. New Cambrian and Ordovician paleomagnetic poles for the North China Block and their paleogeographic implication[J]. Journal of Geophysical Research, 1992, 97: 1767-1788. DOI URL
[52]	YIN A, NIE S. A Phaneozoic palinspastic reconstruction of China and its neighboring regions[M]//YIN A, HARRISON T M. The tectonic evolution of Asia. Cambrige: Cambrige University Press, 1996: 442-485.
[53]	WANG T, ZHENG Y D, LI T B, et al. Mesozoic granitic magmatism in extensional tectonics near the Mongolian border in China and its implications for crustal growth[J]. Journal of Asian Earth Sciences, 2004, 23: 715-729. DOI URL
[54]	HAN B F, ZHENG Y D, GAN J W, et al. The Louzidian normal fault near Chifeng, Inner Mongolia: master fault of a quasi-metamorphic core complex[J]. International Geology Review, 2001, 43: 254-264. DOI URL
[55]	张晓晖, 李铁胜, 蒲志平, 等. 内蒙古赤峰娄子店—大城子韧性剪切带的⁴⁰Ar-³⁹Ar年龄及其构造意义[J]. 科学通报, 2002, 47(12): 951-956.
[56]	王新社, 郑亚东. 楼子店变质核杂岩韧性变形作用的⁴⁰Ar/³⁹Ar代学约束[J]. 地质论评, 2005, 51(5): 275-283.
[57]	DARBY B J, DAVIS G A, ZHANG X H, et al. The newly discovered Waziyu metamorphic core complex, Yiwulushan, western Liaoning Province, Northeast China[J]. Earth Science Frontiers, 2004, 11(3): 145-155.
[58]	吴福元, 杨进辉, 张艳斌, 等. 辽西东南部中生代花岗岩时代[J]. 岩石学报, 2006, 22(2): 315-325.
[59]	杜建军, 马寅生, 赵越, 等. 辽西医巫闾山花岗岩锆石SHRIMP U-Pb测年及其地质意义[J]. 中国地质, 2007, 34(1): 26-33.
[60]	LIN W, FAURE M, CHEN Y, et al. Late Mesozoic compressional to extensional tectonics in the Yiwulüshan massif, NE China and its bearing on the evolution of the Yinshan-Yanshan orogenic belt. Part I: structural analyses and geochronological constraints[J]. Gondwana Research, 2013, 23: 54-77. DOI URL
[61]	LIN W, CHARLES N, CHEN Y, et al. Late Mesozoic compressional to extensional tectonics in the Yiwulüshan massif, NE China and their bearing on the Yinshan-Yanshan orogenic belt. Part II: anisotropy of magnetic susceptibility and gravity modeling[J]. Gondwana Research, 2013, 23: 78-94. DOI URL
[62]	杨中柱, 孟庆成, 江江, 等. 辽南变质核杂岩构造[J]. 辽宁地质, 1996, 4: 242-250.
[63]	LIU J L, DAVIS G, LIN Z Y, et al. The Liaonan metamorphic core complex, southeastern Liaoning Province, North China: a likely contributor to Cretaceous rotation of eastern Liaoning, Korea and contiguous areas[J]. Tectonophysics, 2005, 407: 65-80. DOI URL
[64]	LIN W, FAURE M, MONIE P, et al. Mesozoic extensional tectonics in eastern Asia: the South Liaodong Peninsula metamorphic core complex (NE China)[J]. The Journal of Geology, 2008, 116: 134-154. DOI URL
[65]	郑亚东, 曾令森, 李健波, 等. 辽南中生代造山期缩短滑脱与晚造山伸展拆离构造[J]. 地质科学, 2009, 44(3): 811-824.
[66]	ZHU G, JIANG D Z, ZHANG B L, et al. Destruction of the eastern North China Craton in a backarc setting: evidence from crustal deformation kinematics[J]. Gondwana Research, 2012, 22: 86-103. DOI URL
[67]	GAO S, RUDNICK R L, YUAN H L. Recycling lower continental crust in the North China Craton[J]. Nature, 2004, 432: 892-897. DOI
[68]	郑亚东, 王涛. 中蒙边界区中生代推覆构造与伸展垮塌作用的运动学和动力学分析[J]. 中国科学: 地球科学, 2005, 35(4): 291-303.
[69]	CARRERAS J, CAPELLA I. Tectonic levels in the Palaeozoic basement of the Pyrenees: a review and a new interpretation[J]. Journal of Structural Geology, 1994, 16: 1509-1524. DOI URL
[70]	ZHENG Y D, WANG T, MA M B. Maximum effective moment criterion and the origin of low-angle normal faults[J]. Journal of Structural Geology, 2004, 26: 271-285. DOI URL
[71]	QI G W, ZHANG J J, WANG M. Mesozoic tectonic setting of rift basins in eastern North China and implications for destruction of the North China Craton[J]. Journal of Asian Earth Sciences, 2015, 111(1): 414-427. DOI URL
[72]	张晓晖, 李铁胜, 蒲志平. 辽西医巫闾山两条韧性剪切带的⁴⁰Ar-³⁹Ar年龄: 中生代构造热事件的年代学约束[J]. 科学通报, 2002, 47(9): 697-701.
[73]	曾令森, 李海兵. 辽南金州隆起区构造变形及流体作用[J]. 高校地质学报, 1996, 2(2): 155-165.
[74]	YANG J H, WU F Y. Rapid exhumation and cooling of the Liaonan metamorphic core complex: inferences from ⁴⁰Ar-³⁹Ar thermochronology and implications for Late Mesozoic extension in the eastern North China Craton[J]. Geological Society of America Bulletin, 2007, 119: 1405-1414. DOI URL
[75]	李理, 钟大赉, 时秀朋, 等. 鲁西地区晚中生代以来伸展构造及其控矿作用[J]. 地质论评, 2008, 54(4): 449-458.
[76]	闫淑玉, 张进江, 王晓先, 等. 太行山东缘断裂南支断层性质及断层泥K-Ar同位素定年[J]. 地质科学, 2012, 47(1): 1-12.
[77]	吴福元, 徐义刚, 高山, 等. 华北岩石圈减薄与克拉通破坏研究的主要学术争论[J]. 岩石学报, 2008, 24(6): 1145-1174.
[78]	REPLUMAZ A, KARASON H, HILST R, et al. 4-D evolution of SE Asia's mantle from geological reconstructions and seismic tomography[J]. Earth and Planetary Science Letters, 2004, 221: 103-115. DOI URL
[79]	SHARP W D, CLAGUE D A. 50 Ma initiation of Hawaiian-Emperor bend records major change in Pacific plate motion[J]. Science, 2006, 313: 1281-1284. DOI URL
[80]	安美建, 赵越, 冯梅, 等. 什么控制了华北克拉通东部在新近纪的构造活动?[J]. 地学前缘, 2011, 18(3): 121-140.
[81]	HU J S, GURNIS M, RUDI J, et al. Dynamics of the abrupt change in Pacific plate motion around 50 million years ago[J]. Nature Geoscience, 2022, 15: 74-78. DOI
[82]	LI L, ZHONG D L, YANG C C, et al. The coupling relationship between the West Shandong Rise and the Jiyang Depression, China[J]. Journal of Earth Science, 2013, 24: 626-644. DOI URL
[83]	WU L, WANG F, YANG J H, et al. Meso-Cenozoic uplift of the Taihang Mountains, North China: evidence from zircon and apatite thermochronology[J]. Geological Magazine, 2020, 157: 1097-1111. DOI URL
[84]	HUANG X, WANG Y N, ZHANG J, et al. Low-temperature thermochronological insights into the Mesozoic-Cenozoic exhumation history of the Taihang-Lvliangshan region: a review[J]. Geological Journal, 2022, 57: 1511-1529. DOI URL
