Preliminary study on nanopores, nanofissures, and in situ accumulation of Gulong shale oil

doi:10.13745/j.esf.sf.2022.8.32

Abstract

Abstract:

The shale oil resource in the Qingshankou formation, Gulong Sag amounts to 15.1 billion tons, making it an important petroleum “backup” resource. Electron backscattering (HDBSD) shows that nm pores and fissures are well developed in the Gulong shale oil reservoir. The nm pores are mostly 10-50 nm in diameter (median 20-30 nm) and have irregular or polygonal shapes. They are mainly a kind of E-F nano holes, and some E-E nano pores, and connected to the nano fissures that have slit widths mostly between 10-50 nm (median 20-30 nm). The nm fissures are mainly formed in clays via F-F condensation. Clay coagulation is closely related to organic matter, especially algae. The clay colloid is negatively charged due to isocrystalline replacement, and metal cations are absorbed around it to form a positive clay group. The positively charged clays in turn adsorb the negatively charged humic acid (organic matter) and lightly degraded algae to form an organic clay flocculant. When the organic clay flocculates reach the hydrocarbon generation/release threshold, organic matter shrinks up to 87% in volume. Due to capillary resistance (~12 MPa) from nano fissures, the discharged hydrocarbon cannot migrate out, thus forming the special continuous in-situ shale oil reservoir of Gulong.

Key words: shale, clay, organic matter, nano-pore and nano-fissure, in-situ accumulation, Gulong Sag

CLC Number:

P618.130.2

HE Wenyuan. Preliminary study on nanopores, nanofissures, and in situ accumulation of Gulong shale oil[J]. Earth Science Frontiers, 2023, 30(1): 156-173.

Figures/Tables 21

Fig.1 Structural zoning and location map of the study area. Modified after [1].

Fig.2 East-west seismic profile of Gulong Sag in Songliao Basin and its interpretation. Modified after [1].

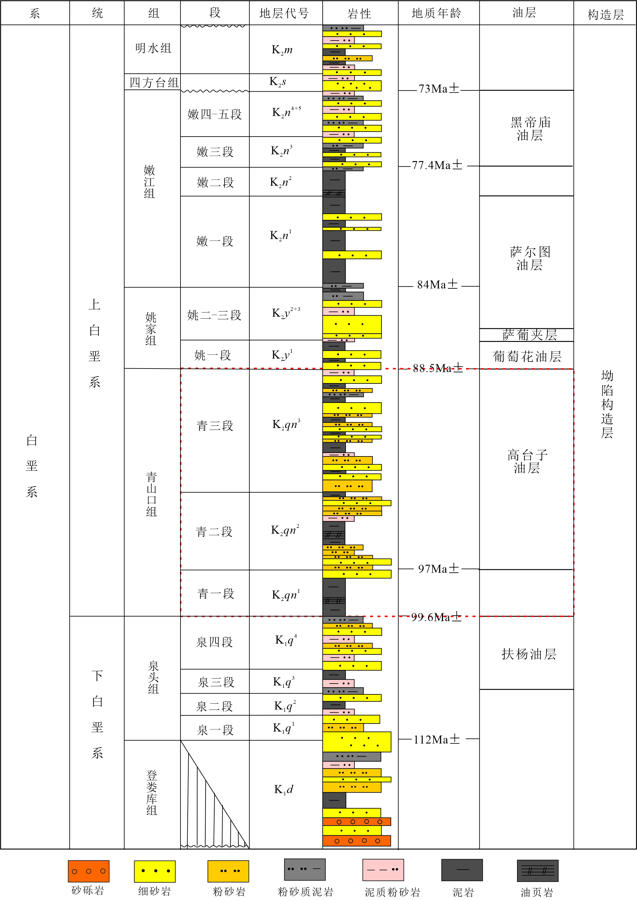

Fig.3 Strata columnar in the study area. Modified after [1].

Fig.4 Microstructure or fabric of Gulong shale of Qingshankou Formation

Fig.5 Arrangement of clay-organic aggregate and its particles

Fig.6 Algal debris-clay aggregates

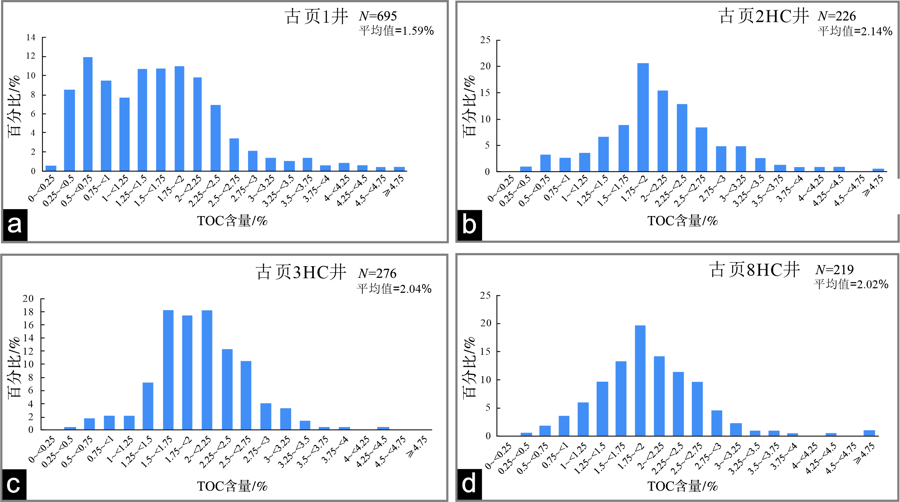

Fig.7 Organic carbon distribution of 4 Wells in Qingshankou Formation of Gulong Sag

Fig.8 Backscattering diagram and energy spectrum diagram of the Qing 1 section of Guye 3HC well

Fig.9 Histogram of energy spectrum analysis

Table 1 Analysis results of energy spectrum of the Qing 1 section of Guye 3HC well

点号	w_B/%
点号	C	O	Na	Mg	Al	Si	K	Fe
70	41.12	21.54	0.31	0.61	9.31	17.56	5.15	2.31
71	35.66	23.55	0.30	0.58	10.95	20.03	5.79	2.55
72	40.83	13.53	0.33	0.58	11.13	22.84	7.19	3.02
73	50.95	20.26	0.83	0.35	5.56	15.22	2.42	1.66
74	56.44	18.07	0.89	0.25	4.19	12.99	1.72	2.18
75	26.41	32.72	4.84		7.50	23.59	0.26	3.63
76	16.99	33.35	4.11		10.53	32.09	2.08	0.85
77	60.47	12.55	1.11	0.12	3.12	13.24	0.98	5.39
78	41.42	16.36			2.08	37.15	2.34	0.65
79	31.26	19.41	0.54	0.55	8.05	34.64	3.78	1.77
82	72.24	15.66	0.46	0.13	1.70	6.56	0.82	0.74
80	31.84	19.42	0.28	0.81	11.65	27.72	5.78	2.50
81	82.69	10.77	0.68		0.63	2.17	0.24	0.36
83	44.19	21.45	0.51	1.21	6.72	13.73	3.43	3.68
84	53.87	21.30	0.39	0.39	5.33	13.99	2.78	1.31
85	80.18	7.19	0.29	0.14	2.39	5.72	1.29	1.26
86	91.46	0.21	1.51	3.70	0.44	0.05	0.76	1.36
87	89.24		0.28	0.12	1.80	4.42	0.90	1.21
平均值	52.63	18.08	1.04	0.68	5.73	16.87	2.65	2.02

Fig.10 Nano-fissures and the organic matters in clay

Fig.11 The organic matters (solid bitumen) nano-pores and nano-fissures in the clay

Fig.12 Image analysis of dana-kongna fractures between clay domains

Fig.13 Correlation of the area shrinkage rate of algea and vitrinite with temperature (a) and Ro (b). Modified after [23].

Fig.14 Field mission scanning electron microscopic characteristics of shale of Member 1 of Qingshankou Formation in different hydrocarbon generation simulation stages, Gulong area. Modified after [23].

Fig.15 Nanopore micropores and liquid hydrocarbon filling in kerogen

Fig.16 Schematic diagram of wormlike micro-fissures and organic matter filled in them

Fig.17 Shows the development of a large number of dewatering dessication pores and dessication fissures

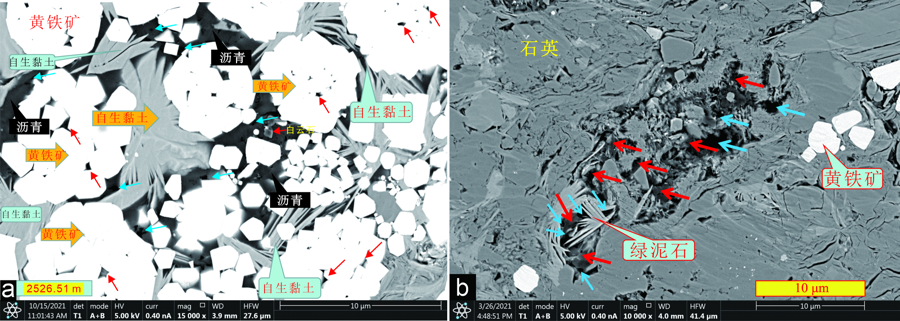

Fig.18 (Solid) bitumen in the large nano and micron pores

Fig.19 Correlation between pressurization (a) or resistances (b, c) of shale oil and gas and organic matter Ro in the Gulong area. Modified after [23].

Fig.20 Schematic diagram of Gulong shale oil five stage migration and accumulation system. Modified after [1].
