Characteristics and main controlling factors of fracture development in the Ordovician carbonate reservoir, Tahe oilfield

doi:10.13745/j.esf.sf.2024.6.18

Abstract

Abstract:

The characteristics of natural fractures in Ordovician carbonate reservoirs, Tahe oilfield are systematically studied and the main controlling factors of fracture development are analysed using different experimental methods. Natural fractures can be divided into four types and seven subtypes: structural (tensile, shear), superficial (weathering), diagenetic (stylolites, bedding), and composite genetic (structural-weathering, structural-diagenetic), with structural being the dominating type. Fractures are mainly oriented NE-SW, NW-SE and NNE-SSW and dip toward NNW, NE and SEE, with dip angles mostly greater than 70° and fracture density ranging from 1.5 to 3.5 m^-1. According to filling characteristics and fracture cross-cutting relationships fracture filling can be divided into three stages. Fractures with stage I filling show strong fluorescence reaction under the microscope, demonstrating filled fractures can still be effective due to internal microfractures. The formation and development of fractures in carbonate reservoirs are controlled by four factors: tectonic stress field, fault, lithology and karstification. The magnitude and direction of the tectonic stress field during the fracture formation period determine the fracture size and distribution mode. Under the significant influence of strike-slip faults a large number of fault-associated fractures are developed, and their fracturing pattern is consistent with that of strike-slip faults. The radius of influence of a single strike-slip fault zone is 2048.56 m, and the development of fault controlled fractures is strong within 0-308.25 m from the fault zone and significantly reduced beyond this range. The tension-shear section of the strike-slip fault and the end of the fault zone show good fracture development, and the active plate has high fracture density with more abundant oil/gas filled fractures. The level of fracture development is positively correlated with the content of brittle minerals and significantly influenced by Young’s modulus and Poisson’s ratio. The highest level of fracture development is found in dolomite, and the most effective fractures are in sandy limestone. Large-scale fracture development are seen on mounds under karst platform in shallow areas and along the vertical direction, with an average fracture density of 2.67 m^-1, strongly enhancing reservoir performance.

Key words: development characteristics, controlling factors, carbonate reservoirs, Ordovician, Tahe oilfield

CLC Number:

HAN Pengyuan, DING Wenlong, YANG Debin, DENG Guangxiao, WANG Zhen, MA Hailong, LÜ Jing, GENG Tian. Characteristics and main controlling factors of fracture development in the Ordovician carbonate reservoir, Tahe oilfield[J]. Earth Science Frontiers, 2024, 31(5): 209-226.

Figures/Tables 16

Fig. 1 The study area. (a) Structural units of the Tarim Basin (modified after [36]). (b) Geographical location of the Tarim Basin.(c) Structural units of Tabei uplift and location of Tahe oilfield (modified after [42-43]).(d) Comprehensive lithological column and sedimentary-tectonic evolution characteristics of the Middle Cambrian-Lower Silurian in Tahe oilfield (modified after[25]).

Fig.2 Core specimens showing the characteristics of fracture development in Ordovician carbonate reservoir, Tahe oilfield

Fig.3 Characteristics of microfractures

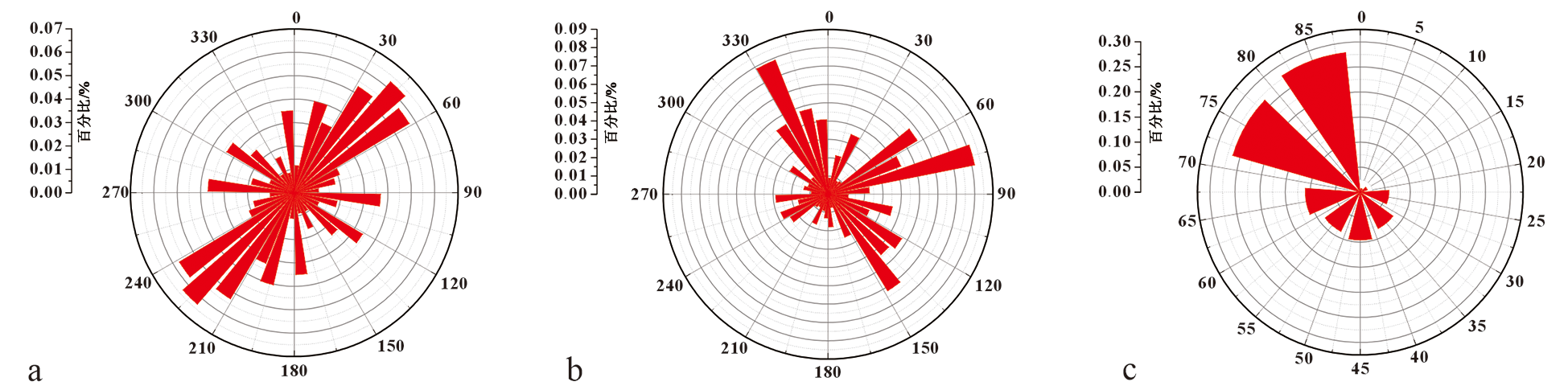

Fig.4 Fracture orientation (a), dip direction (b) and dip angle (c) distributions from image logs

Fig.5 Pie charts of fracture dip angles (a), lengths (b), aperture (c) and filling levels (d)

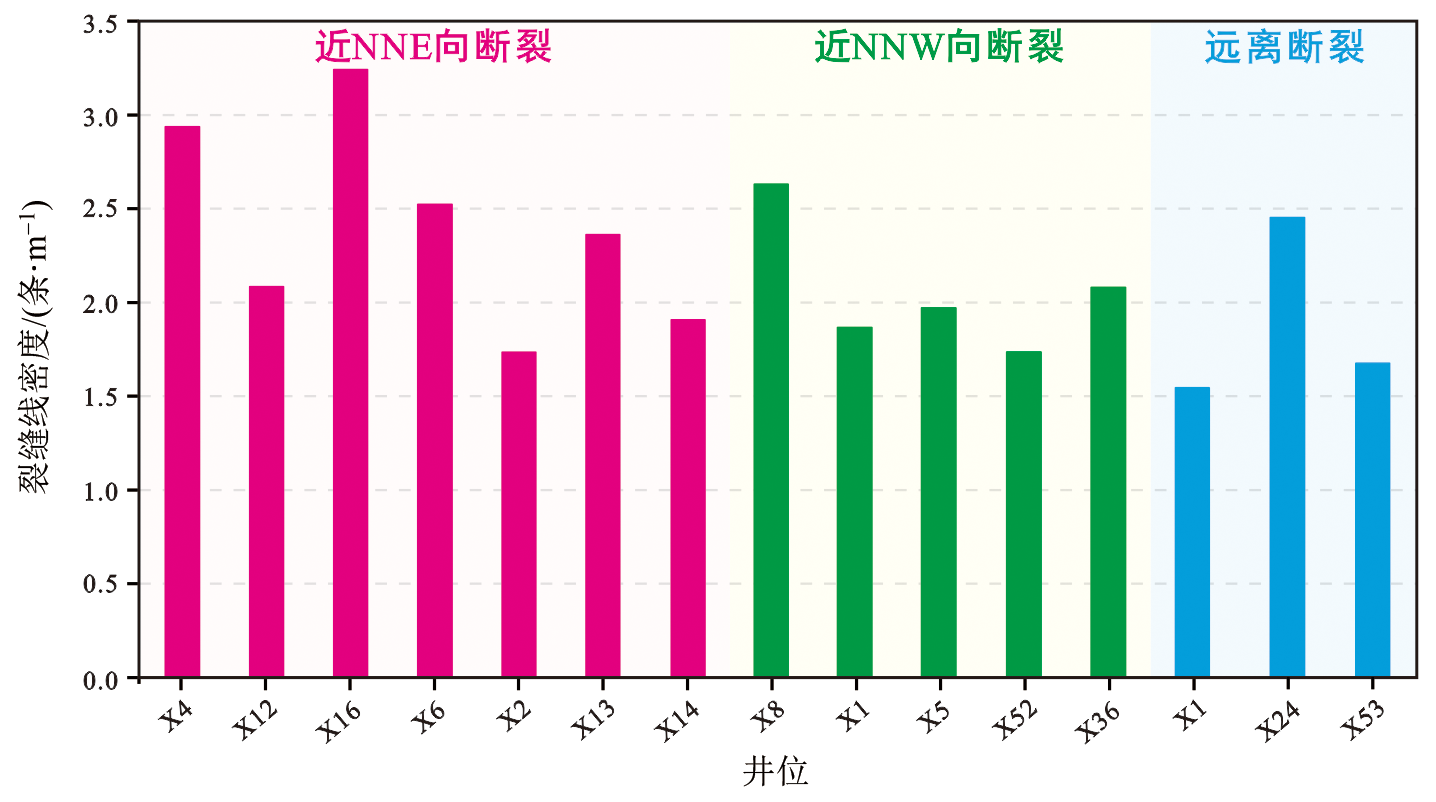

Fig.6 Fracture density bar graph for wells under different fault conditions

Fig.7 Relationship between fracture dip angle and fracture aperture

Fig.8 Positive relationship between calculated comprehensive fracture index and observed fracture density

Fig.9 Fracture orientation distributions along fault zones

Fig.10 Relationship between fracture density and distance from fault zones

Fig.11 Relationship between segmentation of strike-slip faults and fracture density

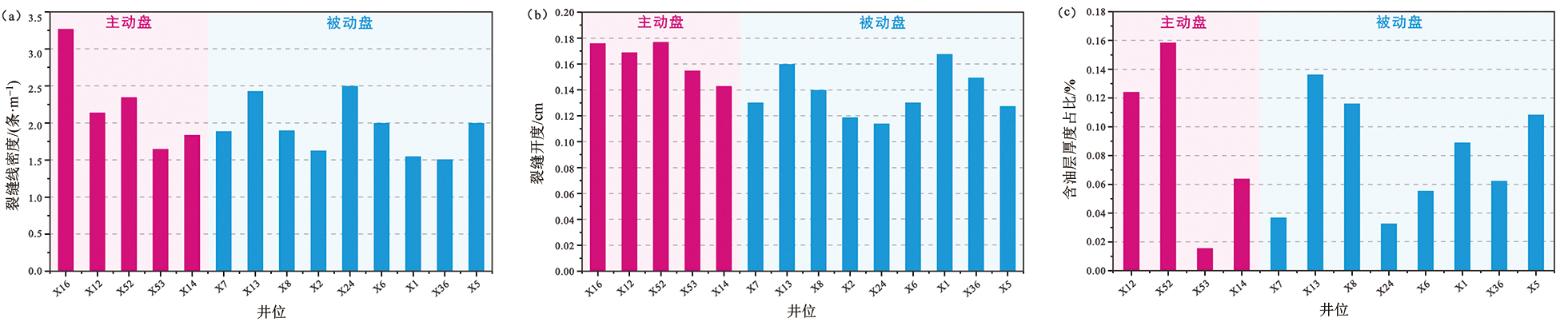

Fig.12 Differences in fracture density distributions between active and passive plates in strike-slip faults

Fig.13 Influence of lithology on fracture development

Table 1 Comparison of rock mechanical parameters between different lithologies

井位	岩性	杨氏模量/GPa	泊松比	数据来源
X7	角砾灰岩	41.96	0.214	自测
X5	泥晶灰岩	64.94	0.390	自测
X5	亮晶灰岩	44.43	0.247	郑晓志^[91]
S13	砂屑灰岩	74.24	0.339
S13	泥灰岩	31.02	0.22
X10	泥晶灰岩	65.17	0.299
X4	泥晶灰岩	51.59	0.243
X8	泥微晶灰岩	37.67	0.307
X16	泥晶灰岩	62.7	0.297

Table 2 Statistics on fracture status of karst landforms

研究对象	裂缝线密度分区/ (条·m^-1)		岩溶地貌
			岩溶台地						岩溶陡坡		岩溶盆地
			峰丛洼地		丘从垄脊沟谷		丘从洼地		岩溶陡坡		岩溶盆地
			面积/ km²	占比/ %	面积/ km²	占比/ %	面积/ km²	占比/ %	面积/ km²	占比/ %	面积/ km²	占比/ %
奥陶系顶界面	I	3.5~>2.5	15.51	40.1	2.94	11.2	17.38	19.9	16.33	6.7	3.84	5.2
	II	2.5~>1.5	19.07	49.3	6.94	26.4	21.73	24.8	54.27	22.4	4.03	5.4
	III	1.5~>1.0	4.10	10.6	1.99	7.6	12.70	14.5	36.42	15.0	5.13	6.9
	IV	1.0~>0.5			13.36	50.9	35.54	40.6	76.75	31.7	52.42	70.6
	V	0.5~0.0			1.03	3.9	0.18	0.2	58.30	24.1	8.81	11.9
中下奥陶统地层	I	3.5~>2.5							1.44	0.5	0.43	0.5
	II	2.5~>1.5	5.86	14.1	0.34	1.6	9.97	14.1	22.73	8.7	2.15	2.7
	III	1.5~>1.0	9.79	23.6	5.08	23.1	14.15	20.0	72.21	27.6	24.24	30.6
	IV	1.0~>0.5	25.91	62.3	1.42	6.4	45.63	64.6	148.87	56.8	52.38	66.1
	V	0.5~0.0			15.15	68.9	0.92	1.3	16.64	6.4

Fig.14 Influence of karst landform on fracture development
