Stress sensitivity characteristics of deep carbonate fractured porous media

doi:10.13745/j.esf.sf.2023.2.27

Abstract

Abstract:

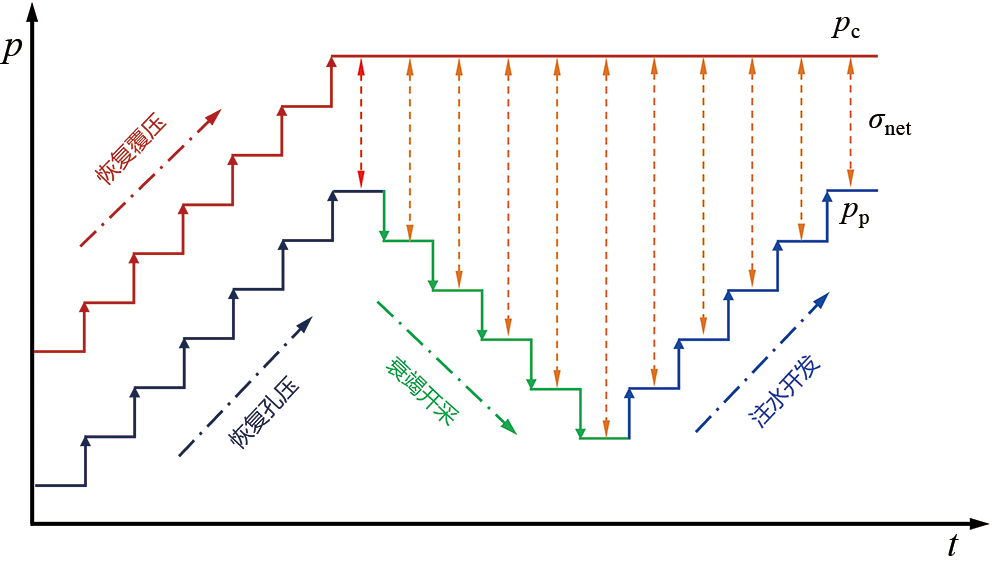

The deep, vuggy, fractured porous carbonate reservoirs have three main characteristics, namely complex burial environment, rock-fluid interaction and storage space, which hinders the effective reservoir utilization and development. In order to reveal the stress sensitivity characteristics of this reservoir type under high temperature, pressure and stress conditions, several porous media models with different fracture development, fracture roughness and pore/filling type were constructed using an improved test method for stress sensitivity evaluation; the impacts of different porosity development characteristics on the stress sensitivity of carbonate fractured porous media with vuggy porosity were investigated in depth. Study results show that (1) the effect of stress sensitivity hysteresis generally exists at depth in the studied media, and the measured absolute permeability in the pore-pressure recovery stage is always smaller than in the pressure reduction stage. (2) There is a good positive correlation between the maximum and irreversible permeability-loss ratios for the studied media with similar porosity development characteristics. (3) The stress sensitivity performance of the studied media with different filling types is consistent with that of porous media, with small permeablity-loss ratios for both pore-pressure reduction and recovery stages. (4) Fractures are the main structural control factor affecting the stress sensitivity of the studied media, and the stress sensitivity performance of fractured media is significantly stronger compared to vuggy media. (5) With the increase of fractures and complexity of media morphology, the stress sensitivity of the studied media decreases significantly, while the presence of dissolved vugs and caves causes further reduction in stress sensitivity. This study clarifies the stress sensitivity characteristics and major differences between carbonate vuggy fractured porous media with different porosity developmental characteristics at depth, and provides a theoretical basis for reservoir development decision making.

Key words: deep formations, carbonate rocks, fractured-vuggy media, development characteristics, stress sensitivity

CLC Number:

TE311

SUN Ke, LIU Huiqing, WANG Jing, LIU Renjie, FENG Yabin, KANG Zhijiang, ZHANG Yun. Stress sensitivity characteristics of deep carbonate fractured porous media[J]. Earth Science Frontiers, 2023, 30(6): 351-364.

Figures/Tables 15

References 43

[1]	李阳, 薛兆杰, 程喆, 等. 中国深层油气勘探开发进展与发展方向[J]. 中国石油勘探, 2020, 25(1): 45-57. DOI
[2]	李建忠, 陶小晚, 白斌, 等. 中国海相超深层油气地质条件、成藏演化及有利勘探方向[J]. 石油勘探与开发, 2021, 48(1): 52-67. DOI
[3]	康玉柱. 中国古生界油气勘探成果及勘探战略思考[J]. 天然气工业, 2015, 35(9): 1-7.
[4]	李阳. 碳酸盐岩缝洞型油藏开发理论与方法[M]. 北京: 中国石化出版社, 2014.
[5]	李阳. 塔河油田碳酸盐岩缝洞型油藏开发理论及方法[J]. 石油学报, 2013, 34(1): 115-121.
[6]	李永强. 塔河油田碳酸盐岩缝洞单元内部非均质性定量表征[D]. 北京: 中国石油大学(北京), 2017.
[7]	王殿生. 缝洞型介质流动机理实验与数值模拟研究[D]. 青岛: 中国石油大学, 2009.
[8]	杨坚, 程倩, 李江龙, 等. 塔里木盆地塔河4区缝洞型油藏井间连通程度[J]. 石油与天然气地质, 2012, 33(3): 484-489, 496.
[9]	ZHANG T, YAN X B. A study of the genesis of karst-type subtle reservoir in Tahe Oilfield[J]. Petroleum Science, 2004, (2): 99-104.
[10]	刘中春, 李江龙, 吕成远, 等. 缝洞型油藏储集空间类型对油井含水率影响的实验研究[J]. 石油学报, 2009, 30(2): 271-274.
[11]	任玉林, 李江龙, 黄孝特. 塔河油田碳酸盐岩油藏开发技术政策研究[J]. 油气地质与采收率, 2004, 11(5): 57-59, 84-85.
[12]	鲁新便. 岩溶缝洞型碳酸盐岩储集层的非均质性[J]. 新疆石油地质, 2003, 24(4): 360-362.
[13]	李阳, 范智慧. 塔河奥陶系碳酸盐岩油藏缝洞系统发育模式与分布规律[J]. 石油学报, 2011, 32(1): 101-106. DOI
[14]	康志江, 李江龙, 张冬丽, 等. 塔河缝洞型碳酸盐岩油藏渗流特征[J]. 石油与天然气地质, 2005, 26(5): 634-640, 673.
[15]	国家能源局. 储层敏感性流动实验评价方法: SY/T 5358—2010[S]. 北京: 石油工业出版社, 2010.
[16]	FATT I, DAVIS D H. Reduction impermeability with overburden pressure[J]. Journal of Petroleum Technology, 1952, 4(12): 16.
[17]	赵伦, 陈烨菲, 宁正福, 等. 异常高压碳酸盐岩油藏应力敏感实验评价: 以滨里海盆地肯基亚克裂缝-孔隙型低渗透碳酸盐岩油藏为例[J]. 石油勘探与开发, 2013, 40(2): 194-200.
[18]	ZHANG L F, ZHOU F J, MOU J Y, et al. Research on sensitivity damage of naturally fractured carbonate reservoirs in Ordos Basin[J]. Arabian Journal of Geosciences, 2019, 12(18): 1-7. DOI
[19]	刘大伟. 川东北裂缝漏失性碳酸盐岩储层损害机理及保护技术研究[D]. 成都: 西南石油大学, 2006.
[20]	BOHNSACK D, POTTEN M, FREITAG S, et al. Stress sensitivity of porosity and permeability under varying hydrostatic stress conditions for different carbonate rock types of the geothermal Malm reservoir in southern Germany[J]. Geothermal Energy, 2021, 9(1): 1-59. DOI
[21]	JONES F O. A laboratory study of the effects of confining pressure on fracture flow and storage capacity in carbonate rocks[J]. International Journal of Rock Mechanics and Mining Sciences and Geomechanics Abstracts, 1975, 12(4): 55.
[22]	LEI Q, XIONG W, YUAN J R, et al. Analysis of stress sensitivity and its influence on oil production from tight reservoirs[C]// Proceedings of the Eastern regional meeting, SPE-111148-MS, Lexington, Kentucky USA. 2007.
[23]	王业众, 康毅力, 张浩, 等. 碳酸盐岩应力敏感性对有效应力作用时间的响应[J]. 钻采工艺, 2007, 30(3): 54, 105-107.
[24]	HE C G, ZHAO L, SONG H, et al. Productivity prediction with consideration of stress-sensitive permeability in naturally fractured carbonate reservoir[J]. Energy Exploration and Exploitation, 2022, 40(5): 1426-1441. DOI URL
[25]	CHENG Y Y, GUO C Q, TAN C Q, et al. Experimental analysis and deliverability calculation of abnormally pressured carbonate gas reservoir considering stress sensitivity[J]. Journal of Petroleum Exploration and Production Technology, 2022, 12(11): 3105-3115. DOI
[26]	舒勇, 鄢捷年. 低渗裂缝性碳酸盐岩储层应力敏感性评价及保护技术研究: 以塔里木盆地奥陶系古潜山油气藏为例[J]. 中国海上油气, 2009, 21(2): 124-126.
[27]	卢虎, 邹盛礼, 吴晓花, 等. 轮古裂缝性油藏储层伤害评价分析[J]. 钻采工艺, 2005, 28(1): 92-94.
[28]	景岷雪, 袁小玲. 碳酸盐岩岩心应力敏感性实验研究[J]. 天然气工业, 2002, 22(增刊1): 114-117, 2.
[29]	TAN Q G, KANG Y L, YOU L J, et al. Stress-sensitivity mechanisms and its controlling factors of saline-lacustrine fractured tight carbonate reservoir[J]. Journal of Natural Gas Science and Engineering, 2021, 88: 103864. DOI URL
[30]	李宁, 张清秀. 裂缝型碳酸盐岩应力敏感性评价室内实验方法研究[J]. 天然气工业, 2000, 20(3): 30-34.
[31]	何健, 康毅力, 刘大伟, 等. 孔隙型与裂缝-孔隙型碳酸盐岩储层应力敏感研究[J]. 钻采工艺, 2005, 28(2): 84-86.
[32]	向问陶, 唐洪明. 渤南油田群碳酸盐岩储层损害研究[J]. 中国海上油气(工程), 2001, 13(4): 36-41, 5.
[33]	国家质量监督检验检疫总局, 中国国家标准化管理委员会. 岩心分析方法: GB/T 29172—2012[S]. 北京: 中国标准出版社, 2013.
[34]	国家质量监督检验检疫总局, 中国国家标准化管理委员会. 岩石毛管压力曲线的测定: GB/T 29171—2012[S]. 北京: 中国标准出版社, 2013.
[35]	张睿. 页岩储层有效应力及应力敏感机理研究[D]. 北京: 中国石油大学(北京), 2016.
[36]	姚尚林, 窦宏恩, 陈俊峰, 等. 关于储层敏感性流动实验评价方法标准的探讨[J]. 石油工业技术监督, 2017, 33(12): 26-29.
[37]	窦宏恩, 张虎俊, 姚尚林, 等. 致密储集层岩石应力敏感性测试与评价方法[J]. 石油勘探与开发, 2016, 43(6): 1022-1028.
[38]	兰林, 康毅力, 陈一健, 等. 储层应力敏感性评价实验方法与评价指标探讨[J]. 钻井液与完井液, 2005, 22(3): 1-4.
[39]	肖文联, 李闽, 赵金洲, 等. 低渗致密砂岩渗透率应力敏感性试验研究[J]. 岩土力学, 2010, 31(3): 775-779, 798.
[40]	BERNABE Y. The effective pressure law for permeability in Chelmsford granite and Barre granite[J]. International Journal of Rock Mechanics and Mining Sciences and Geomechanics Abstracts, 1986, 23(3): 267-275.
[41]	孙军昌, 杨正明, 魏国齐, 等. 不同孔隙类型火山岩储层渗透率应力敏感特征[J]. 岩土力学, 2012, 33(12): 3577-3584.
[42]	曹耐, 雷刚. 致密储集层加压-卸压过程应力敏感性[J]. 石油勘探与开发, 2019, 46(1): 132-138. DOI
[43]	代平. 低渗透应力敏感油藏实验及数值模拟研究[D]. 成都: 西南石油大学, 2006.

样品编号	长度/ cm	直径/ cm	体积/ cm³	干质量/g	颗粒体积/cm³	孔隙体积/cm³	孔隙度/ %	颗粒密度/ (g·cm^-3)	密度/ (g·cm^-3)	气测渗透率/mD
TS-1	5.035	2.522	25.152	70.027	24.79	0.362	1.44	2.82	2.78	0.006
TS-2	5.025	2.522	25.102	69.147	24.476	0.626	2.50	2.83	2.75	0.015
TS-3	5.031	2.522	25.132	69.699	24.598	0.534	2.13	2.83	2.77	0.014
TS-4	5.025	2.522	25.102	69.491	24.628	0.474	1.89	2.82	2.77	0.005
TS-5	5.041	2.523	25.202	69.677	24.792	0.410	1.63	2.81	2.76	0.005
TS-6	5.057	2.523	25.282	70.102	24.856	0.426	1.69	2.82	2.77	0.011
TS-7	5.069	2.522	25.322	70.188	24.823	0.499	1.97	2.83	2.77	0.009
TS-8	5.073	2.523	25.362	69.971	24.826	0.536	2.11	2.82	2.76	0.010

样品编号	长度/ cm	直径/ cm	体积/ cm³	干质量/g	颗粒体积/cm³	孔隙体积/cm³	孔隙度/ %	颗粒密度/ (g·cm^-3)	密度/ (g·cm^-3)	气测渗透率/mD
TS-1	5.035	2.522	25.152	70.027	24.79	0.362	1.44	2.82	2.78	0.006
TS-2	5.025	2.522	25.102	69.147	24.476	0.626	2.50	2.83	2.75	0.015
TS-3	5.031	2.522	25.132	69.699	24.598	0.534	2.13	2.83	2.77	0.014
TS-4	5.025	2.522	25.102	69.491	24.628	0.474	1.89	2.82	2.77	0.005
TS-5	5.041	2.523	25.202	69.677	24.792	0.410	1.63	2.81	2.76	0.005
TS-6	5.057	2.523	25.282	70.102	24.856	0.426	1.69	2.82	2.77	0.011
TS-7	5.069	2.522	25.322	70.188	24.823	0.499	1.97	2.83	2.77	0.009
TS-8	5.073	2.523	25.362	69.971	24.826	0.536	2.11	2.82	2.76	0.010

项目	样品编号	渗透率/ mD	孔隙度/ %		最大孔喉半径/ μm		平均孔喉半径/ μm		孔喉半径中值/ μm		孔喉分布峰位/ μm		孔喉分布峰值/ %		渗透率分布峰位/μm		渗透率分布峰值/%		分选系数		歪度
测定数值	TS-M-1	0.004 6	0.92		0.358		0.103		0.029		0.25		11.994		0.25		64.284		2.379		-0.041
	TS-M-2	0.018 1	1.74		0.539		0.147		0.069		0.16		12.350		0.40		38.838		2.550		0.283
	TS-M-3	0.013 4	1.81		0.538		0.128		0.052		0.10		11.556		0.40		42.445		2.476		0.189
项目	样品编号	峰态		半径均值/ μm		结构系数		相对分选系数		特征结构系数		均质系数		最大进汞饱和度/%		最终剩余汞饱和度/%		退汞效率/%		排驱压力/ MPa
测定数值	TS-M-1	0.511		0.081		2.660		29.524		0.013		0.289		70.346		55.827		20.640		2.054
	TS-M-2	0.534		0.117		2.589		21.815		0.018		0.273		76.447		65.247		14.652		1.365
	TS-M-3	0.522		0.096		2.758		25.884		0.014		0.237		74.691		65.600		12.171		1.365

项目	样品编号	渗透率/ mD	孔隙度/ %		最大孔喉半径/ μm		平均孔喉半径/ μm		孔喉半径中值/ μm		孔喉分布峰位/ μm		孔喉分布峰值/ %		渗透率分布峰位/μm		渗透率分布峰值/%		分选系数		歪度
测定数值	TS-M-1	0.004 6	0.92		0.358		0.103		0.029		0.25		11.994		0.25		64.284		2.379		-0.041
	TS-M-2	0.018 1	1.74		0.539		0.147		0.069		0.16		12.350		0.40		38.838		2.550		0.283
	TS-M-3	0.013 4	1.81		0.538		0.128		0.052		0.10		11.556		0.40		42.445		2.476		0.189
项目	样品编号	峰态		半径均值/ μm		结构系数		相对分选系数		特征结构系数		均质系数		最大进汞饱和度/%		最终剩余汞饱和度/%		退汞效率/%		排驱压力/ MPa
测定数值	TS-M-1	0.511		0.081		2.660		29.524		0.013		0.289		70.346		55.827		20.640		2.054
	TS-M-2	0.534		0.117		2.589		21.815		0.018		0.273		76.447		65.247		14.652		1.365
	TS-M-3	0.522		0.096		2.758		25.884		0.014		0.237		74.691		65.600		12.171		1.365

碳酸盐岩缝洞介质类型		K_Dmin	K_Dmax	D_stmax/%	D_stirr/%	D_R,_K/ (%·MPa^-1)	R_R,_K/ (%·MPa^-1)
不同裂缝发育程度介质	单条裂缝型	0.10	0.26	89.87	73.67	3.53	1.66
	平行双缝型	0.23	0.53	77.24	47.04	2.47	1.46
	垂直双缝型	0.29	0.80	71.44	19.80	2.13	1.78
	裂缝网络型	0.47	0.93	52.73	7.12	1.11	1.23

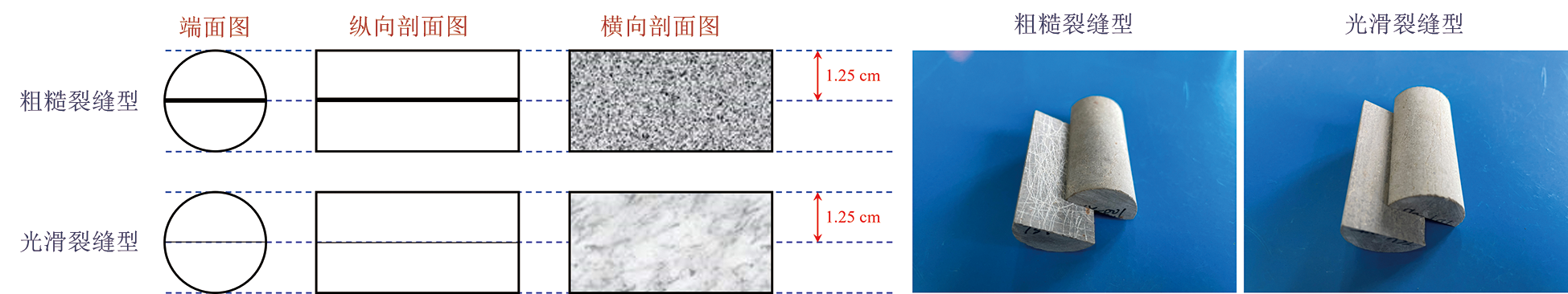

不同裂缝粗糙度介质	光滑裂缝型	0.06	0.14	94.41	85.98	4.16	1.67
不同裂缝粗糙度介质	粗糙裂缝型	0.58	0.68	42.20	31.74	1.02	0.33
不同类型孔洞介质	裂缝孔洞型	0.20	0.75	79.78	24.72	2.68	2.12
不同类型孔洞介质	溶蚀通洞型	0.92	0.99	7.81	0.74	0.16	0.15
不同类型充填介质	充填单缝型	0.78	0.90	21.57	9.78	0.47	0.27
	充填孔洞型	0.89	0.96	10.82	4.21	0.23	0.14
	充填通洞型	0.96	0.98	4.12	1.96	0.08	0.04
