In situ stress state of deep basement in the Songliao Basin: Evidence from in situ stress measurement in SK-2 borehole

doi:10.13745/j.esf.sf.2023.11.38

Abstract

Abstract:

The magnitude and orientation information of in situ stresses in the basement of the Songliao Basin are important data in geodynamics research, seismology, and deep resources exploitation and utilization. The anelastic strain recovery (ASR) method is a three-dimensional in situ stress measurement method based on drill cores. In this report, three-dimensional in situ stresses at 6-7 km depth in basement of SK-2 borehole in the Songliao Basin, Northeast China, is determined using ASR method. The stress state of basement (6646-6846 m) is consistent with thrust and strike-slip faulting regime (σ_H>σ_V>σ_h) and the orientation of maximum horizontal principal stress is near E-W. The stress state determined by stress measurement is in agreement with results from focal mechanisms of shallow earthquakes (7-15 km) within the Songliao Basin and adjacent regions. The research findings should provide an important reference for the understanding of regional tectonic stress field and the formation and evolution of the Songliao Basin.

Key words: Songliao Basin, Scientific Drilling borehole (SK-2), in situ stress, anelastic strain recovery method, focal mechanism solution

CLC Number:

WANG Bin, SUN Dongsheng, LI Awei, YANG Yuehui, CHEN Qunce. In situ stress state of deep basement in the Songliao Basin: Evidence from in situ stress measurement in SK-2 borehole[J]. Earth Science Frontiers, 2024, 31(2): 377-390.

Figures/Tables 9

Fig.1 Geographical of SK-2 in the Songliao Basin. GXR: Great Xing’an Range; LXR: Lesser Xing’an Range; ZHR: Zhangguangcai Range; F1: Yilan-Yitong Fault; F2: Dunhua-Mishan Fault; F3: Chifeng-Kaiyuan Fault; F4: Nenjiang Fault.

Fig.2 Schematic diagram of anelastic strain recovery measurement system. Modified after [25].

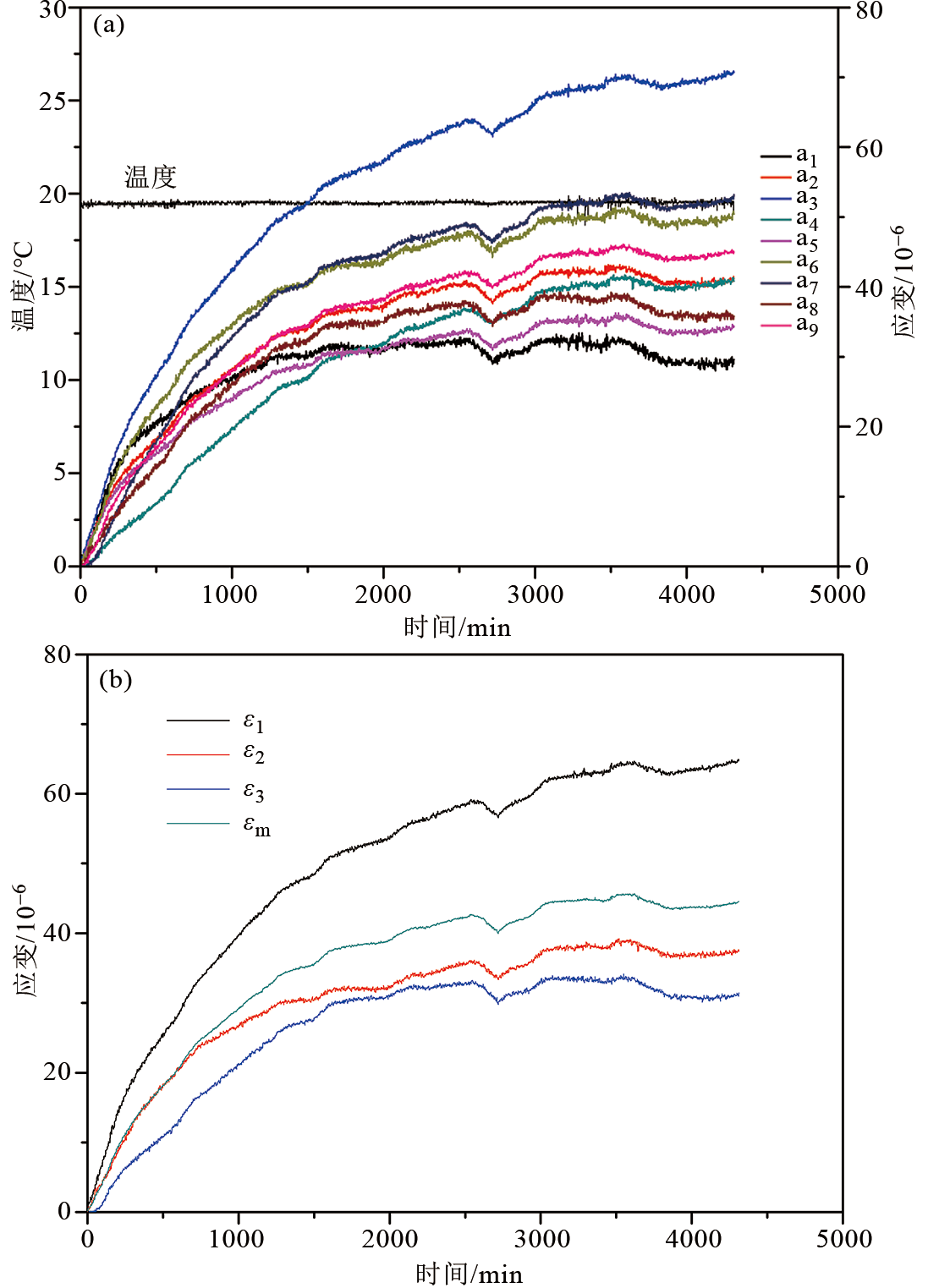

Fig.3 Anelastic strain recovery curves versus elapsed time. (a) Anelastic recovery strain in different directions; (b) Three principal anelastic strains and mean constant strain as a function of time.

Fig.4 Orientations of in-situ stress determined by ASR method

Fig.5 The comparison between the results of ASR method and the focal mechanism solutions (a) Distribution of earthquake and focal mechanism solutions in Songliao basin and adjacent areas; (b) Comparison between the azimuth of maximum principal stress measured by the ASR method of SK-2 borehole and the focal mechanism solutions in Songliao basin; (c) Comparison between the principal stress state measured by ASR method of SK-2 borehole and the focal mechanism solution in Songliao Basin.

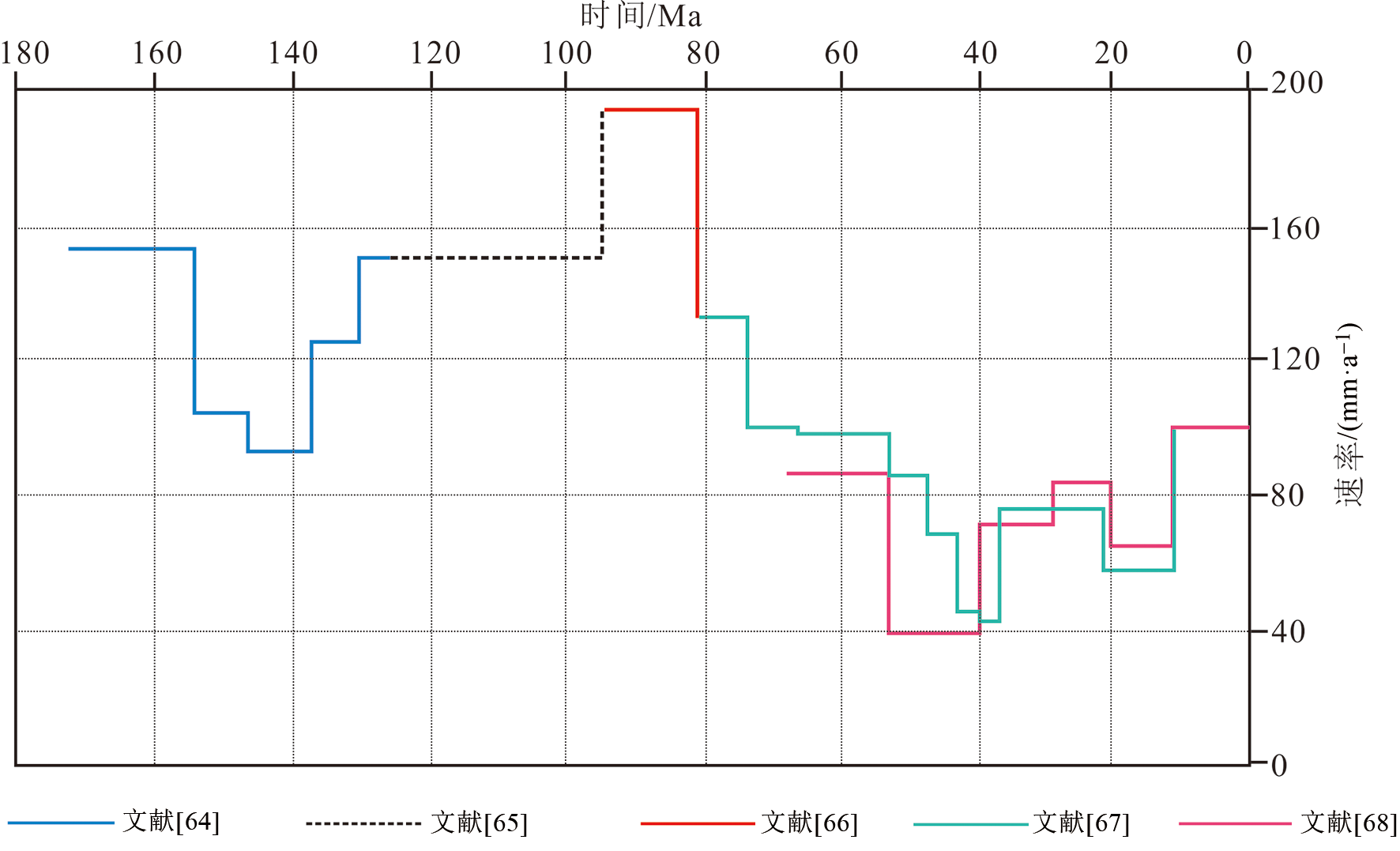

Fig.6 The movement velocity of the pacific plate. Modified after [63].

Fig.7 A possible schematic dynamic model beneath NE China. Modified after [74]. Moho: Moho depth; LAB: Interface depth of lithosphere and asthenosphere; MTZ: Mantle transition zone; BMW: Big Mantle Wedg; SLB: Songliao basin; ZGCR: Zhangguangcai range; CBM: Changbaishan Mountain; GXAR: Great Xingan range.

Fig.8 Dislocation of faults in major fault zones in Northeast China. Modified after [19].

Fig.9 Interpretation of genesis of tectonic stress field in Songliao Basin. Modified after [85].
