Focal mechanism solutions for global tsunami earthquakes and future tsunami threat to China

doi:10.13745/j.esf.sf.2021.9.13

Abstract

Abstract:

Tsunamis are one of the five major marine natural disasters that can seriously threaten human life and property. In recent years international researchers have conducted a large number of studies on earthquake-induced tsunamis. These studies mainly focused on numerical simulation of tsunami generation, propagation, climb and inundation, as well as on paleo-tsunami sediments, but lacked attention to the focal mechanism of tsunami earthquakes, especially of those below magnitude 6.5. As revealed by the most recent studies in China on earthquake-induced tsunamis, tsunami hazards caused by earthquakes of magnitude less than 6.5 cannot be ignored. In this paper, 766 global earthquake-generated tsunamis are summarized; focal mechanism solutions for tsunami earthquakes are classified using triangulation techniques; and focal mechanism solutions for 341 tsunami earthquakes (since 1976) are analyzed in detail, with 633 wave heights analyzed by statistical methods. As results show, all types of earthquakes—strike-slip, normal and thrust earthquakes as well as unusual earthquakes—can cause tsunamis; whilst most tsunamis are caused by thrust fault earthquakes, and tsunami earthquakes below magnitude 6.5 can produce tsunami wave height up to 10 m to cause major damages. Mechanistically, thrust and normal earthquakes as well as unusual earthquakes can directly cause vertical changes in submarine topography to generate tsunamis; whereas strike-slip earthquakes can cause tsunamis for one of two reasons: they are not pure strike-slip type but have normal/thrust component, or they trigger submarine landslide to cause changes in seabed topography in generating tsunamis. According to focal depth analysis, more than 97% of tsunami earthquakes are shallow earthquakes less than 30 km deep, but intermediate and deep earthquakes can also cause tsunamis. Based on seismic source characteristics, geographical location of China mainland, as well as historical occurrences of tsunamis, we propose that earthquake-induced tsunamis that may threaten China's coastal areas in the future are concentrated in the Manila trench and Taiwan strait. These areas should be monitored closely and early warning systems should be established to reduce disaster damage.

Key words: tsunami earthquake, focal mechanism solution, tsunami wave height, tsunami origin

CLC Number:

JIA Zhongjia, ZHU Junjiang, OU Xiaolin, ZHANG Shengsheng, HUANG Chang, CHEN Ruixue, ZHANG Shaoyu, LI Sanzhong, JIA Yonggang, LIU Yongjiang. Focal mechanism solutions for global tsunami earthquakes and future tsunami threat to China[J]. Earth Science Frontiers, 2022, 29(5): 203-215.

Figures/Tables 12

References 52

[1]	SATAKE K, ATWATER B F. Long-term perspectives on giant earthquakes and tsunamis at subduction zones[J]. Annual Review of Earth and Planetary Sciences, 2007, 35(1): 349-374. DOI URL
[2]	陈运泰, 杨智娴, 许力生. 海啸、地震海啸与海啸地震[J]. 物理, 2005, 34(12): 864-872.
[3]	安超. 海啸和海啸预警的研究进展与展望[J]. 中国科学: 地球科学, 2021, 51(1): 1-14.
[4]	陈虹, 李成日. 印尼8.7级地震海啸灾害及应急救援[J]. 国际地震动态, 2005, 35(4): 22-26.
[5]	DANSCHUTTER D R G. Tsunami: response to a disaster[J]. Critical Care Nursing Clinics of North America, 2005, 17(4): 481-494, xii. DOI URL
[6]	HATHEWAY A W, KANAORI Y, CHEEMA T, et al. 10th annual report on the international status of engineering geology: year 2004-2005; encompassing hydrogeology, environmental geology and the applied geosciences[J]. Engineering Geology, 2005, 81(2): 99-130. DOI URL
[7]	BIRD P. An updated digital model of plate boundaries[J]. Geochemistry, Geophysics, Geosystems, 2013, 4(3): 1-52.
[8]	National Geophysical Data Center/World Data Service. NCEI/WDS global historical tsunami database[EB/OL]. [S. l.]: NOAA National Centers for Environmental Information. DOI: 10.7289/V5PN93H7. DOI
[9]	李成. 地震海啸的研究[J]. 海洋通报, 1982, 1(2): 16-23.
[10]	闪迪, 王培涛, 任智源, 等. 日本南海海槽地震海啸对我国东海沿岸影响[J]. 海洋与湖沼, 2018, 49(6): 1151-1158.
[11]	任智源, 原野, 赵联大, 等. 2016年全球地震海啸监测预警与数值模拟研究[J]. 海洋科学, 2017, 41(6): 98-110.
[12]	任智源, 侯京明, 王培涛, 等. 精细化地震海啸波流实时预警系统研究与应用[J]. 海洋学报, 2019, 41(9): 145-155.
[13]	KENNETT B L N, CUMMINS P R. The relationship of the seismic source and subduction zone structure for the 2004 December 26 Sumatra-Andaman earthquake[J]. Earth and Planetary Science Letters, 2005, 239(1/2): 1-8. DOI URL
[14]	LANDRØ M, KODAIRA S, FUJIWARA T, et al. Time lapse seismic analysis of the Tohoku-Oki 2011 earthquake[J]. International Journal of Greenhouse Gas Control, 2019, 82: 98-116. DOI URL
[15]	王培涛, 于福江, 赵联大, 等. 越洋海啸的数值模拟及其对我国的影响分析[J]. 海洋学报(中文版), 2012, 34(2): 39-47.
[16]	张鑫, 毛献忠. 马尼拉海沟潜在地震海啸对我国华南沿海危险性研究[J]. 海洋预报, 2017, 34(2): 43-50.
[17]	温燕林, 于海英, 朱艾斓, 等. 设定琉球海沟发生罕遇地震评估我国东南沿海地区的海啸风险[J]. 地震工程学报, 2016, 38(2): 285-291, 317.
[18]	陈颙, 陈棋福. 印尼地震海啸及其相关的地球物理现象[J]. 地球物理学进展, 2005, 20(1): 112-117.
[19]	何永金. 地震与海啸关系探讨[J]. 水文地质工程地质, 2005, 32(6): 82-84.
[20]	International Seismological Centre (2021). On-line bulletin[EB/OL].[2021-04-22]. https://doi.org/10.31905/D808B830
[21]	FROHLICH C, APPERSON K D. Earthquake focal mechanisms, moment tensors, and the consistency of seismic activity near plate boundaries[J]. Tectonics, 1992, 11(2): 279-296. DOI URL
[22]	SATAKE K. Advances in earthquake and tsunami sciences and disaster risk reduction since the 2004 Indian Ocean tsunami[J]. Geoscience Letters, 2014, 1: 1-13. DOI URL
[23]	魏柏林, 陈玉桃. 地震与海啸[J]. 华南地震, 2005, 25(1): 43-49.
[24]	STEIN S, OKAL E A. The 2004 Sumatra earthquake and Indian Ocean tsunami: what happened and why?[J]. Visual Geosciences, 2005, 10(1): 21-26. DOI URL
[25]	于庆武, 马怀书. 地震海啸的发生机制及对台湾地区地震海啸发生可能性的探讨[J]. 海洋科技资料, 1981(3): 4-43.
[26]	KAWAMURA K, LABERG J S, KANAMATSU T. Potential tsunamigenic submarine landslides in active margins[J]. Marine Geology, 2014, 356: 44-49. DOI URL
[27]	WELLS B D L, COPPERSMITH K J. New empirical relationships among magnitude, rupture length, rupture width, rupture area, and surface displacement[J]. Bulletin of the Seismological Society of America, 1994, 84(4): 974-1002.
[28]	KING G C P, STEIN R S, LIN J. Static stress changes and the triggering of earthquakes[J]. Bulletin of the Seismological Society of America, 1994, 84(3): 935-953.
[29]	LIN J, STEIN R S. Stress triggering in thrust and subduction earthquakes and stress interaction between the southern San Andreas and nearby thrust and strike-slip faults[J]. Journal of Geophysical Research: Solid Earth, 2004, 109(B2). DOI: 10.1029/2003JB002607. DOI
[30]	郭彩玲, 王晓峰. 中国东部海域发生海啸的可能性分析[J]. 自然灾害学报, 2007, 16(1): 7-11.
[31]	王晓青, 吕金霞, 丁香. 我国地震海啸危险性初步探讨[J]. 华南地震, 2006, 26(1): 76-80.
[32]	冯军. 我国地震海啸的特点与构造背景[J]. 中国应急救援, 2011(3): 21-22.
[33]	刘佳佳. 实时海啸监测和预报技术[J]. 海洋技术, 2007, 26(1): 20-25.
[34]	叶琳, 王喜年, 包澄澜. 中国的地震海啸及其预警服务[J]. 自然灾害学报, 1994, 3(1): 100-103.
[35]	LIU P L F, WANG X M, SALISBURY A J. Tsunami hazard and early warning system in South China Sea[J]. Journal of Asian Earth Sciences, 2009, 36(1): 2-12. DOI URL
[36]	朱俊江, 丘学林, 詹文欢, 等. 南海东部海沟的震源机制解及其构造意义[J]. 地震学报, 2005, 27(3): 260-268.
[37]	魏柏林, 康英, 陈玉桃, 等. 南海地震与海啸[J]. 华南地震, 2006, 26(1): 47-60.
[38]	黄强, 景惠敏, 胡培. 日本南海海沟潜在地震海啸对中国东部沿海影响的数值模拟研究[J]. 海洋科学进展, 2018, 36(2): 206-215.
[39]	王恩惠. 琉球俯冲带构造应力场特征[D]. 北京: 中国地震局地壳应力研究所, 2020.
[40]	邓克. 台湾海峡滨海断裂带地质构造特征[J]. 海洋地质与第四纪地质, 2019, 39(6): 72-80.
[41]	陈园田, 谢志平. 台湾海峡南部7.3级地震的地质构造背景[J]. 地震研究, 1996, 19(1): 77-84.
[42]	KODAIRA S, FUJIWARA T, GOU F J, et al. Large coseismic slip to the trench during the 2011 Tohoku-Oki earthquake[J]. Annual Review of Earth and Planetary Sciences, 2020, 48: 321-343. DOI URL
[43]	RHODES B, TUTTLE M, HORTON B, et al. Paleotsunami research[J]. Eos, Transactions American Geophysical Union, 2006, 87(21): 205-209.
[44]	SCHEFFERS A, KELLETAT D. Sedimentologic and geomorphologic tsunami imprints worldwide: a review[J]. Earth-Science Reviews, 2003, 63(1/2): 83-92. DOI URL
[45]	EATON J P, RICHTER D H, AULT W U. The tsunami of may 23, 1960, on the island of Hawaii[J]. Bulletin of the Seismological Society of America, 1961, 51(2): 135-157. DOI URL
[46]	SATAKE K, HEIDARZADEH M, QUIROZ M, et al. History and features of trans-oceanic tsunamis and implications for paleo-tsunami studies[J]. Earth-Science Reviews, 2020, 202: 103112. DOI URL
[47]	LAY T, KANAMORI H, AMMON C J, et al. The great Sumatra-Andaman earthquake of 26 December 2004[J]. Science, 2005, 308(5725): 1127-1133. DOI URL
[48]	GONZáLEZ F I, BERNARD E N, MEINIG C, et al. The NTHMP tsunameter network[J]. Natural Hazards, 2005, 35(1): 25-39. DOI URL
[49]	RITSEMA J, LAY T, KANAMORI H. The 2011 Tohoku earthquake[J]. Elements, 2012, 8(3): 183-188. DOI URL
[50]	李宏伟, 徐志国, 王宗辰, 等. 地震监测系统在我国海啸预警业务中的应用[J]. 海洋预报, 2018, 35(2): 1-7.
[51]	徐志国. 南中国海区域海啸预警中心海啸预警与减灾系统建设与发展[C]// 中国地球物理学会信息技术专业委员会.中国地球物理学会信息技术专业委员会地球物理信息前沿技术研讨会论文摘要集. 北京: 中国地球物理学会信息技术专业委员会, 2018: 1.
[52]	LIU P L F, WANG X M, SALISBURY A J. Tsunami hazard and early warning system in South China Sea[J]. Journal of Asian Earth Sciences, 2009, 36(1): 2-12. DOI URL

序号	发震时间	震源位置		震级	震源深度/km	节面1			节面2			T轴		P轴		B轴
序号	发震时间	纬度/(°)	经度/(°)	震级	震源深度/km	走向/(°)	倾角/(°)	倾向/(°)	走向/(°)	倾角/(°)	倾向/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)
1	1978-03-22	43.55	149.41	6.4	23.9	46	67	95	213	24	78	68	326	21	132	5	224
2	1979-02-20	39.77	144.12	6.3	14.8	29	76	96	187	15	69	59	307	30	115	6	208
3	1980-06-29	34.45	138.93	6.4	15	80	87	176	171	86	3	5	36	1	126	85	228
4	1982-12-28	33.80	139.60	6.1	22.5	22	88	-2	112	88	-178	0	67	3	337	87	164
5	1983-06-09	40.16	139.10	5.9	19.7	19	40	106	178	52	77	78	37	6	277	10	186
6	1984-02-11	38.11	21.86	5.6	15	77	28	-121	291	66	-74	19	10	65	229	14	105
7	1984-06-13	31.39	139.93	5.5	15.2	55	43	92	232	47	88	87	108	2	324	2	234
8	1985-03-16	17.10	-62.34	6.3	14	42	90	-176	312	86	0	3	177	3	267	86	43
9	1987-03-24	37.39	137.77	5.6	20.7	194	50	104	353	42	74	79	166	4	274	11	5
10	1988-06-24	18.78	121.04	5.6	50.3	16	31	85	202	59	93	76	120	14	290	2	20
11	1989-10-29	39.38	143.50	6.4	29.8	32	74	99	182	19	61	60	316	28	115	9	210
12	1990-02-20	34.62	139.05	6.4	32.2	263	80	169	355	79	10	15	219	1	309	75	41
13	1990-12-13	37.25	14.90	5.6	15	7	85	26	274	64	174	22	233	14	137	64	17
14	1990-12-13	23.89	121.84	6.3	17.5	17	68	84	212	23	104	67	277	23	111	5	19
15	1991-02-16	48.31	154.33	6.1	37.7	29	58	93	204	32	86	77	308	13	117	2	208
16	1993-02-07	37.74	137.21	6.3	15	29	46	89	211	44	91	89	242	1	120	1	30
17	1993-08-07	42.00	139.79	6.3	26.9	183	52	94	357	39	85	83	115	6	270	3	0
18	1994-04-08	40.62	143.94	6.4	15	24	80	95	176	11	62	54	301	35	110	5	203
19	1994-06-05	-10.27	113.60	6.0	15	96	24	-111	299	68	-81	22	22	66	225	8	115
20	1996-09-04	31.48	140.06	5.7	24.4	41	35	95	215	55	86	79	111	10	307	3	217
21	1997-09-30	31.83	142.06	6.1	15	172	23	84	358	67	93	68	273	22	86	2	177
22	1998-05-30	39.11	143.60	6.1	15	17	77	88	204	13	98	58	284	32	108	2	17
23	2000-07-01	34.15	139.24	6.1	15	181	85	-2	271	88	-175	2	46	5	136	85	299
24	2000-07-15	34.29	139.31	6.0	20.3	18	83	7	287	83	173	10	242	0	333	80	65
25	2001-10-12	52.64	-132.18	6.0	15	125	65	88	309	26	94	70	31	20	216	2	126
26	2003-05-27	36.94	3.79	5.7	15	70	31	92	248	59	89	76	156	14	339	1	249
27	2003-12-27	-22.13	169.27	6.1	15	136	34	-80	304	57	-97	12	39	77	193	6	308
28	2004-02-11	31.62	35.31	5.3	26.1	80	79	-139	340	50	-15	19	204	37	308	47	93
29	2004-11-21	15.85	-61.65	6.3	12	127	48	-102	325	44	-77	2	226	81	328	9	135
30	2007-08-02	46.84	141.82	6.2	12	3	42	89	184	48	91	87	104	3	274	1	4
31	2009-07-01	34.00	25.50	6.4	12	94	60	79	295	32	108	73	336	14	192	10	99
32	2009-08-10	34.77	138.46	6.4	27.6	65	70	54	309	40	148	51	293	17	180	33	78
33	2012-04-14	-19.01	168.66	6.3	12	86	52	-73	240	41	-111	6	164	75	51	13	256
34	2014-07-25	58.46	-137.05	6.1	12	53	79	24	318	66	168	25	278	9	183	63	75
35	2015-02-19	-16.41	168.23	6.4	12	24	56	96	193	35	81	78	317	11	110	5	201
36	2016-08-20	40.33	143.91	6.0	12	21	74	94	186	16	76	61	296	29	107	4	199
37	2017-05-01	60.03	-136.60	6.2	14.9	160	60	128	283	47	44	57	123	7	224	32	319
38	2017-06-12	38.81	26.32	6.4	12	110	47	-87	286	43	-93	2	198	87	72	2	288
39	2017-11-19	-21.52	168.62	6.3	12	150	50	-86	324	40	-95	5	237	84	90	3	327
40	2019-06-14	-30.12	-72.16	6.3	12	1	21	88	183	69	91	66	94	24	273	1	3
41	2019-06-18	38.64	139.41	6.4	14.3	26	24	86	210	66	92	69	124	21	299	2	29
42	2020-01-07	18.02	-66.79	6.4	12	44	58	-116	267	41	-54	9	152	66	264	22	58

序号	发震时间	震源位置		震级	震源深度/km	节面1			节面2			T轴		P轴		B轴
序号	发震时间	纬度/(°)	经度/(°)	震级	震源深度/km	走向/(°)	倾角/(°)	倾向/(°)	走向/(°)	倾角/(°)	倾向/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)
1	1978-03-22	43.55	149.41	6.4	23.9	46	67	95	213	24	78	68	326	21	132	5	224
2	1979-02-20	39.77	144.12	6.3	14.8	29	76	96	187	15	69	59	307	30	115	6	208
3	1980-06-29	34.45	138.93	6.4	15	80	87	176	171	86	3	5	36	1	126	85	228
4	1982-12-28	33.80	139.60	6.1	22.5	22	88	-2	112	88	-178	0	67	3	337	87	164
5	1983-06-09	40.16	139.10	5.9	19.7	19	40	106	178	52	77	78	37	6	277	10	186
6	1984-02-11	38.11	21.86	5.6	15	77	28	-121	291	66	-74	19	10	65	229	14	105
7	1984-06-13	31.39	139.93	5.5	15.2	55	43	92	232	47	88	87	108	2	324	2	234
8	1985-03-16	17.10	-62.34	6.3	14	42	90	-176	312	86	0	3	177	3	267	86	43
9	1987-03-24	37.39	137.77	5.6	20.7	194	50	104	353	42	74	79	166	4	274	11	5
10	1988-06-24	18.78	121.04	5.6	50.3	16	31	85	202	59	93	76	120	14	290	2	20
11	1989-10-29	39.38	143.50	6.4	29.8	32	74	99	182	19	61	60	316	28	115	9	210
12	1990-02-20	34.62	139.05	6.4	32.2	263	80	169	355	79	10	15	219	1	309	75	41
13	1990-12-13	37.25	14.90	5.6	15	7	85	26	274	64	174	22	233	14	137	64	17
14	1990-12-13	23.89	121.84	6.3	17.5	17	68	84	212	23	104	67	277	23	111	5	19
15	1991-02-16	48.31	154.33	6.1	37.7	29	58	93	204	32	86	77	308	13	117	2	208
16	1993-02-07	37.74	137.21	6.3	15	29	46	89	211	44	91	89	242	1	120	1	30
17	1993-08-07	42.00	139.79	6.3	26.9	183	52	94	357	39	85	83	115	6	270	3	0
18	1994-04-08	40.62	143.94	6.4	15	24	80	95	176	11	62	54	301	35	110	5	203
19	1994-06-05	-10.27	113.60	6.0	15	96	24	-111	299	68	-81	22	22	66	225	8	115
20	1996-09-04	31.48	140.06	5.7	24.4	41	35	95	215	55	86	79	111	10	307	3	217
21	1997-09-30	31.83	142.06	6.1	15	172	23	84	358	67	93	68	273	22	86	2	177
22	1998-05-30	39.11	143.60	6.1	15	17	77	88	204	13	98	58	284	32	108	2	17
23	2000-07-01	34.15	139.24	6.1	15	181	85	-2	271	88	-175	2	46	5	136	85	299
24	2000-07-15	34.29	139.31	6.0	20.3	18	83	7	287	83	173	10	242	0	333	80	65
25	2001-10-12	52.64	-132.18	6.0	15	125	65	88	309	26	94	70	31	20	216	2	126
26	2003-05-27	36.94	3.79	5.7	15	70	31	92	248	59	89	76	156	14	339	1	249
27	2003-12-27	-22.13	169.27	6.1	15	136	34	-80	304	57	-97	12	39	77	193	6	308
28	2004-02-11	31.62	35.31	5.3	26.1	80	79	-139	340	50	-15	19	204	37	308	47	93
29	2004-11-21	15.85	-61.65	6.3	12	127	48	-102	325	44	-77	2	226	81	328	9	135
30	2007-08-02	46.84	141.82	6.2	12	3	42	89	184	48	91	87	104	3	274	1	4
31	2009-07-01	34.00	25.50	6.4	12	94	60	79	295	32	108	73	336	14	192	10	99
32	2009-08-10	34.77	138.46	6.4	27.6	65	70	54	309	40	148	51	293	17	180	33	78
33	2012-04-14	-19.01	168.66	6.3	12	86	52	-73	240	41	-111	6	164	75	51	13	256
34	2014-07-25	58.46	-137.05	6.1	12	53	79	24	318	66	168	25	278	9	183	63	75
35	2015-02-19	-16.41	168.23	6.4	12	24	56	96	193	35	81	78	317	11	110	5	201
36	2016-08-20	40.33	143.91	6.0	12	21	74	94	186	16	76	61	296	29	107	4	199
37	2017-05-01	60.03	-136.60	6.2	14.9	160	60	128	283	47	44	57	123	7	224	32	319
38	2017-06-12	38.81	26.32	6.4	12	110	47	-87	286	43	-93	2	198	87	72	2	288
39	2017-11-19	-21.52	168.62	6.3	12	150	50	-86	324	40	-95	5	237	84	90	3	327
40	2019-06-14	-30.12	-72.16	6.3	12	1	21	88	183	69	91	66	94	24	273	1	3
41	2019-06-18	38.64	139.41	6.4	14.3	26	24	86	210	66	92	69	124	21	299	2	29
42	2020-01-07	18.02	-66.79	6.4	12	44	58	-116	267	41	-54	9	152	66	264	22	58

序号	发震时间	震源位置		震级	震源深度/km	节面1			节面2			T轴		P轴		B轴
序号	发震时间	纬度/(°)	经度/(°)	震级	震源深度/km	走向/(°)	倾角/(°)	倾向/(°)	走向/(°)	倾角/(°)	倾向/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)
1	1976-08-16	7.07	123.75	8.0	33	158	55	89	341	35	92	80	62	10	249	1	159
2	1977-08-19	-11.14	118.23	8.3	23.3	61	67	-98	260	24	-73	21	157	67	317	7	64
3	1979-12-12	2.32	-78.81	8.1	19.7	30	16	118	181	76	83	58	81	31	278	7	183
4	1983-05-26	40.44	138.87	7.7	12.6	16	27	86	200	63	92	72	114	18	289	2	19
5	1992-05-17	7.33	127.18	7.2	24.5	20	67	100	176	25	67	66	308	22	103	9	196
6	1992-09-02	11.2	-87.81	7.6	15	122	78	90	303	12	91	57	32	33	212	0	122
7	1992-12-12	-8.34	122.49	7.7	20.4	80	40	95	253	50	86	84	130	5	346	3	256
8	1993-07-12	42.71	139.28	7.7	16.5	0	35	91	179	55	90	80	88	10	270	0	180
9	1994-06-02	-11.03	113.04	7.8	15	99	83	90	278	7	89	52	9	38	189	0	279
10	1994-10-04	43.6	147.63	8.3	68.2	50	74	128	158	41	24	46	359	20	112	37	218
11	1994-11-14	13.44	121.32	7.1	15	249	88	-20	339	70	-178	13	296	15	202	70	64
12	1995-10-09	19.34	-104.8	8.0	15	120	81	90	302	9	92	54	30	36	211	0	120
13	1995-11-22	29.07	34.73	7.2	18.4	196	59	-15	294	77	-149	12	62	31	159	56	314
14	1996-02-17	-0.67	136.62	8.2	15	103	11	69	305	80	94	55	220	35	31	4	124
15	1996-02-21	-9.95	-80.23	7.5	15	157	76	91	335	14	88	59	68	31	246	0	337
16	1997-12-05	54.31	161.91	7.8	33.6	39	68	97	202	23	74	66	321	23	124	6	217
17	1999-11-26	-16.08	168.31	7.4	15	20	62	103	174	30	67	70	317	17	100	11	194
18	2000-05-04	-1.29	123.59	7.5	18.6	225	64	172	319	83	26	23	185	13	89	63	332
19	2001-06-23	-17.28	-72.71	8.4	29.6	159	74	98	310	18	63	60	80	29	242	8	336
20	2002-09-08	-3.27	143.38	7.6	19.5	106	34	43	339	68	116	59	286	19	49	24	148
21	2003-09-25	42.21	143.84	8.3	28.2	28	82	83	250	11	132	53	289	36	124	7	29
22	2004-12-26	3.09	94.26	9.0	28.6	129	83	87	329	8	110	52	36	38	222	3	130
23	2005-03-28	1.67	97.07	8.6	25.8	125	83	86	333	8	118	52	30	38	218	4	125
24	2006-07-17	-10.28	107.78	7.7	20	98	80	88	290	10	102	55	6	35	190	2	98
25	2006-11-15	46.71	154.33	8.3	13.5	33	75	89	215	15	92	60	302	30	123	1	33
26	2007-04-01	-7.79	156.34	8.1	14.1	117	59	69	333	37	121	69	342	11	222	18	128
27	2007-08-15	-13.73	-77.04	8.0	33.8	171	65	104	321	28	63	67	107	19	251	13	345
28	2007-09-12	-3.78	100.99	8.5	24.4	123	82	86	328	9	114	53	29	37	216	3	123
29	2009-05-28	16.5	-87.17	7.3	12	63	60	-7	156	84	-150	16	286	25	24	59	166
30	2009-09-29	-15.13	-171.97	8.1	12	119	38	-131	346	62	-63	13	57	62	301	24	153
31	2010-01-03	-8.88	157.21	7.1	12	129	69	86	321	21	102	65	31	24	222	4	130
32	2010-02-27	-35.98	-73.15	8.8	23.2	19	18	116	172	74	82	61	70	28	269	8	174
33	2010-10-25	-3.71	99.32	7.8	12	130	82	89	316	8	96	53	39	37	220	1	130
34	2010-12-25	-19.67	168.04	7.3	16.6	1	48	-61	141	49	-118	1	251	69	342	21	160
35	2011-03-11	37.52	143.05	9.1	20	25	80	90	203	10	88	55	295	35	115	0	205
36	2012-08-27	12.02	-89.17	7.3	12	117	76	93	284	15	77	59	31	31	204	3	296
37	2012-10-28	52.61	-132.06	7.8	12	122	66	83	318	25	104	69	19	20	217	6	125
38	2013-02-06	-11.18	165.21	7.9	20.2	142	70	90	320	20	89	65	52	25	231	0	322
39	2014-04-01	-19.7	-70.81	8.1	21.6	159	76	86	355	15	106	59	63	30	252	4	160
40	2015-02-19	-16.41	168.23	6.4	12	24	56	96	193	35	81	78	317	11	110	5	201
41	2015-09-16	-31.13	-72.09	8.3	17.4	7	19	109	166	72	83	63	66	27	261	6	168
42	2016-11-13	-42.03	173.85	7.8	18.8	226	33	141	350	70	63	56	225	21	100	25	360

序号	发震时间	震源位置		震级	震源深度/km	节面1			节面2			T轴		P轴		B轴
序号	发震时间	纬度/(°)	经度/(°)	震级	震源深度/km	走向/(°)	倾角/(°)	倾向/(°)	走向/(°)	倾角/(°)	倾向/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)	倾角/(°)	方位角/(°)
1	1976-08-16	7.07	123.75	8.0	33	158	55	89	341	35	92	80	62	10	249	1	159
2	1977-08-19	-11.14	118.23	8.3	23.3	61	67	-98	260	24	-73	21	157	67	317	7	64
3	1979-12-12	2.32	-78.81	8.1	19.7	30	16	118	181	76	83	58	81	31	278	7	183
4	1983-05-26	40.44	138.87	7.7	12.6	16	27	86	200	63	92	72	114	18	289	2	19
5	1992-05-17	7.33	127.18	7.2	24.5	20	67	100	176	25	67	66	308	22	103	9	196
6	1992-09-02	11.2	-87.81	7.6	15	122	78	90	303	12	91	57	32	33	212	0	122
7	1992-12-12	-8.34	122.49	7.7	20.4	80	40	95	253	50	86	84	130	5	346	3	256
8	1993-07-12	42.71	139.28	7.7	16.5	0	35	91	179	55	90	80	88	10	270	0	180
9	1994-06-02	-11.03	113.04	7.8	15	99	83	90	278	7	89	52	9	38	189	0	279
10	1994-10-04	43.6	147.63	8.3	68.2	50	74	128	158	41	24	46	359	20	112	37	218
11	1994-11-14	13.44	121.32	7.1	15	249	88	-20	339	70	-178	13	296	15	202	70	64
12	1995-10-09	19.34	-104.8	8.0	15	120	81	90	302	9	92	54	30	36	211	0	120
13	1995-11-22	29.07	34.73	7.2	18.4	196	59	-15	294	77	-149	12	62	31	159	56	314
14	1996-02-17	-0.67	136.62	8.2	15	103	11	69	305	80	94	55	220	35	31	4	124
15	1996-02-21	-9.95	-80.23	7.5	15	157	76	91	335	14	88	59	68	31	246	0	337
16	1997-12-05	54.31	161.91	7.8	33.6	39	68	97	202	23	74	66	321	23	124	6	217
17	1999-11-26	-16.08	168.31	7.4	15	20	62	103	174	30	67	70	317	17	100	11	194
18	2000-05-04	-1.29	123.59	7.5	18.6	225	64	172	319	83	26	23	185	13	89	63	332
19	2001-06-23	-17.28	-72.71	8.4	29.6	159	74	98	310	18	63	60	80	29	242	8	336
20	2002-09-08	-3.27	143.38	7.6	19.5	106	34	43	339	68	116	59	286	19	49	24	148
21	2003-09-25	42.21	143.84	8.3	28.2	28	82	83	250	11	132	53	289	36	124	7	29
22	2004-12-26	3.09	94.26	9.0	28.6	129	83	87	329	8	110	52	36	38	222	3	130
23	2005-03-28	1.67	97.07	8.6	25.8	125	83	86	333	8	118	52	30	38	218	4	125
24	2006-07-17	-10.28	107.78	7.7	20	98	80	88	290	10	102	55	6	35	190	2	98
25	2006-11-15	46.71	154.33	8.3	13.5	33	75	89	215	15	92	60	302	30	123	1	33
26	2007-04-01	-7.79	156.34	8.1	14.1	117	59	69	333	37	121	69	342	11	222	18	128
27	2007-08-15	-13.73	-77.04	8.0	33.8	171	65	104	321	28	63	67	107	19	251	13	345
28	2007-09-12	-3.78	100.99	8.5	24.4	123	82	86	328	9	114	53	29	37	216	3	123
29	2009-05-28	16.5	-87.17	7.3	12	63	60	-7	156	84	-150	16	286	25	24	59	166
30	2009-09-29	-15.13	-171.97	8.1	12	119	38	-131	346	62	-63	13	57	62	301	24	153
31	2010-01-03	-8.88	157.21	7.1	12	129	69	86	321	21	102	65	31	24	222	4	130
32	2010-02-27	-35.98	-73.15	8.8	23.2	19	18	116	172	74	82	61	70	28	269	8	174
33	2010-10-25	-3.71	99.32	7.8	12	130	82	89	316	8	96	53	39	37	220	1	130
34	2010-12-25	-19.67	168.04	7.3	16.6	1	48	-61	141	49	-118	1	251	69	342	21	160
35	2011-03-11	37.52	143.05	9.1	20	25	80	90	203	10	88	55	295	35	115	0	205
36	2012-08-27	12.02	-89.17	7.3	12	117	76	93	284	15	77	59	31	31	204	3	296
37	2012-10-28	52.61	-132.06	7.8	12	122	66	83	318	25	104	69	19	20	217	6	125
38	2013-02-06	-11.18	165.21	7.9	20.2	142	70	90	320	20	89	65	52	25	231	0	322
39	2014-04-01	-19.7	-70.81	8.1	21.6	159	76	86	355	15	106	59	63	30	252	4	160
40	2015-02-19	-16.41	168.23	6.4	12	24	56	96	193	35	81	78	317	11	110	5	201
41	2015-09-16	-31.13	-72.09	8.3	17.4	7	19	109	166	72	83	63	66	27	261	6	168
42	2016-11-13	-42.03	173.85	7.8	18.8	226	33	141	350	70	63	56	225	21	100	25	360

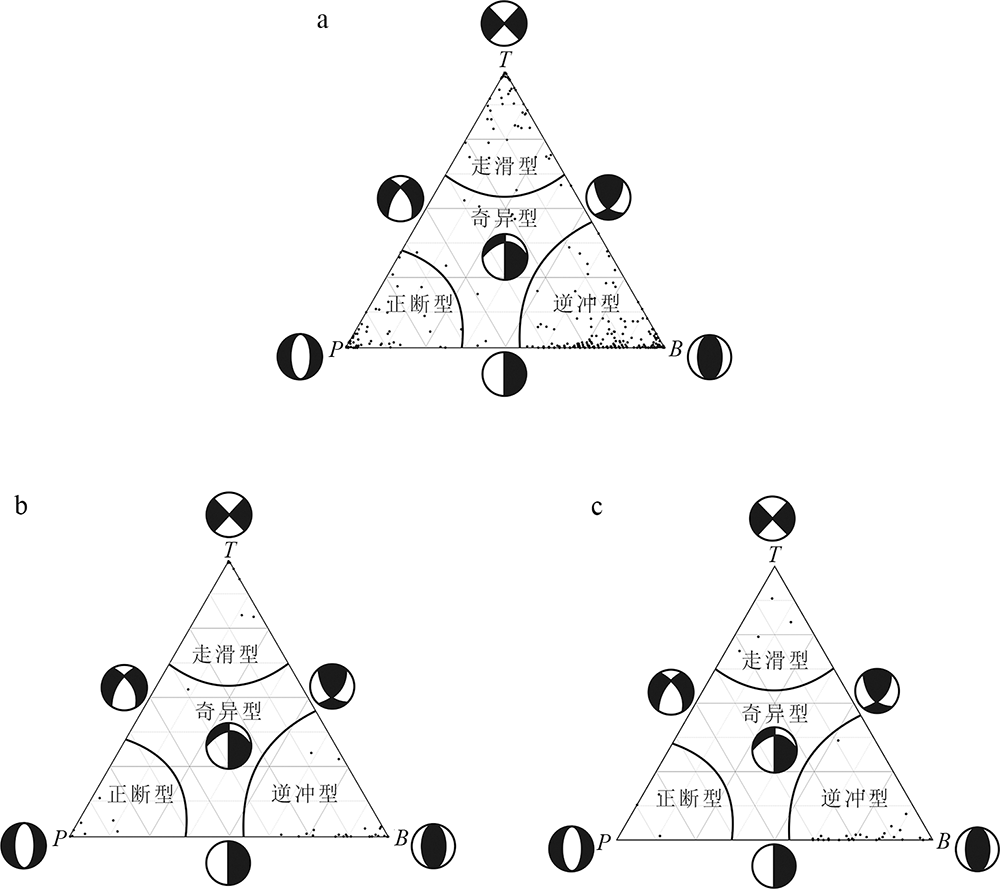

事件	各类事件占比/%
事件	逆冲型	正断型	走滑型	奇异型
震级大于5.0的海啸地震	63.34	17.60	15.84	3.23
震级小于6.5的海啸地震	59.52	19.05	19.05	2.38
浪高大于4 m的地震海啸	83.33	7.41	9.52	0.00
