Superimposition and composition control on hydrocarbon reservoirs in multi-cycle basins: Concept and practice in conventional and unconventional natural gas explorations

doi:10.13745/j.esf.sf.2022.8.38

Abstract

Abstract:

The Sichuan basin is a typical multi-cycle sedimentary basin in China and an important natural gas base with a large number of conventional, tight-sandstone and shale gas fields. The whole-basin, trans-stratum gas-bearing reservoirs are formed by predominantly vertical superimposition of marine, marine to non-marine transitional and continental strata with horizontal tectonic subdivision, and multi-cycle tectonic superimposition and modification in the vertical direction. In this study, the Puguang gas field, Fuling shale gas field, and Zhongjiang tight-sandstone gas filed are taken as examples to demonstrate the concept of superimposition and composition control on oil/gas pool formation—i.e., in superimposed basins every controlling factor affecting oil and gas accumulation and enrichment is controlled by many interrelated elements. Such factors not only increase in number with time but also are superimposed in space; and by unknown mechanism geological unites can combine together, such as structural and lithological bodies, and structural and stratigraphic traps. In general, superimposition controls oil and gas formation and evolution while composition controls oil and gas accumulation and position, and this rule applies to all large gas fields in the Sichuan basin. Therefore, further understanding of the superimposition and composition control in multi-cycle basins is of great significance for guiding oil and gas exploration research and practice in the Sichuan basin. This article systematically analyzes and summarizes the rule of hydrocarbon formation, accumulation and enrichment in large gas fields in the Sichuan basin. And, based on the exploration and development status of the Sichuan basin and multi-cycle characteristics three key research areas are proposed: (1)Tectono-paleogeography research aiming to clarify the superimposition and composition relationships between tectonic pattern, reservoir, hydrocarbon-source and trap-space, and their control over pool formation; (2)Regional tectonic evolution research towards better understanding the multi-cycle tectonic superposition process and its control on oil and gas generation and enrichment; (3)Structural classification and reservoir controlling research towards fine structural classification and better understanding the multi-stage structural control on gas-water relationship, hydrocarbon enrichment and reservoir transformation.

Key words: Sichuan Basin, multi-cycle sedimentary basins, gas field, superimposition and composition control on pool formation

CLC Number:

P618.13

GUO Tonglou. Superimposition and composition control on hydrocarbon reservoirs in multi-cycle basins: Concept and practice in conventional and unconventional natural gas explorations[J]. Earth Science Frontiers, 2022, 29(6): 109-119.

Figures/Tables 10

Fig.1 Distribution of the main giant gas fields in Sichuan Basin

Fig.2 Comprehensive column diagram of the tectono-stratigraphy in Sichuan Basin

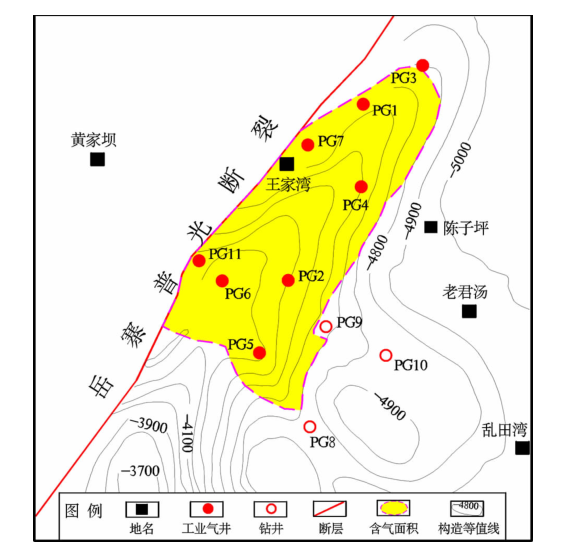

Fig.3 Structural map on the top gas interval of Puguang gas field

Fig.4 Changxing Formation dolomites in Puguang 2 well (PPL, 40×). Left no bitumen filling, right plenty of bitumen.

Fig.5 3-D geometry variation of Feixianguan Formation with time in the Puguang-Dongyuezhai structure

Fig.6 Bitumen content and paleo-oil-and-water contact recognition of Puguang-8 well (A) and Puguang-2 well (B) in the Puguang gas field

Fig.7 Pool-formation model of the Fuling shale gas field. Modified after [34].

Fig.8 Evolution of the absorbed gas and the free gas

Fig.9 Fault and sandstone body distribution in Zhongjiang gas field

Fig.10 Middle Jurassic Shaximiao Formation gas accumulation model typically of controlling of superimposition and composition on the pool-formation in Zhongjiang gas field. Modified after [36].

References 36

[1]	马永生, 蔡勋育, 赵培荣. 中国页岩气勘探开发理论认识与实践[J]. 石油勘探与开发, 2018, 45(4): 561-574.
[2]	马永生, 蔡勋育, 赵培荣. 元坝气田长兴组—飞仙关组礁滩相储层特征和形成机理[J]. 石油学报, 2014, 35(6): 1001-1011. DOI
[3]	赵文智, 贾爱林, 位云生, 等. 中国页岩气勘探开发进展及发展展望[J]. 中国石油勘探, 2020, 25(1): 31-44. DOI
[4]	戴金星, 邹才能, 陶士振, 等. 中国大气田形成条件和主控因素[J]. 天然气地球科学, 2007, 18(4): 473-484.
[5]	李德生. 中国石油地质学的理论与实践[J]. 地学前缘, 1995, 2(3): 15-19.
[6]	戴金星, 倪云燕, 刘全有, 等. 四川超级气盆地[J]. 石油勘探与开发, 2021, 48(6): 1081-1088.
[7]	何登发, 李德生, 童晓光. 中国多旋回叠合盆地立体勘探论[J]. 石油学报, 2010, 31(5): 695-709. DOI
[8]	何登发, 马永生, 蔡勋育, 等. 中国西部海相盆地地质结构控制油气分布的比较研究[J]. 岩石学报, 2017, 33(4): 1037-1057.
[9]	何登发, 贾承造, 童晓光, 等. 叠合盆地概念辨析[J]. 石油勘探与开发, 2004, 31(1): 1-7.
[10]	赵文智, 张光亚, 王红军, 等. 中国叠合含油气盆地石油地质基本特征与研究方法[J]. 石油勘探与开发, 2003, 30(2): 1-8.
[11]	戴金星, 李剑, 丁巍伟, 等. 中国储量千亿立方米以上气田天然气地球化学特征[J]. 石油勘探与开发, 2005, 32(4): 16-23.
[12]	马永生, 何治亮, 赵培荣, 等. 深层-超深层碳酸盐岩储层形成机理新进展[J]. 石油学报, 2019, 40(12): 1415-1425. DOI
[13]	陈洪德, 田景春, 刘文均, 等. 中国南方海相震旦系—中三叠统层序划分与对比[J]. 成都理工学院学报, 2002, 29(4): 355-379.
[14]	何登发, 李德生, 张国伟, 等. 四川多旋回叠合盆地的形成与演化[J]. 地质科学, 2011, 46(3): 589-606.
[15]	黄福喜, 陈洪德, 侯明才, 等. 中上扬子克拉通加里东期(寒武—志留纪)沉积层序充填过程与演化模式[J]. 岩石学报, 2011, 27(8): 2299-2317.
[16]	何登发, 李德生, 王成善, 等. 一张相图引发的奇迹:论活动论构造-古地理[J]. 地质科学, 2015, 50(2): 391-409.
[17]	刘树根, 邓宾, 李智武, 等. 盆山结构与油气分布:以四川盆地为例[J]. 岩石学报, 2011, 27(3): 621-635.
[18]	赵文智, 谢增业, 王晓梅, 等. 四川盆地震旦系气源特征与原生含气系统有效性[J]. 石油勘探与开发, 2021, 48(6): 1089-1099.
[19]	赵文智, 胡素云, 汪泽成, 等. 中国元古界—寒武系油气地质条件与勘探地位[J]. 石油勘探与开发, 2018, 45(1): 1-13.
[20]	戴金星, 倪云燕, 董大忠, 等. “十四五”是中国天然气工业大发展期:对中国“十四五”天然气勘探开发的一些建议[J]. 天然气地球科学, 2021, 32(1): 1-16.
[21]	贾爱林, 闫海军, 郭建林, 等. 全球不同类型大型气藏的开发特征及经验[J]. 天然气工业, 2014, 34(10): 33-46.
[22]	刘小平, 吴欣松, 王志章, 等. 我国主要气区大中型天然气田未动用储量评价[J]. 天然气工业, 2003, 23(1): 116-118.
[23]	马永生, 郭旭升, 郭彤楼, 等. 四川盆地普光大型气田的发现与勘探启示[J]. 地质论评, 2005, 51(4): 477-480.
[24]	杜金虎, 邹才能, 徐春春, 等. 川中古隆起龙王庙组特大型气田战略发现与理论技术创新[J]. 石油勘探与开发, 2014, 41(3): 268-277.
[25]	郭旭升, 郭彤楼, 黄仁春, 等. 中国海相油气田勘探实例之十六四川盆地元坝大气田的发现与勘探[J]. 海相油气地质, 2014, 19(4): 57-64.
[26]	邹才能, 杜金虎, 徐春春, 等. 四川盆地震旦系—寒武系特大型气田形成分布、资源潜力及勘探发现[J]. 石油勘探与开发, 2014, 41(3): 278-293.
[27]	赵文智, 汪泽成, 姜华, 等. 从古老碳酸盐岩大油气田形成条件看四川盆地深层震旦系的勘探地位[J]. 天然气工业, 2020, 40(2): 1-10.
[28]	马永生, 郭彤楼, 赵雪凤, 等. 普光气田深部优质白云岩储层形成机制[J]. 中国科学D辑: 地球科学, 2007, 37(增刊2): 43-52.
[29]	郭彤楼. 川东北地区碳酸盐岩层系孔隙型与裂缝型气藏成藏差异性[J]. 石油与天然气地质, 2010, 32(3): 311-317.
[30]	刘德汉, 戴金星, 肖贤明, 等. 普光气田中高密度甲烷包裹体的发现及形成的温度和压力条件[J]. 科学通报, 2010, 55(4/5): 359-366.
[31]	郭彤楼, 刘若冰. 复杂构造区高演化程度海相页岩气勘探突破的启示:以四川盆地东部盆缘JY1井为例[J]. 天然气地球科学, 2013, 24(4): 643-651.
[32]	郭彤楼, 张汉荣. 四川盆地焦石坝页岩气田形成与富集高产模式[J]. 石油勘探与开发, 2014, 41(1): 28-36.
[33]	GUO T L. The Fuling shale gas field: a highly productive Silurian gas shale with high therm al maturity and complex evolution history, southeastern Sichuan Basin, China[J]. Interpretation, 2015, 3(2): 1-10.
[34]	GUO T L. Evaluation of highly thermally mature shale—gas reservoirs in complex structural parts of the Sichuan Basin[J]. Journal of Earth Science, 2013, 24(6): 863-873. DOI URL
[35]	高健, 何生, 易积正. 焦石坝页岩气田中高密度甲烷包裹体的发现及其意义[J]. 石油与天然气地质, 2015, 36(3): 472-480.
[36]	郭彤楼, 王勇飞, 叶素娟, 等. 四川盆地中江气田成藏条件及勘探开发关键技术[J]. 石油学报, 2022, 43(1): 141-155. DOI
