Characteristics and formation mechanisms of dolomites in the Middle Permian Maokou Formation in southeastern Sichuan Basin

doi:10.13745/j.esf.sf.2023.2.19

Abstract

Abstract:

Breakthroughs in oil and gas exploration have been made recently in dolomite reservoirs of the Middle Permian Maokou Formation in southeastern Sichuan Basin. However, reservoir heterogeneity in the Maokou Formation is high, which makes it difficult to identify high-quality reservoirs without a clear understanding of the dolomitization mechanisms. Based on sedimentary facies of the region and hydrothermal events associated with the Emeishan Large Igneous Province, dolomites in the Maokou Formation are characterized and their formation mechanisms are summarized through lithological and geochemical analyses. In the Maokou Formation fine-medium-crystalline dolomite is the main type, followed by micritic dolomite and dolomite cements. In the Qijiang area stratified, fine-medium-crystalline dolomite is mainly found. The euhedral to subhedral dolomite crystals appear cloudy at the center and bright around the edges, with obvious graining lines; under cathodoluminescence (CL) microscope they appear brown-red at the interior and dark-red toward the exterior. The δ¹⁸O_V-PDB, δ¹³C_V-PDB and ⁸⁷Sr/⁸⁶Sr ratio values of fine-medium-crystalline dolomite indicate it was formed by seepage-reflux dolomitization at medium salinity during shallow burial and later underwent recrystallization and seawater-metasomatism. The Tailai area mainly occur porphyritic- micritic and fine-medium-crystalline dolomites, along with dolomite cements found in rock fractures. Dolomites are compact with no obvious grain structures, while dolomite cements are mainly saddle dolomite with wavy extinction, with multiphase ring-and-ribbon patterns visible under CL microscope. Isotopic data indicate dolomites in this area were formed during shallow burial under seawater environment, and late-stage thermal fluids flowing over clastic rocks directly contributed to the precipitation of dolomite cements and calcite. In general, the key reservoir-controlling factors of the Maokou Formation in southeastern Sichuan Basin are epigenetic dissolution, dolomitization during shallow burial, metasomatism and karstification; and seepage-reflux dolomitization during shallow burial is the main formation mechanism of dolomites.

Key words: Sichuan Basin, Middle Permian, Maokou Formation, dolomite, genetic mechanism

CLC Number:

TE121.3

HAN Yueqing, ZHANG Juntao, PAN Lei, LI Huili, LIU Guangxiang, LI Rangbin, WU Chongyang, HAO Yunqing, HE Zhiliang, HUANG Zhenkai. Characteristics and formation mechanisms of dolomites in the Middle Permian Maokou Formation in southeastern Sichuan Basin[J]. Earth Science Frontiers, 2023, 30(6): 45-56.

Figures/Tables 9

Fig.1 Facies map of and simplified stratigraphic column for Mao-3 section, southeastern Sichuan Basin

Fig.2 Identifying features of dolomites from the Maokou Formation in southeastern Sichuan Basin

Fig.3 Lithological characteristics of micritic dolomite from the study area

Fig.4 Lithological characteristics of fine-medium-crystalline dolomite from the study area

Fig.5 Lithological characteristics of dolomite cements from the study area

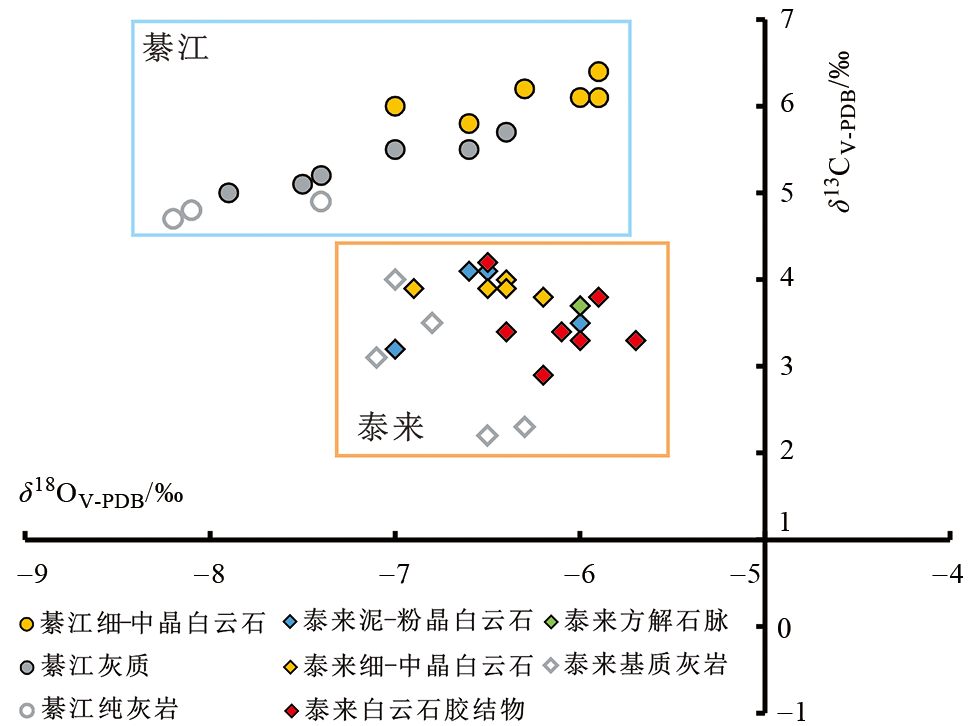

Fig.6 Cross-plot of Carbon and oxygen isotope values for carbonate rocks from the study area

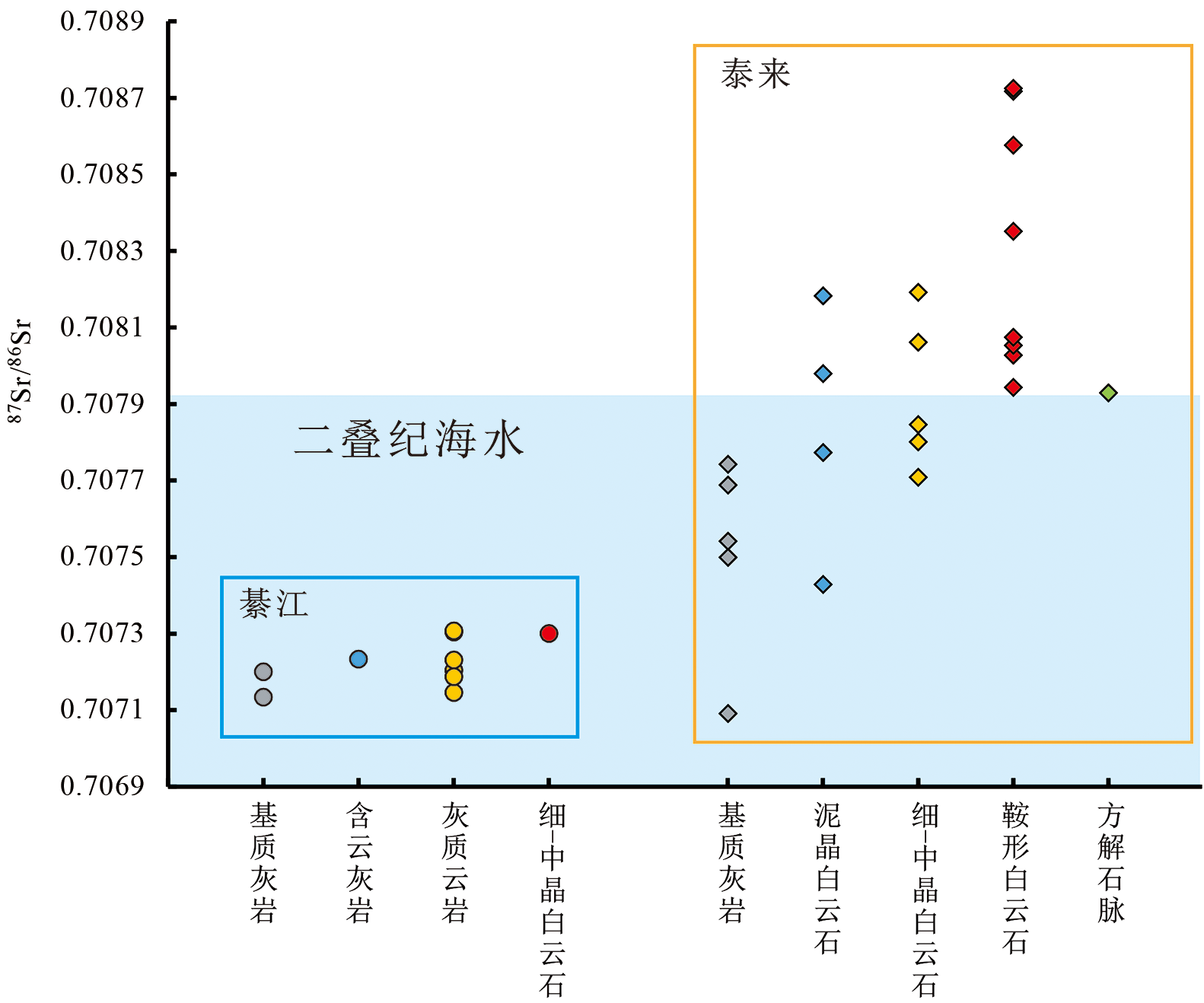

Fig.7 Comparison of 87Sr/86Sr ratios of carbonatites from the study area

Fig.8 REE patterns of carbonatites from the study area

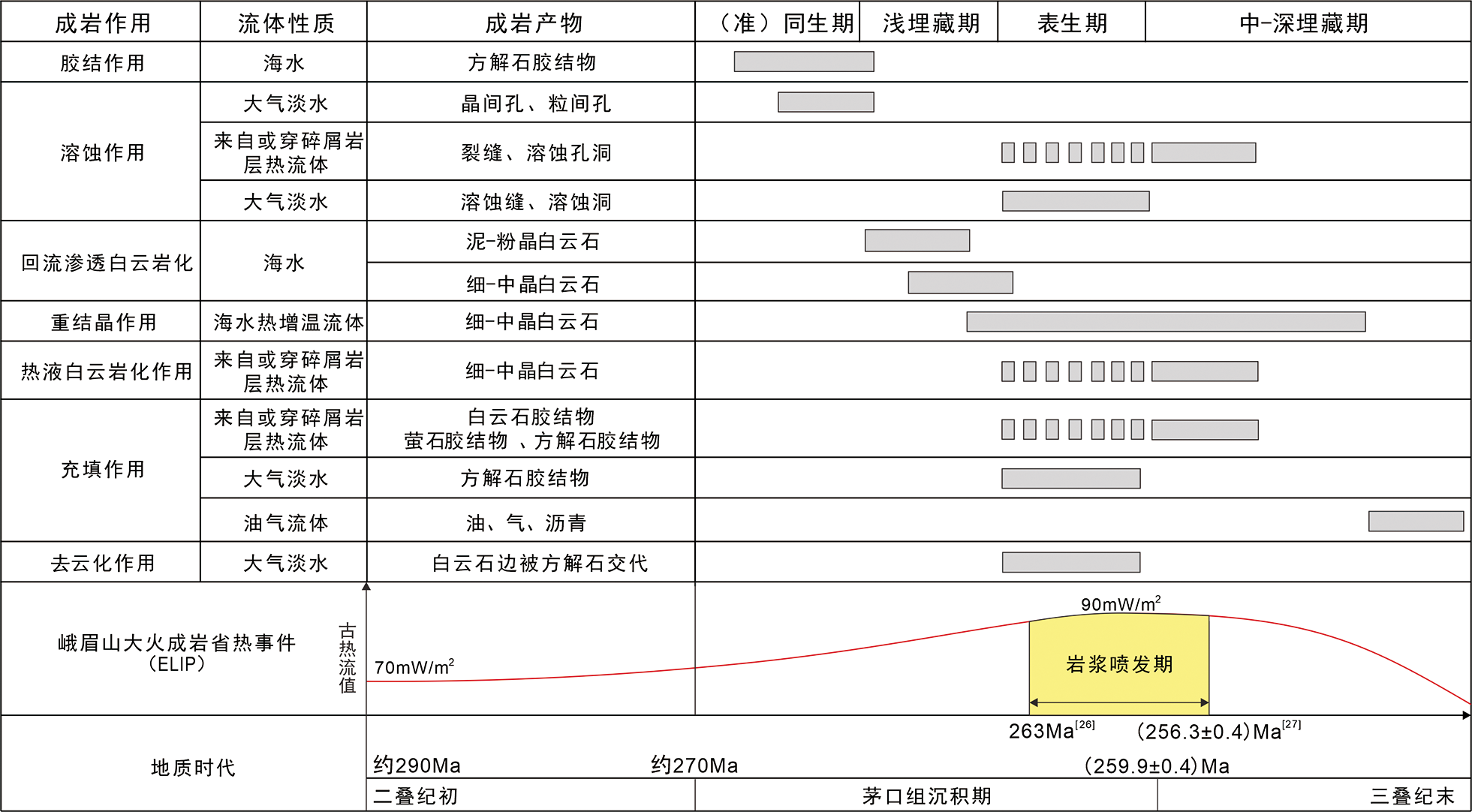

Fig.9 Diagenetic features and diagenetic process of the Maokou Formation in southeastern Sichuan Basin

References 46

[1]	WARREN J. Dolomite: occurrence, evolution and economically important associations[J]. Earth-Science Reviews, 2000, 52(1/2/3): 1-81. DOI URL
[2]	DAVIES G R, SMITH L B Jr. Structurally controlled hydrothermal dolomite reservoir facies: an overview[J]. AAPG Bulletin, 2006, 90(11): 1641-1690. DOI URL
[3]	韩月卿, 张军涛, 何治亮, 等. 川西中二叠统栖霞组白云岩特征与成因[J]. 石油与天然气地质, 2023, 44(1): 75-88.
[4]	胡明毅, 邓猛, 胡忠贵, 等. 四川盆地石炭系黄龙组储层特征及主控因素分析[J]. 地学前缘, 2015, 22(3): 310-321. DOI
[5]	王琼仙, 宋晓波, 邓美洲, 等. 川西气田雷口坡组潮坪相白云岩准同生溶蚀特征及对优质储层分布的影响[J]. 海相油气地质, 2022, 27(2): 167-174.
[6]	沈安江, 罗宪婴, 胡安平, 等. 从准同生到埋藏环境的白云石化路径及其成储效应[J]. 石油勘探与开发, 2022, 49(4): 637-647. DOI
[7]	张宇, 曹清古, 罗开平, 等. 四川盆地二叠系茅口组油气藏勘探发现与启示[J]. 石油与天然气地质, 2022, 43(3): 610-620.
[8]	杨雨, 谢继容, 赵路子, 等. 四川盆地茅口组滩相孔隙型白云岩储层天然气勘探的突破及启示: 以川中北部地区JT1井天然气立体勘探为例[J]. 天然气工业, 2021, 41(2): 1-9.
[9]	胡东风, 王良军, 黄仁春, 等. 四川盆地东部地区中二叠统茅口组白云岩储层特征及其主控因素[J]. 天然气工业, 2019, 39(6): 13-21.
[10]	ZHENGH F, MA Y S, CHI G X, et al. Stratigraphic and structural control on hydrothermal dolomitization in the Middle Permian carbonates, southwestern Sichuan Basin (China)[J]. Minerals, 2019, 9(1): 32. DOI URL
[11]	陈轩, 赵文智, 刘银河, 等. 川西南地区中二叠统热液白云岩特征及勘探思路[J]. 石油学报, 2013, 34(3): 460-466. DOI
[12]	张涛, 林娟华, 韩月卿, 等. 四川盆地东部中二叠统茅口组热液白云岩发育模式及对储层的改造[J]. 石油与天然气地质, 2020, 41(1): 132-143, 200.
[13]	王珏博, 谷一凡, 陶艳忠, 等. 川中地区茅口组两期流体叠合控制下的白云石化模式[J]. 沉积学报, 2016, 34(2): 236-249.
[14]	李蓉, 胡昊, 石国山, 等. 川东北阆中地区二叠系茅口组白云岩化成因[J]. 新疆石油地质, 2020, 41(2): 127-132.
[15]	韩月卿, 张军涛, 韩文彪, 等. 热液白云岩定年方法研究: 以四川盆地二叠系热液白云岩为例[J]. 地球科学前沿(汉斯), 2022(5): 627-635.
[16]	REES P M, ZIEGLER A M, GIBBS M T, et al. Permian phytogeographic patterns and climate data/model comparisons[J]. The Journal of Geology, 2002, 110(1): 1-31. DOI URL
[17]	GIBBS M T, REES P M, KUTZBACH J E, et al. Simulations of Permian climate and comparisons with climate-sensitive sediments[J]. The Journal of Geology, 2002, 110(1): 33-55. DOI URL
[18]	韩月卿, 李双建, 韩文彪, 等. 川东南地区中二叠统茅口组灰泥灰岩储层孔隙特征[J]. 石油实验地质, 2022, 44(4): 666-676.
[19]	江青春, 胡素云, 汪泽成, 等. 四川盆地茅口组风化壳岩溶古地貌及勘探选区[J]. 石油学报, 2012, 33(6): 949-960. DOI
[20]	韩月卿, 郝运轻, 韩文彪, 等. 川东南地区中二叠统茅口组一段眼球状灰岩成因机理[J]. 油气地质与采收率, 2022, 29(6): 12-21.
[21]	李让彬, 段金宝, 潘磊, 等. 川东地区中二叠统茅口组白云岩储层成因机理及主控因素[J]. 天然气地球科学, 2021, 32(9): 1347-1357.
[22]	韩月卿, 金振奎, 韩文彪. 川西中二叠统表生岩溶发育规律及控制因素研究[J]. 地球科学前沿(汉斯), 2022(4): 483-494.
[23]	杨鹏成, 杨光, 陈新伟, 等. 峨眉山大火成岩省对四川盆地油气储层的控制作用研究[J]. 地质科学, 2022, 57(1): 100-114.
[24]	SUN Y D, LAI X L, WIGNALL P B, et al. Dating the onset and nature of the Middle Permian Emeishan large igneous province eruptions in SW China using conodont biostratigraphy and its bearing on mantle plume uplift models[J]. Lithos, 2010, 119(1/2): 20-33. DOI URL
[25]	SHELLNUTT J G, PHAM T T, DENYSZYN S W, et al. Magmatic duration of the Emeishan large igneous province: insight from northern Vietnam[J]. Geology, 2020, 48(5): 457-461. DOI URL
[26]	朱传庆, 徐明, 袁玉松, 等. 峨眉山玄武岩喷发在四川盆地的地热学响应[J]. 科学通报, 2010, 55(6): 474-482.
[27]	孙浩伟, 范存辉, 张云峰, 等. 川东地区二叠系火山岩储层特征[J]. 石油地质与工程, 2022, 36(2): 34-40.
[28]	刘嘉伟, 赵虎, 王轶, 等. 川东龙会场-龙门地区二叠系火山岩分布特征及油气地质意义[J]. 天然气地球科学, 2022, 33(3): 381-395.
[29]	VEIZER J, ALA D, AZMY K, et al. ⁸⁷Sr/⁸⁶Sr, δ¹³C and δ¹⁸O evolution of Phanerozoic seawater[J]. Chemical Geology, 1999, 161(1/2/3): 59-88. DOI URL
[30]	ALLAN J R, WIGGINS W D. Dolomite reservoirs: geochemical techniques for evaluating origin and distribution[M]. Tulsa: American Association of Petroleum Geologists, 1993: 129.
[31]	TAYLOR S R, MCLENNAN S M. The continental crust: its composition and evolution[J]. Geological Magazine, 122(6), 673-674.
[32]	KAWABE I, TORIUMI T, OHTA A, et al. Monoisotopic REE abundances in seawater and the origin of seawater tetrad effect[J]. Geochemical Journal, 1998, 32(4): 213-229. DOI URL
[33]	黄思静. 碳酸盐岩的成岩作用[M]. 北京: 地质出版社, 2010: 1-288.
[34]	韩月卿, 韩文彪, 郭齐军, 等. 川西大邑地区中二叠统栖霞组储层特征及发育模式[J]. 地球科学前沿(汉斯), 2023, 13(3): 213-220.
[35]	邓伟, 谭秀成, 张道锋, 等. 鄂尔多斯盆地中东部奥陶系马家沟组马五6亚段硬石膏产状类型与成因[J]. 古地理学报, 2022, 24(2): 226-244.
[36]	芦飞凡, 谭秀成, 钟原, 等. 四川盆地西北部二叠系栖霞组准同生期砂糖状白云岩特征及成因[J]. 石油勘探与开发, 2020, 47(6): 1134-1148. DOI
[37]	胡笙, 谭秀成, 罗冰, 等. 四川盆地西北部二叠系栖霞阶层序地层特征及地质意义[J]. 古地理学报, 2020, 22(6): 1109-1126.
[38]	韩波, 冯菊芳, 何治亮, 等. 四川盆地下寒武统豹斑灰岩成因机理及其对储层的影响[J]. 石油与天然气地质, 2017, 38(4): 764-775, 783.
[39]	GREGG J M, BISH D L, KACZMAREK S E, et al. Mineralogy, nucleation and growth of dolomite in the laboratory and sedimentary environment: a review[J]. Sedimentology, 2015, 62(6): 1749-1769. DOI URL
[40]	李明隆, 谭秀成, 苏成鹏, 等. 四川盆地西北部中二叠统栖霞组砂糖状白云岩特征及成因机制: 以广元上寺剖面为例[J]. 地质论评, 2020, 66(3): 591-610.
[41]	QING H, MOUNTJOY E W. Formation of coarsely crystalline, hydrothermal dolomite reservoirs in the Presqu’ile barrier, western Canada sedimentary basin[J]. AAPG Bulletin, 1994, 78(1): 55-77.
[42]	YANG X F, TANG H, WANG X Z, et al. Dolomitization by penesaline sea water in Early Cambrian Longwangmiao Formation, central Sichuan Basin, China[J]. Journal of Earth Science, 2017, 28(2): 305-314. DOI URL
[43]	袁鑫鹏, 刘建波. 回流渗透模式白云岩研究历史与进展[J]. 古地理学报, 2012, 14(2): 219-228.
[44]	黎霆, 诸丹诚, 李海平, 等. 中二叠统茅口组白云岩发育机理: 以川中-川东地区为例[J]. 现代地质, 2020, 34(2): 345-355.
[45]	李红, 王良军, 柳益群, 等. 四川盆地东部中二叠统茅口组热液活动特征[J]. 古地理学报, 2021, 23(1): 153-174.
[46]	潘磊, 徐祖新, 李让彬, 等. 川东南涪陵地区基底断裂特征与油气成藏[J]. 特种油气藏, 2020, 27(4): 19-25. DOI
