Geological characteristics and mechanism of helium accumulation in typical abiotic helium-rich gas fields in the United States

doi:10.13745/j.esf.sf.2024.1.70

Abstract

Abstract:

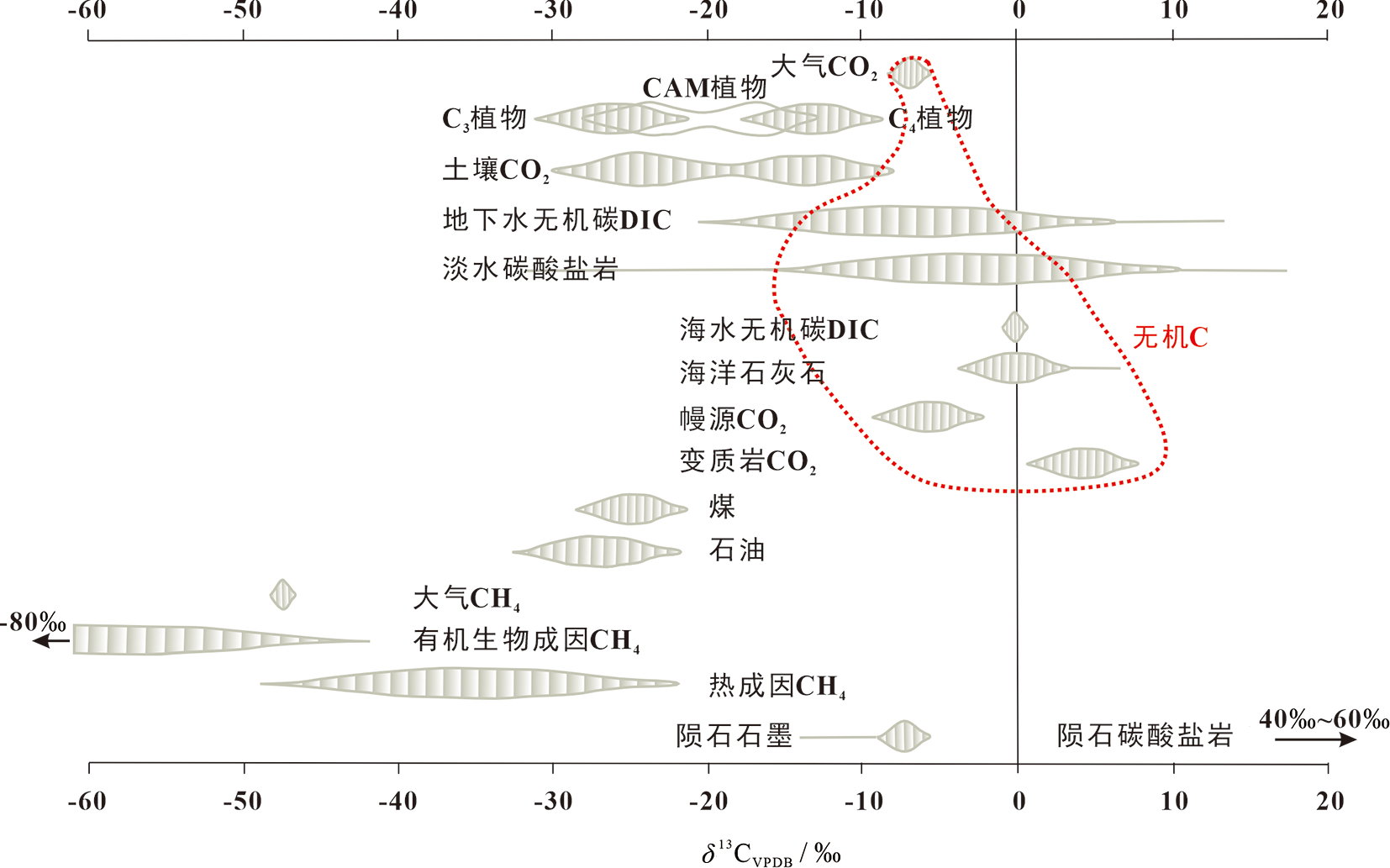

Economically viable abiotic helium-rich gas fields are widely developed in the United States. He-rich N₂ gas fields, for example, contain as much as 10% He, as the basement rocks in situ and in the surrounding area provides sufficient crustal He and N₂ to yield an N₂/He (He > 0.1%) ratio typically between 5-50. However, He-rich N₂ gas fields so far are only found in the United States, and further research is needed to determine whether they are due to unique geological conditions, or yet to be discovered elsewhere. He-rich CO₂ gas fields also contain significant quantity of crustal helium. He-rich CO₂ gas fields in the Colorado Plateau are all thought to have originated from late Cenozoic magmatism, and the magmatic rocks in the region have high U/Th contents. The groundwater gas stripping and re-dissolution (GGS-R) model is commonly used to explain the trapping mechanism of noble gases in CO₂ gas reservoirs. According to this model, mantle-sourced CO₂ carrier gas stripes air-sourced noble gases dissolved in the groundwater to charge reservoirs along with crustal-derived noble gases, and dissolution equilibrium subsequently reestablishes between the noble gases and groundwater. While the water/gas ratios at equilibrium differ between different gas fields, they are similar in all gas fields in the Colorado Plateau ranging between 0-100 (at reservoir pressure and temperature). By systematic analysis and summarization of the source, migration, and accumulation mechanisms of helium in helium-rich abiotic gas reservoirs in the United States, and discuss the enrichment of helium of primary migration by diffusion in helium source rocks, and of secondary migration by water phase mass flow or multiphase porous flow/seepage with inorganic carrier gases N₂ and CO₂, this paper provides a theoretical basis for helium exploration in China, and can be used as a reference for geological evaluation of CO₂ reservoirs and development of CO₂ safe storage.

Key words: helium, helium-rich gas field, CO₂ gas field, N₂ gas field, abiotic natural gas, inorganic genesis, geological characteristics, enrichment mechanism

CLC Number:

YANG Yiqing, TAO Shizhen, CHEN Yue. Geological characteristics and mechanism of helium accumulation in typical abiotic helium-rich gas fields in the United States[J]. Earth Science Frontiers, 2024, 31(1): 327-339.

Figures/Tables 17

References 35

[1]	CADY H P, MCFARLAND D F. The occurrence of helium in natural gas and the composition of natural gas[J]. The occurrence of helium in natural gas and the composition of natural gas[J]. Journal of the American Chemical Society, 1907, 29(11): 1523-1536. DOI URL
[2]	BALLENTINE C J, LOLLAR B S. Regional groundwater focusing of nitrogen and noble gases into the Hugoton-Panhandle giant gas field, USA[J]. Geochimica et Cosmochimica Acta, 2002, 66(14): 2483-2497. DOI URL
[3]	DANABALAN D. Helium: exploration methodology for a strategic resource[D]. Durham: Durham University, 2017.
[4]	GILFILLAN S M V, BALLENTINE C J, HOLLAND G, et al. The noble gas geochemistry of natural CO₂ gas reservoirs from the Colorado Plateau and Rocky Mountain provinces, USA[J]. Geochimica et Cosmochimica Acta, 2008, 72(4): 1174-1198. DOI URL
[5]	WISEMAN T, ECKELS M T. Proven and hypothetical helium resources in Utah[R/OL]. (2020-06-29) [2024-01-09]. https://doi.org/10.34191/mp-174.
[6]	NICHOLS C, EPPINK J, HEIDRICK T L, et al. Subsurface sources of CO₂ in the contiguous United States[R/OL]. (2014-03-05) [2024-01-09]. https://doi.org/10.2172/1503261.
[7]	DUMITRU T A, DUDDY I R, GREEN P F. Mesozoic-Cenozoic burial, uplift, and erosion history of the west-central Colorado Plateau[J]. Geology, 1994, 22: 499-4502. DOI URL
[8]	ALLEN P A, VERLANDER J A, BURGESS P M, et al. Jurassic giant erg deposits, flexure of the US continental interior, and the timing of the onset of cordilleran shortening[J]. Geology, 2000, 28: 159-162. DOI URL
[9]	BLAKEY R C. Pennsylvanian-Jurassic sedimentary basins of the Colorado Plateau and southern Rocky Mountains[J]. Sedimentary Basins of the World, 2008, 5: 245-296.
[10]	ANDREW D M. The sedimentary basins of the United States and Canada[M]//BURGESS P M. Phanerozoic evolution of the sedimentary cover of the North American Craton. 2nd ed. Amsterdam: Elsevier, 2019: 39-75.
[11]	HOUSTONG W S, WRAY L L, MORELAND P G. The Paradox Basin Revisited-new developments in petroleum systems and basin analysis[M]//KLUTH C F, DUCHENE H R. Late Pennsylvanian and Early Permian structural geology and tectonic history of the Paradox Basin and Uncompahgre uplift, Colorado and Utah. Denver: RMAG, 2009: 178-197.
[12]	TEDESCO S A. Geology and production of helium and associated gases[M]. Amsterdam: Elsevier, 2022.
[13]	BRENNAN S T, EAST J A, DENNEN K O, et al. Dataset of helium concentrations in United States wells: US Geological Survey Data Release[R/OL]. (2021-05-18) [2024-01-09]. https://doi.org/10.5066/P92QL79J.
[14]	ADAMS J G, GONZALES D, DARRAH T. Application of noble gas isotopic signatures at McElmo Dome-Doe Canyon field to investigate CO₂ source and system characterization[C/OL]// AAPG annual convention and exhibition 2015, Denver: Rocky Mountain association of geologists, 2015. https://www.searchanddiscovery.com/abstracts/html/2015/90216ace/abstracts/2095645.html
[15]	CAPPA J A, RICE D D. Carbon dioxide in Mississippian rocks of the Paradox Basin and adjacent areas, Colorado, Utah, New Mexico, and Arizona[R]. Denver: USGPO; US Geological Survey Information Services, 1995.
[16]	STEVENS S H, TYE B S. Natural CO₂ analogs for carbon sequestration[R/OL]. (2005-07-31) [2024-01-09]. https://doi.org/10.2172/902517.
[17]	RAUZI S L. Carbon dioxide in the St. John's Springerville area, Apache county, Arizona[R]. Tucson: Arizona Geological Survey, 1999.
[18]	KIPFER R, AESCHBACH-HERTIG W, PEETERS F, et al. Noble gas in lakes and ground waters[J]. Review in Mineralogy and Geochemistry, 2002, 47: 615-689. DOI URL
[19]	BECKER T P, LYNDS R. A geologic deconstruction of one of the world's largest natural accumulations of CO₂, Moxa arch, southwestern Wyoming[J]. AAPG Bulletin, 2012, 96(9): 1643-1664. DOI URL
[20]	STILWELL D P. CO₂ resources of the Moxa arch and the Madison reservoir[C]// Gas resources of Wyoming; 40th annual field conference guidebook, Casper: Wyoming Geological Association, 1989: 105-115.
[21]	MERRILL M D, HUNT A. Updated regional and field scale He accumulation geochemistry, La Barge Platform, WY[C/OL]// AAPG Rocky Mountain section annual meeting 2017, Billings: Montana Geological Society, 2017. https://www.searchanddiscovery.com/pdfz/abstracts/pdf/2017/90301rms/abstracts/ndx_merrill.pdf.html.
[22]	RAUZI S L. Review of helium production and potential in Arizona[R]. Tucson: Arizona Geological Survey, 2003.
[23]	MCDOWELL B, MIL KOV A V, ANDERSON D S. The helium system: a modification of the petroleum system for inert gases[C/OL]// AAPG annual convention and exhibition 2017. Houston: American Association of Petroleum Geologists, 2017. https://www.searchanddiscovery.com/abstracts/html/2017/90291ace/abstracts/2612903.html.
[24]	USGS Uinta-Piceance Assessment Team. Petroleum systems and geologic assessment of oil and gas in the Uinta-Piceance province, Utah and Colorado[M/OL]//JOHNSON R C, ROBERTS S B. The Mesaverde total petroleum system, Uinta-Piceance province, Utah and Colorado. Denver: USGS Digital Data Series DDS-69-B, 2003. https://pubs.usgs.gov/dds/dds-069/dds-069-b/REPORTS/Chapter_7.pdf.
[25]	CASE J E. Geologic map of the Northwestern part of the Uncompahgre uplift, Grand county, Utah, and Mesa county, Colorado, with Emphasis on Proterozoic rocks[R/OL]. (1991) [2024-01-09]. https://doi.org/10.3133/i2088.
[26]	HALFORD D T. Isotopic analyses of helium from wells located in the Four Corners area, Southwestern, US[D]. Golden: Colorado School of Mines, 2018.
[27]	ZHU Y, SHI B, FANG C. The isotopic compositions of molecular nitrogen: implications on their origins in natural gas accumulations[J]. Chemical Geology, 2000, 164(3/4): 321-330. DOI URL
[28]	HOLLOWAY J M, DAHLGREN R A. Nitrogen in rock: occurrences and biochemical implications[J]. Global Biogeochemical Cycles, 2002, 16 (4): 65-1-65-17.
[29]	BROWN A A. PS Formation of high helium gases: A guide for explorationists[C]// AAPG annual convention and exhibition 2010, New Orleans: American association of petroleum geologists, 2010. https://www.searchanddiscovery.com/pdfz/documents/2010/80115brown/ndx_brown.pdf.html.
[30]	BROWN A A. Possible origins for low thermal maturity, high-nitrogen natural gases[J]. Geochemistry, 2017, 47: 481-538.
[31]	BOUDOU J, ESPITALIE J. Molecular nitrogen from coal pyrolysis: kinetic modelling[J]. Chemical Geology, 1995, 126(3/4): 319-333. DOI URL
[32]	ADER M, BOUDOU J P, JAVOY M, et al. Isotope study on organic nitrogen of Westphalian anthracites from the Western Middle field of Pennsylvania (USA) and from the Bramsche Massif (Germany)[J]. Organic Geochemistry, 1998, 29(1/2/3): 315-323. DOI URL
[33]	BROWN A A. Origin of helium and nitrogen in the Panhandle-Hugoton field of Texas, Oklahoma, and Kansas, United States[J]. AAPG Bulletin, 2019, 103(2): 369-403. DOI URL
[34]	JENDEN P D, KAPLAN I R. Origin of natural gas in Sacramento basin, California[J]. AAPG Bulletin, 1989, 73(4): 431-453.
[35]	CLARK I D, FRITZ P. Environmental isotopes in hydrogeology[M]. New York: CRC Press, 2013.

气田类型	气田名称	所属盆地	天然气储量/(10⁸m³)	层位	平均氦含量/%	R/R_a
CO₂气田	Big Piney-La Barge	Green River盆地	48 988.1	密西西比系	0.50	0.050~0.070
	McElmo Dome	Paradox盆地	8 495.1	密西西比系	0.20	0.057~0.215
	St. Johns	Holbrook盆地	2 520.2	二叠系	0.63	0.394~0.455
	Doe Canyon	Paradox盆地	1 444.2	密西西比系	0.78	0.150
	Sheep Mountain	Raton盆地	877.8	白垩系、侏罗系	0.10	0.963
	McCallum	North Park盆地	792.9	下白垩统	0.28	0.402
	Kevin Dome	Williston盆地	3 964.4	泥盆系	0.29
N₂气田	Pinta Dome	Holbrook盆地	1.85 (总产量)	二叠系	7.20	0.20~0.22
N₂气田	Harley Dome	Unita-Piceance盆地	未完全开发	侏罗系	3.90	0.11

气田类型	气田名称	所属盆地	天然气储量/(10⁸m³)	层位	平均氦含量/%	R/R_a
CO₂气田	Big Piney-La Barge	Green River盆地	48 988.1	密西西比系	0.50	0.050~0.070
	McElmo Dome	Paradox盆地	8 495.1	密西西比系	0.20	0.057~0.215
	St. Johns	Holbrook盆地	2 520.2	二叠系	0.63	0.394~0.455
	Doe Canyon	Paradox盆地	1 444.2	密西西比系	0.78	0.150
	Sheep Mountain	Raton盆地	877.8	白垩系、侏罗系	0.10	0.963
	McCallum	North Park盆地	792.9	下白垩统	0.28	0.402
	Kevin Dome	Williston盆地	3 964.4	泥盆系	0.29
N₂气田	Pinta Dome	Holbrook盆地	1.85 (总产量)	二叠系	7.20	0.20~0.22
N₂气田	Harley Dome	Unita-Piceance盆地	未完全开发	侏罗系	3.90	0.11

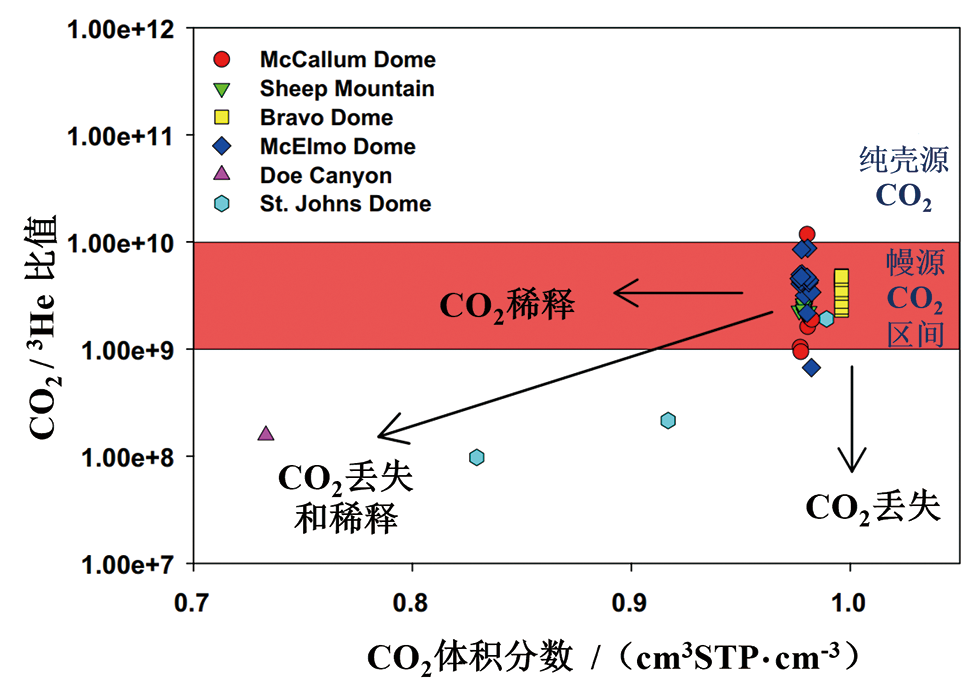

气田参数	各气田参数情况
气田参数	McElmo Dome	Doe Canyon	St. Johns	Big Piney-La Barge
产区面积/km²	824.4	331.8	890.3	2 630.5
天然气储量/(10⁸ m³)	8 495.1	1 444.2	2 520.2	48 988.1
氦气储量/(10⁸ m³)	17.0	11.3	15.9	244.9
储层	密西西比纪Leadville 组白云岩, 三叠纪Shinarump组砾岩	密西西比纪Leadville 组石灰岩	二叠纪Supai组 Arkosic砂岩、断裂的前寒武纪基底	密西西比纪Madison 组石灰岩、白云岩、砂岩
平均深度/m	2 000~2 545	2 730	462	4 750~5 500
产层厚度/m	21~45	18	23	85
孔隙度/%	3.5~25(平均11)	10	10~15	6~12(平均9)
渗透率/(10^-3 μm²)	23		10	10~50
圈闭类型	构造-岩性地层圈闭	构造圈闭	构造圈闭	构造圈闭
盖层	Paradox组盐岩/ 硬石膏	Paradox组盐岩/ 硬石膏	盐岩/硬石膏	Sabkha砂砾岩、喀斯特碎屑岩
气藏压力/psi	2 580(497 m以深)	3 960	508	6 585~7 625
所属盆地	Paradox盆地	Paradox盆地	Holbrook盆地	Green River盆地
采气方式	压力、较少水驱		气顶驱动	气顶驱动
He含量	0.20%	0.78%	0.63%	0.50%
R/R_a	0.057~0.215	0.150	0.394~0.455	0.050~0.070
CO₂含量	98.2%	91.7%	92.6%	79.6%
N₂含量	1.6%	6.1%	6.5%	4.8%
CH₄含量	>0.2%	1.2%	0.05%	12.7%

气田参数	各气田参数情况
气田参数	McElmo Dome	Doe Canyon	St. Johns	Big Piney-La Barge
产区面积/km²	824.4	331.8	890.3	2 630.5
天然气储量/(10⁸ m³)	8 495.1	1 444.2	2 520.2	48 988.1
氦气储量/(10⁸ m³)	17.0	11.3	15.9	244.9
储层	密西西比纪Leadville 组白云岩, 三叠纪Shinarump组砾岩	密西西比纪Leadville 组石灰岩	二叠纪Supai组 Arkosic砂岩、断裂的前寒武纪基底	密西西比纪Madison 组石灰岩、白云岩、砂岩
平均深度/m	2 000~2 545	2 730	462	4 750~5 500
产层厚度/m	21~45	18	23	85
孔隙度/%	3.5~25(平均11)	10	10~15	6~12(平均9)
渗透率/(10^-3 μm²)	23		10	10~50
圈闭类型	构造-岩性地层圈闭	构造圈闭	构造圈闭	构造圈闭
盖层	Paradox组盐岩/ 硬石膏	Paradox组盐岩/ 硬石膏	盐岩/硬石膏	Sabkha砂砾岩、喀斯特碎屑岩
气藏压力/psi	2 580(497 m以深)	3 960	508	6 585~7 625
所属盆地	Paradox盆地	Paradox盆地	Holbrook盆地	Green River盆地
采气方式	压力、较少水驱		气顶驱动	气顶驱动
He含量	0.20%	0.78%	0.63%	0.50%
R/R_a	0.057~0.215	0.150	0.394~0.455	0.050~0.070
CO₂含量	98.2%	91.7%	92.6%	79.6%
N₂含量	1.6%	6.1%	6.5%	4.8%
CH₄含量	>0.2%	1.2%	0.05%	12.7%

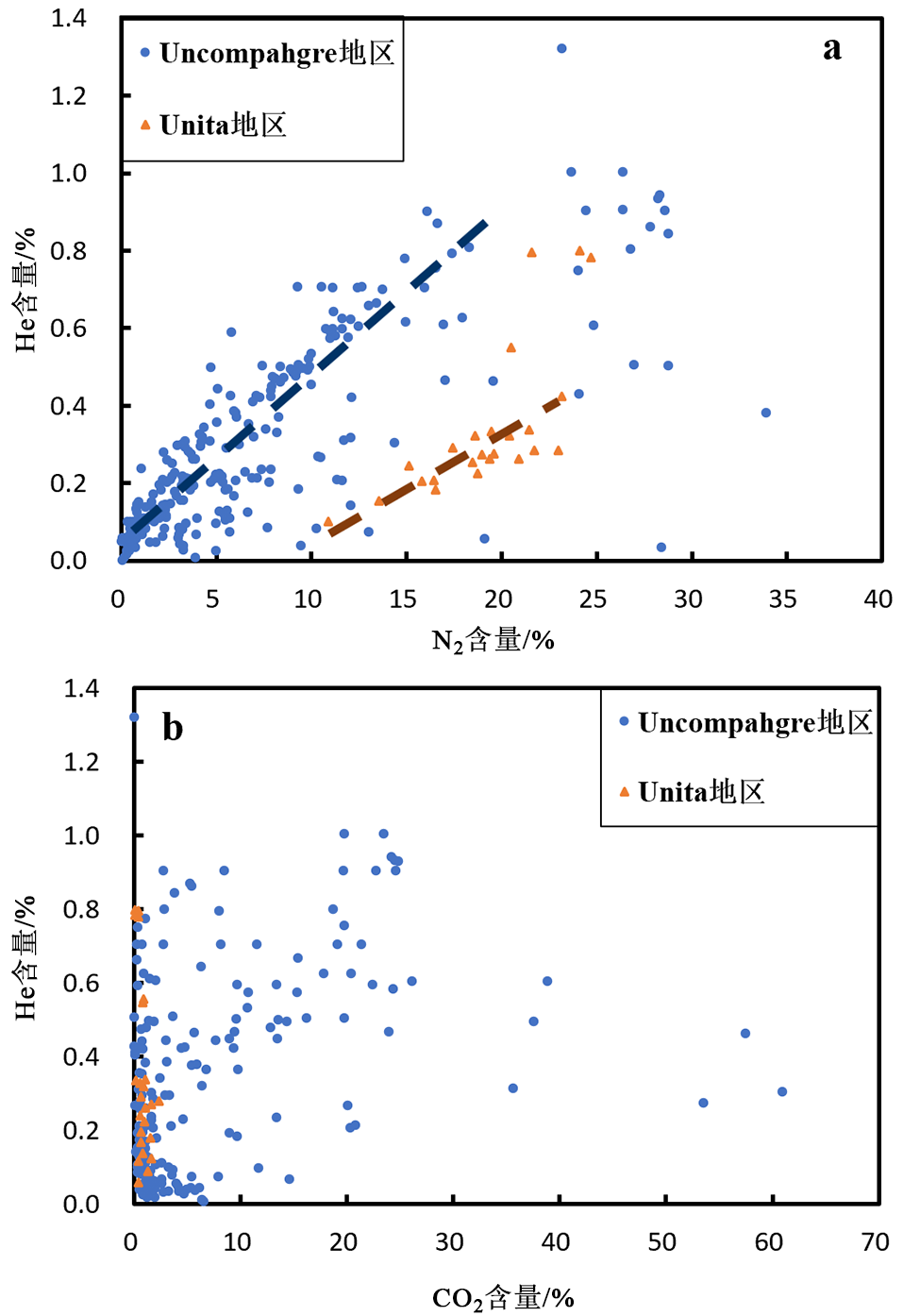

气田参数	气田参数情况
气田参数	Pinta Dome	Harley Dome
产区面积/km²	19.9	1.3
储层	二叠纪Coconino砂岩	侏罗纪Entrada砂岩
深度/m	311~334	236
产层厚度/m	21	27
孔隙度/%	14
渗透率/(10^-3 μm²)	110	低
圈闭类型	地层-构造圈闭	构造圈闭
盖层	Moenkopi组页岩	Mancos组页岩
气藏压力/psi	124	154
所属盆地	Holbrook盆地	Unita-Piceance盆地
采气方式	气顶驱动
He含量/%	地区平均7.2 生产井平均8.5	地区平均3.9 生产井平均7
R/R_a	0.20~0.22	0.11
CO₂含量/%	0.46	0.50
N₂含量/%	90.0	62.1
CH₄含量/%	0.22	31.50
