Geochemical characteristics of rare earth elements in acid mine drainage and sediments from the Xiangshan uranium mine tailings area

doi:10.13745/j.esf.sf.2024.5.27

Abstract

Abstract:

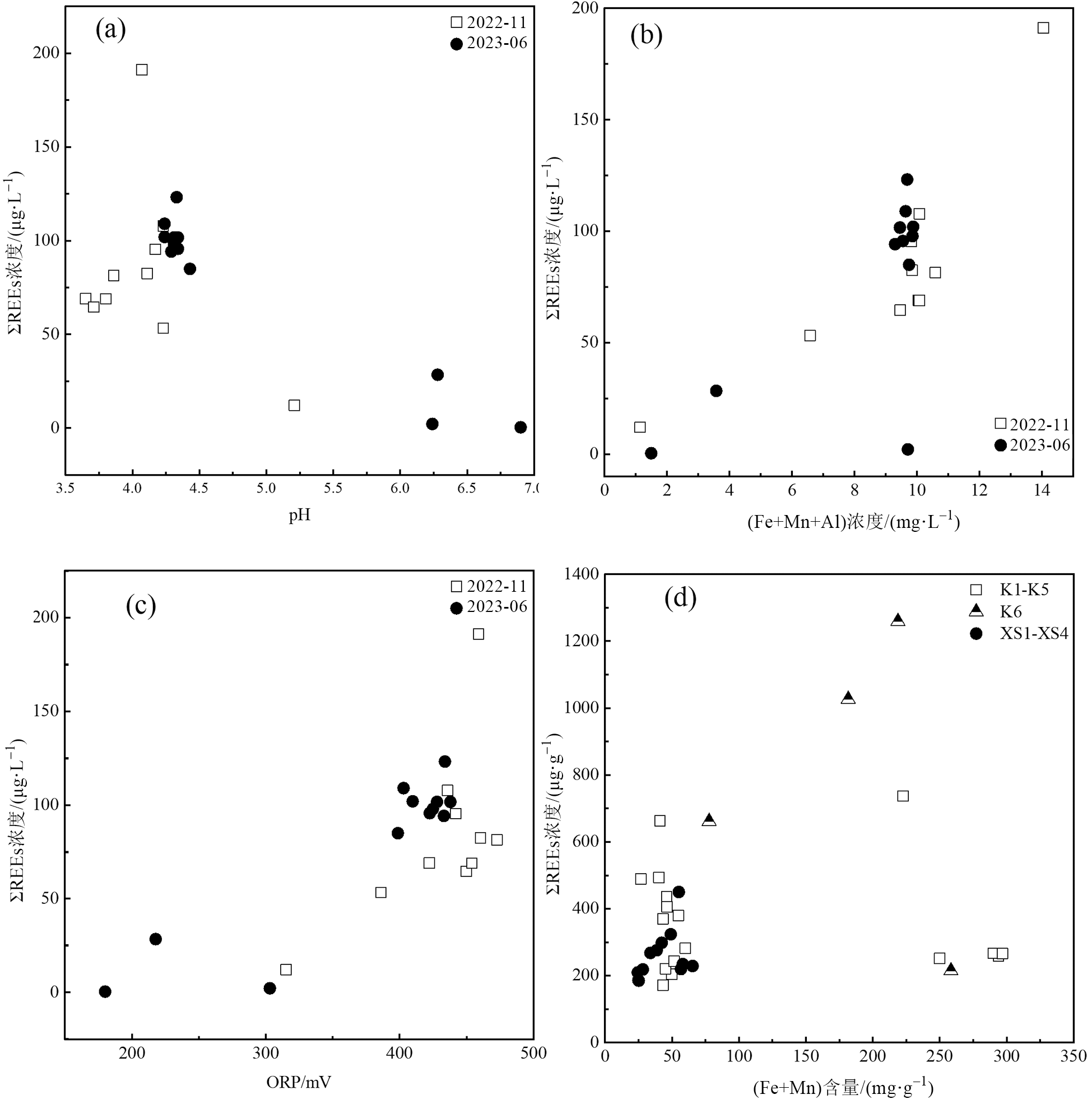

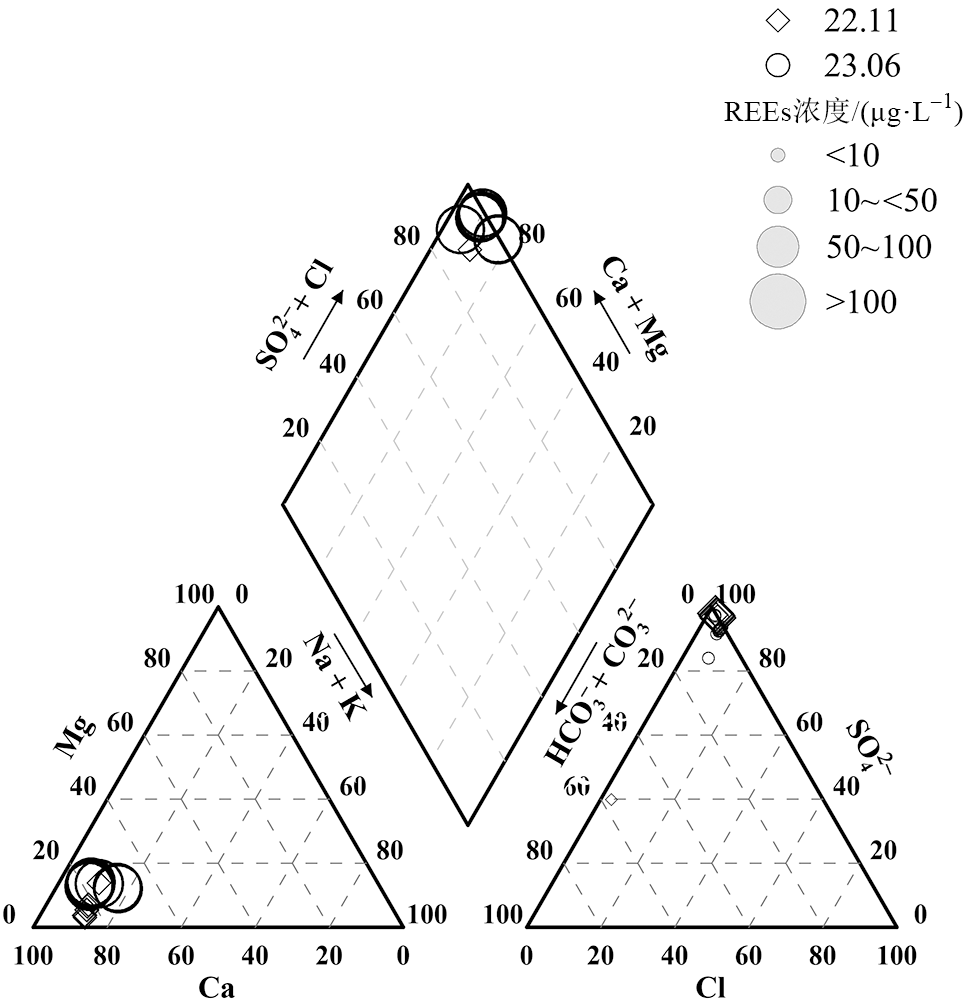

Acid mine drainage (AMD) has garnered global attention due to its chemical toxicity and ecological hazards. This study investigates the geochemistry of AMD and sediments in the Xiangshan uranium mine tailings area, focusing on the concentrations and fractionations of rare earth elements (REEs) and their controlling factors. A total of 22 AMD samples and 31 sediment samples were collected along the flow direction of AMD for field and laboratory analysis. The pH of AMD ranged from 3.65 to 6.24, with an average of 4.51, and the hydrochemical type was predominantly SO₄^2--Ca. Total REE concentrations (ΣREEs) in AMD varied between 0.41 and 191.23 μg/L, with an average of 80.32 μg/L. A negative correlation was observed between pH and ΣREEs concentration, indicating that pH plays a critical role in controlling REE concentrations. Hydrogeochemical modeling using PHREEQC revealed that REEs in AMD primarily exist as SO₄^2- complexes and free ions (>99%). Upper continental crust (UCC) normalization showed that AMD was enriched in heavy REEs (HREEs) relative to light REEs (LREEs), with a negative Ce anomaly. In sediments, ΣREEs concentrations ranged from 170.58 to 1259.18 μg/g and decreased with increasing depth. Shallow sediments exhibited HREE-enriched patterns similar to those of AMD samples. Sediments from the tailings pond showed a higher degree of HREE enrichment compared to sediments downstream of the tailings pond. However, with increasing depth, the HREE enrichment in downstream sediments gradually weakened, and UCC-normalized patterns evolved into relatively flat or even LREE-enriched patterns. A sulfuric acid leaching test (1∶40) on sediments revealed that the leachate exhibited REE patterns similar to AMD, with HREEs preferentially mobilized into solution compared to LREEs. This indicates that shallow sediments readily inherit the REE signatures of AMD. However, vertical migration to deeper sediment layers resulted in REE fractionation, with HREEs preferentially mobilized over LREEs, leading to a distinct vertical evolution in sediment REE patterns. The findings of this study provide valuable insights into the environmental evolution of uranium mine tailings areas and are significant for the prevention and control of soil and water pollution. Understanding REE fractionation in AMD and sediments can aid in developing strategies to mitigate the environmental impacts of uranium mining.

Key words: acid mine drainage, rare earth element, anomalous enrichment, Xiangshan uranium mine, anthropogenic activity

CLC Number:

ZHANG Yifan, LIU Haiyan, DONG Shu, GUO Huaming, WANG Zhen, SUN Zhanxue, ZHOU Zhongkui. Geochemical characteristics of rare earth elements in acid mine drainage and sediments from the Xiangshan uranium mine tailings area[J]. Earth Science Frontiers, 2025, 32(2): 412-429.

Figures/Tables 19

References 46

[1]	JOHNSON D B, HALLBERG K B. Acid mine drainage remediation options: a review[J]. Science of the Total Environment, 2005, 338(1/2): 3-14.
[2]	GIMENO SERRANO M J, AUQUÉ SANZ L F, NORDSTROM D K. REE speciation in low-temperature acidic waters and the competitive effects of aluminum[J]. Chemical Geology, 2000, 165(3/4): 167-180.
[3]	MARMOLEJO-RODRÍGUEZ A J, SÁNCHEZ-MARTÍNEZ M A, MAGALLANES-ORDÓÑEZ V R, et al. Patterns of rare earth elements in sediments as tracers in a fluvial system influenced by a gold mine, el Triunfo, BCS, Mexico[J]. Procedia Earth and Planetary Science, 2013, 7: 558-561.
[4]	WORRALL F, PEARSON D G. Water-rock interaction in an acidic mine discharge as indicated by rare earth elementpatterns[J]. Geochimica et Cosmochimica Acta, 2001, 65(18): 3027-3040.
[5]	BARRETT S D, DHESI S S. The structure of rare-earth metal surfaces[M]. London: Imperial College Press, 2001.
[6]	VONCKEN J H L. The rare earth elements: an introduction[M]. New York: Springer Briefs in Earth, 2016.
[7]	TANG J W, JOHANNESSON K H. Controls on the geochemistry of rare earth elements along a groundwater flow path in the Carrizo Sand aquifer, Texas, USA[J]. Chemical Geology, 2006, 225(1/2): 156-171.
[8]	WALLRICH I L R, STEWART B W, CAPO R C, et al. Neodymium isotopes track sources of rare earth elements in acidic mine waters[J]. Geochimica et Cosmochimica Acta, 2020, 269: 465-483.
[9]	PÉREZ-LÓPEZ R, DELGADO J, NIETO J M, et al. Rare earth element geochemistry of sulphide weathering in the São domingos mine area (Iberian pyrite belt): a proxy for fluid-rock interaction and ancient mining pollution[J]. Chemical Geology, 2010, 276(1/2): 29-40.
[10]	DELGADO J, PÉREZ-LÓPEZ R, GALVÁN L, et al. Enrichment of rare earth elements as environmental tracers of contamination by acid mine drainage in salt marshes: a new perspective[J]. Marine Pollution Bulletin, 2012, 64(9): 1799-1808. DOI PMID
[11]	何阳阳, 温春齐, 刘显凡. 西藏多不杂铜矿床脉石矿物稀土元素地球化学示踪[J]. 有色金属工程, 2018, 8(3): 115-119.
[12]	曾红, 柴凤梅, 周刚, 等. 东天山雅满苏铁矿床稀土元素地球化学示踪[J]. 新疆地质, 2014, 32(4): 475-480.
[13]	STEWART B W, CAPO R C, HEDIN B C, et al. Rare earth element resources in coal mine drainage and treatment precipitates in the Appalachian Basin, USA[J]. International Journal of Coal Geology, 2017, 169: 28-39.
[14]	WORRALL F, PEARSON D G. The development of acidic groundwaters in coal-bearing strata: part I. rare earth element fingerprinting[J]. Applied Geochemistry, 2001, 16(13): 1465-1480.
[15]	GAMMONS C H, WOOD S A, PEDROZO F, et al. Hydrogeochemistry and rare earth element behavior in a volcanically acidified watershed in Patagonia, Argentina[J]. Chemical Geology, 2005, 222(3/4): 249-267.
[16]	ZHAO F H, CONG Z Y, SUN H F, et al. The geochemistry of rare earth elements (REE) in acid mine drainage from the Sitai coal mine, Shanxi Province, North China[J]. International Journal of Coal Geology, 2007, 70(1/2/3): 184-192.
[17]	MEDAS D, CIDU R, DE GIUDICI G, et al. Geochemistry of rare earth elements in water and solid materials at abandoned mines in SW Sardinia (Italy)[J]. Journal of Geochemical Exploration, 2013, 133: 149-159.
[18]	GAMMONS C H, WOOD S A, JONAS J P, et al. Geochemistry of the rare-earth elements and uranium in the acidic Berkeley Pit lake, Butte, Montana[J]. Chemical Geology, 2003, 198(3/4): 269-288.
[19]	MIGASZEWSKI Z M, GAŁUSZKA A, MIGASZEWSKI A. The study of rare earth elements in farmer’s well waters of the Podwiśniówka acid mine drainage area (south-central Poland)[J]. Environmental Monitoring and Assessment, 2014, 186(3): 1609-1622.
[20]	巫建华, 劳玉军, 谢国发, 等. 江西相山铀矿田火山岩系地层学、年代学特征及地质意义[J]. 中国地质, 2017, 44(5): 974-992.
[21]	张万良, 郭福生, 李嘉, 等. 相山铀矿田矿体分布规律研究新进展[J]. 东华理工大学学报(自然科学版), 2022, 45(4): 311-318.
[22]	周敏. 钍在铀水冶过程中的迁移行为研究[D]. 抚州: 东华理工大学, 2013.
[23]	张展适, 李满根, 杨亚新, 等. 赣、粤、湘地区部分硬岩型铀矿山辐射环境污染及治理现状[J]. 铀矿冶, 2007, 26(4): 191-196.
[24]	MCLENNAN S M. Relationships between the trace element composition of sedimentary rocks and upper continental crust[J]. Geochemistry, Geophysics, Geosystems, 2001, 2(4): 2000GC000109.
[25]	KLUNGNESS G D, BYRNE R H. Comparative hydrolysis behavior of the rare earths and yttrium: the influence of temperature and ionic strength[J]. Polyhedron, 2000, 19(1): 99-107.
[26]	LEE J H, BYRNE R H. Examination of comparative rare earth element complexation behavior using linear free-energy relationships[J]. Geochimica et Cosmochimica Acta, 1992, 56(3): 1127-1137.
[27]	LUO Y R, BYRNE R H. Carbonate complexation of yttrium and the rare earth elements in natural waters[J]. Geochimica et Cosmochimica Acta, 2004, 68(4): 691-699.
[28]	SCHIJF J, BYRNE R H. Determination of SO₄ β1 for yttrium and the rare earth elements at I=0.66 m and t=25 ℃: implications for YREE solution speciation in sulfate-rich waters[J]. Geochimica et Cosmochimica Acta, 2004, 68(13): 2825-2837.
[29]	MIGDISOV A A, WILLIAMS-JONES A E, WAGNER T. An experimental study of the solubility and speciation of the rare earth elements (III) in fluoride- and chloride-bearing aqueous solutions at temperatures up to 300 ℃[J]. Geochimica et Cosmochimica Acta, 2009, 73(23): 7087-7109.
[30]	MULLER G. Index of geoaccumulation in sediments of the Rhine River[J]. GeoJournal, 1969, 2: 108-118.
[31]	中国环境监测总站. 中国土壤元素背景值[M]. 北京: 中国环境科学出版社, 1990.
[32]	张军伟, 刘顺, 文雯, 等. 矿山酸性废水治理与综合利用研究进展[J]. 资源环境与工程, 2023, 37(6): 734-740. DOI
[33]	ZHOU H Y, GREIG A, TANG J, et al. Rare earth element patterns in a Chinese stalagmite controlled by sources and scavenging from karst groundwater[J]. Geochimica et Cosmochimica Acta, 2012, 83: 1-18.
[34]	OGAWA Y, ISHIYAMA D, SHIKAZONO N, et al. Fractionation of rare earth elements (REEs) and actinides (U and Th) originating from acid thermal water during artificial and natural neutralization processes of surface waters[J]. Geochimica et Cosmochimica Acta, 2019, 249: 247-262.
[35]	林卓玲, 黄光庆. 土壤稀土元素的迁移-富集机制及其生态效应[J]. 地球环境学报, 2023, 14(5): 521-538.
[36]	王玉洁, 刘蓓蓓, 万全, 等. 稀土元素在土壤中的释放与迁移研究进展[J]. 生态环境学报, 2021, 30(3): 644-654. DOI
[37]	ÅSTRÖM M. Abundance and fractionation patterns of rare earth elements in streams affected by acid sulphate soils[J]. Chemical Geology, 2001, 175(3/4): 249-258.
[38]	MIGASZEWSKI Z M, GAŁUSZKA A, DOŁĘGOWSKA S. Rare earth and trace element signatures for assessing an impact of rock mining and processing on the environment: Wiśniówka case study, South-central Poland[J]. Environmental Science and Pollution Research, 2016, 23(24): 24943-24959.
[39]	蓝先洪, 密蓓蓓, 陈晓辉, 等. 北黄海中部晚第四纪沉积物来源的稀土元素示踪[J]. 中国稀土学报, 2015, 33(2): 241-252.
[40]	杨守业, 李从先. REE示踪沉积物物源研究进展[J]. 地球科学进展, 1999, 14(2): 63-66.
[41]	CHEVIS D A, JOHANNESSON K H, BURDIGE D J, et al. Submarine groundwater discharge of rare earth elements to a tidally-mixed estuary in Southern Rhode Island[J]. Chemical Geology, 2015, 397: 128-142.
[42]	XU Z F, HAN G L. Rare earth elements (REE) of dissolved and suspended loads in the Xijiang River, South China[J]. Applied Geochemistry, 2009, 24(9): 1803-1816.
[43]	LIU H Y, GUO H M, XING L N, et al. Geochemical behaviors of rare earth elements in groundwater along a flow path in the North China Plain[J]. Journal of Asian Earth Sciences, 2016, 117: 33-51.
[44]	BAU M. Scavenging of dissolved yttrium and rare earths by precipitating iron oxyhydroxide: experimental evidence for Ce oxidation, Y-Ho fractionation, and lanthanide tetrad effect[J]. Geochimica et Cosmochimica Acta, 1999, 63(1): 67-77.
[45]	LAVEUF C, CORNU S. A review on the potentiality of rare earth elements to trace pedogenetic processes[J]. Geoderma, 2009, 154(1/2): 1-12.
[46]	BROOKINS D. Aqueous geochemistry of rare earth elements[J]. Reviews in Mineralogy and Geochemistry, 1989, 21: 201-225.

采样点	采样位置	采样点	采样位置
S1	尾矿库坝底水处理厂内的水体	K1	S2水体下的沉积物,上层均为细砂,最下层为粉土
S2	经水处理厂处理后排出的水体	K2	S4水体下的沉积物,前三层为粉土,下两层为黏土
S3	尾矿库坝底未经水处理厂处理的水体	K3	S6水体下的沉积物,粉土
S4	S2、S3混合后的水体	K4	S7水体下的沉积物,粉土
S5~S9	S4下游水渠中不同距离的水体	K5	S9水体下的沉积物,粉土
S10	尾矿库坝底渗滤液收集池内的水体	K6	与S10同位于渗滤液收集池内,黏土
D1	尾矿库内水库的水体	XS1	尾矿库内的沉积物,黏土
D2	经水处理厂处理后排出的水体	XS2	尾矿库内的沉积物,上层为粉土,下层为黏土
H1~H9	水渠内不同距离的水体	XS3	尾矿库坝旁边的沉积物,前三层为细砂,下层为粉土
H10	经H9后排放至农田内的水体	XS4	尾矿库坝底的沉积物,粉土

采样点	采样位置	采样点	采样位置
S1	尾矿库坝底水处理厂内的水体	K1	S2水体下的沉积物,上层均为细砂,最下层为粉土
S2	经水处理厂处理后排出的水体	K2	S4水体下的沉积物,前三层为粉土,下两层为黏土
S3	尾矿库坝底未经水处理厂处理的水体	K3	S6水体下的沉积物,粉土
S4	S2、S3混合后的水体	K4	S7水体下的沉积物,粉土
S5~S9	S4下游水渠中不同距离的水体	K5	S9水体下的沉积物,粉土
S10	尾矿库坝底渗滤液收集池内的水体	K6	与S10同位于渗滤液收集池内,黏土
D1	尾矿库内水库的水体	XS1	尾矿库内的沉积物,黏土
D2	经水处理厂处理后排出的水体	XS2	尾矿库内的沉积物,上层为粉土,下层为黏土
H1~H9	水渠内不同距离的水体	XS3	尾矿库坝旁边的沉积物,前三层为细砂,下层为粉土
H10	经H9后排放至农田内的水体	XS4	尾矿库坝底的沉积物,粉土

时间	统计量	pH	离子浓度/(mg·L^-1)
时间	统计量	pH	TDS	K	Ca	Na	Mg	Cl^-	SO₄^2-	HCO₃^-
2022-11	最大值	4.23	1 552	26.49	470.75	63.65	18.73	7.08	474.63	32.02
	最小值	3.65	1 037	18.79	356.32	45.40	10.18	4.95	225.95	-
	平均值	3.981	1 266.11	22.70	419.02	54.96	15.07	6.12	316.58	3.20
2023-06	最大值	6.90	415.00	9.02	116.57	25.86	12.60	18.02	385.81	39.30
	最小值	4.24	303.00	3.46	97.45	11.08	10.41	5.53	291.45	1.46
	平均值	4.85	379.42	5.35	111.31	13.77	11.76	15.10	359.69	9.74

时间	统计量	pH	离子浓度/(mg·L^-1)
时间	统计量	pH	TDS	K	Ca	Na	Mg	Cl^-	SO₄^2-	HCO₃^-
2022-11	最大值	4.23	1 552	26.49	470.75	63.65	18.73	7.08	474.63	32.02
	最小值	3.65	1 037	18.79	356.32	45.40	10.18	4.95	225.95	-
	平均值	3.981	1 266.11	22.70	419.02	54.96	15.07	6.12	316.58	3.20
2023-06	最大值	6.90	415.00	9.02	116.57	25.86	12.60	18.02	385.81	39.30
	最小值	4.24	303.00	3.46	97.45	11.08	10.41	5.53	291.45	1.46
	平均值	4.85	379.42	5.35	111.31	13.77	11.76	15.10	359.69	9.74

时间	统计量	pH	离子浓度/(μg·L^-1)
时间	统计量	pH	Al	Fe	Mn	Ni	As	Cd	Pb
2022-11	最大值	4.23	400.91	76.39	1 294.56	2.70	2.18	0.21	0.45
	最小值	3.65	31.42	2.26	86.72	0.57	0.15	0.02	0.01
	平均值	3.98	258.04	50.75	725.25	1.34	0.96	0.09	0.18
2023-06	最大值	6.90	5 190.55	733.44	8 960.11	17.10	1.36	0.92	1.15
	最小值	4.24	102.14	20.00	730.73	2.38	0.63	0.09	0.09
	平均值	4.85	3 704.66	481.49	3 910.57	12.97	0.82	0.64	0.40
