Geochemical genes related to granite weathering in the Yunmengshan area of Beijing, China

doi:10.13745/j.esf.sf.2020.11.11

Abstract

Abstract:

The geochemical gene technique is a new geochemical tracing technique formally proposed over the past two years. In this investigation, samples from two adjacent weathering profiles (B and C) developed in granite in the Yunmengshan area of Beijing, China were collected to test two geochemical genes named lithogene and gold metallogene. In samples from profile B, the chemical index of alteration (CIA) varied between 51.3-58.9, and the weathering index of granite (WIG) varied between 68.6-89.4, indicating incipient weathering in this profile; while in samples from profile C, CIA varied between 52.4-78.4, and WIG between 25.3-84.8, indicating intermediate weathering in profile C. The noticeable difference of weathering degrees between the two adjacent profiles indicates that different micro-environment may result in significantly different weathering products in the same granite. The lithogene similarity between samples and fresh granite varied from 85% to 100% in profile B and 90% to 100% in profile C, while the gold metallogene similarity between the two varied from 85% to 100% in profile B and 80% to 100% in profile C. With respect to top soil, the similarity of lithogenes varied from 80% to 100% in profile B and 90% to 100% in profile C, and the gold metallogene similarity varied from 85% to 100% in profile B and 80% to 100% in profile C. According to the criterion that gene similarity above 80% indicates similar genes, the lithogene and gold metallogene illustrate not only good heredity and inheritance in each profile but also high similarity between the two profiles. Besides, with respect to the ideal gold ore (gold metallogene 12020202020), the similarity of gold metallogenes varied from 25% to 50% in profile B and 30% to 50% in profile C. According to the criterion that mineralization can be recognized when the gold metallogene similarity reaches 40%, one mineralization layer of ca. 1 m thickness can be recognized in each profile. Thus, the gold metallogene may also be used as an integrated geochemical indicator in gold exploration.

Key words: weathering profiles of granite, geochemical lithogene, geochemical gold metallogene, weathering indices, micro-environment

CLC Number:

P595

WANG Xuyang, YAO Ning, GONG Qingjie, CHAO Yuede, PENG Cheng, WU Yuan. Geochemical genes related to granite weathering in the Yunmengshan area of Beijing, China[J]. Earth Science Frontiers, 2021, 28(1): 363-374.

Figures/Tables 9

References 38

[1]	NESBITT H W, YOUNG G M. Early Proterozoic climates and plate motions inferred from major element chemistry of lutites[J]. Nature, 1982, 299:715-717. DOI URL
[2]	FEDO C M, NESBITT H W, YOUNG G M. Unravelling the effects of potassium metasomatism in sedimentary rocks and paleosols, with implications for paleoweathering conditions and provenance[J]. Geology, 1995, 23:921-924. DOI URL
[3]	GOMG Q, DENG J, YANG L Q, et al. Behavior of major and trace elements during weathering of sericite-quartz schist[J]. Journal of Asian Earth Sciences, 2011, 42:1-13. DOI URL
[4]	陈磊, 王京彬, 邓小华, 等. 东天山卡拉塔格泥盆纪岩浆岩地球化学特征及成因[J]. 地学前缘, 2018, 25(5):051-068.
[5]	巫锡勇, 凌斯祥, 任勇, 等. 渝东北黑色页岩元素迁移特征及化学风化程度[J]. 地球科学, 2016, 41(2):218-233.
[6]	GONG Q J, ZHANG G X, ZHANG J, et al. Behavior of REE fractionation during weathering of dolomite regolith profile in Southwest China[J]. Acta Geologica Sinica (English Edition), 2010, 84(6):1439-1447. DOI URL
[7]	GONG Q J, DENG J, WANG CH M, et al. Element behaviors due to rock weathering and its implication to geochemical anomaly recognition: a case study on Linglong biotite granite in Jiaodong peninsula, China[J]. Journal of Geochemical Exploration, 2013, 128:14-24. DOI URL
[8]	GONG Q J, YAN T T, LI J ZH, et al. Experimental simulation of element mass transfer and primary halo zone on water-rock interaction[J]. Applied Geochemistry, 2016, 69:1-11. DOI URL
[9]	严桃桃, 龚庆杰, 李金哲, 等. Al₂O₃/Ti: 风化与蚀变过程中的原岩示踪[J]. 岩石学报, 2016, 32(8):2425-2432.
[10]	DEHGHANI S, FARID M, LUBA V, et al. The geochemical fingerprinting of geogenic particles in road deposited dust from Tehran metropolis, Iran: implications for provenance tracking[J]. Journal of Geochemical Exploration, 2018, 190:411-423. DOI URL
[11]	曲华祥, 黄宝琦. 南海北部MD12-3432站深海氧同位素MIS6期到MIS5期陆源沉积物元素比值反映的古气候变化[J]. 地学前缘, 2019, 26(3):236-242.
[12]	GONG Q J, LI J ZH, XIANG Y CH, et al. Determination and classification of geochemical anomalies based on background and cutoff grades of trace elements: a case study in south Nanling Range, China[J]. Journal of Geochemical Exploration, 2018, 194:44-51. DOI URL
[13]	王玉往, 石煜, 唐萍芝, 等. 新疆磁海Fe(-Co)矿床: 两个系列幔源岩浆复合的热液矿床[J]. 地学前缘, 2018, 25(2):280-298.
[14]	GONG Q J, DENG J, XIANG Y C, et al. Calculating pollution indices by heavy metals in ecological geochemistry assessment and a case study in parks of Beijing[J]. Journal of China University of Geosciences, 2008, 19(3):230-241. DOI URL
[15]	闫丽娜, 左昊, 张聚全, 等. 石家庄市大气PM₁、PM_{2. 5}和PM₁₀中重金属元素分布特征及来源的对比研究[J]. 地学前缘, 2019, 26(3):263-270.
[16]	MORGAN R M, BULL P A. Data interpretation in forensic sediment and soil geochemistry[J]. Environmental Forensics, 2006, 7:325-334. DOI URL
[17]	严桃桃. 风化过程的岩性地球化学基因[D]. 北京: 中国地质大学(北京), 2018: 1-120.
[18]	严桃桃, 吴轩, 权养科, 等. 从岩石到土壤再到水系沉积物: 风化过程的岩性地球化学基因[J]. 现代地质, 2018, 32(3):1-15.
[19]	李睿堃. 金矿化地球化学基因: 构建-检验-应用[D]. 北京: 中国地质大学(北京), 2019: 1-87.
[20]	LI R K, LIU N Q, GONG Q J, et al. Construction, test and application of a geochemical gold metallogene: case studies in China[J]. Journal of Geochemical Exploration, 2019, 204:1-11. DOI URL
[21]	施剑松, 马宏杰. 谢学锦: 绘制地球的基因图谱[J]. 中国国家地理, 2007, 6:96-101.
[22]	王学求, 谢学锦, 张本仁, 等. 地壳全元素探测技术与实验示范[J]. 地球学报, 2011, 32(增刊1):65-83.
[23]	张远飞, 袁继明, 吴德文, 等. 地球化学元素序结构分析基本原理与技术构架[J]. 矿产勘查, 2015, 6(6):739-746.
[24]	张远飞, 张金良, 吴德文, 等. 地球化学元素基因谱曲线及其地质意义: 以内蒙古大兴安岭中南段成矿区(带)为例[J]. 物探与化探, 2016, 40(2):235-242.
[25]	余新晓, 秦永胜, 陈丽华, 等. 北京山地森林生态系统服务功能及其价值初步研究[J]. 生态学报, 2002, 22(5):627-630.
[26]	杨麒麟. 北京怀柔长园沟泥石流风险评价与管理研究[D]. 北京: 北京林业大学, 2012: 1-58.
[27]	许继峰, 王人镜, 杨淑荣. 北京云蒙山花岗岩基的岩石变形及其成因[J]. 地球科学: 中国地质大学学报, 1994, 19(6):806-814.
[28]	中华人民共和国国土资源部. 土壤地球化学测量规程: DZ/T 0145—2017[S]. 北京: 中华人民共和国国土资源部, 2017: 1-38.
[29]	XIE X J, CHENG H X. Sixty years of exploration geochemistry in China[J]. Journal of Geochemical Exploration, 2014, 139:4-8. DOI URL
[30]	LI M, XI X H, XIAO G Y, et al. National multi-purpose regional geochemical survey in China[J]. Journal of Geochemical Exploration, 2014, 139:21-30. DOI URL
[31]	迟清华, 鄢明才. 应用地球化学元素丰度数据手册[M]. 北京: 地质出版社, 2007: 1-148.
[32]	TAYLOR S R, MCLNNAN S M. The geochemical evolution of the continental crust[J]. Reviews of Geophysics, 1995, 33(2):241-265. DOI URL
[33]	PARKER A. An index of weathering for silicate rocks[J]. Geological Magazine, 1970, 107(6):501-504. DOI URL
[34]	COLMAN S M. Chemical weathering of basalts and andesites: evidence from weathering rinds[J]. US Geological Survey Professional Paper, 1982, 1246:1-51.
[35]	贾玉杰, 龚庆杰, 韩东昱, 等. 化探方法技术之取样粒度研究: 以豫西牛头沟金矿1∶5万化探普查为例[J]. 地质与勘探, 2013, 49(5):928-938.
[36]	江勇, 龚庆杰, 韩东昱, 等. 花岗闪长岩风化层土壤及其盐水与酸不溶物元素变化行为研究: 以热液成矿指示元素为例[J]. 现代地质, 2014, 28(6):1183-1193, 1328.
[37]	LI J Z H, GONG Q J, YAN T T, et al. Quantitative description of geochemical backgrounds of gold due to rock weathering in Jiaodong Peninsula, China[J]. Journal of Geochemical Exploration, 2018, 192:155-162. DOI URL
[38]	HAYASHI K, FUJISAWA H, HOLLAND H D, et al. Geochemistry of ~1.9 Ga sedimentary rocks from northeastern Labrador, Canada[J]. Geochimica et Cosmochimica Acta, 1997, 61(19):4115-4137. DOI URL

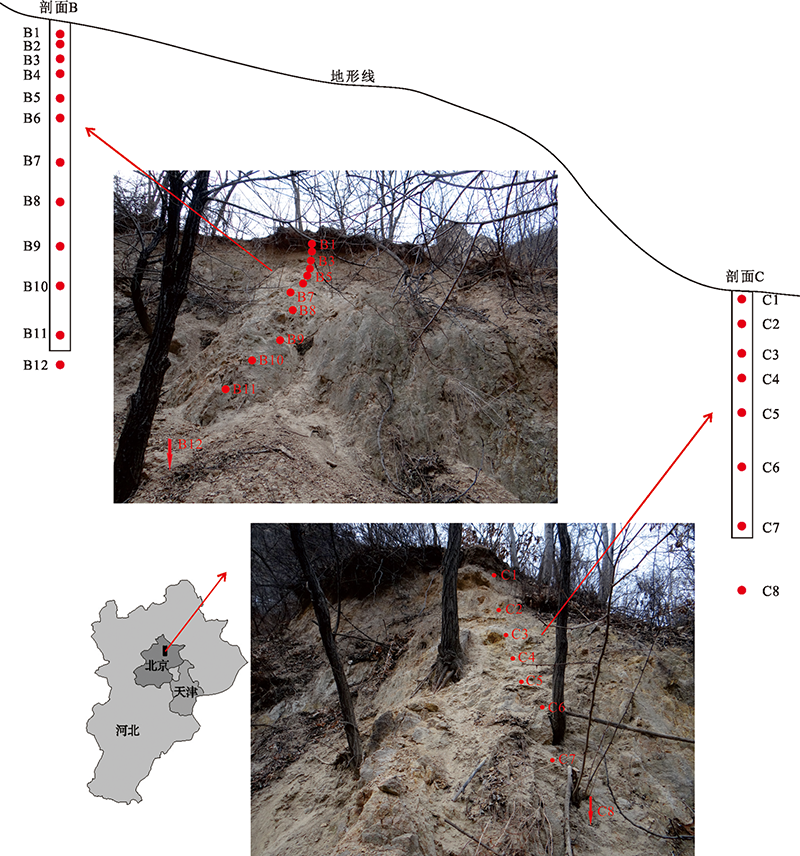

样品编号	采样深度/m	样品类型	样品描述
B1	0.3	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
B2	0.5	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
B3	0.8	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
B4	1.1	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
B5	1.6	风化碎屑	以粗粒碎屑为主,大多粗粒手捏易碎
B6	2.0	风化碎屑	以粗粒碎屑为主,粒径为2~8 mm,含砾
B7	2.9	风化碎屑	以粗粒碎屑为主,粒径为2~8 mm,含砾较多
B8	3.7	风化碎屑	风化碎屑与砾石大约各占一半,残留原岩结构
B9	4.6	风化碎屑	以砾石为主,小颗粒碎屑较少,保留原岩结构
B10	5.4	风化岩石	需机械外力进行破碎,几乎无风化碎屑
B11	6.4	风化岩石	需机械外力进行破碎,无风化碎屑
B12	7	基岩	新鲜花岗岩,硬度较大
C1	0.1	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
C2	0.6	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
C3	1.2	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
C4	1.7	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
C5	2.4	风化碎屑	以粗粒碎屑为主,粒径为2~8 mm,含砾较多
C6	3.5	风化碎屑	以碎屑和小块砾石为主,含大块砾石,粒径为1~2 cm,锤轻击即碎
C7	4.7	风化岩石	机械外力进行破碎,无风化碎屑
C8	6	基岩	新鲜花岗岩,硬度较大

样品编号	采样深度/m	样品类型	样品描述
B1	0.3	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
B2	0.5	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
B3	0.8	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
B4	1.1	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
B5	1.6	风化碎屑	以粗粒碎屑为主,大多粗粒手捏易碎
B6	2.0	风化碎屑	以粗粒碎屑为主,粒径为2~8 mm,含砾
B7	2.9	风化碎屑	以粗粒碎屑为主,粒径为2~8 mm,含砾较多
B8	3.7	风化碎屑	风化碎屑与砾石大约各占一半,残留原岩结构
B9	4.6	风化碎屑	以砾石为主,小颗粒碎屑较少,保留原岩结构
B10	5.4	风化岩石	需机械外力进行破碎,几乎无风化碎屑
B11	6.4	风化岩石	需机械外力进行破碎,无风化碎屑
B12	7	基岩	新鲜花岗岩,硬度较大
C1	0.1	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
C2	0.6	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
C3	1.2	土壤	黄色土壤,含腐殖质很少,夹杂风化碎屑,风化碎屑粒径为0.1~1 mm
C4	1.7	风化碎屑	以碎屑为主,手捏可碎,粒径为0.1~1 mm
C5	2.4	风化碎屑	以粗粒碎屑为主,粒径为2~8 mm,含砾较多
C6	3.5	风化碎屑	以碎屑和小块砾石为主,含大块砾石,粒径为1~2 cm,锤轻击即碎
C7	4.7	风化岩石	机械外力进行破碎,无风化碎屑
C8	6	基岩	新鲜花岗岩,硬度较大

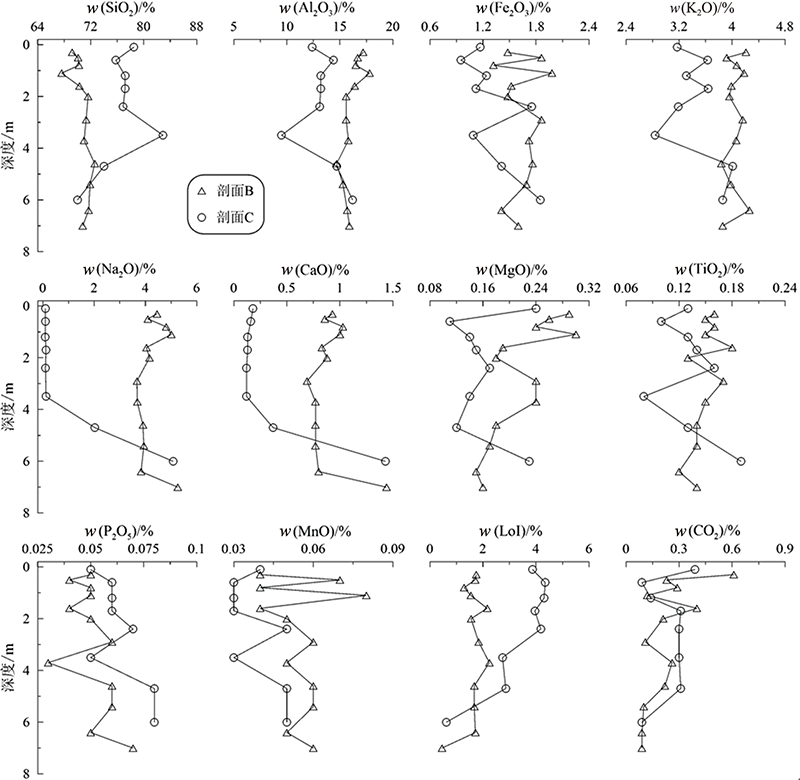

样品编号	采样深度/m	w_B/%
样品编号	采样深度/m	SiO₂	Al₂O₃	Fe₂O₃	K₂O	Na₂O	CaO	MgO	TiO₂	P₂O₅	MnO	LoI	总和	CO₂
B1	0.3	69.17	17.18	1.48	4.21	4.45	0.93	0.29	0.16	0.05	0.04	1.75	99.72	0.61
B2	0.5	70.05	16.72	1.86	3.92	4.09	0.86	0.26	0.15	0.04	0.07	1.70	99.73	0.23
B3	0.8	70.24	16.50	1.32	4.07	4.81	1.03	0.24	0.16	0.05	0.04	1.29	99.73	0.29
B4	1.1	67.65	17.79	1.98	4.18	5.01	1.00	0.30	0.15	0.05	0.08	1.54	99.71	0.12
B5	1.6	70.32	16.37	1.52	3.99	4.04	0.83	0.19	0.18	0.04	0.04	2.16	99.69	0.40
B6	2.0	71.64	15.61	1.48	3.96	4.16	0.88	0.18	0.13	0.05	0.05	1.55	99.70	0.21
B7	2.9	71.33	15.61	1.86	4.16	3.67	0.69	0.24	0.17	0.06	0.06	1.84	99.71	0.11
B8	3.7	70.97	15.82	1.72	4.06	3.68	0.77	0.24	0.15	0.03	0.05	2.24	99.72	0.26
B9	4.6	72.63	14.71	1.76	3.84	3.90	0.77	0.18	0.14	0.06	0.06	1.67	99.72	0.22
B10	5.4	71.89	15.34	1.69	3.98	3.94	0.77	0.17	0.14	0.06	0.06	1.67	99.70	0.10
B11	6.4	71.70	15.65	1.41	4.26	3.83	0.80	0.15	0.12	0.05	0.05	1.71	99.73	0.09
B12	7	70.77	15.89	1.60	3.86	5.26	1.44	0.16	0.14	0.07	0.06	0.45	99.69	0.09
lg(C_max/C_min)		0.03	0.08	0.18	0.05	0.16	0.32	0.28	0.17	0.31	0.32	0.70		0.84
C1	0.1	78.49	12.38	1.17	3.17	0.10	0.18	0.24	0.13	0.05	0.04	3.87	99.81	0.39
C2	0.6	75.82	14.44	0.95	3.63	0.10	0.16	0.11	0.10	0.06	0.03	4.35	99.76	0.09
C3	1.2	77.16	13.16	1.24	3.31	0.09	0.13	0.14	0.13	0.06	0.03	4.31	99.75	0.14
C4	1.7	77.21	13.18	1.12	3.64	0.12	0.13	0.15	0.14	0.06	0.03	3.96	99.74	0.31
C5	2.4	76.85	13.14	1.75	3.19	0.10	0.12	0.17	0.16	0.07	0.05	4.18	99.78	0.30
C6	3.5	82.93	9.50	1.09	2.84	0.13	0.12	0.14	0.08	0.05	0.03	2.74	99.65	0.30
C7	4.7	74.01	14.66	1.41	4.01	2.03	0.37	0.12	0.13	0.08	0.05	2.86	99.72	0.31
C8	6	70.04	16.20	1.85	3.86	5.08	1.43	0.23	0.19	0.08	0.05	0.62	99.64	0.09
lg(C_max/C_min)		0.07	0.23	0.29	0.15	1.77	1.08	0.34	0.34	0.25	0.29	0.85		0.65

样品编号	采样深度/m	w_B/%
样品编号	采样深度/m	SiO₂	Al₂O₃	Fe₂O₃	K₂O	Na₂O	CaO	MgO	TiO₂	P₂O₅	MnO	LoI	总和	CO₂
B1	0.3	69.17	17.18	1.48	4.21	4.45	0.93	0.29	0.16	0.05	0.04	1.75	99.72	0.61
B2	0.5	70.05	16.72	1.86	3.92	4.09	0.86	0.26	0.15	0.04	0.07	1.70	99.73	0.23
B3	0.8	70.24	16.50	1.32	4.07	4.81	1.03	0.24	0.16	0.05	0.04	1.29	99.73	0.29
B4	1.1	67.65	17.79	1.98	4.18	5.01	1.00	0.30	0.15	0.05	0.08	1.54	99.71	0.12
B5	1.6	70.32	16.37	1.52	3.99	4.04	0.83	0.19	0.18	0.04	0.04	2.16	99.69	0.40
B6	2.0	71.64	15.61	1.48	3.96	4.16	0.88	0.18	0.13	0.05	0.05	1.55	99.70	0.21
B7	2.9	71.33	15.61	1.86	4.16	3.67	0.69	0.24	0.17	0.06	0.06	1.84	99.71	0.11
B8	3.7	70.97	15.82	1.72	4.06	3.68	0.77	0.24	0.15	0.03	0.05	2.24	99.72	0.26
B9	4.6	72.63	14.71	1.76	3.84	3.90	0.77	0.18	0.14	0.06	0.06	1.67	99.72	0.22
B10	5.4	71.89	15.34	1.69	3.98	3.94	0.77	0.17	0.14	0.06	0.06	1.67	99.70	0.10
B11	6.4	71.70	15.65	1.41	4.26	3.83	0.80	0.15	0.12	0.05	0.05	1.71	99.73	0.09
B12	7	70.77	15.89	1.60	3.86	5.26	1.44	0.16	0.14	0.07	0.06	0.45	99.69	0.09
lg(C_max/C_min)		0.03	0.08	0.18	0.05	0.16	0.32	0.28	0.17	0.31	0.32	0.70		0.84
C1	0.1	78.49	12.38	1.17	3.17	0.10	0.18	0.24	0.13	0.05	0.04	3.87	99.81	0.39
C2	0.6	75.82	14.44	0.95	3.63	0.10	0.16	0.11	0.10	0.06	0.03	4.35	99.76	0.09
C3	1.2	77.16	13.16	1.24	3.31	0.09	0.13	0.14	0.13	0.06	0.03	4.31	99.75	0.14
C4	1.7	77.21	13.18	1.12	3.64	0.12	0.13	0.15	0.14	0.06	0.03	3.96	99.74	0.31
C5	2.4	76.85	13.14	1.75	3.19	0.10	0.12	0.17	0.16	0.07	0.05	4.18	99.78	0.30
C6	3.5	82.93	9.50	1.09	2.84	0.13	0.12	0.14	0.08	0.05	0.03	2.74	99.65	0.30
C7	4.7	74.01	14.66	1.41	4.01	2.03	0.37	0.12	0.13	0.08	0.05	2.86	99.72	0.31
C8	6	70.04	16.20	1.85	3.86	5.08	1.43	0.23	0.19	0.08	0.05	0.62	99.64	0.09
lg(C_max/C_min)		0.07	0.23	0.29	0.15	1.77	1.08	0.34	0.34	0.25	0.29	0.85		0.65

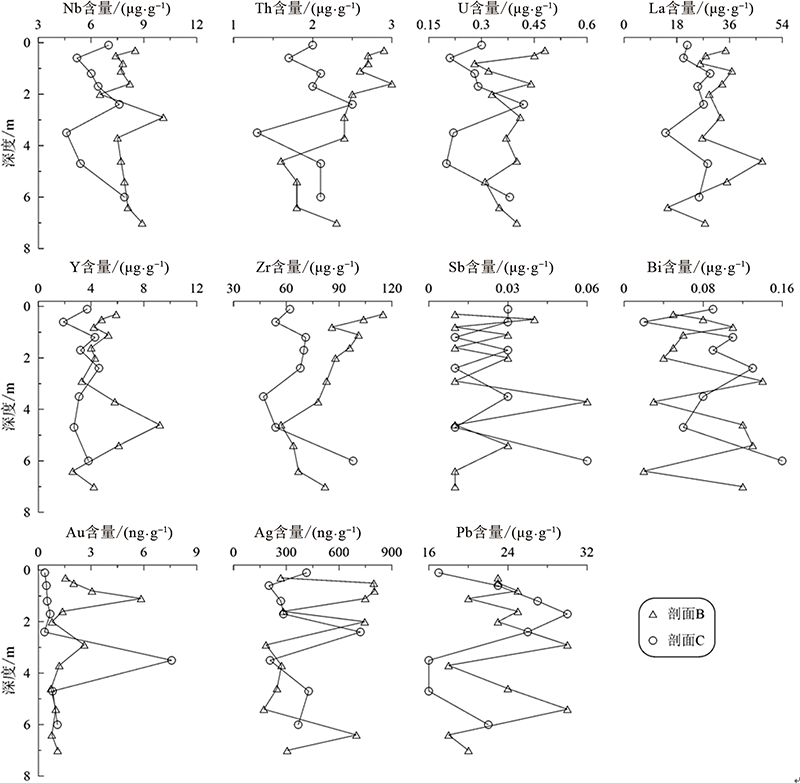

样品编号	采样深度/m	w_B/(μg·g^-1)									w_B/(ng·g^-1)
样品编号	采样深度/m	Nb	Th	U	La	Y	Zr	Sb	Bi	Pb	Au	Ag
B1	0.3	8.5	2.9	0.48	34.7	5.9	115	0.01	0.05	23	1.54	268
B2	0.5	7.4	2.7	0.45	27.9	4.8	104	0.04	0.08	23	2.02	798
B3	0.8	7.8	2.7	0.28	26.0	4.2	86	0.01	0.11	25	3.05	801
B4	1.1	7.7	2.6	0.32	36.8	5.3	101	0.03	0.06	20	5.84	748
B5	1.6	8.2	3.0	0.44	33.5	4.0	96	0.01	0.05	25	1.37	282
B6	2.0	6.5	2.5	0.33	29.1	4.3	88	0.03	0.04	23	0.78	746
B7	2.9	10.1	2.4	0.41	32.9	3.3	83	0.01	0.14	30	2.61	185
B8	3.7	7.5	2.4	0.37	26.7	5.8	78	0.06	0.03	18	1.19	273
B9	4.6	7.7	1.6	0.40	47.1	9.2	57	0.01	0.12	24	0.72	247
B10	5.4	7.9	1.8	0.31	35.1	6.1	64	0.03	0.13	30	0.99	172
B11	6.4	8.1	1.8	0.35	14.9	2.6	67	0.01	0.02	18	0.77	698
B12	7	8.9	2.3	0.40	27.6	4.2	82	0.01	0.12	20	1.10	305
lg(C_max/C_min)		0.19	0.27	0.23	0.50	0.55	0.30	0.78	0.85	0.22	0.91	0.67
C1	0.1	7.0	2.0	0.30	21.6	3.7	62	0.03	0.09	17	0.37	415
C2	0.6	5.2	1.7	0.21	20.3	1.9	54	0.03	0.02	23	0.46	201
C3	1.2	6.0	2.1	0.28	29.4	4.3	71	0.01	0.11	27	0.51	269
C4	1.7	6.4	2.0	0.29	25.2	3.2	70	0.03	0.09	30	0.67	284
C5	2.4	7.6	2.5	0.42	27.2	4.6	68	0.01	0.13	26	0.35	722
C6	3.5	4.6	1.3	0.22	14.2	3.1	47	0.03	0.08	16	7.58	207
C7	4.7	5.4	2.1	0.20	28.5	2.7	54	0.01	0.06	16	0.81	427
C8	6	7.9	2.1	0.38	25.6	3.8	98	0.06	0.16	22	1.09	368
lg(C_max/C_min)		0.23	0.28	0.32	0.32	0.38	0.32	0.78	0.90	0.27	1.34	0.56
检出限		1	0.003	0.01	0.12	0.12	1	0.05	0.05	2	0.1	10
