Typical strike-slip fault zones in southeastern Sichuan: Fault characteristics and potential for fault-controlled fractured vuggy reservoirs

doi:10.13745/j.esf.sf.2024.6.32

Abstract

Abstract:

Controlled by the physical fracturing of medium and small-scale basement strike-slip fault zones fault-controlled fractured vuggy reservoirs are developed in Shunbei, Tarim Basin, where exploration breakthroughs have been made in recent years. Recent research has found that the NW-trending basement fractures in the southeastern Sichuan Basin also have typical strike-slip characteristics, while further analysis is needed to determine whether the area has undergone similar reservior development. Based on 3D seismic data, we start with the geometric and kinematic characteristics of strike-slip faults, and analyze and compare the deformation characteristics of typical strike-slip fault zones between Shunbei and the Fuling/Qijiang areas, southeastern Sichuan. Meanwhile, based on the analyses of fault movement direction, fault activity, and structural background, the formation and evolutionary history of basement faults in the study area is restored and compared with that of Shunbei. Finally, based on the proven seismic reflection characteristics of Shubei reservoirs, we sort out the seismic anomalies near typical strike-slip fault zones in the study area, and comprehensively analyze the area’s potential for reservoir development. The analyses suggest that the geometric and kinematic characteristics of the NW-trending basement strike-slip fault zone in the study area are similar to those in Shunbei that has undergone multi-periods of parallel strike-slip activities, while Fuling has experienced three periods of fault activities of different types. In addition, the seismic reflection characteristics corresponding to typical reservoirs in northern Shunbei can also be identified in the study area. It is generally believed that typical strike-slip fault zones in Fuling have great potential for the development of fracture-controlled fracture-cave reservoirs, and Qijiang also has certain development potentials.

Key words: southeastern Sichuan, strike-slip fault, geometric characteristics, kinetic characteristic, fault-controlled fractured vuggy reservoirs

CLC Number:

SHI Siyu, LI Bisong, LI Rangbin, ZOU Yutao. Typical strike-slip fault zones in southeastern Sichuan: Fault characteristics and potential for fault-controlled fractured vuggy reservoirs[J]. Earth Science Frontiers, 2024, 31(5): 288-300.

Figures/Tables 13

Fig.1 Distribution map of main strike-slip faults in northern Tarim Basin (left panel) and Sichuan Basin (right)

Fig.2 Distribution map of strike-slip faults in Fuling (a) and Qijiang (b) areas, southeastern Sichuan

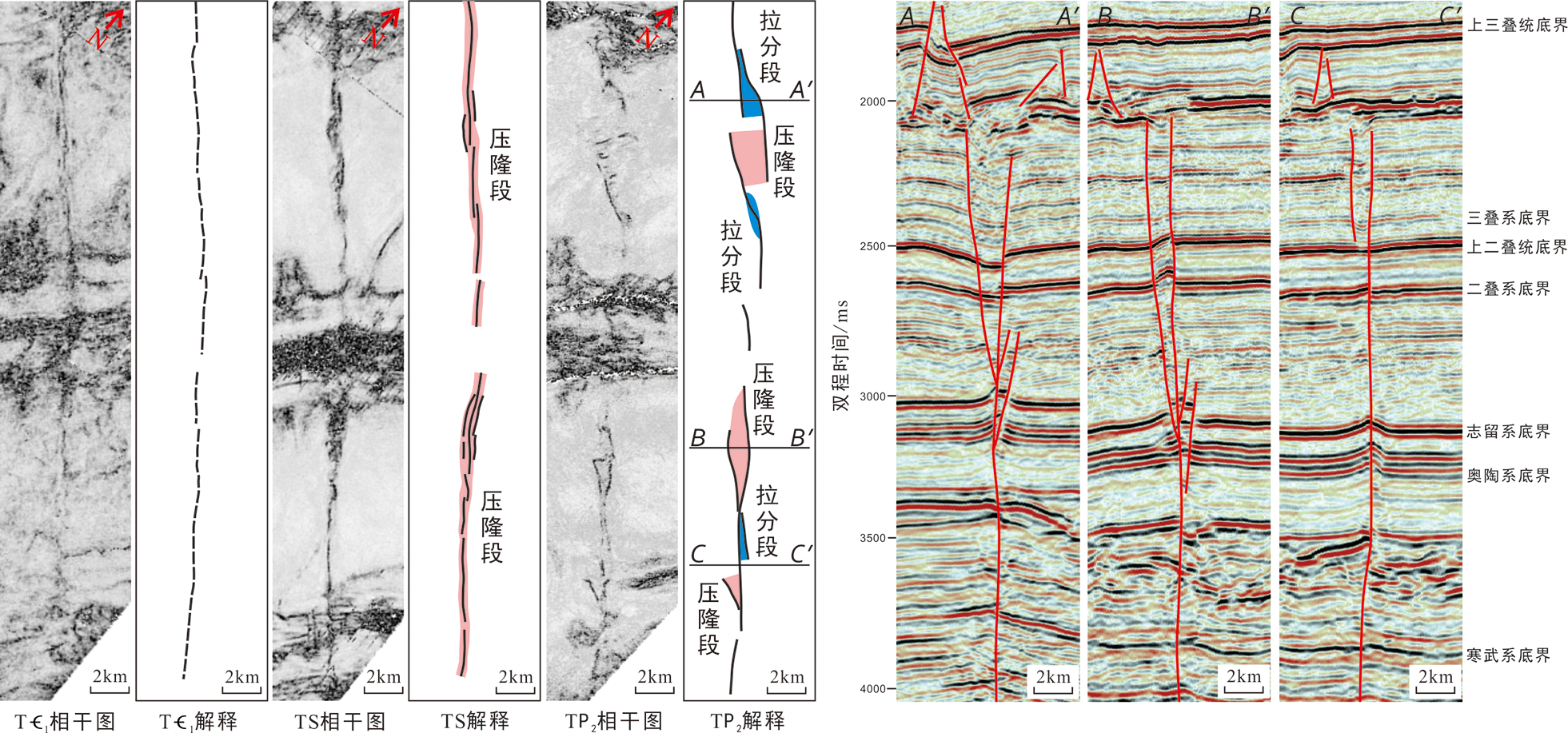

Fig.3 Coherent attribute slices, segmentation characteristics, and typical seismic profiles of the No.15 strike-slip fault zone in Fuling

Fig.4 Coherent attribute slices, segmentation characteristics, and typical seismic profiles of the NW strike-slip fault zone in central Zhongliangshan-Simianshandong areas of Qijiang

Fig.5 Statistical diagram of vertical fault displacement of various stratigraphic interfaces along the No.15 fault zone

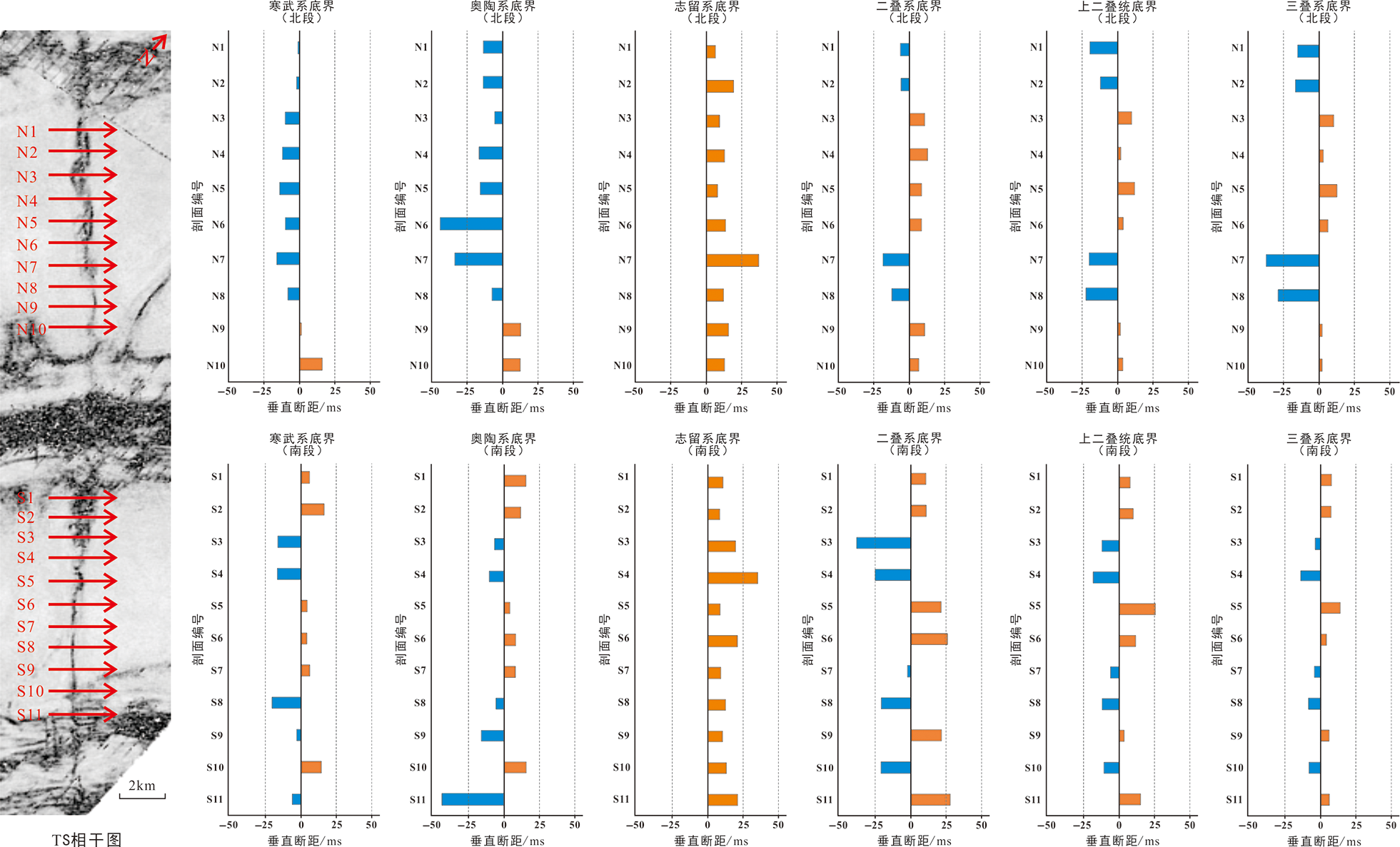

Fig.6 Statistics of vertical fault displacement of each stratum interface in the NW-trending strike-slip fault zone in Zhongliangshan-Simianshandong area

Fig.7 Slip displacement of the north (a), middle (b) and south (c) sections of the Piqiang strike-slip fault zone, northern Tarim Basin

Fig.8 Current slip displacement and strike-slip direction of the TS interface

Fig.9 Current slip displacement and strike-slip direction of TS interface in Zhongliangshan-Simianshandong area

Fig.10 Multiphase evolution model of strike-slip faults in the Sichuan Basin

Table 1 Comparison of geometric and kinematic parameters and evolution processes of strike-slip faults in the Shunbei, Fuling, and Qijiang regions

地区	几何学参数		运动学参数		主要演化过程
地区	叠接段平均长度/km	叠接段平均宽度/km	隆/凹幅度/ ms	滑移距/ km	主要演化过程
顺北地区 (NE向)	2.87( $T 7 4$ )	0.81( $T 7 4$ )	10~60 ( $T 7 4$ )	0.3~1.38 ( $T 7 4$ )	① 加里东中期左行走滑 ② 加里东晚期左行走滑 ③ 海西中—晚期左行走滑
涪陵地区 (15号带)	2.47(TP₂)	1.39(TP₂)	5~35 (TP₂)	0.6~1.3 (TS)	① 加里东早期较弱右行走滑 ② 海西晚期继承性拉张 ③ 晚燕山—早喜马拉雅期左行走滑
綦江地区 (中梁山-四面山东NW向)	4.18(TS)	1.03(TS)	10~35 (TS)	0.4~0.9 (TS)	① 早喜马拉雅期右行走滑 (是否为加里东晚期形成待研究)

Table 1 Comparison of geometric and kinematic parameters and evolution processes of strike-slip faults in the Shunbei, Fuling, and Qijiang regions

地区	几何学参数		运动学参数		主要演化过程
地区	叠接段平均长度/km	叠接段平均宽度/km	隆/凹幅度/ ms	滑移距/ km	主要演化过程
顺北地区 (NE向)	2.87( $T 7 4$ )	0.81( $T 7 4$ )	10~60 ( $T 7 4$ )	0.3~1.38 ( $T 7 4$ )	① 加里东中期左行走滑 ② 加里东晚期左行走滑 ③ 海西中—晚期左行走滑
涪陵地区 (15号带)	2.47(TP₂)	1.39(TP₂)	5~35 (TP₂)	0.6~1.3 (TS)	① 加里东早期较弱右行走滑 ② 海西晚期继承性拉张 ③ 晚燕山—早喜马拉雅期左行走滑
綦江地区 (中梁山-四面山东NW向)	4.18(TS)	1.03(TS)	10~35 (TS)	0.4~0.9 (TS)	① 早喜马拉雅期右行走滑 (是否为加里东晚期形成待研究)

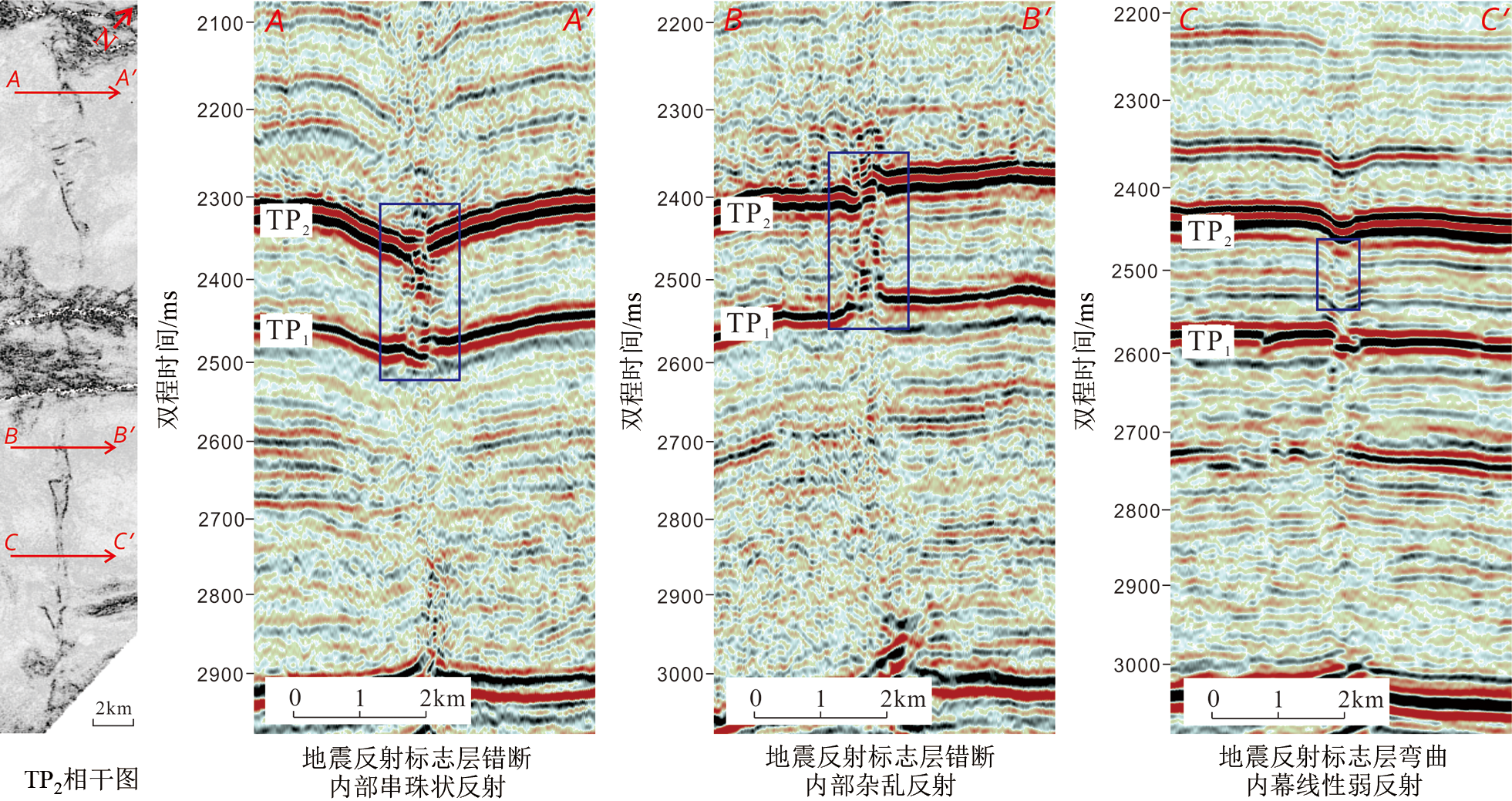

Fig.11 Seismic response characteristics of Lower Permian fault-controlled fracture-cave reservoirs in the No.15 strike-slip fault zone

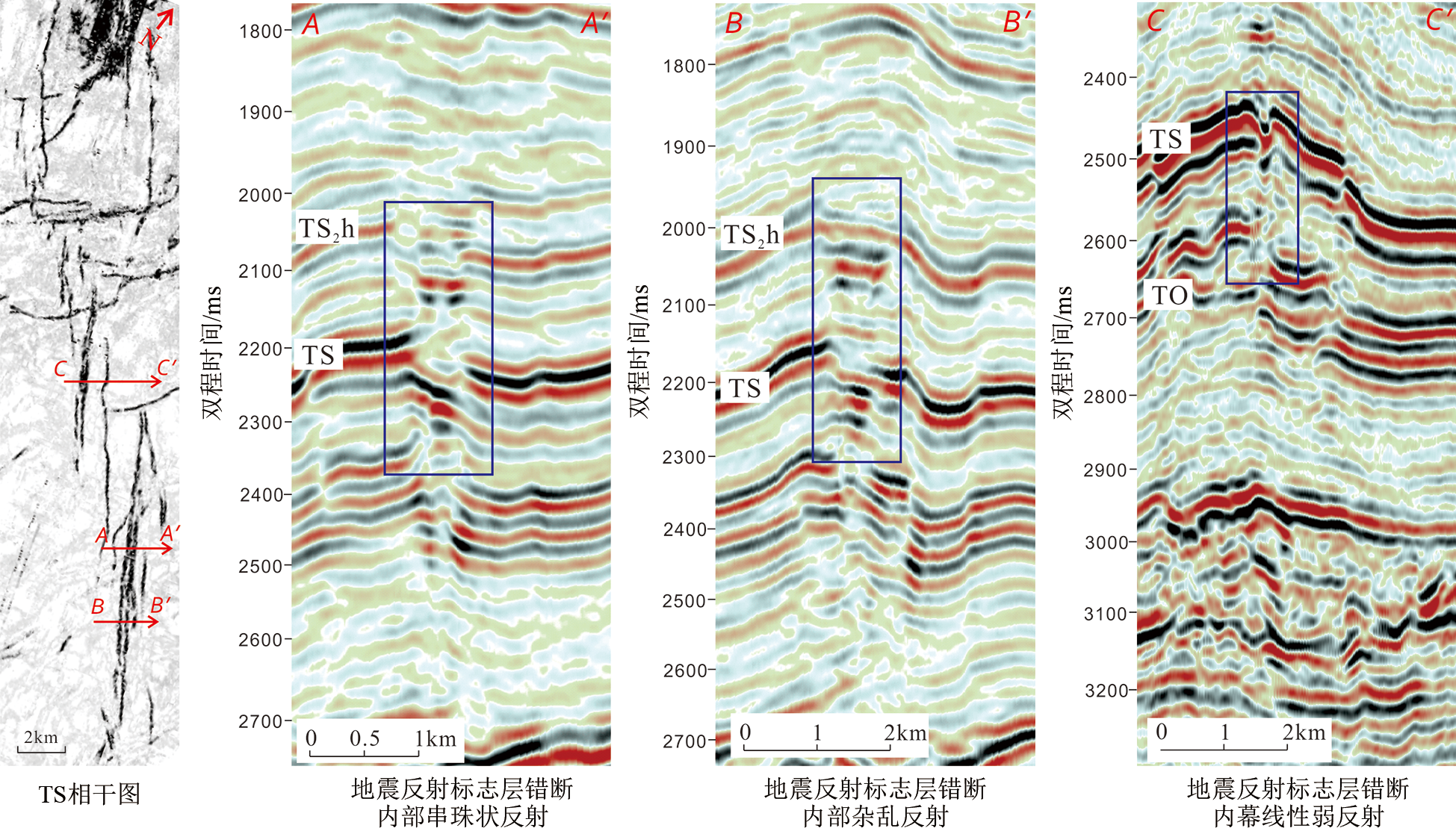

Fig.12 Seismic response characteristics of Silurian-Ordovician fracture-controlled fracture-cave reservoirs in the NW strike-slip fault zone in Zhongliangshan-Simianshandong area

References 35

[1]	潘磊, 徐祖新, 李让彬, 等. 川东南涪陵地区基底断裂特征与油气成藏[J]. 特种油气藏, 2020, 27(4): 19-25. DOI
[2]	邹玉涛, 张文睿. 川东南LZ地区走滑断裂特征与油气成藏作用[J]. 中国石油和化工标准与质量, 2021, 41(16): 128-129.
[3]	杨光, 汪华, 沈浩, 等. 四川盆地中二叠统储层特征与勘探方向[J]. 天然气工业, 2015, 35(7): 10-16.
[4]	张健, 周刚, 张光荣, 等. 四川盆地中二叠统天然气地质特征与勘探方向[J]. 天然气工业, 2018, 38(1): 10-20.
[5]	汪华, 沈浩, 黄东, 等. 四川盆地中二叠统热水白云岩成因及其分布[J]. 天然气工业, 2014, 34(9): 25-32.
[6]	刘建强, 郑浩夫, 刘波, 等. 川中地区中二叠统茅口组白云岩特征及成因机理[J]. 石油学报, 2017, 38(4): 386-398. DOI
[7]	杨柳, 赵容容, 梁虹, 等. 川西南部二叠系火山岩相地震预测及分布主控因素[J]. 成都理工大学学报(自然科学版), 2022, 49(1): 94-103.
[8]	樊春, 王二七, 王刚, 等. 龙门山断裂带北段晚新近纪以来的右行走滑运动及其构造变换研究: 以青川断裂为例[J]. 地质科学, 2008, 43(3): 417-433.
[9]	汪泽成, 赵文智, 李宗银, 等. 基底断裂在四川盆地须家河组天然气成藏中的作用[J]. 石油勘探与开发, 2008, 35(5): 541-547.
[10]	韩俊, 曹自成, 邱华标, 等. 塔中北斜坡奥陶系走滑断裂带与岩溶储集体发育模式[J]. 新疆石油地质, 2016, 37(2): 145-151.
[11]	韩剑发, 苏洲, 陈利新, 等. 塔里木盆地台盆区走滑断裂控储控藏作用及勘探潜力[J]. 石油学报, 2019, 40(11): 1296-1310. DOI
[12]	云露, 朱秀香. 一种新型圈闭: 断控缝洞型圈闭[J]. 石油与天然气地质, 2022, 43(1): 34-42.
[13]	云露, 邓尚. 塔里木盆地深层走滑断裂差异变形与控储控藏特征: 以顺北油气田为例[J]. 石油学报, 2022, 43(6): 770-787. DOI
[14]	况安鹏, 余一欣, 朱秀香, 等. 塔里木盆地顺北地区11号走滑断裂带变形及其活动特征[J]. 现代地质, 2021, 35(6): 1809-1817.
[15]	林波, 张旭, 况安鹏, 等. 塔里木盆地走滑断裂构造变形特征及油气意义: 以顺北地区1号和5号断裂为例[J]. 石油学报, 2021, 42(7): 906-923. DOI
[16]	肖笛, 谭秀成, 郗爱华, 等. 四川盆地南部中二叠统茅口组碳酸盐岩岩溶特征: 古大陆环境下层控型早成岩期岩溶实例[J]. 古地理学报, 2015, 17(4): 457-476.
[17]	何斌, 徐义刚, 王雅玫, 等. 东吴运动性质的厘定及其时空演变规律[J]. 地球科学: 中国地质大学学报, 2005, 30(1): 89-96.
[18]	胡修权, 施泽进, 田亚铭, 等. 川东南地区茅口组岩溶古地貌恢复及特征[J]. 地质通报, 2014, 33(6): 874-882.
[19]	鲁雪松, 桂丽黎, 汪泽成, 等. 四川盆地中部走滑断裂活动时间与控藏作用: 来自断裂带胶结物U-Pb定年和流体包裹体的证据[J]. 石油学报, 2024, 45(4): 642-658. DOI
[20]	马德波, 汪泽成, 段书府, 等. 四川盆地高石梯—磨溪地区走滑断层构造特征与天然气成藏意义[J]. 石油勘探与开发, 2018, 45(5): 795-805. DOI
[21]	马兵山, 梁瀚, 邬光辉, 等. 四川盆地中部地区多期次走滑断层的形成及演化[J]. 石油勘探与开发, 2023, 50(2): 333-345. DOI
[22]	何文渊, 蒙启安, 印长海, 等. 四川盆地合川-潼南地区栖霞组白云岩天然气地质特征及有利勘探区带[J]. 大庆石油地质与开发, 2022, 41(4): 1-11.
[23]	王珍, 唐大卿, 康志江, 等. 塔里木盆地顺北5号走滑断裂带中北段发育特征及控藏作用[J]. 地球科学, 2023, 48(11): 4117-4134.
[24]	周铂文. 塔里木盆地顺北地区下古生界走滑断裂带内部构型及其控储作用[D]. 武汉: 中国地质大学, 2021.
[25]	张继标, 张仲培, 汪必峰, 等. 塔里木盆地顺南地区走滑断裂派生裂缝发育规律及预测[J]. 石油与天然气地质, 2018, 39(5): 955-963, 1055.
[26]	刘雨晴, 邓尚. 板内中小滑移距走滑断裂发育演化特征精细解析: 以塔里木盆地顺北4号走滑断裂为例[J]. 中国矿业大学学报, 2022, 51(1): 124-136.
[27]	邓尚, 李慧莉, 韩俊, 等. 塔里木盆地顺北5号走滑断裂中段活动特征及其地质意义[J]. 石油与天然气地质, 2019, 40(5): 990-998, 1073.
[28]	云露. 顺北东部北东向走滑断裂体系控储控藏作用与突破意义[J]. 中国石油勘探, 2021, 26(3): 41-52. DOI
[29]	焦方正, 杨雨, 冉崎, 等. 四川盆地中部地区走滑断层的分布与天然气勘探[J]. 天然气工业, 2021, 41(8): 92-101.
[30]	管树巍, 梁瀚, 姜华, 等. 四川盆地中部主干走滑断裂带及伴生构造特征与演化[J]. 地学前缘, 2022(6): 252-264. DOI
[31]	卜旭强, 王来源, 朱莲花, 等. 塔里木盆地顺北油气田奥陶系断控缝洞型储层特征及成藏模式[J]. 岩性油气藏, 2023, 35(3): 152-160.
[32]	黄诚, 云露, 曹自成, 等. 塔里木盆地顺北地区中-下奥陶统“断控” 缝洞系统划分与形成机制[J]. 石油与天然气地质, 2022, 43(1): 54-68.
[33]	李军, 唐博超, 韩东, 等. 断控缝洞型油藏储集体发育特征及其连通关系: 以塔河油田托甫台地区T单元为例[J]. 新疆石油地质, 2022, 43(5): 572-579.
[34]	王清华, 杨海军, 李勇, 等. 塔里木盆地富满大型碳酸盐岩油气聚集区走滑断裂控储模式[J]. 地学前缘, 2022, 29(6): 239-251. DOI
[35]	廖茂辉, 刘军, 龚伟, 等. 顺北地区断控缝洞型储层反射特征与预测技术探讨[J]. 工程地球物理学报, 2020, 17(6): 703-710.
