Exploration of concealed fluorite deposit in shallow overburden areas: A case study in Elimutai, Inner Mongolia, China

doi:10.13745/j.esf.sf.2021.1.7

Abstract

Abstract:

The Chifeng area in Inner Mongolia, China possesses a series of fracture-hosted hydrothermal vein-type fluorite deposits and is considered having a superior economic mineralization potential. In this study, we present an integrated prospecting approach integrating geological, geophysical, geochemical, and remote sensing techniques for exploration of concealed fluorite deposit in shallow overburden areas. The study area in Elimutai in the southern extension of the Shuitou fluorite belt, covered widely by Quarternary sediments, is ideal for such exploration. The fluorite orebodies in the study area show vertical zonation with, from top to bottom, distributions of silicified cap and head, main, and tail orebodies. The silicified cap in Elimutai is characterized by highly silicified breccia, secondary quartzite and quartz stockwork, whereas the head orebody contains fluorite vein. The outcrop of silicified cap is 30-50 m higher in latitude than the head orebody. The WorldView-2 remote sensing image reveals a linear distribution of ore-controlling fractures in the SN-striking northern/central segment and NNE-NE-striking southern segment. The results show the overlapping of mineralized outcrop, low-resistivity anomaly zone (by very low frequency electromagnetic (VLF-EM) analysis), positive Ca anomaly zone (by portable X-ray fluorescence (PXF) analysis), and positive F anomaly zone (by partial extraction geochemistry (PEG) analysis). The multi-anomalies can be used as indicator for the exploration and prediction of ore-controlling fractures and concealed fluorite orebody. In combination with VLF-EM mapping, the mineralized and altered outcrop zone overlaps with the SN-trending VLF low-resistivity anomaly zone, indicating the mineralization potential of the Elimutai area for concealed and semi-concealed fluorite. At the key prediction zone in Elimutai, the drill cores reveals the concealed fluorite ore well, exposing silicified cap, head orebody or narrow fractures. The overall evidence suggests that the deeper level of Elimutai is highly likely to contain the economically significant main fluorite orebody.

Key words: geological, geophysical, geochemical and remote sensing prospecting techniques, mineral resource prediction, concealed fluorite deposit, Elimutai, Inner Mongolia

CLC Number:

P62
P619.215

TANG Li, ZHANG Shouting, WANG Liang, PEI Qiuming, FANG Yi, CAO Huawen, ZOU Hao, YIN Shaobo. Exploration of concealed fluorite deposit in shallow overburden areas: A case study in Elimutai, Inner Mongolia, China[J]. Earth Science Frontiers, 2021, 28(3): 208-220.

Figures/Tables 11

Fig.1 (a) Simplified geological map of the southern Great Xing’an Range, and (b) geological map of the Shuitou fluorite belt in Linxi, Inner Mongolia. Modified after [3].

Fig.2 Geological map of Elimutai showing the prospecting lines

Fig.3 Representative field photos of the Elimutai area, featuring outcrops

Fig.4 WorldView-2 remote sensing image of the Elimutai area

Table 1 Physical properties of fluorite ore and wall rocks in the Linxi area

采样地点	岩性描述	样本数	密度/(g·cm^-3)	电阻率/(Ω·m)	极化率/%	磁性/(10^-5SI)
宝山	岩体内含萤石石英脉	2	2.38	2 909	8.44	10.0
水头南	石英脉	10	2.20	6 567	3.47	13.5
水头北	燧石角砾岩、石英脉	4	2.28	5 187	2.99
马岱沟	含矿带石英脉	2	2.04			5.0
宝山	白色结晶硅质岩	6	2.11	7 072	1.04
水头南	富萤石矿石	4	2.55	13 049	0.90
水头北	萤石矿石	8	2.52	1 264	1.59
马岱沟	角砾状矿石	1	2.29	778	6.11	65.0
马岱沟	萤石矿石	1	2.54	632	0.98
宝山	粗晶富矿石	5	2.50	3 824	4.01
宝山	绿帘石化中粗粒花岗岩	5	2.08	1 373	2.55	147
宝山	中粗粒花岗岩	6	2.07	975	5.20	272
马岱沟	半风化花岗岩	1	2.05			320
水头南	强硅化流纹斑岩	8	2.06	996	3.25	194
水头北	变砂岩	2	2.70	780	2.53	1 033
水头北	黑色碳质板岩	2	2.57	130	65.7	1 448

Fig.5 Planar mapping of low-resistivity anomaly zones by very low frequency electromagnetic (VLF-EM) measurements. Modified after [52].

Fig.6 Composite diagram showing, from top, F, Ca and low-resistivity anomaly profiles along the #10 prospecting line of Elimutai

Fig.7 Composite diagram showing, from top, F, Ca, and low-resistivity anomaly profiles along the #20 prospecting line of Elimutai

Fig.8 Vertical zonation model of fracture-hosted hydrothermal vein type fluorite orebody (modified after [57])

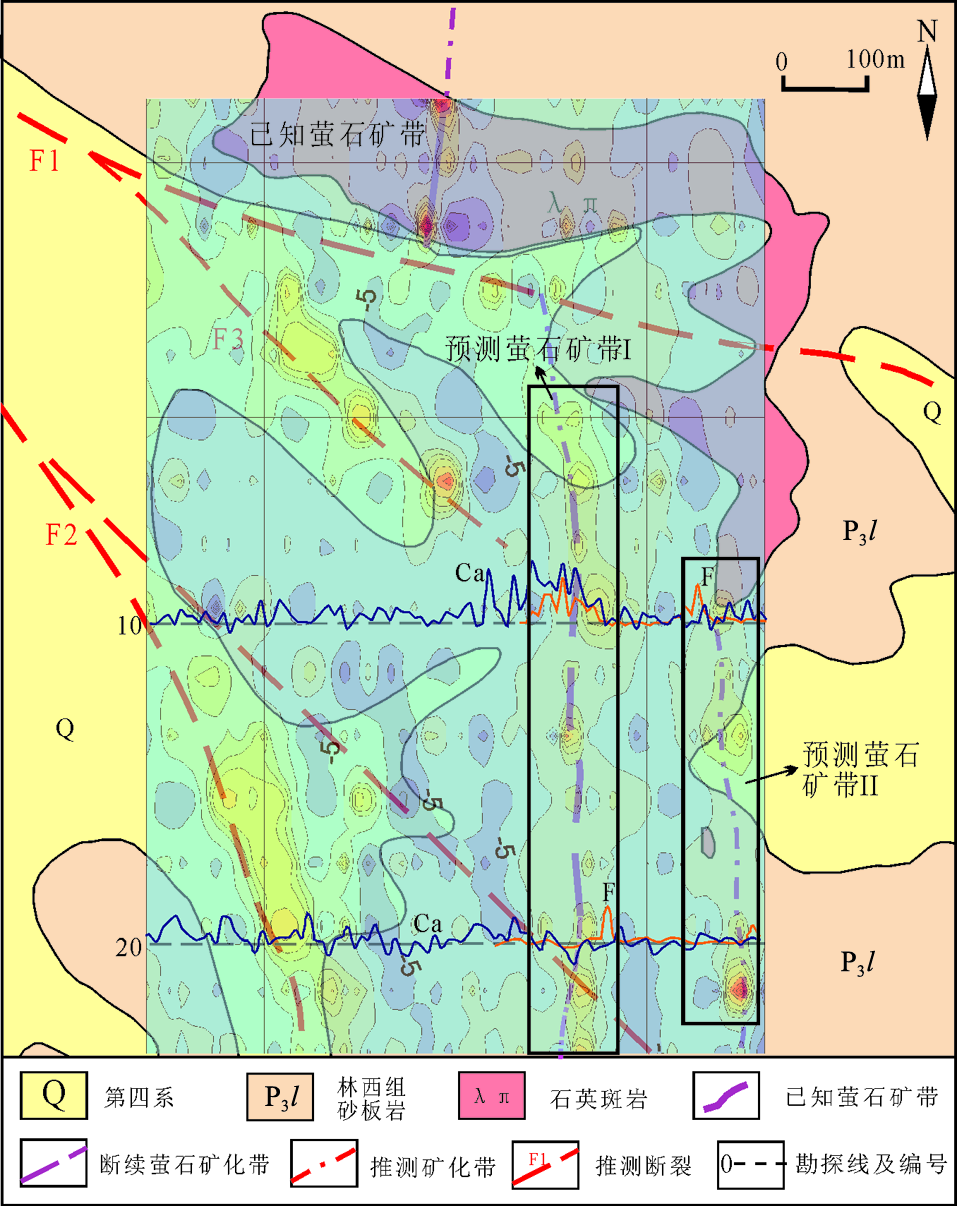

Fig.9 Superposition of geophysical (low-resistivity) and geochemical (F, Ca) anomaly measurements in the prediction zone of Elimutai

Fig.10 Examples of fluorite orebodies from the Elimutai drill core

References 60
