Spatial distribution prediction of geothermal gradient in North China Craton driven by the combination of machine learning and stratification modeling

doi:10.13745/j.esf.sf.2025.4.67

Abstract

Abstract:

As a key parameter characterizing the lithospheric thermal state, the spatial distribution of the geothermal gradient is crucial for understanding cratonic thermal evolution and guiding geothermal exploration. Previous studies on the North China Craton (NCC) were largely limited to one-dimensional analyses, failing to resolve vertical variations and limiting model accuracy. This study innovatively develops a depth-stratified prediction model for the NCC geothermal gradient, systematically elucidating its depth-dependent patterns and thermo-tectonic controls. Integrating 573 geothermal gradient measurements with depth information from global databases and literature, data were partitioned into six depth intervals: <500 m, 500-1000 m, 1000-2000 m, 2000-3000 m, 3000-4000 m, and >4000 m. Thirteen geological/geophysical predictors (e.g., Moho depth, geothermal heat flow) were used to train machine learning regression models for each interval. Key results show: (1) Model performance (R²) is depth-dependent: exceeding 0.45 in middle and shallower intervals (<3000 m), but declining significantly at greater depths due to sparse data; (2) Feature importance analysis reveals Moho depth and heat flow dominate deep predictions (weight>40%), while magnetic anomalies and geological age exert minor influence (<10%); (3) The 3D geothermal structure shows systematic depth variations: uppermost high-value zones (>35 ℃/km) align with active fault systems, while mid-deep high-value zones (500-3000 m) migrate eastward, correlating spatially with crustal thinning zones associated with Pacific Plate subduction. This work presents the first 3D geothermal gradient model of the NCC. Results provide critical data for regional geothermal assessment and new constraints on thermo-tectonic coupling during craton destruction. The depth-stratified framework offers a methodological paradigm for thermal studies of analogous tectonic units.

Key words: North China Craton, geothermal gradient, machine learning, geological and geophysical features, stratification modeling

CLC Number:

P314.3
P628

LI Jinming, ZHENG Yang, CHENG Qiuming. Spatial distribution prediction of geothermal gradient in North China Craton driven by the combination of machine learning and stratification modeling[J]. Earth Science Frontiers, 2025, 32(4): 291-302.

Figures/Tables 10

Fig.1 Distribution of sample points in the study area. The background map is the digital topographic map made with GMT6[5], the boundary of the North China Craton (black line) indicates the study area (data from [6]), and the red star indicates a drill hole (data from [7]).

Table 1 Statistical results of thermal gradient sample data in different depth segments

分组	深度/m	样本数量/个	占比
A	0~<500	256	44.68%
B	500~<1 000	231	40.31%
C	1 000~<2 000	208	36.30%
D	2 000~<3 000	150	26.18%
E	3 000~4 000	81	14.14%
F	>4 000	22	3.84%

Fig.2 Histogram of thermal gradient values for each depth segments. The red line represents the normal distribution curve.

Table 2 Geological and geophysical features used in the study and data sources

编号	特征名称	数据来源
1	地质年代	[28]
2	磁异常	[29]
3	地壳厚度	[30]
4	结晶壳厚度	[30]
5	沉积物厚度	[30]
6	岩石圈厚度	[31]
7	均衡重力异常	[32]
8	布格重力异常	[32]
9	地形	[33]
10	自由空气重力异常	[34]
11	居里点深度	[35]
12	距火山距离	[36]
13	大地热流	[12]

Fig.3 Statistical chart of the performance evaluation standard value of the optimal algorithm model corresponding to different depth Segments A: 0~<500 m; B: 500~<1 000 m; C: 1 000~<2 000 m; D: 2 000~<3 000 m; E: 3 000~4 000 m; F: >4 000 m。

Fig.4 Scatter plot of actual measured value and predicted values. The blue dots represent all the observed values of each depth segments, the red line is the straight line fitted by the least square method, and the light red band is the 95% confidence interval.

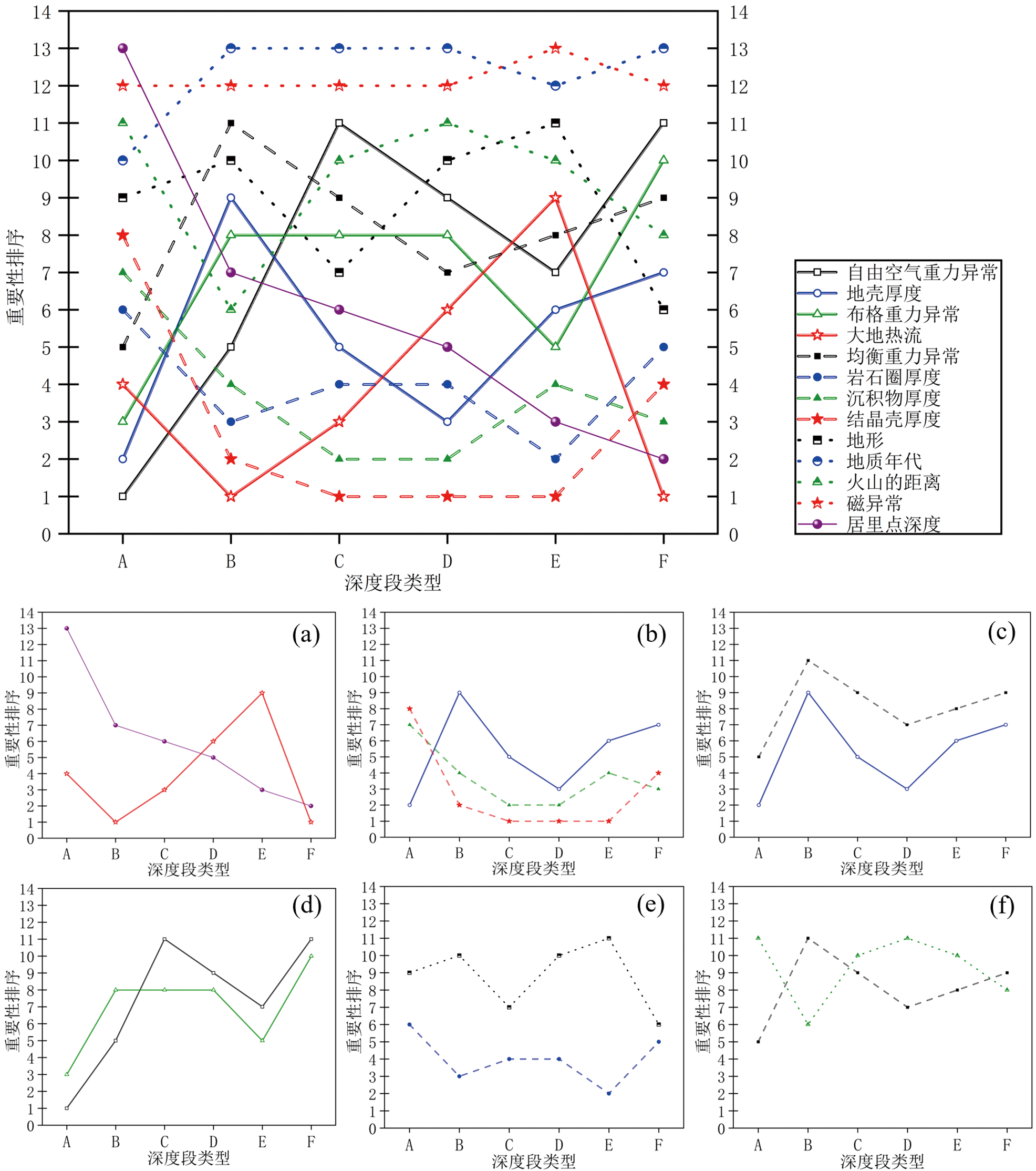

Fig.5 Statistical line chart of feature importance ranking of each depth segment. a—the variations in the importance of geothermal heat flow and Curie point depth features at different depths; b—the variations in the importance of sediment thickness, crystalline crust thickness and crustal thickness features at different depths; c—the variations in the importance of crustal thickness and isostatic gravity anomaly features at different depths; d—the variations in the importance of bouguer gravity anomaly and free air gravity anomaly features at different depths; e—the variations in the importance of the thickness of lithosphere and topography features at different depths; f—the variations in the importance of isostatic gravity anomaly and the distance to volcano features at different depths.

Fig.6 Predicted geothermal gradient distribution maps of six depth segments. The boundary of the North China Craton (black line) indicates the study area (data from [6]), and the background is the mountain shadow in the mapping software ArcGis pro.

Fig.7 Active faults and 0-500 m geothermal gradient distribution. The boundary of the North China Craton (black line) indicates the study area (data from [6]), the background is the mountain shadow in the mapping software ArcGis pro, and the red line represents the distribution of active faults (data from [48]).

Fig.8 Comparison of measured temperature and predicted temperature curves for the CCSD-1 well (data from CCSDP). The well location is shown in Fig.1. The black line represents the drilling temperature curve, the blue line represents the well temperature curve after the well temperature reaches stability, and the red line represents the temperature-depth variation curve at this point calculated by predicting the geothermal gradient in this study.
