The influence of water table on the release of heavy metals from tailings and their adsorption in soil

doi:10.13745/j.esf.sf.2024.2.21

Abstract

Abstract:

Natural precipitation can significantly alter the water table in mining areas, increasing the risk of heavy metal pollution in tailings and mining soils. This study investigates the influence of water table fluctuations on the release of heavy metals from tailings and their adsorption in soil through simulation experiments. The results indicate that substantial changes in the water table significantly enhance the release of heavy metals such as Cd, Pb, and Zn. A high water table promotes the accumulation of heavy metals in surface soil, while alternating wet and dry conditions facilitate the migration of heavy metals into deeper soil layers. Cd, Pb, and Zn in soil water pose a considerable risk of leaching into groundwater. Under simulated conditions of continuous soaking and a high water table, residual Cd and Pb in soil are transformed into more active acid-extractable forms. The redox potential (Eh) in the soil solution decreases, promoting the reduction of Fe³⁺, the decomposition of soil organic matter, and the release of Cd and Pb into the system. The adsorption and co-precipitation of amorphous ferric oxide with heavy metals in soil reduce their migration risk. However, in areas with frequent water table fluctuations, particularly in oxygen-limited and organic-rich vadose zones, the potential risk of heavy metal release into groundwater is significantly elevated. These findings highlight the importance of controlling water table fluctuations to prevent and mitigate the potential risks of heavy metal pollution in mining areas.

Key words: tailings, water table, soil contamination, heavy metals, fractionation

CLC Number:

X705

ZHONG Linjian, GUO Zhaohui, XIE Huimin, HUANG Chiyue, GAO Zilun, LIANG Xuechao, XU Rui. The influence of water table on the release of heavy metals from tailings and their adsorption in soil[J]. Earth Science Frontiers, 2025, 32(2): 484-494.

Figures/Tables 11

Table 1 Heavy metal content and main physical and chemical properties of tested tailings and surrounding soil

样品	pH	有机质含量/%	CEC/ (cmol·kg^-1)	重金属含量/(mg·kg^-1)
样品	pH	有机质含量/%	CEC/ (cmol·kg^-1)	As	Cr	Cd	Pb	Zn
尾矿	3.51	—	—	5	29	220	8 700	10 400
土壤	4.50	2.70	12.5	22	210	2	48.5	235

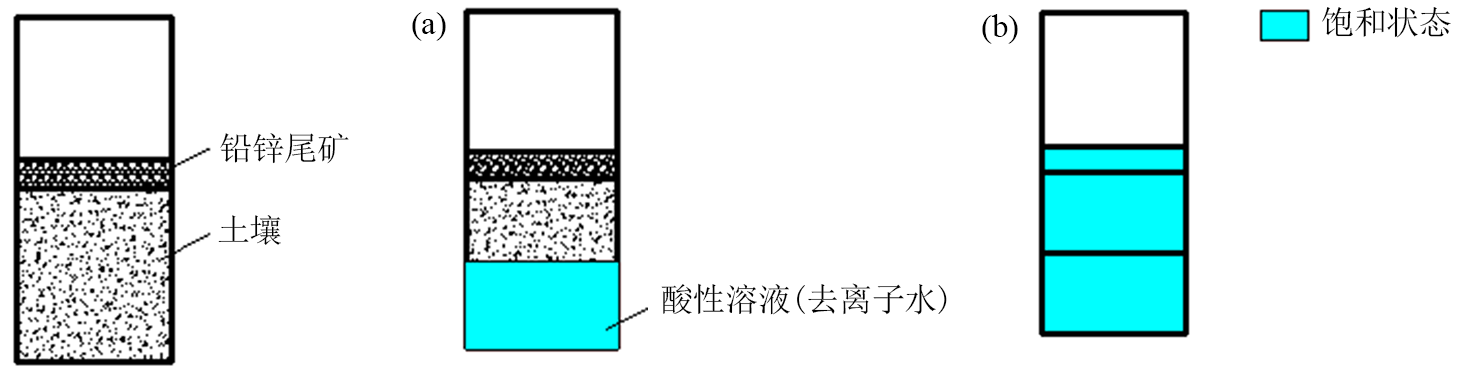

Fig.1 Schematic diagram of experimental setup (a) LW and DW, (b) HW and CK

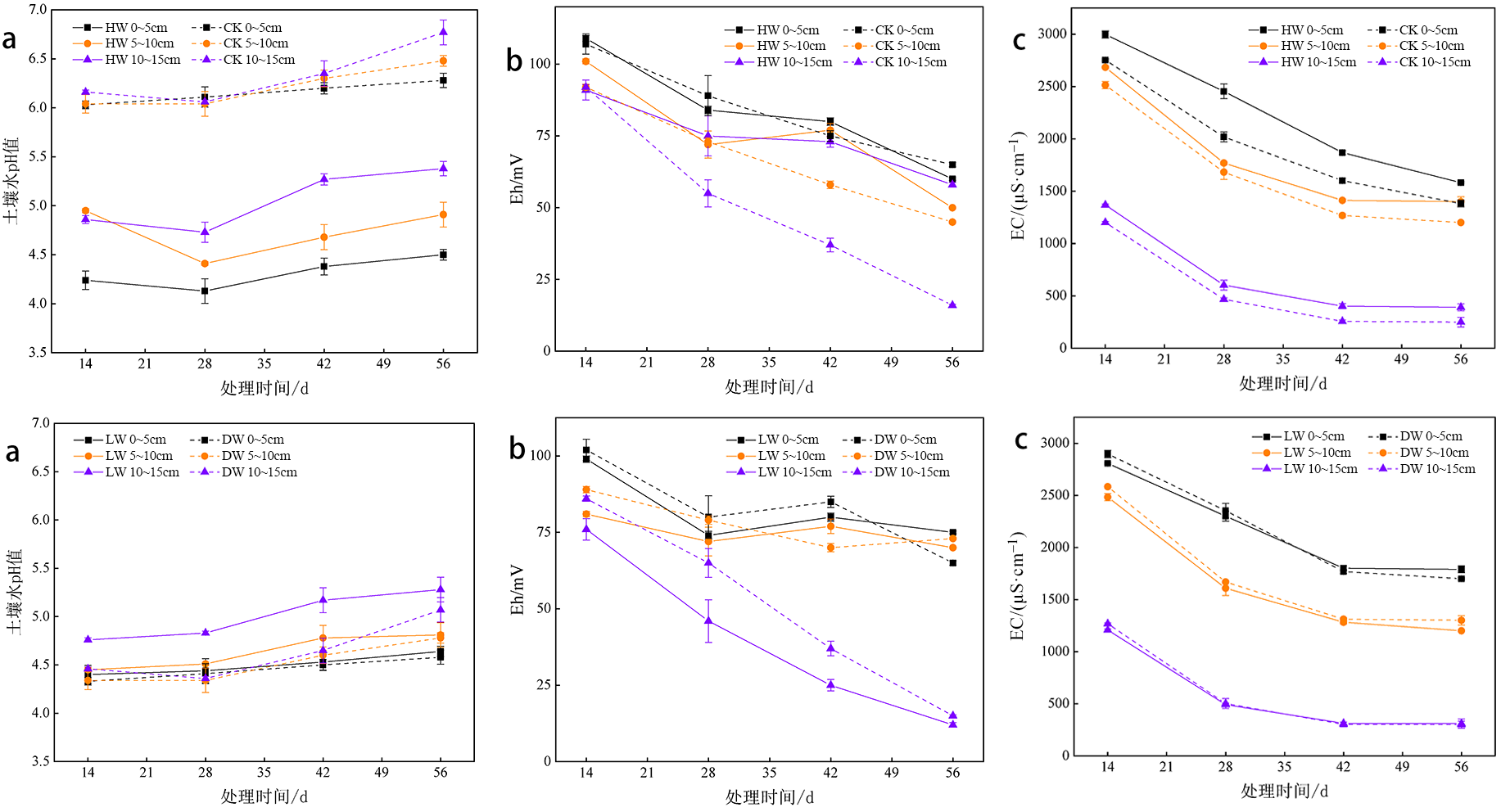

Fig.2 The changes of pH value (a), Eh (b) and EC (c) of soil water with treatment time

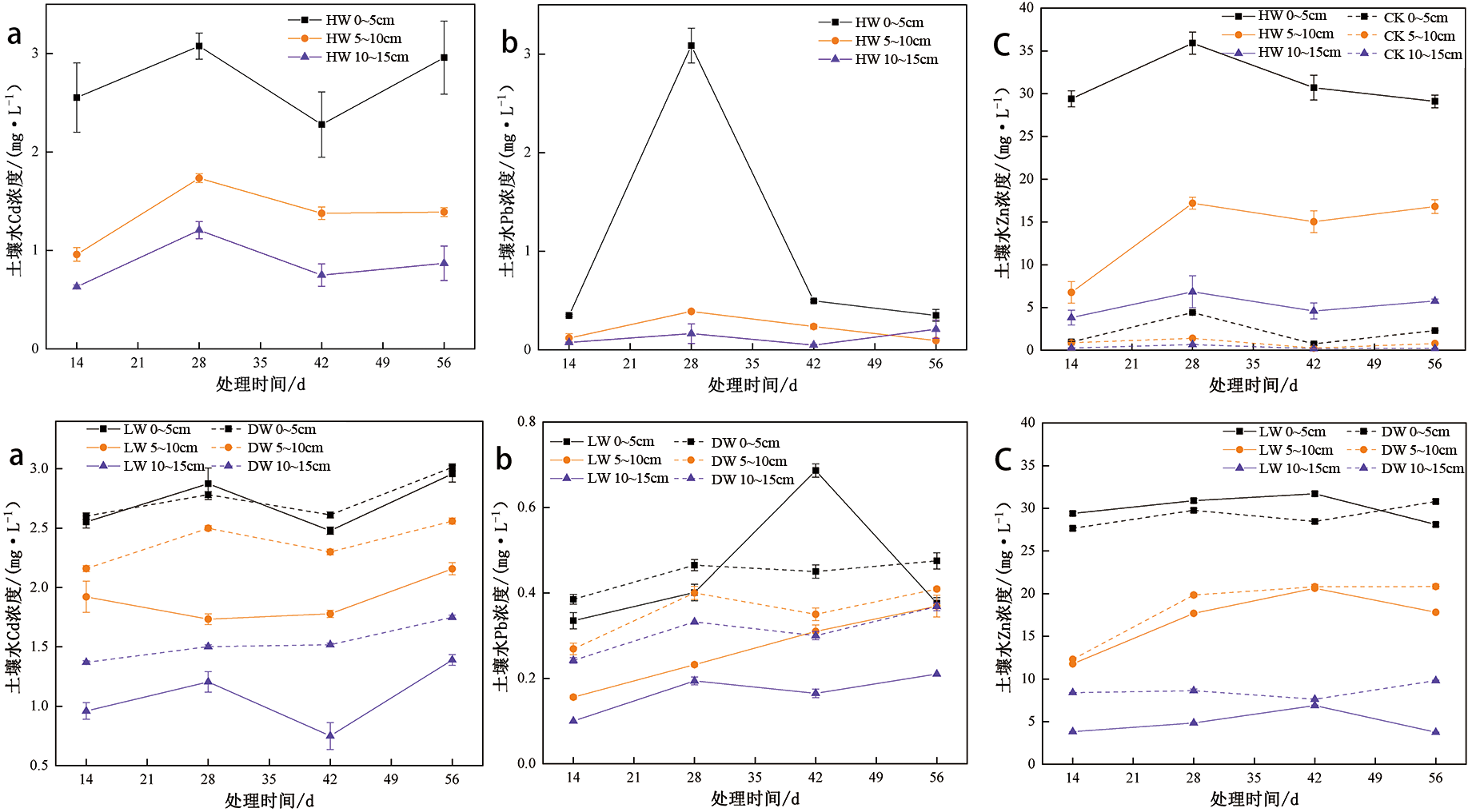

Fig.3 The concentration changes of Cd (a), Pb (b) and Zn (c) in soil water

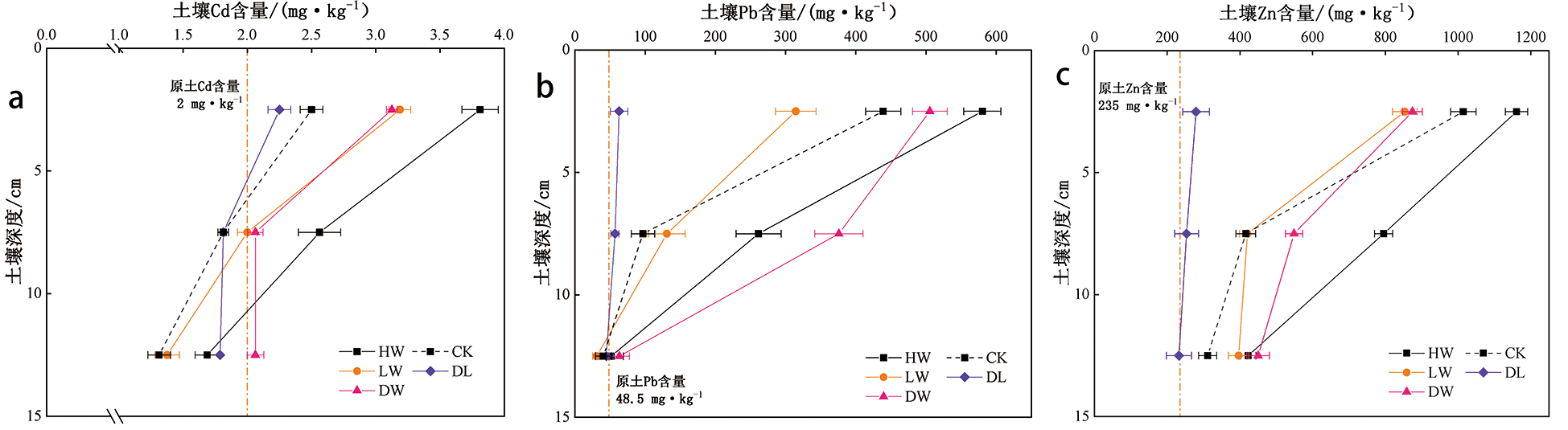

Fig.4 The concentration of Cd (a), Pb (b) and Zn (c) in soil profile after 56 days’ different water table treatment

Table 2 The change rate of Cd, Pb and Zn in soil profile after 56 days’ different water table treatment

重金属	处理	实验后土壤中重金属变化率/%
重金属	处理	0~5 cm	5~10 cm	10~15 cm
Cd	HW	90.63	28.13	-15.63
	LW	59.83	0	-31.25
	DW	56.25	3.13	3.13
	CK	25	-9.38	-34.38
Pb	HW	1096.13	438.79	6.25
	LW	548.45	169.72	-36.02
	DW	942.07	675	30.41
	CK	29.51	17.53	-8.38
Zn	HW	393.96	238.50	79.80
	LW	263.11	79.02	68.70
	DW	272.19	133.52	91.60
	CK	331.62	77.01	32.47

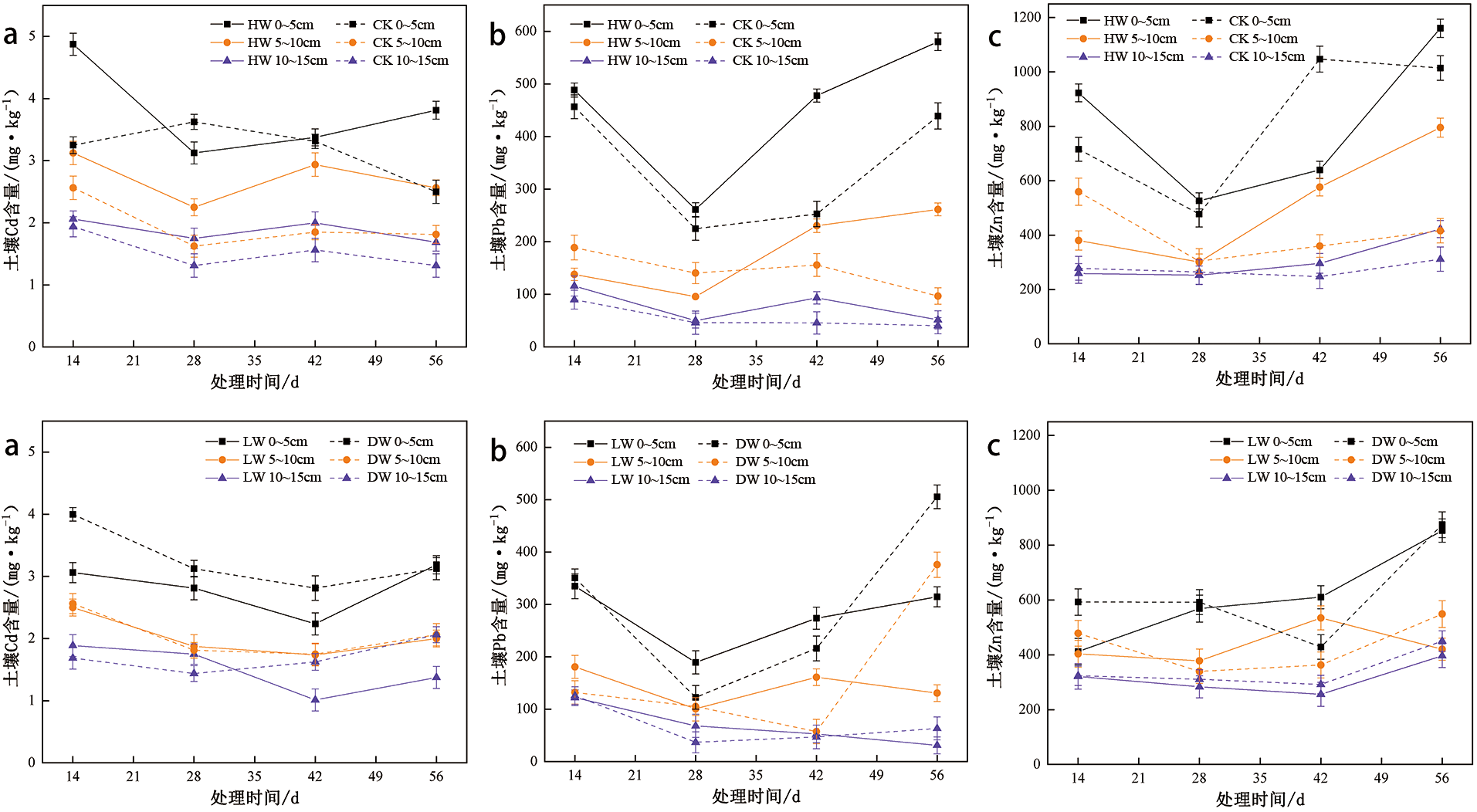

Fig.5 The concentration changes of Cd (a), Pb (b) and Zn (c) in soil

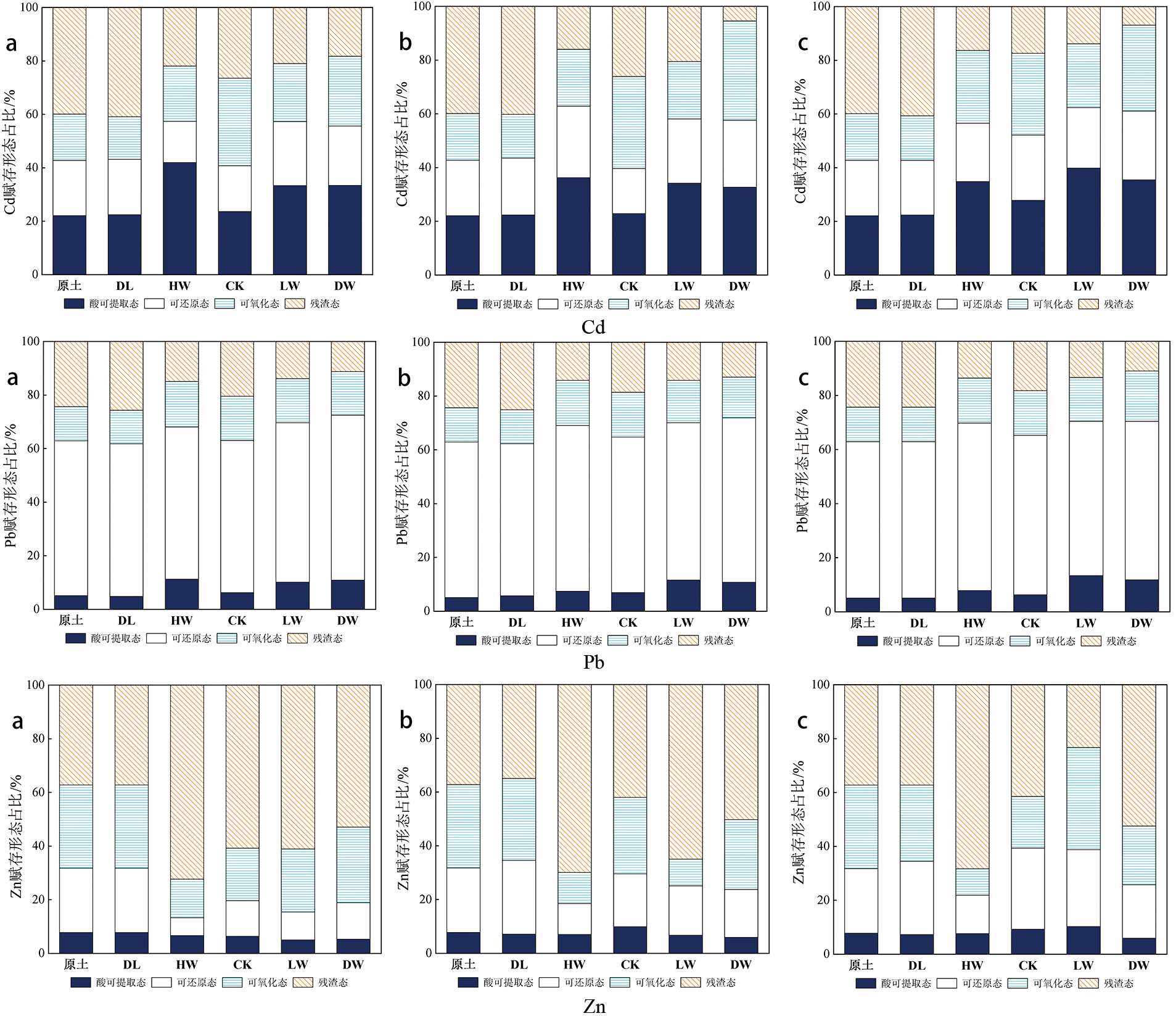

Fig.6 The chemical forms of Cd, Pb and Zn in soil profile after 56 days’ experiment: (a)0-5 cm; (b)5-10 cm; (c)10-15 cm

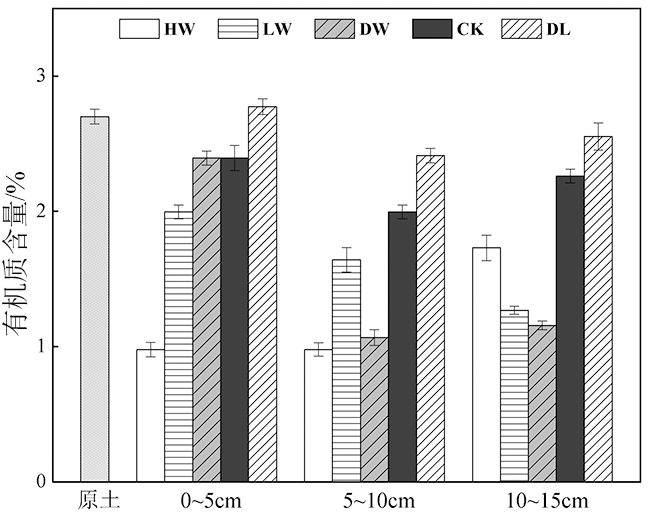

Fig.7 The organic matter content in soil profile after 56 days’ experiment

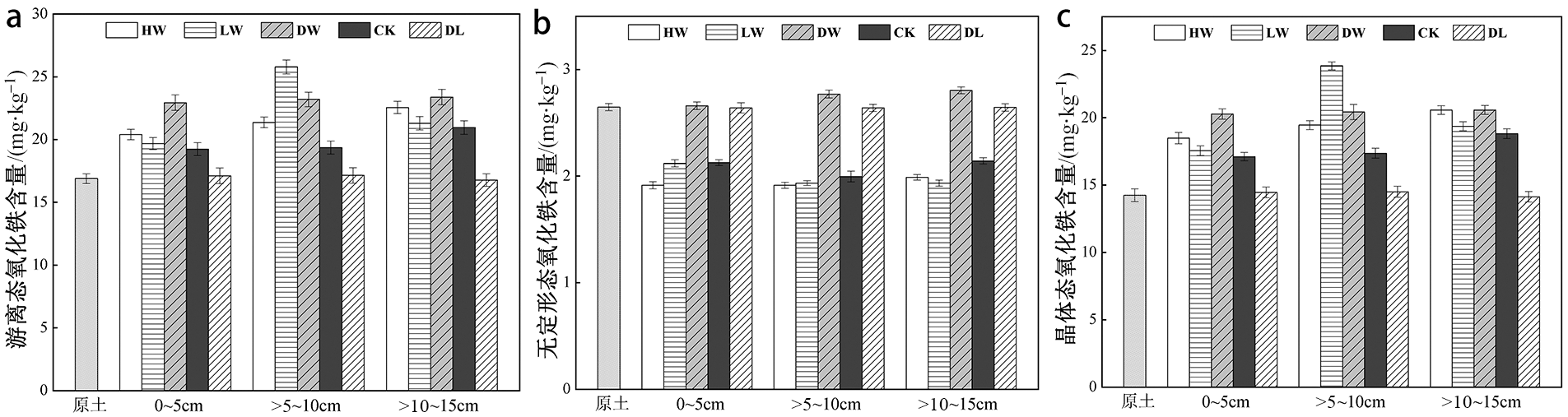

Fig.8 The iron oxide content in soil profile after 56 days’ experiment: (a) free iron oxide; (b) amorphous iron oxide; (c) crystalline iron oxid

Fig.9 SEM and XRD spectra of soil under different water table after the experimet
