Tectonostratigraphic properties and evolution of the Yeba volcanic arc in South Gangdese, Tibet

doi:10.13745/j.esf.sf.2021.7.33

Abstract

Abstract:

In the South Gangdese magmatic belt a set of exposed Early-Middle Jurassic volcanic-sedimentary formations underwent multi-stage structural deformation, which resulted in intense foliation displacing the volcanic-sedimentary sequence and forming the typical tectonic-rock strata. According to the stratigraphic division scheme for orogenic belt, the Early-Middle Jurassic volcanic arc is defined as Yeba rock group, which is further divided into the Bangdui, Yeba and Jiama rock formations based on its internal lithologic assemblages and structural deformation modes. The three-stage deformation is characterized as below. In D₁ stage, the brittle-ductile shear deformation is pure shear dominant general shear deformation, and beddings (S₀) are mostly replaced by penetrative foliations (S₁) (S₁∥S₀). The deformation is characterized as pure westward shearing, from the top, with a steep stretching lineation to 85-100° according to kinematic observations. EBSD results showed the deformation temperature is no more than 380 ℃, and quartz particles are clearly fine-grained, formed by sub-particle rotational recrystallization.⁴⁰Ar-³⁹Ar dating results suggests the D₁ tectonic deformation happened around 79 Ma, therefore it could represent an extrusion structure formed by the low angle (flatten) Neo-Tethys ocean plate subduction in the back-arc compression background. In D₂ stage, longitudinal folding of S₁ led to the axial-plane cleavage (S₂) that dips to N or S, with an inclination of 40-70°, and hinges toward W or NWW. Combining with the regional geological evolutionary history, we believe the Southern Gangdse back-arc basin was extruded upward under continuous N-S compressional stress during the Late Cretaceous (79-68 Ma), which resulted in upper crustal shortening and thickening, then led to folding. In D₃ stage, deformation is mainly kink-bands and near E-W normal faults. The maximum principal compressive stress is in the vertical direction, while the minimum (extension direction) is in near N-S direction. Combining with the regional tectonic evolutionary history, we suggest that the near N-S extensional event during the late Oligocene-early Miocene (23.74-21.1 Ma) may represent the uplift of the Gangdese batholith caused by the delamination of the Indian lithosphere and/or Tibetan plateau lithosphere (the main dynamic mechanism) and the Gangdese counter thrust activity.

Key words: Southern Gangdese belt in Tibet, Yeba volcanic arc, tectonostratigraphy, deformation age, tectonic evolution

CLC Number:

P542
P544.4

TANG Yu, WANG Genhou, FENG Yipeng, CI Dan, LI Dian, FAN Zhengzhe, GAO Xi, WEI Yufei, HU Jixin, ZHANG Peilie. Tectonostratigraphic properties and evolution of the Yeba volcanic arc in South Gangdese, Tibet[J]. Earth Science Frontiers, 2022, 29(1): 285-302.

Figures/Tables 12

References 61

[1]	吴根耀. 初论造山带地层学: 以三江地区特提斯造山带为例[J]. 地层学杂志, 1998, 22(3):161-169.
[2]	王根厚, 唐菊兴, 李典, 等. 造山带野外工作方法: 以班公湖—怒江·龙木错—双湖增生造山带为例[M]. 北京: 地质出版社, 2019: 1-203.
[3]	张克信, 何卫红, JIN J S, 等. 洋板块地层在造山带构造-地层区划中的应用[J]. 地球科学, 2020(7):2305-2325.
[4]	YIN A, HARRISON T M. Geologic evolution of the Himalayan-Tibetan orogen[J]. Annual Review of Earth and Planetary Sciences, 2000, 28:211-280. DOI URL
[5]	TAPPONNIER P, XU Z Q, ROGER F, et al. Oblique stepwise rise and growth of the Tibet Plateau[J]. Science, 2001, 294:1671-1677. DOI URL
[6]	DING L, KAPP P, WAN X Q. Paleocene-Eocene record of ophiolite obduction and initial India-Asia collision, south central Tibet[J]. Tectonics, 2005, 24(3):1-18.
[7]	MO X X, HOU Z Q, NIU Y L, et al. Mantle contributions to crustal thickening during continental collision: evidence from Cenozoic igneous rocks in southern Tibet[J]. Lithos, 2007, 96(1):225-242. DOI URL
[8]	MO X X, NIU Y L, DONG G C, et al. Contribution of syncollisional felsic magmatism to continental crust growth: a case study of the Paleogene Linzizong volcanic succession in southern Tibet[J]. Chemical Geology, 2008, 250(1):49-67. DOI URL
[9]	董彦辉, 许继峰, 曾庆高, 等. 存在比桑日群弧火山岩更早的新特提斯洋俯冲记录么?[J]. 岩石学报, 2006, 22(3):661-668.
[10]	黄丰, 许继峰, 陈建林, 等. 早侏罗世叶巴组与桑日群火山岩: 特提斯洋俯冲过程中的陆缘弧与洋内弧?[J]. 岩石学报, 2015, 31(7):2089-2100.
[11]	耿全如, 潘桂棠, 王立全, 等. 西藏冈底斯带叶巴组火山岩同位素地质年代[J]. 沉积与特提斯地质, 2006, 26(1):1-7.
[12]	ZHU D C, ZHAO Z D, NIU Y L, et al. Lhasa terrane in southern Tibet came from Australia[J]. Geology, 2011, 39(8):727-730. DOI URL
[13]	ZHU D C, ZHAO Z D, NIU Y L, et al. The origin and pre-Cenozoic evolution of the Tibetan Plateau[J]. Gondwana Research, 2013, 23(4):1429-1454. DOI URL
[14]	JI W Q, WU F Y, CHUNG S L, et al. Zircon U-Pb geochronology and Hf isotopic constraints on petrogenesis of the Gangdese batholith, southern Tibet[J]. Chemical Geology, 2009, 262(3):229-245. DOI URL
[15]	陈炜, 马昌前, 边秋娟, 等. 西藏得明顶地区叶巴组火山岩地球化学特征和同位素U-Pb年龄证据[J]. 地质科技情报, 2009, 28(3) : 31-40.
[16]	曾忠诚, 刘德民, 泽仁扎西, 等. 西藏冈底斯东段叶巴组火山岩地球化学特征及其地质构造意义[J]. 吉林大学学报(地球科学版), 2009, 39(3):435-445.
[17]	PAN G T, WANG L Q, LI R S, et al. Tectonic evolution of the Qinghai-Tibet Plateau[J]. Journal of Asian Earth Sciences, 2012, 53:3-14. DOI URL
[18]	钟康惠, 李磊, 周慧文, 等. 西藏甲玛—卡军果推-滑覆构造系特征[J]. 地球学报, 2012, 33(4):411-423.
[19]	钟康惠, 姚丹, 多吉, 等. 西藏甲玛—驱龙地区叶巴岩组构造学特征[J]. 地球学报, 2013, 34(1):75-86.
[20]	段志明, 李光明, 李应栩, 等. 中冈底斯成矿带龙根铅锌矿床含矿斑岩年代学与地球化学特征[J]. 矿床地质, 2014, 33(3):625-638.
[21]	KANG Z Q, XU J F, WILDE S A, et al. Geochronology and geochemistry of the Sangri Group volcanic rocks, southern Lhasa Terrane: implications for the early subduction history of the Neo-Tethys and Gangdese magmatic arc[J]. Lithos, 2014, 200:157-168.
[22]	熊秋伟, 陈建林, 许继峰, 等. 拉萨地块南部得明顶地区叶巴组火山岩LA-ICP-MS锆石U-Pb年龄、地球化学特征及其成因[J]. 地质通报, 2015, 34(9):1645-1655.
[23]	黄丰, 许继峰, 王保弟, 等. 印度-亚洲大陆碰撞过程中新特提斯洋岩石圈的命运[J]. 地球科学, 2020, 45(8):2785-2804.
[24]	马士委, 许志琴, 张忠坤, 等. 藏南甲玛铜多金属矿床构造变形及其对成矿的制约[J]. 岩石学报, 2016, 2(12):3781-3799.
[25]	马元, 许志琴, 李广伟, 等. 藏南冈底斯白垩纪弧后盆地的地壳变形及初始高原的形成[J]. 岩石学报, 2017, 33(12):3861-3872.
[26]	WEI Y Q, ZHAO Z D, NIU Y L, et al. Geochronology and geochemistry of the Early Jurassic Yeba Formation volcanic rocks in southern Tibet: initiation of back-arc rifting and crustal accretion in the southern Lhasa Terrane[J]. Lithos, 2017, 278/279/280/281:477-490.
[27]	宋宇航, 解超明, 范建军, 等. 西藏甲鲁朗地区叶巴组火山岩成因及其对新特提斯洋俯冲的约束[J]. 地球科学, 2019, 44(7):2319-2338.
[28]	MA X X, XU Z Q, CHEN X J, et al. The origin and tectonic significance of the volcanic rocks of the Yeba Formation in the Gangdese magmatic belt, South Tibet[J]. Journal of Earth Science, 2017, 28(2):265-282. DOI URL
[29]	韩奎, 周斌, 王辉, 等. 拉萨地块南缘日多地区叶巴组火山岩地球化学、年代学、锆石Lu-Hf同位素特征及其地质意义[J]. 地质通报, 2018, 37(8):1554-1570.
[30]	LIU Z C, DING L, ZHANG L Y, et al. Sequence and petrogenesis of the Jurassic volcanic rocks(Yeba Formation) in the Gangdese arc, southern Tibet: implications for the Neo-Tethyan subduction[J]. Lithos, 2018, 312/313:72-88. DOI URL
[31]	苟金. 对拉萨地区叶巴组时代归属的新认识[J]. 西藏地质, 1994, 52:1-6.
[32]	阴家润, 苟金. 拉萨地块叶巴组内中侏罗世双壳类动物群及其古地理意义[J]. 中国区域地质, 1998, 17(2):132-136.
[33]	毛国政, 胡敬仁, 谢尧武. 拉萨地区叶巴组的特征及形成环境[J]. 西藏地质, 2002(1):12-18.
[34]	裴树文. 拉萨地块火山岩系内早—中侏罗世双壳类动物群及其古生物地理[J]. 现代地质, 1999(3):219-297.
[35]	朱弟成, 潘桂棠, 王立全, 等. 西藏冈底斯带侏罗纪岩浆作用的时空分布及构造环境[J]. 地质通报, 2008, 27(4):458-468.
[36]	江宇, 刘明明, 孙春卫, 等. 西藏拉萨达孜侏罗统叶巴组火山角砾凝灰岩中波痕的发现及意义[J]. 西藏大学学报(自然科学版), 2012, 27(5):43-46.
[37]	毛景文, 罗茂澄, 谢桂青, 等. 斑岩铜矿床的基本特征和研究勘查新进展[J]. 地质学报, 2014, 88(12):2153-2175.
[38]	杨志明, 侯增谦, 江迎飞, 等. 西藏驱龙矿区早侏罗世斑岩的Sr-Nd-Pb及锆石Hf同位素研究[J]. 岩石学报, 2011, 27(7):2003-2010.
[39]	董昕, 张泽明. 拉萨地体南部早侏罗世岩浆岩的成因和构造意义[J]. 岩石学报, 2013, 29(6):1933-1948.
[40]	邱检生, 王睿强, 赵姣龙, 等. 冈底斯中段早侏罗世辉长岩-花岗岩杂岩体成因及其对新特提斯构造演化的启示: 以日喀则东嘎岩体为例[J]. 岩石学报, 2015, 31(12):3569-3580.
[41]	CHUANG S L, CHU M F, JI J, et al. The nature and timing of crustal thickening in southern Tibet: geochemical and zircon Hf isotopic constraints from postcollisional adakites[J]. Tectonophysics, 2009, 477:36-48. DOI URL
[42]	XU Z Q, DILEK Y, CAO H, et al. Paleo Tethyan evolution of Tibet as recorded in the East Cimmerides and West Cathay sides[J]. Journal of Asian Earth Sciences, 2015, 105:320-337. DOI URL
[43]	董国臣, 莫宣学, 赵志丹, 等. 冈底斯岩浆带中段岩浆混合作用: 来自花岗杂岩的证据[J]. 岩石学报, 2006, 22(4):835-844.
[44]	ZHU D C, PAN G T, CHUNG S L. SHRIMP zircon age and geochemical constraints on the origin of Lower Jurassic volcanic rocks from the Yeba Formation, southern Gangdese,South Tibet[J]. International Geology Review, 2008, 50(5) : 442-471. DOI URL
[45]	ZHU D C, ZHAO Z D, PAN G T, et al. Early Cretaceous subduction-related adakite-like rocks of the Gangdese Belt, southern Tibet: products of slab melting and subsequent melt-peridotite interaction?[J]. Journal of Asian Earth Sciences, 2009, 34(3):298-309. DOI URL
[46]	HE S, KAPP P, DECELLES P G, et al. Cretaceous-Tertiary geology of the Gangdese Arc in the Linzhou area, southern Tibet[J]. Tectonophysics, 2014, 433(1):15-37. DOI URL
[47]	HUANG F, ZHANG Z, XU J F, et al. Fluid flux in the lithosphere beneath southern Tibet during Neo-Tethyan slab breakoff: evidence from an appinite-granite suite[J]. Lithos, 2015, 344:324-338.
[48]	张彦, 陈文, 陈克龙, 等. 成岩混层(I/S)Ar-Ar年龄谱型及³⁹Ar核反冲丢失机理研究: 以浙江长兴地区P-T界线粘土岩为例[J]. 地质论评, 2006, 52(4):556-561.
[49]	DUTTA D, MUKHERJEE S. Opposite shear senses: geneses, global occurrences, numerical simulations and a case study from the Indian western Himalaya[J]. Journal of Structural Geology, 2019, 126:357-392. DOI URL
[50]	高曦. 西藏甲玛地区构造变形及其控矿规律研究[D]. 北京: 中国地质大学(北京), 2019: 1-157.
[51]	WEN D R, CHUNG S L, SONG B, et al. Late Cretaceous Gangdese intrusions of adakitic geochemical characteristics, SE Tibet: petrogenesis and tectonic implications[J]. Lithos, 2008, 105(1/2):1-11. DOI URL
[52]	FRISCH W, MESCHEDE M, BLAKEY R. Plate tectonics[M]. Berlin, Heidelberg: Springer, 2011: 1-212.
[53]	YIN A. Cenozoic tectonic evolution of the Himalayan orogen as constrained by along-strike variation of structural geometry, exhumation history, and foreland sedimentation[J]. Earth-Science Reviews, 2006, 76:1-131. DOI URL
[54]	丁林, 岳雅慧, 蔡福龙, 等. 西藏拉萨地块高镁超钾质火山岩及对南北向裂谷形成时间和切割深度的制约[J]. 地质学报, 2006, 80:1252-1261.
[55]	蒋光武, 郭建慈. 西藏谢通门—拉萨—沃卡韧脆性剪切带特征及其地质意义[J]. 西藏地质, 2002(2):64-70.
[56]	孟元库, 许志琴, 马士委, 等. 藏南冈底斯地体谢通门—曲水韧性剪切带⁴⁰Ar/³⁹Ar年代学约束[J]. 地质论评, 2017, 62(4):795-806.
[57]	FENG Y P, WANG G H, MENG Y, et al. Kinematics, strain patterns, rheology, and geochronology of Woka ductile shear zone: product of uplift of Gangdese batholith and Great Counter Thrust activity[J]. Geological Journal, 2020, 55:7251-7271. DOI URL
[58]	LI G W, KOHN B, SANDIFORD M, et al. Synorogenic morphotectonic evolution of the Gangdese batholith, South Tibet: insights from low-temperature thermochronology[J]. Geochemistry, Geophysics, Geosystems, 2016, 17(1):101-112 DOI URL
[59]	孟元库, 许志琴. 藏南冈底斯地体中段南缘构造演化[J]. 地球学报, 2017, 38(1):15-18.
[60]	KHANAL G P, WANG J M, LARSON K P, et al. Eocene metamorphism and anatexis in the Kathmandu klippe, central Nepal: implications for early crustal thickening and initial rise of the Himalaya[J]. Tectonics, 2021, 40:1-25.
[61]	CHEN M, NIU F, TROMP J, et al. Lithospheric foundering and underthrusting imaged beneath Tibet[J]. Nature Communications, 2017, 8:1-10. DOI URL

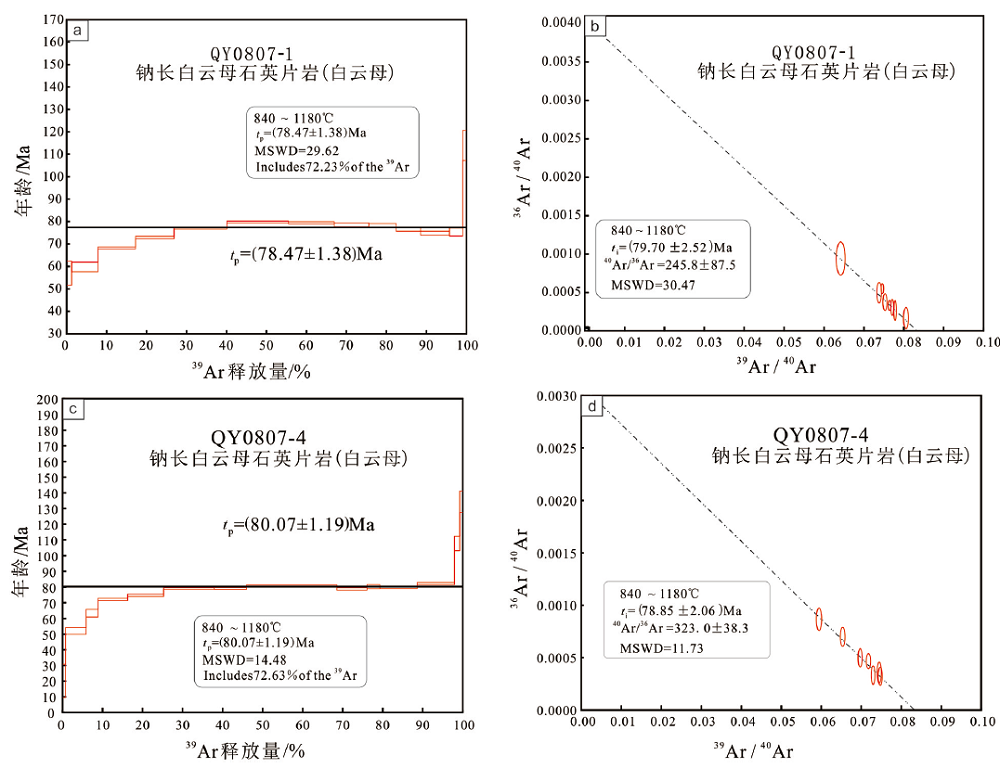

T/℃	⁴⁰Ar/³⁹Ar	1σ	³⁷Ar/³⁹Ar	1σ	³⁶Ar/³⁹Ar	1σ	⁴⁰Ar^*/³⁹Ar_K±2σ	(Age± 2σ)/Ma
QY0807-1
650	47.875 9	0.098 9	0.000 0	0.036 5	0.133 2	0.001 4	8.525 9±0.82	56.98±5.38
720	32.631 2	0.052 4	0.037 7	0.005 2	0.080 1	0.000 6	8.953 6±0.33	59.79±2.16
760	12.105 4	0.019 6	0.026 2	0.004 0	0.006 3	0.000 1	10.253 2±0.07	68.31±0.48
800	12.077 8	0.019 7	0.005 6	0.003 5	0.003 8	0.000 1	10.962 2±0.08	72.94±0.55
840	12.462 5	0.020 1	0.004 8	0.002 1	0.002 9	0.000 1	11.600 4±0.07	77.09±0.44
880	12.908 0	0.021 1	0.014 5	0.001 9	0.003 0	0.000 1	12.025 4±0.06	79.86±0.36
920	12.985 2	0.021 0	0.007 7	0.002 8	0.003 4	0.000 1	11.971 5±0.07	79.51±0.49
960	13.082 5	0.021 6	0.000 0	0.005 7	0.004 2	0.000 2	11.837 2±0.13	78.63±0.81
1 010	13.285 7	0.021 7	0.000 0	0.004 4	0.005 1	0.000 2	11.783 6±0.13	78.28±0.86
1 060	13.529 4	0.022 9	0.000 0	0.005 7	0.006 8	0.000 2	11.532 0±0.14	76.65±0.91
1 120	13.416 2	0.022 0	0.000 0	0.005 5	0.007 3	0.000 2	11.249 4±0.14	74.81±0.92
1 180	15.543 8	0.026 7	0.000 0	0.005 1	0.014 2	0.000 5	11.340 5±0.28	75.40±1.80
1 400	74.011 0	0.161 5	0.082 7	0.028 8	0.191 8	0.001 8	17.328 8±1.05	113.98±6.70
T/℃	⁴⁰Ar/³⁹Ar	1σ	³⁷Ar/³⁹Ar	1σ	³⁶Ar/³⁹Ar	1σ	⁴⁰Ar^*/³⁹Ar_K±2σ	(Age± 2σ)/Ma
QY0807-4
600	102.673 1	0.303 8	0.000 0	0.035 7	0.337 2	0.002 9	3.028 8±1.61	20.24±10.70
680	21.169 5	0.035 1	0.006 9	0.007 4	0.045 1	0.000 5	7.856 0±0.32	52.03±2.07
720	32.079 7	0.054 3	0.000 0	0.012 3	0.076 1	0.000 7	9.599 6±0.38	63.37±2.46
760	15.509 9	0.025 1	0.000 0	0.004 0	0.015 4	0.000 2	10.956 8±0.13	72.16±0.81
800	13.057 1	0.021 0	0.019 7	0.004 2	0.005 7	0.000 2	11.362 4±0.12	74.77±0.75
840	13.417 1	0.021 6	0.000 0	0.002 0	0.004 6	0.000 1	12.043 0±0.08	79.16±0.52
880	13.375 6	0.022 0	0.000 0	0.004 4	0.004 5	0.000 2	12.044 9±0.10	79.17±0.65
920	13.717 8	0.022 0	0.000 9	0.001 5	0.004 7	0.000 1	12.318 1±0.07	80.92±0.45
960	13.928 1	0.022 5	0.000 0	0.005 3	0.006 6	0.000 2	11.990 6±0.13	78.82±0.81
1 020	14.341 9	0.024 5	0.000 0	0.012 4	0.007 2	0.000 3	12.217 3±0.21	80.28±1.35
1 100	15.310 1	0.025 1	0.000 3	0.003 1	0.010 8	0.000 1	12.110 3±0.09	79.59±0.59
1 180	16.814 2	0.027 3	0.008 0	0.003 5	0.014 5	0.000 2	12.520 3±0.11	82.22±0.68
1 260	29.340 9	0.061 4	0.000 0	0.032 9	0.043 3	0.001 2	16.539 7±0.72	107.84±4.57
1 400	57.797 3	0.181 3	0.000 0	0.058 4	0.125 3	0.001 9	20.763 2±1.10	134.38±6.84

T/℃	⁴⁰Ar/³⁹Ar	1σ	³⁷Ar/³⁹Ar	1σ	³⁶Ar/³⁹Ar	1σ	⁴⁰Ar^*/³⁹Ar_K±2σ	(Age± 2σ)/Ma
QY0807-1
650	47.875 9	0.098 9	0.000 0	0.036 5	0.133 2	0.001 4	8.525 9±0.82	56.98±5.38
720	32.631 2	0.052 4	0.037 7	0.005 2	0.080 1	0.000 6	8.953 6±0.33	59.79±2.16
760	12.105 4	0.019 6	0.026 2	0.004 0	0.006 3	0.000 1	10.253 2±0.07	68.31±0.48
800	12.077 8	0.019 7	0.005 6	0.003 5	0.003 8	0.000 1	10.962 2±0.08	72.94±0.55
840	12.462 5	0.020 1	0.004 8	0.002 1	0.002 9	0.000 1	11.600 4±0.07	77.09±0.44
880	12.908 0	0.021 1	0.014 5	0.001 9	0.003 0	0.000 1	12.025 4±0.06	79.86±0.36
920	12.985 2	0.021 0	0.007 7	0.002 8	0.003 4	0.000 1	11.971 5±0.07	79.51±0.49
960	13.082 5	0.021 6	0.000 0	0.005 7	0.004 2	0.000 2	11.837 2±0.13	78.63±0.81
1 010	13.285 7	0.021 7	0.000 0	0.004 4	0.005 1	0.000 2	11.783 6±0.13	78.28±0.86
1 060	13.529 4	0.022 9	0.000 0	0.005 7	0.006 8	0.000 2	11.532 0±0.14	76.65±0.91
1 120	13.416 2	0.022 0	0.000 0	0.005 5	0.007 3	0.000 2	11.249 4±0.14	74.81±0.92
1 180	15.543 8	0.026 7	0.000 0	0.005 1	0.014 2	0.000 5	11.340 5±0.28	75.40±1.80
1 400	74.011 0	0.161 5	0.082 7	0.028 8	0.191 8	0.001 8	17.328 8±1.05	113.98±6.70
T/℃	⁴⁰Ar/³⁹Ar	1σ	³⁷Ar/³⁹Ar	1σ	³⁶Ar/³⁹Ar	1σ	⁴⁰Ar^*/³⁹Ar_K±2σ	(Age± 2σ)/Ma
QY0807-4
600	102.673 1	0.303 8	0.000 0	0.035 7	0.337 2	0.002 9	3.028 8±1.61	20.24±10.70
680	21.169 5	0.035 1	0.006 9	0.007 4	0.045 1	0.000 5	7.856 0±0.32	52.03±2.07
720	32.079 7	0.054 3	0.000 0	0.012 3	0.076 1	0.000 7	9.599 6±0.38	63.37±2.46
760	15.509 9	0.025 1	0.000 0	0.004 0	0.015 4	0.000 2	10.956 8±0.13	72.16±0.81
800	13.057 1	0.021 0	0.019 7	0.004 2	0.005 7	0.000 2	11.362 4±0.12	74.77±0.75
840	13.417 1	0.021 6	0.000 0	0.002 0	0.004 6	0.000 1	12.043 0±0.08	79.16±0.52
880	13.375 6	0.022 0	0.000 0	0.004 4	0.004 5	0.000 2	12.044 9±0.10	79.17±0.65
920	13.717 8	0.022 0	0.000 9	0.001 5	0.004 7	0.000 1	12.318 1±0.07	80.92±0.45
960	13.928 1	0.022 5	0.000 0	0.005 3	0.006 6	0.000 2	11.990 6±0.13	78.82±0.81
1 020	14.341 9	0.024 5	0.000 0	0.012 4	0.007 2	0.000 3	12.217 3±0.21	80.28±1.35
1 100	15.310 1	0.025 1	0.000 3	0.003 1	0.010 8	0.000 1	12.110 3±0.09	79.59±0.59
1 180	16.814 2	0.027 3	0.008 0	0.003 5	0.014 5	0.000 2	12.520 3±0.11	82.22±0.68
1 260	29.340 9	0.061 4	0.000 0	0.032 9	0.043 3	0.001 2	16.539 7±0.72	107.84±4.57
1 400	57.797 3	0.181 3	0.000 0	0.058 4	0.125 3	0.001 9	20.763 2±1.10	134.38±6.84
