Confirmation and metallogenesis of the Neoproterozoic rift in the western section of the northern margin of the North China Craton

doi:10.13745/j.esf.sf.2020.3.30

Abstract

Abstract:

The Langshan-Zha'ertaishan metallogenic belt, consisting of the Tanyaokou, Huogeqi, Dongshengmiao and Jiashengpan large-superlarge Zn-Pb-Cu-Fe sulphide deposits hosted in the Proterozoic Zha'ertaishan Group, is an important hydrothermal mineralization belt of the Proterozoic passive continental margin in an extensional structural regime in the western section of the northern margin of the North China Craton. Most areas of the mineralization belt distribute in the Langshan Mountain district. Three of the four typical deposits, the Huogeqi, Dongshengmiao and Tanyaokou deposits, occur in this region. It becomes an important scientific issue whether all the Mesoproterozoic Zha'ertaishan Group in the Langshan Mountain's core area and the three deposits hosted in the Zha'ertanshan Group be re-classified as the Neoproterozoic, after the 2010 discovery of acidic volcanic rocks with zircon ages of 816-805 Ma in the southwestern Langshan Mountain. Evidence includes (1) the minimum detrital zircon age of 1155 Ma for the meta-sedimentary rocks of the Precambrian strata with calcite marble from southern Langshan Mountain, (2) the detrital zircon age peaks at 1862-1762 (youngest age 1732 Ma) and 2448 Ma for the Liuhongwan Formation of the Zha'ertaishan Group with dolomate marble in the Tanyaokou district, (3) the occurrence of Neoproterozoic (887.4±9.1 Ma) meta-mafic volcanic rocks in the host formation of the Langshan Group in the north side of the Langshan Mountain, and (4) the “interbedding” of siliceous bands containing barite and microcrystal feldspar with pyrites, sometimes sphalerites and pyrrhotite and galena, with δ³⁴S values of these four sulfide minerals varying between 17.60‰ and 21.97‰ and showing the characteristics of hydrothermal exhalation. Based on the evidence, we suggest the following: (1) the Zha'ertaishan Group hosting dolomite marble in the Tanyaokou district, and the Precambrian strata (formerly called the Zha'ertaishan Group) hosting acidic volcanic rocks and calcite marbles in southwest Langshan, were deposited in two different rift basins; (2) the Mesoproterozoic rifts and hydrothermal metallogenic systems in the south side of the Langshan Mountain developed the Tanyaokou and Dongshengmiao deposits in the Mesoproterozoic Zha'ertaishan Group; and (3) the Neoproterozoic rift and hydrothermal metallogenic system in the north side of the Langshan Mountain developed the Huogeqi orefield in the Neoproterozoic Langshan Group. The Huogeqi deposit hosted in the Neoproterozoic Langshan Group obviously appears to be a transitional type of mineral deposits between the SEDEX and VMS types with a bias towards SEDEX type.

Key words: Mesoproterozoic rift, Neoproterozoic rift, the western section of the northern margin of the North China Craton, Langshan, Inner Mongolia

CLC Number:

PENG Runmin, WANG Jianping. Confirmation and metallogenesis of the Neoproterozoic rift in the western section of the northern margin of the North China Craton[J]. Earth Science Frontiers, 2020, 27(2): 420-441.

Figures/Tables 20

Fig.1 (a) Tectonic sketch map and (b) distribution of typical deposits in the western section of the northern margin of the North China Craton

Fig.2 Integrated stratigraphic column of the Tanyaokou district, Langshan, Inner Mongolia

Fig.3 (a) Field outcrop of quartzite with meta-bedding and (b) micrograph of quartzite sample 17T3 from the Liuhongwan Formation of the Zha'ertaishan Group in the Tanyaokou district

Fig.4 Cathodoluminescence images of detrital zircon grains from the Liuhongwan Formation of the Zha'ertaishan Group in the Tanyaokou deposit

Table 1 LA-ICP-MS zircon U-Pb dating results of quartzite from Liuhongwan Formation of Zha'ertaishan Group in the Tanyaokou deposit,Langshan,Inner Mongolia

测点	w_B/10^-6		Th/U	同位素比值及误差						同位素年龄及误差/Ma						不谐和度 /%
测点	Th	U	Th/U	$207 Pb 206 Pb$	1σ	$207 Pb 235 U$	1σ	$206 Pb 238 U$	1σ	$207 Pb 206 Pb$	1σ	$207 Pb 235 U$	1σ	$206 Pb 238 U$	1σ	不谐和度 /%
A01	97	178	0.55	0.159 2	0.003 1	10.445 9	0.113 2	0.475 8	0.005 3	2 447	32	2 475	10	2 509	23	3
A02	108	152	0.71	0.163 5	0.003 2	10.906 7	0.118 5	0.483 5	0.005 4	2 493	32	2 515	10	2 543	23	2
A03	79	168	0.47	0.109 5	0.002 1	5.356 0	0.060 0	0.354 7	0.003 9	1 791	35	1 878	10	1 957	19	9
A04	104	104	1.01	0.121 0	0.002 4	6.522 3	0.073 2	0.390 8	0.004 4	1 971	35	2 049	10	2 126	20	8
A05	33	120	0.28	0.115 7	0.002 3	5.813 0	0.065 0	0.364 3	0.004 0	1 891	35	1 948	10	2 003	19	6
A06	141	300	0.47	0.107 7	0.002 1	4.801 8	0.052 2	0.323 4	0.003 6	1 760	35	1 785	9	1 807	17	3
A07	114	405	0.28	0.107 3	0.002 1	5.203 9	0.055 4	0.351 8	0.003 9	1 753	35	1 853	9	1 943	18	11
A08	159	348	0.46	0.114 3	0.002 2	6.068 2	0.064 5	0.385 1	0.004 2	1 868	34	1 986	9	2 100	20	12
A09	35	106	0.33	0.106 5	0.002 1	4.943 3	0.056 6	0.336 8	0.003 8	1 740	36	1 810	10	1 871	18	8
A10	219	246	0.89	0.108 1	0.002 1	4.869 1	0.052 7	0.326 8	0.003 6	1 767	35	1 797	9	1 823	17	3
A11	202	241	0.84	0.106 9	0.002 1	5.204 4	0.055 9	0.353 1	0.003 9	1 748	35	1 853	9	1 949	18	12
A12	57	116	0.49	0.162 6	0.003 1	9.825 3	0.106 7	0.438 4	0.004 8	2 483	32	2 419	10	2 343	22	-6
A13	47	333	0.14	0.152 9	0.002 9	9.646 3	0.101 1	0.457 6	0.005 0	2 379	32	2 402	10	2 429	22	2
A14	46	110	0.42	0.166 6	0.003 2	11.364 9	0.123 9	0.494 8	0.005 5	2 524	32	2 554	10	2 592	24	3
A15	109	975	0.11	0.106 7	0.002 0	4.865 1	0.051 1	0.330 8	0.003 6	1 744	35	1 796	9	1 842	17	6
A16	318	224	1.42	0.151 8	0.002 9	8.915 8	0.094 1	0.426 1	0.004 7	2 366	32	2 329	10	2 288	21	-3
A17	111	110	1.02	0.156 7	0.003 0	10.250 7	0.110 3	0.474 7	0.005 2	2 420	32	2 458	10	2 504	23	3
A18	357	259	1.38	0.106 7	0.002 0	5.226 4	0.055 4	0.355 3	0.003 9	1 744	35	1 857	9	1 960	18	12
A19	61	83	0.74	0.106 0	0.002 1	5.028 5	0.056 8	0.344 1	0.003 8	1 732	35	1 824	10	1 907	18	10
A20	154	496	0.31	0.107 1	0.002 0	5.150 7	0.053 5	0.348 8	0.003 8	1 751	34	1 845	9	1 929	18	10
A21	135	205	0.66	0.107 5	0.002 1	5.063 2	0.053 8	0.341 8	0.003 7	1 757	35	1 830	9	1 895	18	8
A22	56	98	0.57	0.126 6	0.002 4	6.981 7	0.075 9	0.400 0	0.004 4	2 052	34	2 109	10	2 169	20	6
A23	49	1 084	0.04	0.103 7	0.002 0	3.718 5	0.038 2	0.260 0	0.002 8	1 692	34	1 575	8	1 490	14	-12
A24	410	524	0.78	0.150 0	0.002 8	8.953 3	0.091 9	0.433 0	0.004 7	2 346	32	2 333	9	2 319	21	-1
A25	42	252	0.17	0.107 1	0.002 0	5.091 7	0.053 3	0.344 8	0.003 7	1 751	34	1 835	9	1 910	18	9
C1	271	644	0.42	0.112 5	0.002 2	5.577 3	0.060 0	0.359 4	0.003 9	1 841	35	1 913	9	1 979	19	8
C2	234	465	0.50	0.108 9	0.002 1	5.157 1	0.055 8	0.343 6	0.003 8	1 780	35	1 846	9	1 904	18	7
C3	267	952	0.28	0.109 6	0.002 2	5.156 5	0.055 4	0.341 2	0.003 7	1 793	35	1 846	9	1 892	18	6
C4	374	278	1.34	0.161 0	0.003 2	10.398 0	0.112 8	0.468 2	0.005 1	2 467	33	2 471	10	2 476	23	0
C5	61	726	0.08	0.109 8	0.002 2	5.274 1	0.056 9	0.348 3	0.003 8	1 796	35	1 865	9	1 926	18	7
C6	698	840	0.83	0.108 4	0.002 1	4.739 0	0.051 1	0.317 0	0.003 5	1 773	35	1 774	9	1 775	17	0
C7	165	862	0.19	0.156 8	0.003 1	10.503 9	0.112 8	0.485 8	0.005 3	2 421	33	2 480	10	2 553	23	5
C8	230	639	0.36	0.114 8	0.002 3	5.762 7	0.062 5	0.363 9	0.004 0	1 877	35	1 941	9	2 001	19	7
C9	117	633	0.18	0.114 8	0.002 3	5.798 5	0.062 9	0.366 4	0.004 0	1 876	35	1 946	9	2 012	19	7
C10	245	597	0.41	0.110 9	0.002 2	5.358 8	0.058 3	0.350 4	0.003 8	1 814	35	1 878	9	1 937	18	7
C11	98	572	0.17	0.113 7	0.002 3	5.415 4	0.059 0	0.345 5	0.003 8	1 859	35	1 887	9	1 913	18	3
C12	61	212	0.29	0.110 5	0.002 2	5.386 8	0.060 5	0.353 4	0.003 9	1 808	36	1 883	10	1 951	19	8
C13	61	362	0.17	0.111 9	0.002 2	5.548 4	0.061 0	0.359 7	0.003 9	1 830	36	1 908	9	1 981	19	8
C14	174	381	0.46	0.112 2	0.002 2	5.418 5	0.059 7	0.350 4	0.003 8	1 835	36	1 888	9	1 936	18	6
C15	227	516	0.44	0.110 7	0.002 2	5.163 4	0.056 6	0.338 3	0.003 7	1 811	36	1 847	9	1 879	18	4
C16	78	121	0.64	0.115 9	0.002 3	5.610 2	0.064 5	0.351 1	0.003 9	1 894	36	1 918	10	1 940	19	2
C17	217	545	0.40	0.111 3	0.002 2	5.447 5	0.059 8	0.355 0	0.003 9	1 820	36	1 892	9	1 959	19	8
C18	189	358	0.53	0.111 0	0.002 2	5.372 6	0.059 6	0.350 9	0.003 9	1 816	36	1 881	9	1 939	18	7
C19	103	620	0.17	0.110 9	0.002 2	5.221 0	0.057 3	0.341 5	0.003 7	1 814	36	1 856	9	1 894	18	4
C20	129	691	0.19	0.108 3	0.002 1	5.320 1	0.058 0	0.356 2	0.003 9	1 770	35	1 872	9	1 964	19	11
C21	94	358	0.26	0.111 4	0.002 2	5.360 1	0.058 3	0.348 8	0.003 9	1 822	35	1 879	9	1 929	18	6
C22	439	457	0.96	0.157 9	0.003 1	10.136 0	0.111 0	0.465 5	0.005 2	2 433	33	2 447	10	2 464	23	1
C23	347	456	0.76	0.156 9	0.003 0	10.062 3	0.108 5	0.464 9	0.005 1	2 422	33	2 441	10	2 461	23	2
C24	257	706	0.36	0.108 5	0.002 1	5.186 6	0.055 6	0.346 4	0.003 8	1 775	35	1 850	9	1 918	18	8
C25	174	600	0.29	0.107 9	0.002 1	5.378 2	0.057 8	0.361 5	0.004 0	1 764	35	1 881	9	1 989	19	13

Table 1 LA-ICP-MS zircon U-Pb dating results of quartzite from Liuhongwan Formation of Zha'ertaishan Group in the Tanyaokou deposit,Langshan,Inner Mongolia

测点	w_B/10^-6		Th/U	同位素比值及误差						同位素年龄及误差/Ma						不谐和度 /%
测点	Th	U	Th/U	$207 Pb 206 Pb$	1σ	$207 Pb 235 U$	1σ	$206 Pb 238 U$	1σ	$207 Pb 206 Pb$	1σ	$207 Pb 235 U$	1σ	$206 Pb 238 U$	1σ	不谐和度 /%
A01	97	178	0.55	0.159 2	0.003 1	10.445 9	0.113 2	0.475 8	0.005 3	2 447	32	2 475	10	2 509	23	3
A02	108	152	0.71	0.163 5	0.003 2	10.906 7	0.118 5	0.483 5	0.005 4	2 493	32	2 515	10	2 543	23	2
A03	79	168	0.47	0.109 5	0.002 1	5.356 0	0.060 0	0.354 7	0.003 9	1 791	35	1 878	10	1 957	19	9
A04	104	104	1.01	0.121 0	0.002 4	6.522 3	0.073 2	0.390 8	0.004 4	1 971	35	2 049	10	2 126	20	8
A05	33	120	0.28	0.115 7	0.002 3	5.813 0	0.065 0	0.364 3	0.004 0	1 891	35	1 948	10	2 003	19	6
A06	141	300	0.47	0.107 7	0.002 1	4.801 8	0.052 2	0.323 4	0.003 6	1 760	35	1 785	9	1 807	17	3
A07	114	405	0.28	0.107 3	0.002 1	5.203 9	0.055 4	0.351 8	0.003 9	1 753	35	1 853	9	1 943	18	11
A08	159	348	0.46	0.114 3	0.002 2	6.068 2	0.064 5	0.385 1	0.004 2	1 868	34	1 986	9	2 100	20	12
A09	35	106	0.33	0.106 5	0.002 1	4.943 3	0.056 6	0.336 8	0.003 8	1 740	36	1 810	10	1 871	18	8
A10	219	246	0.89	0.108 1	0.002 1	4.869 1	0.052 7	0.326 8	0.003 6	1 767	35	1 797	9	1 823	17	3
A11	202	241	0.84	0.106 9	0.002 1	5.204 4	0.055 9	0.353 1	0.003 9	1 748	35	1 853	9	1 949	18	12
A12	57	116	0.49	0.162 6	0.003 1	9.825 3	0.106 7	0.438 4	0.004 8	2 483	32	2 419	10	2 343	22	-6
A13	47	333	0.14	0.152 9	0.002 9	9.646 3	0.101 1	0.457 6	0.005 0	2 379	32	2 402	10	2 429	22	2
A14	46	110	0.42	0.166 6	0.003 2	11.364 9	0.123 9	0.494 8	0.005 5	2 524	32	2 554	10	2 592	24	3
A15	109	975	0.11	0.106 7	0.002 0	4.865 1	0.051 1	0.330 8	0.003 6	1 744	35	1 796	9	1 842	17	6
A16	318	224	1.42	0.151 8	0.002 9	8.915 8	0.094 1	0.426 1	0.004 7	2 366	32	2 329	10	2 288	21	-3
A17	111	110	1.02	0.156 7	0.003 0	10.250 7	0.110 3	0.474 7	0.005 2	2 420	32	2 458	10	2 504	23	3
A18	357	259	1.38	0.106 7	0.002 0	5.226 4	0.055 4	0.355 3	0.003 9	1 744	35	1 857	9	1 960	18	12
A19	61	83	0.74	0.106 0	0.002 1	5.028 5	0.056 8	0.344 1	0.003 8	1 732	35	1 824	10	1 907	18	10
A20	154	496	0.31	0.107 1	0.002 0	5.150 7	0.053 5	0.348 8	0.003 8	1 751	34	1 845	9	1 929	18	10
A21	135	205	0.66	0.107 5	0.002 1	5.063 2	0.053 8	0.341 8	0.003 7	1 757	35	1 830	9	1 895	18	8
A22	56	98	0.57	0.126 6	0.002 4	6.981 7	0.075 9	0.400 0	0.004 4	2 052	34	2 109	10	2 169	20	6
A23	49	1 084	0.04	0.103 7	0.002 0	3.718 5	0.038 2	0.260 0	0.002 8	1 692	34	1 575	8	1 490	14	-12
A24	410	524	0.78	0.150 0	0.002 8	8.953 3	0.091 9	0.433 0	0.004 7	2 346	32	2 333	9	2 319	21	-1
A25	42	252	0.17	0.107 1	0.002 0	5.091 7	0.053 3	0.344 8	0.003 7	1 751	34	1 835	9	1 910	18	9
C1	271	644	0.42	0.112 5	0.002 2	5.577 3	0.060 0	0.359 4	0.003 9	1 841	35	1 913	9	1 979	19	8
C2	234	465	0.50	0.108 9	0.002 1	5.157 1	0.055 8	0.343 6	0.003 8	1 780	35	1 846	9	1 904	18	7
C3	267	952	0.28	0.109 6	0.002 2	5.156 5	0.055 4	0.341 2	0.003 7	1 793	35	1 846	9	1 892	18	6
C4	374	278	1.34	0.161 0	0.003 2	10.398 0	0.112 8	0.468 2	0.005 1	2 467	33	2 471	10	2 476	23	0
C5	61	726	0.08	0.109 8	0.002 2	5.274 1	0.056 9	0.348 3	0.003 8	1 796	35	1 865	9	1 926	18	7
C6	698	840	0.83	0.108 4	0.002 1	4.739 0	0.051 1	0.317 0	0.003 5	1 773	35	1 774	9	1 775	17	0
C7	165	862	0.19	0.156 8	0.003 1	10.503 9	0.112 8	0.485 8	0.005 3	2 421	33	2 480	10	2 553	23	5
C8	230	639	0.36	0.114 8	0.002 3	5.762 7	0.062 5	0.363 9	0.004 0	1 877	35	1 941	9	2 001	19	7
C9	117	633	0.18	0.114 8	0.002 3	5.798 5	0.062 9	0.366 4	0.004 0	1 876	35	1 946	9	2 012	19	7
C10	245	597	0.41	0.110 9	0.002 2	5.358 8	0.058 3	0.350 4	0.003 8	1 814	35	1 878	9	1 937	18	7
C11	98	572	0.17	0.113 7	0.002 3	5.415 4	0.059 0	0.345 5	0.003 8	1 859	35	1 887	9	1 913	18	3
C12	61	212	0.29	0.110 5	0.002 2	5.386 8	0.060 5	0.353 4	0.003 9	1 808	36	1 883	10	1 951	19	8
C13	61	362	0.17	0.111 9	0.002 2	5.548 4	0.061 0	0.359 7	0.003 9	1 830	36	1 908	9	1 981	19	8
C14	174	381	0.46	0.112 2	0.002 2	5.418 5	0.059 7	0.350 4	0.003 8	1 835	36	1 888	9	1 936	18	6
C15	227	516	0.44	0.110 7	0.002 2	5.163 4	0.056 6	0.338 3	0.003 7	1 811	36	1 847	9	1 879	18	4
C16	78	121	0.64	0.115 9	0.002 3	5.610 2	0.064 5	0.351 1	0.003 9	1 894	36	1 918	10	1 940	19	2
C17	217	545	0.40	0.111 3	0.002 2	5.447 5	0.059 8	0.355 0	0.003 9	1 820	36	1 892	9	1 959	19	8
C18	189	358	0.53	0.111 0	0.002 2	5.372 6	0.059 6	0.350 9	0.003 9	1 816	36	1 881	9	1 939	18	7
C19	103	620	0.17	0.110 9	0.002 2	5.221 0	0.057 3	0.341 5	0.003 7	1 814	36	1 856	9	1 894	18	4
C20	129	691	0.19	0.108 3	0.002 1	5.320 1	0.058 0	0.356 2	0.003 9	1 770	35	1 872	9	1 964	19	11
C21	94	358	0.26	0.111 4	0.002 2	5.360 1	0.058 3	0.348 8	0.003 9	1 822	35	1 879	9	1 929	18	6
C22	439	457	0.96	0.157 9	0.003 1	10.136 0	0.111 0	0.465 5	0.005 2	2 433	33	2 447	10	2 464	23	1
C23	347	456	0.76	0.156 9	0.003 0	10.062 3	0.108 5	0.464 9	0.005 1	2 422	33	2 441	10	2 461	23	2
C24	257	706	0.36	0.108 5	0.002 1	5.186 6	0.055 6	0.346 4	0.003 8	1 775	35	1 850	9	1 918	18	8
C25	174	600	0.29	0.107 9	0.002 1	5.378 2	0.057 8	0.361 5	0.004 0	1 764	35	1 881	9	1 989	19	13

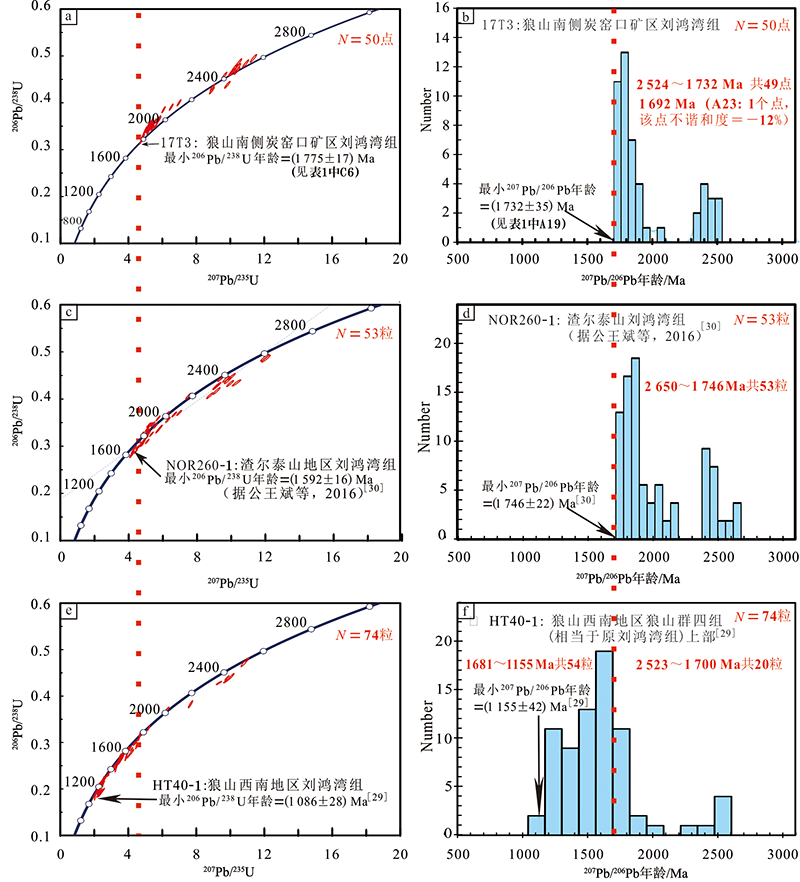

Fig.5 Comparison of detrital zircon U-Pb age patterns among the Liuhongwan Formations in the Tanyaokou, Zha'ertaishan (adapted from [30]) and southwestern Langshan (adapted from [29]) districts

Fig.6 Photographs(a,b) and micrograph(c) of drill core of the dolomite marble in Tanyaokou district, and outcrop(d) and micrograph(e) of the calcite marble in the southwest area of the Langshan, Inner Mongolia

Table 2 Major element compositions for the calcite marble in the southwest of Langshan

序号	w_B/%
序号	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	FeO	MnO	MgO	CaO	Na₂O	K₂O		P₂O₅	CO₂	烧失量	合计
1	4.39	0.06	1.41	0.64	0.26	0.23	1.6	49.54	0.36	0.33		0.06	40.44	0.13	99.45

Fig.7 Integrated stratigraphic column of the Huogeqi orefield, Langshan, Inner Mongolia

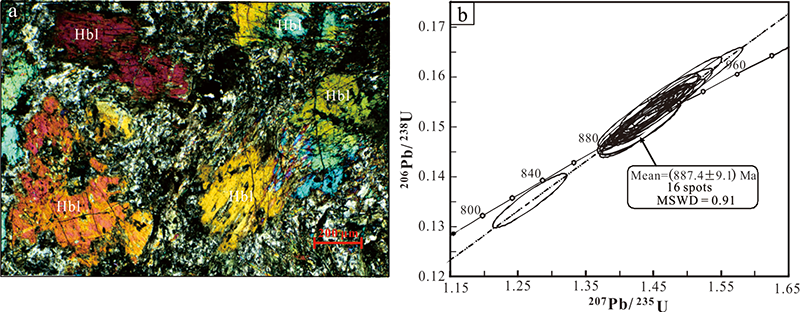

Fig.8 (a) Photomicrographs of meta-mafic volcanic rocks and (b) concordia plots of U-Pb isotopic data for zircons (adapted from [51]) from the Huogeqi orefield

Fig.9 Distribution patterns of Meso-Neoproterozoic sedimentary basins and tectonics in the Langshan-Zha'ertaishan area. Modified from [53].

Fig.10 Geological map of the Huogeqi orefield. Modified from [54].

Fig.11 Cross section of prospecting Line 13 in the No.1 deposit in the Huogeqi orefield (see Fig.10 for location). Modified from [54].

Fig.12 Polished thin section (A) and photomicrographs (B-E) of Cu ore in the Huogeqi orefield.Photomicrographs A: laminated structure of Cu ore; B&D: under reflected polarized light; C: under cross polarized light; E: under plane-polarized light. Ccp-chalcopyrite.

Table 3 Major element compositions for the siliceous bands with barite and microcrystal feldspar in the Huogeqi orefield

序号	w_B/%
序号	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	MnO	MgO	CaO	BaO	Na₂O	K₂O	P₂O₅	烧失量	合计
Ⅰ	51.99	1.36	24.4	1.59	0.043	1.42	3.38	0.10	0.452	10.74	0.789	3.28	99.53
Ⅱ	51.58	1.22	22.64	2.33	0.111	1.53	5.05	0.15	0.526	9.26	0.255	3.94	98.59
Ⅲ	48.31	1.7	11.86	2.62	<0.004	0.313	3.34	15.13	0.17	0.37	1.52	2.78	88.84
Ⅳ	50.89	1.9	12.37	1.7	<0.004	0.236	0.95	26.16	0.16	0.38	0.4001	1.51	97.07

Fig.13 Photographs of hand specimens (A) and photomicrographs under reflected polarized light (B,C) of zinc and lead ore in the Huogeqi ore field. Hand specimens show siliceous rocks interbedded with sphalerite and galena and pyrrhotite. Labels: Sp-sphelarite; Ga-galena; Po-pyrrhotite.

Fig.14 Photographs of polished thin section showing δ34S values and locations of pyrrhotite and sphalerite in the Huogeqi copper-lead-zinc polymetallic deposit

Fig.15 Photographs of polished thin section showing δ34S values and locations of pyrite, sphalerite as well as galena in the Huogeqi copper-lead-zinc polymetallic deposit

Fig.16 Photos of drill core (A), thin polished sections (B,C,D) and fluid inclusions (E,F) of Cu ore in the Huogeqi orefield

Fig.17 Raman spectra of fluid inclusions in the Huogeqi orefield

References 64

[1]	翟明国, 卞爱国. 华北克拉通新太古代末超大陆拼合及古元古代末—中元古代裂解[J]. 中国科学: 地球科学, 2000, 30: 129-137.
[2]	ZHAI M G, BIAN A G, ZHAO T P. The amalgamation of the supercontinent of North China Craton at the end of Neo-Archaean and its breakup during late Palaeoproterozoic and Meso-Proterozoic[J]. Science in China: Series D, 2000, 43(Suppl): 219-232. DOI URL
[3]	翟明国. 华北克拉通2.1~1.7 Ga地质事件群分解和构造意义探讨[J]. 岩石学报, 2004, 20(6): 1343-1354.
[4]	翟明国, 胡波, 彭澎, 等. 华北中—新元古代的岩浆作用与多期裂谷事件[J]. 地学前缘, 2014, 21(1): 100-119.
[5]	ZHAI M G, HU B, ZHAO T P, et al. Late Paleoproterozoic-Neoproterozoic multi-rifting events in the North China Craton and their geological significance: a study advance and review[J]. Tectonophysics, 2015, 662: 153-166. DOI URL
[6]	芮宗瑶, 施林道, 方如恒, 等. 华北陆块北缘及邻区有色金属矿床地质[M]. 北京: 地质出版社, 1994: 1-238.
[7]	翟明国. 华北克拉通的形成演化与成矿作用[J]. 矿床地质, 2010, 29(1): 24-36.
[8]	翟明国, 张连昌, 陈斌, 等. 华北克拉通前武纪重大地质事件与成矿[M]. 北京: 科学出版社, 2018: 1-543.
[9]	翟裕生, 邓军, 汤中立, 等. 古陆边缘成矿系统[M]. 北京: 地质出版社, 2002: 186-210.
[10]	内蒙古自治区地质矿产局. 内蒙古自治区岩石地层[M]. 武汉: 中国地质大学出版社, 1996: 114-156.
[11]	李兆龙, 许文斗, 庞文忠. 内蒙古中部层控多金属矿床硫、碳和氧同位素组成及矿床成因[J]. 地球化学, 1986(1): 13-23.
[12]	施林道, 谢贤俊, 巩正基. 狼山-渣尔泰山中元古代裂陷槽有色金属矿床[M]//芮宗瑶, 施林道, 方如恒. 华北陆块北缘及邻区有色金属矿床地质. 北京: 地质出版社, 1994: 110-139.
[13]	翟裕生, 张湖, 宋鸿林, 等. 大型构造与超大型矿床[M]. 北京: 地质出版社: 1997: 51-96.
[14]	翟裕生. 古大陆边缘构造演化和成矿系统[C]//北京大学地质系. 北京大学国际地质科学学术研讨会论文集. 北京: 地震出版社, 1998: 769-778.
[15]	彭润民, 翟裕生, 王志刚. 内蒙古东升庙、甲生盘中元古代SEDEX型矿床同生断裂活动及其控矿特征[J]. 地球科学: 中国地质大学学报, 2000, 25(4): 404-409.
[16]	PENG R M, ZHAI Y S. Hydrothermal mineralization on the Mesoproterozoic passive continental margins of China: a case study in the Langshan-Zha'ertaishan Belt, Inner Mongolia, China[J]. Acta Geologica Sinica, 2004, 78(2): 534-547. DOI URL
[17]	MACLNTYRE D G. SEDEX-sedimentary-exhalative deposits[M]// MCMILLAN W J, HOY T, MACLNTYRE D G, et al. Ore deposits, tectonics and metallogeny in the Canadian Cordillera. Victoria: Queens Printer for British Columbia, 1992: 25-66.
[18]	FORRESTAL P J. Mount Isa and Hilton silver-lead-zinc deposits[M]// HUGHES F E. Geology of the mineral deposits of Australia and Papua New Guinea (Volume l). Clunies Ross House, Australia: The Australian Institute of Mining and Metallurgy, 1990: 927-934.
[19]	WILLIAMS P J. An introduction to the metallogeny of the McArthur River-Mount Isa-Cloncurry Minerals Province[J]. Economic Geology, 1998, 93: 1120-1131. DOI URL
[20]	PLUMB K A, AHMAD M, WYGRALAK A S. Mid-Proterozoic basins of the North Australian Craton: regional geology and mineralization[M]// HUGHES F E. Geology of the mineral deposits of Australia and Papua New Guinea (Volume 1). Clunies Ross House, Australia: The Australasian Institute of Mining and Metallurgy, 1990: 881-902.
[21]	SANGSTER D F. Sedimentary-exhalative (SEDEX) sulphide deposits[M]// DA GLÓRIA DA SILVA M, MISI A. Base metal deposits of Brazil. [S.l.]: Ernesto von Sperling, 1999: 16-17.
[22]	彭润民, 翟裕生. 内蒙古东升庙矿区狼山群中变质“双峰式”火山岩夹层的确认及其意义[J]. 地球科学: 中国地质大学学报, 1997, 22(6): 589-594.
[23]	彭润民, 翟裕生, 邓军, 等. 内蒙古狼山—渣尔泰山中元古代SEDEX型矿带火山活动与成矿的关系[J]. 地质论评, 1999(增刊1): 1139-1150, 1195.
[24]	彭润民, 翟裕生, 王志刚, 等. 内蒙古狼山炭窑口热水喷流沉积矿床钾质“双峰式”火山岩层的发现及其示踪意义[J]. 中国科学, 2004, 34(12): 1135-1144.
[25]	PENG R M, ZHAI Y S, WANG Z G, et al. Discovery of double-peaking potassic volcanic rocks in Langshan Group of the Tanyaokou hydrothermal-sedimentary deposit, Inner Mongolia, and its indicating significance[J]. Science in China: Series D, 2005, 48(6): 822-833.
[26]	彭润民, 翟裕生, 韩雪峰, 等. 内蒙古狼山-渣尔泰山中元古代被动陆缘裂陷槽裂解过程中的火山活动及其示踪意义[J]. 岩石学报, 2007, 23(5): 1007-1017.
[27]	王魁元, 赵彦明, 曹秀兰. 华北陆台北缘元古典型铅锌矿地质[M]. 北京: 地质出版社, 1994: 1-12, 115-164.
[28]	彭润民, 翟裕生, 王建平, 等. 内蒙狼山新元古代酸性火山岩的发现及其地质意义[J]. 科学通报, 2010, 26: 2611-2620.
[29]	HU J M, GONG W B, WU S J, et al. LA-ICP-MS zircon U-Pb dating of the Langshan Group in the northeast margin of the Alxa block, with tectonic implications[J]. Precambrian Research, 2014, 255: 756-770. DOI URL
[30]	公王斌, 胡健民, 李振宏, 等. 华北克拉通北缘裂谷渣尔泰群LA-ICP-MS 碎屑锆石U-Pb 测年及地质意义[J]. 岩石学报, 2016, 32(7): 2151-2165.
[31]	公王斌, 胡健民, 李振宏, 等. 内蒙古狼山左行走滑韧性剪切带变形特征、时间及意义[J]. 地学前缘, 2017, 24(3): 100-119.
[32]	第五春荣, 孙勇, 袁洪林, 等. 河南登封地区嵩山石英岩碎屑锆石U-Pb 年代学、Hf 同位素组成及其地质意义[J]. 科学通报, 2008, 53(16): 1923-1934.
[33]	胡波, 翟明国, 郭敬辉, 等. 华北克拉通北缘化德群中碎屑锆石的LA-ICP-MS U-Pb年龄及其构造意义[J]. 岩石学报, 2009, 25(1): 193-211.
[34]	BELOUSOVA E A, REID A J, GRIFFIN W L, et al. Rejuvenation vs. recycling of Archean crust in the Gawler Craton, South Australia: evidence from U-Pb and Hf isotopes in detrital zircon[J]. Lithos, 2009, 113: 570-582. DOI URL
[35]	IIZUKA T, KOMIYA T, RINO S, et al. Detrital zircon evidence for Hf isotopic evolution of granitoid crust and continental growth[J]. Geochimica et Cosmochimica Acta, 2010, 74: 2450-2472. DOI URL
[36]	HAWKESWORTH C J, DHUIME B, PIETRANIK A B, et al. The generation and evolution of the continental crust[J]. Journel of Geological Society of London, 2010, 167: 229-248.
[37]	WAN Y S, LIU D Y, WANG W, et al. Provenance of Meso-Neoproterozoic cover sediments at the Ming tombs, Beijing, North China Craton: an integrated study of U-Pb dating and Hf isotopic measurement of detrital zircons and whole-rock geochemistry[J]. Gondwana Research, 2011, 20: 219-242. DOI URL
[38]	胡波, 翟明国, 彭澎, 等. 华北克拉通古元古代末-新元古代地质事件: 来自北京西山地区寒武系和侏罗系碎屑锆石LA-ICP-MS U-Pb 年代学的证据[J]. 岩石学报, 2013, 29(7): 2509-2536.
[39]	廖鑫, 张晓晖, 金胜贤. 朝鲜半岛古元古代摩天岭群的碎屑锆石U-Pb年龄及其地质意义[J]. 岩石学报, 2016, 32(10): 2981-2992.
[40]	李忠, 倪玲梅, 徐建强. 朝鲜半岛及华北上元古界-古生界沉积序列与碎屑锆石年代学记录及其构造属性分析[J]. 岩石学报, 2016, 32(10): 3139-3154.
[41]	杨正赫, 彭澎, 郑哲寿, 等. 朝鲜平南盆地古元古界-下古生界沉积岩碎屑锆石年龄谱对比及意义[J]. 岩石学报, 2016, 32(10): 3155-3179.
[42]	宋彪, 张玉海, 万渝生, 等. 锆石SHRIMP样品靶制作、年龄测定及有关现象讨论[J]. 地质论评, 2002, 48(增刊): 26-30.
[43]	LIU X M, GAO S, DIWU C R, et al. Simultaneous in-situ determination of U-Pb age and trace elements in zircon by LA-ICP-MS in 20 μm spot size[J]. Chinese Science Bulletin, 52(9): 1257-1264. DOI URL
[44]	LUDWING K R. User's manual for isoplot 3.00: a geochronological toolkit for microsoft excel[M]. Berkeley: Berkeley Geochronological Center, 2003: 1-71.
[45]	DODSON M H, COMPSTON W, WILLIANS I S, et al. A search for ancient detrital zircons in Zimbabwean sediments[J]. Journal of the Geological Society, 1988, 145: 977-983. DOI URL
[46]	VERMEESCH P. How many grains are needed for a provenance study?[J]. Earth and Planetary Science Letters, 2004, 224: 441-451. DOI URL
[47]	ANDERSEN T. Detrital zircons as tracers of sedimentary provenance: limiting conditions from statistics and numerical simulation[J]. Chemical Geology, 2005, 216: 249-270. DOI URL
[48]	VERMEESCH P. Comment on “Detrital zircons as tracers of sedimentary provenance: limiting conditions from statistics and numerical simulation” by T. Andersen, Chemical Geology, vol. 216, pp. 249-270[J]. Chemical Geology, 2006, 226: 73. DOI URL
[49]	BLACK L P, KAMO S L, WILLIAMS I S, et al. The application of SHRIMP to Phanerozoic geochronology: a critical appraisal of four zircon standards[J]. Chemical Geology, 2003, 200: 171-188. DOI URL
[50]	路凤香, 桑隆康, 邬金华, 等. 岩石学[M]. 北京: 地质出版社, 2002: 165-250.
[51]	PENG R M, ZHAI Y S, WANG J P, et al. The discovery of the Neoproterozoic rift-related mafic volcanism in the northern margin of North China Craton: implications for Rodinia reconstruction and mineral exploration[C]. International conference on continental dynamics, Xi'an, China, 2014.
[52]	YANG K F, FAN H R, PIRAJNO F, et al. The Bayan Obo (China) giant REE accumulation conundrum elucidated by intense magmatic differentiation of carbonatite[J]. Geology, 2019, 47: 1198-1202. DOI URL
[53]	王思源, 杨海明. 狼山造山带喷溢成矿研究[M]. 武汉: 中国地质大学出版社, 1993: 5-23.
[54]	北京西蒙矿产勘查有限责任公司. 内蒙古自治区乌拉特后旗霍各乞矿区一号矿床深部铜多金属矿详查报告[R]. 北京: 北京西蒙矿产勘查有限责任公司, 2007.
[55]	费红彩, 董普, 安国英, 等. 内蒙古霍各乞铜多金属矿床的含矿建造及矿床成因分析[J]. 现代地质, 2004, 18(1): 32-40.
[56]	彭润民, 翟裕生, 王建平, 等. 华北克拉通北缘西段构造演化与狼山新元古代裂解-成矿作用[J]. 矿物学报, 2015(增刊1): 537-538.
[57]	ZHONG R C, LI W B, CHEN Y J, et al. Ore-forming conditions and genesis of Huogeqi Cu-Pb-Zn-Fe deposit in the northern margin of the North China Craton: evidence from ore petrologic characteristics[J]. Ore Geology Reviews, 2012, 44: 107-120. DOI URL
[58]	ZHONG R C, LI W B, CHEN Y J, et al. p-T-x conditions, origin, and evolution of Cu-bearing fluids of the shear zone-hosted Huogeqi Cu-(Pb-Zn-Fe) deposit, northern China[J]. Ore Geology Reviews, 2013, 50: 83-97. DOI URL
[59]	钟日晨, 李文博, 陈衍景, 等. 内蒙古霍各乞Cu-Pb-Zn 矿床的剪切带与岩性控矿特征及意义[J]. 岩石学报, 2014, 30(7): 2101-2111.
[60]	MCCLAY K R. Deformation of stratiform Zn-Pb (-barite) deposits in the northern Canadian Cordillera[J]. Ore Geology Reviews, 1991, 6: 435-462. DOI URL
[61]	CHEN L, CHEN K Y, BAO Z A, et al. Preparation of standards for in situ sulfur isotope measurement in sulfides using femtosecond laser ablation MC-ICP-MS[J]. Journal of Analytical Atomic Spectrometry, 2017, 32: 107-116. DOI URL
[62]	BAO Z A, CHEN L, ZONG C L, et al. Development of pressed sulfide powder tablets for in situ sulfur and lead isotope measurement using LA-MC-ICP-MS[J]. International Journal of Mass Spectrometry, 2017, 421: 255-262. DOI URL
[63]	韩发, 孙海田. Sedex型矿床成矿系统[J]. 地学前缘, 1999, 6(1): 139-162.
[64]	侯增谦, 韩发, 夏林圻, 等. 现代与古代海底热水成矿作用[M]. 北京: 地质出版社, 2003: 165-250.
