Diagenesis of Carboniferous volcanic rocks in Wulungu area and its implications for the volcanic reservoir development

doi:10.13745/j.esf.sf.2022.2.65

Abstract

Abstract:

The Carboniferous of the Junggar Basin has broad prospects for oil and gas exploration, but the exploration result has not been ideal. Through core observation, thin section identification as well as cathodoluminescence spectroscopy, scanning electron microscope and micron CT investigations, this paper focuses on the diagenesis of volcanic reservoir in the Wulungu area, Junggar Basin and its implications for the volcanic reservoir development. Our study shows that the diagenetic process in the study area can be divided into four stages—condensation consolidation, post magmatic hydrothermal, weathering denudation-leaching and burial stages, involving six main processes—condensation consolidation, compaction, dissolution, filling cementation, alteration and metasomatism. Condensation consolidation and dissolution can form primary and dissolution pores and dissolution fractures, playing a key role in improving reservoir quality. Compaction, filling cementation, alteration and metasomatism, on the other hand, greatly reduce primary reservoir space. Quantitative micron CT analysis and logging interpretation results show that the reservoir quality of the Upper Carboniferous is slightly better than that of the Lower Carboniferous, but they all show strong heterogeneity.

Key words: Junggar Basin, Wulungu area, volcanic rock reservoir, diagenesis, diagenetic stage

CLC Number:

GU Wenlong, NIU Huapeng, ZHANG Guanlong, WANG Shengzhu, YU Hongzhou, JIAO Xiaoqin, XIONG Zhengrong, ZHOU Jian. Diagenesis of Carboniferous volcanic rocks in Wulungu area and its implications for the volcanic reservoir development[J]. Earth Science Frontiers, 2023, 30(2): 296-305.

Figures/Tables 6

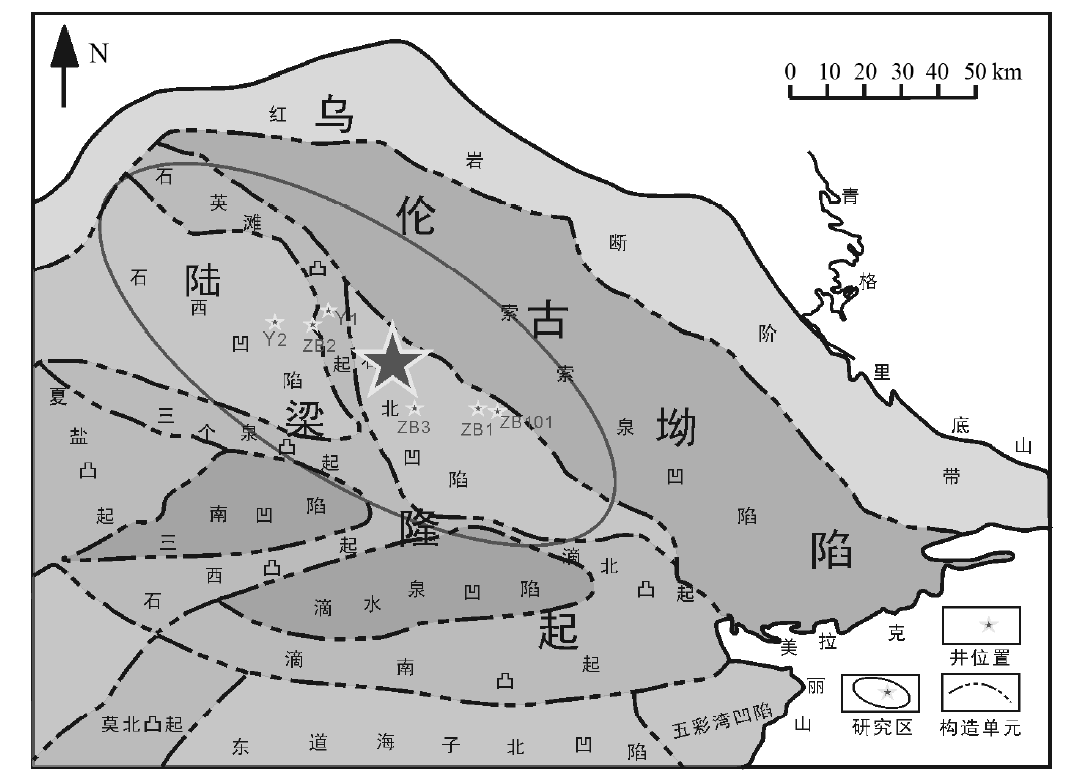

Fig.1 Structural map and location of the study area. Modified after [17].

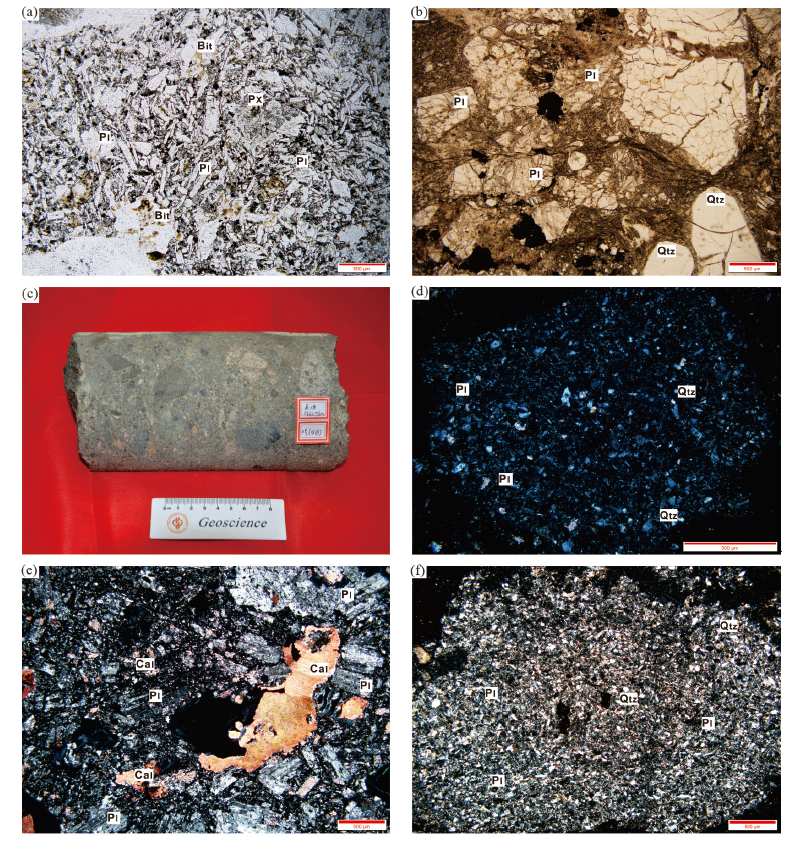

Fig.2 Thin sections and core of main types of volcanic rocks developed in Wulungu area

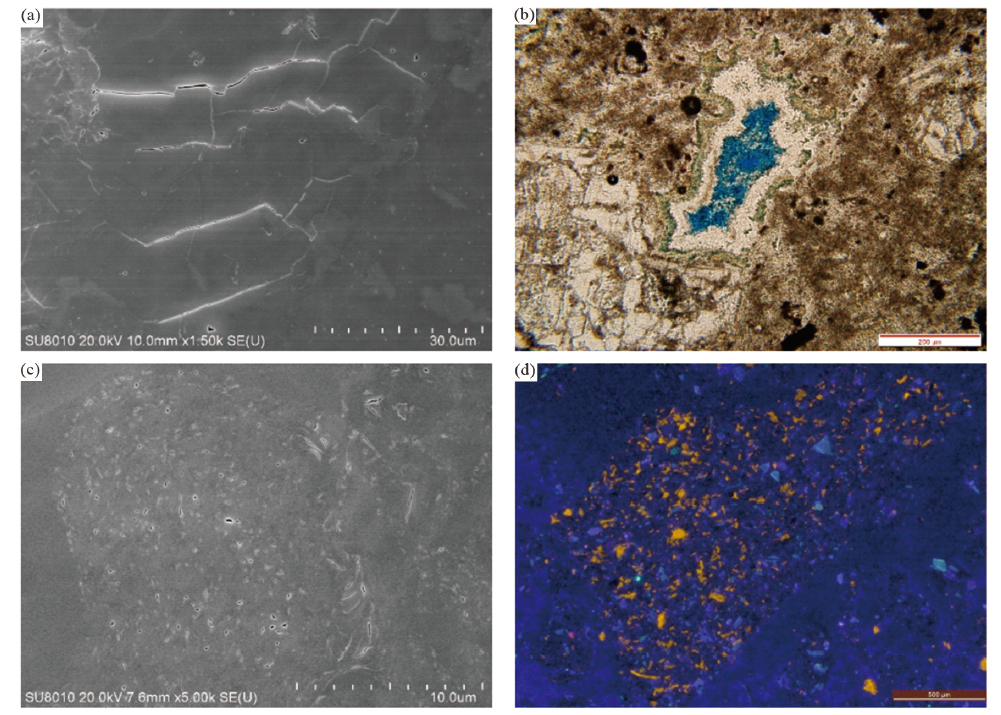

Fig.3 Main types of volcanic reservoir space in Wulungu area

Fig.4 3D reconstruction by micron CT and volume distribution characteristics of pore-throat radius

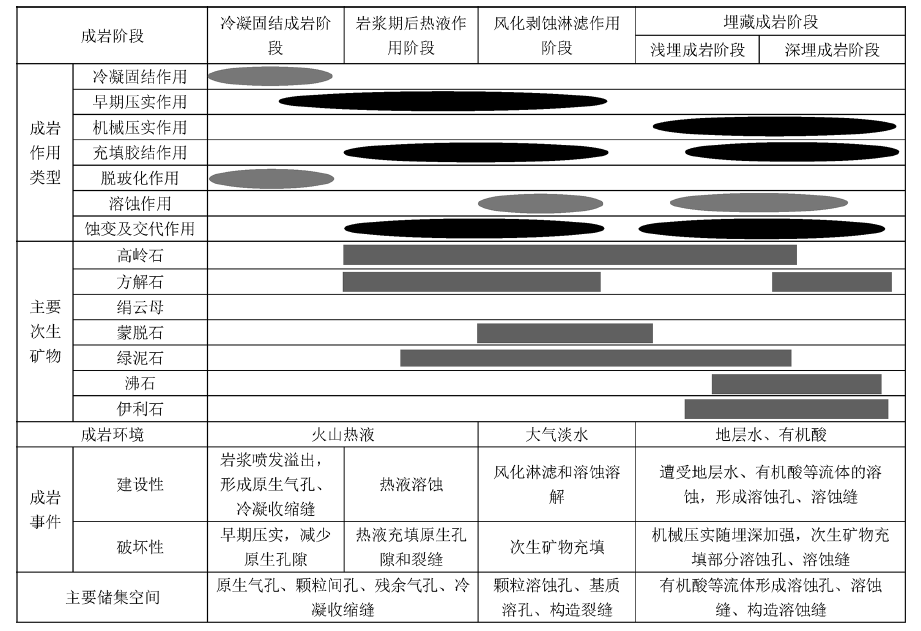

Fig.5 Diagenetic evolution of Carboniferous volcanic reservoir in Wulungu area

Fig.6 Thin sections showing diagenesis of volcanic reservoir in Wulungu area
