Grain size characteristics of terrigenous clastics in surface sediments of the Gulf of Thailand and their significance for sedimentary dynamic environment

doi:10.13745/j.esf.sf.2022.1.18

Abstract

Abstract:

The grain size characteristics of marine clastic sediments can directly reflect the marine sedimentary dynamic environment, thus can be used to study the variation of marine dynamic environment. In particular, the grain size distribution of surface sediments on the continental shelf plays an important role in studying the modern marine dynamic environment of coastal and water column bottom boundary layer. This research investigated the grain size distribution characteristics of terrigenous clastics in surface sediments collected from the Gulf of Thailand and the Mekong River estuary, to obtain the marine dynamic environmental processes affecting the particle sedimentation in specific sea areas. The results of grain size analysis show that the terrigenous clastics in surface sediments in the Gulf of Thailand are composed mainly of poorly sorted fine sand to fine silt, characterized mostly by positive skewness in frequency distribution patterns. The fine to very fine sand components are mainly distributed at the bay of Bangkok and shelves off Cambodia. The sediments off the Mekong River are fine sand and the sorting is better than that in the Gulf of Thailand. These grain size characteristics of surface sediments can serve as good proxies to explicitly indicate the environmental variations in this area. The well sorted medium sand with nearly normal distribution patterns in sediments off the Mekong River indicate the depositional environment under the influence of the waves. The poorly sorted medium sand to fine sand sediments in the bay of Bangkok and off Cambodia reflect the combined effect of tides and waves. The very fine sand to medium silt sediments with medium sorting and positive skewness in the east and west coast of the Gulf of Thailand reflect the controlling effect of tides. And the sediments in the central Gulf of Thailand with poorly sorting indicate the influence of surface currents. This study shows that the grain size distribution characteristics of terrigenous clastics in surface sediments of the Gulf of Thailand and off the Mekong River can be used to distinguish the control effects of different marine dynamic factors, and to reveal that the sedimentary dynamic environment in the Gulf of Thailand is mainly affected by tides, waves and currents and the sedimentary dynamic environment off the Mekong River is affected by waves.

Key words: grain size, surface sediments, sedimentary dynamic environment, Gulf of Thailand

CLC Number:

P736.21

FENG Shuo, LIU Zhifei, Penjai SOMPONGCHAIYAKUL, LIN Baozhi, Martin G. WIESNER. Grain size characteristics of terrigenous clastics in surface sediments of the Gulf of Thailand and their significance for sedimentary dynamic environment[J]. Earth Science Frontiers, 2022, 29(4): 211-220.

Figures/Tables 8

Fig.1 Geographic location of the Gulf of Thailand and distribution of sample stations therein

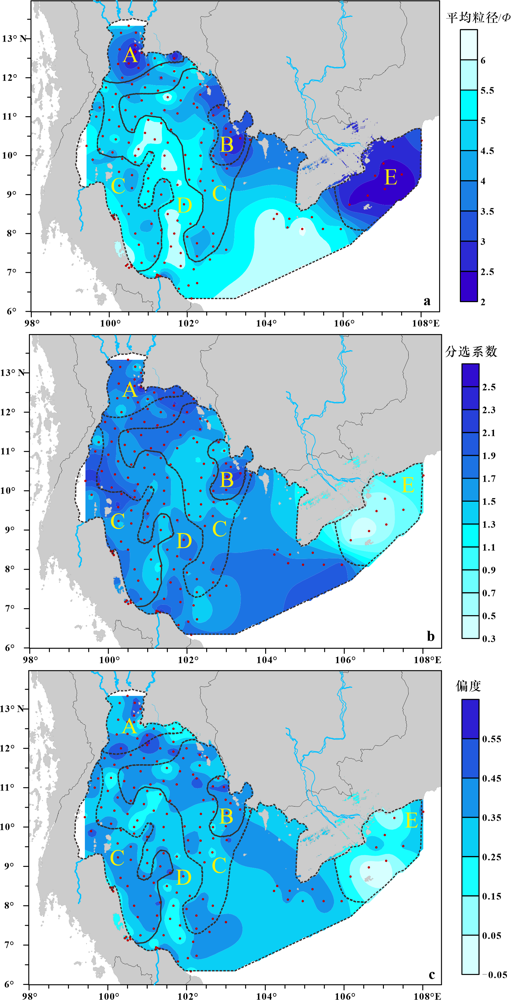

Fig.2 Surface sediment average grain size (a), sorting coefficient (b) and skewness (c) distributions in the Gulf of Thailand

Fig.3 Types of surface sediment grain size distributions in the Gulf of Thailand

Fig.4 Characteristics of grain size parameters (average particle size, sorting coefficient, skewness) in different regions of the Gulf of Thailand

Table 1 Characteristics of surface sediment grain size distributions in and grain size parameters for different regions of the Gulf of Thailand

区域名	峰值数	主峰粒径	次峰粒径	平均粒径Ф	分选	偏度
曼谷湾	4	中砂-极细砂	极细砂-极细粉砂	细砂-极细砂平均值:Ф 3.24	较差平均值:1.66	正偏态平均值:0.39
柬埔寨沿岸	3	中砂-细砂	粗粉砂	细砂-极细砂平均值:Ф 3.16	较差平均值:1.83	正偏态平均值:0.36
泰国湾东西沿岸	1	极细砂-粗粉砂		极细砂-中粉砂平均值:Ф 4.64	中等平均值:1.51	正偏态平均值:0.39
泰国湾中部	2	极细砂-粗粉砂	细粉砂-极细粉砂	极细砂-细粉砂平均值:Ф 5.31	较差平均值:1.76	正偏态平均值:0.28
湄公河岸外	1	细砂		细砂平均值:Ф 2.41	较好平均值:0.66	正态分布平均值:0.14

Fig.5 Typical surface sediment grain size probability cumulative curves (a) and distribution curves (b) for different regions of the Gulf of Thailand

Fig.6 Surface sediment grain size parameters for different regions of the Gulf of Thailand

Fig.7 Factors controlling surface sediment grain size distribution in the Gulf of Thailand

References 41

[1]	FOLK R L. A review of grain-size parameters[J]. Sedimentology, 2010, 6(2): 73-93.
[2]	FRIEDMAN G M. Distinction between dune, beach, and river sands from their textural characteristics[J]. Journal of Sedimentary Petrology, 1961, 31: 514-529.
[3]	FRIEDMAN G M. Address of the retiring president of the international association of sedimentologists: differences in size distributions of populations of particles among sands of various origins[J]. Sedimentology, 1979, 26: 3-32.
[4]	PASSEGA R. Grain size representation by CM patterns as a geological tool[J]. Journal of Sedimentary Petrology, 1964, 34: 830-847.
[5]	VISHER G S. Grain size distributions and depositional processes[J]. Journal of Sedimentary Research, 1969, 39: 1074-1106.
[6]	MCCAVE I N. Grain-size trends and transport along beaches: example from eastern England[J]. Marine Geology, 1978, 28: M43-M51.
[7]	GAO S. A fortran program for grain-size trend analysis to define net sediment transport pathways[J]. Computers & Geosciences, 1996, 22: 449-452.
[8]	DUMAN M, AVC M, DUMAN S, et al. Surficial sediment distribution and net sediment transport pattern in Izmir Bay, western Turkey[J]. Continental Shelf Research, 2004, 24: 965-981.
[9]	CHENG P, GAO S, BOKUNIEWICZ H. Net sediment transport patterns over the Bohai Strait based on grain size trend analysis[J]. Estuarine, Coastal and Shelf Science, 2004, 60: 203-212.
[10]	SU Q, PENG C S, YI L, et al. An improved method of sediment grain size trend analysis in the Xiaoqinghe Estuary, southwestern Laizhou Bay, China[J]. Environmental Earth Sciences, 2016, 75: 1185-1195.
[11]	PRINS M A, POSTMA G, WELTJE G J. Controls on terrigenous sediment supply to the Arabian Sea during the late Quaternary: the Makran continental slope[J]. Marine Geology, 2000, 169: 351-371.
[12]	MCCAVE I N, MANIGHETTI B, BEVERIDGE N A S. Circulation in the glacial North Atlantic inferred from grain-size measurements[J]. Nature, 1995, 374: 149-152.
[13]	HALL I R, MCCAVE I N, ZAHN R, et al. Paleocurrent reconstruction of the deep Pacific inflow during the middle Miocene: reflections of East Antarctic Ice Sheet growth[J]. Paleoceanography, 2003, 18: 1040-1050.
[14]	NITTROUER C A, CURTIN T B, DEMASTER D J. Concentration and flux of suspended sediment on the Amazon continental shelf[J]. Continental Shelf Research, 1986, 6: 151-174.
[15]	ASCHARIYAPHOTHA N, WONGWISES S. Simulations of seasonal current circulations and its variabilities forced by runoff from freshwater in the Gulf of Thailand[J]. Arabian Journal for Science and Engineering, 2012, 37: 1389-1404.
[16]	CHAREONPANICH C, SEURUNGREONG S. Some physical and chemical characteristics of bottom sediments in the South China Sea, Area I: Gulf of Thailand and east coast of Peninsular Malaysia[C]//Proceedings of the first technical seminar on marine fishery resources survey in the South China Sea, Area I:Gulf of Thailand and Peninsular Malaysia. Bangkok,Thailand: Southeast Asian Fisheries Development Center, Training Department, 1997: 12-33.
[17]	LIU S F, SHI X F, YANG G, et al. Distribution of major and trace elements in surface sediments of the western Gulf of Thailand: implications to modern sedimentation[J]. Continental Shelf Research, 2016, 117: 81-91.
[18]	张杨硕, 乔淑卿, 石学法, 等. 泰国湾底质沉积物输运趋势[J]. 海洋地质与第四纪地质, 2017, 37: 86-92.
[19]	高抒. 沉积物粒径趋势分析: 原理与应用条件[J]. 沉积学报, 2009, 27: 826-836.
[20]	EMERY K O, NIINO H. Sediments of the Gulf of Thailand and adjacent continental shelf[J]. Geological Society of America Bulletin, 1963, 74: 541-554.
[21]	SRISUKSAWAD K, PORNTEPKASEMSAN B, NOUCHPRAMOOL S, et al. Radionuclide activities, geochemistry, and accumulation rates of sediments in the Gulf of Thailand[J]. Continental Shelf Research, 1997, 17: 925-965.
[22]	MILLIMAN J D, FARNSWORTH K L. Runoff, erosion, and delivery to the coastal ocean[M]. Cambridge: Cambridge University Press, 2011: 13-69. DOI: 10.1017/CBO9780511781247.003 DOI
[23]	STANSFIELD K, GARRETT C. Implications of the salt and heat budgets of the Gulf of Thailand[J]. Journal of Marine Research, 1997, 55: 935-963.
[24]	SUMMERFIELD M A, HULTON N J. Natural controls of fluvial denudation rates in major world drainage basins[J]. Journal of Geophysical Research: Solid Earth, 1994, 99: 13871-13883.
[25]	SOJISUPORN P, MORIMOTO A, YANAGI T. Seasonal variation of sea surface current in the Gulf of Thailand[J]. Coastal Marine Science, 2010, 34: 91-102.
[26]	BURANAPRATHEPRAT A, YANAGI T, SOJISUPORN P, et al. Influence of local wind field on seasonal circulations in the upper Gulf of Thailand[J]. Coastal Marine Science, 2006, 30: 19-26.
[27]	SARAMUL S, EZER T. On the dynamics of low latitude, wide and shallow coastal system: numerical simulations of the upper Gulf of Thailand[J]. Ocean Dynamics, 2014, 64: 557-571.
[28]	YAIPRASERT C, JAROENSUTASINEE K, VERUTTIPONG T. Floating circle of objects simulation with the Princeton Ocean Model for the Gulf of Thailand[J]. Walailak Journal of Science & Technology, 2005, 2: 99-113.
[29]	PITHAYAMAYTHAKUL P, SOJISUPORN P. Water stratification under wave influence in the Gulf of Thailand[J]. Bulletin of Earth Sciences of Thailand, 2016, 7: 33-41.
[30]	WIESNER M G, STATTEGGER K, VOß M, et al. Land-ocean:atmosphere interactions in the coastal zone of Vietnam[G]//Cruise Report RV SONNE 187. Nagasaki-Nha Trang, 2006: 99.
[31]	WENTWORTH C K. A scale of grade and class terms for clastic sediments[J]. The Journal of Geology, 1922, 30: 377-392.
[32]	FOLK R L, WARD W C. Brazos river bar: a study in the significance of grain size parameters[J]. Journal of Sedimentary Research, 1957, 27: 3-26.
[33]	柯贤坤. 潮滩沉积物的粒度特征[J]. 海洋通报, 1988, 7: 41-48.
[34]	FAN D, SHANG S, CAI G F, et al. Distinction and grain-size characteristics of intertidal heterolithic deposits in the middle Qiantang Estuary (East China Sea)[J]. Geo-Marine Letters, 2015, 35: 161-174.
[35]	FRIEDMAN G M. Dynamic processes and statistical parameters compared for size frequency distribution of beach and river sands[J]. Journal of Sedimentary Research, 1967, 37: 327-354.
[36]	STRAATEN L, KUENEN P H. Tidal action as a cause of clay accumulation[J]. Journal of Sedimentary Petrology, 1958, 28: 406-413.
[37]	黄建东. 几种沉积物粒度参数间的相关关系[J]. 台湾海峡, 1988, 7: 72-79.
[38]	MASON C C, FOLK R L. Differentiation of beach, dune and aeolian flat environments by size analysis, mustang island, Texas[J]. Journal of Sedimentary Petrology, 1958, 28: 211-226.
[39]	TA T K O, NGUYEN V L, TATEISHI M, et al. Sediment facies and Late Holocene progradation of the Mekong River Delta in Bentre Province, southern Vietnam: an example of evolution from a tide-dominated to a tide- and wave-dominated delta[J]. Sedimentary Geology, 2002, 152: 313-325.
[40]	XUE Z, LIU J P, DEMASTER D, et al. Late Holocene evolution of the Mekong Subaqueous Delta, Southern Vietnam[J]. Marine Geology, 2010, 269: 46-60.
[41]	XUE Z, LIU J P, DEMASTER D, et al. Sedimentary processes on the Mekong subaqueous delta: clay mineral and geochemical analysis[J]. Journal of Asian Earth Sciences, 2014, 79: 520-528.
