Metallogenic prediction based on ensemble learning models and Bayesian Optimization Algorithm

doi:10.13745/j.esf.sf.2025.4.66

Abstract

Abstract:

Exploration for hidden ore bodies is increasingly important and demands innovative prospecting methods. Data-driven metallogenic prediction models using ensemble learning are becoming powerful tools for deep mineral exploration. However, such models face challenges, particularly in time-consuming hyperparameter tuning requiring extensive computation and expertise. To address this, we propose a framework integrating multi-source geological knowledge with Bayesian Optimization (BO) for ensemble learning. Specifically, a manganese (Mn) metallogenic prediction database integrating multi-source geological knowledge is first constructed. Metallogenic prediction models for Mn ore in northeastern Guizhou are then established using Adaptive Boosting (AdaBoost) and Random Forest (RF). The hyperparameters of these base models are optimized using Bayesian Optimization (BO) via 5-fold cross-validation, resulting in the optimized BO-AdaBoost and BO-RF models. Model performance is evaluated using metrics including accuracy, precision, recall, F₁-score, kappa, and AUC values. Results show significant improvements in AUC for both BO-optimized models compared to their non-optimized counterparts, demonstrating BO’s effectiveness for ensemble learning hyperparameter tuning. Furthermore, the BO-AdaBoost model achieves higher prediction accuracy (92.8%) and generalization performance than the BO-RF model (89.9%), highlighting its strong potential for metallogenic prediction. The prospectivity map generated by the BO-AdaBoost model provides critical guidance for exploring deep-hidden Mn deposits in northeastern Guizhou and can direct future mineral exploration and development.

Key words: ensemble learning, Adaptive Boosting (AdaBoost), Random Forest (RF), Bayesian Optimization (BO), hidden manganese ore, metallogenic prediction

CLC Number:

KONG Chunfang, TIAN Qian, LIU Jian, CAI Guorong, ZHAO Jie, XU Kai. Metallogenic prediction based on ensemble learning models and Bayesian Optimization Algorithm[J]. Earth Science Frontiers, 2025, 32(4): 122-139.

Figures/Tables 19

Fig.1 Flowchart of the Mn ore metallogenic prediction based on multi-source geological knowledge and Bayesian optimization ensemble learning method

Fig.2 Flowchart of the AdaBoost algorithm

Table 1 The steps of AdaBoost algorithm

步骤	步骤描述
1	标准化、归一化数据集,并按照7∶2∶1的比例分配训练集、测试集和验证集
2	为每一个样本赋予同样的权重,训练出第一个决策树DT₁,让DT₁对样本x_i进行分类得到预测值G₁(x_i),并依据公式 $∑ i = 1 m w k i I (G k (x i) ≠ y i)$ 计算误差率e₁
3	利用误差率e₁进行轮次迭代,依据公式α_k= $1 2 l g (1 - e k) e k$ 来更新分类器本轮次的自身权重α₁,随后结合e₁、α₁以及G₁(x_i),并根据公式(1)和(2)计算出下一轮次每个样本的权重w₂_i。接着依据样本集和样本权重,训练出第二个分类器DT₂,并以此类推
4	不断重复步骤3,共构造15个弱分类器和15个分类器权重α_k。然后使用累加投票法(公式(3))组合成强分类器

Table 1 The steps of AdaBoost algorithm

步骤	步骤描述
1	标准化、归一化数据集,并按照7∶2∶1的比例分配训练集、测试集和验证集
2	为每一个样本赋予同样的权重,训练出第一个决策树DT₁,让DT₁对样本x_i进行分类得到预测值G₁(x_i),并依据公式 $∑ i = 1 m w k i I (G k (x i) ≠ y i)$ 计算误差率e₁
3	利用误差率e₁进行轮次迭代,依据公式α_k= $1 2 l g (1 - e k) e k$ 来更新分类器本轮次的自身权重α₁,随后结合e₁、α₁以及G₁(x_i),并根据公式(1)和(2)计算出下一轮次每个样本的权重w₂_i。接着依据样本集和样本权重,训练出第二个分类器DT₂,并以此类推
4	不断重复步骤3,共构造15个弱分类器和15个分类器权重α_k。然后使用累加投票法(公式(3))组合成强分类器

Fig.3 Geographical location map (a) and structural outline (b) of the study area

Fig.4 Spatial distribution of Datangpo type Mn ore deposits and tectonic framework of Wuling secondary rift. Modified after [1,38].

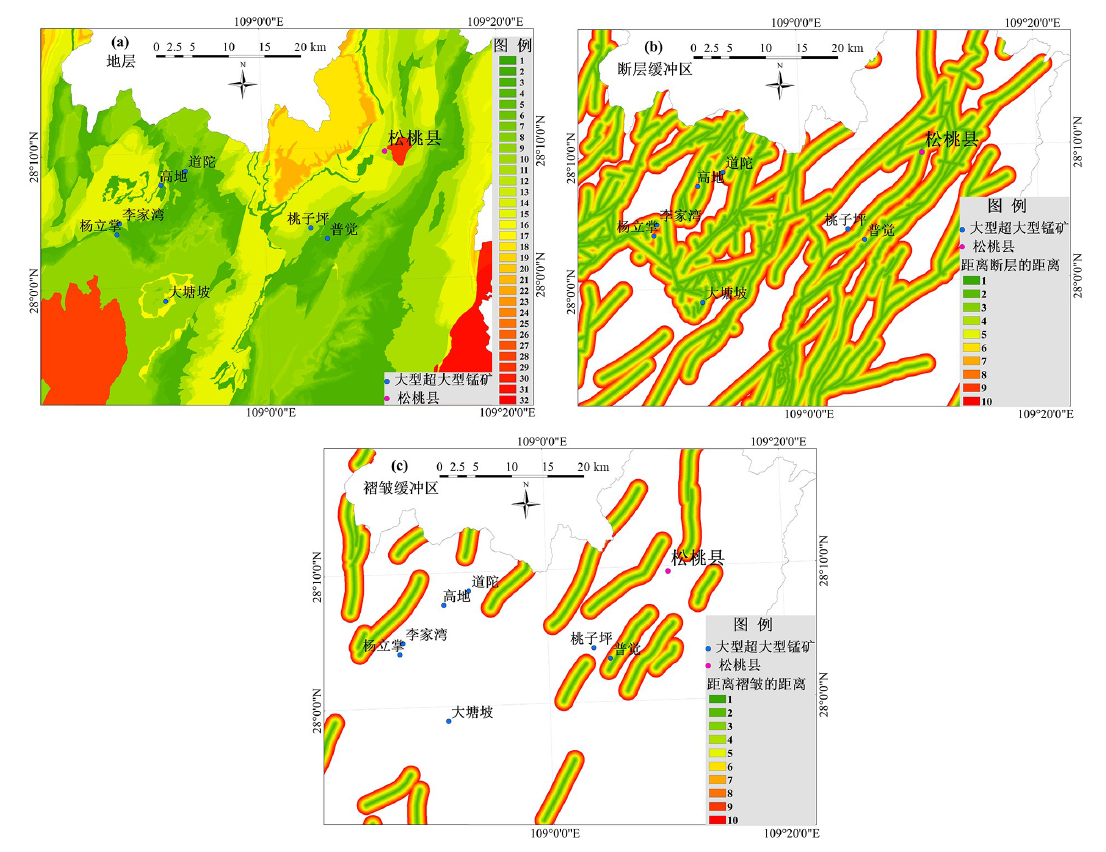

Fig.5 The prediction evidence layer for geological variables includes stratum (a), fault buffer zone (b) and (c) fold buffer zone

Fig.6 Multiscale geophysical information of 2 km (a), 6 km (b), 10 km (c) and 20 km (d) down-extension extracted by wavelet analysis

Fig.7 Multi-scale aeromagnetic ΔT contour (a) and polar (b) contour extracted by wavelet analysis

Fig.8 The geochemical anomaly of Mn (a) Cu-As-Co-Cr-Ni (b) Pb-Zn-Fe-Si (c) and all elements (d) in northeastern Guizhou

Fig.9 Extraction results and abnormal area distribution of Mn mineralization associated minerals based on remote sensing

Fig.10 Spatial distribution of manually labeled mineral and non-mineral spots for training machine learning model

Table 2 Hyperparameters optimization process and result of BO-RF model

序号	精度	max_depth	max_features	min_samples_split	n_estimators
1	0.882	9	0.754	8	137
2	0.893	17	0.890	19	174
3	0.899	12	0.920	10	120
4	0.893	16	0.254	16	109
5	0.892	16	0.493	15	182
6	0.898	15	0.944	5	162
7	0.894	13	0.797	18	123
8	0.889	11	0.927	17	72
9	0.885	19	0.729	9	82
10	0.755	1	0.835	7	20
11	0.896	20	0.100	20	10
12	0.895	7	0.120	10	149
13	0.895	14	0.100	20	10
14	0.897	9	0.100	2	119
15	0.894	8	0.990	20	49
16	0.894	20	0.100	2	200
Best	0.899	12	0.920	10	120

Table 3 Hyperparameters optimization process and result of BO-AdaBoost model

序号	精度	max_depth	learning_rate	min_samples_split	min_samples_leaf	n_estimators
1	0.911	5	0.322	19	15	137
2	0.903	9	0.951	7	18	174
3	0.908	5	0.87	4	18	146
4	0.911	8	0.804	13	4	109
5	0.914	8	0.718	11	9	182
6	0.891	8	0.196	5	19	162
7	0.916	7	0.875	8	2	123
8	0.907	6	0.839	11	18	72
9	0.903	10	0.421	18	14	82
10	0.904	1	0.262	15	17	120
11	0.912	1	0.378	3	1	113
12	0.903	2	0.496	12	6	21
13	0.928	7	0.516	3	2	196
14	0.900	6	0.318	13	20	10
15	0.908	2	0.312	17	20	200
16	0.907	2	0.572	13	2	14
Best	0.928	7	0.516	3	2	196

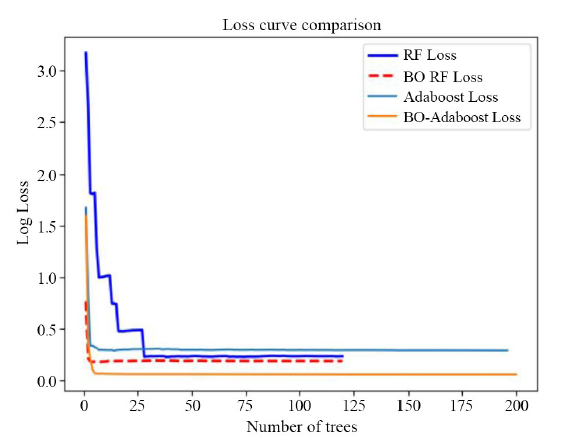

Fig.11 Loss function plots for the four models

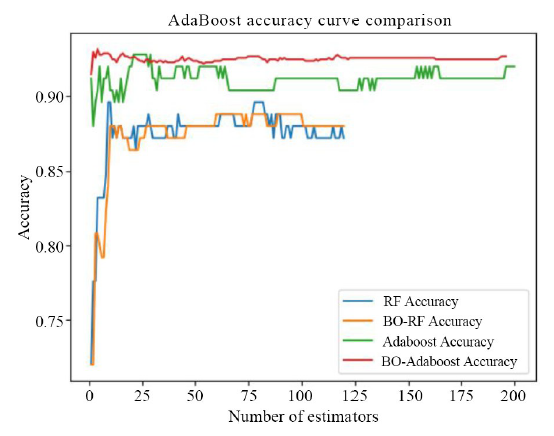

Fig.12 Validation accuracy plots for the four models

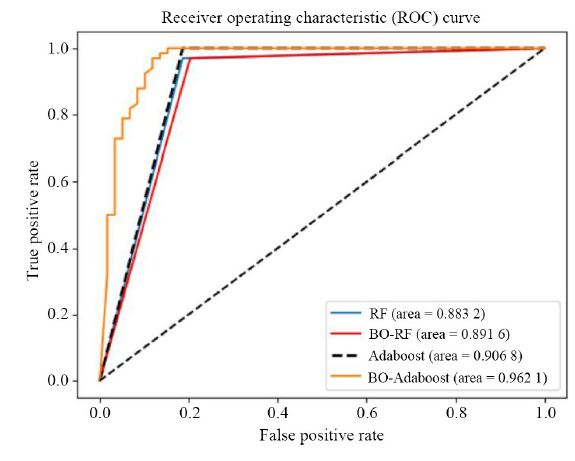

Fig.13 ROC curves and AUC values for the four models

Table 4 Comparison of performance for the four models

模型	精度	准确率	召回率	F₁分数	kappa	AUC
RF	0.888	0.900	0.883	0.885	0.773	0.883 2
BO-RF	0.899	0.907	0.897	0.896	0.805	0.891 6
AdaBoost	0.912	0.920	0.906	0.910	0.821	0.906 8
BO-AdaBoost	0.928	0.940	0.923	0.926	0.854	0.962 1

Fig.14 Overlay of prediction maps of Mn and known ore points using RF (a), AdaBoost (b), BO-RF (c) and BO-AdaBoost (d) models

Table 5 The percentage of the total area for the four models predictions results

模型	各区域面积占比/%
模型	极低区域	低区域	中等区域	高区域	极高区域
RF	62.13	21.47	6.77	4.88	4.75
BO-RF	63.99	19.16	8.13	4.62	4.10
AdaBoost	69.03	18.47	5.19	4.39	2.93
BO-AdaBoost	72.75	15.26	5.37	4.33	2.29
