Discovery and significance of natrophilite in the pegmatite from Chakabeishan, Qinghai Province

doi:10.13745/j.esf.sf.2024.2.19

Abstract

Abstract:

Natrophilite is a rare phosphate mineral that has not been reported in China, especially its primary mineral, which has not been discovered both domestically and internationally. The literature with a few data suggests that natrophilite is formed by sodium replacement of lithiophilite as a secondary mineral. Lithiophilite is a common mineral in pegmatite, which is generally believed to be a product of the magmatic stage in phosphate rich pegmatites as a primary mineral. In this article, natrophilite and lithiophilite developed on natrophilite were found in the Chakabeishan rare-metal pegmatite. Natrophilite is characterized by euhedral mineral particles without any metasomatism, and has primary mineral features of apatite alteration. And the lithiophilite is irregular and develops on the natrophilite, showing typical metasomatic characteristics. Moreover, electron probe data showed that the Mn/Fe values of natrophilite were 1.692-1.875, and the Mn/Fe values of lithiophilite were 2.519-2.548. This also indicates that the formation of natrophilite occurred earlier than that of lithiophilite. Natrophilite should be the primary mineral, and the lithiophilite should be the secondary mineral. The higher manganese content of the parent magma in the pegmatite area may be a possible reason for the occurrence of natrophilite. The alteration of lithiophilite and fluoroapatite developed on the natrophilite reflect the later oxidation and metasomatism of Li, Mn, Ca, and F rich fluids. Meanwhile, combined with the alteration of spodumene in this area, it is indicated that there is a geochemical cycle of lithium in the Chakabeishan deposit.

Key words: Chakabeishan, pegmatite, natrophilite, lithiophilite, discovery and significance

CLC Number:

LÜ Shujun, DONG Guochen, ZHAO Zhidan, LUO Zhibo, QU Kai, LI Xiaowei, YUAN Wanming, WANG Yanjuan, MENG Jia. Discovery and significance of natrophilite in the pegmatite from Chakabeishan, Qinghai Province[J]. Earth Science Frontiers, 2025, 32(1): 380-387.

Figures/Tables 5

Fig.1 Structural zoning sketch map of the northeastern margin of the Qinghai-Tibet Plateau (a), Geological map of the Chakabeishan deposit (b), Distribution map of pegmatites in Chakabeishan (c), and Geological map of sample collection area (d). Modified after [17-18].

Fig.2 Photomicrographs of natrophilite (Ntp—natrophilite; Col—coltan; Ab—albite; Qz—quartz; Brl—beryl)

Fig.3 BSE images of natrophilite (Ntp—natrophilite; Brl—beryl; Col—coltan; Ap—apatite; Kfs—K-feldspar; Ab—albite; Ltp—lithiophilite).

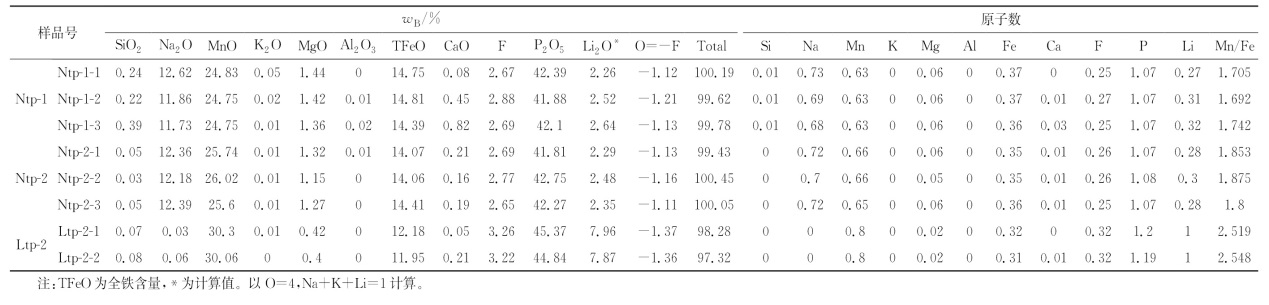

Table 1 Electron probe data of natrophilite and lithiophilite in Chakabeishan

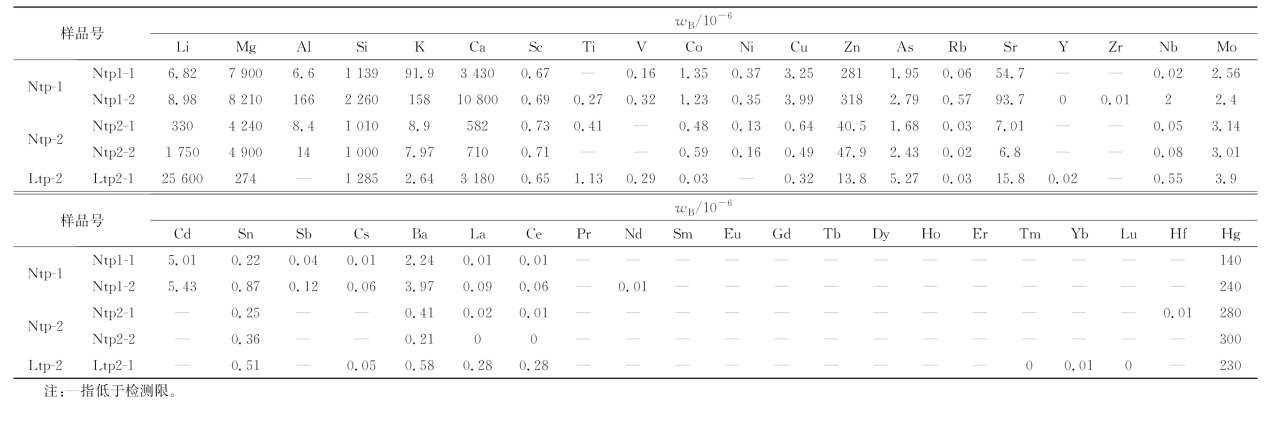

Table 2 Trace Element Data of natrophilite and lithiophilite in Chakabeishan

References 26

[1]	PAUL B M. Natrophilite, NaMn(PO₄), has ordered cations[J]. American Mineralogist, 1972, 57: 1333-1344.
[2]	BRUSH G J, DANA E S. On the mineral locality at Branchville, Connecticut: fifth paper[J]. American Mineralogist, 1890, 39: 201-216.
[3]	THOMAS R, WEBSTER J D. Strong tin enrichment in a pegmatite-formingmelt[J]. Mineralium Deposita, 2000, 35(6): 570-582.
[4]	PIECZKA A, WLODEK A, GOLEBIOWSKA B, et al. Phosphate-bearing pegmatites in the Góry Sowie Block and adjacent areas, Sudetes, SW Poland[C]. 7th International Symposium on Granitic Pegmatites, PEG 2015 Książ, Poland. 2015, 1: 77-78.
[5]	TWARDAK D, PIECZKA A. Phosphates in the Julianna pegmatitic system at Pilawa Gorna, Gory Sowie Block[C]// Joint 5th Central-European Mineralogical Conference and 7th Mineral Sciences in the Carpathians Conference. 2018, 1: 108.
[6]	FISHER D J. Pegmatite phosphates and theirproblems[J]. American Mineralogist, 1958, 43: 181-207.
[7]	FISHER D J. Natrophilite[J]. American Mineralogist, 1965, 50: 1096-1097.
[8]	LONDON D, BURT D M. Chemical models for lithium aluminosilicate stabilities in pegmatites and granites[J]. American Mineralogist, 1982, 67: 494-509.
[9]	张如柏. 阿尔泰伟晶岩中锰褐磷锂矿的发现[J]. 科学通报, 1981, 26(1): 40-42.
[10]	张如柏. 阿尔泰伟晶岩中的锌尖晶石和磷锰锂矿[J]. 地质论评, 1981, 27(1): 1-7.
[11]	杨岳清, 王文瑛, 倪云祥, 等. 南平花岗伟晶岩中的磷酸盐矿物及地球化学演化规律[J]. 福建地质, 1994, 13(4): 215-226.
[12]	凤永刚, 王艺茜, 张泽, 等. 新疆大红柳滩伟晶岩型锂矿床中磷铁锂矿地球化学特征及其对伟晶岩演化的指示意义[J]. 地质学报, 2019, 93(6): 1405-1421.
[13]	FRANSOLET A M, KELLER P, FONTAN F. The phoshate mineral associations of the Tsaobismund pegmatite, Namibia[J]. Contributions to Mineralogy and Petrology, 1986, 92(4): 502-517.
[14]	LONDON D. Pegmatites: the Canadian mineralogist special publication 10[M]. Quebec: Mineralogical Association of Canada, 2018: 347.
[15]	VIGNOLA P, DIELLA V, OPPIZZI P, et al. Phosphate assemblages from the brissago granitic pegmatite, western southern Alps, Switzerland[J]. The Canadian Mineralogist, 2008, 46(3): 635-650.
[16]	BAIJOT M, HATERT F, PHILIPPO S. Mineralogy and geochemistry of phosphates and silicates in the sapucaia pegmatite, Minas Gerais, Brazil: genetic implications[J]. The Canadian Mineralogist, 2012, 50(6): 1531-1554.
[17]	PAN T, DING Q F, ZHOU X, et al. Columbite-tantalite group mineral U-Pb geochronology of Chaqiabeishan Li-rich granitic pegmatites in the quanji massif, NW China: implications for the genesis and emplacement ages of pegmatites[J]. Frontiers in Earth Science, 2021, 8: 606951.
[18]	潘桂棠, 肖庆辉, 陆松年, 等. 中国大地构造单元划分[J]. 中国地质, 2009, 36(1): 1-16, 255, 17-28.
[19]	王秉璋, 韩杰, 谢祥镭, 等. 青藏高原东北缘茶卡北山印支期(含绿柱石)锂辉石伟晶岩脉群的发现及Li-Be成矿意义[J]. 大地构造与成矿学, 2020, 44(1): 69-79.
[20]	赵文涛, 刘少峰, 陈敏, 等. 宗务隆构造带西段三叠系隆务河组碎屑锆石特征及其构造意义[J]. 岩石矿物学杂志, 2022, 41(3): 569-591.
[21]	SUN W L, ZHAO Z D, MO X X, et al. Age and composition of columbite-tantalite group minerals in the spodumene pegmatite from the chakabeishan deposit, northern Tibetan Plateau and their implications[J]. Minerals, 2023, 13(2): 201.
[22]	吕书俊, 董国臣, 罗志波, 等. 茶卡北山锂辉石花岗伟晶岩锂矿化特征及成矿时限[J]. 岩石矿物学杂志, 2023, 42(3): 350-364.
[23]	FRANSOLET A M, HATERT F, FONTAN F. Petrographic evidence for primary hagendorfite in an unusual assemblage of phosphate minerals, kibingo granitic pegmatite, Rwanda[J]. The Canadian Mineralogist, 2004, 42(3): 697-704.
[24]	RODA E, FONTAN F, PESQUERA A, et al. The phosphate mineral association of the granitic pegmatites of the Fregeneda area (Salamanca, Spain)[J]. Mineralogical Magazine, 1996, 60(402): 767-778.
[25]	SCHMID-BEURMANN P, OTTOLINI L, HATERT F, et al. Topotactic formation of ferrisicklerite from natural triphylite under hydrothermal conditions[J]. Mineralogy and Petrology, 2013, 107(4): 501-515.
[26]	徐遥辰, 卢奂, 饶灿. 新疆阿尔泰协库斯特伟晶岩中锂的矿物学行为及其启示[J]. 高校地质学报, 2019, 25(3): 321-332.
