Origin and genetic mechanism of hydrocarbon gas sources of the highly saturated gas hydrate deposits in the northern South China Sea

doi:10.13745/j.esf.sf.2024.6.53

Abstract

Abstract:

The origin of hydrocarbon gas is crucial for clarifying the formation and accumulation mechanisms of natural gas hydrate. Many highly saturated natural gas hydrate deposits have been drilled in the northern South China Sea. However, the source and genetic mechanism of hydrocarbon gases have not been systematically elucidated, significantly restricting the identification of main gas sources and the deployment of future exploration strategies. In this study, taking the typical highly saturated gas hydrate deposits in the Qiongdongnan and Shenhu areas as examples, the source and genetic mechanism of hydrocarbon gases are systematically investigated using an integrated approach that includes gas geochemistry, sediment organic geochemistry, geomicrobiology, and seismic interpretation. The results show that the genetic types of hydrate gases in the northern South China Sea are diverse, including primary and secondary microbial gases, as well as thermogenic coal-type and oil-type gases. Notably, the thermogenic gases within different gas hydrate deposits have undergone microbial degradation and modification to varying extents: Shenhu W11-17 gas hydrate deposit>Shenhu W18-19 gas hydrate deposit>Qiongdongnan GMGS5-W08 gas hydrate deposit. The hydrate gas source layer consists of a shallowly buried microbial gas source layer (20-85 ℃) and a deeply buried thermogenic gas source layer (vitrinite reflectance R_o>0.5%). The upper part of the microbial gas source layer (<300 mbsf), which has been drilled and sampled, shows relatively low gas generative potential. In contrast, the thermogenic gas source represents great gas generative potential due to the existence of effective source kitchens and gas-prone coal-type source rocks in the mature stage. The deeply buried thermogenic source kitchen, conventional hydrocarbon deposits, shallowly buried microbial gas source layer, and composite gas migration conduits (including depression-controlled faults, gas chimneys, tubular seeps, and microfractures) constitute the hydrocarbon gas supply system for the highly saturated gas hydrate deposits in the northern South China Sea. The contribution of the deeply buried thermogenic source kitchen is extremely critical for the large-scale accumulation of gas hydrate. However, most of the thermogenic gases transported through the microbial gas source layer undergo severe microbial degradation and are ultimately converted into secondary microbial methane for gas hydrate mineralization. There are three major pathways for hydrocarbon gases in the highly saturated hydrate deposits of the northern South China Sea:(1)Hydrate gases directly originating from the deeply buried thermogenic gas source kitchen, i.e., non-biodegraded thermogenic gas. (2)Hydrate gases derived from secondary microbial gases, which are generated by anaerobic methanogenesis degradation processes after deeply buried thermogenic hydrocarbons migrate into the microbial gas source layer.(3)Hydrate gases supplied by primary microbial gases, which are generated by microbial utilization of in-situ sediment organic matter in the shallowly buried microbial gas source layer.

Key words: secondary microbial gas, gas origin, hydrate gas supply system, accumulation mechanism, natural gas hydrate

CLC Number:

P618.13

LAI Hongfei, KUANG Zenggui, FANG Yunxin, XU Chenlu, REN Jinfeng, LIANG Jinqiang, LU Jing’an. Origin and genetic mechanism of hydrocarbon gas sources of the highly saturated gas hydrate deposits in the northern South China Sea[J]. Earth Science Frontiers, 2025, 32(2): 36-60.

Figures/Tables 16

References 75

[1]	COLLETT T S, JOHNSON A H, KNAPP C C, et al. Natural gas hydrates: a review[C]//COLLETT T S, JOHNSON A H, KNAPP C C, et al. Natural gas hydrates: energy resource potential and associated geologic hazards. Tulsa: American Association of Petroleum Geologists, 2009: 146-219.
[2]	COLLETT T S. Energy resource potential of natural gas hydrates[J]. American Association of Petroleum Geologists Bulletin, 2002, 86(11): 1971-1992.
[3]	KVENVOLDEN K A. The global occurrence of natural gas hydrates[J]. Natural Gas Hydrates Occurrence Distribution & Detection, 2001: 3-18.
[4]	COLLETT T S, BOSWELL R, WAITE W F, et al. India national gas hydrate program expedition 02 summary of scientific results: gas hydrate systems along the eastern continental margin of India[J]. Marine and Petroleum Geology, 2019, 108: 39-142.
[5]	SASSEN R, LOSH S L, CATHLES III L, et al. Massive vein-filling gas hydrate: relation to ongoing gas migration from the deep subsurface in the Gulf of Mexico[J]. Marine and Petroleum Geology, 2001, 18(5): 551-560.
[6]	YE J L, WEI J G, LIANG J Q, et al. Complex gas hydrate system in a gas chimney, South China Sea[J]. Marine and Petroleum Geology, 2019, 104: 29-39. DOI
[7]	ZHANG G X, LIANG J Q, LU J A, et al. Geological features, controlling factors and potential prospects of the gas hydrate occurrence in the east part of the Pearl River Mouth Basin, South China Sea[J]. Marine and Petroleum Geology, 2015, 67: 356-367.
[8]	张伟, 梁金强, 陆敬安, 等. 中国南海北部神狐海域高饱和度天然气水合物成藏特征及机制[J]. 石油勘探与开发, 2017, 44(5): 670-680.
[9]	MENG M M, LIANG J Q, LU J A, et al. Quaternary deep-water sedimentary characteristics and their relationship with the gas hydrate accumulations in the Qiongdongnan Basin, Northwest South China Sea[J]. Deep Sea Research Part I: Oceanographic Research Papers, 2021, 177: 103628
[10]	ZHANG W, LIANG J Q, WEI J G, et al. Geological and geophysical features of and controls on occurrence and accumulation of gas hydrates in the first offshore gas-hydrate production test region in the Shenhu area, northern South China Sea[J]. Marine and Petroleum Geology, 2020, 114: 104191.
[11]	WANG X J, COLLETT T S, LEE M W, et al. Geological controls on the occurrence of gas hydrate from core, downhole log, and seismic data in the Shenhu area, South China Sea[J]. Marine Geology, 2014, 357: 272-292.
[12]	吴能友, 梁金强, 王宏斌, 等. 海洋天然气水合物成藏系统研究进展[J]. 现代地质, 2008, 22(3): 356-362.
[13]	苏丕波, 梁金强, 张伟, 等. 南海北部神狐海域天然气水合物成藏系统[J]. 天然气工业, 2020, 40(8): 77-89.
[14]	KVENVOLDEN K A. A review of the geochemistry of methane in natural gas hydrate[J]. Organic Geochemistry, 1995, 23(11/12): 997-1008.
[15]	MILKOV A V. Molecular and stable isotope compositions of natural gas hydrates: a revised global dataset and basic interpretations in the context of geological settings[J]. Organic Geochemistry, 2005, 36(5): 681-702.
[16]	戴金星, 倪云燕, 黄士鹏, 等. 中国天然气水合物气的成因类型[J]. 石油勘探与开发, 2017, 44(6): 837-848. DOI
[17]	LI Y Y, CHANG J Y, LU H L. Geochemical characteristics of gases associated with natural gas hydrate[J]. Frontiers in Marine Science, 2022, 9: 968647.
[18]	WHITICAR M J. Carbon and hydrogen isotope systematics of bacterial formation and oxidation of methane[J]. Chemical Geology, 1999, 161(1/2/3): 291-314.
[19]	MILKOV A V. Worldwide distribution and significance of secondary microbial methane formed during petroleum biodegradation in conventional reservoirs[J]. Organic Geochemistry, 2011, 42(2): 184-207.
[20]	WU N Y, ZHANG H Q, YANG S X, et al. Gas hydrate system of Shenhu area, northern South China Sea: geochemical results[J]. Journal of Geological Research, 2011, 2011: 370298.
[21]	何家雄, 颜文, 祝有海, 等. 全球天然气水合物成矿气体成因类型及气源构成与主控因素[J]. 海洋地质与第四纪地质, 2013, 33(2): 121-128.
[22]	CHOI J Y, KIM J H, TORRES M E, et al. Gas origin and migration in the Ulleung Basin, East Sea: results from the Second Ulleung Basin Gas Hydrate Drilling Expedition (UBGH2)[J]. Marine and Petroleum Geology, 2013, 47: 113-124.
[23]	MILKOV A V, CLAYPOOL G E, LEE Y J, et al. Gas hydrate systems at Hydrate Ridge offshore Oregon inferred from molecular and isotopic properties of hydrate-bound and void gases[J]. Geochimica et Cosmochimica Acta, 2005, 69(4): 1007-1026.
[24]	KIDA M, JIN Y, WATANABE M, et al. Chemical and crystallographic characterizations of natural gas hydrates recovered from a production test site in the eastern Nankai Trough[J]. Marine and Petroleum Geology, 2015, 66: 396-403.
[25]	SASSEN R, JOYE S, SWEET S T, et al. Thermogenic gas hydrates and hydrocarbon gases in complex chemosynthetic communities, Gulf of Mexico continental slope[J]. Organic Geochemistry, 1999, 30(7): 485-497.
[26]	SASSEN R, ROBERTS H H, CARNEY R, et al. Free hydrocarbon gas, gas hydrate, and authigenic minerals in chemosynthetic communities of the northern Gulf of Mexico continental slope: relation to microbial processes[J]. Chemical Geology, 2004, 205(3/4): 195-217.
[27]	LORENSON T D, COLLETT T S. National Gas Hydrate Program Expedition 01 offshore India; gas hydrate systems as revealed by hydrocarbon gas geochemistry[J]. Marine and Petroleum Geology, 2018, 92: 477-492.
[28]	STADNITSKAIA A, IVANOV M K, POLUDETKINA E N, et al. Sources of hydrocarbon gases in mud volcanoes from the Sorokin Trough, NE Black Sea, based on molecular and carbon isotopic compositions[J]. Marine and Petroleum Geology, 2008, 25(10): 1040-1057.
[29]	黄霞, 祝有海, 卢振权, 等. 南海北部天然气水合物钻探区烃类气体成因类型研究[J]. 现代地质, 2010, 24(3): 576-580.
[30]	苏丕波, 雷怀彦, 梁金强, 等. 神狐海域气源特征及其对天然气水合物成藏的指示意义[J]. 天然气工业, 2010, 30(10): 103-108.
[31]	LIU C L, MENG Q G, HE X L, et al. Comparison of the characteristics for natural gas hydrate recovered from marine and terrestrial areas in China[J]. Journal of Geochemical Exploration, 2015, 152: 67-74.
[32]	苏丕波, 梁金强, 沙志彬, 等. 神狐深水海域天然气水合物成藏的气源条件[J]. 西南石油大学学报(自然科学版), 2014, 36(2): 1-8. DOI
[33]	FANG Y X, WEI J G, LU H L, et al. Chemical and structural characteristics of gas hydrates from the Haima cold seeps in the Qiongdongnan Basin of the South China Sea[J]. Journal of Asian Earth Sciences, 2019, 182: 103924.
[34]	ZHANG W, LIANG J Q, WEI J G, et al. Origin of natural gases and associated gas hydrates in the Shenhu area, northern South China Sea: results from the China gas hydrate drilling expeditions[J]. Journal of Asian Earth Sciences, 2019, 183: 103953.
[35]	LIANG Q Y, XIAO X, ZHAO J, et al. Geochemistry and sources of hydrate-bound gas in the Shenhu area, northern South China sea: insights from drilling and gas hydrate production tests[J]. Journal of Petroleum Science and Engineering, 2022, 208: 109459.
[36]	LAI H F, FANG Y X, KUANG Z G, et al. Geochemistry, origin and accumulation of natural gas hydrates in the Qiongdongnan Basin, South China Sea: implications from site GMGS5-W08[J]. Marine and Petroleum Geology, 2021, 123: 104774.
[37]	LAI H F, QIU H J, LIANG J Q, et al. Geochemical characteristics and gas-to-gas correlation of two leakage-type gas hydrate accumulations in the western Qiongdongnan Basin, South China Sea[J]. Acta Geologica Sinica(English Edition), 2022, 96(2): 680-690.
[38]	CHENG C, JIANG T, KUANG Z G, et al. Characteristics of gas chimneys and their implications on gas hydrate accumulation in the Shenhu area, northern South China sea[J]. Journal of Natural Gas Science and Engineering, 2020, 84: 103629.
[39]	JIN J P, WANG X J, GUO Y Q, et al. Geological controls on the occurrence of recently formed highly concentrated gas hydrate accumulations in the Shenhu area, South China Sea[J]. Marine and Petroleum Geology, 2020, 116: 104294.
[40]	LAI H F, DENG Y N, YANG L, et al. Origin of natural gas within the deep-sea uncompacted sediments of the Shenhu area, northern South China Sea: geochemical and methanogenic cultivation results[J]. Marine and Petroleum Geology, 2023, 147: 106015.
[41]	LAI H F, QIU H J, KUANG Z G, et al. Integrated signatures of secondary microbial gas within gas hydrate reservoirs: a case study in the Shenhu area, northern South China Sea[J]. Marine and Petroleum Geology, 2022, 136: 105486.
[42]	付少英, 陆敬安. 神狐海域天然气水合物的特征及其气源[J]. 海洋地质动态, 2010, 26(9): 6-10.
[43]	龚再升. 中国近海含油气盆地新构造运动和油气成藏[J]. 石油与天然气地质, 2004, 25(2): 133-138.
[44]	何家雄, 张伟, 颜文. 等. 中国近海盆地幕式构造演化及成盆类型与油气富集规律[J]. 海洋地质与第四纪地质, 2014, 34(2): 121-134.
[45]	LIANG J Q, ZHANG W, LU J A, et al. Geological occurrence and accumulation mechanism of natural gas hydrates in the eastern Qiongdongnan Basin of the South China Sea: insights from site GMGS5-W9-2018[J]. Marine Geology, 2019, 418: 106042.
[46]	张功成, 杨海长, 陈莹, 等. 白云凹陷: 珠江口盆地深水区一个巨大的富生气凹陷[J]. 天然气工业, 2014, 34(11): 11-25.
[47]	崔莎莎, 何家雄, 陈胜红, 等. 珠江口盆地发育演化特征及其油气成藏地质条件[J]. 天然气地球科学, 2009, 20(3): 384-391. DOI
[48]	施和生, 何敏, 张丽丽, 等. 珠江口盆地(东部)油气地质特征、成藏规律及下一步勘探策略[J]. 中国海上油气, 2014, 26(3): 11-22.
[49]	米立军, 张功成, 沈怀磊, 等. 珠江口盆地深水区白云凹陷始新统—下渐新统沉积特征[J]. 石油学报, 2008, 29(1): 29-34. DOI
[50]	米立军, 张忠涛, 庞雄, 等. 南海北部陆缘白云凹陷油气富集规律及主控因素[J]. 石油勘探与开发, 2018, 45(5): 902-913. DOI
[51]	李绪宣, 钟志洪, 董伟良, 等. 琼东南盆地古近纪裂陷构造特征及其动力学机制[J]. 石油勘探与开发, 2006, 33(6): 713-721.
[52]	HU B, WANG L S, YAN W B, et al. The tectonic evolution of the Qiongdongnan Basin in the northern margin of the South China Sea[J]. Journal of Asian Earth Sciences, 2013, 77: 163-182.
[53]	邵磊, 李昂, 吴国瑄, 等. 琼东南盆地沉积环境及物源演变特征[J]. 石油学报, 2010, 31(4): 548-552. DOI
[54]	XIE Y H, ZHANG G C, SUN Z P, et al. Reservoir forming conditions and key exploration technologies of Lingshui 17-2 giant gas field in deepwater area of Qiongdongnan Basin[J]. Petroleum Research, 2019, 4(1): 1-18.
[55]	HAO F, LI S T, SUN Y C, et al. Geology, compositional heterogeneities, and geochemical origin of the Yacheng gas field, Qiongdongnan Basin, South China Sea[J]. American Association of Petroleum Geologists bulletin, 1998, 82(7): 1372-1384.
[56]	LAI H F, FANG Y X, KUANG Z G, et al. Molecular and carbon isotopic characteristics during natural gas hydrate decomposition: insights from a stepwise depressurization experiment on a pressure core[J]. Energy & Fuels, 2021, 35(19): 15579-15588.
[57]	WEI J G, FANG Y X, LU H L, et al. Distribution and characteristics of natural gas hydrates in the Shenhu sea area, South China Sea[J]. Marine and Petroleum Geology, 2018, 98: 622-628.
[58]	朱俊章, 施和生, 何敏, 等. 珠江口盆地白云凹陷深水区L W3-1-1 井天然气地球化学特征及成因探讨[J]. 天然气地球科学, 2008, 19(2): 229-233. DOI
[59]	张迎朝, 徐新德, 甘军, 等. 琼东南盆地深水区L18气田上新统地层圈闭气田形成条件及成藏模式[J]. 海洋学报, 2019, 41(3): 121-133.
[60]	MARZI R, TORKELSON B E, OLSON R K. A revised carbon preference index[J]. Organic Geochemistry, 1993, 20(8): 1303-1306.
[61]	RADKE M, WELTE D H, WILLSCH H. Geochemical study on a well in the western Canada Basin: relation of the aromatic distribution pattern to maturity of organic matter[J]. Geochimica et Cosmochimica Acta, 1982, 46(1): 1-10.
[62]	BERNARD B B, BROOKS J M, SACKETT W M. A geochemical model for characterization of hydrocarbon gas sources in marine sediments[C]// Proceedings of offshore technology conference. Houston: Offshor Technology Conference, 1977: 435-438.
[63]	MILKOV A V, ETIOPE G. Revised genetic diagrams for natural gases based on a global dataset of >20000 samples[J]. Organic Geochemistry, 2018, 125: 109-120.
[64]	CHUNG H M, GORMLY J R, SQUIRES R M. Origin of gaseous hydrocarbons in subsurface environments: theoretical considerations of carbon isotope distribution[J]. Chemical Geology, 1988, 71(1/2/3): 97-104.
[65]	LIU Q Y, WU X Q, WANG X F, et al. Carbon and hydrogen isotopes of methane, ethane, and propane: a review of genetic identification of natural gas[J]. Earth-Science Reviews, 2019, 190: 247-272.
[66]	HUANG H P, LARTER S. Secondary microbial gas formation associated with biodegraded oils from the Liaohe Basin, NE China[J]. Organic Geochemistry, 2014, 68: 39-50.
[67]	SASSEN R, MILKOV A V, OZGUL E, et al. Gas venting and subsurface charge in the Green Canyon area, Gulf of Mexico continental slope: evidence of a deep bacterial methane source?[J]. Organic Geochemistry, 2003, 34(10): 1455-1464.
[68]	段昌海, 张翠景, 孙艺华, 等. 新型产甲烷古菌研究进展[J]. 微生物学报, 2019, 59(6): 981-995.
[69]	承磊, 郑珍珍, 王聪, 等. 产甲烷古菌研究进展[J]. 微生物学通报, 2016, 43(5): 1143-1164.
[70]	TANG X Y, YANG S C, HU S B. Thermal-history reconstruction of the Baiyun Sag in the deep-water area of the Pearl River Mouth Basin, northern South China Sea[J]. Frontiers of Earth Science, 2018, 12(3): 532-544. DOI
[71]	FU J, CHEN C, LI M J, et al. Petroleum charging history of Neogene reservoir in the Baiyun Sag, Pearl River Mouth Basin, South China sea[J]. Journal of Petroleum Science and Engineering, 2020, 190: 106945.
[72]	SOROKIN D Y, ABBAS B, MERKEL A Y, et al. Methanosalsum natronophilum sp. nov., and Methanocalculus alkaliphilus sp. nov., haloalkaliphilic methanogens from hypersaline soda lakes[J]. International Journal of Systematic and Evolutionary Microbiology, 2015, 65: 3739-3745.
[73]	HUANG B J, TIAN H, LI X S, et al. Geochemistry, origin and accumulation of natural gases in the deepwater area of the Qiongdongnan Basin, South China Sea[J]. Marine and Petroleum Geology, 2016, 72: 254-267.
[74]	FU J, ZHANG Z T, CHEN C, et al. Geochemistry and origins of petroleum in the Neogene reservoirs of the Baiyun Sag, Pearl River Mouth Basin[J]. Marine and Petroleum Geology, 2019, 107: 127-141.
[75]	RICE D D, CLAYPOOL G E. Generation, accumulation, and resource potential of biogenic gas[J]. American Association of Petroleum Geologists Bulletin, 1981, 65(1): 5-25.

矿藏/气体类型	井号	深度 (bsf)/m	样品类型	气体组分含量				C₁/ (C₂+C₃)	碳同位素组成δ¹³C/‰					甲烷氢同位素组成δD₁/‰	数据来源文献
矿藏/气体类型	井号	深度 (bsf)/m	样品类型	C₁含量/ %	C₂含量/ %	C₃含量/ 10^-6	C₃₊含量/ 10^-6	C₁/ (C₂+C₃)	C₁	C₂	C₃	nC₄	nC₅	甲烷氢同位素组成δD₁/‰	数据来源文献
W11-17 矿藏	W17D	250.2	PCS	98.45	1.47	768	—	64	-59.7	-32.3	-18.5	—	—	-170.5	本文
	W17D	259.35	PCS	98.89	0.80	3 045	—	89	-60.8	-32.6	-18.2	—	—	-164
	W17D	263.02	PCS	98.86	0.84	2 961	—	87	-56.7	-32.8	-18.3	—	—	-165.2
	W17D	257.00	PCS	98.94	0.77	2 864	—	93	-58.7	-32.7	-18.2	—	—	-164.5
	SH-W04	208.1	PCS	99.35	0.51	1 337	78	153	-66.2	-33.2	-19.7	-21.2	—	-176.1
	SH-W04	210.4	PCS	99.51	0.44	360	35	205	-65.4	-33.3	-19.4	—	—	-177.5
	SH-W02	259.1	PCS	99.48	0.43	356	76	201	-65.2	-33.6	-22.3	-23.1	-25.7	-178.2
	SH-W02	266.8	PCS	99.52	0.39	670	241	212	-66.0	-33.7	-21.7	-23.2	-25.3	-175.1
	SC3	135.25	PCS	99.7	0.25	10	0	399	-66.4	—	—	—	—	-189.5	[34]
		149.34	VG	99.6	0.31	90	131	311	-64.9	—	—	—	—	-185.4
		153.71	VG	99.3	0.34	1 784	1 211	193	-65.2	—	—	—	—	-185
		161.10	PCS	99.6	0.42	74	0	231	-65.4	—	—	—	—	-181.3
		161.20	VG	99.6	0.39	72	0	252	-64.7	—	—	—	—	-185.6
		170.34	VG	99.5	0.5	88	0	195	-65.4	—	—	—	—	-162.2
		174.41	VG	99.4	0.55	88	0	179	-64.6	—	—	—	—	-184.6
		177.40	PCS	99.4	0.61	82	0	161	-64.6	—	—	—	—	-185.4
		199.98	VG	99.5	0.5	132	0	194	-64.6	—	—	—	—	-181.2
	SH-W02	209.4~209.62	PCS	99.45	0.5	211	33	191	-66.5	-32.2	-18.2	—	—	n.g.	[40]
	SC3	136.57	HG	99.66	0.31	20	0	317	-65.2	—	—	—	—	-191.3	[35]
	SH-W04	197.5	PCS	99.07	0.66	2 408	308	110	-66.0	-32.8	-20.0	-20.9	—	-175.6	[40]
W18-19 矿藏	SC1	155.48	HG	99.6	0.098	1 780	780	360	-47.4	—	—	—	—	-172.6	[57]
		162.16	HG	99.2	0.647	1 090	750	131	-47.1	—	—	—	—	-174.1
		162.90	HG	99.1	0.674	1 090	850	126	-47.7	—	—	—	—	-177.7
		170.00	HG	98.9	0.756	2 160	950	102	-47.8	—	—	—	—	-173.2
	SC1	155.24	PCS	98.0	0.09	1 436	447	422	-47.4	—	—	—	—	-172.6	[34]
	SC1	162.94	VG	98.5	1.03	3 437	837	72	-46.4	—	—	—	—	-164.7
	SC1	169.19	VG	98.6	1.11	1 495	570	78	-47.6	—	—	—	—	-170
	SC1	170.00	PCS	98.9	0.78	1 976	861	102	-47.8	—	—	—	—	-173.2
	SC2	149.26	PCS	98.7	0.53	686	468	164	-46.4	—	—	—	—	-174.5
	SC2	149.61	PCS	99.2	0.7	371	181	134	-47.3	—	—	—	—	-177.4
	SC2	153.69	VG	98.4	1.18	3 827	504	63	-46.2	—	—	—	—	-185.0
	SC2	157.41	PCS	98.5	0.79	5 281	1 585	75	-47.2	—	—	—	—	-171.3
	SC2	165.91	VG	98.1	1.82	847	110	52	-45.8	—	—	—	—	-170.1
	SC2	170.26	PCS	98.4	1.31	2 505	778	63	-46.8	—	—	—	—	-182.5
	SC1	155.35~155.48	HG	99.76	0.17	666	103	426	-49.5	-27.8	-19.4	-24.7	—	-165.4	[41]
	SC1	160.02~160.13	HG	99.36	0.61	257	0	156	-48.9	-26.9	-16.5	—	—	-179.6
	SC1	160.58~160.76	HG	99.32	0.43	1 124	300	183	-49.1	-26.1	-19.2	-26.4	—	-163.3
	SC1	161.43~161.63	HG	98.55	1.15	2 278	574	72	-49.5	-25.2	-18.7	—	—	-174.5
	SC1	163.25~163.46	HG	99.10	0.79	780	222	115	-50.2	-25.7	-18.3	—	—	-169.0
	SC2	158.69~158.84	HG	99.22	0.68	202	68	142	-47.4	-22.7	-17.4	—	—	-172.5
	SC2	169.85~170.08	HG	98.60	1.37	238	61	71	-47.5	-24.0	-17.0	—	—	-178.7
	SC1	155.48	HG	99.63	0.22	1 078	161	302	-47.0	-30.5	-18.3	-16.4	—	-190.7	[35]
	SC1	160.76	HG	99.07	0.76	640	145	120	-49.2	-28.9	-18.6	-18.5	—	-195.0
	SC1	161.63	HG	98.17	1.52	1 996	542	57	-47.8	-28.9	-17.9	-15.2	—	-196.6
	SC1	162.16	HG	98.69	1.17	612	145	80	-47.6	-27.6	-17.2	-18.2	—	-191.2
	SC1	163.46	HG	98.60	1.25	618	254	75	-48.1	-28.7	-18.3	-20.4	—	-191.9
	SC2	144.52	HG	99.60	0.25	1 130	132	276	-46.2	-28.6	-18.1	-17.4	—	-191.9
	SC2	158.84	HG	98.22	1.58	570	74	60	-47.3	-28.3	-18.0	—	—	-197.9
	SC2	170.08	HG	98.25	1.64	569	104	58	-46.9	-27.7	-17.3	-17.2	—	-193.5
GMGS- W08 矿藏	W08C	8.00	HG	97.69	2.05	500	231	47	-59.5	-26.0	-22.4	—	—	-187	[37]
	W08B	32.88	PCS	94.94	4.23	5 800	2 172	20	-54.4	-25.5	-22.9	—	—	-185
	W08B	62.93	HG	81.21	12.88	45 800	12 471	5	-56.3	-26.9	-22.7	—	—	-176
	W08B	79.00	PCS	95.75	3.69	3 900	1 681	24	-58.6	-25.1	-21.6	—	—	-170
	W08B	80.90	PCS	95.73	3.68	3 600	1 758	24	-48.7	-22.4	-20.2	—	—	—
	W08B	112.30	PCS	96.46	2.99	3 300	1 587	29	-53.8	-23.3	-20.7	—	—	-175
	W08C	145.65	PCS	83.49	11.61	39 300	9 417	5	-49.3	-27.5	-23.0	—	—	—
	W08C	148.40	HG	79.16	14.4	51 500	12 416	4	-50.4	-26.5	-22.8	—	—	—
	W08C	158.00	PCS	84.17	10.99	39 000	9 123	6	-50.4	-26.9	-22.2	—	—	-183
	W08C	187.10	PCS	92.82	4.56	20 700	4 932	14	-50.4	-26.7	-23.2	—	—	-180
	W08B	17.07	HG	96.95	2.6	3 064	n.g.	33	-57.6	-25.1	-20.6	-21.5	—	-169
	W08B	60.00	HG	96.07	3.1	4 977	n.g.	27	-60.9	-25.9	-21.4	-22.4	—	-181
	W08B	63.58	HG	89.45	7.77	20 730	n.g.	9	-57.3	-26.3	-21.9	—	—	-179
	W08B	63.18	HG	96.20	3.3	3 897	n.g.	26	-54.6	-22.0	—	—	—	-178
	W08B	69.35	HG	91.63	5.86	20 333	n.g.	12	-60.5	-26.2	-19.6	—	—	-183
生物成因气	SH-W20A	65.64	VG	96	0.1	478	237	2 009	-74.9	-33.8	-17.4	—	—	-174	[40]
	SH-W20A	90.34	VG	97	0.1	534	352	1 817	-70.2	-33.0	-17.0	-23.3	—	-170	[40]
	GMGS5-W01	49.27	PCS	99.59	0.29	1 245	0	255	-80.6	-29.8	-23.1	—	—	-187	[37]
	GMGS5-W01	125.80	PCS	99.81	0.15	419	0	525	-79.0	-36.1	-24.1	—	—	-180
	GMGS6-W03	27.71	VG	99.32	0.06	—	0	1 655	-77.6	-28.1	—	—	—	-178
热解成因气	LW3-1气藏	3 144.5		n.g.	n.g.	n.g.	n.g.	12	-36.6	-29.1	-27.4	-27.0	-26.6	-158.4	[58]
	LW3-1气藏	3 189.5		n.g.	n.g.	n.g.	n.g.	13	-36.8	-28.9	-27.5	-27.4	-27.2	-155.8
	LW3-1气藏	3 499.5		n.g.	n.g.	n.g.	n.g.	12	-36.6	-29.6	-29.1	-28.2	-26.2	-175.6
	L18-1气藏	2 819.9~2 846.7	DST	93.17	6.15	n.g.	n.g.	15	-40.5	-25.2	-23.8	-22.7	—	—	[59]
	L18-1气藏	2 819.9~2 846.7	DST	n.g.	n.g.	n.g.	n.g.	15	-40.4	-25.2	-23.8	—	—	—
	L18-1气藏	2 819.9~2 846.7	DST	n.g.	n.g.	n.g.	n.g.	26	-42.8	-26.2	-25.6	—	—	—

矿藏/气体类型	井号	深度 (bsf)/m	样品类型	气体组分含量				C₁/ (C₂+C₃)	碳同位素组成δ¹³C/‰					甲烷氢同位素组成δD₁/‰	数据来源文献
矿藏/气体类型	井号	深度 (bsf)/m	样品类型	C₁含量/ %	C₂含量/ %	C₃含量/ 10^-6	C₃₊含量/ 10^-6	C₁/ (C₂+C₃)	C₁	C₂	C₃	nC₄	nC₅	甲烷氢同位素组成δD₁/‰	数据来源文献
W11-17 矿藏	W17D	250.2	PCS	98.45	1.47	768	—	64	-59.7	-32.3	-18.5	—	—	-170.5	本文
	W17D	259.35	PCS	98.89	0.80	3 045	—	89	-60.8	-32.6	-18.2	—	—	-164
	W17D	263.02	PCS	98.86	0.84	2 961	—	87	-56.7	-32.8	-18.3	—	—	-165.2
	W17D	257.00	PCS	98.94	0.77	2 864	—	93	-58.7	-32.7	-18.2	—	—	-164.5
	SH-W04	208.1	PCS	99.35	0.51	1 337	78	153	-66.2	-33.2	-19.7	-21.2	—	-176.1
	SH-W04	210.4	PCS	99.51	0.44	360	35	205	-65.4	-33.3	-19.4	—	—	-177.5
	SH-W02	259.1	PCS	99.48	0.43	356	76	201	-65.2	-33.6	-22.3	-23.1	-25.7	-178.2
	SH-W02	266.8	PCS	99.52	0.39	670	241	212	-66.0	-33.7	-21.7	-23.2	-25.3	-175.1
	SC3	135.25	PCS	99.7	0.25	10	0	399	-66.4	—	—	—	—	-189.5	[34]
		149.34	VG	99.6	0.31	90	131	311	-64.9	—	—	—	—	-185.4
		153.71	VG	99.3	0.34	1 784	1 211	193	-65.2	—	—	—	—	-185
		161.10	PCS	99.6	0.42	74	0	231	-65.4	—	—	—	—	-181.3
		161.20	VG	99.6	0.39	72	0	252	-64.7	—	—	—	—	-185.6
		170.34	VG	99.5	0.5	88	0	195	-65.4	—	—	—	—	-162.2
		174.41	VG	99.4	0.55	88	0	179	-64.6	—	—	—	—	-184.6
		177.40	PCS	99.4	0.61	82	0	161	-64.6	—	—	—	—	-185.4
		199.98	VG	99.5	0.5	132	0	194	-64.6	—	—	—	—	-181.2
	SH-W02	209.4~209.62	PCS	99.45	0.5	211	33	191	-66.5	-32.2	-18.2	—	—	n.g.	[40]
	SC3	136.57	HG	99.66	0.31	20	0	317	-65.2	—	—	—	—	-191.3	[35]
	SH-W04	197.5	PCS	99.07	0.66	2 408	308	110	-66.0	-32.8	-20.0	-20.9	—	-175.6	[40]
W18-19 矿藏	SC1	155.48	HG	99.6	0.098	1 780	780	360	-47.4	—	—	—	—	-172.6	[57]
		162.16	HG	99.2	0.647	1 090	750	131	-47.1	—	—	—	—	-174.1
		162.90	HG	99.1	0.674	1 090	850	126	-47.7	—	—	—	—	-177.7
		170.00	HG	98.9	0.756	2 160	950	102	-47.8	—	—	—	—	-173.2
	SC1	155.24	PCS	98.0	0.09	1 436	447	422	-47.4	—	—	—	—	-172.6	[34]
	SC1	162.94	VG	98.5	1.03	3 437	837	72	-46.4	—	—	—	—	-164.7
	SC1	169.19	VG	98.6	1.11	1 495	570	78	-47.6	—	—	—	—	-170
	SC1	170.00	PCS	98.9	0.78	1 976	861	102	-47.8	—	—	—	—	-173.2
	SC2	149.26	PCS	98.7	0.53	686	468	164	-46.4	—	—	—	—	-174.5
	SC2	149.61	PCS	99.2	0.7	371	181	134	-47.3	—	—	—	—	-177.4
	SC2	153.69	VG	98.4	1.18	3 827	504	63	-46.2	—	—	—	—	-185.0
	SC2	157.41	PCS	98.5	0.79	5 281	1 585	75	-47.2	—	—	—	—	-171.3
	SC2	165.91	VG	98.1	1.82	847	110	52	-45.8	—	—	—	—	-170.1
	SC2	170.26	PCS	98.4	1.31	2 505	778	63	-46.8	—	—	—	—	-182.5
	SC1	155.35~155.48	HG	99.76	0.17	666	103	426	-49.5	-27.8	-19.4	-24.7	—	-165.4	[41]
	SC1	160.02~160.13	HG	99.36	0.61	257	0	156	-48.9	-26.9	-16.5	—	—	-179.6
	SC1	160.58~160.76	HG	99.32	0.43	1 124	300	183	-49.1	-26.1	-19.2	-26.4	—	-163.3
	SC1	161.43~161.63	HG	98.55	1.15	2 278	574	72	-49.5	-25.2	-18.7	—	—	-174.5
	SC1	163.25~163.46	HG	99.10	0.79	780	222	115	-50.2	-25.7	-18.3	—	—	-169.0
	SC2	158.69~158.84	HG	99.22	0.68	202	68	142	-47.4	-22.7	-17.4	—	—	-172.5
	SC2	169.85~170.08	HG	98.60	1.37	238	61	71	-47.5	-24.0	-17.0	—	—	-178.7
	SC1	155.48	HG	99.63	0.22	1 078	161	302	-47.0	-30.5	-18.3	-16.4	—	-190.7	[35]
	SC1	160.76	HG	99.07	0.76	640	145	120	-49.2	-28.9	-18.6	-18.5	—	-195.0
	SC1	161.63	HG	98.17	1.52	1 996	542	57	-47.8	-28.9	-17.9	-15.2	—	-196.6
	SC1	162.16	HG	98.69	1.17	612	145	80	-47.6	-27.6	-17.2	-18.2	—	-191.2
	SC1	163.46	HG	98.60	1.25	618	254	75	-48.1	-28.7	-18.3	-20.4	—	-191.9
	SC2	144.52	HG	99.60	0.25	1 130	132	276	-46.2	-28.6	-18.1	-17.4	—	-191.9
	SC2	158.84	HG	98.22	1.58	570	74	60	-47.3	-28.3	-18.0	—	—	-197.9
	SC2	170.08	HG	98.25	1.64	569	104	58	-46.9	-27.7	-17.3	-17.2	—	-193.5
GMGS- W08 矿藏	W08C	8.00	HG	97.69	2.05	500	231	47	-59.5	-26.0	-22.4	—	—	-187	[37]
	W08B	32.88	PCS	94.94	4.23	5 800	2 172	20	-54.4	-25.5	-22.9	—	—	-185
	W08B	62.93	HG	81.21	12.88	45 800	12 471	5	-56.3	-26.9	-22.7	—	—	-176
	W08B	79.00	PCS	95.75	3.69	3 900	1 681	24	-58.6	-25.1	-21.6	—	—	-170
	W08B	80.90	PCS	95.73	3.68	3 600	1 758	24	-48.7	-22.4	-20.2	—	—	—
	W08B	112.30	PCS	96.46	2.99	3 300	1 587	29	-53.8	-23.3	-20.7	—	—	-175
	W08C	145.65	PCS	83.49	11.61	39 300	9 417	5	-49.3	-27.5	-23.0	—	—	—
	W08C	148.40	HG	79.16	14.4	51 500	12 416	4	-50.4	-26.5	-22.8	—	—	—
	W08C	158.00	PCS	84.17	10.99	39 000	9 123	6	-50.4	-26.9	-22.2	—	—	-183
	W08C	187.10	PCS	92.82	4.56	20 700	4 932	14	-50.4	-26.7	-23.2	—	—	-180
	W08B	17.07	HG	96.95	2.6	3 064	n.g.	33	-57.6	-25.1	-20.6	-21.5	—	-169
	W08B	60.00	HG	96.07	3.1	4 977	n.g.	27	-60.9	-25.9	-21.4	-22.4	—	-181
	W08B	63.58	HG	89.45	7.77	20 730	n.g.	9	-57.3	-26.3	-21.9	—	—	-179
	W08B	63.18	HG	96.20	3.3	3 897	n.g.	26	-54.6	-22.0	—	—	—	-178
	W08B	69.35	HG	91.63	5.86	20 333	n.g.	12	-60.5	-26.2	-19.6	—	—	-183
生物成因气	SH-W20A	65.64	VG	96	0.1	478	237	2 009	-74.9	-33.8	-17.4	—	—	-174	[40]
	SH-W20A	90.34	VG	97	0.1	534	352	1 817	-70.2	-33.0	-17.0	-23.3	—	-170	[40]
	GMGS5-W01	49.27	PCS	99.59	0.29	1 245	0	255	-80.6	-29.8	-23.1	—	—	-187	[37]
	GMGS5-W01	125.80	PCS	99.81	0.15	419	0	525	-79.0	-36.1	-24.1	—	—	-180
	GMGS6-W03	27.71	VG	99.32	0.06	—	0	1 655	-77.6	-28.1	—	—	—	-178
热解成因气	LW3-1气藏	3 144.5		n.g.	n.g.	n.g.	n.g.	12	-36.6	-29.1	-27.4	-27.0	-26.6	-158.4	[58]
	LW3-1气藏	3 189.5		n.g.	n.g.	n.g.	n.g.	13	-36.8	-28.9	-27.5	-27.4	-27.2	-155.8
	LW3-1气藏	3 499.5		n.g.	n.g.	n.g.	n.g.	12	-36.6	-29.6	-29.1	-28.2	-26.2	-175.6
	L18-1气藏	2 819.9~2 846.7	DST	93.17	6.15	n.g.	n.g.	15	-40.5	-25.2	-23.8	-22.7	—	—	[59]
	L18-1气藏	2 819.9~2 846.7	DST	n.g.	n.g.	n.g.	n.g.	15	-40.4	-25.2	-23.8	—	—	—
	L18-1气藏	2 819.9~2 846.7	DST	n.g.	n.g.	n.g.	n.g.	26	-42.8	-26.2	-25.6	—	—	—

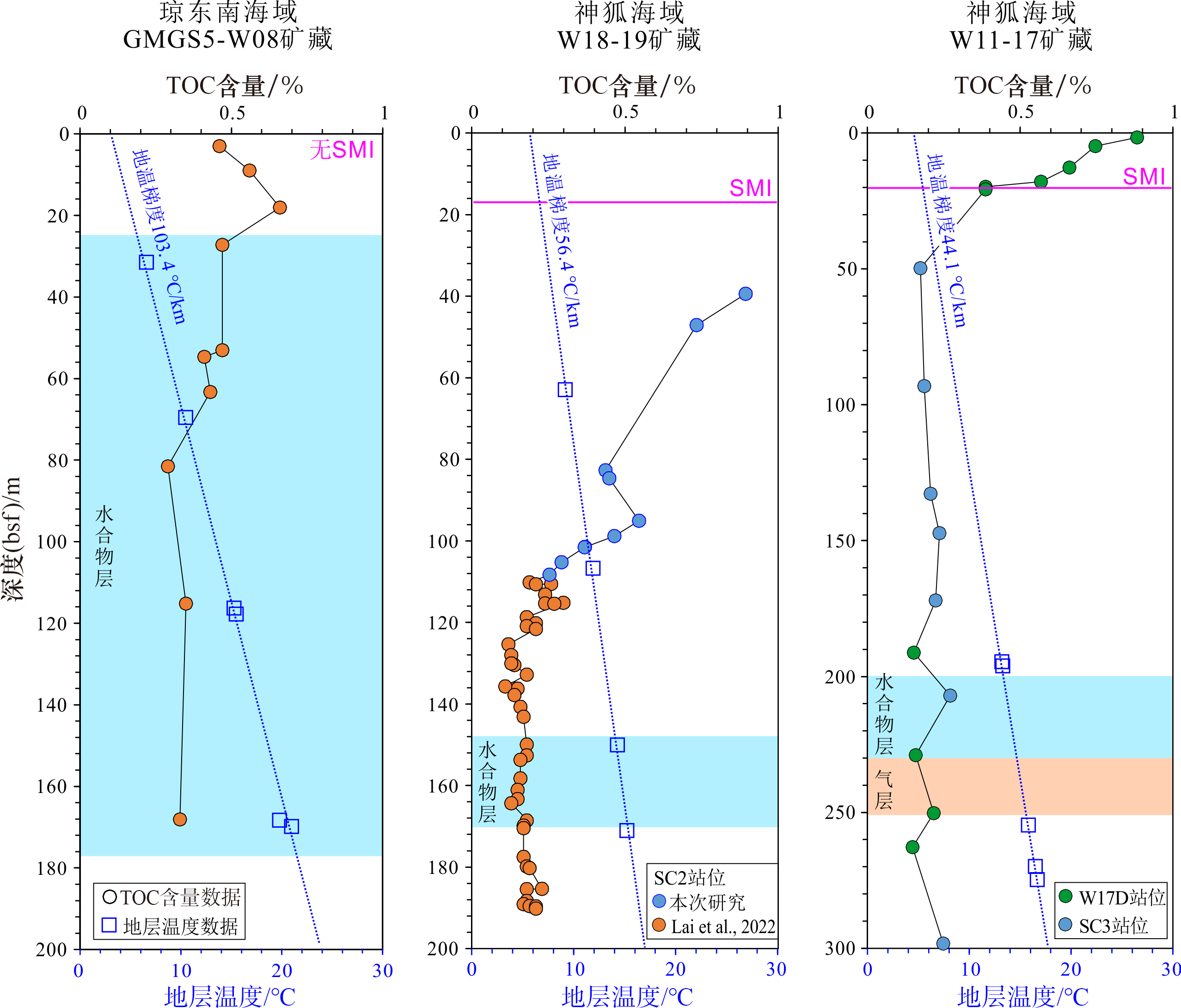

水合物矿藏	站位	深度(bsf)/ m	TOC 含量/%	数据来源文献	水合物矿藏	站位	深度(bsf)/ m	TOC 含量/%	数据来源文献
神狐 W11-17 矿藏	W17D	1.58	0.88	本文	神狐 W18-19 矿藏	SC2	113.17	0.24	[41]
	W17D	4.76	0.75			SC2	115.19	0.3
	W17D	12.73	0.66			SC2	115.35	0.24
	W17D	17.87	0.57			SC2	115.42	0.27
	W17D	19.73	0.39			SC2	118.72	0.18
	W17D	20.67	0.39			SC2	120.175	0.21
	W17D	191.27	0.15			SC2	120.92	0.18
	W17D	228.96	0.16			SC2	121.59	0.21
	W17D	250.29	0.22			SC2	125.39	0.12
	W17D	262.83	0.15			SC2	128.065	0.13
	SC3	49.71	0.17			SC2	130.44	0.14
	SC3	93.15	0.19			SC2	130.06	0.13
	SC3	132.79	0.21			SC2	132.86	0.18
	SC3	147.19	0.24			SC2	136.235	0.14
	SC3	171.97	0.22			SC2	136.29	0.15
	SC3	206.97	0.27			SC2	135.74	0.11
	SC3	298.25	0.25			SC2	137.83	0.14
琼东南 GMGS5- W08 矿藏	QDN-W08	3.02	0.46	[36]		SC2	140.71	0.16
	QDN-W08	8.95	0.56			SC2	143.17	0.17
	QDN-W08	18.06	0.66			SC2	149.94	0.18
	QDN-W08	27.205	0.47			SC2	152.64	0.18
	QDN-W08	53.015	0.47			SC2	153.69	0.16
	QDN-W08	54.65	0.41			SC2	158.23	0.16
	QDN-W08	63.25	0.43			SC2	161.06	0.15
	QDN-W08	81.50	0.29			SC2	163.34	0.15
	QDN-W08	115.225	0.35			SC2	164.39	0.13
	QDN-W08	168.1	0.33			SC2	168.63	0.18
神狐 W18-19 矿藏	SC2	39.46	0.89	本文		SC2	169.83	0.17
	SC2	47.08	0.73			SC2	170.51	0.17
	SC2	82.72	0.44			SC2	177.56	0.17
	SC2	84.67	0.45			SC2	179.85	0.18
	SC2	95.09	0.55			SC2	180.25	0.19
	SC2	98.88	0.47			SC2	185.39	0.23
	SC2	101.54	0.37			SC2	185.44	0.18
	SC2	101.61	0.37			SC2	188.32	0.18
	SC2	105.30	0.29			SC2	189.10	0.17
	SC2	108.30	0.25			SC2	189.56	0.19
	SC2	110.23	0.19	[41]		SC2	189.62	0.21
	SC2	110.57	0.26			SC2	190.18	0.21
	SC2	110.65	0.21

水合物矿藏	站位	深度(bsf)/ m	TOC 含量/%	数据来源文献	水合物矿藏	站位	深度(bsf)/ m	TOC 含量/%	数据来源文献
神狐 W11-17 矿藏	W17D	1.58	0.88	本文	神狐 W18-19 矿藏	SC2	113.17	0.24	[41]
	W17D	4.76	0.75			SC2	115.19	0.3
	W17D	12.73	0.66			SC2	115.35	0.24
	W17D	17.87	0.57			SC2	115.42	0.27
	W17D	19.73	0.39			SC2	118.72	0.18
	W17D	20.67	0.39			SC2	120.175	0.21
	W17D	191.27	0.15			SC2	120.92	0.18
	W17D	228.96	0.16			SC2	121.59	0.21
	W17D	250.29	0.22			SC2	125.39	0.12
	W17D	262.83	0.15			SC2	128.065	0.13
	SC3	49.71	0.17			SC2	130.44	0.14
	SC3	93.15	0.19			SC2	130.06	0.13
	SC3	132.79	0.21			SC2	132.86	0.18
	SC3	147.19	0.24			SC2	136.235	0.14
	SC3	171.97	0.22			SC2	136.29	0.15
	SC3	206.97	0.27			SC2	135.74	0.11
	SC3	298.25	0.25			SC2	137.83	0.14
琼东南 GMGS5- W08 矿藏	QDN-W08	3.02	0.46	[36]		SC2	140.71	0.16
	QDN-W08	8.95	0.56			SC2	143.17	0.17
	QDN-W08	18.06	0.66			SC2	149.94	0.18
	QDN-W08	27.205	0.47			SC2	152.64	0.18
	QDN-W08	53.015	0.47			SC2	153.69	0.16
	QDN-W08	54.65	0.41			SC2	158.23	0.16
	QDN-W08	63.25	0.43			SC2	161.06	0.15
	QDN-W08	81.50	0.29			SC2	163.34	0.15
	QDN-W08	115.225	0.35			SC2	164.39	0.13
	QDN-W08	168.1	0.33			SC2	168.63	0.18
神狐 W18-19 矿藏	SC2	39.46	0.89	本文		SC2	169.83	0.17
	SC2	47.08	0.73			SC2	170.51	0.17
	SC2	82.72	0.44			SC2	177.56	0.17
	SC2	84.67	0.45			SC2	179.85	0.18
	SC2	95.09	0.55			SC2	180.25	0.19
	SC2	98.88	0.47			SC2	185.39	0.23
	SC2	101.54	0.37			SC2	185.44	0.18
	SC2	101.61	0.37			SC2	188.32	0.18
	SC2	105.30	0.29			SC2	189.10	0.17
	SC2	108.30	0.25			SC2	189.56	0.19
	SC2	110.23	0.19	[41]		SC2	189.62	0.21
	SC2	110.57	0.26			SC2	190.18	0.21
	SC2	110.65	0.21

水合物矿藏	钻探站位	深度(bsf)/ m	泥质含量/%	氯仿沥青“A” 含量/(mg·g^-1)	饱和烃含量/%	芳烃含量/%	非烃含量/%	沥青质含量/%	数据来源文献
神狐W11-17 矿藏	W17D	229.02	22.77	0.09	13.33	13.94	18.79	53.94	本文
神狐W11-17 矿藏	W17D	250.36	25.26	0.07	17.24	22.41	13.79	46.55	本文
神狐W18-19 矿藏	SC2	149.46~152.46	18.74	0.20	4.71	0.67	7.40	87.22	本文
	SC2	158.3~163.34	19.31	0.24	8.55	1.14	8.55	81.77
	SC2	168.59~170.55	22.78	0.15	24.75	1.98	11.88	61.39
琼东南GMGS5-W08 矿藏	GMGS-W08	81.45~81.55	19.81	0.26	2.65	2.65	9.93	84.77	[36]
琼东南GMGS5-W08 矿藏	GMGS-W08	115.16~115.29	28.15	0.31	3.29	3.29	15.13	78.29	[36]
