Observational studies in the Kuroshio Extension region, Northwest Pacific—a review and outlook

doi:10.13745/j.esf.sf.2021.3.16

Abstract

Abstract:

The Kuroshio Extension (KE) in the Northwest Pacific is one of the regions that are dynamically most complex, most sensitive to climate change and have the most productive fishing ground in the global ocean. However, it is also a region with the least long-term continuous observation, which can hinder our understanding of the physical, ecological and biogeochemical processes in the region. This paper reviews the recent progress and accomplishments in the international KE observations as well as the ongoing efforts by Chinese scientists-including in 2020 the successful construction of the Kuroshio Extension Mooring System (KEMS), the first real-time data-transmission mooring array in the Northwest Pacific. During the construction of the KEMS, it was found that subduction by eddy lateral advection accounted for more than 50% of the total subduction rate for mode waters. The mesoscale eddies could trap and transport such mode waters southwestward to the western boundary of the subtropical gyre within one and a half year. By simultaneous temperature/salinity measurements and velocity measurement from the mooring arrays, the dynamic features of subthermocline eddies (STEs) in the KE region were examined in detail. For the first time in situ evidence of three types of STEs were obtained in this region, which provided a solid observational basis for further investigation of the detailed generation and erosion mechanisms of the KTEs as well as the global subsurface mass/heat transport processes. The paper proposes that future observational systems should include integrated open-ocean observational platforms for multisphere, multidisciplinary studies, which can provide important observational support for the understanding of multiscale physical biological coupling, deep-ocean energy cascade and its climate effects, and deep-ocean carbon cycle.

Key words: Northwest Pacific, Kuroshio Extension, observation system, multi-sphere, multi-disciplinary

CLC Number:

P714
P721

CHEN Zhaohui, LIN Xiaopei, MA Xin, GUAN Yanfeng, ZHOU Chun, ZHANG Yueqi, MA Ke. Observational studies in the Kuroshio Extension region, Northwest Pacific—a review and outlook[J]. Earth Science Frontiers, 2022, 29(5): 13-22.

Figures/Tables 7

Fig.1 Diagram of ocean material and energy cycle

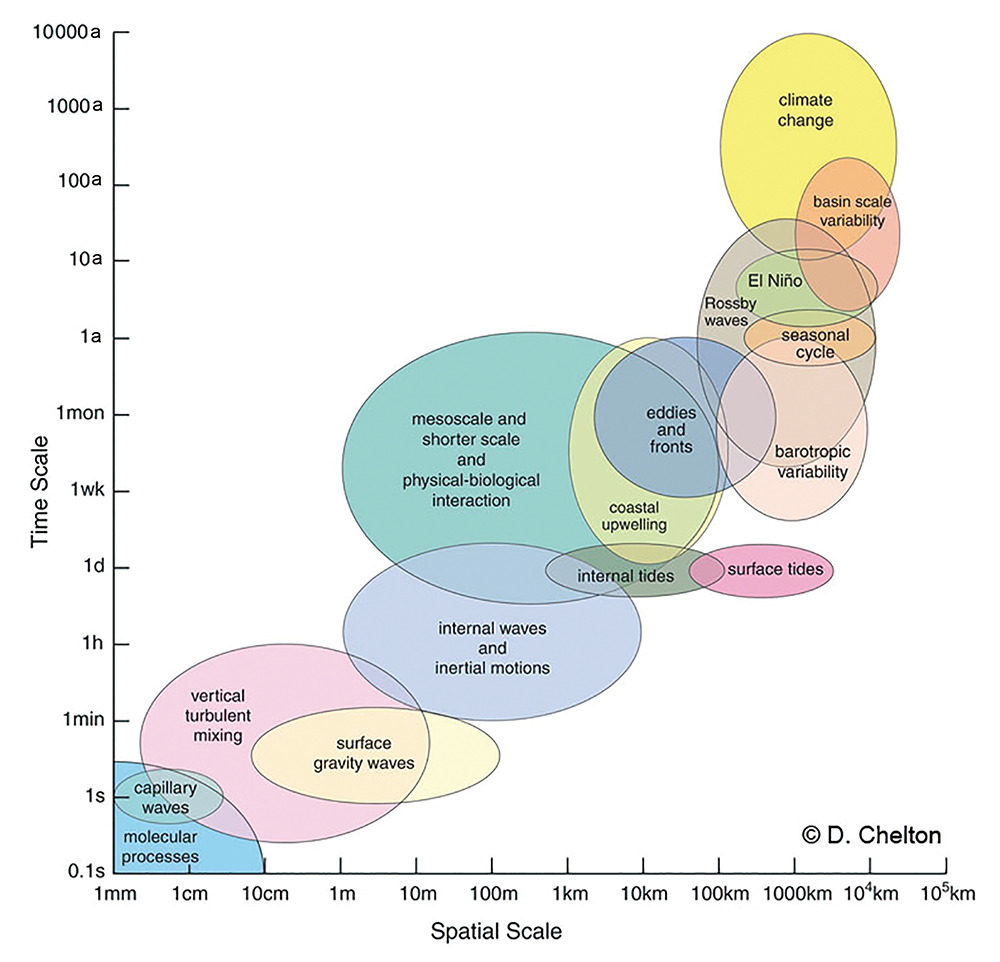

Fig.2 Diagram of ocean multi-scale processes. Adapted from [4].

Fig.3 Diagram of KESS program. Adapted from [18].

Fig.4 Moored buoys in Kuroshio Extension region

Fig.5 Diagram of Kuroshio Extension Mooring System

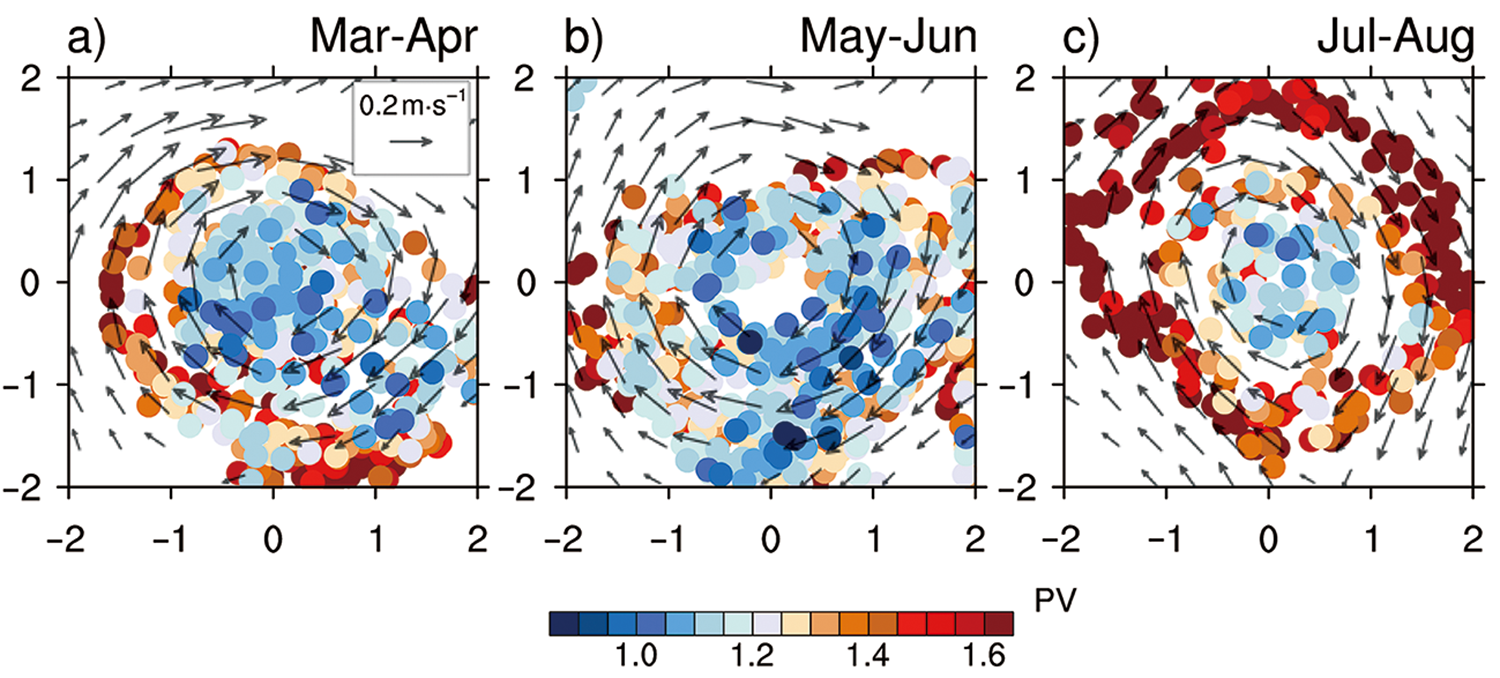

Fig.6 Seasonal variation characteristics of potential vorticity (PV) on core layer of model water based on Argo floats. Adapted from [34].

Fig.7 Dual-core STE captured by M1 of KEMS. Adapted from [45].

References 45

[1]	WUNSCH C, FERRARI R. Vertical mixing, energy, and the general circulation of the oceans[J]. Annual Review of Fluid Mechanics, 2004, 36: 281-314. DOI URL
[2]	FERRARI R, WUNSCH C. Ocean circulation kinetic energy: reservoirs, sources, and sinks[J]. Annual Review of Fluid Mechanics, 2009, 41: 253-282. DOI URL
[3]	KWON Y O, ALEXANDER M A, BOND N A, et al. Role of the Gulf Stream and Kuroshio-Oyashio systems in large-scale atmosphere-ocean interaction: a review[J]. Journal of Climate, 2010, 23(12): 3249-3281. DOI URL
[4]	DICKEY T. The role of new technology in advancing ocean biogeochemical research[J]. Oceanography, 2001, 14(4): 108-120. DOI URL
[5]	CARPENTER L J, ARCHER S D, BEALE R. Ocean-atmosphere trace gas exchange[J]. Chemical Society Reviews, 2012, 41(19): 6473-6506. DOI URL
[6]	LANA A, BELL T G, SIMÓ R, et al. An updated climatology of surface dimethlysulfide concentrations and emission fluxes in the global ocean[J]. Global Biogeochemical Cycles, 2011, 25(1): GB1004.
[7]	SIMÓ R. The role of marine microbiota in short-term climate regulation[M]//DUARTE C M. The role of marine biota in the functioning of the biosphere. Bilbao: Fundación BBVA, 2011: 107-130.
[8]	TAKAHASHI T, SUTHERLAND S C, WANNINKHOF R, et al. Climatological mean and decadal change in surface ocean pCO₂, and net sea-air CO₂ flux over the global oceans[J]. Deep Sea Research Part II: Topical Studies in Oceanography, 2009, 56(8/9/10): 554-577. DOI URL
[9]	MARTIN J H, COALE K H, JOHNSON K S, et al. Testing the iron hypothesis in ecosystems of the equatorial Pacific Ocean[J]. Nature, 1994, 371(6493): 123-129. DOI URL
[10]	KIM T W, LEE K, NAJJAR R G, et al. Increasing N abundance in the northwestern Pacific Ocean due to atmospheric nitrogen deposition[J]. Science, 2011, 334(6055): 505-509. DOI URL
[11]	QIU B. Kuroshio and Oyashio Currents[M]// COCHRANJ K, BOKUNIEWICZH, YAGERP. Encyclopedia of ocean sciences. Oxford: Academic Press, 2019: 384-394.
[12]	POLOVINA J J, HOWELL E, KOBAYASHI D R, et al. The transition zone chlorophyll front, a dynamic global feature defining migration and forage habitat for marine resources[J]. Progress in Oceanography, 2001, 49(1/2/3/4): 469-483. DOI URL
[13]	Food and Agriculture Organization of the United Nations (FAO). FAO Yearbook. Fishery and aquaculture statistics 2018[M]. Rome: FAO, 2020.
[14]	MCPHADEN M J. The tropical atmosphere ocean array is completed[J]. Bulletin of the American Meteorological Society, 1995, 76(5): 739-744. DOI URL
[15]	SERVAIN J, BUSALACCHI A J, MCPHADEN M J, et al. A pilot research moored array in the tropical Atlantic (PIRATA)[J]. Bulletin of the American Meteorological Society, 1998, 79(10): 2019-2031. DOI URL
[16]	MCPHADEN M J, MEYERS G, ANDO K, et al. RAMA: the research moored array for African-Asian-Australian monsoon analysis and prediction[J]. Bulletin of the American Meteorological Society, 2009, 90(4): 459-480. DOI URL
[17]	DONOHUE K, WATTS D R, TRACEY K, et al. Program studies the Kuroshio Extension[J]. Eos, Transactions American Geophysical Union, 2008, 89(17): 161-162.
[18]	DONOHUE K, WATTS D R, TRACEY K, et al. Mapping circulation in the Kuroshio Extension with an array of Current and Pressure recording Inverted Echo Sounders[J]. Journal of Atmospheric and Oceanic Technology, 2010, 27(3): 507-527. DOI URL
[19]	HOWE P J, DONOHUE K A, WATTS D R. Stream-coordinate structure and variability of the Kuroshio Extension[J]. Deep Sea Research Part I: Oceanographic Research Papers, 2009, 56(7): 1093-1116. DOI URL
[20]	TRACEY K L, WATTS D R, DONOHUE K A, et al. Propagation of Kuroshio Extension Meanders between 143° and 149°E[J]. Journal of Physical Oceanography, 2012, 42(4): 581-601. DOI URL
[21]	JAYNE S R, HOGG N G, WATERMAN S N, et al. The Kuroshio Extension and its recirculation gyres[J]. Deep Sea Research Part I: Oceanographic Research Papers, 2009, 56(12): 2088-2099. DOI URL
[22]	BISHOP S P, WATTS D R, PARK J H, et al. Evidence of bottom-trapped currents in the Kuroshio Extension region[J]. Journal of Physical Oceanography, 2012, 42(2): 321-328. DOI URL
[23]	GREENE A D, SUTYRIN G G, WATTS D R. Deep cyclogenesis by synoptic eddies interacting with a seamount[J]. Journal of Marine Research, 2009, 67(3): 305-322. DOI URL
[24]	QIU B, CHEN S M, HACKER P, et al. The Kuroshio Extension northern recirculation gyre: profiling float measurements and forcing mechanism[J]. Journal of Physical Oceanography, 2008, 38(8): 1764-1779. DOI URL
[25]	QIU B, CHEN S M. Variability of the Kuroshio Extension jet, recirculation gyre, and mesoscale eddies on decadal time scales[J]. Journal of Physical Oceanography, 2005, 35(11): 2090-2103. DOI URL
[26]	NAKAMURA H, ISOBE A, MINOBE S, et al. “Hot Spots” in the climate system: new developments in the extratropical ocean-atmosphere interaction research: a short review and an introduction[J]. Journal of Oceanography, 2015, 71(5): 463-467. DOI URL
[27]	CRONIN M F, MEINIG C, SABINE C L, et al. Surface mooring network in the Kuroshio Extension[J]. IEEE Systems Journal, 2008, 2(3): 424-430. DOI URL
[28]	KONDA M, ICHIKAWA H, TOMITA H, et al. Surface heat flux variations across the Kuroshio Extension as observed by surface flux buoys[J]. Journal of Climate, 2010, 23(19): 5206-5221. DOI URL
[29]	BOND N A, CRONIN M F. Regional weather patterns during anomalous air-sea fluxes at the Kuroshio Extension Observatory (KEO)[J]. Journal of Climate, 2008, 21(8): 1680-1697. DOI URL
[30]	TOMITA H, KAKO S, CRONIN M F, et al. Preconditioning of the wintertime mixed layer at the Kuroshio Extension Observatory[J]. Journal of Geophysical Research, 2010, 115(C12): C12053.
[31]	BOND N A, CRONIN M F, SABINE C, et al. Upper Ocean response to Typhoon Choi-Wan as measured by the Kuroshio Extension Observatory mooring[J]. Journal of Geophysical Research, 2011, 116(C2): C02031.
[32]	FASSBENDER A J, SABINE C L, CRONIN M F, et al. Mixed-layer carbon cycling at the Kuroshio Extension Observatory[J]. Global Biogeochemical Cycles, 2017, 31(2): 272-288. DOI URL
[33]	吴立新, 陈朝晖, 林霄沛, 等. “透明海洋”立体观测网构建[J]. 科学通报, 2020, 65(25): 2654-2661.
[34]	XU L, LI P, XIE S P, et al. Observing mesoscale eddy effects on mode-water subduction and transport in the North Pacific[J]. Nature Communications, 2016, 7: 10505. DOI URL
[35]	XU L X, XIE S P, MCCLEAN J L, et al. Mesoscale eddy effects on the subduction of North Pacific mode waters[J]. Journal of Geophysical Research: Oceans, 2014, 119(8): 4867-4886. DOI URL
[36]	XU L X, XIE S P, JING Z, et al. Observing subsurface changes of two anticyclonic eddies passing over the Izu-Ogasawara Ridge[J]. Geophysical Research Letters, 2017: 44(4): 1857-1865.
[37]	MEN W, HE J, WANG F, et al. Radioactive status of seawater in the northwest Pacific more than one year after the Fukushima nuclear accident[J]. Scientific Reports, 2015, 5: 7757. DOI URL
[38]	王辉, 王兆毅, 朱学明, 等. 日本福岛放射性污染物在北太平洋海水中的输运模拟与预测[J]. 科学通报, 2012, 57(22): 2111-2118.
[39]	胡海波. 北太平洋低位势涡度水的潜沉和向台湾以东的输运[D]. 青岛: 中国海洋大学, 2008.
[40]	OKA E, TOYAMA K, SUGA T. Subduction of North Pacific central mode water associated with subsurface mesoscale eddy[J]. Geophysical Research Letters, 2009, 36(8): L08607.
[41]	MCWILLIAMS J C. Submesoscale, coherent vortices in the ocean[J]. Reviews of Geophysics, 1985, 23(2): 165. DOI URL
[42]	MAXIMENKO N, YAMAGATA T. Submesoscale anomalies in the north Pacific subarctic front[J]. Journal of Geophysical Research, 1995, 100(C9): 18459. DOI URL
[43]	ZHANG Z W, LI P L, XU L X, et al. Subthermocline eddies observed by rapid-sampling Argo floats in the subtropical northwestern Pacific Ocean in Spring 2014[J]. Geophysical Research Letters, 2015, 42(15): 6438-6445. DOI URL
[44]	LI C, ZHANG Z W, ZHAO W, et al. A statistical study on the subthermocline submesoscale eddies in the northwestern Pacific Ocean based on Argo data[J]. Journal of Geophysical Research: Oceans, 2017, 122(5): 3586-3598. DOI URL
[45]	ZHU R C, CHEN Z H, ZHANG Z W, et al. Subthermocline eddies in the Kuroshio Extension region observed by mooring arrays[J]. Journal of Physical Oceanography, 2021, 51(2): 439-455. DOI URL
