Geochemical characteristics of tourmalines from the Dayakou emerald deposit in Yunnan Province: implications for emerald mineralization

doi:10.13745/j.esf.sf.2020.10.30

Abstract

Abstract:

Emerald is the green variety of beryl and its color is predominantly associated with trace chromium and/or vanadium. The Dayakou emerald deposit in Malipo County, Yunnan Province is a significant emerald deposit in China. A series of researches have been done in recent years on a variety of minerals in the deposit, but the emerald-associated tourmaline has not been investigated. Here, we studied the tourmalines from emerald-bearing and barren veins in the Dayakou deposit. Based on detailed field survey, petrographic investigation and component analysis, we aimed to investigate the origin of tourmaline to ascertain its fluid source and evolution in order to further understand the metallogenic mechanism of the Dayakou emerald deposit. The results show that, in tourmalines from emerald-bearing and barren veins, the measured Na contents were 0.62-0.79 and 0.64-0.76 apfu, respectively; the Al contents were 5.36-6.17 and 5.66-6.38 apfu, respectively; and the Fe/(Fe+Mg) ratios were 0.31-0.41 and 0.14-0.34, respectively. The Dayakou tourmaline belongs to alkline dravite, rich in Mg, with low or zero Al content in the Y site, whereas tourmaline from emerald-bearing veins has a comparably high Fe/(Fe+Mg) ratio. These chemical compositional differences in tourmalines may be related mainly to the ore-forming condition, which makes tourmaline a potential indicator of emerald mineralization. The Dayakou tourmaline contains 0.65%-4.76% V₂O₃in component zonation, formed by metasomatism during sustained fluid-rock interactions. The early fluids of the Dayakou deposit were granite-derived fluids consisting of Si, Al, Be, F, and P. As hydrothermal alkali-metasomatism progressed, the Ca and V (extracted from wall rock) contents gradually increased. We believe beryllium fluoride (BeF) or Be-F complex is a significant Be migration mode in the Dayakou ore-forming fluids. The crystallization of F-containing minerals such as fluorite and fluorapatite resulted in the decomposition of BeF or Be-F complex, and the reduction of fluorine in the ore-forming fluid may be one of the important emerald mineralization mechanism of the Dayakou emerald deposit.

Key words: Yunnan Dayakou, emerald deposit, tourmaline, beryllium migration, metallogenic mechanism

CLC Number:

LONG Zhengyu, YU Xiaoyan, ZHENG Yuyu, GUO Bijun. Geochemical characteristics of tourmalines from the Dayakou emerald deposit in Yunnan Province: implications for emerald mineralization[J]. Earth Science Frontiers, 2021, 28(2): 333-347.

Figures/Tables 9

References 64

[1]	HENRY D J, NOVAK M, HAWTHORNE F C, et al. Nomenclature of the tourmaline-supergroup minerals[J]. American Mineralogist, 2011,96(5/6):895-913. DOI URL
[2]	ERTL A, HENRY D J, TILLMANNS E. Tetrahedral substitutions in tourmaline: a review[J]. European Journal of Mineralogy, 2018,30(3):465-470. DOI URL
[3]	毛景文, 王平安, 王登红, 等. 电气石对成岩成矿环境的示踪性及应用条件[J]. 地质论评, 1993,39(6):497-507.
[4]	王进军, 赵枫. 电气石的化学特征与相关矿床的关系[J]. 地质找矿论丛, 2002(3):161-163.
[5]	HENRY D J, DUTROW B L. Tourmaline studies through time: contributions to scientific advancements[J]. Journal of Geosciences, 2018,63(2):77-98.
[6]	VAN HINSBERG V J, HENRY D J, DUTROW B L. Tourmaline as a petrologic forensic mineral: a unique recorder of its geologic past[J]. Elements, 2011,7(5):327-332. DOI URL
[7]	蒋少涌, 于际民, 倪培, 等. 电气石: 成岩成矿作用的灵敏示踪剂[J]. 地质论评, 2000,46(6):594-604.
[8]	HENRY D J, GUIDOTTI C V. Tourmaline as a petrogenetic indicator mineral: an example from the staurolite-grade metapelites of NW Maine[J]. American Mineralogist, 1985,70(1/2):1-15.
[9]	SLACK J F, TRUMBULL R B. Tourmaline as a recorder of ore-forming processes[J]. Elements, 2011,7(5):321-326. DOI URL
[10]	GIULIANI G, GROAT L A, MARSHALL D, et al. Emerald deposits: a review and enhanced classification[J]. Minerals, 2019,9(2):63. DOI URL
[11]	张世涛, 冯明刚, 王厚强, 等. 云南省麻栗坡县祖母绿矿区的地质特征及成因初探[J]. 地质科技情报, 1999(1):51-55.
[12]	冯明刚, 张世涛, 吕伟. 中国祖母绿矿床特征及其找矿方向[J]. 云南地质, 2000(1):37-42.
[13]	XUE G, MARSHALL D, ZHANG S T, et al. Conditions for early cretaceous emerald formation at Dyakou, China: fluid inclusion, Ar-Ar, and stable isotope studies[J]. Economic Geology, 2010,105(2):339-349. DOI URL
[14]	黄文清, 水汀, 倪培. 云南麻栗坡祖母绿的流体包裹体研究[J]. 矿物学报, 2017,37(1):75-83.
[15]	ZHENG Y Y, YU X Y, GUO H S. Major and trace element geochemistry of Dayakou vanadium-dominant emerald from Malipo(Yunnan, China): genetic model and geographic origin determination[J]. Minerals, 2019,9(12):777. DOI URL
[16]	余晓艳, 郑育宇, 张婷雅, 等. 云南大丫口祖母绿颜色环带成因对多阶段成矿的指示意义[J]. 地学前缘, 2020,27(5):116-125.
[17]	姜雪, 余晓艳, 郭碧君, 等. 云南麻栗坡祖母绿的矿物包裹体特征研究[J]. 岩石矿物学杂志, 2019,38(2):279-286.
[18]	TRUMBULL R, KRIENITZ M S, GRUNDMANN G, et al. Tourmaline geochemistry and delta B-11 variations as a guide to fluid-rock interaction in the Habachtal emerald deposit, Tauern Window, Austria[J]. Contributions to Mineralogy and Petrology, 2009,157(3):411-427. DOI URL
[19]	GALBRAITH C G, CLARKE D B, TRUMBULL R B, et al. Assessment of tourmaline compositions as an indicator of emerald mineralization at the Tsa da Glisza prospect, Yukon Territory, Canada[J]. Economic Geology, 2009,104(5):713-731. DOI URL
[20]	ARIF M, HENRY D J, MOON C J. Cr-bearing tourmaline associated with emerald deposits from Swat, NW Pakistan: genesis and its exploration significance[J]. American Mineralogist, 2010,95(5/6):799-809. DOI URL
[21]	ARIF M, HENRY D J, MOON C J. Host rock characteristics and source of chromium and beryllium for emerald mineralization in the ophiolitic rocks of the Indus Suture Zone in Swat, NW Pakistan[J]. Ore Geology Reviews, 2011,39(1/2):1-20. DOI URL
[22]	BAKSHEEV I A, TRUMBULL R B, POPOV M P, et al. Chemical and boron isotopic composition of tourmaline from the Mariinsky emerald deposit, Central Urals, Russia[J]. Mineralium Deposita, 2018,53(4):565-583. DOI URL
[23]	刘艳宾, 莫宣学, 张达, 等. 滇东南老君山地区晚白垩世花岗岩的成因[J]. 岩石学报, 2014,30(11):3271-3286.
[24]	刘玉平, 李正祥, 李惠民, 等. 都龙锡锌矿床锡石和锆石U-Pb年代学: 滇东南白垩纪大规模花岗岩成岩-成矿事件[J]. 岩石学报, 2007,23(5):967-976.
[25]	冯佳睿, 毛景文, 裴荣富, 等. 云南瓦渣钨矿区老君山花岗岩体的SHRIMP锆石U-Pb定年、地球化学特征及成因探讨[J]. 岩石学报, 2010,26(3):845-857.
[26]	李建康, 王登红, 李华芹, 等. 云南老君山矿集区的晚侏罗世:早白垩世成矿事件[J]. 地球科学: 中国地质大学学报, 2013,38(5):1023-1036.
[27]	张斌辉, 丁俊, 任光明, 等. 云南马关老君山花岗岩的年代学、地球化学特征及地质意义[J]. 地质学报, 2012,86(4):587-601.
[28]	李东旭, 许顺山. 变质核杂岩的旋扭成因: 滇东南老君山变质核杂岩的构造解析[J]. 地质论评, 2000,46(2):113-119.
[29]	LEPVRIER C, FAURE M, VAN V N, et al. North-directed Triassic nappes in Northeastern Vietnam (East Bac Bo)[J]. Journal of Asian Earth Sciences, 2011,41(1):56-68. DOI URL
[30]	YAN D P, ZHOU M F, WANG C Y, et al. Structural and geochronological constraints on the tectonic evolution of the Dulong - Song Chay tectonic dome in Yunnan Province, SW China[J]. Journal of Asian Earth Sciences, 2006,28(4/5/6):332-353. DOI URL
[31]	ROGER F, LELOUP P H, JOLIVET M, et al. Long and complex thermal history of the Song Chay metamorphic dome (Northern Vietnam) by multi-system geochronology[J]. Tectonophysics, 2000,321(4):449-466. DOI URL
[32]	刘玉平, 叶霖, 李朝阳, 等. 滇东南发现新元古代岩浆岩: SHRIMP锆石U-Pb年代学和岩石地球化学证据[J]. 岩石学报, 2006,22(4):916-926.
[33]	张林奎, 张彬, 张斌辉, 等. 云南南秧田钨矿床电气石的成分和硼同位素特征及成矿意义[J]. 矿床地质, 2018,37(3):481-501.
[34]	郭利果. 滇东南老君山变质核杂岩地球化学和年代学初步研究[D]. 贵阳: 中国科学院研究生院(地球化学研究所), 2006.
[35]	CARTER A, ROQUES D, BRISTOW C, et al. Understanding Mesozoic accretion in Southeast Asia: significance of Triassic thermotectonism (Indosinian orogeny) in Vietnam[J]. Geology, 2001,29(3):211-214. DOI URL
[36]	GU L G, LIU Y P, LI C Y, et al. SHRIMP zircon U-Pb geochronology and lithogeochemistry of Caledonian granites from the Laojunshan area, southeastern Yunnan Province, China: implications for the collision between the Yangtze and Cathaysia blocks[J]. Geochemical Journal, 2009,43(2):101-122. DOI URL
[37]	胡荣荣. 云南麻栗坡祖母绿矿床成矿地质背景及成矿模式研究[D]. 昆明: 昆明理工大学, 2008.
[38]	张良钜, 兰延. 云南祖母绿的矿床地质及宝石学特征[J]. 矿物学报, 1999,19(2):189-197.
[39]	YAVUZ F, KARAKAYA N, YILDIRIM D K, et al. A Windows program for calculation and classification of tourmaline-supergroup (IMA-2011)[J]. Computers & Geosciences, 2014,63:70-87. DOI URL
[40]	HAWTHORNE F C, DIRLAM D M. Tourmaline the indicator mineral: from atomic arrangement to viking navigation[J]. Elements, 2011,7(5):307-312. DOI URL
[41]	WOOD D L, NASSAU K. The characterization of beryl and emerald by visible and infrared absorption spectroscopy[J]. American Mineralogist, 1968,53(5):777-800.
[42]	ANDERSSON L O. Comments on beryl colors and on other observations regarding iron-containing beryls[J]. Canadian Mineralogist, 2019,57(4):551-566. DOI URL
[43]	HU Y, LU R. Unique vanadium-rich emerald from Malipo, China[J]. Gems and Gemology, 2019,55(3):338-352.
[44]	BAI F, PAN H H, LI X M. Replacement degree of Al³⁺ and Cr/V ratio in high-V emeralds from Malipo, Yunnan, China[J]. Arabian Journal of Geosciences, 2019,12(12):1-9. DOI URL
[45]	SEIFERT A V, ŽÁČEK V, VRÁNA S, et al. Emerald mineralization in the Kafubu area, Zambia[J]. Bulletin of Geosciences, 2004,79(1), 116-148.
[46]	GROAT L A, MARSHALL D D, GIULIANI G, et al. Mineralogical and geochemical study of the regal ridge emerald showing, southeastern Yukon[J]. Canadian Mineralogist, 2002,40(5):1313-1338. DOI URL
[47]	LONDON D, MANNING D A C. Chemical variation and significance of tourmaline from Southwest England[J]. Economic Geology and the Bulletin of the Society of Economic Geologists, 1995,90(3):495-519. DOI URL
[48]	BACIK P, MERES S, UHER P. Vanadium-bearing tourmaline in metacherts from Chvojnica, Slovak Republic: crystal chemistry and multistage evolution[J]. Canadian Mineralogist, 2011,49(1):195. DOI URL
[49]	代鸿章, 王登红, 刘丽君, 等. 南秦岭镇安核桃坪钨铍矿床成矿时代及成矿模式探讨[J]. 地质学报, 2019,93(6):1342-1358.
[50]	HENRY D J, DUTROW B L. The incorporation of fluorine in tourmaline: internal crystallographic controls or external environmental influences?[J]. Canadian Mineralogist, 2011,49(1):41-56. DOI URL
[51]	黄雪飞, 张宝林, 李晓利, 等. 电气石研究进展及其找矿意义[J]. 黄金科学技术, 2012,20(3):56-65.
[52]	GREW E S, HAZEN R M. Beryllium mineral evolution[J]. American Mineralogist, 2014,99(5/6):999-1021. DOI URL
[53]	MERINO E, VILLASECA C, OREJANA D, et al. Gahnite, chrysoberyl and beryl co-occurrence as accessory minerals in a highly evolved peraluminous pluton: the Belvis de Monroy leucogranite (Caceres, Spain)[J]. Lithos, 2013,179:137-156. DOI URL
[54]	GREW E S, HYSTAD G, TOAPANTA M P C, et al. Lithium mineral evolution and ecology: comparison with boron and beryllium[J]. European Journal of Mineralogy, 2019,31(4):755-774. DOI URL
[55]	EVENSEN J M, LONDON D, WENDLANDT R F. Solubility and stability of beryl in granitic melts[J]. American Mineralogist, 1999,84(5/6):733-745. DOI URL
[56]	衣龙升, 范宏瑞, 翟明国, 等. 新疆白杨河铍铀矿床萤石Sm-Nd和沥青铀矿U-Pb年代学及其地质意义[J]. 岩石学报, 2016,32(7):2099-2110.
[57]	朱艺婷, 李晓峰, 张龙, 等. 新疆白杨河U-Be矿床中电气石的矿物学特征及其成矿指示[J]. 岩石学报, 2019,35(11):3429-3442.
[58]	LIU Y, DENG J, SHI G H, et al. Genesis of the Xuebaoding W-Sn-Be Crystal Deposits in Southwest China: evidence from fluid inclusions, stable isotopes and ore elements[J]. Resource Geology, 2012,62(2):159-173. DOI URL
[59]	LOUGHREY L, MARSHALL D, IHLEN P, et al. Boiling as a mechanism for colour zonations observed at the Byrud emerald deposit, Eidsvoll, Norway: fluid inclusion, stable isotope and Ar-Ar studies[J]. Geofluids, 2013,13(4):542-558. DOI URL
[60]	RICHARDSON C K, HOLLAND H D. Fluorite deposition in hydrothermal systems[J]. Geochimica et Cosmochimica Acta, 1979,43(8):1327-1335. DOI URL
[61]	LAKE D J, GROAT L A, FALCK H, et al. Genesis of emerald-bearing quartz veins associated with the Lened W-skarn mineralization, Northwest Territories, Canada[J]. Canadian Mineralogist, 2017,55(4):561-593. DOI URL
[62]	CHAROY B. Beryllium speciation in evolved granitic magmas: phosphates versus silicates[J]. European Journal of Mineralogy, 1999,11(1):135-148. DOI URL
[63]	BARTON M D, YOUNG S. Non-pegmatitic deposits of beryllium: Mineralogy, geology, phase equilibria and origin[J]. Reviews in Mineralogy and Geochemistry, 2002,50(1):591-691. DOI URL
[64]	HANSON S L, ZITO G. Beryllium mineralization in pegmatites and quartz dikes of mount rosa complex area, Colorado front range, Colorado, USA[J]. Canadian Mineralogist, 2019,57(5):757-759. DOI URL

岩石类型	w_B/%												数据来源
岩石类型	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	MnO	CaO	MgO	Na₂O	K₂O	P₂O₅	LOI	Total	数据来源
石英脉^a	87.32	<0.01	6.69	0.67	<0.01	1.49	0.15	1.38	0.72	0.01	0.24	98.67	文献[13]
含矿伟晶岩脉^a	57.46	0.19	19.89	1.46	0.08	3.93	1.54	7.05	2.09	0.37	3.41	97.47	文献[13]
角闪岩^b	49.00	2.59	15.82	13.15	0.27	9.13	4.79	3.46	0.71	0.68	0.25	99.85	文献[13]
斜长角闪岩^b	67.02	0.59	11.48	3.83	0.05	2.92	2.06	7.61	3.36	0.33	2.71	101.96	文献[34]
斜长角闪岩^b	49.69	3.47	13.28	13.79	0.28	8.73	5.46	2.62	0.56	0.70	1.17	99.75	文献[32]
变粒岩^b	65.57	0.71	12.47	7.41	0.02	2.40	1.09	2.58	2.94	0.21	1.71	97.11	文献[13]
黑云变粒岩^b	49.00	2.59	15.82	13.15	0.27	3.46	4.79	3.46	0.71	0.68	0.25	94.18	文献[37]
黑云斜长变粒岩^b	46.50	0.83	20.33	7.81	0.13	11.48	7.37	2.14	1.09	0.14	1.34	99.16	文献[34]
二云斜长变粒岩^b	72.80	0.57	10.42	4.25	0.08	2.36	1.40	2.02	2.78	0.20	1.14	98.02	文献[34]
片岩^b	55.76	0.14	7.77	6.66	0.21	4.71	17.07	0.13	3.45	0.01	2.49	98.40	文献[13]
角闪斜长片麻岩^b	55.28	0.84	23.38	3.76	0.05	7.15	1.72	4.64	0.18	0.12	2.77	99.89	文献[32]
花岗斑岩^c	71.59	<0.01	16.87	0.86	0.03	0.05	0.11	3.76	4.07	0.36	2.26	99.96	文献[13]
花岗斑岩^c	71.46	0.20	14.67	0.66	0.08	0.22	0.61	1.48	6.22	0.22	0.28	96.10	文献[37]
白云母花岗斑岩^c	71.59	0.01	16.87	0.86	0.03	0.05	0.11	3.76	4.07	0.36	2.26	99.97	文献[37]
岩石类型	w_B/10^-6												数据来源
岩石类型	Be			W			V			Cr			数据来源
石英脉^a	7 12.1 <0.5 2.7 5 0.9 2.6 34.7			352 1 720 13 1.4 10.1 13 3 18			130 732 215 242 254 276 517 <5			10 50 100 91.3 131 90 10 10			文献[13] 文献[13] 文献[13] 文献[11] 文献[11] 文献[13] 文献[13] 文献[13]
含矿伟晶岩脉^a
角闪岩^b
斜长角闪岩^b
斜长角闪岩^b
变粒岩^b
片岩^b
花岗斑岩^c

岩石类型	w_B/%												数据来源
岩石类型	SiO₂	TiO₂	Al₂O₃	Fe₂O₃	MnO	CaO	MgO	Na₂O	K₂O	P₂O₅	LOI	Total	数据来源
石英脉^a	87.32	<0.01	6.69	0.67	<0.01	1.49	0.15	1.38	0.72	0.01	0.24	98.67	文献[13]
含矿伟晶岩脉^a	57.46	0.19	19.89	1.46	0.08	3.93	1.54	7.05	2.09	0.37	3.41	97.47	文献[13]
角闪岩^b	49.00	2.59	15.82	13.15	0.27	9.13	4.79	3.46	0.71	0.68	0.25	99.85	文献[13]
斜长角闪岩^b	67.02	0.59	11.48	3.83	0.05	2.92	2.06	7.61	3.36	0.33	2.71	101.96	文献[34]
斜长角闪岩^b	49.69	3.47	13.28	13.79	0.28	8.73	5.46	2.62	0.56	0.70	1.17	99.75	文献[32]
变粒岩^b	65.57	0.71	12.47	7.41	0.02	2.40	1.09	2.58	2.94	0.21	1.71	97.11	文献[13]
黑云变粒岩^b	49.00	2.59	15.82	13.15	0.27	3.46	4.79	3.46	0.71	0.68	0.25	94.18	文献[37]
黑云斜长变粒岩^b	46.50	0.83	20.33	7.81	0.13	11.48	7.37	2.14	1.09	0.14	1.34	99.16	文献[34]
二云斜长变粒岩^b	72.80	0.57	10.42	4.25	0.08	2.36	1.40	2.02	2.78	0.20	1.14	98.02	文献[34]
片岩^b	55.76	0.14	7.77	6.66	0.21	4.71	17.07	0.13	3.45	0.01	2.49	98.40	文献[13]
角闪斜长片麻岩^b	55.28	0.84	23.38	3.76	0.05	7.15	1.72	4.64	0.18	0.12	2.77	99.89	文献[32]
花岗斑岩^c	71.59	<0.01	16.87	0.86	0.03	0.05	0.11	3.76	4.07	0.36	2.26	99.96	文献[13]
花岗斑岩^c	71.46	0.20	14.67	0.66	0.08	0.22	0.61	1.48	6.22	0.22	0.28	96.10	文献[37]
白云母花岗斑岩^c	71.59	0.01	16.87	0.86	0.03	0.05	0.11	3.76	4.07	0.36	2.26	99.97	文献[37]
岩石类型	w_B/10^-6												数据来源
岩石类型	Be			W			V			Cr			数据来源
石英脉^a	7 12.1 <0.5 2.7 5 0.9 2.6 34.7			352 1 720 13 1.4 10.1 13 3 18			130 732 215 242 254 276 517 <5			10 50 100 91.3 131 90 10 10			文献[13] 文献[13] 文献[13] 文献[11] 文献[11] 文献[13] 文献[13] 文献[13]
含矿伟晶岩脉^a
角闪岩^b
斜长角闪岩^b
斜长角闪岩^b
变粒岩^b
片岩^b
花岗斑岩^c

测试编号位置	w_B/%
测试编号位置			SiO₂				TiO₂				Al₂O₃			V₂O₃			Cr₂O₃			FeO_tot			MnO					MgO				CaO				Na₂O				K₂O			Li₂O				F			H₂O			B₂O₃		O=F		Total
FZ-2B-3-L	核		37.16				0.02				30.44			2.68			0.17			7.12			0.09					6.02				0.44				2.17				0.02			0.62				0.00			3.12			10.63		0.00		100.76
			37.62				0.12				30.16			2.71			0.18			7.09			0.11					6.23				0.58				2.17				0.03			0.77				0.28			2.95			10.77		0.12		101.75
	↓		36.66				0.32				27.80			3.83			0.37			6.61			0.09					7.21				1.38				2.03				0.06			0.56				0.83			2.84			10.49		0.35		100.80
			36.25				0.17				30.31			2.12			0.20			6.47			0.10					6.58				0.70				2.20				0.05			0.33				0.60			2.99			10.37		0.25		99.25
	边		37.27				0.11				30.63			1.70			0.15			5.63			0.11					6.99				0.82				2.27				0.04			0.74				0.47			2.93			10.66		0.20		100.44
FZ-2B-4-L	核		37.21				0.05				30.98			2.85			0.29			6.75			0.10					5.95				0.36				2.08				0.04			0.53				0.10			3.10			10.65		0.04		101.06
			37.96				0.06				30.60			2.72			0.35			6.57			0.06					5.71				0.33				2.02				0.04			1.07				0.00			2.85			10.86		0.00		101.24
	↓		37.21				0.08				30.19			2.13			0.36			6.19			0.11					7.06				0.83				2.42				0.03			0.58				0.63			2.99			10.65		0.26		101.27
			37.15				0.07				32.18			1.00			0.10			6.08			0.15					6.72				0.53				2.26				0.02			0.39				0.39			3.11			10.63		0.16		100.70
	边		37.18				0.09				32.19			0.67			0.07			5.98			0.11					6.37				0.47				2.20				0.02			0.63				0.12			3.07			10.64		0.05		99.82
FZ-4B-1-L	核		36.41				0.47				28.38			2.76			0.90			6.44			0.13					7.00				1.35				2.11				0.04			0.47				0.98			2.82			10.42		0.41		100.35
	↓		36.96				0.59				28.31			3.17			0.86			6.76			0.02					6.88				1.27				2.01				0.05			0.59				0.50			2.98			10.58		0.21		101.45
	↓		37.06				0.17				29.70			1.50			0.62			6.13			0.09					6.60				0.73				2.38				0.04			0.93				0.60			2.76			10.60		0.25		99.71
	边		37.75				0.04				29.08			1.20			0.80			5.86			0.14					6.50				0.84				2.32				0.12			1.49				0.53			3.46			10.80		0.22		100.76
测试编号位置	单位原子数/apfu
测试编号位置			Si				Ti				Al			V			Cr			Fe			Mg				Ca				Na			K					Li			F			B				X_□			Y位电价
FZ-2B-3-L	核		6				0.00				5.79			0.35			0.02			0.96			1.45					0.08				0.68				0.01				0.41			0.00				3			0.24			5.76
			6				0.02				5.67			0.35			0.02			0.95			1.48					0.10				0.67				0.01				0.50			0.14				3			0.23			5.57
	↓		6				0.04				5.36			0.50			0.05			0.90			1.76					0.24				0.64				0.01				0.37			0.43				3			0.10			5.71
			6				0.02				5.91			0.28			0.03			0.90			1.62					0.12				0.71				0.01				0.22			0.32				3			0.16			6.04
	边		6				0.01				5.81			0.22			0.02			0.76			1.68					0.14				0.71				0.01				0.48			0.24				3			0.14			5.60
FZ-2B-4-L	核		6				0.01				5.89			0.37			0.04			0.91			1.43					0.06				0.65				0.01				0.34			0.05				3			0.28			5.96
			6				0.01				5.70			0.35			0.04			0.87			1.35					0.06				0.62				0.01				0.68			0.00				3			0.32			5.43
	↓		6				0.01				5.74			0.28			0.05			0.83			1.70					0.14				0.76				0.01				0.38			0.32				3			0.09			5.70
			6				0.01				6.13			0.13			0.01			0.82			1.62					0.09				0.71				0.01				0.26			0.20				3			0.19			6.03
	边		6				0.01				6.12			0.09			0.01			0.81			1.53					0.08				0.69				0.00				0.41			0.06				3			0.23			5.83
FZ-4B-1-L	核		6				0.06				5.51			0.37			0.12			0.89			1.72					0.24				0.67				0.01				0.31			0.51				3			0.08			5.81
	↓		6				0.07				5.42			0.41			0.11			0.92			1.67					0.22				0.63				0.01				0.39			0.26				3			0.13			5.76
	↓		6				0.02				5.67			0.20			0.08			0.83			1.60					0.13				0.75				0.01				0.60			0.31				3			0.12			5.44
	边		6				0.00				5.45			0.15			0.10			0.78			1.54					0.14				0.71				0.02				0.95			0.27				3			0.12			5.06
测试编号取值类型	w_B/%
测试编号取值类型			SiO₂				TiO₂				Al₂O₃			V₂O₃			Cr₂O₃			FeO_tot			MnO					MgO				CaO				Na₂O				K₂O			Li₂O				F			H₂O			B₂O₃		O=F		Total
FZ-4	Min		36.09				0.15				27.89			1.42			0.10			6.17			0.04					6.42				0.65				2.06				0.03			0.21				0.64			2.82			10.33		0.27		99.56
	Max		36.99				0.52				30.42			4.76			0.84			7.24			0.10					7.20				1.37				2.46				0.08			0.60				1.27			3.07			10.59		0.53		101.50
	Avg		36.65				0.30				29.86			2.25			0.44			6.55			0.08					6.88				0.93				2.32				0.05			0.39				0.90			2.92			10.49		0.38		100.70
FZ-3	Min		36.10				0.15				30.34			0.70			0.01			6.41			0.06					6.06				0.39				2.14				0.02			0.18				0.42			2.71			10.33		0.18		99.61
	Max		38.38				0.59				31.66			1.19			0.30			7.01			0.15					7.00				1.09				2.50				0.10			1.09				1.18			3.12			10.98		0.50		101.92
	Avg		37.00				0.24				31.16			0.98			0.11			6.69			0.10					6.81				0.74				2.33				0.05			0.46				0.70			2.97			10.59		0.30		100.68
FZ-2	Min		36.29				0.05				29.63			0.65			0.02			6.03			0.08					5.59				0.26				2.08				0.01			0.14				0.12			2.72			10.38		0.05		99.38
	Max		37.80				0.33				31.67			2.61			0.22			7.03			0.16					7.49				1.16				2.32				0.05			1.10				0.67			3.22			10.82		0.28		100.92
	Avg		36.94				0.14				30.96			1.46			0.11			6.47			0.11					6.62				0.67				2.22				0.03			0.53				0.45			2.99			10.57		0.19		100.17
SX-EWK-2	Min		35.40				0.34				29.99			0.57			0.01			2.32			0.02					6.72				0.42				2.01				0.02			0.00				0.04			2.46			10.13		0.02		98.15
	Max		37.63				1.08				32.71			1.41			0.17			6.03			0.09					8.45				1.12				2.39				0.07			1.09				1.03			3.30			10.77		0.43		100.03
	Avg		36.93				0.55				31.35			1.03			0.08			3.86			0.05					7.80				0.68				2.20				0.04			0.57				0.36			3.02			10.57		0.15		98.98
测试编号取值类型						单位原子数/apfu
测试编号取值类型				Si				Ti		Al			V			Cr			Fe			Mg		Ca		Na				K					Li			F				B		X_□				Y位电价
FZ-4		Min			6				0.02			5.41			0.19			0.01			0.85				1.55				0.11				0.65				0.01				0.14					0.33					3			0.06		5.75
		Max			6				0.06			5.94			0.63			0.11			0.99				1.77				0.24				0.78				0.02				0.39					0.66					3			0.17		6.15
		Avg			6				0.04			5.76			0.30			0.06			0.90				1.68				0.16				0.74				0.01				0.26					0.47					3			0.09		5.93
FZ-3		Min			6				0.02			5.83			0.09			0.00			0.87				1.41				0.07				0.65				0.00				0.12					0.21					3			0.08		5.35
		Max			6				0.07			6.01			0.16			0.04			0.96				1.74				0.19				0.79				0.02				0.69					0.62					3			0.28		6.11
		Avg			6				0.03			5.96			0.13			0.01			0.91				1.65				0.13				0.73				0.01				0.30					0.36					3			0.13		5.87
FZ-2		Min			6				0.01			5.63			0.09			0.00			0.82				1.38				0.05				0.67				0.00				0.09					0.06					3			0.10		5.32
		Max			6				0.04			6.17			0.35			0.03			0.97				1.83				0.20				0.73				0.01				0.70					0.35					3			0.28		6.45
		Avg			6				0.02			5.93			0.19			0.00			0.88				1.60				0.12				0.70				0.01				0.35					0.23					3			0.18		5.87
SX-EWK-2		Min			6				0.04			5.66			0.07			0.00			0.31				1.70				0.07				0.64				0.00				0.00					0.02					3			0.13		5.43
		Max			6				0.13			6.38			0.19			0.02			0.86				2.04				0.20				0.76				0.02				0.70					0.52					3			0.23		6.87
		Avg			6				0.07			6.00			0.13			0.01			0.53				1.89				0.12				0.69				0.01				0.37					0.19					3			0.18		5.96

测试编号位置	w_B/%
测试编号位置			SiO₂				TiO₂				Al₂O₃			V₂O₃			Cr₂O₃			FeO_tot			MnO					MgO				CaO				Na₂O				K₂O			Li₂O				F			H₂O			B₂O₃		O=F		Total
FZ-2B-3-L	核		37.16				0.02				30.44			2.68			0.17			7.12			0.09					6.02				0.44				2.17				0.02			0.62				0.00			3.12			10.63		0.00		100.76
			37.62				0.12				30.16			2.71			0.18			7.09			0.11					6.23				0.58				2.17				0.03			0.77				0.28			2.95			10.77		0.12		101.75
	↓		36.66				0.32				27.80			3.83			0.37			6.61			0.09					7.21				1.38				2.03				0.06			0.56				0.83			2.84			10.49		0.35		100.80
			36.25				0.17				30.31			2.12			0.20			6.47			0.10					6.58				0.70				2.20				0.05			0.33				0.60			2.99			10.37		0.25		99.25
	边		37.27				0.11				30.63			1.70			0.15			5.63			0.11					6.99				0.82				2.27				0.04			0.74				0.47			2.93			10.66		0.20		100.44
FZ-2B-4-L	核		37.21				0.05				30.98			2.85			0.29			6.75			0.10					5.95				0.36				2.08				0.04			0.53				0.10			3.10			10.65		0.04		101.06
			37.96				0.06				30.60			2.72			0.35			6.57			0.06					5.71				0.33				2.02				0.04			1.07				0.00			2.85			10.86		0.00		101.24
	↓		37.21				0.08				30.19			2.13			0.36			6.19			0.11					7.06				0.83				2.42				0.03			0.58				0.63			2.99			10.65		0.26		101.27
			37.15				0.07				32.18			1.00			0.10			6.08			0.15					6.72				0.53				2.26				0.02			0.39				0.39			3.11			10.63		0.16		100.70
	边		37.18				0.09				32.19			0.67			0.07			5.98			0.11					6.37				0.47				2.20				0.02			0.63				0.12			3.07			10.64		0.05		99.82
FZ-4B-1-L	核		36.41				0.47				28.38			2.76			0.90			6.44			0.13					7.00				1.35				2.11				0.04			0.47				0.98			2.82			10.42		0.41		100.35
	↓		36.96				0.59				28.31			3.17			0.86			6.76			0.02					6.88				1.27				2.01				0.05			0.59				0.50			2.98			10.58		0.21		101.45
	↓		37.06				0.17				29.70			1.50			0.62			6.13			0.09					6.60				0.73				2.38				0.04			0.93				0.60			2.76			10.60		0.25		99.71
	边		37.75				0.04				29.08			1.20			0.80			5.86			0.14					6.50				0.84				2.32				0.12			1.49				0.53			3.46			10.80		0.22		100.76

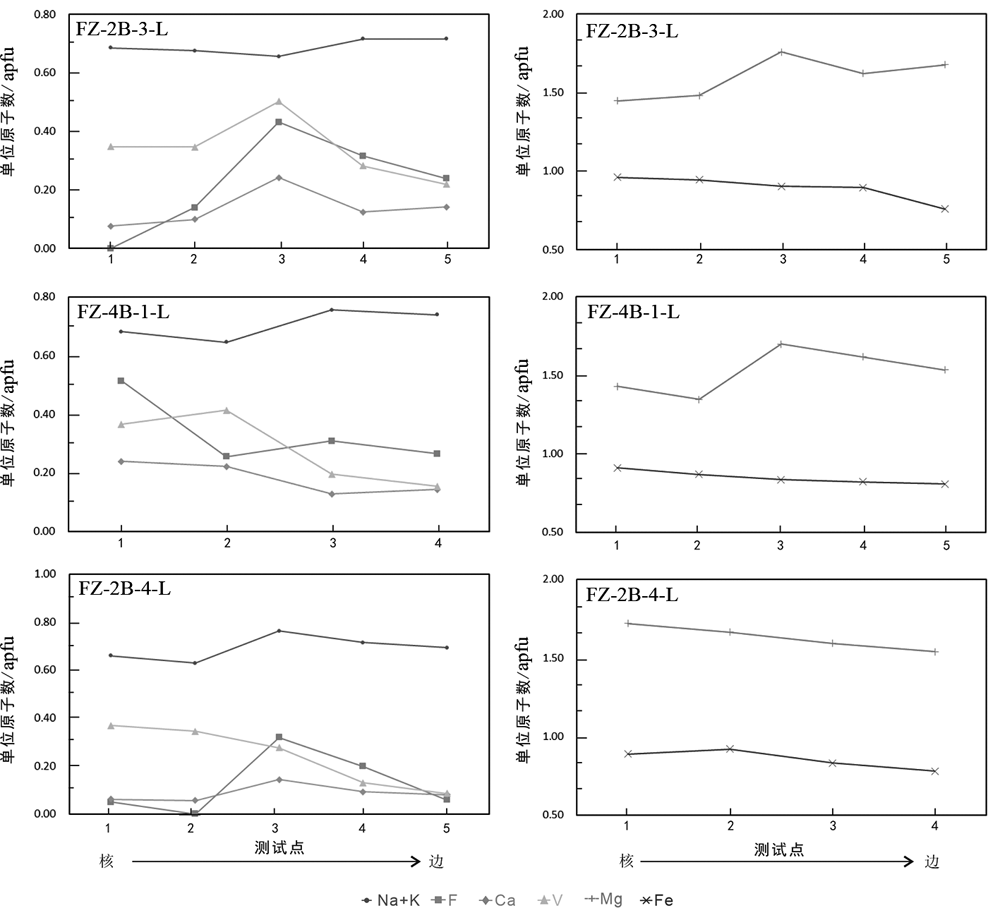

测试编号位置	单位原子数/apfu
测试编号位置			Si				Ti				Al			V			Cr			Fe			Mg				Ca				Na			K					Li			F			B				X_□			Y位电价
FZ-2B-3-L	核		6				0.00				5.79			0.35			0.02			0.96			1.45					0.08				0.68				0.01				0.41			0.00				3			0.24			5.76
			6				0.02				5.67			0.35			0.02			0.95			1.48					0.10				0.67				0.01				0.50			0.14				3			0.23			5.57
	↓		6				0.04				5.36			0.50			0.05			0.90			1.76					0.24				0.64				0.01				0.37			0.43				3			0.10			5.71
			6				0.02				5.91			0.28			0.03			0.90			1.62					0.12				0.71				0.01				0.22			0.32				3			0.16			6.04
	边		6				0.01				5.81			0.22			0.02			0.76			1.68					0.14				0.71				0.01				0.48			0.24				3			0.14			5.60
FZ-2B-4-L	核		6				0.01				5.89			0.37			0.04			0.91			1.43					0.06				0.65				0.01				0.34			0.05				3			0.28			5.96
			6				0.01				5.70			0.35			0.04			0.87			1.35					0.06				0.62				0.01				0.68			0.00				3			0.32			5.43
	↓		6				0.01				5.74			0.28			0.05			0.83			1.70					0.14				0.76				0.01				0.38			0.32				3			0.09			5.70
			6				0.01				6.13			0.13			0.01			0.82			1.62					0.09				0.71				0.01				0.26			0.20				3			0.19			6.03
	边		6				0.01				6.12			0.09			0.01			0.81			1.53					0.08				0.69				0.00				0.41			0.06				3			0.23			5.83
FZ-4B-1-L	核		6				0.06				5.51			0.37			0.12			0.89			1.72					0.24				0.67				0.01				0.31			0.51				3			0.08			5.81
	↓		6				0.07				5.42			0.41			0.11			0.92			1.67					0.22				0.63				0.01				0.39			0.26				3			0.13			5.76
	↓		6				0.02				5.67			0.20			0.08			0.83			1.60					0.13				0.75				0.01				0.60			0.31				3			0.12			5.44
	边		6				0.00				5.45			0.15			0.10			0.78			1.54					0.14				0.71				0.02				0.95			0.27				3			0.12			5.06
测试编号取值类型	w_B/%
测试编号取值类型			SiO₂				TiO₂				Al₂O₃			V₂O₃			Cr₂O₃			FeO_tot			MnO					MgO				CaO				Na₂O				K₂O			Li₂O				F			H₂O			B₂O₃		O=F		Total
FZ-4	Min		36.09				0.15				27.89			1.42			0.10			6.17			0.04					6.42				0.65				2.06				0.03			0.21				0.64			2.82			10.33		0.27		99.56
	Max		36.99				0.52				30.42			4.76			0.84			7.24			0.10					7.20				1.37				2.46				0.08			0.60				1.27			3.07			10.59		0.53		101.50
	Avg		36.65				0.30				29.86			2.25			0.44			6.55			0.08					6.88				0.93				2.32				0.05			0.39				0.90			2.92			10.49		0.38		100.70
FZ-3	Min		36.10				0.15				30.34			0.70			0.01			6.41			0.06					6.06				0.39				2.14				0.02			0.18				0.42			2.71			10.33		0.18		99.61
	Max		38.38				0.59				31.66			1.19			0.30			7.01			0.15					7.00				1.09				2.50				0.10			1.09				1.18			3.12			10.98		0.50		101.92
	Avg		37.00				0.24				31.16			0.98			0.11			6.69			0.10					6.81				0.74				2.33				0.05			0.46				0.70			2.97			10.59		0.30		100.68
FZ-2	Min		36.29				0.05				29.63			0.65			0.02			6.03			0.08					5.59				0.26				2.08				0.01			0.14				0.12			2.72			10.38		0.05		99.38
	Max		37.80				0.33				31.67			2.61			0.22			7.03			0.16					7.49				1.16				2.32				0.05			1.10				0.67			3.22			10.82		0.28		100.92
	Avg		36.94				0.14				30.96			1.46			0.11			6.47			0.11					6.62				0.67				2.22				0.03			0.53				0.45			2.99			10.57		0.19		100.17
SX-EWK-2	Min		35.40				0.34				29.99			0.57			0.01			2.32			0.02					6.72				0.42				2.01				0.02			0.00				0.04			2.46			10.13		0.02		98.15
	Max		37.63				1.08				32.71			1.41			0.17			6.03			0.09					8.45				1.12				2.39				0.07			1.09				1.03			3.30			10.77		0.43		100.03
	Avg		36.93				0.55				31.35			1.03			0.08			3.86			0.05					7.80				0.68				2.20				0.04			0.57				0.36			3.02			10.57		0.15		98.98
测试编号取值类型						单位原子数/apfu
测试编号取值类型				Si				Ti		Al			V			Cr			Fe			Mg		Ca		Na				K					Li			F				B		X_□				Y位电价
FZ-4		Min			6				0.02			5.41			0.19			0.01			0.85				1.55				0.11				0.65				0.01				0.14					0.33					3			0.06		5.75
		Max			6				0.06			5.94			0.63			0.11			0.99				1.77				0.24				0.78				0.02				0.39					0.66					3			0.17		6.15
		Avg			6				0.04			5.76			0.30			0.06			0.90				1.68				0.16				0.74				0.01				0.26					0.47					3			0.09		5.93
FZ-3		Min			6				0.02			5.83			0.09			0.00			0.87				1.41				0.07				0.65				0.00				0.12					0.21					3			0.08		5.35
		Max			6				0.07			6.01			0.16			0.04			0.96				1.74				0.19				0.79				0.02				0.69					0.62					3			0.28		6.11
		Avg			6				0.03			5.96			0.13			0.01			0.91				1.65				0.13				0.73				0.01				0.30					0.36					3			0.13		5.87
FZ-2		Min			6				0.01			5.63			0.09			0.00			0.82				1.38				0.05				0.67				0.00				0.09					0.06					3			0.10		5.32
		Max			6				0.04			6.17			0.35			0.03			0.97				1.83				0.20				0.73				0.01				0.70					0.35					3			0.28		6.45
		Avg			6				0.02			5.93			0.19			0.00			0.88				1.60				0.12				0.70				0.01				0.35					0.23					3			0.18		5.87
SX-EWK-2		Min			6				0.04			5.66			0.07			0.00			0.31				1.70				0.07				0.64				0.00				0.00					0.02					3			0.13		5.43
		Max			6				0.13			6.38			0.19			0.02			0.86				2.04				0.20				0.76				0.02				0.70					0.52					3			0.23		6.87
		Avg			6				0.07			6.00			0.13			0.01			0.53				1.89				0.12				0.69				0.01				0.37					0.19					3			0.18		5.96
