Metallogenic prediction of lead-zinc ore based on sample expansion in Yadu-Mangdong of Northwestern Guizhou

doi:10.13745/j.esf.sf.2025.4.55

Abstract

Abstract:

It has rich lead-zinc mineral resources in Northwest Guizhou. Due to the deep burial of ore bodies, it is difficult to prospecting. Data-driven mineral prospectivity prediction using machine learning (ML) is becoming a powerful tool for exploring deep hidden lead-zinc deposits. However, ML-based prospectivity prediction faces several common issues, particularly insufficient training samples and class imbalance caused by the scarcity of mineralized samples. To address these problems, this paper proposes a K-means clustering-improved conditional tabular generative adversarial network (KC-CTGAN) method for mineralized sample augmentation. Specifically, the density is first judged according to the Euclidean distance between samples in each cluster after K-mean clustering, and expanding more samples in the sparse clusters to increase their density to realize the expansion of the mineralized sample set. Then, the adversarial network generates (GAN) generates new category labels with high abstraction and uses the new category labels for conditional generation, thus improving the quality of augmented samples. Finally, the augmented positive samples and randomly undersampled negative samples are used to construct a sufficiently large and balanced labeled datasets to train a Category Boosting (CatBoost) classifier, and establish a mineral prospectivity prediction model based on KC-CTGAN-CatBoost. The performance of the proposed model was verified by using comparative tests and such as accuracy, recall, precision, F1-score. Experimental results demonstrate that compared to the prediction model constructed without KC-CTGAN-based sample augmentation, the proposed model achieves improvements of 8.7%, 7.4%, 10.2%, and 8.8% in accuracy, recall, precision, and F1-score, respectively, proving the effectiveness of the KC-CTGAN augmentation method in enhancing the performance of the mineral prospectivity prediction model. The prediction results will provide more precise target areas for the exploration of deep-seated concealed lead-zinc ore bodies.

Key words: sample augmentation, conditional table generative adversarial network, lead-zinc ore, mineralization prediction

CLC Number:

XU Kai, XU Chengyang, WU Chonglong, CAI Jingyun, KONG Chunfang. Metallogenic prediction of lead-zinc ore based on sample expansion in Yadu-Mangdong of Northwestern Guizhou[J]. Earth Science Frontiers, 2025, 32(4): 95-107.

Figures/Tables 12

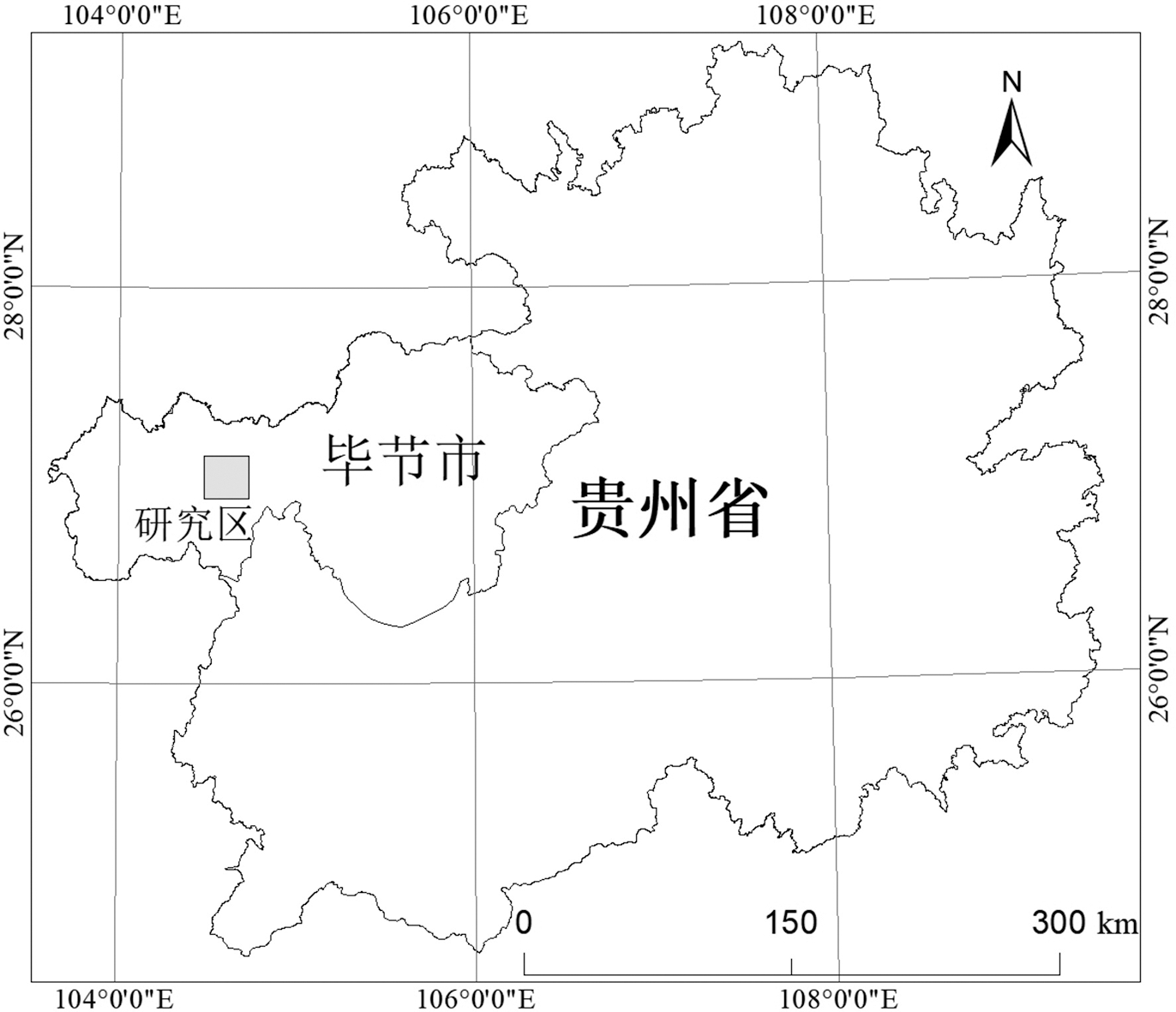

Fig.1 Geographical location map of the study area

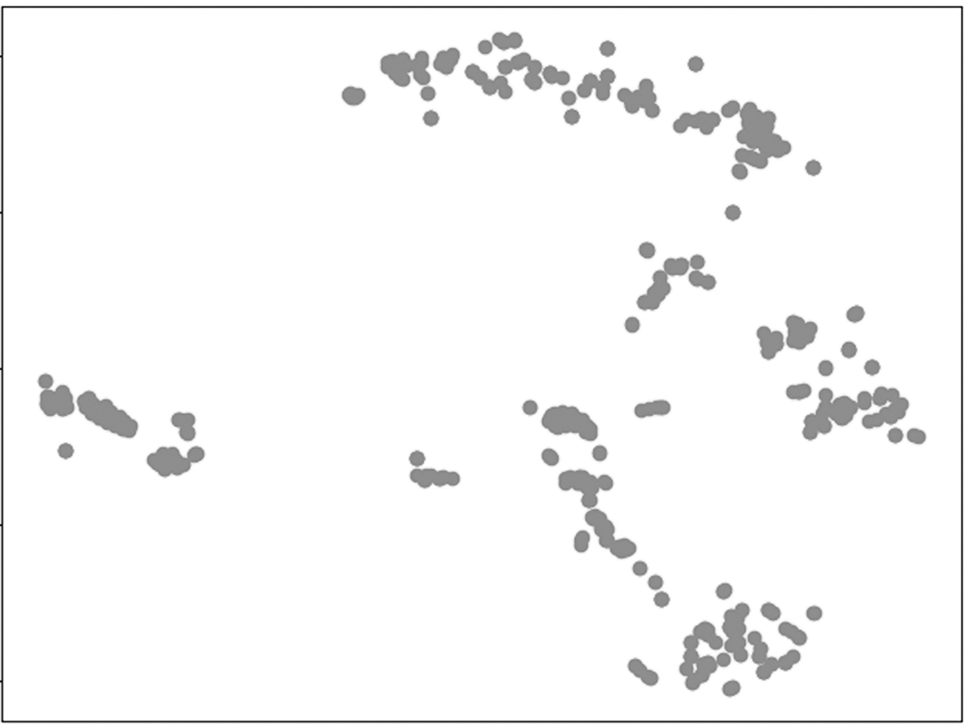

Fig.2 Distribution pattern of mine drilling data

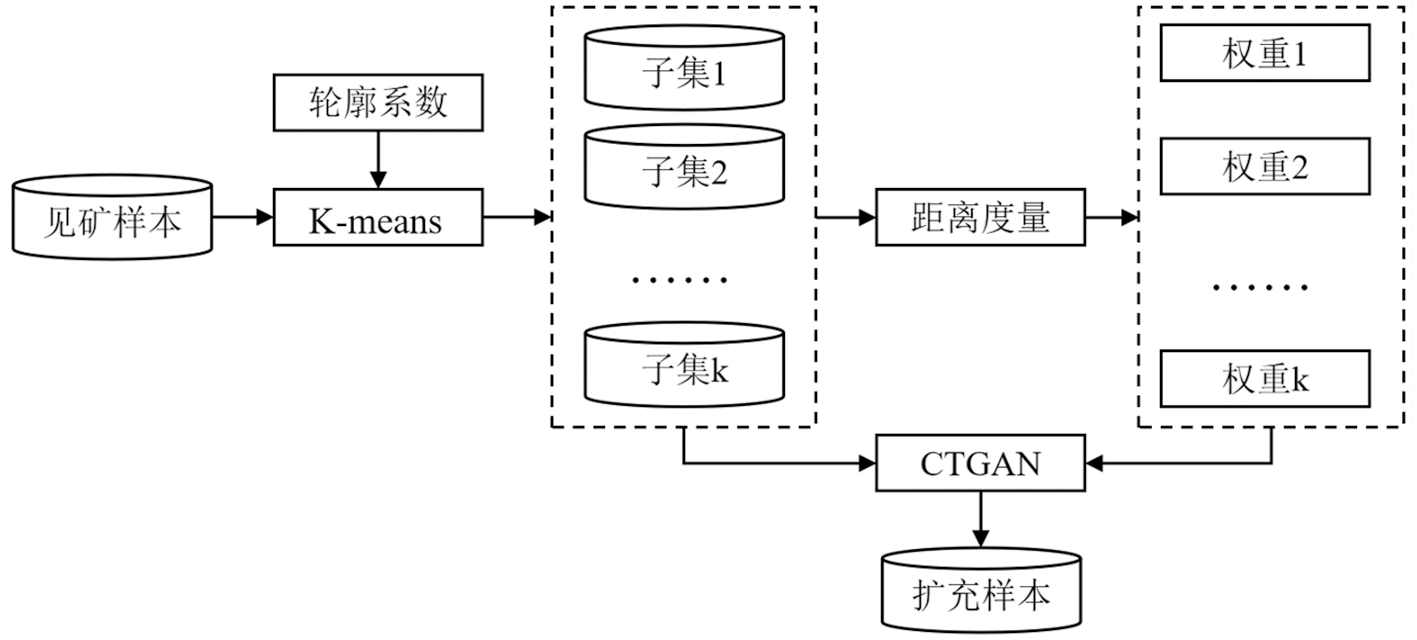

Fig.3 The framework of the KC-CTGAN

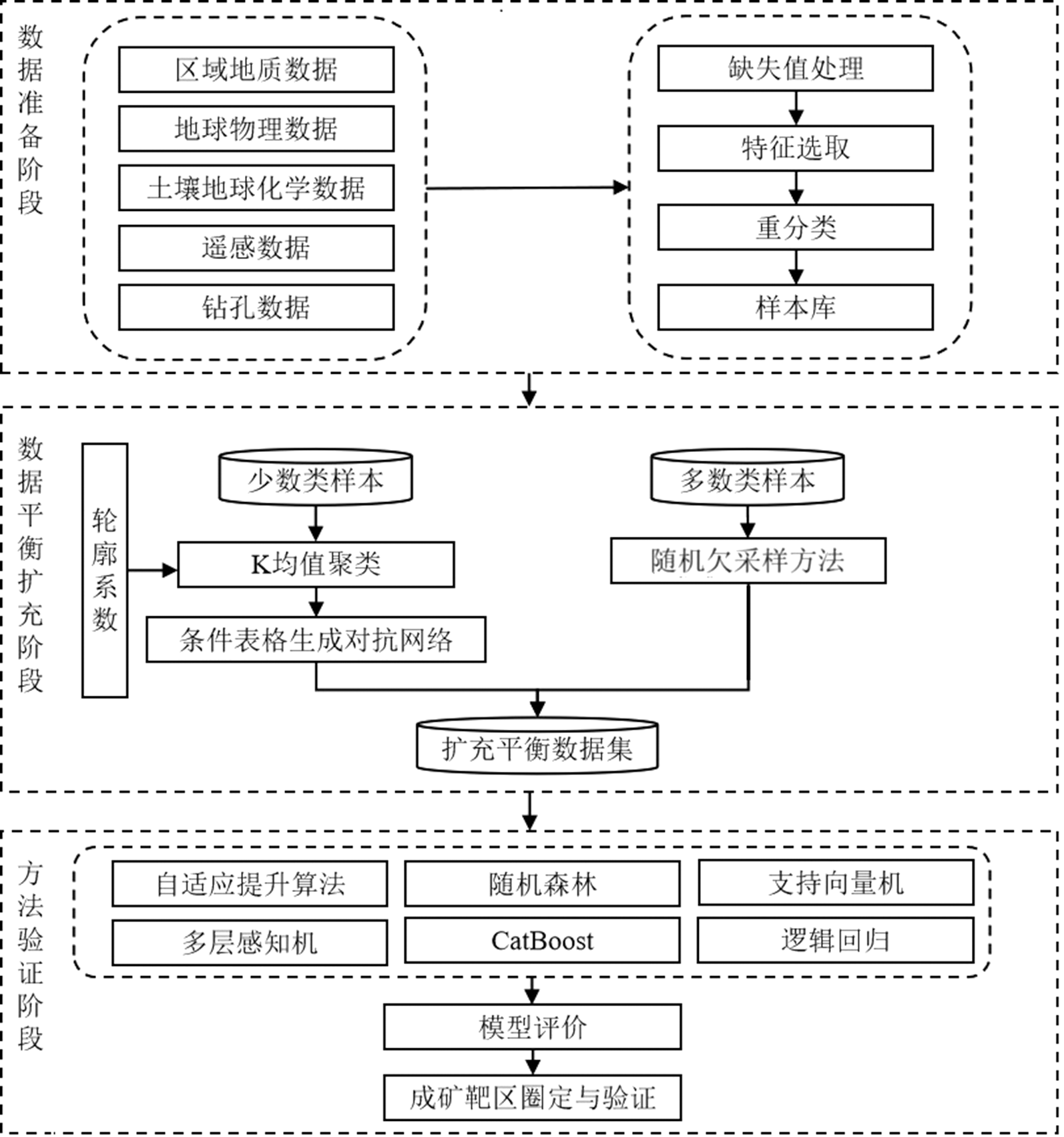

Fig.4 Flowchart of the KC-CTGAN-CatBoost

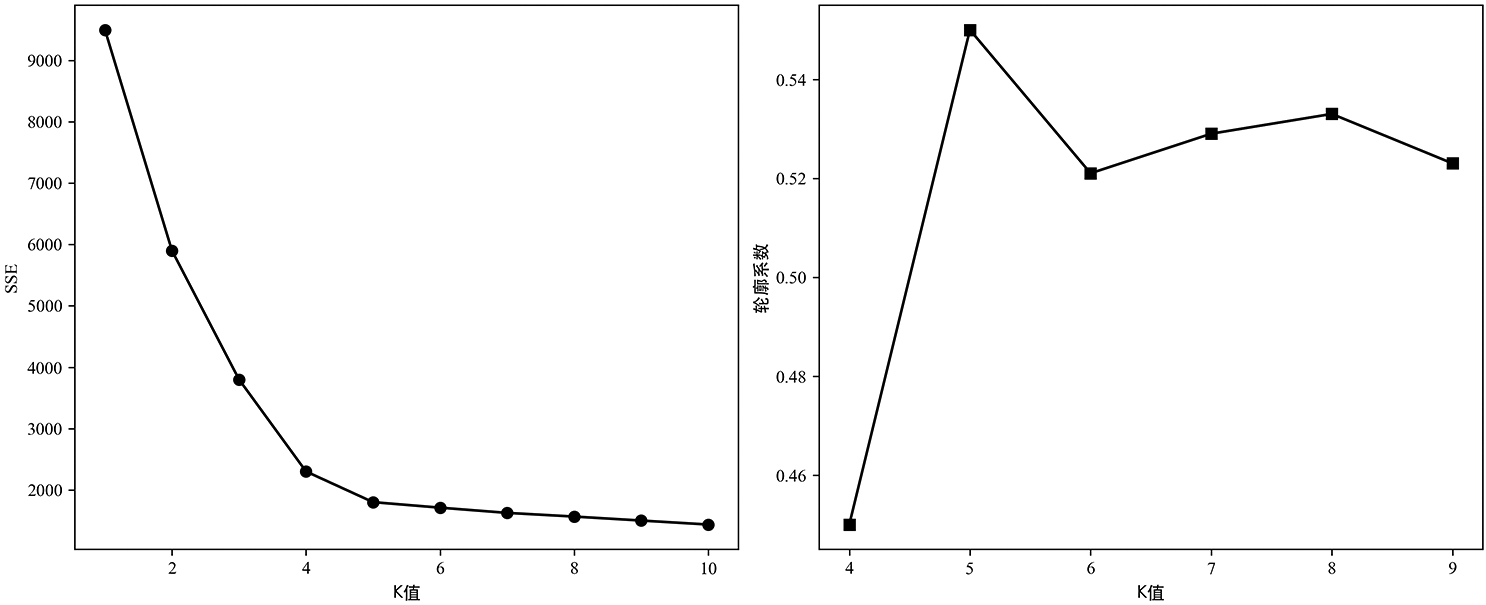

Fig.5 K-means clustering effect evaluation. a—Change plot of SSE; b—Change plot of SC.

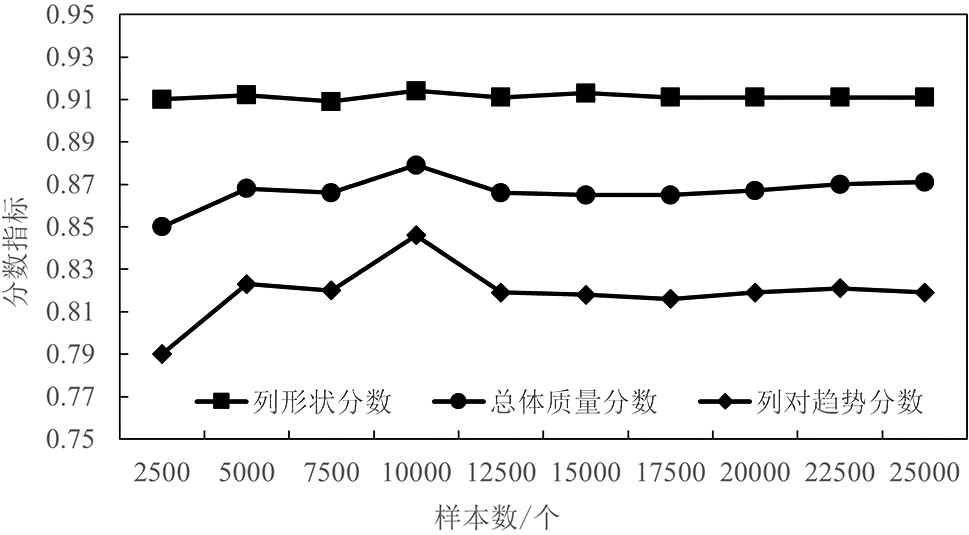

Fig.6 Synthetic data indicators of the expanded number of mine samples

Table 1 Synthetic data indicators for different oversampling methods

	总体质量分数/%	列形状分数/%	列对趋势分数/%
SMOTE	85.38	83.68	84.12
ADASYN	69.75	75.52	61.97
TVAE	86.75	90.75	82.76
CTGAN	75.11	85.66	64.56
KC-CTGAN	87.89	91.3	84.49

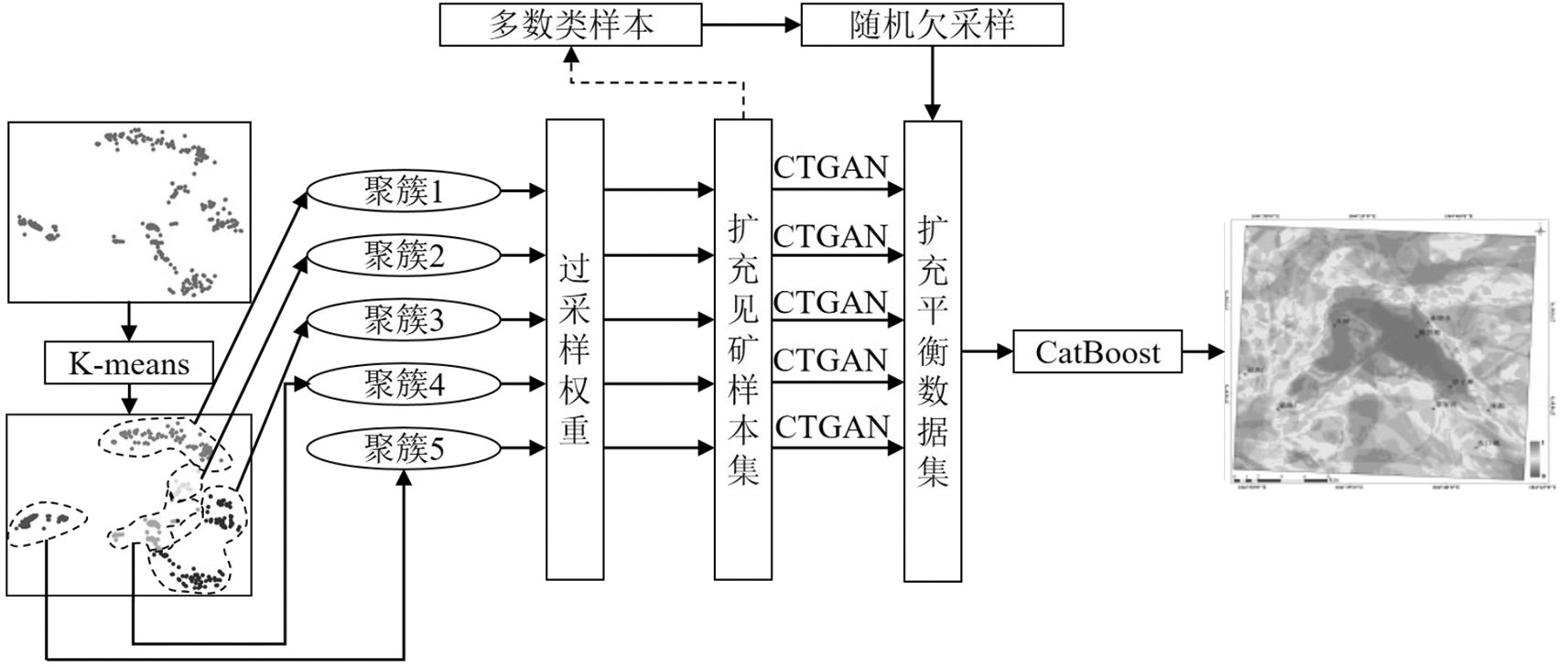

Fig.7 The metallogenic prediction process based on KC-CTGAN-CatBoost

Table 2 The performance indicators of CatBoost based on different oversampling methods

	准确率	召回率	精度	F1-score
原始数据	0.809	0.822	0.795	0.808
SMOTE	0.889	0.878	0.879	0.878
ADASYN	0.895	0.894	0.897	0.895
TVAE	0.884	0.878	0.890	0.883
CTGAN	0.891	0.896	0.887	0.891
KC-CTGAN	0.896	0.896	0.897	0.896

Table 3 Comparison of performance of different classifiers before KC-CTGAN oversampling

	准确率	召回率	精度	F1-score
LR	0.767	0.767	0.772	0.769
SVM	0.818	0.828	0.821	0.819
MLP	0.77	0.77	0.776	0.772
RF	0.788	0.788	0.789	0.788
AdaBoost	0.776	0.763	0.761	0.781
CatBoost	0.809	0.822	0.795	0.808

Table 4 Comparison of performance of different classifiers after KC-CTGAN oversampling

	准确率	召回率	精度	F1-score
LR	0.788	0.788	0.793	0.790
SVM	0.762	0.762	0.774	0.767
MLP	0.813	0.813	0.815	0.813
RF	0.847	0.847	0.849	0.847
AdaBoost	0.839	0.828	0.790	0.808
CatBoost	0.896	0.896	0.897	0.896

Fig.8 Distribution of metallogenic potential in Yadu-Mangdong area
