Study on stochastic reconstruction methods for 3D geological structures along metro lines

doi:10.13745/j.esf.sf.2025.4.75

Abstract

Abstract:

Constructing the metro system is one of the effective solutions to relieve traffic congestion in big cities and enhance the comprehensive carrying capacity and development resilience. High-precision three-dimensional (3D) geological model is an important data infrastructure for determining the geological structure and distribution of unfavorable geological bodies underground. And it is one of the keys to ensuring the safety of metro engineering construction. However, the characteristic that the overall amount of geological data of metro engineering is not large but the local density highly restricts the effective identification and reconstruction of the distribution patterns of geological bodies. Taking the geological structure at a station of Guangzhou Metro Line 11 as the concrete example, this study systematically compares the performance of three modeling methods: random forest (RF), XGBoost and hybrid method of deep learning and multi-point statistics (DL+MPS), under the complex geological conditions of Cretaceous strata, Quaternary sedimentary strata and subvolcanic rocks. The results illustrate that combining the advantages of simulating global features by deep neural network and the local optimization of MPS, the DL+MPS method shows the best performance in key indicators such as accuracy (99.16%), F1 score (98.91%) and AUC value of ROC curve (0.93-0.99). The DL+MPS method can accurately reconstruct the spatial relationship between fault fracture zone and igneous rock mass, and avoid abnormal extension of strata and geological semantic disorder. In contrast, although RF and XGBoost show high training accuracy in the model fitting stage with the accuracy rates of 99.60% and 98.64% respectively, some problems such as discrete distribution of geological bodies, unreasonable extrapolation and strata interpenetration appear in their simulation results. The minimum borehole dispersion value of the results by RF and XGBoost methods reaches 69.93%, is which is significantly lower than that of DL + MPS method (73.33%-87.50%). The research shows that the deep learning model can effectively deal with the challenge of uneven spatial distribution of subway engineering data by virtue of its strong nonlinear feature extraction ability, which provides a better solution for 3D modeling under complex geological conditions, and has important practical value for improving the safety of underground engineering and the application of digital twin system.

Key words: three-dimensional geological models, metro line, multipoint statistics, deep learning

CLC Number:

P628

CHEN Yonghua, HOU Weisheng, GUO Qingfeng, YANG Songhua, YE Shuwan, LI Xin. Study on stochastic reconstruction methods for 3D geological structures along metro lines[J]. Earth Science Frontiers, 2025, 32(4): 222-234.

Figures/Tables 13

References 39

[1]	CHEN Z L, CHEN J Y, LIU H, et al. Present status and development trends of underground space in Chinese cities: evaluation and analysis[J]. Tunnelling and Underground Space Technology, 2018, 71: 253-270.
[2]	LIN D, BROERE W, CUI J Q. Metro systems and urban development: impacts and implications[J]. Tunnelling and Underground Space Technology, 2022, 125: 104509.
[3]	XIE H P, ZHANG Y H, CHEN Y Y, et al. A case study of development and utilization of urban underground space in Shenzhen and the Guangdong-Hong Kong-Macao Greater Bay Area[J]. Tunnelling and Underground Space Technology, 2021, 107: 103651.
[4]	黄超, 邱建, 谭晓红. 中心城区 “向地下要空间” 的城市遗产保护策略: 以徐州市为例[J]. 西南交通大学学报(社会科学版), 2023, 24(6): 99-117.
[5]	王成善, 周成虎, 彭建兵, 等. 论新时代我国城市地下空间高质量开发和可持续利用[J]. 地学前缘, 2019, 26(3): 1-8. DOI
[6]	HOU W S, CHEN Y H, LIU H G, et al. Reconstructing three-dimensional geological structures by the multiple-point statistics method coupled with a deep neural network: a case study of a metro station in Guangzhou, China[J]. Tunnelling and Underground Space Technology, 2023, 136: 105089.
[7]	BIAN X, FAN Z Y, LIU J X, et al. Regional 3D geological modeling along metro lines based on stacking ensemble model[J]. Underground Space, 2024, 18: 65-82.
[8]	HOULDING W S. 3D geoscience modeling: computer techniques for geological characterization[M]. Berlin: SpringerVerlag, 1994.
[9]	JIA Q R, LI W W, CHE D F. A triangulated irregular network constrained ordinary kriging method for three-dimensional modeling of faulted geological surfaces[J]. IEEE Access, 2020, 8: 85179-85189.
[10]	JESSELL M, AILLÈRES L, DE KEMP E, et al. Next generation three-dimensional geologic modeling and inversion[J]. Economic Geology, 2014, 18: 261-272.
[11]	OUYANG J, ZHOU C, LIU Z, et al. Triangulated irregular network-based probabilistic 3D geological modelling using Markov Chain and Monte Carlo simulation[J]. Engineering Geology, 2023, 320: 107131.
[12]	CAUMON G, GRAY G, ANTOINE C, et al. Three-dimensional implicit stratigraphic model building from remote sensing data on tetrahedral meshes: theory and application to a regional model of La popa basin, NE Mexico[J]. IEEE Transactions on Geoscience and Remote Sensing, 2013, 51(3): 1613-1621.
[13]	邹艳红, 黄望, 阳宽达, 等. 基于杨赤中推估法空间插值的三维地质隐式建模[J]. 地质学刊, 2017, 41(3): 384-393.
[14]	SMIRNOFF A, BOISVER E, PARADIS S J. Support vector machine for 3D modelling from sparse geological information of various origins[J]. Computers & Geosciences, 2008, 34(2): 127-143.
[15]	SHI C, WANG Y. Development of subsurface geological cross-section from limited site-specific boreholes and prior geological knowledge using iterative convolution XGBoost[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2021, 147(9): 04021082.
[16]	CLAYTON C R. Managing geotechnical risk: improving productivity in UK building and construction[M]. London: Thomas Telford Ltd, 2001.
[17]	MADSEN R B, HØYER A-S, ANDERSEN L T, et al. Geology-driven modeling: a new probabilistic approach for incorporating uncertain geological interpretations in 3D geological modeling[J]. Engineering Geology, 2022, 309: 106833.
[18]	JIA R, LV Y K, WANG G W, et al. A stacking methodology of machine learning for 3D geological modeling with geological-geophysical datasets, Laochang Sn camp, Gejiu (China)[J]. Computers & Geosciences, 2021, 151: 104754.
[19]	WU S C, ZHANG J M, WANG R. Machine learning method for CPTu based 3D stratification of New Zealand geotechnical database sites[J]. Advanced Engineering Informatics, 2021, 50: 101397.
[20]	WANG X R. Uncertainty quantification and reduction in the characterization of subsurface stratigraphy using limited geotechnical investigation data[J]. Underground Space, 2020, 5(2): 125-143.
[21]	WANG Y, SHI C, LI X. Machine learning of geological details from borehole logs for development of high-resolution subsurface geological cross-section and geotechnical analysis[J]. Georisk: Assessment and Management of Risk for Engineered Systems and Geohazards, 2022, 16(1): 2-20.
[22]	WEI Y, XING Z, JIAN C et al. Use of tree-based machine learning methods for stratigraphic classification in 3D geological modelling[J]. IOP Conference Series: Earth and Environmental Science, 2021, 861(7): 072039.
[23]	GUARDIANO F B, SRIVASTAVA R M. Multivariate geostatistics: beyond bivariate Moments[M]// Geostatistics Tróia’92.Dordrecht: Springer Netherlands, 1993: 133-144.
[24]	CHEN Q Y, MARIETHOZ G, LIU G et al. Locality-based 3-D multiple-point statistics reconstruction using 2-D geological cross sections[J]. Hydrology and Earth System Sciences, 2018, 22(12): 6547-6566.
[25]	GUO J T, WANG Z X, LI C L, et al. Multiple-point geostatistics-based three-dimensional automatic geological modeling and uncertainty analysis for borehole data[J]. Natural Resources Research, 2022, 31(5): 2347-2367.
[26]	MARIETHOZ G, CAERS J. Multiple-point geostatistics[M]. Hoboken: Wiley, 2014,
[27]	HINTON G E, OSINDERO S, TEH Y W. A fast learning algorithm for deep belief nets[J]. Neural Computation, 2006, 18(7): 1527-1554. DOI PMID
[28]	LECUN Y, BENGIO Y, HINTON G. Deep learning[J]. Nature, 2015, 521(7553): 436-444.
[29]	郭甲腾, 刘寅贺, 韩英夫, 等. 基于机器学习的钻孔数据隐式三维地质建模方法[J]. 东北大学学报(自然科学版), 2019, 40(9): 1337-1342. DOI
[30]	ZHAO Z, ZHOU X P. An integrated method for 3D reconstruction model of porous geomaterials through 2D CT images[J]. Computers & Geosciences, 2019, 123: 83-94.
[31]	GOODFELLOW I, POUGET-ABADIE J, MIRZA M, et al. Generative adversarial nets[J]. Advances in Neural Information Processing Systems, 2014: 2672-2680.
[32]	LI Y, JIAN P P, HAN G H. Cascaded progressive generative adversarial networks for reconstructing three-dimensional grayscale core images from a single two-dimensional image[J]. Frontiers in Physics, 2022, 10: 716708.
[33]	YANG Z X, CHEN Q Y, CUI Z S, et al. Automatic reconstruction method of 3D geological models based on deep convolutional generative adversarial networks[J]. Computational Geosciences, 2022, 26(5): 1135-1150.
[34]	FAN W Y, LIU G, CHEN Q Y, et al. Geological model automatic reconstruction based on conditioning Wasserstein generative adversarial network with gradient penalty[J]. Earth Science Informatics, 2023, 16(3): 2825-2843.

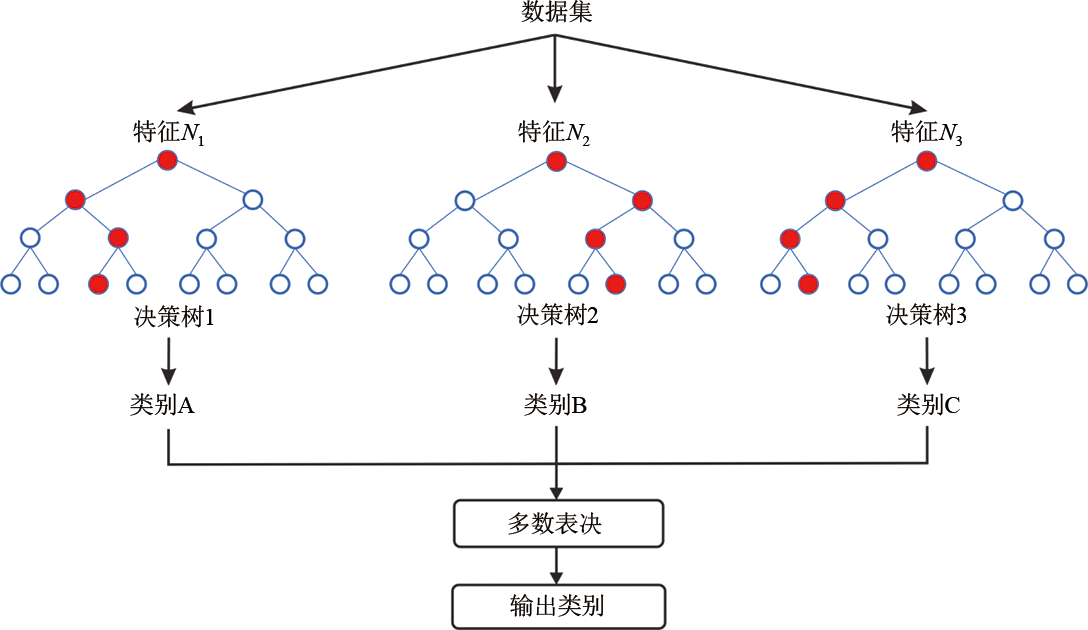

[35]	BREIMAN L. Bagging predictors[J]. Machine Learning, 1996, 24(2): 123-140.
[36]	BREIMAN L. Random forests[J]. Machine Learning, 2001, 45(1): 5-32.
[37]	BELGIU M, DRĂGUŢ L. Random forest in remote sensing: a review of applications and future directions[J]. ISPRS Journal of Photogrammetry and Remote Sensing, 2016, 114: 24-31.
[38]	CHEN T, GUESTRIN C. XGBoost: a scalable tree boosting system[C]// Proceedings of the 22nd ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. San Francisco California USA. ACM, 2016: 785-794.
[39]	SHI C, WANG Y. Data-driven construction of three-dimensional subsurface geological models from limited Site-specific boreholes and prior geological knowledge for underground digital twin[J]. Tunnelling and Underground Space Technology, 2022, 126: 104493.

参数设置		搜索空间
超参数	隐藏层数	[1, 10]
	隐藏层神经元数	50n (n∈[1, 10])
	学习率	[10^-5, 10^-1]
	批量训练样本数量	2n (n∈[5, 10])
	网络训练周期	100n (n∈[1, 10])
评估指标	均方误差损失	最小化指标
搜索周期	30

参数设置		搜索空间
超参数	隐藏层数	[1, 10]
	隐藏层神经元数	50n (n∈[1, 10])
	学习率	[10^-5, 10^-1]
	批量训练样本数量	2n (n∈[5, 10])
	网络训练周期	100n (n∈[1, 10])
评估指标	均方误差损失	最小化指标
搜索周期	30

方法	准确率/%	精确率/%	召回率/%	F1分数/%
DL+MPS	99.16	98.92	98.91	98.91
RF	99.60	98.68	98.14	98.40
XGBoost	98.64	95.67	95.31	95.49

方法	准确率/%	精确率/%	召回率/%	F1分数/%
DL+MPS	99.16	98.92	98.91	98.91
RF	99.60	98.68	98.14	98.40
XGBoost	98.64	95.67	95.31	95.49

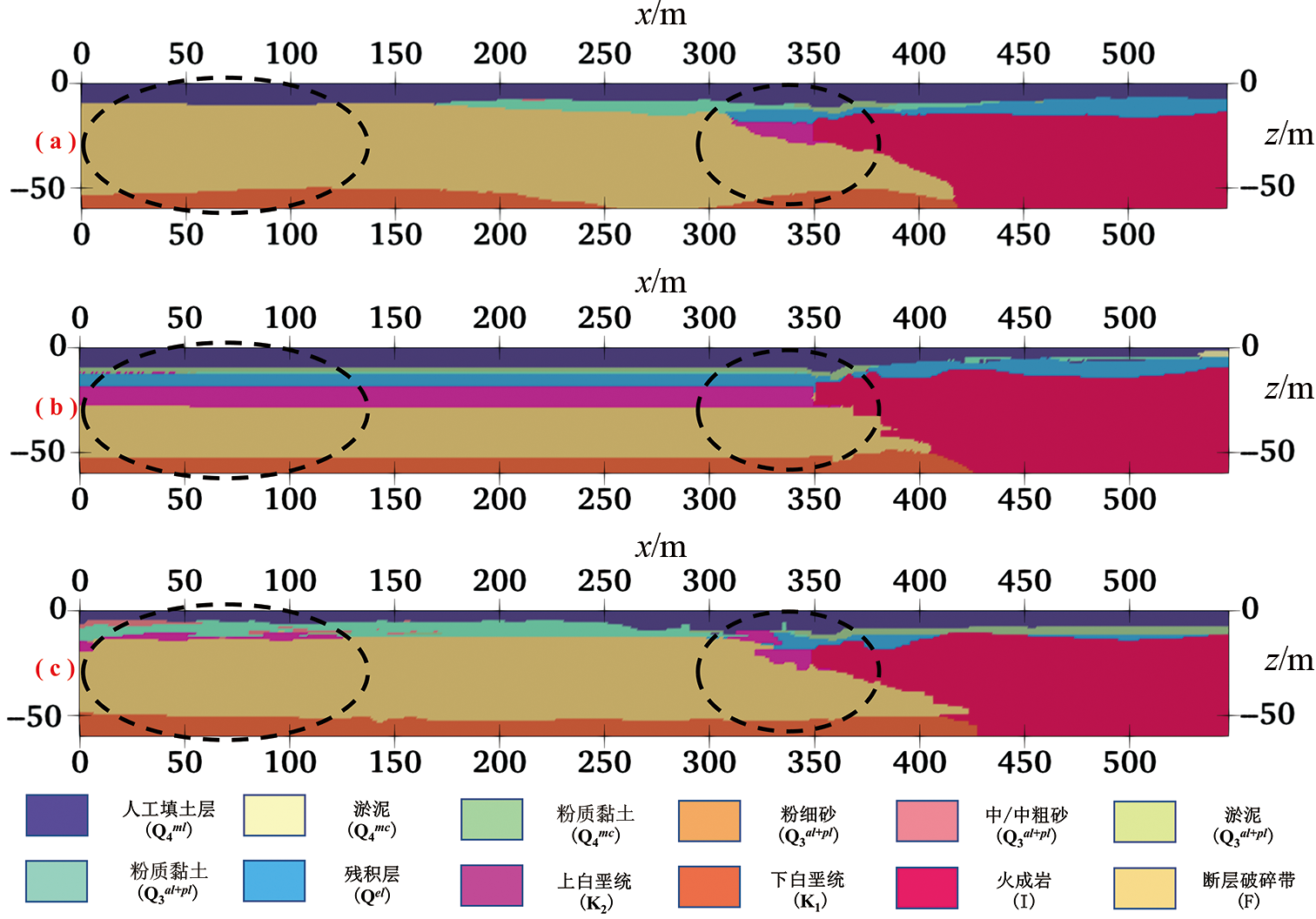

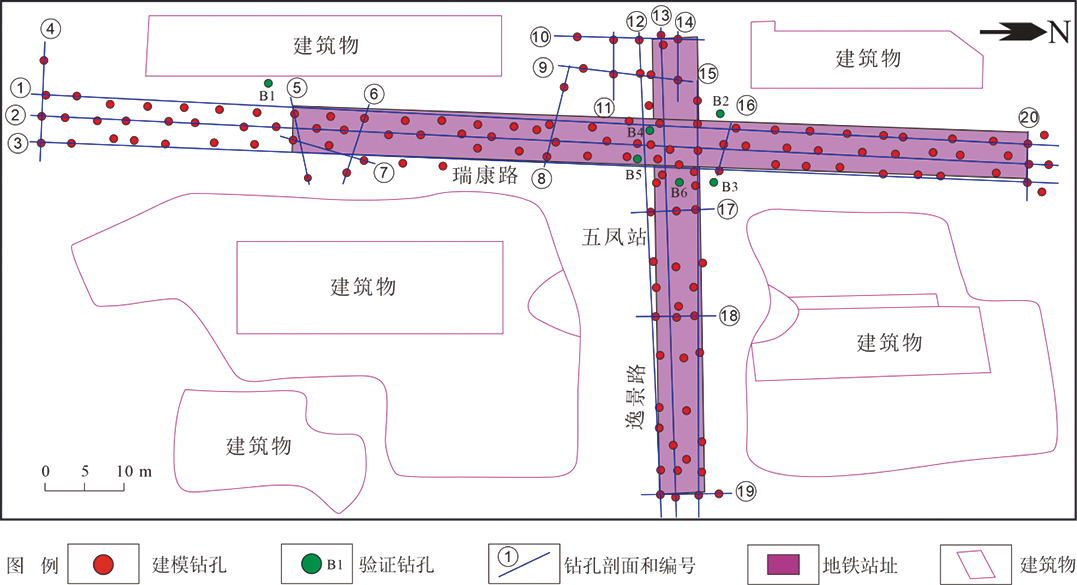

钻孔编号	不同方法模拟结果钻孔验证准确率/%
钻孔编号	DL+MPS	RF	XGBoost
B1	79.17	81.25	77.08
B2	83.33	80.21	80.24
B3	73.33	69.93	72.27
B4	74.14	71.42	72.21
B5	87.50	89.09	83.52
B6	81.67	79.73	80.77
平均值	79.86	78.61	77.68
