Characteristics of stress state transitions and its geological and mechanical response in the Kuqa Depression

doi:10.13745/j.esf.sf.2023.6.25

Abstract

Abstract:

Combined with the latest drilling, logging and seismic data we carry out numerical simulation to better understand the characteristics of the late Himalayan paleostress evolution in the Kuqa Depression, Tarim Basin. Using finite element numerical simulation method we obtained the three-dimensional distribution of the late Himalayan stress field in the Bashijiqike Formation in the Kelasu tectonic belt whereby accurately determined the paleostress state. By analyzing the relationship between the paleostress state and macrostructural style, fracture occurrence and reservoir physical properties, the geological and mechanical response to the paleostress state transition was systematically revealed. Finally, the influece mechanism between the paleostress state transition and reservoir physical properties was revealed by means of discrete element numerical simulation. During the late Himalayan, the stress field gradually transformed from a thrust-type stress field to a strike-slip type stress field at a depth range of 6500-7500 m. Above 6500 m depth, under thrust stress field, the compaction hole reduction increased with increasing burial depth, and the stress state and rock strength were not conducive to the development of fractures. Below 7500 m depth, the strike-slip stress field was conducive to the preservation of reservoir pores and rock fracturing. The above results deepen the understanding of the tectonic settings, reservoir properties and rock mechanical properties of the Kuqa Depression, suggesting the paleostress state transition provided the mechanical basis for the formation of large and medium-sized oil and gas field in the ultradeep reservoir of the Kelasu tectonic belt. This discovery has guiding significance for the next stage oil and gas exploration and development in the Kelasu tectonic belt.

Key words: paleostress state, geomechanics, Kelasu tectonic belt, stress field simulation, tectonic fracture

CLC Number:

P618.13

ZHANG Hui, ZHANG Guanjie, XU Ke, YIN Guoqing, WANG Zhimin, LUO Yang, WANG Haiying, ZHANG Binxin, LIANG Jingrui, YUAN Fang, ZHAO Wei, ZHANG Wei, LU Xing. Characteristics of stress state transitions and its geological and mechanical response in the Kuqa Depression[J]. Earth Science Frontiers, 2024, 31(5): 177-194.

Figures/Tables 21

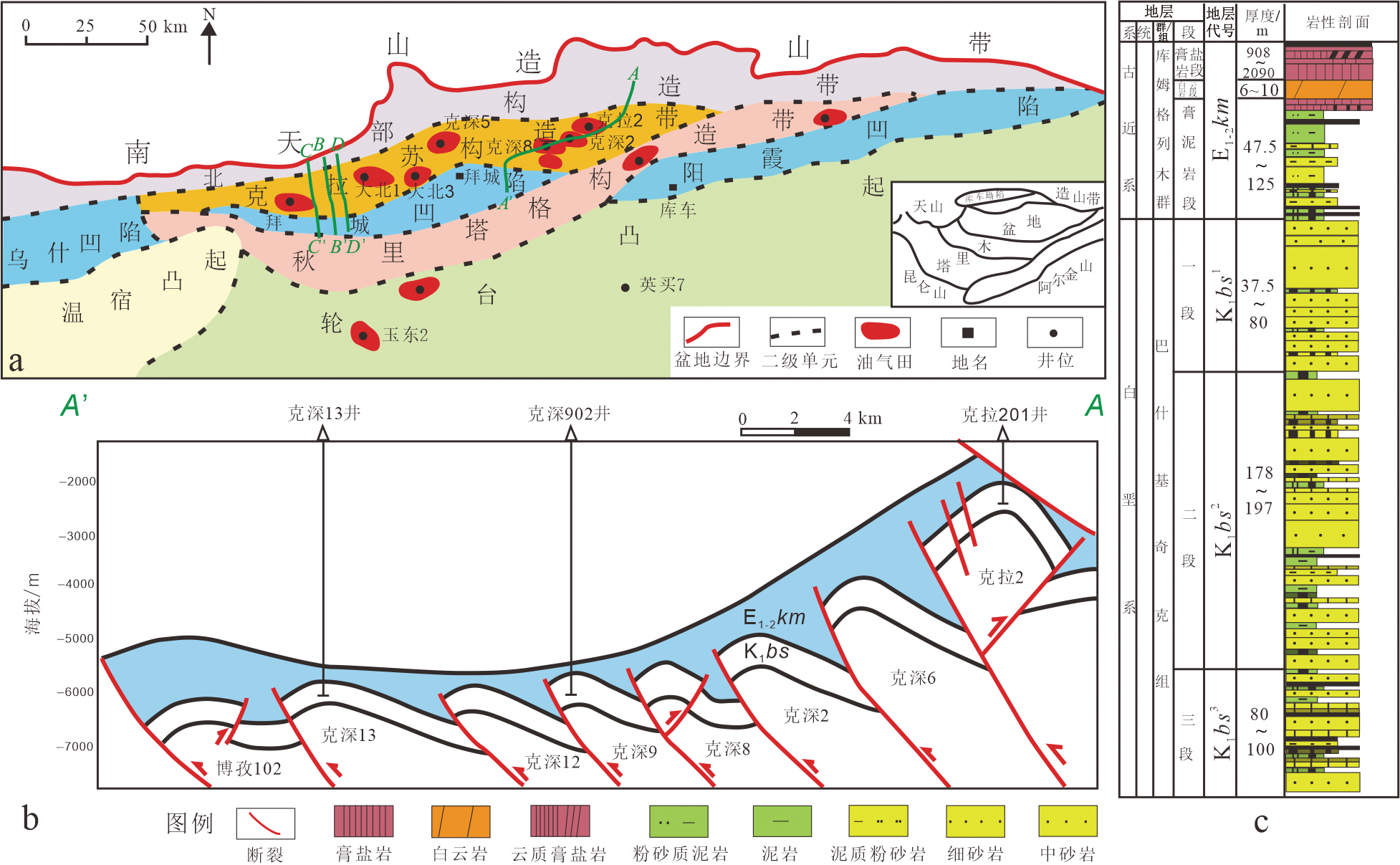

Fig.1 (a) Structural units, (b) near S-N profile A-A’ (see Fig.1 for profile location) and (c) stratgraphic colunm of the Kuqa Depression (modified from [2])

Fig.2 Cretaceous-Quaternary tectonic evolution in central Kuqa Depression (see Fig.1 for profile B-B’ location)

Fig.3 Characteristics of fracture development in well Bozi 12

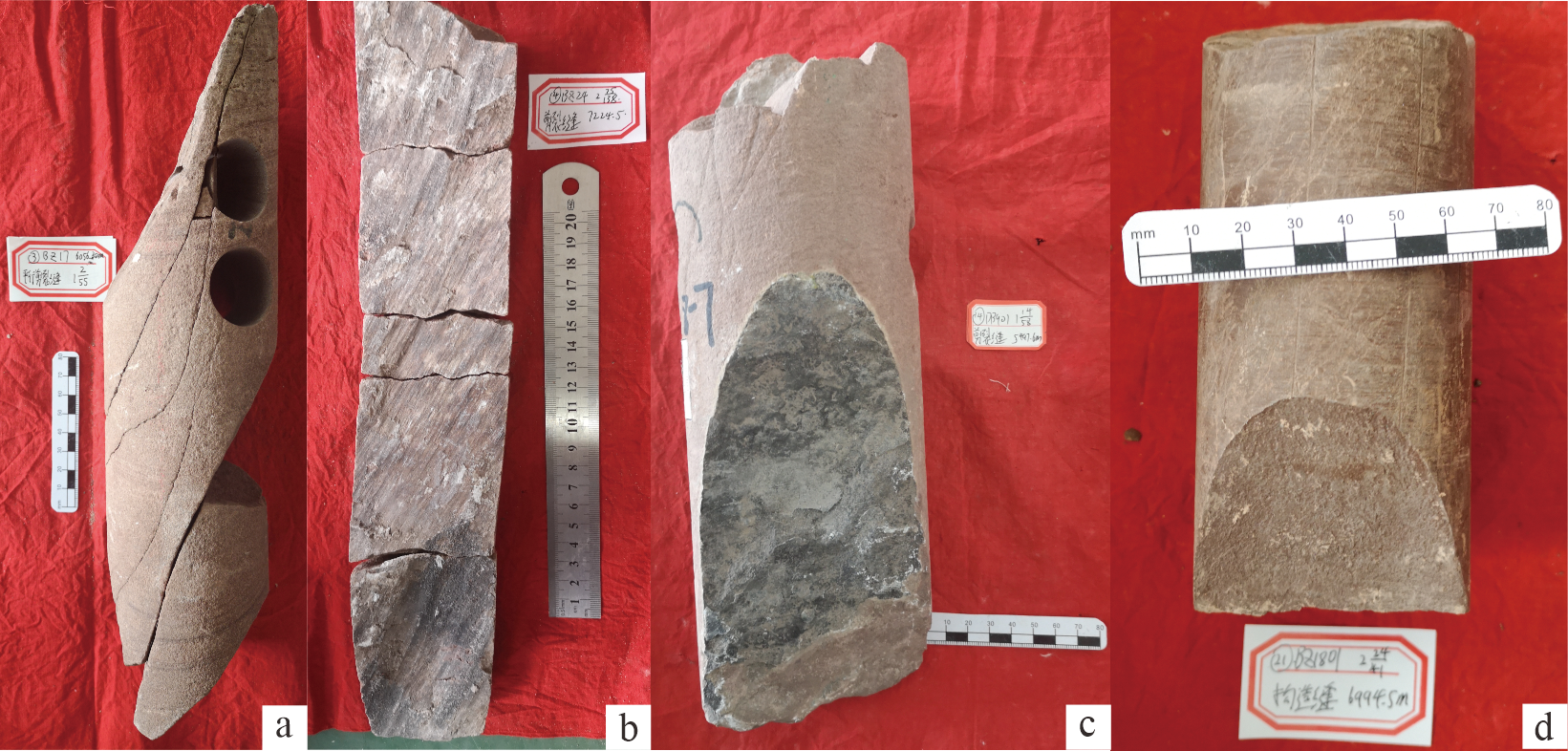

Fig.4 Characteristics of core fracture development in the Bozi-Dabei Block

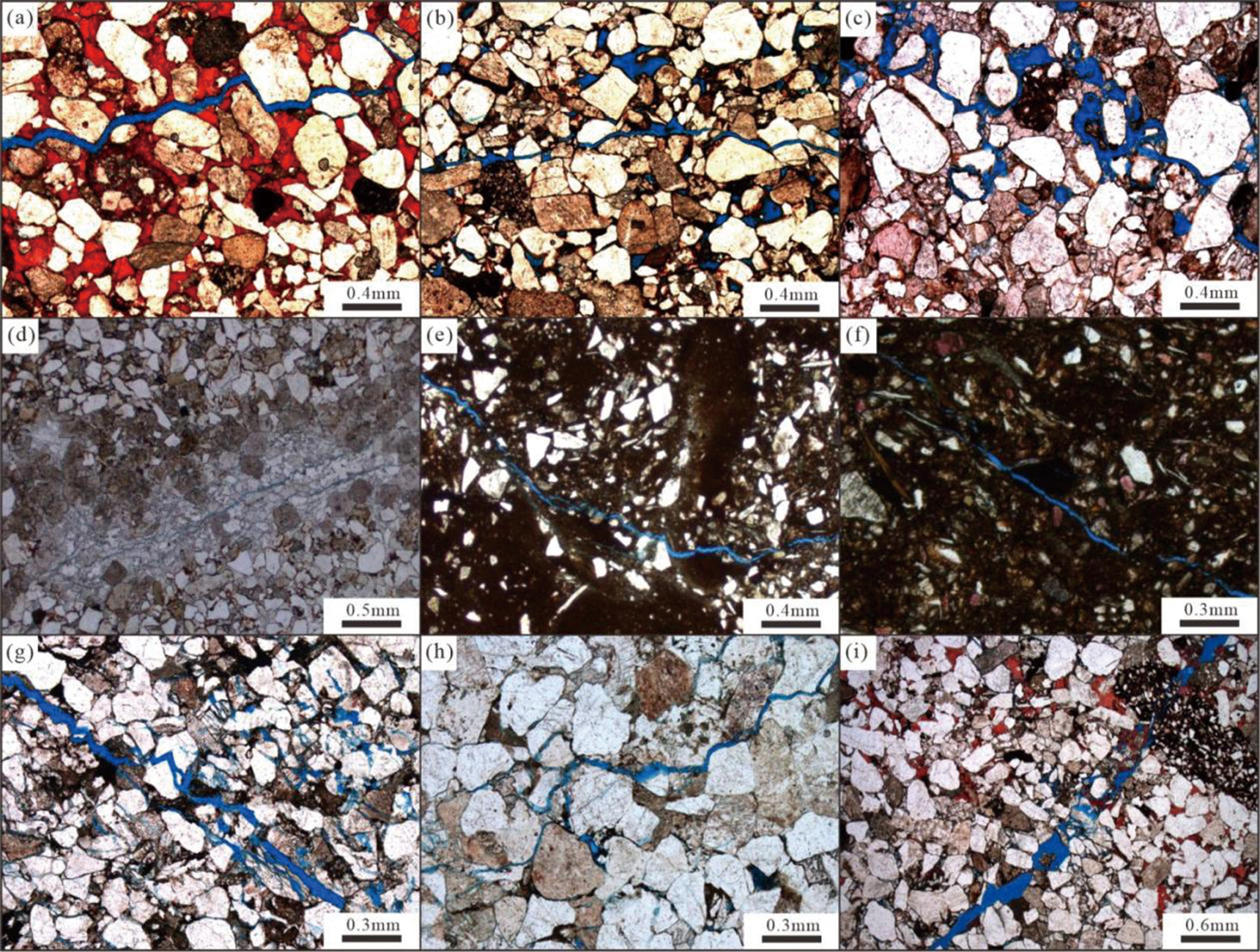

Fig.5 Thin sections from the Bashijiqike Formation in the Bozi-Dabei Block revealing the microscopic characteristics of fracture development

Fig.6 Logging interpretation of geomechanical parameters for well Bozi 21

Fig.7 Geomechanical modeling of the Bozi-Dabei section in the late Himalayan

Table 1 Mechanical parameters used in numerical simulation of finite element stress field

地层	杨氏模量/GPa	泊松比	岩石密度/ (g·cm^-3)
第四系(Q)	12.4	0.27	2.45
康村组(N_1-2k)	26.0	0.25	2.59
吉迪克组(N₁j)	36.7	0.24	2.64
苏维依组(E_2-3s)	19.1	0.26	2.54
库姆格列木群(E_1-2km¹) 上泥岩段	20.7	0.26	2.56
膏盐层	15.0	0.25	2.30
巴什基奇克组	25~31	0.22~0.32	2.51~2.66
围岩	25.0	0.25	2.50

Fig.8 Numerical simulation results. (a) Plane distribution of the late Himalayan stress field. (b) The vertical transformation characteristics of paleostress state.

Fig.9 Relationship between paleostress state transition characteristics and tectonic styles in Bozi-Dabei area

Fig.10 Histograms of dip-angles of fractures under different conversion stress fields

Fig.11 Histograms of dip-angles of fractures under different paleostress states. Light purple is thrust stress field, and yellow is strike-slip stress field. Location is shown in Fig.10.

Fig.12 Microscopic characteristics of sandstone reservoir spaces at different depths in Bozi-Dabei area

Fig.13 Relationship between porosity and burial depth in Kelasu tectonic belt (data quoted from [40])

Fig.14 Distribution of in situ stress in the Bozi block and its relationship with reservoir properties

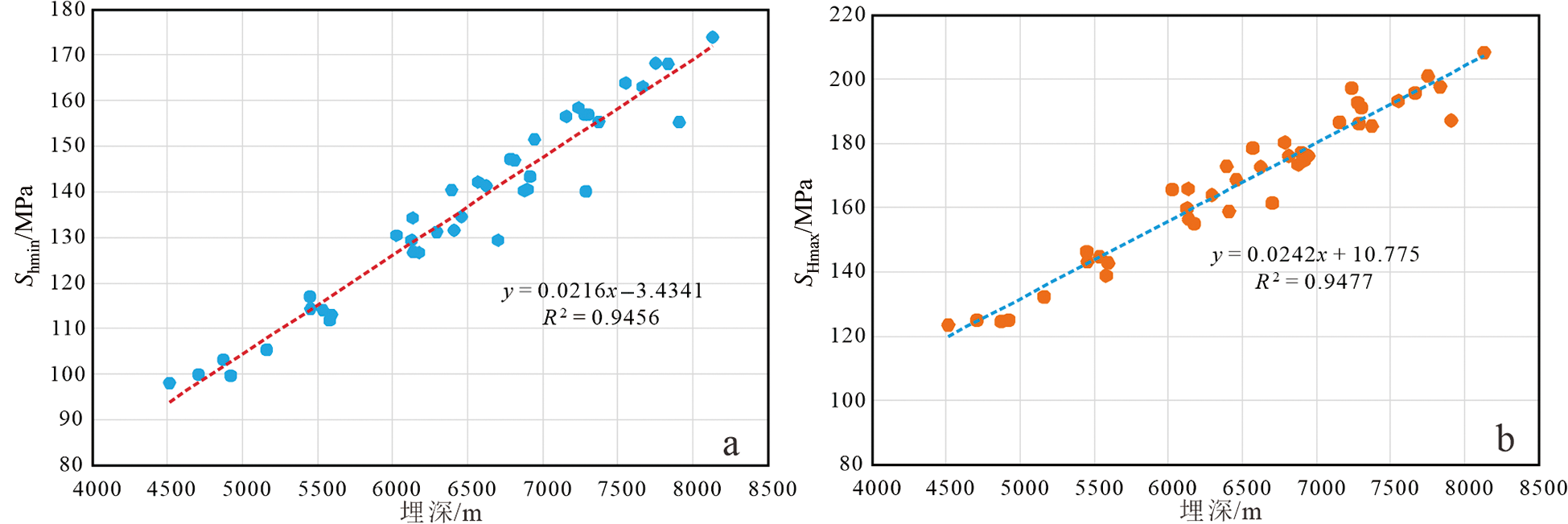

Fig.15 Relationship between the magnitude of principal stress and buried depth in Bozi-Dabei area

Fig.16 Comparative analysis of the present stress and the late Himalayan stress fields

Fig.17 Boundary conditions in discrete element numerical simulation and porosity changes during simulation

Table 2 Parameter settings used in discrete element numerical simulation

细观参数	数值
密度/(kg·m^-3)	2 500
初始孔隙度/%	30
颗粒杨氏模量/GPa	35
颗粒摩擦系数	0.3
重力加速度/(m·s^-2)	9.8
平行粘结法向强度/(J·MPa^-1)	55
平行粘结切向强度/(J·MPa^-1)	30

Table 3 Discrete element numerical simulation scheme

实验编号	S_v/MPa	$S H m a x$ /MPa	$S h m i n$ /MPa
1	50	90	70
2	60	90	70
3	70	90	70
4	80	90	70

Table 3 Discrete element numerical simulation scheme

实验编号	S_v/MPa	$S H m a x$ /MPa	$S h m i n$ /MPa
1	50	90	70
2	60	90	70
3	70	90	70
4	80	90	70

Fig.18 Reservoir porosity reduction mechanism controlled by different stress states. (a) Thrust stress field; (b) Transformational stress field; (c) Strike-slip stress field.
