Receiving function imaging reveals the crustal structure of the East Kunlun fault zone and surrounding areas

doi:10.13745/j.esf.sf.2023.4.20

Abstract

Abstract:

Previous studies have suggested that the Tibetan Plateau continues to undergo eastward extrusion since the Miocene, and the observed sinistral strike-slip deformation in eastern Kunlun is strong evidence of such movement. To gain a better understanding of the land deformation, stress transfer, and material transport on the Tibetan Plateau, it is crucial to correctly identify the location of faults and the regional crustal structure. Geodetic and geomorphic evidence have indicated an eastward decrease of slip rate along the eastern Kunlun fault, particularly in the Roergai Basin covered with a variety of Quaternary sediments. However, due to basin’s alpine herbaceous swamp nature, it is particularly challenging to identify fault traces in the basin; as a result, the location of the eastern Kunlun fault within the Roergai Basin is unclear. In this contribution, a dense array of 167 seismic stations (spaced at ~1-km intervals) and 9 broadband stations were used to investigate the crustal structure beneath the eastern Kunlun fault in the Ruoergai Basin. Through basin-wide comparisons of discontinuities in crustal strata and Moho depth variations it was determined that the eastern Kunlun fault continues to extend eastward through the Ruoergai Basin; in addition, an inheritance relationship between the Tazang and eastern Kunlun faults was identified based on crustal structure similarities. The results of this study provide high-resolution evidence for the outward expansion of the Tibetan Plateau.

Key words: eastern Kunlun fault, receiver functions, northeastern margin of the Tibetan Plateau, Tazang Fault

CLC Number:

P315.2

TONG Xiaofei, XU Xiao, GUO Xiaoyu, LI Chunsen, XIANG Bo, YU Jiahao, LUO Xucong, YUAN Zizhao, LIN Yanqi, SHI Hongcheng. Receiving function imaging reveals the crustal structure of the East Kunlun fault zone and surrounding areas[J]. Earth Science Frontiers, 2023, 30(4): 270-282.

Figures/Tables 6

Fig.1 (a) Summary of previous results on the eastern Kunlun fault (Moho depth data adapted from [20,22⇓⇓⇓⇓⇓⇓⇓-30]; fault ages adapted from [31⇓⇓-34]), and (b) structural characteristics of the Earth’s crust beneath the eastern Kunlun fault.

Fig.2 (a) Distribution of seismic events used for the receiver function calculation, and (b) geological settings in the research area (modified from [58]) and distribution of seismic stations.

Fig.3 (a) Location of CCP stacking profiles and shot-points, and (b) stacked and individual moveout corrected receiver functions plotted along backazimuth for broadband stations

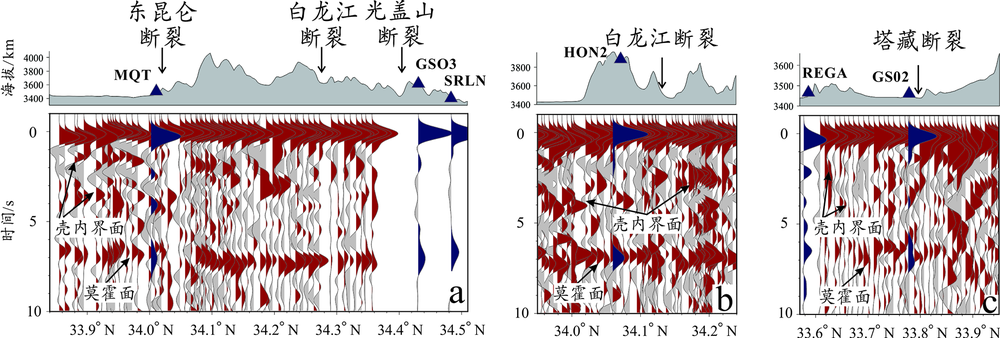

Fig.4 Raw receiver function CCP stacking profiles (profile locations see Fig.3a)

Fig.5 CCP stacking profiles (profile locations see Fig.3a, d modified from [22])

Fig.6 A deformation model for the Roergai Basin, eastern margin of the Tibetan Plateau

References 69
