Genesis of the Baikal Rift and the Fenwei Graben and the remote effects of the Indo-Eurasian collision

doi:10.13745/j.esf.sf.2023.1.30

Abstract

Abstract:

The Baikal Rift and the Fenwei Graben are two famous rift systems located in the eastern Eurasian plate, with similar topographic features and geomorphic characteristics. Their tectonic evolution histories are also similar. Many studies have shown that their formation is closely related to the Indo-Eurasian collision, however, the mechanism for this long-range effect is not clear. In this paper, basing on the evolution of extensional tectonics caused by mantle upwelling in the continental margin during the continental drift and continental margin splitting, combined with the Cenozoic tectonic evolution of Eurasia, we studied the evolution of microcontinental fragments and extensional tectonics under the long-range effect. The results show that the origin of the two rift systems is closely related to the Cenozoic large-scale fragmentation and drift of microcontinents in the eastern margin of the Eurasian. Briefly, the Qinghai-Tibet Plateau uplift results in large-scale mantle upwelling and continental breakup in the Cenozoic, where the breakup and drift of the proto-Japan/proto-Kamchatka blocks form a differential sinistral strike-slip environment, and lead to the formation of the two rift systems in two seismic zones on the southeast side of the Siberian and Ordos Basins. These two seismic zones, which have similar genetic mechanisms to the Türkiye earthquake in February 2023, are formed by strike slip faults, and their genetic mechanisms can be reasonably explained by the new continent drift model.

Key words: Baikal Rift, Fenwei Graben, Indo-Eurasian collision, dynamic mechanism, remote effect

CLC Number:

P541

LIANG Guanghe. Genesis of the Baikal Rift and the Fenwei Graben and the remote effects of the Indo-Eurasian collision[J]. Earth Science Frontiers, 2023, 30(3): 282-293.

Figures/Tables 13

Fig.1 Location of the Baikal and Fenwei Rifts on the eastern margin of Eurasia

Fig.2 Genetic model for the southeast Eurasian plate based on geological interpretation of extrusion tectonics. Modified after [6].

Fig.3 Models describing the dynamic mechanism of continental drift (a) and breakup of a continental margin (b). Modified after [26].

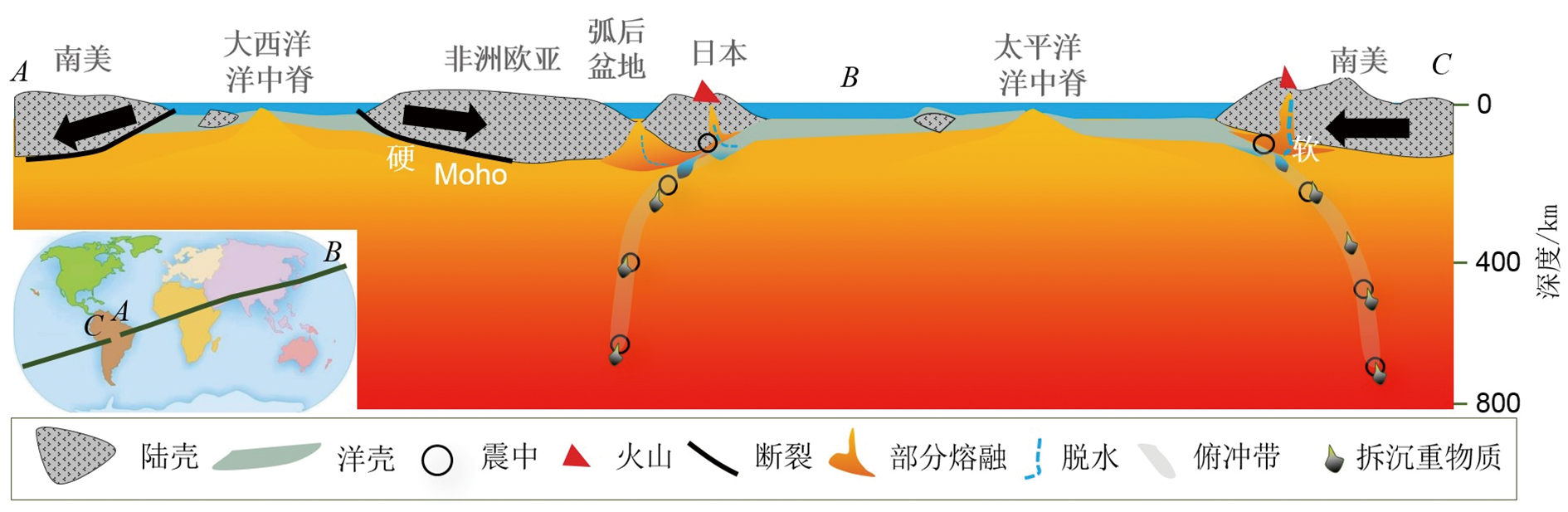

Fig.4 Continental drift patterns across the Atlantic and Pacific oceans

Fig.5 Characteristics of wakes in the eastern hemisphere resulted from the continental drift

Fig.6 A detailed illustration of the breakup and drift of continental block in the eastern margin of Eurasia. The dashed arrows indicate drift path; dashed circles, original position; solid circles, current position. Arrow numbering follows the order of drift: 1—Kamchatka; 2—Sakhalin and Hokkaido; 3—Siholt; 4—Mishima, Japan; 5—Hainan Island; 6—Korean Peninsula.

Fig.7 Restoration of tectonic evolution history for the Yellow Sea Basin based on geological interpretation of seismic exploration profile. (a) Seismic profile location map; (b) geological interpretation of seismic section (modified after [30-31]); (c-e) restoration sections.

Fig.8 Tectonic evolution models for the Korean and Jiaodong Peninsulas

Fig.9 Tectonic stresses and main rift systems in the Cenozoic in eastern Eurasia. Basemap from [33].

Fig.10 Results of rift basin genetic simulation experiment under transtensional pull-apart environment. Modified after [35].

Fig.11 Structural frameworks along three profile lines in the southeastern margin of Eurasian. Modified after [29,36⇓⇓-39].

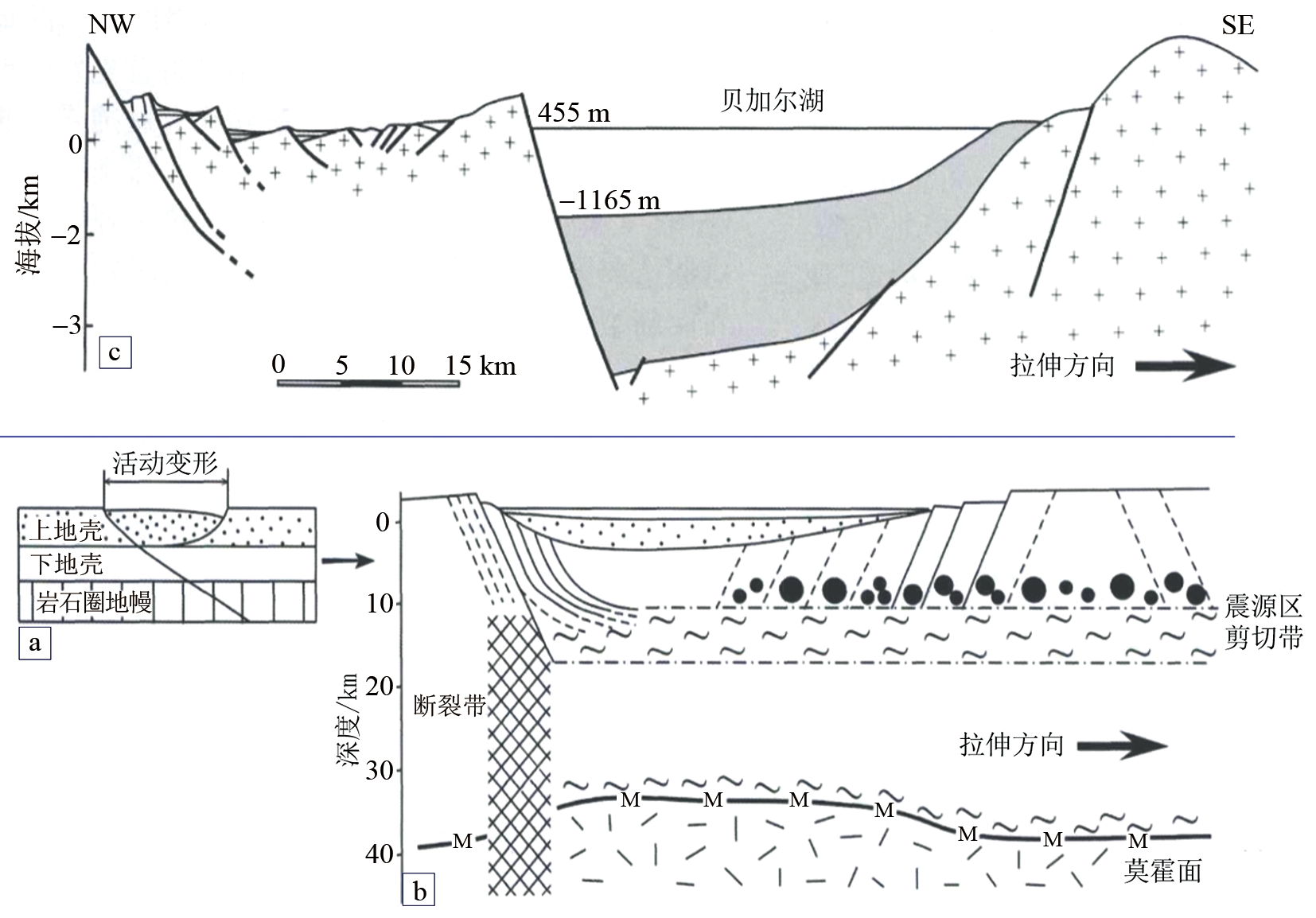

Fig.12 Lake Baikal profile and genetic model for the rift system. Modified after [39].

Fig.13 Earthquake genesis in the Baikal Rift. Modified after [28].

References 41

[1]	杨巍然, 孙继源, 纪克诚. 大陆裂谷对比:汾渭裂谷系与贝加尔裂谷系例析[M]. 武汉: 中国地质大学出版社, 1995.
[2]	吴珍汉. 旋转地球动力学[M]. 北京: 地质出版社, 1997: 148-157.
[3]	崔盛芹, 李锦蓉. 汾渭地堑与贝加尔裂谷系的比较构造分析[J]. 中国地质科学院院报, 1987(1): 353-360.
[4]	杨巍然, 隋志龙, MATS V D. 俄罗斯贝加尔湖区伸展构造及与中国东部伸展构造对比[J]. 地球科学进展, 2003, 18(1): 5-5.
[5]	MOLNAR P, TAPPONNIER P. Cenozoic tectonics of Asia: effects of a continental collision[J]. Science, 1975, 189(4201): 419-426. DOI URL
[6]	TAPPONNIER P, PELTZER G, DAIN A, et al. Propagating extrusion tectonics in Asia: new insights from simple experiments with plasticine[J]. Geology, 1982, 10: 611-616. DOI URL
[7]	LOGATCHEV N A. Main features of evolution and magmatism of continental rift zones in the Cenozoic[M]// RAMBERG I B, NEUMANN E R. Tectonics and geophysics of continental rifts. Dordrecht: Springer, 1978, 37: 351-366.
[8]	杨森楠, 杨巍然. 中国区域大地构造学[M]. 武汉: 武汉地质学院出版社, 1982.
[9]	BRIAIS A, PATRIAT P, TAPPONNIER P. Updated interpretation of magnetic anomalies and seafloor spreading stages in the South China Sea: implications for the Tertiary tectonics of Southeast Asia[J]. Journal of Geophysical Research: Solid Earth, 1993, 98(B4): 6299-6328.
[10]	FLOWER M, TAMAKI K, HOANG N. Mantle extrusion: A model for dispersed volcanism and Dupal-like asthenosphere in East Asia and the western Pacific[M]. Washington, DC: American Geophysical Union, 1998: 67-88.
[11]	REPLUMAZ A, LACASSIN R, TAPPONNIER P, et al. Large river offsets and Plio-Quaternary dextral slip rate on the Red River fault (Yunnan, China)[J]. Journal of Geophysical Research: Solid Earth, 2001, 106(B1): 819-836.
[12]	LIU M, CUI X J, LIU F T. Cenozoic rifting and volcanism in eastern China: a mantle dynamic link to the Indo-Asian collision?[J]. Tectonophysics, 2004, 393(1/2/3/4): 29-42. DOI URL
[13]	谢建华, 夏斌, 张宴华, 等. 印度-欧亚板块碰撞对南海形成的影响研究: 一种数值模拟方法[J]. 海洋通报, 2005, 24(5): 47-53.
[14]	郭令智, 施央申, 马瑞士. 西太平洋中、新生代活动大陆边缘和岛弧构造的形成和演化[J]. 地质学报, 1983, 57(1): 13-23.
[15]	刘昭蜀, 杨树康, 何善谋, 等. 南海陆缘地堑系及边缘海的演化旋回[J]. 热带海洋, 1983, 2(4): 3-11.
[16]	陈国达. 东亚陆缘扩张带: 一条离散式大陆边缘成因的探讨[J]. 大地构造与成矿学, 1997, 21(4): 285-293.
[17]	栾锡武, 张亮. 南海构造演化模式:综合作用下的被动扩张[J]. 海洋地质与第四纪地质, 2009, 29(06): 59-74.
[18]	KARIG D E. Origin and development of marginal basins in the western Pacific[J]. Journal of Geophysical Research, 1971, 76(11): 2542-2561. DOI URL
[19]	HONZAE. Spreading mode of backarc basins in the western Pacific[J]. Tectonophysics, 1995, 251: 139-152. DOI URL
[20]	TAYLOR B, HAYES D E. Origin and history of the South China Basin[M]// HAYES D E. The tectonics and geologic evolution of Southeast Asian seas and islands:Part 2. Geophysical Monograph Series. Washington, DC: American Geophysical Union, 1983, 27: 23-56.
[21]	SHI H, LI C F. Mesozoic and early Cenozoic tectonic convergence-to-rifting transition prior to opening of the South China Sea[J]. International Geology Review, 2012, 54(15): 1801-1828. DOI URL
[22]	WU J, SUPPE J, LU R Q, et al. Philippine Sea and East Asian plate tectonics since 52 Ma constrained by new subducted slab reconstruction methods[J]. Journal of Geophysical Research: Solid Earth, 2016, 121(6): 4670-4741. DOI URL
[23]	SUN W D. Initiation and evolution of the South China Sea: an overview[J]. Acta Geochimica, 2017, 35(3): 215-225. DOI URL
[24]	WU J, SUPPE J. Proto-South China Sea plate tectonics using subducted slab constraints from tomography[J]. Journal of Earth Science, 2018, 29(6): 1-15. DOI
[25]	DING W W, SUN Z, KELSIE D, et al. Structures within the oceanic crust of the central South China Sea basin and their implications for oceanic accretionary processes[J]. Earth and Planetary Science Letters, 2018, 488: 115-125. DOI URL
[26]	梁光河, 杨巍然. 从南大西洋裂解过程解密大陆漂移的驱动力[J]. 地学前缘, 2022, 29(1): 1-14.
[27]	梁光河. 从东海和南海北部盆地群演化探讨日本大陆板块的形成过程[J]. 地学前缘, 2020, 27(1): 244-259. DOI
[28]	SHERMAN S L. 贝加尔裂谷及邻区的断层活动性研究[CM]// 张家声, 高祥林, 马宗晋. 亚洲中部地震构造图集. 北京: 地震出版社, 2013: 81-84.
[29]	梁光河. 郯庐断裂带的几个关键问题探讨[J]. 黄金科学技术, 2018, 26(5): 543-558.
[30]	张功成, 陈国俊, 张厚和, 等. “源热共控”中国近海盆地油气田“内油外气”有序分布[J]. 沉积学报, 2012, 30(1): 1-19.
[31]	陈洁. 北黄海前新生代残留盆地勘探潜力分析[J]. 地球物理学进展, 2005(3): 757-760.
[32]	陈建文, 杨长清, 张莉, 等. 中国海域前新生代地层分布及其油气勘查方向[J]. 海洋地质与第四纪地质, 2022, 42(1): 1-25.
[33]	任纪舜, 牛宝贵, 王军, 等. 1∶500万国际亚洲地质图[J]. 地球学报, 2013, 34(1): 24-30.
[34]	朱志澄. 构造地质学[M]. 武汉: 中国地质大学出版社, 2003.
[35]	WU J E, MCCLAY K, WHITEHOUSE P, et al. 4D analogue modelling of transtensional pull-apart basins[J]. Marine and Petroleum Geology, 2009, 26: 1608-1623. DOI URL
[36]	CAMANNI G, YE Q. The significance of fault reactivation on the Wilson cycle undergone by the northern South China Sea area in the last 60 Myr[J]. Earth-Science Reviews, 2021, 225: 103893. https://doi.org/10.1016/j.earscirev.2021.103893 DOI URL
[37]	张国伟, 郭安林, 王岳军, 等. 中国华南大陆构造与问题[J]. 中国科学:地球科学, 2013, 43(10): 1553-1582.
[38]	郝天珧, 胡卫剑, 邢健, 等. 中国海陆1∶500万莫霍面深度图及其所反映的地质内涵[J]. 地球物理学报, 2014, 57(12): 3869-3883.
[39]	梁光河. 南海中央海盆高精度地震勘探揭示的大陆漂移过程[J]. 地学前缘, 2022, 29(4): 293-306. DOI
[40]	杨文采. 从地壳上地幔构造看大陆岩石圈伸展与裂解[J]. 地质论评, 2014, 60(5): 945-961.
[41]	梁光河. 新大陆漂移模型与地震成因关系研究[J]. 科学技术与工程, 2018, 18(28): 47-57.
