In-situ upgrading and transformation of low-maturity shale: Economic feasibility and efficiency enhancement approaches from the perspective of energy consumption ratio

doi:10.13745/j.esf.sf.2022.8.33

Abstract

Abstract:

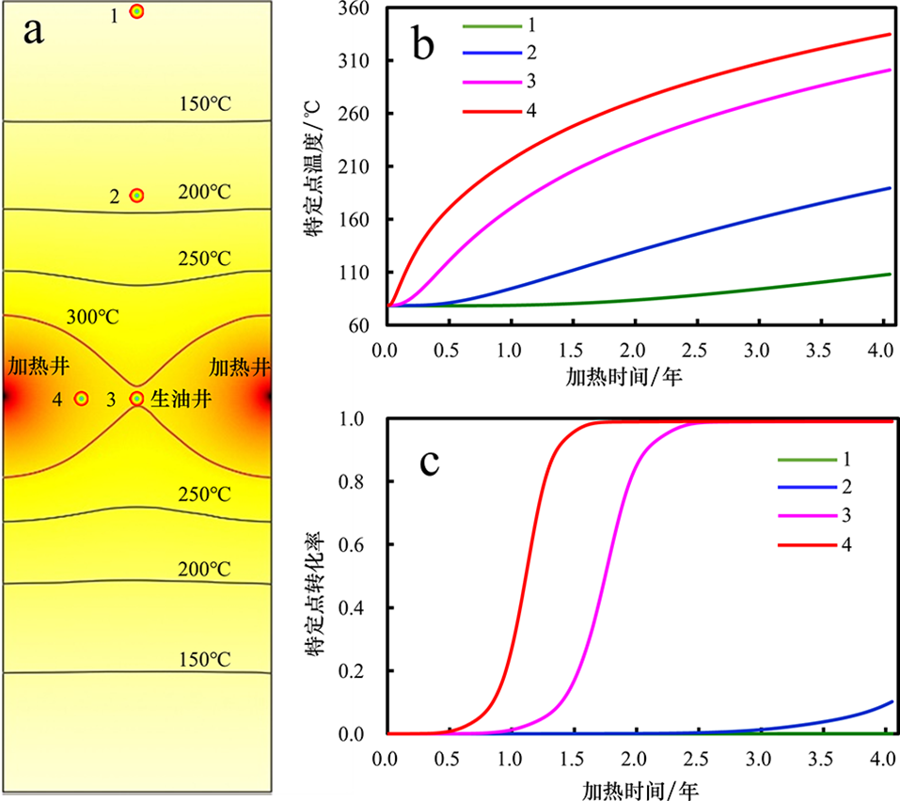

There are few doubts about the technical applicability of in-situ upgrading technology in developing the enormous oil and gas resource potential of low-maturity shale. However, due to the enormous energy consumption required in shale heating, its economic feasibility is still in doubt for lack of quantitative evidence. On the basis of energy conservation law, this paper quantitatively evaluates energy gained from oil and gas generation and energy consumed by organic matter cracking, shale heating, and wallrock cooling during in-situ heating. The energy consumption ratios under different conditions are obtained and the influencing factors are analyzed. The results show that the energy consumption ratio increases rapidly with increasing TOC. For oil-prone shales, energy consumption ratio corresponding to TOC of ~4.2% is 3, indicating shale with high TOC is expected to lower cost through large-scale operation to make energy consumption ratio greater than 1, so that in-situ heating and upgrading technology can achieve economic benefits. Considering the factors influencing the energy consumption ratio, the main ways to improve economic feasibility include (1) explore technologies for efficient shale heating while reducing heat dissipation from wallrock. (2) Explore technologies for efficient organic matter transformation into oil and gas, that is, shorten in-situ heating time through catalysis. (3) Establish a comprehensive horizontal-well deployment technology that takes a comprehensive consideration of the energy consumption ratio, time cost, and engineering cost.

Key words: shale oil and gas, in-situ upgrading, energy consumption ratio, high-efficiency heating, efficient transformation of organic matter

CLC Number:

P618.12

LU Shuangfang, WANG Jun, LI Wenbiao, CAO Yixin, CHEN Fangwen, LI Jijun, XUE Haitao, WANG Min. In-situ upgrading and transformation of low-maturity shale: Economic feasibility and efficiency enhancement approaches from the perspective of energy consumption ratio[J]. Earth Science Frontiers, 2023, 30(1): 187-198.

Figures/Tables 14

References 55

[1]	邹才能, 陶士振, 侯连华. 非常规油气地质学[M]. 北京: 地质出版社, 2014: 274-312.
[2]	贾承造, 邹才能, 杨智, 等. 陆相油气地质理论在中国中西部盆地的重大进展[J]. 石油勘探与开发, 2018, 45(4): 546-560.
[3]	赵文智, 胡素云, 侯连华, 等. 页岩油地下原位转化的内涵与战略地位[J]. 石油勘探与开发, 2018, 45(4): 537-545.
[4]	卢双舫, 黄文斌, 陈方文, 等. 页岩油气资源分级评价标准探讨[J]. 石油勘探与开发, 2012, 39(2): 249-255.
[5]	卢双舫, 薛海涛, 王民, 等. 页岩油评价中的若干关键问题及研究趋势[J]. 石油学报, 2016, 37(10): 1309-1322. DOI
[6]	卢双舫, 薛海涛.页岩油的形成条件、赋存机理与富集分布[M]. 北京: 石油工业出版社, 2021: 1-368.
[7]	陈祥. 陆相页岩油勘探[M]. 北京: 石油工业出版社, 2015: 1-238.
[8]	柳波, 吕延防, 孟元林, 等. 湖相纹层状细粒岩特征、成因模式及其页岩油意义: 以三塘湖盆地马郎凹陷二叠系芦草沟组为例[J]. 石油勘探与开发, 2015, 42(5): 598-607.
[9]	赵贤正, 周立宏, 蒲秀刚, 等. 陆相湖盆页岩层系基本地质特征与页岩油勘探突破: 以渤海湾盆地沧东凹陷古近系孔店组二段一亚段为例[J]. 石油勘探与开发, 2018, 45(3): 361-372.
[10]	支东明, 唐勇, 杨智峰, 等. 准噶尔盆地吉木萨尔凹陷陆相页岩油地质特征与聚集机理[J]. 石油与天然气地质, 2019, 40(3): 524-534.
[11]	付金华, 刘显阳, 李士祥, 等. 鄂尔多斯盆地三叠系延长组长7段页岩油勘探发现与资源潜力[J]. 中国石油勘探, 2021, 26(5): 1-11.
[12]	何文渊, 蒙启安, 冯子辉, 等. 松辽盆地古龙页岩油原位成藏理论认识及勘探开发实践[J]. 石油学报, 2022, 43(1): 1-14. DOI
[13]	张玉清. 天然气的“小目标”[J]. 能源评论, 2017(2): 1.
[14]	刘招君, 柳蓉. 中国油页岩特征及开发利用前景分析[J]. 地学前缘, 2005, 12(3): 315-323.
[15]	李术元, 唐勋, 何继来, 等. 世界油页岩开发利用的近况: 并记2012年国外两次油页岩国际会议[J]. 中外能源, 2013, 18(1): 3-11.
[16]	崔景伟, 朱如凯, 侯连华, 等. 页岩原位改质技术现状、挑战和机遇[J]. 非常规油气, 2018, 5(6): 103-114.
[17]	杨智, 邹才能, 付金华, 等. 基于原位转化/改质技术的陆相页岩选区评价: 以鄂尔多斯盆地三叠系延长组7段页岩为例[J]. 深圳大学学报(理工版), 2017, 34(3): 221-228.
[18]	WALL E T.Method and apparatus for recovering carbon products from oil shale: U. S., 4376034[P]. 1983.
[19]	BARTIS J T, LATOURRETTE T, DIXON L, et al. Oil shale development in the United States: prospects and policy issues[R]. Santa Monica: The RAND Corporation, 2005.
[20]	HAROLD. Harold Vinegar Shell’s in-situ conversion process[R]. Colorado:26th Oil Shale Symposium, 2006.
[21]	FOWLER, THOMAS D, VINEGAR, et al. Oil shale ICP - Colorado field pilots[R]. San Jose: SPE Western Regional Meeting, 2009.
[22]	LEVERETTE H M. Status and plans for the U. S. department of interior program for development of oil shale and oil sands[R]. Colorado:31th Oil Shale Symposium, 2011.
[23]	TANAKA P L, YEAKEL J D, SYMINGTON W A, et al. Plan to test ExxonMobil’s in situ oil shale technology on a propose RD&A lease[R]. Colorado:31th Oil Shale Symposium, 2011.
[24]	MARK D L. Chevron’s plans for rubblization of Green River Formation oil shale (Gros) for chemical conversion[R]. Colorado:31th Oil Shale Symposium, 2011.
[25]	ALAN B. Initial results from the AMOSO RD&D pilot test program[R]. Colorado:32th Oil Shale Symposium, 2012.
[26]	汪友平, 王益维, 孟祥龙, 等. 美国油页岩原位开采技术与启示[J]. 石油钻采工艺, 2013, 35(6): 55-59.
[27]	康志勤, 赵阳升, 杨栋, 等. 利用原位电法加热技术开发油页岩的物理原理及数值分析[J]. 石油学报, 2008(4): 592-595. DOI
[28]	杨栋, 赵静, 康志勤, 等. 电法原位加热油页岩采油技术与数值分析[J]. 辽宁工程技术大学学报(自然科学版), 2010, 29(3): 365-368.
[29]	王秋雯. 吉林桦甸油页岩热物理和电物理性质实验研究[D]. 长春: 吉林大学, 2011.
[30]	WANG Q, LIANG Z, JINGRU B, et al. The influence of microwave drying on physicochemical properties of Liushuhe oil shale[J]. Oil Shale, 2011, 28: 29-41. DOI URL
[31]	WANG Q, GU Z Y, BAI J R, et al. Comparative study of the characteristics of oil shale with hot air drying and microwave drying[J]. Energy Procedia, 2012, 17: 884-891. DOI URL
[32]	赵林. 过热蒸汽对流加热油页岩原位开采基础实验研究[D]. 太原: 太原理工大学, 2015.
[33]	夏添. 油页岩油藏原位电加热开采数值模拟研究[D]. 青岛: 中国石油大学(华东), 2015.
[34]	薛晋霞, 刘中华. 油页岩电加热法原位干馏温度场分布的数值仿真[J]. 地下空间与工程学报, 2015, 11(3): 669-672.
[35]	WANG Y D, WANG X Y, XING Y F, et al. Three-dimensional numerical simulation of enhancing shale gas desorption by electrical heating with horizontal wells[J]. Journal of Natural Gas Science and Engineering, 2017, 38: 94-106. DOI URL
[36]	吴永彬, 王红庄, 蒋有伟, 等. 页岩油电加热原位转化井网优化设计[C]//IFEDC油气田勘探与开发国际会议论文集. 西安: 陕西省石油学会, 2018: 955-963.
[37]	张斌, 于聪, 崔景伟, 等. 生烃动力学模拟在页岩油原位转化中的应用[J]. 石油勘探与开发, 2019, 46(6): 1212-1219.
[38]	海贝能源. 影响油气行业未来的15项勘探开发技术[EB/OL]. (2019-01-18)[2019-04-17]. https://mp.weixin.qq.com/s/jYp8ikVYo4DtSTeIoUr66A.
[39]	BEHAR F, VANDENBROUCKE M. Chemical modelling of kerogens[J]. Organic Geochemistry, 1987, 11(1): 15-24. DOI URL
[40]	傅家谟, 秦匡宗. 干酪根地球化学[M]. 广州: 广东科技出版社, 1995: 373-436.
[41]	卢双舫, 张敏. 油气地球化学[M]. 北京: 石油工业出版社, 2018: 1-316.
[42]	UNGERER P. State of the art of research in kinetic modelling of oil formation and expulsion[J]. Organic Geochemistry, 1990, 16(1): 1-25. DOI URL
[43]	卢双舫. 有机质成烃动力学理论及应用[M]. 北京: 石油工业出版社, 1996: 1-199
[44]	卢双舫, 李冬, 王跃文, 等. 倾油性有机质生成轻质油的评价方法及其应用[J]. 石油学报, 2007, 28(5): 63-67. DOI
[45]	邢其毅, 裴伟伟, 徐瑞秋. 基础有机化学上[M]. 北京: 高等教育出版社, 2005: 1-598.
[46]	王擎, 张岩, 迟铭书, 等. 干酪根的热解特性及脂肪链含量的测定[J]. 石油学报(石油加工), 2017, 33(4): 771-776.
[47]	王廷芬, 陆绍信, 朱亚杰, 等. 我国油页岩热性质的研究 Ⅱ. 油页岩、半焦和页岩灰比热容的测定[J]. 燃料化学学报, 1987(4): 311-316.
[48]	周科, 孙友宏, 李强, 等. 农安油页岩热重及热物理性质试验研究[J]. 世界地质, 2016, 35(4): 1178-1184.
[49]	崔景伟, 侯连华, 朱如凯, 等. 鄂尔多斯盆地延长组长_7页岩层段岩石热导率特征及启示[J]. 石油实验地质, 2019, 41(2): 280-288.
[50]	中华人民共和国建设部, 中华人民共和国国家质量监督检验检疫总局.GB 50366—2005地热热泵系统工程技术规范[S]. 北京: 中国建筑工业出版社, 2009: 11-30.
[51]	SNEDDON I N. Fourier transforms[M]. Princeton: Princeton University Press, 1950: 1-542.
[52]	王盛鹏, 刘德勋, 王红岩, 等. 原位开采油页岩电加热技术现状及发展方向[J]. 天然气工业, 2011, 31(2): 114-118.
[53]	刘德勋, 王红岩, 郑德温, 等. 世界油页岩原位开采技术进展[J]. 天然气工业, 2009, 29(5): 128-132.
[54]	NETO A, THOMAS S, BOND G, et al. The oil shale transformation in the presence of an Acidic BEA Zeolite under microwave irradiation[J]. Energy & Fuels, 2014, 28(4): 2365-2377. DOI URL
[55]	邬敏. 电加热过程对松辽盆地北部泥页岩生烃、增孔行为的影响研究[D]. 青岛: 中国石油大学(华东), 2020.

分子式及键型	数量
分子式及键型	原始干酪根	残余干酪根		轻质油分子
分子式	C₁₄₃₉H₂₃₆₀O_86.3N_4.3S_1.4	C₃₀₅H₂₅₃O₄N_0.92S_0.92		C₈H_15.4O_0.026N_0.03S_0.015
碳碳单键	1 251	109		5.975
苯环- 碳原子键	40	20
碳碳双键	4			0.7
碳碳三键				0.3
芳键	96	42
碳氮键	12	2		0.03
碳氧键	263	8		0.03
碳氧双键	78			0.01
碳硫键	2	2		0.001 5
酚羟基碳氧键	20
碳氢键	1 770	210		15.32
苯环- 氢原子键	80	42
氮氢键		1		0.06
二硫键	1
氧氢键	65		0.01
硫氢键			0.001 5
酚羟基氧氢键	20
分子总键能/ (kJ·mol^-1)	1 604 190.18	241 314.86	9 120.35

分子式及键型	数量
分子式及键型	原始干酪根	残余干酪根		轻质油分子
分子式	C₁₄₃₉H₂₃₆₀O_86.3N_4.3S_1.4	C₃₀₅H₂₅₃O₄N_0.92S_0.92		C₈H_15.4O_0.026N_0.03S_0.015
碳碳单键	1 251	109		5.975
苯环- 碳原子键	40	20
碳碳双键	4			0.7
碳碳三键				0.3
芳键	96	42
碳氮键	12	2		0.03
碳氧键	263	8		0.03
碳氧双键	78			0.01
碳硫键	2	2		0.001 5
酚羟基碳氧键	20
碳氢键	1 770	210		15.32
苯环- 氢原子键	80	42
氮氢键		1		0.06
二硫键	1
氧氢键	65		0.01
硫氢键			0.001 5
酚羟基氧氢键	20
分子总键能/ (kJ·mol^-1)	1 604 190.18	241 314.86	9 120.35

分子种类	占比/%	碳碳单键数	碳氢键数	分子总键能/ (kJ·mol^-1)
甲烷	70		4	1 652.60
乙烷	20	1	6	2 816.38
丙烷	7	2	8	3 980.16
丁烷	2	3	10	5 143.94
戊烷	1	4	12	6 307.72
湿气分子总键能 (kJ·mol^-1)	2 164.66

分子种类	占比/%	碳碳单键数	碳氢键数	分子总键能/ (kJ·mol^-1)
甲烷	70		4	1 652.60
乙烷	20	1	6	2 816.38
丙烷	7	2	8	3 980.16
丁烷	2	3	10	5 143.94
戊烷	1	4	12	6 307.72
湿气分子总键能 (kJ·mol^-1)	2 164.66

键型	键型数量
键型	二氧化碳	氧气	氮气
氧氧双键		1
碳氧双键	2
氮氮三键			1
分子总键能/(kJ·mol^-1)	1 448.38	498.00	946
