Significance of water absorption characteristics and difference of pore structures in the Cambrian shale intervals, Yichang area for shale reservoir evaluation

doi:10.13745/j.esf.sf.2022.5.38

Abstract

Abstract:

The Cambrian Shuijingtuo shale formation of Well ZK003, Liuxi, Yichang area is selected to study its pore development characteristics, where different formation layers are compared through water absorption experiment, helium porosity test, organic carbon content determination, and mineral composition analysis. The results of the study show that the Cambrian shale formation can be divided into members 1-4 from bottom to top, and different members have very different pore characteristics. In general, the higher the TOC content, the greater the water saturation limit (per gram of shale weight); and the higher the initial water absorption rate, the greater the porosity of shale. In shales from the organic-rich members 1 and 2, the TOC content ranges from 1.8% to 11.5%, averaging 4.6%; the helium porosity ranges from 1.6% to 5.8%, averaging 3.9%; and the water absorption saturation limit is between 6.1-21.4 mg/g shale weight, or on average 15.3 mg/g shale weight. Between the two members, shale from member 1 has higher TOC content but significantly lower porosity, water absorption value, and water absorption rate. The carbonate content in member 1 shows a good negative correlation with the water absorption value; whereas a positive correlation is observed for the clay content in member 2. It is believed that in member 1 carbonate cementation hinders the development of micropores and nanopores; while in member 2, development of micropores, which have large specific surface area and autogenic to porous clay, lead to strong water absorption. Overall, member 2 of the organic-rich shale formation has high porosity and good roof/floor isolation by overlaying marl and carbonate, which is conducive to the enrichment and preservation of shale gas, therefore making it a high-quality shale gas reservoir in the study area. The research results can be used for screening high-quality Cambrian shale reservoirs and predicting shale gas exploration “sweet spots”.

Key words: Yichang area, Lower-Cambrian, water absorption experiment, pore structure, preservation conditions

CLC Number:

P618.130.2

ZHANG Liuliu, CHEN Gengxin, LE Xingfu, ZHANG Yu, SHAO Deyong, YAN Jianping, MENG Kang, ZHANG Tongwei. Significance of water absorption characteristics and difference of pore structures in the Cambrian shale intervals, Yichang area for shale reservoir evaluation[J]. Earth Science Frontiers, 2023, 30(3): 138-150.

Figures/Tables 9

Table 1 Comparison of TOC and porosity data for Cambrian organic-rich shales from different regions of southern China

区域	地层	页岩层位	TOC含量/%	孔隙度/%	数据来源
川东南地区	下志留统	龙马溪组	0.51~25.7 2.59	4.5~8.09 6.13	文献[19]
黔北地区	下志留统	龙马溪组	0.7~3.55 1.87	1~10 6.4	文献[20]
川东南地区	下寒武统	牛蹄塘组	2~33.41 8.93	2.10	文献[21-22]
川西南	下寒武统	筇竹寺组	0.55~3.44 1.39	0.94~4.74 2.5	文献[14]
鄂西地区	下寒武统	水井沱组	1.23~10.45 3.45	0.96~4.59 2.0~3.12	文献[12,23-24]

Fig.1 Simplified geological structural map of Yichang area. Modified after [17].

Fig.2 Stratigraphic column diagram of Well ZK003

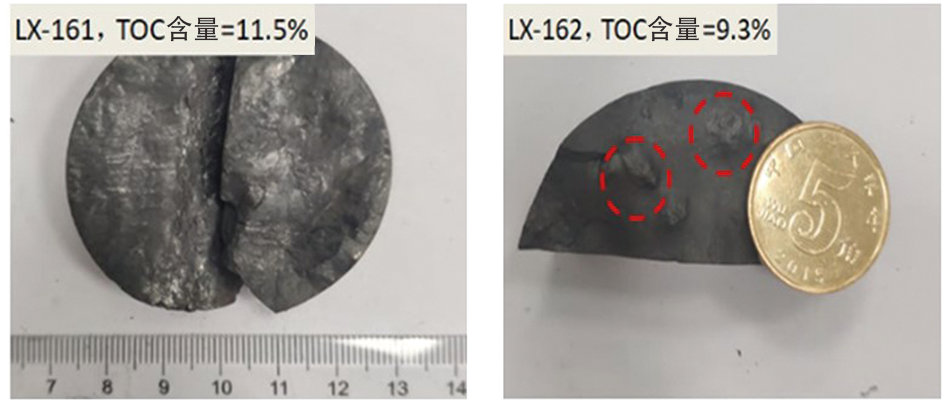

Fig.3 Asphalt-containing shale at the lithological boundary between member 1 and the Yanjiahe Formation

Fig.4 TOC, water absorption, porosity and mineral composition profiles in Well ZK003

Fig.5 Comparison of water absorption characteristics at the shale interval boundaries in Well ZK003

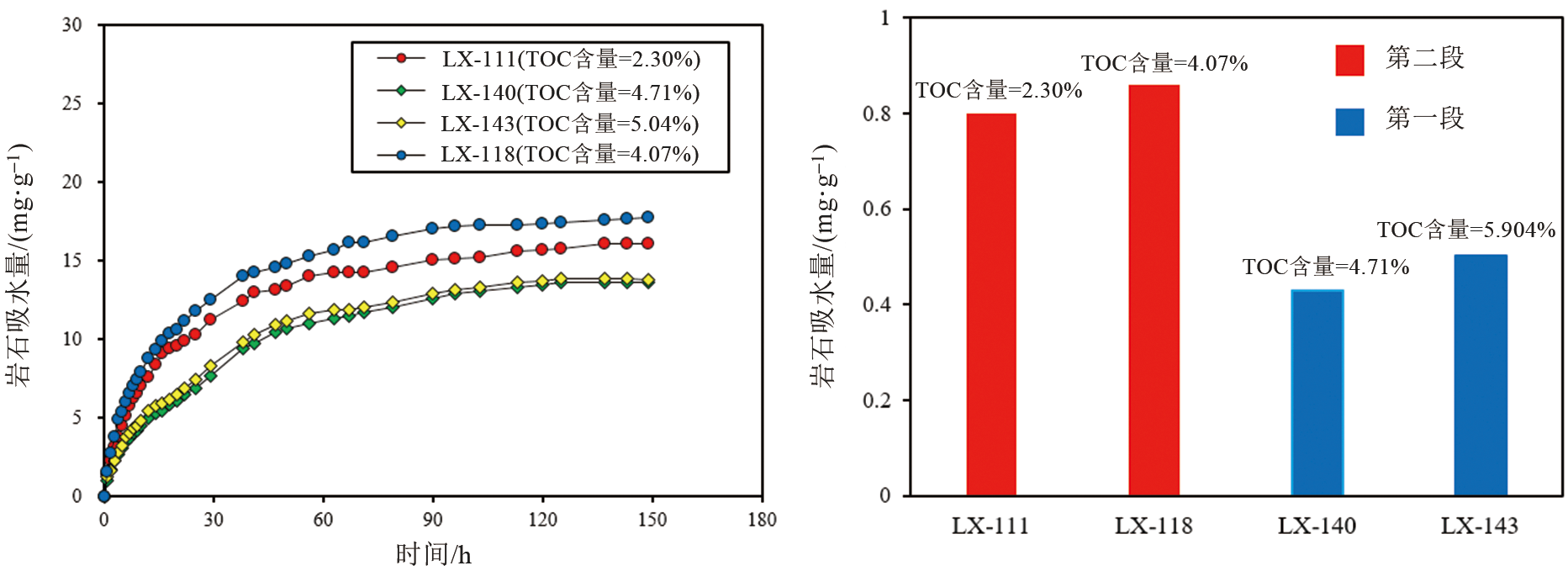

Fig.6 Comparison of the characteristics of water absorption (left) and initial absorption rate (right) between organic-rich members 1 and 2 in Well ZK003

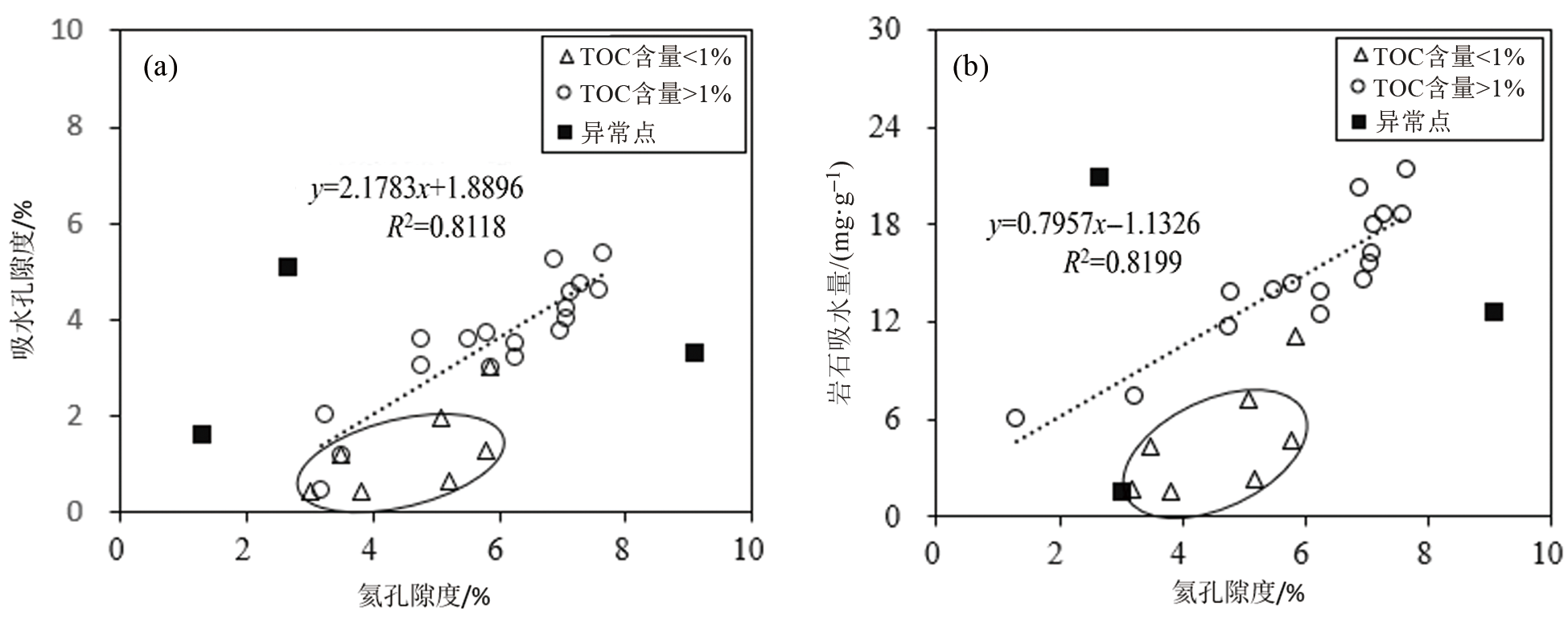

Fig.7 Relationship between helium porosity and water absorption value (a) or porosity calculated from water absorption measurement (b) in Well ZK003

Fig.8 Relationship between water absorption value and geochemical proxies in Well ZK003
