Late Paleozoic crustal composition and growth in West Junggar: Evidence from Sr-Nd-Pb isotopic mapping

doi:10.13745/j.esf.sf.2022.2.8

Abstract

Abstract:

The West Junggar region has experienced intense Late Paleozoic magmatic activity, where vertical and lateral crustal accretion is significant and crustal growth and evolution is multi-stage. Focusing on Sr-Nd-Pb isotopic mapping, this study found that the West Junggar region has the isotopic characteristics of high positive ε_Nd(t) value of 2.29-8.75, low ( ⁸⁷Sr/⁸⁶Sr)_i ratio of 0.697397-0.708336, and (²⁰⁶Pb/²⁰⁴Pb)_i ratio of 17.4975-19.0352; it has a young crustal model age by calculation. The source area is dominated by Paleozoic new crust, with mantle contribution greater than 50%, and there is almost no old crystalline basement in the deep crust, which is in agreement with regional tectonic geological and geophysical data. The West Junggar region mainly experienced three orogenic stages in the Late Paleozoic: arc-dominated lateral growth in the Middle-Late Carboniferous; post-collision vertical growth in the Late Carboniferous-Early Permian; and vertical growth in the Early Permian-Triassic with crust-mantle mixed source. Regional orogenesis ends in the Early Triassic.

Key words: Late Paleozoic, isotope mapping, crustal composition, crustal growth, orogenic evolution, West Junggar

CLC Number:

P542
P597

XU Shenglin, DING Weicui, CHEN Xuanhua, LI Tingdong, HAN Lele, LIU Yong, MA Feizhou, WANG Ye. Late Paleozoic crustal composition and growth in West Junggar: Evidence from Sr-Nd-Pb isotopic mapping[J]. Earth Science Frontiers, 2022, 29(2): 261-280.

Figures/Tables 13

Fig.1 Regional tectonic sketch map of the southwestern Central Asian Orogenic Belt. Modified after [11, 15-16].

Fig. 2 stratigraphic-structural-magmatic diagram for the West Junggar region. Modified after [19, 69, 81].

Table 1 Nd Isotope analysis and calculation results for granites from West Junggar

岩性		经度/(°)		纬度/(°)		年龄/ Ma		w_B/10^-6			¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i		$T D M C$	ε_Nd(t)
岩性		经度/(°)		纬度/(°)		年龄/ Ma		Nd		Sm	¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i		$T D M C$	ε_Nd(t)
二长花岗岩		82.631 000		45.230 389		271		26.10		6.32	0.512 666		0.146 395		9		0.512 406		851	2.29
二长花岗岩		82.637 083		45.230 972		266		29.70		6.63	0.512 677		0.134 961		10		0.512 441		801	2.86
碱长花岗岩		82.766 667		45.328 444		255		24.30		5.96	0.512 748		0.148 286		9		0.512 500		722	3.72
花岗斑岩		83.128 250		45.363 944		288		8.77		1.81	0.512 708		0.124 777		9		0.512 473		725	4.01
二长花岗岩		82.738 306		45.305 417		250		35.20		7.48	0.512 765		0.128 475		8		0.512 554		642	4.65
花岗闪长岩		82.757 917		45.318 278		255		44.00		9.36	0.512 764		0.128 613		9		0.512 549		644	4.68
二长花岗岩		82.746 389		45.309 778		262		29.70		7.04	0.512 802		0.143 312		9		0.512 556		624	5.00
中酸性岩墙		83.908 283		45.503 792		300		26.10		5.66	0.512 768		0.131 110		8		0.512 511		650	5.06
流纹岩		84.405 400		45.925 917		335		5.96		1.26	0.512 760		0.127 816		8		0.512 479		655	5.35
英安岩		83.645 589		45.782 686		329		24.90		5.22	0.512 769		0.126 746		10		0.512 495		638	5.50
斜长花岗岩		83.180 972		45.384 000		285		8.86		1.86	0.512 791		0.126 924		7		0.512 554		599	5.54
花岗闪长岩		83.129 278		45.364 722		287		8.82		1.75	0.512 791		0.119 959		9		0.512 565		578	5.81
中酸性岩墙		82.569 083		45.551 167		300		26.20		4.54	0.512 778		0.104 765		9		0.512 592		556	5.92
花岗斑岩		83.841 861		45.610 778		300		32.60		7.35	0.512 824		0.136 313		8		0.512 556		578	5.94
二长花岗岩		83.180 250		45.402 083		290		17.10		3.72	0.512 829		0.131 527		8		0.512 579		553	6.15
安山玢岩		83.793 444		45.582 389		300		13.80		3.22	0.512 850		0.141 074		16		0.512 573		550	6.28
闪长岩		83.764 833		45.594 139		300		13.40		3.13	0.512 851		0.141 224		10		0.512 574		550	6.28
花岗闪长斑岩		84.125 639		45.563 028		300		22.80		4.67	0.512 827		0.123 837		9		0.512 584		534	6.48
英安岩		83.645 589		45.782 686		323		36.30		7.79	0.512 834		0.129 748		14		0.512 559		544	6.60
流纹岩		83.643 475		45.787 075		303		41.40		9.70	0.512 876		0.141 659		10		0.512 594		512	6.79
闪长玢岩		83.181 056		45.446 389		300		13.30		2.92	0.512 863		0.132 740		9		0.512 602		504	6.84
安山玢岩		84.028 556		45.603 944		301		21.00		5.18	0.512 895		0.149 137		9		0.512 601		504	6.85
流纹岩		83.644 169		45.786 736		301		37.00		8.30	0.512 870		0.135 628		10		0.512 602		502	6.88
安山玢岩		85.151 972		45.971 667		300		12.00		2.83	0.512 887		0.142 587		14		0.512 612		495	6.91
流纹岩		83.644 817		45.782 625		295		35.40		9.39	0.512 922		0.160 376		8		0.512 611		494	6.92
流纹岩		83.645 589		45.782 686		294		33.00		8.28	0.512 909		0.151 702		7		0.512 617		488	6.98
安山玢岩		85.112 500		45.994 972		295		13.50		3.05	0.512 881		0.136 596		13		0.512 617		486	7.01
安山玢岩		84.565 397		45.703 450		308		13.60		3.22	0.512 895		0.143 150		10		0.512 614		486	7.06
安山玢岩		84.553 683		45.692 581		319		11.00		2.65	0.512 897		0.145 656		11		0.512 593		496	7.13
流纹岩		83.645 589		45.782 686		297		32.90		8.19	0.512 917		0.150 510		10		0.512 624		473	7.20
中酸性岩墙		83.561 997		45.710 756		300		18.00		4.10	0.512 895		0.137 716		11		0.512 625		469	7.27
安山玢岩		84.025 075		45.573 889		300		24.10		5.75	0.512 909		0.144 254		12		0.512 626		467	7.30
流纹斑岩		83.897 000		46.005 861		300		18.60		4.34	0.512 904		0.141 076		10		0.512 627		465	7.32
英安岩		84.569 186		45.698 525		300		14.00		3.04	0.512 886		0.131 286		11		0.512 628		462	7.35
安山玢岩		84.013 694		45.572 617		290		20.80		5.05	0.512 920		0.146 793		11		0.512 641		453	7.37
安山玢岩		84.024 083		45.604 139		301		24.90		6.44	0.512 936		0.156 374		8		0.512 628		462	7.37
安山玢岩		85.169 083		45.961 278		313		10.50		2.38	0.512 895		0.137 045		12		0.512 614		470	7.40
闪长玢岩		85.190 778		45.949 750		300		10.50		2.78	0.512 944		0.160 079		12		0.512 616		466	7.45
英安岩		84.594 325		45.708 525		300		10.00		2.26	0.512 903		0.136 642		12		0.512 635		453	7.47
安山玢岩		85.111 806		45.995 889		319		13.10		2.94	0.512 901		0.135 691		13		0.512 618		456	7.62
流纹岩		84.580 442		45.693 722		294		15.20		3.12	0.512 890		0.124 104		9		0.512 650		434	7.65
石英闪长岩		84.932 033		45.733 767		299		18.70		4.00	0.512 898		0.129 328		10		0.512 644		438	7.65
安山玢岩		84.017 872		45.602 144		300		19.70		4.74	0.512 934		0.145 476		9		0.512 648		431	7.74
安山玢岩		84.019 361		45.579 306		300		30.20		7.40	0.512 940		0.148 151		11		0.512 649		429	7.76
安山玢岩		83.991 747		45.605 128		300		21.90		5.48	0.512 947		0.151 292		10		0.512 650		429	7.77
流纹岩		84.580 442		45.693 722		299		19.20		3.77	0.512 889		0.118 717		12		0.512 656		418	7.90
安山玢岩		84.019 861		45.585 639		322		31.20		7.51	0.512 943		0.145 534		10		0.512 635		423	8.07
花岗闪长岩		84.991 167		46.613 833		300		20.60		4.12	0.512 651		0.120 912		6		0.512 406		805	3.26
碱长花岗岩		85.782 000		46.642 722		300		19.20		3.52	0.512 704		0.110 836		12		0.512 486		689	4.58
碱长花岗斑岩		84.990 083		46.609 083		300		37.90		7.40	0.512 718		0.118 041		5		0.512 478		689	4.68
英安岩		84.581 222		46.081 694		310		14.50		3.21	0.512 760		0.133 837		5		0.512 488		673	4.88
岩性	经度/(°)		纬度/(°)		年龄/ Ma		w_B/10^-6					¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i	$T D M C$	ε_Nd(t)
岩性	经度/(°)		纬度/(°)		年龄/ Ma		Nd		Sm			¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i	$T D M C$	ε_Nd(t)
花岗岩	84.935 222		46.566 056		300		39.40		8.84			0.512 765		0.135 642		14		0.512 490	671	4.90
花岗闪长玢岩	84.406 500		46.042 139		317		12.30		2.62			0.512 748		0.128 776		5		0.512 480	677	4.91
花岗闪长岩	84.412 167		46.029 111		317		13.60		2.84			0.512 748		0.126 246		5		0.512 486	668	5.00
闪长岩	84.406 500		46.042 139		316		13.10		2.72			0.512 760		0.125 527		5		0.512 500	647	5.26
中酸性岩墙	85.329 000		46.703 472		300		26.80		5.83			0.512 783		0.131 514		5		0.512 525	627	5.33
黑云母花岗岩	84.655 500		46.401 528		300		30.40		5.97			0.512 771		0.118 724		10		0.512 538	607	5.59
花岗闪长岩	83.855 278		45.427 056		305		18.90		3.84			0.512 781		0.122 831		8		0.512 535	604	5.68
花岗闪长斑岩	82.462 361		45.731 528		300		10.50		2.30			0.512 803		0.132 427		8		0.512 543	598	5.69
碱长正长岩	85.982 722		46.735 528		300		33.20		6.49			0.512 780		0.118 181		14		0.512 548	591	5.78
花岗闪长岩	84.454 972		45.500 861		300		18.10		4.44			0.512 845		0.148 301		7		0.512 554	581	5.90
闪长玢岩	82.482 528		45.741 833		300		12.00		2.32			0.512 784		0.116 882		8		0.512 554	580	5.91
花岗闪长岩	83.830 139		45.741 917		300		26.50		6.17			0.512 830		0.140 760		6		0.512 545	584	5.96
细粒花岗岩	84.115 889		45.960 806		300		22.60		8.99			0.513 036		0.240 486		12		0.512 564	567	6.09
花岗闪长岩	82.482 083		45.741 972		300		14.90		2.91			0.512 796		0.118 072		9		0.512 564	565	6.10
花岗闪长岩	82.474 583		45.738 139		300		13.90		2.45			0.512 783		0.106 559		6		0.512 574	550	6.29
花岗闪长岩	82.474 722		45.736 583		300		15.20		2.60			0.512 780		0.103 412		6		0.512 577	545	6.35
花岗岩	84.419 167		46.096 750		300		29.10		6.15			0.512 832		0.127 768		12		0.512 578	538	6.47
碱长花岗岩	84.126 250		45.948 500		300		30.00		7.40			0.512 877		0.149 125		10		0.512 585	533	6.49
碱长花岗岩	84.167 639		45.920 750		294		36.10		9.23			0.512 892		0.154 573		6		0.512 594	524	6.54
碱长花岗岩	84.448 556		46.145 944		300		12.60		4.55			0.513 025		0.218 313		7		0.512 589	527	6.71
花岗闪长岩	84.468 611		45.497 583		300		15.50		2.86			0.512 818		0.111 551		10		0.512 599	509	6.78
碱长花岗岩	83.551 028		45.766 639		300		40.10		9.06			0.512 866		0.136 591		5		0.512 591	513	6.81
碱长花岗岩	83.841 194		45.615 583		302		29.00		6.52			0.512 871		0.135 922		11		0.512 602	502	6.90
碱长花岗岩	84.419 167		46.096 750		304		17.60		3.54			0.512 843		0.121 599		8		0.512 601	501	6.92
碱长花岗岩	83.854 778		45.522 556		300		30.70		6.46			0.512 854		0.127 214		6		0.512 597	502	6.96
碱长花岗岩	84.652 833		46.400 778		298		35.10		7.51			0.512 864		0.129 352		6		0.512 611	492	6.98
花岗岩	84.281 000		45.830 639		309		34.00		7.30			0.512 862		0.129 803		10		0.512 599	497	7.01
闪长岩	84.539 667		45.473 194		300		13.90		3.19			0.512 878		0.138 744		12		0.512 591	502	7.02
闪长岩	84.100 000		45.964 028		317		57.60		19.90			0.513 024		0.208 867		5		0.512 589	497	7.04
黑云母花岗岩	84.655 500		46.401 528		303		40.40		8.78			0.512 869		0.131 387		8		0.512 608	491	7.05
角闪花岗岩	83.239 611		45.991 556		316		39.60		8.81			0.512 872		0.134 499		6		0.512 594	498	7.08
碱长花岗岩	84.100 000		45.964 028		299		24.70		5.73			0.512 892		0.140 248		12		0.512 617	481	7.12
碱长花岗岩	84.646 472		45.900 306		305		10.30		3.44			0.513 016		0.201 911		5		0.512 613	479	7.18
花岗闪长岩	84.156 472		46.314 778		294		38.30		8.17			0.512 875		0.128 962		10		0.512 626	472	7.18
碱长花岗岩	83.477 000		45.700 306		304		39.40		8.57			0.512 876		0.131 499		5		0.512 614	480	7.18
花岗岩	83.661 444		45.772 972		300		31.50		6.33			0.512 857		0.121 488		10		0.512 616	478	7.18
碱长花岗岩	85.061 417		45.994 639		316		32.80		6.85			0.512 862		0.126 257		8		0.512 600	487	7.22
花岗闪长岩	84.747 000		45.659 833		300		17.80		3.78			0.512 873		0.128 384		8		0.512 612	476	7.29
花岗闪长岩	84.662 861		45.671 278		300		15.90		3.75			0.512 905		0.142 585		8		0.512 616	470	7.36
碱长花岗岩	83.565 389		45.702 417		307		45.50		8.30			0.512 842		0.110 282		5		0.512 620	467	7.38
闪长岩	84.539 667		45.473 194		300		23.00		4.34			0.512 847		0.114 078		10		0.512 611	470	7.41
花岗闪长岩	83.702 389		46.263 278		307		35.60		7.70			0.512 888		0.130 762		5		0.512 625	459	7.47
碱长花岗岩	84.164 333		46.303 806		300		32.30		8.06			0.512 932		0.150 859		8		0.512 635	451	7.50
碱长花岗岩	84.156 500		46.314 806		300		35.20		7.50			0.512 895		0.128 813		12		0.512 646	440	7.57
黑云母花岗岩	84.562 667		45.888 222		298		43.70		8.84			0.512 886		0.122 295		6		0.512 647	435	7.68
碱长花岗岩	84.363 278		45.763 194		300		50.90		9.97			0.512 879		0.118 418		9		0.512 646	434	7.71
黑云母花岗岩	84.849 111		45.722 250		303		25.90		4.54			0.512 853		0.105 973		6		0.512 642	436	7.72
花岗岩	84.714 278		45.676 000		313		15.20		3.15			0.512 888		0.125 287		8		0.512 631	442	7.74
花岗岩	84.557 000		45.701 528		300		13.80		2.42			0.512 853		0.106 017		14		0.512 638	435	7.79
黑云母花岗岩	84.538 722		45.688 444		312		20.60		3.44			0.512 885		0.100 956		12		0.512 679	367	8.64

Table 1 Nd Isotope analysis and calculation results for granites from West Junggar

岩性		经度/(°)		纬度/(°)		年龄/ Ma		w_B/10^-6			¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i		$T D M C$	ε_Nd(t)
岩性		经度/(°)		纬度/(°)		年龄/ Ma		Nd		Sm	¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i		$T D M C$	ε_Nd(t)
二长花岗岩		82.631 000		45.230 389		271		26.10		6.32	0.512 666		0.146 395		9		0.512 406		851	2.29
二长花岗岩		82.637 083		45.230 972		266		29.70		6.63	0.512 677		0.134 961		10		0.512 441		801	2.86
碱长花岗岩		82.766 667		45.328 444		255		24.30		5.96	0.512 748		0.148 286		9		0.512 500		722	3.72
花岗斑岩		83.128 250		45.363 944		288		8.77		1.81	0.512 708		0.124 777		9		0.512 473		725	4.01
二长花岗岩		82.738 306		45.305 417		250		35.20		7.48	0.512 765		0.128 475		8		0.512 554		642	4.65
花岗闪长岩		82.757 917		45.318 278		255		44.00		9.36	0.512 764		0.128 613		9		0.512 549		644	4.68
二长花岗岩		82.746 389		45.309 778		262		29.70		7.04	0.512 802		0.143 312		9		0.512 556		624	5.00
中酸性岩墙		83.908 283		45.503 792		300		26.10		5.66	0.512 768		0.131 110		8		0.512 511		650	5.06
流纹岩		84.405 400		45.925 917		335		5.96		1.26	0.512 760		0.127 816		8		0.512 479		655	5.35
英安岩		83.645 589		45.782 686		329		24.90		5.22	0.512 769		0.126 746		10		0.512 495		638	5.50
斜长花岗岩		83.180 972		45.384 000		285		8.86		1.86	0.512 791		0.126 924		7		0.512 554		599	5.54
花岗闪长岩		83.129 278		45.364 722		287		8.82		1.75	0.512 791		0.119 959		9		0.512 565		578	5.81
中酸性岩墙		82.569 083		45.551 167		300		26.20		4.54	0.512 778		0.104 765		9		0.512 592		556	5.92
花岗斑岩		83.841 861		45.610 778		300		32.60		7.35	0.512 824		0.136 313		8		0.512 556		578	5.94
二长花岗岩		83.180 250		45.402 083		290		17.10		3.72	0.512 829		0.131 527		8		0.512 579		553	6.15
安山玢岩		83.793 444		45.582 389		300		13.80		3.22	0.512 850		0.141 074		16		0.512 573		550	6.28
闪长岩		83.764 833		45.594 139		300		13.40		3.13	0.512 851		0.141 224		10		0.512 574		550	6.28
花岗闪长斑岩		84.125 639		45.563 028		300		22.80		4.67	0.512 827		0.123 837		9		0.512 584		534	6.48
英安岩		83.645 589		45.782 686		323		36.30		7.79	0.512 834		0.129 748		14		0.512 559		544	6.60
流纹岩		83.643 475		45.787 075		303		41.40		9.70	0.512 876		0.141 659		10		0.512 594		512	6.79
闪长玢岩		83.181 056		45.446 389		300		13.30		2.92	0.512 863		0.132 740		9		0.512 602		504	6.84
安山玢岩		84.028 556		45.603 944		301		21.00		5.18	0.512 895		0.149 137		9		0.512 601		504	6.85
流纹岩		83.644 169		45.786 736		301		37.00		8.30	0.512 870		0.135 628		10		0.512 602		502	6.88
安山玢岩		85.151 972		45.971 667		300		12.00		2.83	0.512 887		0.142 587		14		0.512 612		495	6.91
流纹岩		83.644 817		45.782 625		295		35.40		9.39	0.512 922		0.160 376		8		0.512 611		494	6.92
流纹岩		83.645 589		45.782 686		294		33.00		8.28	0.512 909		0.151 702		7		0.512 617		488	6.98
安山玢岩		85.112 500		45.994 972		295		13.50		3.05	0.512 881		0.136 596		13		0.512 617		486	7.01
安山玢岩		84.565 397		45.703 450		308		13.60		3.22	0.512 895		0.143 150		10		0.512 614		486	7.06
安山玢岩		84.553 683		45.692 581		319		11.00		2.65	0.512 897		0.145 656		11		0.512 593		496	7.13
流纹岩		83.645 589		45.782 686		297		32.90		8.19	0.512 917		0.150 510		10		0.512 624		473	7.20
中酸性岩墙		83.561 997		45.710 756		300		18.00		4.10	0.512 895		0.137 716		11		0.512 625		469	7.27
安山玢岩		84.025 075		45.573 889		300		24.10		5.75	0.512 909		0.144 254		12		0.512 626		467	7.30
流纹斑岩		83.897 000		46.005 861		300		18.60		4.34	0.512 904		0.141 076		10		0.512 627		465	7.32
英安岩		84.569 186		45.698 525		300		14.00		3.04	0.512 886		0.131 286		11		0.512 628		462	7.35
安山玢岩		84.013 694		45.572 617		290		20.80		5.05	0.512 920		0.146 793		11		0.512 641		453	7.37
安山玢岩		84.024 083		45.604 139		301		24.90		6.44	0.512 936		0.156 374		8		0.512 628		462	7.37
安山玢岩		85.169 083		45.961 278		313		10.50		2.38	0.512 895		0.137 045		12		0.512 614		470	7.40
闪长玢岩		85.190 778		45.949 750		300		10.50		2.78	0.512 944		0.160 079		12		0.512 616		466	7.45
英安岩		84.594 325		45.708 525		300		10.00		2.26	0.512 903		0.136 642		12		0.512 635		453	7.47
安山玢岩		85.111 806		45.995 889		319		13.10		2.94	0.512 901		0.135 691		13		0.512 618		456	7.62
流纹岩		84.580 442		45.693 722		294		15.20		3.12	0.512 890		0.124 104		9		0.512 650		434	7.65
石英闪长岩		84.932 033		45.733 767		299		18.70		4.00	0.512 898		0.129 328		10		0.512 644		438	7.65
安山玢岩		84.017 872		45.602 144		300		19.70		4.74	0.512 934		0.145 476		9		0.512 648		431	7.74
安山玢岩		84.019 361		45.579 306		300		30.20		7.40	0.512 940		0.148 151		11		0.512 649		429	7.76
安山玢岩		83.991 747		45.605 128		300		21.90		5.48	0.512 947		0.151 292		10		0.512 650		429	7.77
流纹岩		84.580 442		45.693 722		299		19.20		3.77	0.512 889		0.118 717		12		0.512 656		418	7.90
安山玢岩		84.019 861		45.585 639		322		31.20		7.51	0.512 943		0.145 534		10		0.512 635		423	8.07
花岗闪长岩		84.991 167		46.613 833		300		20.60		4.12	0.512 651		0.120 912		6		0.512 406		805	3.26
碱长花岗岩		85.782 000		46.642 722		300		19.20		3.52	0.512 704		0.110 836		12		0.512 486		689	4.58
碱长花岗斑岩		84.990 083		46.609 083		300		37.90		7.40	0.512 718		0.118 041		5		0.512 478		689	4.68
英安岩		84.581 222		46.081 694		310		14.50		3.21	0.512 760		0.133 837		5		0.512 488		673	4.88
岩性	经度/(°)		纬度/(°)		年龄/ Ma		w_B/10^-6					¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i	$T D M C$	ε_Nd(t)
岩性	经度/(°)		纬度/(°)		年龄/ Ma		Nd		Sm			¹⁴³Nd/¹⁴⁴Nd		¹⁴⁷Sm/¹⁴⁴Nd		2σ/10^-6		(¹⁴³Nd/¹⁴⁴Nd)_i	$T D M C$	ε_Nd(t)
花岗岩	84.935 222		46.566 056		300		39.40		8.84			0.512 765		0.135 642		14		0.512 490	671	4.90
花岗闪长玢岩	84.406 500		46.042 139		317		12.30		2.62			0.512 748		0.128 776		5		0.512 480	677	4.91
花岗闪长岩	84.412 167		46.029 111		317		13.60		2.84			0.512 748		0.126 246		5		0.512 486	668	5.00
闪长岩	84.406 500		46.042 139		316		13.10		2.72			0.512 760		0.125 527		5		0.512 500	647	5.26
中酸性岩墙	85.329 000		46.703 472		300		26.80		5.83			0.512 783		0.131 514		5		0.512 525	627	5.33
黑云母花岗岩	84.655 500		46.401 528		300		30.40		5.97			0.512 771		0.118 724		10		0.512 538	607	5.59
花岗闪长岩	83.855 278		45.427 056		305		18.90		3.84			0.512 781		0.122 831		8		0.512 535	604	5.68
花岗闪长斑岩	82.462 361		45.731 528		300		10.50		2.30			0.512 803		0.132 427		8		0.512 543	598	5.69
碱长正长岩	85.982 722		46.735 528		300		33.20		6.49			0.512 780		0.118 181		14		0.512 548	591	5.78
花岗闪长岩	84.454 972		45.500 861		300		18.10		4.44			0.512 845		0.148 301		7		0.512 554	581	5.90
闪长玢岩	82.482 528		45.741 833		300		12.00		2.32			0.512 784		0.116 882		8		0.512 554	580	5.91
花岗闪长岩	83.830 139		45.741 917		300		26.50		6.17			0.512 830		0.140 760		6		0.512 545	584	5.96
细粒花岗岩	84.115 889		45.960 806		300		22.60		8.99			0.513 036		0.240 486		12		0.512 564	567	6.09
花岗闪长岩	82.482 083		45.741 972		300		14.90		2.91			0.512 796		0.118 072		9		0.512 564	565	6.10
花岗闪长岩	82.474 583		45.738 139		300		13.90		2.45			0.512 783		0.106 559		6		0.512 574	550	6.29
花岗闪长岩	82.474 722		45.736 583		300		15.20		2.60			0.512 780		0.103 412		6		0.512 577	545	6.35
花岗岩	84.419 167		46.096 750		300		29.10		6.15			0.512 832		0.127 768		12		0.512 578	538	6.47
碱长花岗岩	84.126 250		45.948 500		300		30.00		7.40			0.512 877		0.149 125		10		0.512 585	533	6.49
碱长花岗岩	84.167 639		45.920 750		294		36.10		9.23			0.512 892		0.154 573		6		0.512 594	524	6.54
碱长花岗岩	84.448 556		46.145 944		300		12.60		4.55			0.513 025		0.218 313		7		0.512 589	527	6.71
花岗闪长岩	84.468 611		45.497 583		300		15.50		2.86			0.512 818		0.111 551		10		0.512 599	509	6.78
碱长花岗岩	83.551 028		45.766 639		300		40.10		9.06			0.512 866		0.136 591		5		0.512 591	513	6.81
碱长花岗岩	83.841 194		45.615 583		302		29.00		6.52			0.512 871		0.135 922		11		0.512 602	502	6.90
碱长花岗岩	84.419 167		46.096 750		304		17.60		3.54			0.512 843		0.121 599		8		0.512 601	501	6.92
碱长花岗岩	83.854 778		45.522 556		300		30.70		6.46			0.512 854		0.127 214		6		0.512 597	502	6.96
碱长花岗岩	84.652 833		46.400 778		298		35.10		7.51			0.512 864		0.129 352		6		0.512 611	492	6.98
花岗岩	84.281 000		45.830 639		309		34.00		7.30			0.512 862		0.129 803		10		0.512 599	497	7.01
闪长岩	84.539 667		45.473 194		300		13.90		3.19			0.512 878		0.138 744		12		0.512 591	502	7.02
闪长岩	84.100 000		45.964 028		317		57.60		19.90			0.513 024		0.208 867		5		0.512 589	497	7.04
黑云母花岗岩	84.655 500		46.401 528		303		40.40		8.78			0.512 869		0.131 387		8		0.512 608	491	7.05
角闪花岗岩	83.239 611		45.991 556		316		39.60		8.81			0.512 872		0.134 499		6		0.512 594	498	7.08
碱长花岗岩	84.100 000		45.964 028		299		24.70		5.73			0.512 892		0.140 248		12		0.512 617	481	7.12
碱长花岗岩	84.646 472		45.900 306		305		10.30		3.44			0.513 016		0.201 911		5		0.512 613	479	7.18
花岗闪长岩	84.156 472		46.314 778		294		38.30		8.17			0.512 875		0.128 962		10		0.512 626	472	7.18
碱长花岗岩	83.477 000		45.700 306		304		39.40		8.57			0.512 876		0.131 499		5		0.512 614	480	7.18
花岗岩	83.661 444		45.772 972		300		31.50		6.33			0.512 857		0.121 488		10		0.512 616	478	7.18
碱长花岗岩	85.061 417		45.994 639		316		32.80		6.85			0.512 862		0.126 257		8		0.512 600	487	7.22
花岗闪长岩	84.747 000		45.659 833		300		17.80		3.78			0.512 873		0.128 384		8		0.512 612	476	7.29
花岗闪长岩	84.662 861		45.671 278		300		15.90		3.75			0.512 905		0.142 585		8		0.512 616	470	7.36
碱长花岗岩	83.565 389		45.702 417		307		45.50		8.30			0.512 842		0.110 282		5		0.512 620	467	7.38
闪长岩	84.539 667		45.473 194		300		23.00		4.34			0.512 847		0.114 078		10		0.512 611	470	7.41
花岗闪长岩	83.702 389		46.263 278		307		35.60		7.70			0.512 888		0.130 762		5		0.512 625	459	7.47
碱长花岗岩	84.164 333		46.303 806		300		32.30		8.06			0.512 932		0.150 859		8		0.512 635	451	7.50
碱长花岗岩	84.156 500		46.314 806		300		35.20		7.50			0.512 895		0.128 813		12		0.512 646	440	7.57
黑云母花岗岩	84.562 667		45.888 222		298		43.70		8.84			0.512 886		0.122 295		6		0.512 647	435	7.68
碱长花岗岩	84.363 278		45.763 194		300		50.90		9.97			0.512 879		0.118 418		9		0.512 646	434	7.71
黑云母花岗岩	84.849 111		45.722 250		303		25.90		4.54			0.512 853		0.105 973		6		0.512 642	436	7.72
花岗岩	84.714 278		45.676 000		313		15.20		3.15			0.512 888		0.125 287		8		0.512 631	442	7.74
花岗岩	84.557 000		45.701 528		300		13.80		2.42			0.512 853		0.106 017		14		0.512 638	435	7.79
黑云母花岗岩	84.538 722		45.688 444		312		20.60		3.44			0.512 885		0.100 956		12		0.512 679	367	8.64

Fig.3 Contour map of the εNd(t) values for West Junggar

Fig.4 Contour map of the Nd crustal model ages for West Junggar

Table 2 Sr Isotope analysis and calculation results for granites from West Junggar

岩性	经度/(°)	纬度/(°)	t/Ma	w_B/10^-6		⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
岩性	经度/(°)	纬度/(°)	t/Ma	Sr	Rb	⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
安山玢岩	85.112 500	45.994 972	295	416.00	110.00	0.706 506	0.764 953	11	0.703 295
流纹岩	84.580 442	45.693 722	299	298.00	66.20	0.706 051	0.642 626	10	0.703 308
安山玢岩	83.991 747	45.605 128	300	346.00	64.60	0.705 645	0.540 077	10	0.703 339
安山玢岩	84.017 872	45.602 144	300	376.00	38.10	0.704 642	0.293 085	11	0.703 391
安山玢岩	85.169 083	45.961 278	313	524.00	89.30	0.705 574	0.492 965	17	0.703 376
安山玢岩	85.151 972	45.971 667	300	537.00	91.30	0.705 500	0.491 801	14	0.703 436
安山玢岩	84.565 397	45.703 450	308	523.00	73.40	0.705 198	0.405 952	11	0.703 465
英安岩	84.569 186	45.698 525	300	548.00	54.90	0.704 722	0.289 769	10	0.703 485
安山玢岩	84.194 450	45.806 958	300	445.00	27.10	0.704 255	0.176 136	10	0.703 503
安山玢岩	84.013 694	45.572 617	290	382.00	22.80	0.704 242	0.172 628	11	0.703 528
安山玢岩	84.553 683	45.692 581	319	512.00	43.80	0.704 634	0.247 435	10	0.703 510
二长花岗岩	83.180 250	45.402 083	290	318.00	92.40	0.707 051	0.840 628	12	0.703 572
安山玢岩	84.341 744	45.821 042	314	419.00	17.40	0.704 083	0.120 107	11	0.703 545
闪长玢岩	85.190 778	45.949 750	300	509.00	117.00	0.706 533	0.664 974	11	0.703 568
英安岩	84.594 325	45.708 525	300	684.00	38.10	0.704 276	0.161 105	11	0.703 589
安山玢岩	84.019 861	45.585 639	322	406.00	33.70	0.704 694	0.240 084	8	0.703 588
流纹岩	84.580 442	45.693 722	294	113.00	83.30	0.712 579	2.133 832	10	0.703 625
安山玢岩	85.111 806	45.995 889	319	417.00	46.40	0.705 081	0.321 853	14	0.703 620
英安岩	83.645 589	45.782 686	323	301.00	129.00	0.709 335	1.240 164	9	0.703 623
英安岩	83.645 589	45.782 686	329	505.00	133.00	0.707 198	0.761 948	8	0.703 619
闪长岩	83.764 833	45.594 139	300	569.00	38.40	0.704 514	0.195 196	11	0.703 680
安山玢岩	84.019 361	45.579 306	300	377.00	30.40	0.704 720	0.233 234	19	0.703 724
安山玢岩	84.025 075	45.573 889	300	494.00	55.10	0.705 124	0.322 628	9	0.703 747
流纹斑岩	83.897 000	46.005 861	300	265.00	41.70	0.705 709	0.455 189	7	0.703 766
斜长花岗岩	83.180 972	45.384 000	285	694.00	39.00	0.704 495	0.162 538	14	0.703 835
花岗闪长斑岩	84.125 639	45.563 028	300	753.00	40.50	0.704 484	0.155 564	13	0.703 820
安山玢岩	84.028 556	45.603 944	301	539.00	21.70	0.704 439	0.116 444	10	0.703 940
中酸性岩墙	83.561 997	45.710 756	300	511.00	70.70	0.705 714	0.400 222	11	0.704 006
花岗闪长岩	83.129 278	45.364 722	287	663.00	27.20	0.704 631	0.118 662	13	0.704 146
花岗斑岩	83.128 250	45.363 944	288	589.00	34.20	0.704 862	0.167 949	11	0.704 173
安山玢岩	84.024 083	45.604 139	301	579.00	60.80	0.705 604	0.303 754	10	0.704 302
闪长玢岩	83.181 056	45.446 389	300	884.00	9.48	0.704 751	0.031 018	9	0.704 618
中酸性岩墙	83.908 283	45.503 792	300	586.00	105.00	0.706 844	0.518 372	10	0.704 631
流纹岩	84.405 400	45.925 917	335	544.00	30.90	0.705 445	0.164 305	11	0.704 660
石英闪长岩	84.932 033	45.733 767	299	236.00	78.60	0.710 611	0.963 875	11	0.706 503
花岗岩	84.281 000	45.830 639	309	27.10	65.00	0.729 277	6.945 166	14	0.698 736
碱长花岗岩	84.646 472	45.900 306	305	30.50	64.80	0.726 353	6.151 963	15	0.699 642
花岗岩	83.661 444	45.772 972	300	36.00	115.00	0.739 590	9.249 833	15	0.699 746
碱长花岗岩	83.841 194	45.615 583	302	43.60	114.00	0.732 778	7.571 064	14	0.700 165
碱长花岗岩	84.126 250	45.948 500	300	42.30	111.00	0.732 617	7.598 383	13	0.700 222
碱长花岗岩	83.854 778	45.522 556	300	40.90	87.00	0.727 859	6.159 345	15	0.700 782
碱长花岗岩	83.477 000	45.700 306	304	47.70	133.00	0.735 898	8.073 686	14	0.700 947
碱长花岗岩	83.551 028	45.766 639	300	57.10	121.00	0.728 000	6.136 035	15	0.701 148
岩性	经度/(°)	纬度/(°)	t/Ma	w_B/10^-6		⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
岩性	经度/(°)	纬度/(°)	t/Ma	Sr	Rb	⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
黑云母花岗岩	84.655 500	46.401 528	303	56.20	129.00	0.730 213	6.646 484	15	0.701 478
闪长岩	84.100 000	45.964 028	317	65.80	121.00	0.725 691	5.324 736	13	0.701 607
碱长花岗岩	84.100 000	45.964 028	299	44.90	100.00	0.729 181	6.448 998	13	0.701 686
碱长花岗岩	84.156 500	46.314 806	300	55.20	103.00	0.724 584	5.403 022	14	0.701 926
碱长花岗岩	84.167 639	45.920 750	294	44.30	107.00	0.731 366	6.993 887	7	0.702 077
碱长花岗岩	84.652 833	46.400 778	298	45.30	80.00	0.723 812	5.113 642	14	0.702 084
碱长花岗岩	84.363 278	45.763 194	300	25.90	66.50	0.733 915	7.434 649	15	0.702 176
碱长花岗岩	83.565 389	45.702 417	307	46.60	107.00	0.731 823	6.648 695	14	0.702 728
碱长花岗岩	84.164 333	46.303 806	300	80.40	82.10	0.715 788	2.956 825	6	0.703 144
花岗岩	84.419 167	46.096 750	300	114.00	112.00	0.715 467	2.844 800	14	0.703 160
花岗岩	84.714 278	45.676 000	313	307.00	74.70	0.706 438	0.704 565	14	0.703 297
闪长岩	84.539 667	45.473 194	300	549.00	201.00	0.708 061	1.060 138	9	0.703 296
黑云母花岗岩	84.655 500	46.401 528	300	187.00	103.00	0.710 212	1.594 903	15	0.703 403
碱长花岗岩	85.061 417	45.994 639	316	69.80	80.80	0.718 499	3.351 927	14	0.703 396
花岗闪长岩	84.662 861	45.671 278	300	475.00	19.00	0.703 966	0.115 824	14	0.703 455
黑云母花岗岩	84.562 667	45.888 222	298	201.00	96.40	0.709 374	1.388 736	12	0.703 477
花岗闪长岩	84.747 000	45.659 833	300	432.00	42.90	0.704 764	0.287 549	14	0.703 495
花岗闪长岩	83.702 389	46.263 278	307	230.00	59.70	0.706 794	0.751 597	15	0.703 506
花岗岩	84.557 000	45.701 528	300	309.00	80.60	0.706 846	0.755 292	14	0.703 514
花岗闪长岩	83.830 139	45.741 917	300	137.00	92.10	0.712 084	1.946 604	14	0.703 527
角闪花岗岩	83.239 611	45.991 556	316	207.00	80.40	0.708 635	1.124 668	12	0.703 577
黑云母花岗岩	84.538 722	45.688 444	312	360.00	46.50	0.705 276	0.374 015	9	0.703 615
闪长岩	84.539 667	45.473 194	300	521.00	81.10	0.705 639	0.450 735	14	0.703 613
花岗闪长岩	84.454 972	45.500 861	300	580.00	32.30	0.704 374	0.161 255	15	0.703 686
碱长花岗岩	84.419 167	46.096 750	304	42.10	106.00	0.735 299	7.290 584	6	0.703 759
花岗闪长岩	84.156 472	46.314 778	294	352.00	39.10	0.705 120	0.321 642	13	0.703 771
花岗闪长岩	84.468 611	45.497 583	300	395.00	81.70	0.706 331	0.598 913	13	0.703 774
花岗闪长岩	83.855 278	45.427 056	305	361.00	68.80	0.706 206	0.551 848	15	0.703 804
花岗闪长斑岩	82.462 361	45.731 528	300	746.00	31.30	0.704 345	0.121 491	13	0.703 826
花岗闪长岩	82.474 583	45.738 139	300	581.00	44.80	0.704 809	0.223 275	15	0.703 856
闪长玢岩	82.482 528	45.741 833	300	544.00	59.30	0.705 273	0.315 642	15	0.703 925
花岗闪长岩	82.474 722	45.736 583	300	357.00	55.30	0.705 905	0.448 534	15	0.703 990
花岗闪长岩	82.482 083	45.741 972	300	760.00	43.10	0.704 822	0.164 211	13	0.704 121
花岗闪长岩	84.412 167	46.029 111	317	225.00	72.00	0.708 285	0.926 592	8	0.704 105
花岗闪长玢岩	84.406 500	46.042 139	317	433.00	47.80	0.705 666	0.319 653	13	0.704 220
闪长岩	84.406 500	46.042 139	316	355.00	45.80	0.706 035	0.373 573	13	0.704 353
英安岩	84.581 222	46.081 694	310	194.00	90.90	0.710 423	1.356 753	15	0.704 424
花岗岩	84.935 222	46.566 056	300	45.80	68.10	0.723 606	4.305 466	15	0.704 612
中酸性岩墙	85.329 000	46.703 472	300	163.00	34.10	0.707 440	0.605 767	12	0.704 854
花岗闪长岩	84.991 167	46.613 833	300	464.00	85.40	0.707 291	0.532 940	14	0.704 940
碱长正长岩	85.982 722	46.735 528	300	117.00	96.50	0.716 373	2.388 251	13	0.706 177
碱长花岗岩	85.782 000	46.642 722	300	122.00	80.60	0.714 443	1.912 995	12	0.706 276
碱长花岗斑岩	84.990 083	46.609 083	300	100.00	145.00	0.726 324	4.198 620	11	0.707 801

Table 2 Sr Isotope analysis and calculation results for granites from West Junggar

岩性	经度/(°)	纬度/(°)	t/Ma	w_B/10^-6		⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
岩性	经度/(°)	纬度/(°)	t/Ma	Sr	Rb	⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
安山玢岩	85.112 500	45.994 972	295	416.00	110.00	0.706 506	0.764 953	11	0.703 295
流纹岩	84.580 442	45.693 722	299	298.00	66.20	0.706 051	0.642 626	10	0.703 308
安山玢岩	83.991 747	45.605 128	300	346.00	64.60	0.705 645	0.540 077	10	0.703 339
安山玢岩	84.017 872	45.602 144	300	376.00	38.10	0.704 642	0.293 085	11	0.703 391
安山玢岩	85.169 083	45.961 278	313	524.00	89.30	0.705 574	0.492 965	17	0.703 376
安山玢岩	85.151 972	45.971 667	300	537.00	91.30	0.705 500	0.491 801	14	0.703 436
安山玢岩	84.565 397	45.703 450	308	523.00	73.40	0.705 198	0.405 952	11	0.703 465
英安岩	84.569 186	45.698 525	300	548.00	54.90	0.704 722	0.289 769	10	0.703 485
安山玢岩	84.194 450	45.806 958	300	445.00	27.10	0.704 255	0.176 136	10	0.703 503
安山玢岩	84.013 694	45.572 617	290	382.00	22.80	0.704 242	0.172 628	11	0.703 528
安山玢岩	84.553 683	45.692 581	319	512.00	43.80	0.704 634	0.247 435	10	0.703 510
二长花岗岩	83.180 250	45.402 083	290	318.00	92.40	0.707 051	0.840 628	12	0.703 572
安山玢岩	84.341 744	45.821 042	314	419.00	17.40	0.704 083	0.120 107	11	0.703 545
闪长玢岩	85.190 778	45.949 750	300	509.00	117.00	0.706 533	0.664 974	11	0.703 568
英安岩	84.594 325	45.708 525	300	684.00	38.10	0.704 276	0.161 105	11	0.703 589
安山玢岩	84.019 861	45.585 639	322	406.00	33.70	0.704 694	0.240 084	8	0.703 588
流纹岩	84.580 442	45.693 722	294	113.00	83.30	0.712 579	2.133 832	10	0.703 625
安山玢岩	85.111 806	45.995 889	319	417.00	46.40	0.705 081	0.321 853	14	0.703 620
英安岩	83.645 589	45.782 686	323	301.00	129.00	0.709 335	1.240 164	9	0.703 623
英安岩	83.645 589	45.782 686	329	505.00	133.00	0.707 198	0.761 948	8	0.703 619
闪长岩	83.764 833	45.594 139	300	569.00	38.40	0.704 514	0.195 196	11	0.703 680
安山玢岩	84.019 361	45.579 306	300	377.00	30.40	0.704 720	0.233 234	19	0.703 724
安山玢岩	84.025 075	45.573 889	300	494.00	55.10	0.705 124	0.322 628	9	0.703 747
流纹斑岩	83.897 000	46.005 861	300	265.00	41.70	0.705 709	0.455 189	7	0.703 766
斜长花岗岩	83.180 972	45.384 000	285	694.00	39.00	0.704 495	0.162 538	14	0.703 835
花岗闪长斑岩	84.125 639	45.563 028	300	753.00	40.50	0.704 484	0.155 564	13	0.703 820
安山玢岩	84.028 556	45.603 944	301	539.00	21.70	0.704 439	0.116 444	10	0.703 940
中酸性岩墙	83.561 997	45.710 756	300	511.00	70.70	0.705 714	0.400 222	11	0.704 006
花岗闪长岩	83.129 278	45.364 722	287	663.00	27.20	0.704 631	0.118 662	13	0.704 146
花岗斑岩	83.128 250	45.363 944	288	589.00	34.20	0.704 862	0.167 949	11	0.704 173
安山玢岩	84.024 083	45.604 139	301	579.00	60.80	0.705 604	0.303 754	10	0.704 302
闪长玢岩	83.181 056	45.446 389	300	884.00	9.48	0.704 751	0.031 018	9	0.704 618
中酸性岩墙	83.908 283	45.503 792	300	586.00	105.00	0.706 844	0.518 372	10	0.704 631
流纹岩	84.405 400	45.925 917	335	544.00	30.90	0.705 445	0.164 305	11	0.704 660
石英闪长岩	84.932 033	45.733 767	299	236.00	78.60	0.710 611	0.963 875	11	0.706 503
花岗岩	84.281 000	45.830 639	309	27.10	65.00	0.729 277	6.945 166	14	0.698 736
碱长花岗岩	84.646 472	45.900 306	305	30.50	64.80	0.726 353	6.151 963	15	0.699 642
花岗岩	83.661 444	45.772 972	300	36.00	115.00	0.739 590	9.249 833	15	0.699 746
碱长花岗岩	83.841 194	45.615 583	302	43.60	114.00	0.732 778	7.571 064	14	0.700 165
碱长花岗岩	84.126 250	45.948 500	300	42.30	111.00	0.732 617	7.598 383	13	0.700 222
碱长花岗岩	83.854 778	45.522 556	300	40.90	87.00	0.727 859	6.159 345	15	0.700 782
碱长花岗岩	83.477 000	45.700 306	304	47.70	133.00	0.735 898	8.073 686	14	0.700 947
碱长花岗岩	83.551 028	45.766 639	300	57.10	121.00	0.728 000	6.136 035	15	0.701 148
岩性	经度/(°)	纬度/(°)	t/Ma	w_B/10^-6		⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
岩性	经度/(°)	纬度/(°)	t/Ma	Sr	Rb	⁸⁷Sr/⁸⁶Sr	⁸⁷Rb/⁸⁶Sr	2σ/10^-6	(⁸⁷Sr/⁸⁶Sr)_i
黑云母花岗岩	84.655 500	46.401 528	303	56.20	129.00	0.730 213	6.646 484	15	0.701 478
闪长岩	84.100 000	45.964 028	317	65.80	121.00	0.725 691	5.324 736	13	0.701 607
碱长花岗岩	84.100 000	45.964 028	299	44.90	100.00	0.729 181	6.448 998	13	0.701 686
碱长花岗岩	84.156 500	46.314 806	300	55.20	103.00	0.724 584	5.403 022	14	0.701 926
碱长花岗岩	84.167 639	45.920 750	294	44.30	107.00	0.731 366	6.993 887	7	0.702 077
碱长花岗岩	84.652 833	46.400 778	298	45.30	80.00	0.723 812	5.113 642	14	0.702 084
碱长花岗岩	84.363 278	45.763 194	300	25.90	66.50	0.733 915	7.434 649	15	0.702 176
碱长花岗岩	83.565 389	45.702 417	307	46.60	107.00	0.731 823	6.648 695	14	0.702 728
碱长花岗岩	84.164 333	46.303 806	300	80.40	82.10	0.715 788	2.956 825	6	0.703 144
花岗岩	84.419 167	46.096 750	300	114.00	112.00	0.715 467	2.844 800	14	0.703 160
花岗岩	84.714 278	45.676 000	313	307.00	74.70	0.706 438	0.704 565	14	0.703 297
闪长岩	84.539 667	45.473 194	300	549.00	201.00	0.708 061	1.060 138	9	0.703 296
黑云母花岗岩	84.655 500	46.401 528	300	187.00	103.00	0.710 212	1.594 903	15	0.703 403
碱长花岗岩	85.061 417	45.994 639	316	69.80	80.80	0.718 499	3.351 927	14	0.703 396
花岗闪长岩	84.662 861	45.671 278	300	475.00	19.00	0.703 966	0.115 824	14	0.703 455
黑云母花岗岩	84.562 667	45.888 222	298	201.00	96.40	0.709 374	1.388 736	12	0.703 477
花岗闪长岩	84.747 000	45.659 833	300	432.00	42.90	0.704 764	0.287 549	14	0.703 495
花岗闪长岩	83.702 389	46.263 278	307	230.00	59.70	0.706 794	0.751 597	15	0.703 506
花岗岩	84.557 000	45.701 528	300	309.00	80.60	0.706 846	0.755 292	14	0.703 514
花岗闪长岩	83.830 139	45.741 917	300	137.00	92.10	0.712 084	1.946 604	14	0.703 527
角闪花岗岩	83.239 611	45.991 556	316	207.00	80.40	0.708 635	1.124 668	12	0.703 577
黑云母花岗岩	84.538 722	45.688 444	312	360.00	46.50	0.705 276	0.374 015	9	0.703 615
闪长岩	84.539 667	45.473 194	300	521.00	81.10	0.705 639	0.450 735	14	0.703 613
花岗闪长岩	84.454 972	45.500 861	300	580.00	32.30	0.704 374	0.161 255	15	0.703 686
碱长花岗岩	84.419 167	46.096 750	304	42.10	106.00	0.735 299	7.290 584	6	0.703 759
花岗闪长岩	84.156 472	46.314 778	294	352.00	39.10	0.705 120	0.321 642	13	0.703 771
花岗闪长岩	84.468 611	45.497 583	300	395.00	81.70	0.706 331	0.598 913	13	0.703 774
花岗闪长岩	83.855 278	45.427 056	305	361.00	68.80	0.706 206	0.551 848	15	0.703 804
花岗闪长斑岩	82.462 361	45.731 528	300	746.00	31.30	0.704 345	0.121 491	13	0.703 826
花岗闪长岩	82.474 583	45.738 139	300	581.00	44.80	0.704 809	0.223 275	15	0.703 856
闪长玢岩	82.482 528	45.741 833	300	544.00	59.30	0.705 273	0.315 642	15	0.703 925
花岗闪长岩	82.474 722	45.736 583	300	357.00	55.30	0.705 905	0.448 534	15	0.703 990
花岗闪长岩	82.482 083	45.741 972	300	760.00	43.10	0.704 822	0.164 211	13	0.704 121
花岗闪长岩	84.412 167	46.029 111	317	225.00	72.00	0.708 285	0.926 592	8	0.704 105
花岗闪长玢岩	84.406 500	46.042 139	317	433.00	47.80	0.705 666	0.319 653	13	0.704 220
闪长岩	84.406 500	46.042 139	316	355.00	45.80	0.706 035	0.373 573	13	0.704 353
英安岩	84.581 222	46.081 694	310	194.00	90.90	0.710 423	1.356 753	15	0.704 424
花岗岩	84.935 222	46.566 056	300	45.80	68.10	0.723 606	4.305 466	15	0.704 612
中酸性岩墙	85.329 000	46.703 472	300	163.00	34.10	0.707 440	0.605 767	12	0.704 854
花岗闪长岩	84.991 167	46.613 833	300	464.00	85.40	0.707 291	0.532 940	14	0.704 940
碱长正长岩	85.982 722	46.735 528	300	117.00	96.50	0.716 373	2.388 251	13	0.706 177
碱长花岗岩	85.782 000	46.642 722	300	122.00	80.60	0.714 443	1.912 995	12	0.706 276
碱长花岗斑岩	84.990 083	46.609 083	300	100.00	145.00	0.726 324	4.198 620	11	0.707 801

Fig.5 Contour map of the (87Sr/86Sr)i ratios for West Junggar

Table 3 Pb isotope analysis and calculation results for granites from West Junggar

岩性	经度/(°)	纬度/(°)	t/Ma	²⁰⁸Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁷Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁶Pb/²⁰⁴Pb	2s/ 10^-4	(²⁰⁸Pb/ ²⁰⁴Pb)_i	(²⁰⁷Pb/ ²⁰⁴Pb)_i	(²⁰⁶Pb/ ²⁰⁴Pb)_i
二长花岗岩	83.180 250	45.402 083	290	38.990 8	16	15.633 2	7	18.881 6	8	37.963 2	15.614 9	18.530 4
安山玢岩	83.793 444	45.582 389	300	38.919 5	23	15.632 0	9	18.955 0	11	38.225 6	15.605 8	18.455 5
流纹岩	84.580 442	45.693 722	299	38.387 9	23	15.562 6	9	18.637 8	11	37.779 9	15.546 4	18.328 0
中酸性岩墙	83.561 997	45.710 756	300	38.897 5	34	15.594 4	13	19.024 7	16	38.183 3	15.556 1	18.291 5
石英闪长岩	84.932 033	45.733 767	299	38.642 6	25	15.567 8	10	18.638 1	11	37.921 5	15.547 3	18.246 6
安山玢岩	84.553 683	45.692 581	319	38.848 2	30	15.608 3	12	19.296 0	13	37.794 9	15.550 7	18.205 0
流纹岩	84.580 442	45.693 722	294	38.253 7	19	15.556 9	7	18.454 0	8	37.972 8	15.540 7	18.142 5
斜长花岗岩	83.180 972	45.384 000	285	38.789 5	13	15.636 3	5	18.890 6	6	37.929 0	15.597 1	18.136 3
花岗斑岩	83.128 250	45.363 944	288	38.454 4	17	15.604 7	6	18.620 6	7	38.036 4	15.579 0	18.127 8
中酸性岩墙	82.569 083	45.551 167	300	38.536 6	17	15.610 9	7	18.425 9	7	37.994 9	15.590 7	18.034 4
闪长岩	83.764 833	45.594 139	300	38.571 2	14	15.578 4	5	18.615 4	6	37.859 1	15.547 8	18.030 3
流纹岩	84.405 400	45.925 917	335	38.316 7	23	15.583 4	9	18.314 7	9	38.009 1	15.567 9	18.023 6
花岗闪长岩	83.129 278	45.364 722	287	38.446 9	19	15.613 9	7	18.642 8	9	37.993 1	15.581 5	18.020 8
安山玢岩	85.112 500	45.994 972	295	39.338 5	10	15.627 6	4	19.831 8	5	37.644 1	15.531 3	17.987 6
中酸性岩墙	83.908 283	45.503 792	300	38.472 4	23	15.592 9	8	18.442 0	9	37.877 1	15.569 0	17.983 6
安山玢岩	85.169 083	45.961 278	313	38.455 0	14	15.598 1	5	18.541 4	6	38.058 1	15.568 6	17.981 6
安山玢岩	83.991 747	45.605 128	300	38.108 5	27	15.543 6	11	18.220 2	12	37.864 6	15.530 3	17.967 0
花岗斑岩	83.841 861	45.610 778	300	38.642 9	25	15.582 7	9	18.641 5	10	37.804 5	15.547 0	17.960 0
安山玢岩	84.019 361	45.579 306	300	38.033 2	15	15.543 7	7	18.122 5	8	37.876 5	15.534 1	17.939 8
花岗闪长斑岩	84.125 639	45.563 028	300	38.325 0	13	15.563 5	5	18.365 6	6	37.842 6	15.541 0	17.936 0
英安岩	83.645 589	45.782 686	323	38.610 7	27	15.579 5	10	18.706 4	12	37.742 3	15.538 7	17.934 3
安山玢岩	85.151 972	45.971 667	300	38.429 8	16	15.593 9	7	18.482 3	7	37.901 8	15.565 3	17.933 7
英安岩	83.645 589	45.782 686	329	38.297 4	24	15.556 1	9	18.298 8	10	37.866 1	15.536 6	17.929 9
英安岩	84.569 186	45.698 525	300	38.271 2	19	15.531 8	9	18.422 8	9	37.836 9	15.505 7	17.925 8
闪长玢岩	85.190 778	45.949 750	300	38.108 3	14	15.562 4	5	18.163 2	6	37.909 5	15.549 7	17.922 8
安山玢岩	84.025 075	45.573 889	300	38.103 7	22	15.545 1	9	18.186 5	10	37.870 3	15.531 1	17.918 8
英安岩	84.594 325	45.708 525	300	38.274 8	25	15.552 2	9	18.438 8	11	37.865 2	15.524 8	17.914 4
安山玢岩	84.017 872	45.602 144	300	38.398 6	24	15.566 9	10	18.520 2	11	37.856 3	15.535 0	17.910 9
安山玢岩	84.194 450	45.806 958	300	38.257 4	47	15.580 3	19	18.285 4	22	37.939 6	15.560 3	17.903 4
安山玢岩	84.019 861	45.585 639	322	38.049 3	19	15.538 0	7	18.165 3	8	37.827 6	15.524 1	17.902 2
安山玢岩	84.024 083	45.604 139	301	38.304 2	20	15.550 5	9	18.418 2	10	37.840 5	15.523 0	17.892 0
安山玢岩	84.028 556	45.603 944	301	38.307 0	20	15.558 4	9	18.374 3	9	37.887 3	15.532 7	17.883 6
流纹斑岩	83.897 000	46.005 861	300	38.363 8	18	15.597 3	7	18.459 1	8	37.851 8	15.567 0	17.881 1
安山玢岩	84.565 397	45.703 450	308	39.038 9	40	15.615 1	16	19.176 6	18	37.874 7	15.546 6	17.867 4
安山玢岩	84.013 694	45.572 617	290	38.436 0	30	15.573 0	12	18.544 8	12	37.822 1	15.536 4	17.843 4
闪长玢岩	83.181 056	45.446 389	300	38.335 7	43	15.601 0	14	18.326 9	12	37.919 9	15.574 3	17.817 2
安山玢岩	84.341 744	45.821 042	314	38.122 5	36	15.534 6	14	18.265 1	17	37.738 4	15.505 8	17.719 3
安山玢岩	85.111 806	45.995 889	319	39.947 1	16	15.687 1	6	20.149 9	8	37.446 0	15.557 2	17.688 3
花岗岩	84.557 000	45.701 528	300	38.837 5	23	15.588 9	9	19.649 4	11	37.381 7	15.556 6	19.035 2
细粒花岗岩	84.115 889	45.960 806	300	39.082 1	24	15.579 6	9	19.167 7	11	37.820 8	15.547 0	18.545 2
碱长花岗岩	84.419 167	46.096 750	304	38.585 1	19	15.564 6	7	18.907 6	8	37.866 5	15.545 3	18.539 8
黑云母花岗岩	84.655 500	46.401 528	300	38.703 6	20	15.575 5	7	18.759 2	10	37.718 7	15.556 9	18.404 2
碱长花岗岩	84.646 472	45.900 306	305	38.395 5	21	15.554 8	8	18.870 6	8	37.639 8	15.530 0	18.397 0
碱长花岗岩	84.100 000	45.964 028	299	38.398 3	16	15.535 4	6	18.559 0	7	37.729 3	15.523 7	18.335 7
岩性	经度/(°)	纬度/(°)	t/Ma	²⁰⁸Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁷Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁶Pb/²⁰⁴Pb	2s/ 10^-4	(²⁰⁸Pb/ ²⁰⁴Pb)_i	(²⁰⁷Pb/ ²⁰⁴Pb)_i	(²⁰⁶Pb/ ²⁰⁴Pb)_i
碱长花岗岩	84.448 556	46.145 944	300	38.223 0	26	15.544 9	11	18.794 9	14	37.748 9	15.520 1	18.321 6
花岗岩	84.419 167	46.096 750	300	38.6212	15	15.552 6	6	18.688 0	7	37.783 5	15.533 0	18.313 9
花岗闪长岩	82.482 083	45.741 972	300	38.375 6	19	15.548 9	6	18.805 1	7	37.647 5	15.523 0	18.310 7
碱长花岗岩	84.156 500	46.314 806	300	38.521 4	18	15.536 7	8	18.892 8	8	37.678 8	15.50 8	18.301 7
花岗闪长岩	84.991 167	46.613 833	300	38.427 4	16	15.601 2	6	18.484 3	7	38.034 7	15.591 3	18.296 1
花岗闪长岩	84.412 167	46.029 111	317	38.348 4	15	15.556 3	5	18.595 4	6	37.630 0	15.539 6	18.278 2
碱长花岗岩	84.646 472	45.900 306	310	38.436 6	22	15.565 0	8	18.668 2	11	37.399 9	15.542 4	18.238 2
花岗闪长岩	82.474 583	45.738 139	300	38.218 4	19	15.534 8	7	18.572 3	8	37.558 6	15.517 2	18.236 5
碱长花岗岩	83.565 389	45.702 417	307	38.632 9	22	5.542 2	6	18.581 3	10	37.806 9	5.523 7	18.228 2
花岗岩	84.281 000	45.830 639	309	38.411 6	19	15.5460	7	18.486 7	7	37.703 7	15.532 3	18.226 6
花岗闪长岩	83.830 139	45.741 917	300	38.399 9	19	15.552 4	7	18.458 9	7	37.829 0	15.539 1	18.206 3
花岗闪长斑岩	82.462 361	45.731 528	300	38.043 5	13	15.521 2	4	18.424 9	5	37.717 3	15.509 7	18.204 9
碱长花岗岩	84.126 250	45.948 500	300	38.389 2	15	15.539 6	7	18.507 1	7	37.708 8	15.523 6	18.202 1
碱长花岗岩	85.061 417	45.994 639	316	38.538 4	20	15.540 0	7	18.648 5	10	37.794 2	15.516 0	18.193 5
闪长岩	84.406 500	46.042 139	316	38.328 7	7	15.544 8	4	18.436 5	4	37.832 0	15.531 4	18.181 7
碱长花岗岩	84.167 639	45.920 750	294	38.369 8	15	15.540 2	6	18.463 1	6	37.772 7	15.525 4	18.178 9
碱长花岗岩	85.782 000	46.642 722	300	38.565 6	17	15.587 7	8	18.700 8	9	37.767 9	15.560 1	18.172 6
碱长花岗岩	83.841 194	45.615 583	302	38.431 1	24	15.544 5	10	18.543 4	11	37.766 8	15.524 5	18.160 8
碱长正长岩	85.982 722	46.735 528	300	38.569 3	21	15.573 5	7	18.593 6	9	37.881 6	15.550 0	18.144 3
花岗闪长岩	82.474 722	45.736 583	300	38.200 2	23	15.538 2	8	18.539 4	9	37.745 6	15.517 4	18.141 4
花岗闪长岩	84.454 972	45.500 861	300	38.666 3	18	15.549 5	5	18.632 7	9	37.759 4	15.523 4	18.134 9
花岗岩	83.661 444	45.772 972	300	38.841 7	28	15.563 4	11	18.851 0	13	37.917 3	15.525 4	18.125 2
花岗岩	84.714 278	45.676 000	313	38.482 7	14	15.535 1	6	18.634 1	7	37.783 4	15.508 1	18.120 7
黑云母花岗岩	84.562 667	45.888 222	298	38.419 1	29	15.542 0	10	18.567 7	10	37.559 3	15.518 4	18.116 9
碱长花岗岩	83.551 028	45.766 639	300	38.383 4	30	15.536 8	12	18.431 9	17	37.706 1	15.519 9	18.109 4
花岗闪长岩	84.156 472	46.314 778	294	38.135 2	19	15.518 8	7	18.413 0	8	37.748 3	15.502 9	18.107 9
花岗闪长岩	83.855 278	45.427 056	305	38.404 2	33	15.547 7	12	18.564 6	15	37.765 2	15.523 4	18.101 0
碱长花岗斑岩	84.990 083	46.609 083	300	38.355 9	22	15.574 4	9	18.406 2	10	37.950 7	15.557 2	18.079 3
碱长花岗岩	83.854 778	45.522 556	300	38.214 0	22	15.531 9	8	18.299 3	10	37.734 0	15.519 5	18.063 4
黑云母花岗岩	84.655 500	46.401 528	303	37.944 1	13	15.526 0	5	18.616 4	6	37.381 9	15.496 4	18.051 5
闪长岩	84.539 667	45.473 194	300	39.606 1	54	15.743 8	19	22.296 3	27	37.713 7	15.519 8	18.046 5
闪长玢岩	82.482 528	45.741 833	300	37.931 1	18	15.521 3	7	18.121 3	8	37.855 8	15.516 8	18.035 5
碱长花岗岩	83.477 000	45.700 306	304	38.349 4	23	15.536 6	9	18.467 9	9	37.725 4	15.513 8	18.033 6
花岗岩	84.935 222	46.566 056	300	38.305 4	27	15.557 4	10	18.433 7	11	37.852 3	15.536 3	18.033 1
碱长花岗岩	84.363 278	45.763 194	300	38.250 2	28	15.526 0	11	18.277 6	13	37.560 6	15.512 9	18.026 6
角闪花岗岩	83.239 611	45.991 556	316	38.224 6	17	15.535 9	6	18.348 1	7	37.815 6	15.518 4	18.016 6
黑云母花岗岩	84.849 111	45.722 250	303	38.167 6	27	15.522 2	10	18.308 4	10	37.832 9	15.506 7	18.012 5
花岗闪长岩	84.468 611	45.497 583	300	39.540 1	20	15.605 1	7	19.708 8	7	37.358 4	15.515 9	18.005 1
花岗闪长岩	84.662 861	45.671 278	300	38.261 3	22	15.525 8	8	18.379 9	8	37.871 4	15.506 0	18.003 6
花岗闪长岩	83.702 389	46.263 278	307	38.223 7	17	15.542 9	6	18.465 2	5	37.667 8	15.518 6	18.000 0
碱长花岗岩	84.164 333	46.303 806	300	38.032 4	17	15.514 7	6	18.376 9	7	37.733 3	15.494 7	17.995 3
花岗闪长岩	84.747 000	45.659 833	300	37.974 1	21	15.513 1	7	18.125 4	8	37.760 1	15.505 4	17.979 0
中酸性岩墙	85.329 000	46.703 472	300	38.170 3	21	15.575 4	7	18.192 1	8	37.950 2	15.564 1	17.976 5
碱长花岗岩	84.652 833	46.400 778	298	38.334 1	13	15.517 3	5	18.438 3	5	37.684 3	15.491 7	17.949 0
闪长岩	84.100 000	45.964 028	317	38.208 0	18	15.540 7	7	18.436 3	8	37.807 1	15.513 5	17.920 4
花岗闪长玢岩	84.406 500	46.042 139	317	38.240 5	17	15.543 7	6	18.477 5	7	37.791 6	15.514 2	17.918 2
黑云母花岗岩	84.538 722	45.688 444	312	38.640 9	19	15.519 0	7	18.396 8	7	37.446 6	15.492 5	17.892 9
闪长岩	84.539 667	45.473 194	300	39.364 0	31	15.593 1	9	19.516 2	15	37.788 4	15.502 5	17.796 8

Table 3 Pb isotope analysis and calculation results for granites from West Junggar

岩性	经度/(°)	纬度/(°)	t/Ma	²⁰⁸Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁷Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁶Pb/²⁰⁴Pb	2s/ 10^-4	(²⁰⁸Pb/ ²⁰⁴Pb)_i	(²⁰⁷Pb/ ²⁰⁴Pb)_i	(²⁰⁶Pb/ ²⁰⁴Pb)_i
二长花岗岩	83.180 250	45.402 083	290	38.990 8	16	15.633 2	7	18.881 6	8	37.963 2	15.614 9	18.530 4
安山玢岩	83.793 444	45.582 389	300	38.919 5	23	15.632 0	9	18.955 0	11	38.225 6	15.605 8	18.455 5
流纹岩	84.580 442	45.693 722	299	38.387 9	23	15.562 6	9	18.637 8	11	37.779 9	15.546 4	18.328 0
中酸性岩墙	83.561 997	45.710 756	300	38.897 5	34	15.594 4	13	19.024 7	16	38.183 3	15.556 1	18.291 5
石英闪长岩	84.932 033	45.733 767	299	38.642 6	25	15.567 8	10	18.638 1	11	37.921 5	15.547 3	18.246 6
安山玢岩	84.553 683	45.692 581	319	38.848 2	30	15.608 3	12	19.296 0	13	37.794 9	15.550 7	18.205 0
流纹岩	84.580 442	45.693 722	294	38.253 7	19	15.556 9	7	18.454 0	8	37.972 8	15.540 7	18.142 5
斜长花岗岩	83.180 972	45.384 000	285	38.789 5	13	15.636 3	5	18.890 6	6	37.929 0	15.597 1	18.136 3
花岗斑岩	83.128 250	45.363 944	288	38.454 4	17	15.604 7	6	18.620 6	7	38.036 4	15.579 0	18.127 8
中酸性岩墙	82.569 083	45.551 167	300	38.536 6	17	15.610 9	7	18.425 9	7	37.994 9	15.590 7	18.034 4
闪长岩	83.764 833	45.594 139	300	38.571 2	14	15.578 4	5	18.615 4	6	37.859 1	15.547 8	18.030 3
流纹岩	84.405 400	45.925 917	335	38.316 7	23	15.583 4	9	18.314 7	9	38.009 1	15.567 9	18.023 6
花岗闪长岩	83.129 278	45.364 722	287	38.446 9	19	15.613 9	7	18.642 8	9	37.993 1	15.581 5	18.020 8
安山玢岩	85.112 500	45.994 972	295	39.338 5	10	15.627 6	4	19.831 8	5	37.644 1	15.531 3	17.987 6
中酸性岩墙	83.908 283	45.503 792	300	38.472 4	23	15.592 9	8	18.442 0	9	37.877 1	15.569 0	17.983 6
安山玢岩	85.169 083	45.961 278	313	38.455 0	14	15.598 1	5	18.541 4	6	38.058 1	15.568 6	17.981 6
安山玢岩	83.991 747	45.605 128	300	38.108 5	27	15.543 6	11	18.220 2	12	37.864 6	15.530 3	17.967 0
花岗斑岩	83.841 861	45.610 778	300	38.642 9	25	15.582 7	9	18.641 5	10	37.804 5	15.547 0	17.960 0
安山玢岩	84.019 361	45.579 306	300	38.033 2	15	15.543 7	7	18.122 5	8	37.876 5	15.534 1	17.939 8
花岗闪长斑岩	84.125 639	45.563 028	300	38.325 0	13	15.563 5	5	18.365 6	6	37.842 6	15.541 0	17.936 0
英安岩	83.645 589	45.782 686	323	38.610 7	27	15.579 5	10	18.706 4	12	37.742 3	15.538 7	17.934 3
安山玢岩	85.151 972	45.971 667	300	38.429 8	16	15.593 9	7	18.482 3	7	37.901 8	15.565 3	17.933 7
英安岩	83.645 589	45.782 686	329	38.297 4	24	15.556 1	9	18.298 8	10	37.866 1	15.536 6	17.929 9
英安岩	84.569 186	45.698 525	300	38.271 2	19	15.531 8	9	18.422 8	9	37.836 9	15.505 7	17.925 8
闪长玢岩	85.190 778	45.949 750	300	38.108 3	14	15.562 4	5	18.163 2	6	37.909 5	15.549 7	17.922 8
安山玢岩	84.025 075	45.573 889	300	38.103 7	22	15.545 1	9	18.186 5	10	37.870 3	15.531 1	17.918 8
英安岩	84.594 325	45.708 525	300	38.274 8	25	15.552 2	9	18.438 8	11	37.865 2	15.524 8	17.914 4
安山玢岩	84.017 872	45.602 144	300	38.398 6	24	15.566 9	10	18.520 2	11	37.856 3	15.535 0	17.910 9
安山玢岩	84.194 450	45.806 958	300	38.257 4	47	15.580 3	19	18.285 4	22	37.939 6	15.560 3	17.903 4
安山玢岩	84.019 861	45.585 639	322	38.049 3	19	15.538 0	7	18.165 3	8	37.827 6	15.524 1	17.902 2
安山玢岩	84.024 083	45.604 139	301	38.304 2	20	15.550 5	9	18.418 2	10	37.840 5	15.523 0	17.892 0
安山玢岩	84.028 556	45.603 944	301	38.307 0	20	15.558 4	9	18.374 3	9	37.887 3	15.532 7	17.883 6
流纹斑岩	83.897 000	46.005 861	300	38.363 8	18	15.597 3	7	18.459 1	8	37.851 8	15.567 0	17.881 1
安山玢岩	84.565 397	45.703 450	308	39.038 9	40	15.615 1	16	19.176 6	18	37.874 7	15.546 6	17.867 4
安山玢岩	84.013 694	45.572 617	290	38.436 0	30	15.573 0	12	18.544 8	12	37.822 1	15.536 4	17.843 4
闪长玢岩	83.181 056	45.446 389	300	38.335 7	43	15.601 0	14	18.326 9	12	37.919 9	15.574 3	17.817 2
安山玢岩	84.341 744	45.821 042	314	38.122 5	36	15.534 6	14	18.265 1	17	37.738 4	15.505 8	17.719 3
安山玢岩	85.111 806	45.995 889	319	39.947 1	16	15.687 1	6	20.149 9	8	37.446 0	15.557 2	17.688 3
花岗岩	84.557 000	45.701 528	300	38.837 5	23	15.588 9	9	19.649 4	11	37.381 7	15.556 6	19.035 2
细粒花岗岩	84.115 889	45.960 806	300	39.082 1	24	15.579 6	9	19.167 7	11	37.820 8	15.547 0	18.545 2
碱长花岗岩	84.419 167	46.096 750	304	38.585 1	19	15.564 6	7	18.907 6	8	37.866 5	15.545 3	18.539 8
黑云母花岗岩	84.655 500	46.401 528	300	38.703 6	20	15.575 5	7	18.759 2	10	37.718 7	15.556 9	18.404 2
碱长花岗岩	84.646 472	45.900 306	305	38.395 5	21	15.554 8	8	18.870 6	8	37.639 8	15.530 0	18.397 0
碱长花岗岩	84.100 000	45.964 028	299	38.398 3	16	15.535 4	6	18.559 0	7	37.729 3	15.523 7	18.335 7
岩性	经度/(°)	纬度/(°)	t/Ma	²⁰⁸Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁷Pb/²⁰⁴Pb	2s/ 10^-4	²⁰⁶Pb/²⁰⁴Pb	2s/ 10^-4	(²⁰⁸Pb/ ²⁰⁴Pb)_i	(²⁰⁷Pb/ ²⁰⁴Pb)_i	(²⁰⁶Pb/ ²⁰⁴Pb)_i
碱长花岗岩	84.448 556	46.145 944	300	38.223 0	26	15.544 9	11	18.794 9	14	37.748 9	15.520 1	18.321 6
花岗岩	84.419 167	46.096 750	300	38.6212	15	15.552 6	6	18.688 0	7	37.783 5	15.533 0	18.313 9
花岗闪长岩	82.482 083	45.741 972	300	38.375 6	19	15.548 9	6	18.805 1	7	37.647 5	15.523 0	18.310 7
碱长花岗岩	84.156 500	46.314 806	300	38.521 4	18	15.536 7	8	18.892 8	8	37.678 8	15.50 8	18.301 7
花岗闪长岩	84.991 167	46.613 833	300	38.427 4	16	15.601 2	6	18.484 3	7	38.034 7	15.591 3	18.296 1
花岗闪长岩	84.412 167	46.029 111	317	38.348 4	15	15.556 3	5	18.595 4	6	37.630 0	15.539 6	18.278 2
碱长花岗岩	84.646 472	45.900 306	310	38.436 6	22	15.565 0	8	18.668 2	11	37.399 9	15.542 4	18.238 2
花岗闪长岩	82.474 583	45.738 139	300	38.218 4	19	15.534 8	7	18.572 3	8	37.558 6	15.517 2	18.236 5
碱长花岗岩	83.565 389	45.702 417	307	38.632 9	22	5.542 2	6	18.581 3	10	37.806 9	5.523 7	18.228 2
花岗岩	84.281 000	45.830 639	309	38.411 6	19	15.5460	7	18.486 7	7	37.703 7	15.532 3	18.226 6
花岗闪长岩	83.830 139	45.741 917	300	38.399 9	19	15.552 4	7	18.458 9	7	37.829 0	15.539 1	18.206 3
花岗闪长斑岩	82.462 361	45.731 528	300	38.043 5	13	15.521 2	4	18.424 9	5	37.717 3	15.509 7	18.204 9
碱长花岗岩	84.126 250	45.948 500	300	38.389 2	15	15.539 6	7	18.507 1	7	37.708 8	15.523 6	18.202 1
碱长花岗岩	85.061 417	45.994 639	316	38.538 4	20	15.540 0	7	18.648 5	10	37.794 2	15.516 0	18.193 5
闪长岩	84.406 500	46.042 139	316	38.328 7	7	15.544 8	4	18.436 5	4	37.832 0	15.531 4	18.181 7
碱长花岗岩	84.167 639	45.920 750	294	38.369 8	15	15.540 2	6	18.463 1	6	37.772 7	15.525 4	18.178 9
碱长花岗岩	85.782 000	46.642 722	300	38.565 6	17	15.587 7	8	18.700 8	9	37.767 9	15.560 1	18.172 6
碱长花岗岩	83.841 194	45.615 583	302	38.431 1	24	15.544 5	10	18.543 4	11	37.766 8	15.524 5	18.160 8
碱长正长岩	85.982 722	46.735 528	300	38.569 3	21	15.573 5	7	18.593 6	9	37.881 6	15.550 0	18.144 3
花岗闪长岩	82.474 722	45.736 583	300	38.200 2	23	15.538 2	8	18.539 4	9	37.745 6	15.517 4	18.141 4
花岗闪长岩	84.454 972	45.500 861	300	38.666 3	18	15.549 5	5	18.632 7	9	37.759 4	15.523 4	18.134 9
花岗岩	83.661 444	45.772 972	300	38.841 7	28	15.563 4	11	18.851 0	13	37.917 3	15.525 4	18.125 2
花岗岩	84.714 278	45.676 000	313	38.482 7	14	15.535 1	6	18.634 1	7	37.783 4	15.508 1	18.120 7
黑云母花岗岩	84.562 667	45.888 222	298	38.419 1	29	15.542 0	10	18.567 7	10	37.559 3	15.518 4	18.116 9
碱长花岗岩	83.551 028	45.766 639	300	38.383 4	30	15.536 8	12	18.431 9	17	37.706 1	15.519 9	18.109 4
花岗闪长岩	84.156 472	46.314 778	294	38.135 2	19	15.518 8	7	18.413 0	8	37.748 3	15.502 9	18.107 9
花岗闪长岩	83.855 278	45.427 056	305	38.404 2	33	15.547 7	12	18.564 6	15	37.765 2	15.523 4	18.101 0
碱长花岗斑岩	84.990 083	46.609 083	300	38.355 9	22	15.574 4	9	18.406 2	10	37.950 7	15.557 2	18.079 3
碱长花岗岩	83.854 778	45.522 556	300	38.214 0	22	15.531 9	8	18.299 3	10	37.734 0	15.519 5	18.063 4
黑云母花岗岩	84.655 500	46.401 528	303	37.944 1	13	15.526 0	5	18.616 4	6	37.381 9	15.496 4	18.051 5
闪长岩	84.539 667	45.473 194	300	39.606 1	54	15.743 8	19	22.296 3	27	37.713 7	15.519 8	18.046 5
闪长玢岩	82.482 528	45.741 833	300	37.931 1	18	15.521 3	7	18.121 3	8	37.855 8	15.516 8	18.035 5
碱长花岗岩	83.477 000	45.700 306	304	38.349 4	23	15.536 6	9	18.467 9	9	37.725 4	15.513 8	18.033 6
花岗岩	84.935 222	46.566 056	300	38.305 4	27	15.557 4	10	18.433 7	11	37.852 3	15.536 3	18.033 1
碱长花岗岩	84.363 278	45.763 194	300	38.250 2	28	15.526 0	11	18.277 6	13	37.560 6	15.512 9	18.026 6
角闪花岗岩	83.239 611	45.991 556	316	38.224 6	17	15.535 9	6	18.348 1	7	37.815 6	15.518 4	18.016 6
黑云母花岗岩	84.849 111	45.722 250	303	38.167 6	27	15.522 2	10	18.308 4	10	37.832 9	15.506 7	18.012 5
花岗闪长岩	84.468 611	45.497 583	300	39.540 1	20	15.605 1	7	19.708 8	7	37.358 4	15.515 9	18.005 1
花岗闪长岩	84.662 861	45.671 278	300	38.261 3	22	15.525 8	8	18.379 9	8	37.871 4	15.506 0	18.003 6
花岗闪长岩	83.702 389	46.263 278	307	38.223 7	17	15.542 9	6	18.465 2	5	37.667 8	15.518 6	18.000 0
碱长花岗岩	84.164 333	46.303 806	300	38.032 4	17	15.514 7	6	18.376 9	7	37.733 3	15.494 7	17.995 3
花岗闪长岩	84.747 000	45.659 833	300	37.974 1	21	15.513 1	7	18.125 4	8	37.760 1	15.505 4	17.979 0
中酸性岩墙	85.329 000	46.703 472	300	38.170 3	21	15.575 4	7	18.192 1	8	37.950 2	15.564 1	17.976 5
碱长花岗岩	84.652 833	46.400 778	298	38.334 1	13	15.517 3	5	18.438 3	5	37.684 3	15.491 7	17.949 0
闪长岩	84.100 000	45.964 028	317	38.208 0	18	15.540 7	7	18.436 3	8	37.807 1	15.513 5	17.920 4
花岗闪长玢岩	84.406 500	46.042 139	317	38.240 5	17	15.543 7	6	18.477 5	7	37.791 6	15.514 2	17.918 2
黑云母花岗岩	84.538 722	45.688 444	312	38.640 9	19	15.519 0	7	18.396 8	7	37.446 6	15.492 5	17.892 9
闪长岩	84.539 667	45.473 194	300	39.364 0	31	15.593 1	9	19.516 2	15	37.788 4	15.502 5	17.796 8

Fig.6 Contour map of the (206Pb/204Pb)i ratios for West Junggar

Fig.7 Gravity and magnetic anomaly map of West Junggar (modified after [105]). (a) Vertical first derivative shadow diagram of Bougher gravity. (b) Aeromagnetic ΔT polar shadow diagram.

Fig.8 Tectonogeologic, geophysic and isotopic comparisons of typical sections in West Junggar. (a) Magnetotelluric sounding profile (modified after [106]). (b) (206Pb/204Pb)i profile. (c) Nd model age profile. Section location see AB line in Fig.4 (A—Emin County; B—Karamay City).

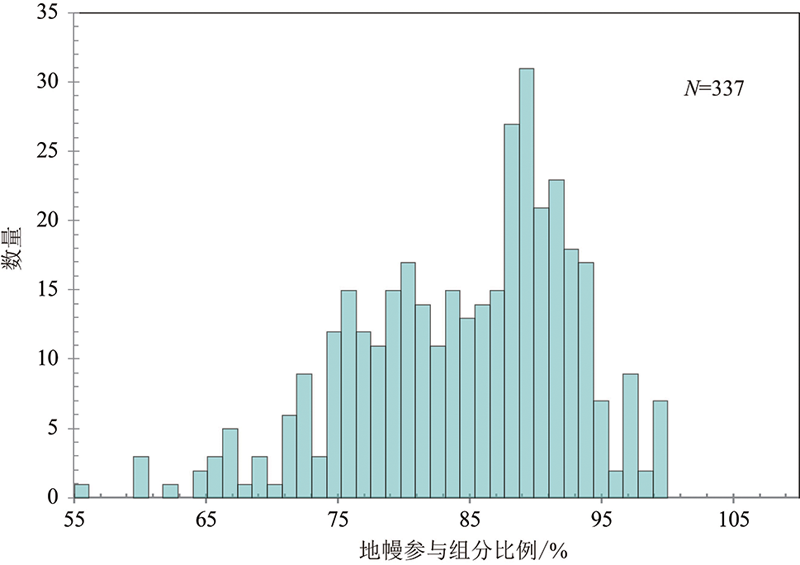

Fig.9 Statistical histogram of mantle contribution (Nd isotope) in West Junggar

Fig.10 Characteristics of Nd isotopic mantle components in west Junggar

References 110

[1]	郑永飞, 李曙光, 陈江峰, 等. 化学地球动力学[J]. 地球科学进展, 1998, 13(2):121-128.
[2]	王涛, 侯增谦. 同位素填图与深部物质探测(Ⅰ): 揭示岩石圈组成演变与地壳生长[J]. 地学前缘, 2018, 25(6):1-19.
[3]	侯增谦, 王涛. 同位素填图与深部物质探测(Ⅱ): 揭示地壳三维架构与区域成矿规律[J]. 地学前缘, 2018, 25(6):20-41.
[4]	CHEN X H, DONG S W, SHI W, et al. Construction of the Continental Asia in Phanerozoic: a review[J]. Acta Geologica Sinica(English Edition), 2022, 96(1):26-51.
[5]	XIAO W J, LI S Z, SANTOSH M, et al. Orogenic belts in Central Asia: correlations and connections[J]. Journal of Asian Earth Sciences, 2012, 49(3):1-6. DOI URL
[6]	陈宣华, 王志宏, 陈正乐, 等. 中亚萨亚克大型铜矿田矽卡岩型铜成矿作用的年代学制约[J] 岩石学报, 2012, 28(7):1981-1994.
[7]	陈宣华, 陈正乐, 韩淑琴, 等. 中亚巴尔喀什成矿带钼-钨矿床的地质热年代学[J]. 地球科学: 中国地质大学学报, 2012, 37(5):878-892.
[8]	陈宣华, 陈正乐, 韩淑琴, 等. 中亚巴尔喀什成矿带晚古生代岩浆活动与斑岩铜矿成矿时代[J]. 吉林大学学报(地球科学版), 2013, 43(3):734-747.
[9]	陈宣华, 陈正乐, 白彦飞, 等. 中亚成矿域西部巴尔喀什: 准噶尔成矿带晚古生代成矿作用大爆发[J]. 地球科学与环境学报, 2016, 38(3):285-305.
[10]	张弛, 黄萱. 新疆西准噶尔蛇绿岩形成时代和环境的探讨[J]. 地质论评, 1992, 38(6):509-524.
[11]	BUSLOV M, FUJIWARA Y, IWATA K, et al. Late Paleozoic-Early Mesozoic geodynamics of Central Asia[J]. Gondwana Research, 2004, 7(3):791-808. DOI URL
[12]	申萍, 周涛发, 袁峰, 等. 环巴尔喀什—西准噶尔成矿省矿床类型、成矿系统和跨境成矿带对接[J]. 岩石学报, 2015, 31(2):285-303.
[13]	陈宣华, 陈正乐, 邵兆刚, 等. 构造高差分析原理及其在地学研究中的应用[J]. 地质学报, 2022, 96(1):1-13.
[14]	徐盛林. 西准噶尔晚古生代岩浆作用与地壳生长[J]. 北京: 中国地质大学(北京), 2019.
[15]	JAHN B M. The central asian orogenic belt and growth of the continental crust in the phanerozoic[J]. Geological Society, London, Special Publications, 2004, 226(1):73-100. DOI URL
[16]	CHEN X H, SEITMURATOVA E, WANG Z H, et al. SHRIMP U-Pb and Ar-Ar geochronology of major porphyry and skarn Cu deposits in the Balkhash metallogenic belt, Central Asia, and geological implications[J]. Journal of Asian Earth Sciences, 2014, 79(2):723-740. DOI URL
[17]	韩宝福, 季建清, 宋彪, 等. 新疆准噶尔晚古生代陆壳垂向生长(I): 后碰撞深成岩浆活动的时限[J]. 岩石学报, 2006, 22(5):1077-1086.
[18]	陈家富, 韩宝福, 张磊. 西准噶尔北部晚古生代两期侵入岩的地球化学、Sr-Nd同位素特征及其地质意义[J]. 岩石学报, 2010, 26(8):2317-2335.
[19]	陈宣华, 杨农, 叶宝莹, 等. 中亚成矿域多核成矿系统西准噶尔成矿带构造体系特征及其对成矿作用的控制[J]. 大地构造与成矿学, 2011, 35(3):325-338.
[20]	陈宣华, 聂兰仕, 丁伟翠, 等. 西准噶尔走滑断裂系元素分布特征及其成矿意义[J]. 岩石学报, 2015, 31(2):371-387.
[21]	LI C H, SHEN P, PAN H D, et al. Carboniferous porphyry Cu (-Au) mineralization of the West Junggar region, NW China: the Shiwu example[J]. International Geology Review, 2017, 59(9):1175-1194. DOI URL
[22]	LI J Y, CHEN X H, WANG Z H, et al. Late Palaeozoic mineralization and tectonic evolution of the West Junggar metallogenic belt, Central Asia: constraints from Re-Os and ⁴⁰Ar/³⁹Ar geochronology[J]. International Geology Review, 2017, 59(9):1131-1153.
[23]	徐盛林, 陈宣华, 李廷栋, 等. 西准噶尔地区洋陆转换时代: 来自锆石U-Pb定年与Lu-Hf同位素的约束[J]. 中国地质, 2019, 46(5):1061-1078.
[24]	XU S L, CHEN X H, LI T D, et al. The Late Carboniferous-Early Permian ocean-continent transition in the West Junggar, central asian orogenic belt: constraints from Columnar Jointed Rhyolite[J]. Acta Geologica Sinica(English Edition), 2019, 93(2):265-282.
[25]	韩宝福, 何国琦, 王式洸, 等. 新疆北部后碰撞幔源岩浆活动与陆壳纵向生长[J]. 地质论评, 1998, 44(4):396-404.
[26]	朱永峰, 何国琦, 安芳. 中亚成矿域核心地区地质演化与成矿规律[J]. 地质通报, 2007, 26(9):1167-1177.
[27]	肖文交, 舒良树, 高俊, 等. 中亚造山带大陆动力学过程与成矿作用[J]. 新疆地质, 2008, 26(1):4-8.
[28]	徐盛林, 陈宣华, 李廷栋, 等. 西准噶尔地区最晚期岩浆侵入活动: 来自早二叠世—早三叠世接特布调岩体的证据[J]. 地质学报, 2020, 94(4):1067-1090.
[29]	张立飞, 冼伟胜, 孙敏. 西准噶尔紫苏花岗岩成因岩石学研究[J]. 新疆地质, 2004, 22(1):36-42.
[30]	伍建机, 陈斌. 西准噶尔庙尔沟后碰撞花岗岩微量元素和Nd-Sr同位素特征及成因[J]. 新疆地质, 2004, 22(1):29-35.
[31]	CHEN B, ARAKAWA Y. Elemental and Nd-Sr isotopic geochemistry of granitoids from the West Junggar foldbelt (NW China), with implications for Phanerozoic continental growth[J]. Geochimica et Cosmochimica Acta, 2005, 69(5):1307-1320. DOI URL
[32]	杨梅珍, 王方正, 郑建平. 准噶尔盆地西北部克-夏基性火山岩地球化学特征及其构造环境[J]. 岩石矿物学杂志, 2006, 25(3):165-174.
[33]	袁峰, 周涛发, 谭绿贵, 等. 西准噶尔萨吾尔地区Ⅰ型花岗岩同位素精确定年及其意义[J]. 岩石学报, 2006, 22(5):1238-1248.
[34]	袁峰, 周涛发, 杨文平, 等. 新疆萨吾尔地区两类花岗岩Nd、Sr、Pb、O同位素特征[J]. 地质学报, 2006, 80(2):264-272.
[35]	周涛发, 袁峰, 范裕, 等. 西准噶尔萨吾尔地区A型花岗岩的地球动力学意义: 来自岩石地球化学和锆石SHRIMP定年的证据[J]. 中国科学: 地球科学, 2006, 36(1):39-48.
[36]	苏玉平, 唐红峰, 侯广顺, 等. 新疆西准噶尔达拉布特构造带铝质 A型花岗岩的地球化学研究[J]. 地球化学, 2006, 35(1):55-67.
[37]	雷敏, 赵志丹, 侯青叶, 等. 新疆达拉布特蛇绿岩带玄武岩地球化学特征: 古亚洲洋与特提斯洋的对比[J]. 岩石学报, 2008, 24(4):661-672.
[38]	GENG H Y, SUN M, YUAN C, et al. Geochemical, Sr-Nd and zircon U-Pb-Hf isotopic studies of Late Carboniferous magmatism in the West Junggar, Xinjiang: implications for ridge subduction[J]. Chemical Geology, 2009, 266(3/4):364-389. DOI URL
[39]	GENG H Y, SUN M, YUAN C, et al. Geochemical and geochronological study of Early Carboniferous volcanic rocks from the West Junggar: petrogeneses and tectonic implications[J]. Journal of Asian Earth Sciences, 2011, 42(5):854-866. DOI URL
[40]	陈石, 郭召杰. 达拉布特蛇绿岩带的时限和属性以及对西准噶尔晚古生代构造演化的讨论[J]. 岩石学报, 2010, 26(8):2336-2344.
[41]	魏少妮, 朱永峰. 新疆包古图中酸性岩浆侵位的p-T-fO₂条件及岩体地球化学研究[J]. 地质学报, 2010, 84(7):1017-1029.
[42]	魏少妮, 朱永峰. 新疆西准噶尔包古图地区中酸性侵入体的岩石学、年代学和地球化学研究[J]. 岩石学报, 2015(1):143-160.
[43]	魏荣珠. 新疆西准噶尔拉巴花岗岩地球化学特征及年代学研究[J]. 岩石矿物学杂志, 2010, 29(6):663-674.
[44]	贺敬博, 陈斌. 西准噶尔克拉玛依岩体的成因: 年代学、岩石学和地球化学证据[J]. 地学前缘, 2011, 18(2):191-211.
[45]	TANG G J, WANG Q, WYMAN D A, et al. Late Carboniferous high ε_Nd(t)-ε_Hf(t) granitoids, enclaves and dikes in western Junggar, NW China: ridge-subduction-related magmatism and crustal growth[J]. Lithos, 2012, 140/141:86-102. DOI URL
[46]	SHEN P, SHEN Y C, PAN H D, et al. Geochronology and isotope geochemistry of the Baogutu porphyry copper deposit in the West Junggar region, Xinjiang, China[J]. Journal of Asian Earth Sciences, 2012, 49(3):99-115. DOI URL
[47]	SHEN P, SHEN Y C, LI X H, et al. Northwestern Junggar Basin, Xiemisitai Mountains, China: a geochemical and geochronological approach[J]. Lithos, 2012, 140/141:103-118. DOI URL
[48]	SHEN P, XIAO W J, PAN H D, et al. Petrogenesis and tectonic settings of the Late Carboniferous Jiamantieliek and Baogutu ore-bearing porphyry intrusions in the southern West Junggar, NW China[J]. Journal of Asian Earth Sciences, 2013, 75:158-173. DOI URL
[49]	SHEN P, PAN H D, CAO C, et al. The formation of the Suyunhe large porphyry Mo deposit in the West Junggar terrain, NW China: zircon U-Pb age, geochemistry and Sr-Nd-Hf isotopic results[J]. Ore Geology Reviews, 2017, 81(2):808-828. DOI URL
[50]	YIN J Y, LONG X P, YUAN C, et al. A Late Carboniferous-Early Permian slab window in the West Junggar of NW China: geochronological and geochemical evidence from mafic to intermediate dikes[J]. Lithos, 2013, 175/176:146-162. DOI URL
[51]	YIN J Y, CHEN W, YUAN C, et al. Petrogenesis of Early Carboniferous adakitic dikes, Sawur region, northern West Junggar, NW China: implications for geodynamic evolution[J]. Gondwana Research, 2015, 27(4):1630-1645. DOI URL
[52]	陈双双, 苏玉平, 郑建平, 等. 克拉玛依侏罗纪玄武岩地球化学特征及其壳幔作用过程研究[J]. 地球化学, 2013, 42(1):29-45.
[53]	张鑫, 张辉. 新疆白杨河大型铍铀矿床成矿流体特征及矿床成因初探[J]. 地球化学, 2013, 42(2):143-152.
[54]	GAO R, XIAO L, PIRAJNO F, et al. Carboniferous-Permian extensive magmatism in the West Junggar, Xinjiang, northwestern China: its geochemistry, geochronology, and petrogenesis[J]. Lithos, 2014, 204:125-143. DOI URL
[55]	YANG G X, LI Y J, YAN J, et al. Geochronological and geochemical constraints on the origin of the 304±5 Ma Karamay A-type granites from West Junggar, Northwest China: implications for understanding the Central Asian Orogenic Belt[J]. International Geology Review, 2014, 56(4):393-407. DOI URL
[56]	YANG Y, CHEN X H, CHEN Z L, et al. The latest granitic intrusive magmatism and thermal evolution in the Late Paleozoic Balkhash Metallogenic Belt (Kazakhstan), Central Asia[J]. Acta Fang Tonghu Petrologica Sinica, 2015, 31(2):304-314.
[57]	YANG Q D, WANG T, GUO L, et al. Nd isotopic variation of Paleozoic-Mesozoic granitoids from the Da Hinggan Mountains and adjacent areas, NE Asia: implications for the architecture and growth of continental crust[J]. Lithos, 2017, 272/273:164-184. DOI URL
[58]	ZHANG X, ZHANG H. Geochronological, geochemical, and Sr-Nd-Hf isotopic studies of the Baiyanghe A-type granite porphyry in the Western Junggar: implications for its petrogenesis and tectonic setting[J]. Gondwana Research, 2014, 25(4):1554-1569. DOI URL
[59]	LI D, HE D F, YANG Y H, et al. Petrogenesis of mid-Carboniferous volcanics and granitic intrusions from western Junggar Basin boreholes: geodynamic implications for the Central Asian Orogenic Belt in Northwest China[J]. International Geology Review, 2014, 56(13):1668-1690. DOI URL
[60]	MAO W, LI X F, WANG G, et al. Petrogenesis of the Yangzhuang Nb- and Ta-rich A-type granite porphyry in West Junggar, Xinjiang, China[J]. Lithos, 2014, 198/199(1):172-183. DOI URL
[61]	李平, 王洪亮, 徐学义, 等. 西准噶尔早泥盆世马拉苏组火山岩岩石成因研究[J]. 岩石学报, 2014, 30(12):3553-3568.
[62]	陈博, 朱永峰. 新疆百口泉闪长岩中高An值斜长石的成因及岩石学意义[J]. 岩石学报, 2014, 31(2):479-490.
[63]	潘鸿迪, 申萍. 新疆包古图斑岩铜矿中性复式岩体的同化混染作用[J]. 地球科学与环境学报, 2014, 36(1):80-97.
[64]	高翔, 魏俊浩, 付乐兵, 等. 西准噶尔托里地区卡拉岗组火山岩地球化学特征及其构造意义[J]. 地质科技情报, 2014, 33(5):16-24.
[65]	胡洋, 王居里, 王建其, 等. 新疆西准噶尔庙尔沟岩体的地球化学及年代学研究[J]. 岩石学报, 2014, 31(2):505-522.
[66]	李永军, 沈锐, 王冉, 等. 新疆西准噶尔巴尔努克早石炭世富Nb岛弧玄武岩的发现及其地质意义[J]. 岩石学报, 2014, 30(12):3501-3511.
[67]	ZHAN Y, HOU G T, HARI K R, et al. Geochemical and isotopic constraints on the evolution of Late Paleozoic dyke swarms in West Junggar, Xinjiang, China[J]. Journal of Asian Earth Sciences, 2015, 113:126-136. DOI URL
[68]	ZHU Y F, CHEN B, QIU T. Geology and geochemistry of the Baijiantan-Baikouquan ophiolitic mélanges: implications for geological evolution of west Junggar, Xinjiang, NW China[J]. Geological Magazine, 2015, 152(1):41-69. DOI URL
[69]	CHEN X H, WANG Z H, CHEN Z L, et al. SHRIMP U-Pb, Ar-Ar and fission-track geochronology of W-Mo deposits in the Balkhash Metallogenic Belt (Kazakhstan): Central Asia, and the geological implications[J]. Journal of Asian Earth Sciences, 2015, 110(2):19-32. DOI URL
[70]	杨猛, 王居里, 王建其, 等. 新疆西准噶尔地区晚石炭世洋内俯冲与成矿: 来自苏云河钼矿区Ⅰ #含矿花岗岩体的证据[J]. 岩石学报, 2015, 31(2):523-533.
[71]	姜芸, 肖龙, 周佩, 等. 新疆西准噶尔红山岩体地质地球化学特征及对下地壳性质的启示[J]. 地球科学: 中国地质大学学报, 2015, 40(7):1129-1147.
[72]	晁文迪, 李永军, 王冉, 等. 西准噶尔“滞后型”弧岩浆作用: 来自西准东部乌尔禾早二叠世中基性岩墙群的证据[J]. 岩石矿物学杂志, 2015, 34(2):171-183.
[73]	贺新星, 肖龙, 王国灿, 等. 西准噶尔晚古生代中基性岩墙群岩石学成因及地质意义[J]. 地球科学: 中国地质大学学报, 2015, 40(5):777-796.
[74]	杨钢, 肖龙, 王国灿, 等. 西准噶尔别鲁阿嘎希花岗闪长岩年代学、地球化学特征及岩石成因[J]. 地球科学: 中国地质大学学报, 2015, 40(5):810-823.
[75]	靳松, 荣桂林, 张兆祎, 等. 新疆西准噶尔玛依勒山地区阔依塔斯杂岩体地球化学特征及锆石U-Pb年龄[J]. 中国地质, 2016, 43(1):99-110.
[76]	田亚洲, 杨经绥, 王云鹏, 等. 新疆西准噶尔木哈塔依蛇绿混杂岩年代学和地球化学研究及构造意义[J]. 中国地质, 2016, 42(2):379-395.
[77]	尹继元, 陈文, 喻顺, 等. 西准噶尔北部早二叠世石英正长斑岩的地球化学特征及意义[J]. 地质学报, 2016, 90(9):2355-2364.
[78]	陈家富, 马旭, 李超, 等. 西准噶尔谢米斯台山西北段中志留世火山岩地球化学与Sr-Nd-Os同位素特征及其地质意义[J]. 岩矿测试, 2017, 36(3):318-325.
[79]	王敏, 王居里, 胡洋, 等. 新疆谢米斯台地区乌兰萨拉岩体地球化学、年代学及全岩Sr-Nd和锆石Hf同位素研究[J]. 岩石学报, 2017, 34(3):618-636.
[80]	陈思思, 李鹏, 郭旭吉, 等. 西准噶尔萨吾尔地区黑山头金矿点二长岩锆石U-Pb年代学和地球化学特征: 对成矿前景的指示[J]. 大地构造与成矿学, 2017, 41(5):865-878.
[81]	陈宣华, 陈正乐, 韩淑琴, 等. 巴尔喀什—西准噶尔及邻区构造-岩浆-成矿作用演化[M]. 北京: 地质出版社, 2017: 308-327.
[82]	杨高学, 李永军, 佟丽莉, 等. 西准噶尔晚泥盆世碱性玄武岩的地球化学特征及其与塔里木大火成岩省岩浆岩对比[J]. 地质科学, 2017, 52(1):285-300.
[83]	李甘雨, 李永军, 王冉, 等. 西准噶尔哈拉阿拉特山: 带晚石炭世赞岐岩的发现及其地质意义[J]. 岩石学报, 2017, 33(1):16-30.
[84]	WU C, HONG T, XU X W, et al. Tectonic evolution of the Paleozoic Barluk continental arc, West Junggar, NW China[J]. Journal of Asian Earth Sciences, 2018, 160(7):48-66. DOI URL
[85]	WANG X S, CAI K D, SUN M, et al. Two contrasting late Paleozoic magmatic episodes in the northwestern Chinese Tianshan Belt, NW China: implication for tectonic transition from plate convergence to intra-plate adjustment during accretionary orogenesis[J]. Journal of Asian Earth Sciences, 2018, 153(2):118-138. DOI URL
[86]	ZHANG C, SANTOSH M, LIU L F, et al. Early Silurian to Early Carboniferous ridge subduction in NW Junggar: evidence from geochronological, geochemical, and Sr-Nd-Hf isotopic data on alkali granites and adakites[J]. Lithos, 2018, 300(13):314-329.
[87]	乔耿彪, 赵寒森, 陈隽璐, 等. 西准噶尔库什库都克石英闪长岩地球化学、年代学及地质意义[J]. 高校地质学报, 2018, 24(2):147-159.
[88]	陈欢欢, 李星, 丁文秀, 等. Surfer8.0等值线绘制中的十二种插值方法[J]. 工程地球物理学报, 2007, 4(1):52-57.
[89]	陈宣华, 陈正乐, 杨农. 区域成矿与矿田构造研究: 构建成矿构造体系[J]. 地质力学学报, 2009, 15(1):1-19.
[90]	DING W C, LI T D, CHEN X H, et al. Intra-continental deformation and tectonic evolution of the West Junggar Orogenic Belt, Central Asia: evidence from remote sensing and structural geological analyses[J]. Geoscience Frontiers, 2020, 11(2):651-663. DOI URL
[91]	韩乐乐, 丁伟翠, 陈宣华, 等. 西准噶尔地区多源遥感信息的线性构造提取与定量分析[J]. 中国地质, 2019, 46(5):1209-1223.
[92]	何国琦, 成守德, 徐新, 等. 中国新疆及邻区大地构造图(1: 2500000;附说明书)[M]. 北京: 地质出版社, 2004: 1-65.
[93]	ZHU Y F, CHEN B, XU X, et al. A new geological map of the West Junggar, north Xinjiang (NW China): implications for Paleoenvironmental reconstruction[J]. Episodes, 2013, 36(3):205-220. DOI URL
[94]	ZHOU T F, YUAN F, FAN Y, et al. Granites in the Sawuer region of the West Junggar, Xinjiang Province, China: geochronological and geochemical characteristics and their geodynamic significance[J]. Lithos, 2008, 106(3):191-206. DOI URL
[95]	张连昌, 万博, 焦学军, 等. 西准包古图含铜斑岩的埃达克岩特征及其地质意义[J]. 中国地质, 2006, 33(3):626-631.
[96]	唐功建, 王强, 赵振华, 等. 西准噶尔包古图成矿斑岩年代学与地球化学: 岩石成因与构造、铜金成矿意义[J]. 地球科学: 中国地质大学学报, 2009, 34(1):56-74.
[97]	申萍, 沈远超, 刘铁兵, 等. 新疆包古图斑岩型铜钼矿床容矿岩石及蚀变特征[J]. 岩石学报, 2009, 25(4):777-792.
[98]	TANG G J, WANG Q, WYMAN D A, et al. Ridge subduction and crustal growth in the Central Asian Orogenic Belt: evidence from Late Carboniferous adakites and high-Mg diorites in the West Junggar region, northern Xinjiang (West China)[J]. Chemical Geology, 2010, 277(3):281-300. DOI URL
[99]	TANG G J, WANG Q, WYMAN D A, et al. Geochronology and geochemistry of Late Paleozoic magmatic rocks in the Lamasu-Dabate area, northwestern Tianshan (west China): evidence for a tectonic transition from arc to post-collisional setting[J]. Lithos, 2010, 119(3/4):393-411. DOI URL
[100]	CHEN F K, HEGNER E, TODT W, et al. Zircon ages, Nd isotopic and chemical compositions of orthogneisses from the Black Forest, Germany: evidence for a Cambrian magmatic arc[J]. International Journal of Earth Sciences, 2000, 88(4):791-802. DOI URL
[101]	CHEN F K, SIEBEL W, SATIR M, et al. Geochronology of the Karadere basement, NW Turkey, and implications for the geological evolution of the Istanbul zone[J]. International Journal of Earth Sciences, 2002, 91(3):469-481. DOI URL
[102]	CHEN F K, LI X H, WANG X L, et al. Zircon age and Nd-Hf isotopic composition of the Yunnan Tethyan belt, southwestern China[J]. International Journal of Earth Sciences, 2007, 96(6):1179-1194. DOI URL
[103]	SUN W D, MCDONOUGH W F. Chemical and isotopic systematics of oceanic basalts: implications for mantle composition and processes[J]. Geological Society London Special Publications, 1989, 42(1):313-345. DOI URL
[104]	孙石达, 陈超, 杜劲松, 等. 准噶尔盆地及邻区地壳磁性特征及其构造意义[J]. 地球科学, 2016, 41(7):1216-1224.
[105]	张婉, 王志博, 刘英会, 等. 航空重磁综合测量在准噶尔油气资源调查中的应用[J]. 中国地质调查, 2016, 3(6):10-16.
[106]	XU Y X, YANG B, ZHANG S, et al. Magnetotelluric imaging of a fossil paleozoic intraoceanic subduction zone in western Junggar, NW China[J]. Journal of Geophysical Research: Solid Earth, 2016, 121(6):4103-4117. DOI URL
[107]	HUANG H, WANG T, ZHANG Z C, et al. Highly differentiated fluorine-rich, alkaline granitic magma linked to rare metal mineralization: a case study from the Boziguo’er rare metal granitic pluton in South Tianshan Terrane, Xinjiang, NW China[J]. Ore Geology Reviews, 2018(96):146-163.
[108]	WANG T, TONG Y, WANG X, et al. Some progress on understanding the Phanerozoicgranitoids in China[J]. China Geology, 2018, 1(1):84-108. DOI URL
[109]	吕斌, 王涛, 童英, 等. 中亚造山带东部岩浆热液矿床时空分布特征及其构造背景[J]. 吉林大学学报(地球科学版), 2017, 47(2):305-343.
[110]	ZHENG J P, SUN M, ZHAO G C, et al. Elemental and Sr-Nd-Pb isotopic geochemistry of Late Paleozoic volcanic rocks beneath the Junggar basin, NW China: implications for the formation and evolution of the basin basement[J]. Journal of Asian Earth Sciences, 2007, 29(5):778-794. DOI URL
