压力对淤泥中C-N-S-Fe-H2O体系的影响

doi:10.13745/j.esf.sf.2021.2.9

摘要/Abstract

摘要：

C、N、S、Fe是地下水中控制氧化-还原反应的主要元素,淤泥是黏土的演化初期,淤泥演化为黏土过程中会影响含水层水量水质,可能会造成地下水污染;其中的水岩相互作用可以概化为C-N-S-Fe-H₂O体系的相互作用。淤泥演化过程的实质是淤泥在压力的作用下孔隙度不断变小,逐渐固结成岩;淤泥内部不断发生生物地球化学反应,C-N-S-Fe-H₂O体系驱动各种物质的形态结构不断发生改变,其中加压速率和加压模式会影响淤泥里的C、N、S、Fe重要组分固液相的转化。本研究运用自主研发设计的增压装置,探究在3种加压速率(0.04 MPa/12 h、0.04 MPa/24 h、0.04 MPa/36 h)和加压模式(0.040.02 MPa/12 h、0.04 MPa/12 h、0.040.06 MPa/12 h)的情况下,固体介质中C、N、S、Fe向孔隙水释放的规律。结果表明:(1)匀速加压速率越慢,加压初期溶解性有机碳(DOC)、 $SO 4 2 -$ 释放速率越快, $NO 3 -$ 和Fe²⁺浓度变化增大;DOC、 $SO 4 2 -$ 、 $NO 3 -$ 、Fe²⁺释放总量越多。(2)不同的加压模式,加速加压(0.040.06 MPa/12 h)下 $NO 3 -$ 、Fe²⁺的浓度波动较大;DOC、 $NO 3 -$ 、 $SO 4 2 -$ 和Fe²⁺的总释放量为加速加压(0.040.06 MPa/12 h)大于匀速加压(0.04 MPa/12 h)。(3)加压过程中,DOC和 $SO 4 2 -$ 呈显著正相关,改变加压速率会改变DOC, $NO 3 -$ 、 $SO 4 2 -$ 和Fe²⁺的相关性。本研究表明改变加压速率和加压模式会对DOC、 $NO 3 -$ 、 $SO 4 2 -$ 和Fe²⁺的释放速率、释放总量和C、N、S、Fe的转化造成影响,其本质为氧化-还原反应和水岩相互作用的强弱发生了变化;本研究为地质演化过程中压力导致的主要元素变化提供了新的认识,认识到了隔水层会影响含水层的水质和水量,为原生劣质地下水的成因和地下水污染防治提供了新思路。

关键词: 压力, 加压速率, 加压模式, 淤泥, C-N-S-Fe-H₂O, 孔隙水

Abstract:

Carbon, N, S and Fe are the main elements controlling the redox reactions in groundwater. Silt is the initial form of clay, and its transformation into clay can affect the quantity and quality of groundwater aquifers. Groundwater pollution may happen during the transformation process, where the water-rock interaction can be generalized as the C-N-S-Fe-H₂O interaction system. The essence of silt evolution is porosity reduction under pressure and gradual consolidation into rocks. Biogeochemical reactions take place in silt while the C-N-S-Fe-H₂O interaction system drives constant changes in the substance forms. Pressurization rates and modes can affect the transformation of important components, such as C, N, S and Fe, between solid and liquid phase in silt. This experiment studies the release of C, N, S and Fe to pore water under three pressurization rates (0.04 MPa per 12 h, 24 h, 36 h) and three pressurization modes (decelerating, from 0.04 to 0.02 MPa/12 h; uniform, 0.04 MPa/12 h; accelerating, from 0.04 to 0.06 MPa/12 h), using self-developed pressurization device. The results show: (1) Slower uniform pressurization rate corresponds to faster DOC, $SO 4 2 -$ release rate, more $NO 3 -$ , Fe²⁺concentration change, and more DOC, $SO 4 2 -$ , $NO 3 -$ , Fe²⁺release. (2) $NO 3 -$ , Fe²⁺ concentration fluctuation increases under accelerating pressurization, and the total DOC, $SO 4 2 -$ , $NO 3 -$ , Fe²⁺ release is greater during accelerating pressurization versus uniform pressurization. (3) During pressurization, DOC and $SO 4 2 -$ concentrations are positively correlated, and pressurization rate change can change the DOC, $NO 3 -$ , $SO 4 2 -$ , Fe²⁺ correlations. It shows that changing the pressurization rates and modes can affect DOC, $SO 4 2 -$ , $NO 3 -$ , Fe²⁺ release rate/quantity as well as C, N, S, Fe transformation, that is, essentially changing the magnitudes of redox reaction and water-rock interaction. This experiment provides a new understanding of the main elemental changes caused by pressure in the process of geological evolution, and demonstrates the aquitards can affect water quality/quantity in aquifer. This study provides new insights into the cause of naturally inferior groundwater and prevention of groundwater pollution.

Key words: pressure, pressurization rate, pressurization mode, silt, C-N-S-Fe-H₂O, pore water

中图分类号:

X523

彭子琪, 马腾, 刘妍君, 陈娟, 邱文凯, 刘锐. 压力对淤泥中C-N-S-Fe-H₂O体系的影响[J]. 地学前缘, 2021, 28(5): 79-89.

PENG Ziqi, MA Teng, LIU Yanjun, CHEN Juan, QIU Wenkai, LIU Rui. Effect of pressure on C-N-S-Fe-H2O system in sil[J]. Earth Science Frontiers, 2021, 28(5): 79-89.

图/表 19

图1 加压过程中出水量的变化情况

Fig.1 Change of water quantity during pressurization

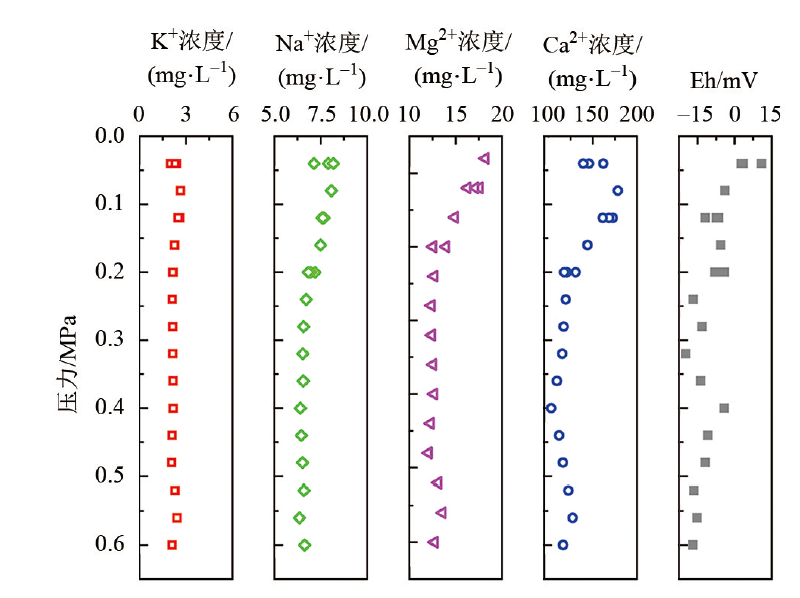

图2 0.04 MPa/12 h加压模式下孔隙水中K+、Ca2+、Na2+和Mg2+浓度与Eh变化情况

Fig.2 Change of K+, Ca2+, Na2+, Mg2+ concentration and Eh in pore water under 0.04 MPa/12 h pressurization

图3 不同加压速率下孔隙水中DOC浓度变化

Fig.3 Change of DOC concentration in pore water under different pressurization rates

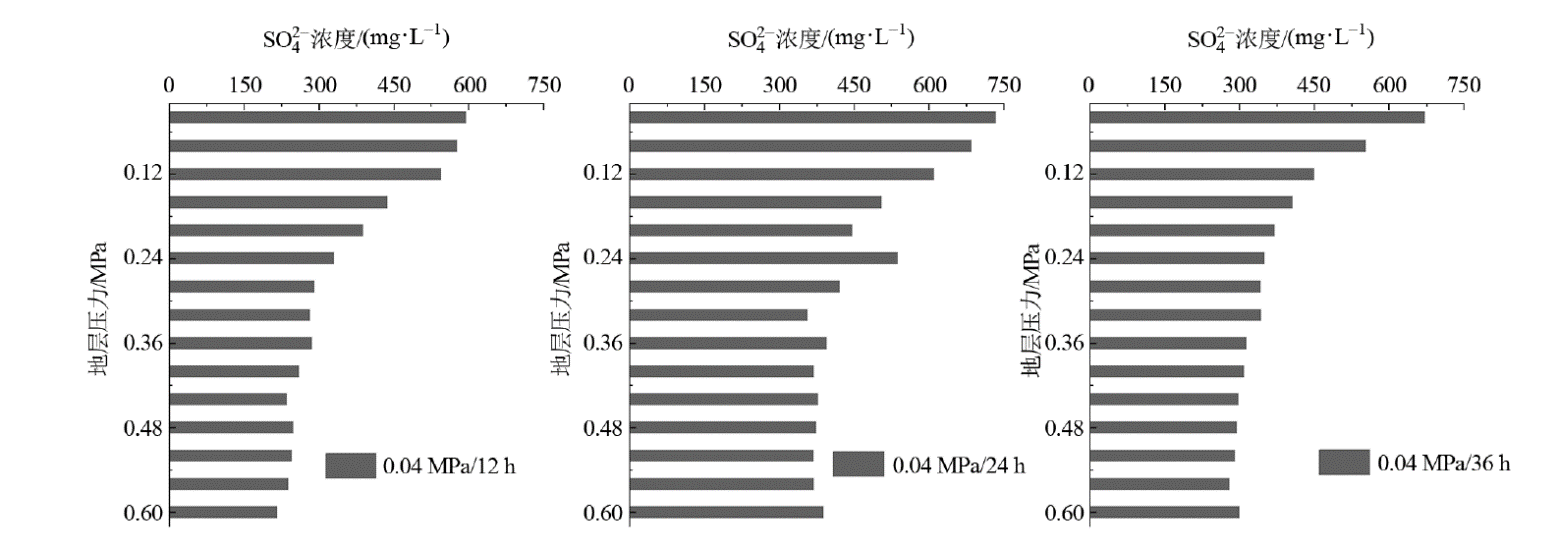

图4 不同加压速率下孔隙水中 SO 4 2 -浓度变化

Fig.4 Change of SO 4 2 - concentration in pore water under different pressurization rates

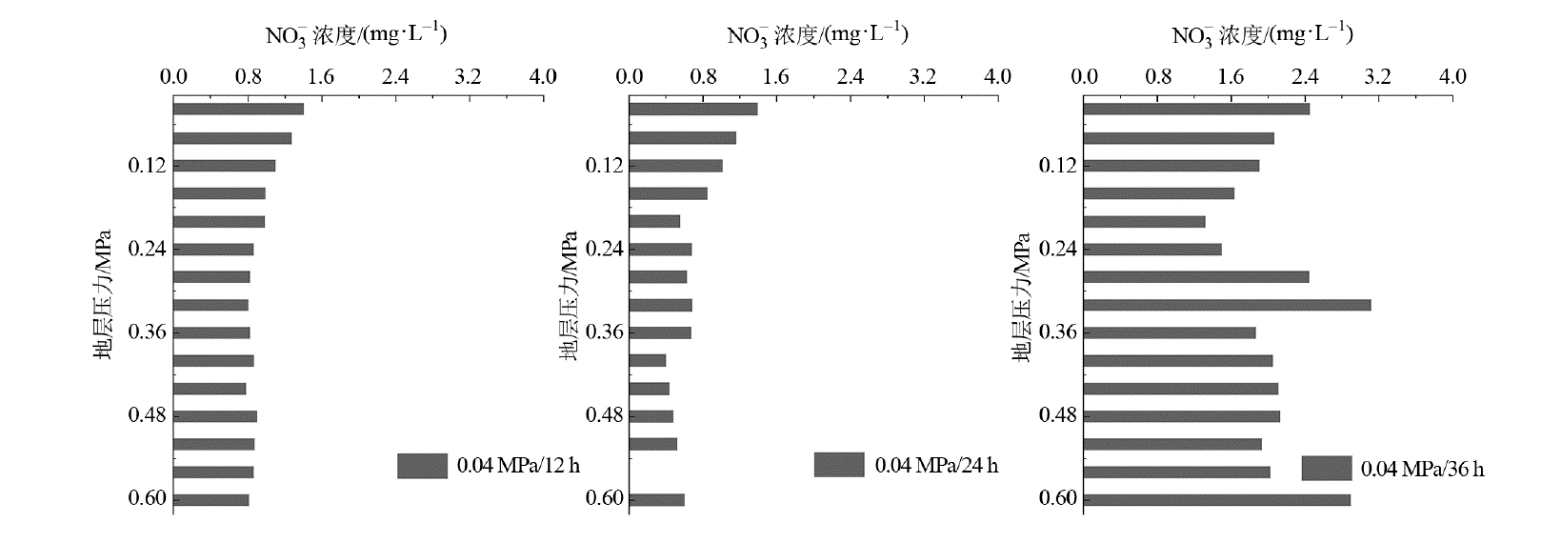

图5 不同加压速率下孔隙水中 NO 3 -浓度变化

Fig.5 Change of NO 3 - concentration in pore water under different pressurization rates

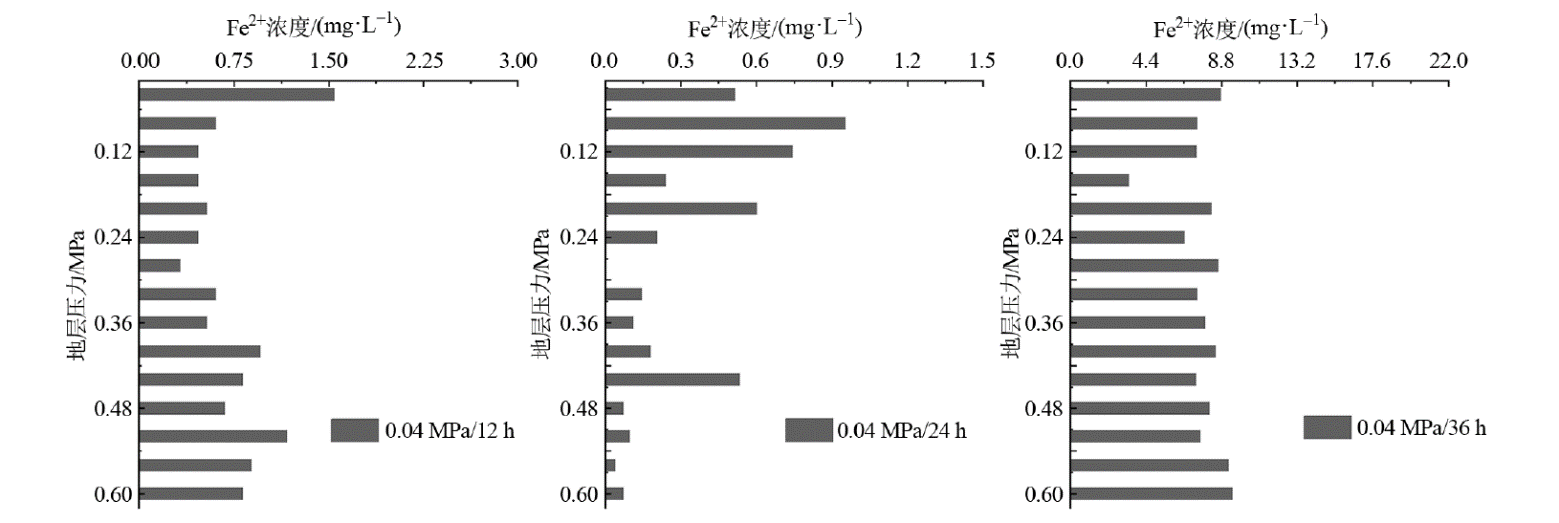

图6 不同加压速率下孔隙水中Fe2+浓度变化

Fig.6 Change of Fe2+ concentration in pore water under different pressurization rates

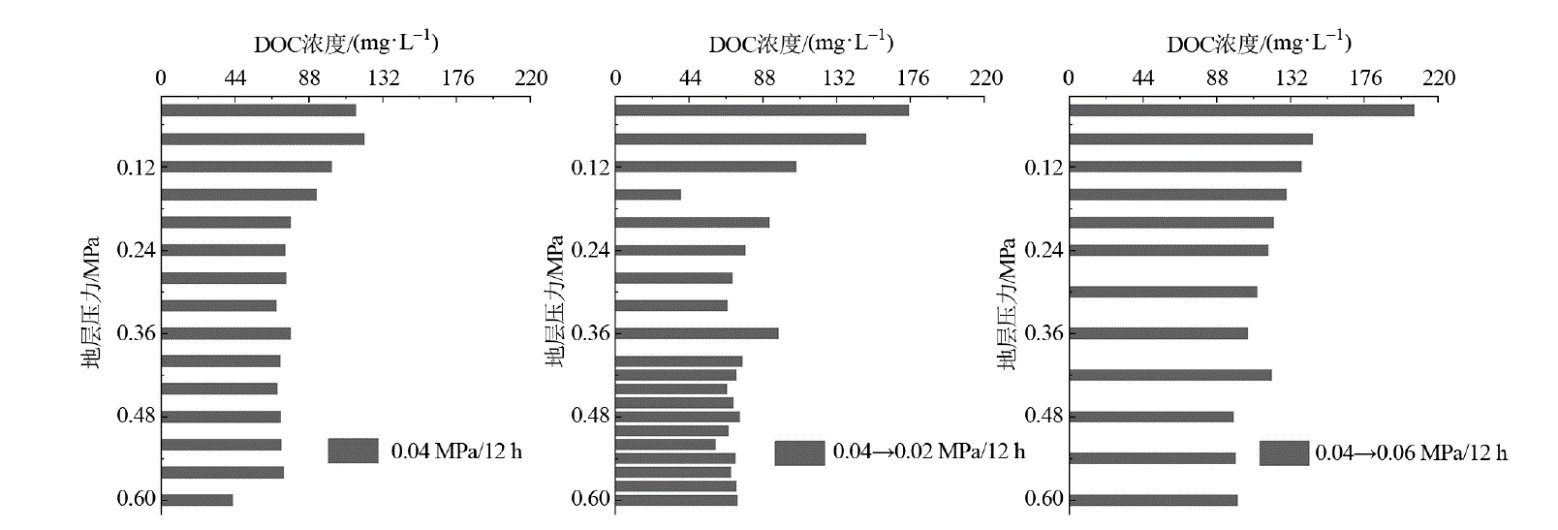

图7 不同加压模式下孔隙水中DOC浓度变化

Fig.7 Change of DOC concentration in pore water under different pressurization modes

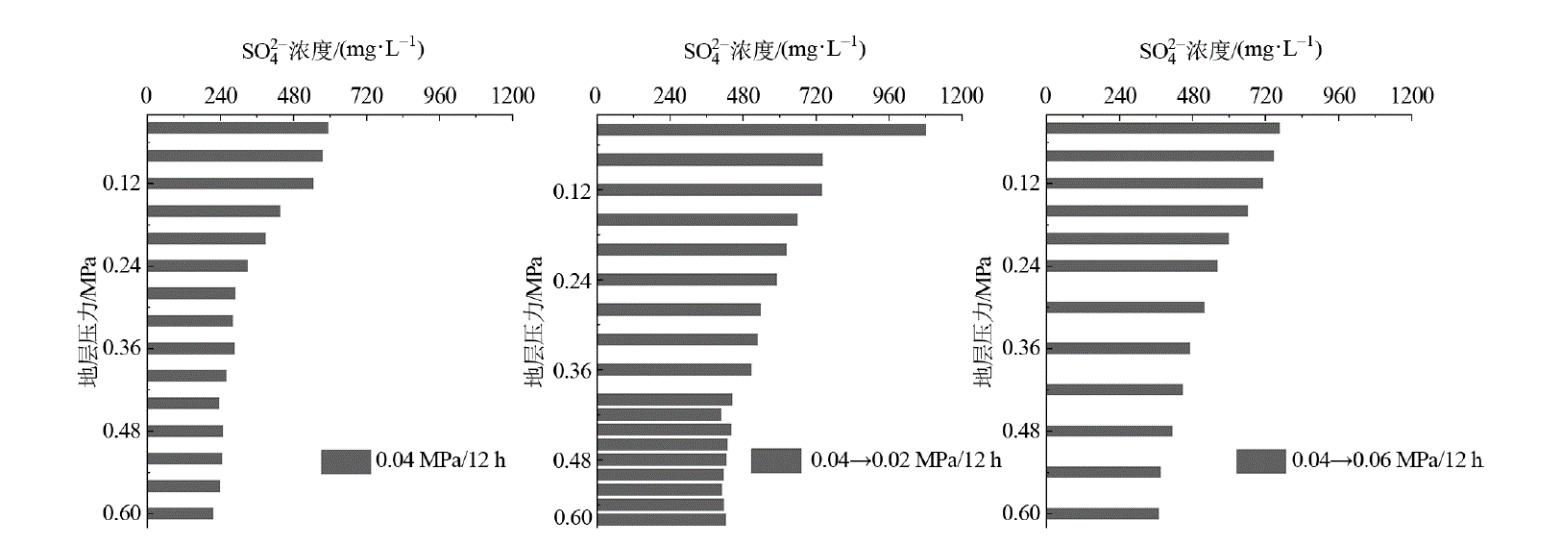

图8 不同加压模式下孔隙水中 SO 4 2 -浓度变化

Fig.8 Change of SO 4 2 - concentration in pore water under different pressurization modes

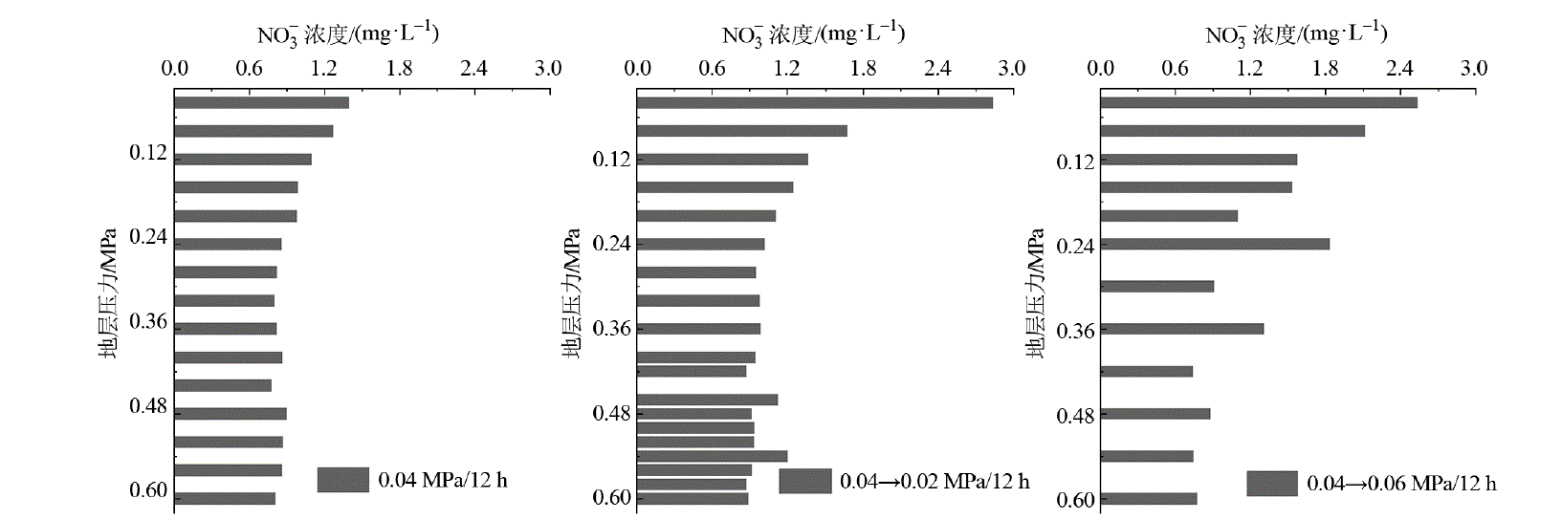

图9 不同加压模式下孔隙水中 NO 3 -浓度变化

Fig.9 Change of NO 3 - concentration in pore water under different pressurization modes

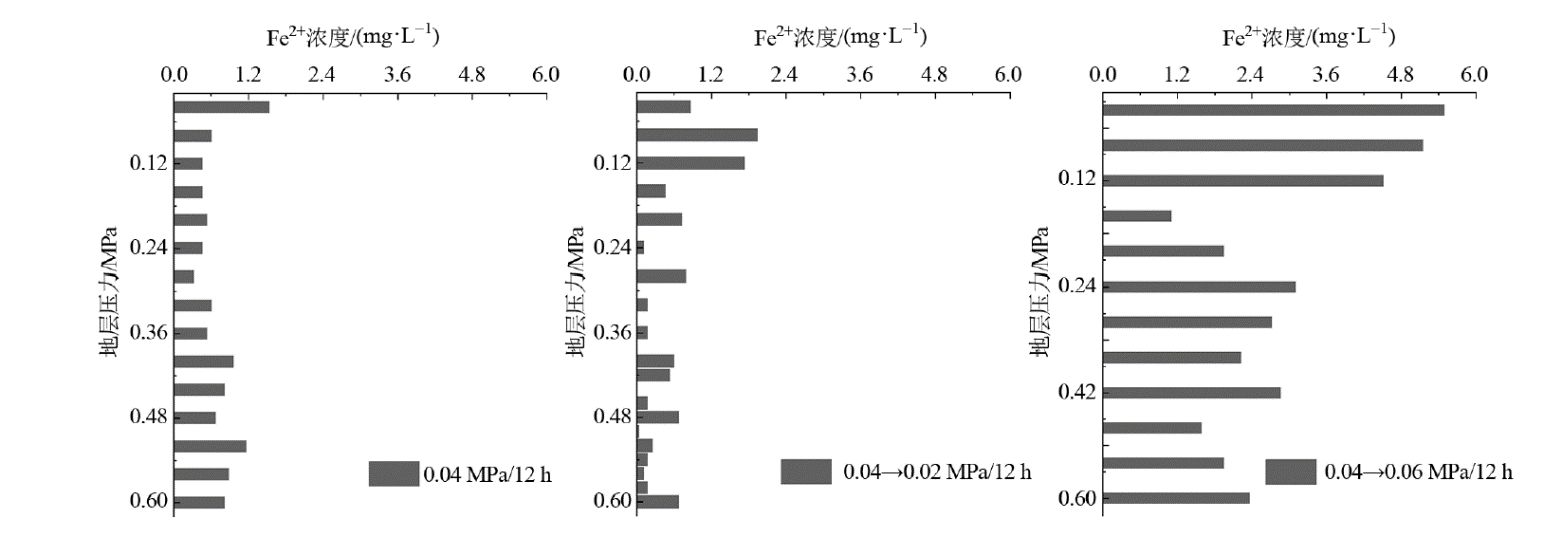

图10 不同加压模式下孔隙水中Fe2+浓度

Fig.10 Change of Fe2+ concentration in pore water under different pressurization modes

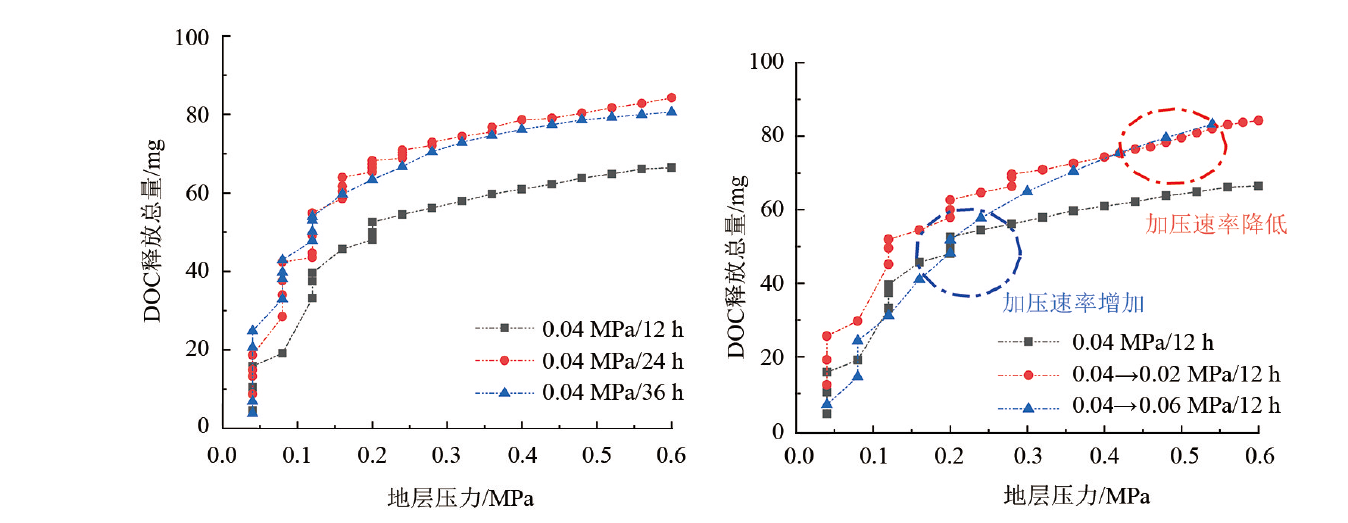

图11 不同加压速率和加压模式下DOC释放总量

Fig.11 Total DOC under different pressurization rates and modes

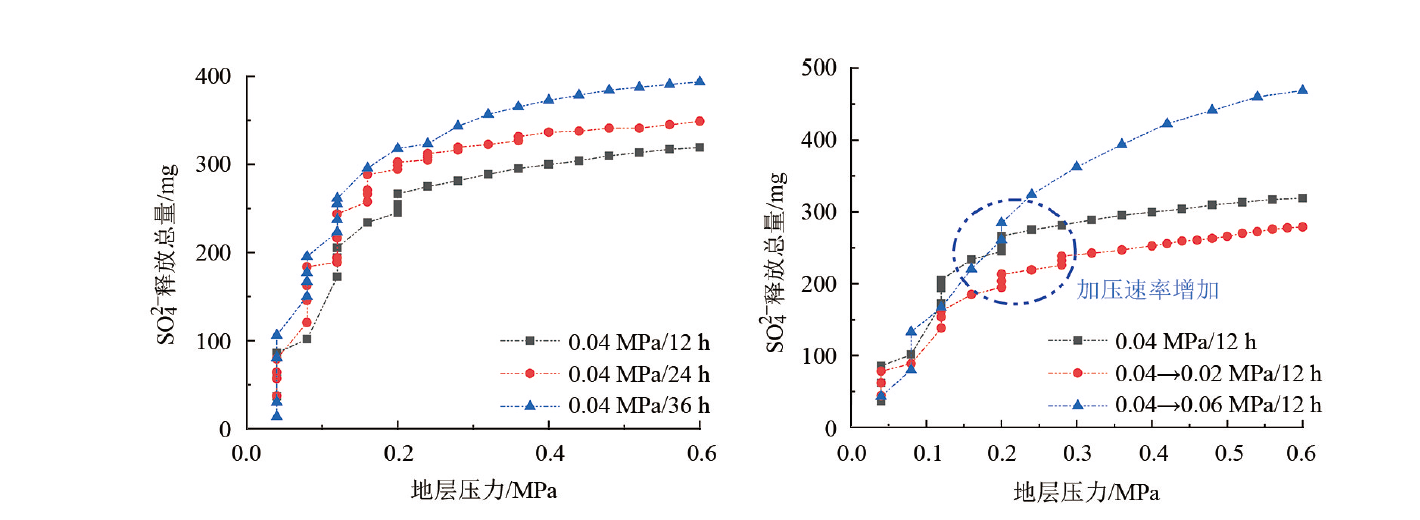

图12 不同加压速率和加压模式下 SO 4 2 -释放总量

Fig.12 Total SO 4 2 -under different pressurization rates and modes

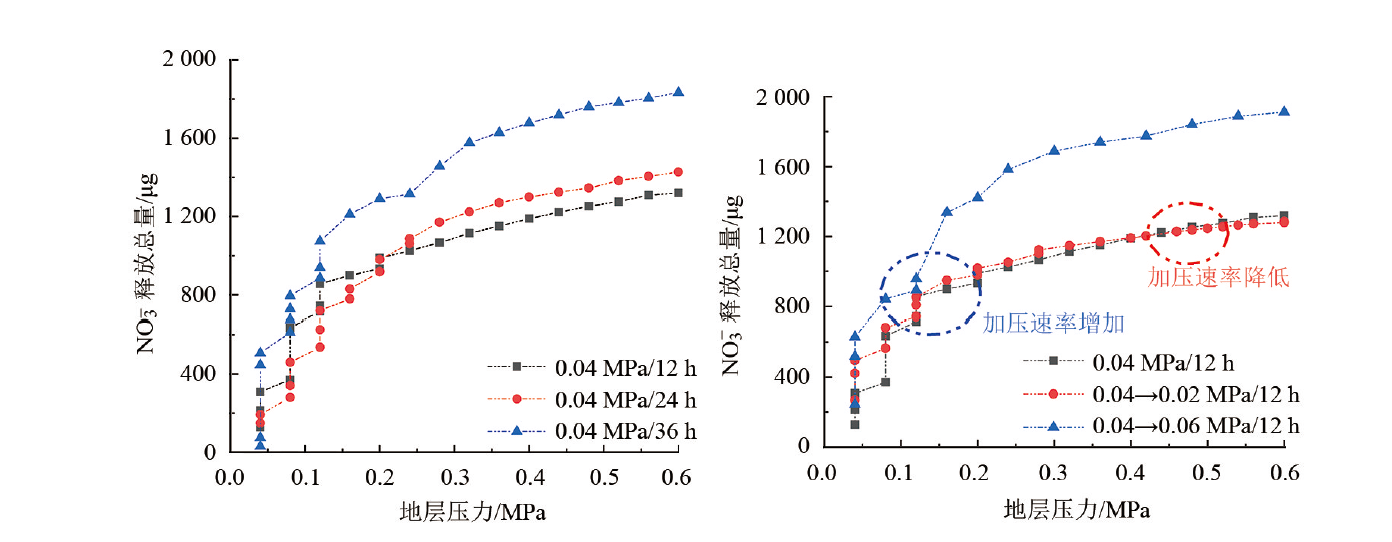

图13 不同加压速率和加压模式下 NO 3 -释放总量

Fig.13 Total NO 3 - under different pressurization rates and modes

图14 不同加压速率和加压模式下Fe2+释放总量

Fig.14 Total Fe2+ under different pressurization rates and modes

表1 0.04 MPa/12 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 1 DOC, NO 3 -, S O 4 2 -, Fe2+ correlations under 0.04 MPa/12 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.596	0.975^**	0.184
$NO 3 -$	0.596	1	0.988^*	0.387^**
$SO 4 2 -$	0.975^**	0.988^*	1	0.806
Fe²⁺	0.184	0.387^**	0.806	1

表1 0.04 MPa/12 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 1 DOC, NO 3 -, S O 4 2 -, Fe2+ correlations under 0.04 MPa/12 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.596	0.975^**	0.184
$NO 3 -$	0.596	1	0.988^*	0.387^**
$SO 4 2 -$	0.975^**	0.988^*	1	0.806
Fe²⁺	0.184	0.387^**	0.806	1

表2 0.04 MPa/24 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 2 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04 MPa/24 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.489^**	0.869^**	0.573^**
$NO 3 -$	0.489^**	1	0.861^**	0.198
$SO 4 2 -$	0.869^**	0.861^**	1	0.589^**
Fe²⁺	0.573^**	0.198	0.589^**	1

表2 0.04 MPa/24 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 2 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04 MPa/24 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.489^**	0.869^**	0.573^**
$NO 3 -$	0.489^**	1	0.861^**	0.198
$SO 4 2 -$	0.869^**	0.861^**	1	0.589^**
Fe²⁺	0.573^**	0.198	0.589^**	1

表3 0.04 MPa/36 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 3 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04 MPa/36 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.269	0.635^**	0.049
$NO 3 -$	0.269	1	0.041	0.376
$SO 4 2 -$	0.635^**	0.041	1	0.085
Fe²⁺	0.049	0.376	0.085	1

表3 0.04 MPa/36 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 3 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04 MPa/36 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.269	0.635^**	0.049
$NO 3 -$	0.269	1	0.041	0.376
$SO 4 2 -$	0.635^**	0.041	1	0.085
Fe²⁺	0.049	0.376	0.085	1

表4 0.040.06 MPa/12 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 4 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04-0.06 MPa/12 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.206	0.906^**	0.595*
$NO 3 -$	0.206	1	0.241	0.604^*
$SO 4 2 -$	0.906^**	0.241	1	0.783^**
Fe²⁺	0.595^*	0.604^*	0.783^**	1

表4 0.040.06 MPa/12 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 4 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04-0.06 MPa/12 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.206	0.906^**	0.595*
$NO 3 -$	0.206	1	0.241	0.604^*
$SO 4 2 -$	0.906^**	0.241	1	0.783^**
Fe²⁺	0.595^*	0.604^*	0.783^**	1

表5 0.040.02 MPa/12 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 5 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04-0.02 MPa/12 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.817^**	0.804^**	0.517^**
$NO 3 -$	0.817^**	1	0.808^**	0.324
$SO 4 2 -$	0.804^**	0.808^**	1	0.364
Fe²⁺	0.517^**	0.324	0.364	1

表5 0.040.02 MPa/12 h加压条件下DOC、 NO 3 -、S O 4 2 -、Fe2+之间的相关性

Table 5 DOC, NO 3 -, S O 4 2 -, Fe2+correlations under 0.04-0.02 MPa/12 h pressurization

指标	各指标间相关系数
指标	DOC	$NO 3 -$	$SO 4 2 -$	Fe²⁺
DOC	1	0.817^**	0.804^**	0.517^**
$NO 3 -$	0.817^**	1	0.808^**	0.324
$SO 4 2 -$	0.804^**	0.808^**	1	0.364
Fe²⁺	0.517^**	0.324	0.364	1

参考文献 31

[1]	HUNTER K S, WANG Y F, VAN CAPPELLEN P V . Kinetic modeling of microbially-driven redox chemistry of subsurface environments: coupling transport, microbial metabolism and geochemistry[J]. Journal of Hydrology, 1998, 209(1/2/3/4):53-80. DOI URL
[2]	MYERS C R, NEALSON K H. Microbial reduction of manganese oxides: interactions with iron and sulfur[J]. Geochimica et Cosmochimica Acta, 1988, 52(11):2727-2732. DOI URL
[3]	罗莎莎, 万国江. 云贵高原湖泊沉积物: 水界面铁、锰、硫体系的研究进展[J]. 地质地球化学, 1999, 27(3):47-52.
[4]	朱茂旭, 史晓宁, 杨桂朋, 等. 海洋沉积物中有机质早期成岩矿化路径及其相对贡献[J]. 地球科学进展, 2011, 26(4):355-364.
[5]	邓通初. 黑臭河涌沉积物中硝酸盐还原硫氧化微生物氮硫共去除特性[D]. 南昌: 江西农业大学, 2015.
[6]	李学刚, 宋金明. 海洋沉积物中碳的来源、迁移和转化[G]//海洋科学集刊. 北京: 科学出版社, 2004: 106-117.
[7]	何永胜, 胡东平, 朱传卫. 地球科学中铁同位素研究进展[J]. 地学前缘, 2015, 22(5):54-71.
[8]	HUERTA-DIAZ M A, MORSE J W. A quantitative method for determination of trace metal concentrations in sedimentary pyrite[J]. Marine Chemistry, 1990, 29(2/3):119-144. DOI URL
[9]	MORSE J W, LUTHER G W III . Chemical influences on trace metal-sulfide interactions in anoxic sediments[J]. Geochimica et Cosmochimica Acta, 1999, 63(19/20):3373-3378. DOI URL
[10]	赵由之. 高原湖泊沉积物中硫形态分布与微生物地球化学行为[D]. 贵阳: 中国科学院地球化学研究所, 2006.
[11]	吴丰昌. 云贵高原湖泊沉积物和水体氮、磷和硫的生物地球化学作用和生态环境效应(摘要)[J]. 地质地球化学, 1996, 24(6):88-89.
[12]	邓峰煜. 长江口硝酸盐异化还原过程及其影响因素研究[D]. 上海: 华东师范大学, 2016.
[13]	BERG P, RISGAARD-PETERSEN N, RYSGAARD S. Interpretation of measured concentration profiles in sediment pore water[J]. Limnology and Oceanography, 1998, 43(7):1500-1510. DOI URL
[14]	周志芳, 徐海洋. 一种实验确定弱透水层水文地质参数的原理与方法[J]. 水文地质工程地质, 2014, 41(5):1-4.
[15]	WANG Y X, MA T, RYZHENKO B N, et al. Model for the formation of arsenic contamination in groundwater.1. Datong Basin, China[J]. Geochemistry International, 2009, 47(7):713-724. DOI URL
[16]	WANG Y, JIAO J J, CHERRY J A, et al. Contribution of the aquitard to the regional groundwater hydrochemistry of the underlying confined aquifer in the Pearl River Delta, China[J]. Science of the Total Environment, 2013, 461/462:663-671.
[17]	LIU Y J, MA T, CHEN J, et al. Contribution of clay-aquitard to aquifer iron concentrations and water quality[J]. Science of the Total Environment, 2020, 741:140061.
[18]	POLIZZOTTO M L, KOCAR B D, BENNER S G, et al. Near-surface wetland sediments as a source of arsenic release to ground water in Asia[J]. Nature, 2008, 454(7203):505-508. DOI URL
[19]	MIHAJLOV I, MOZUMDER M R, BOSTICK B C, et al. Arsenic contamination of Bangladesh aquifers exacerbated by clay layers[J]. Nature Communications, 2020, 11(1):2244. DOI URL
[20]	SMITH R, KNIGHT R, FENDORF S. Over pumping leads to California groundwater arsenic threat[J]. Nature Communications, 2018, 9:2089. DOI URL
[21]	MAZUREK M, OYAMA T, WERSIN P, et al. Pore-water squeezing from indurated shales[J]. Chemical Geology, 2015, 400:106-121. DOI URL
[22]	OKIONGBO K S, AKPOFURE E. Hydrogeophysical characterization of shallow unconsolidated alluvial aquifer in yenagoa and environs, southern Nigeria[J]. Arabian Journal for Science and Engineering, 2016, 41(6):2261-2270. DOI URL
[23]	MAZUREK M, ALT-EPPING P, BATH A, et al. Natural tracer profiles across argillaceous formations[J]. Applied Geochemistry, 2011, 26(7):1035-1064. DOI URL
[24]	HENDRY M J, WASSENAAR L I. Transport and geochemical controls on the distribution of solutes and stable isotopes in a thick clay-rich till aquitard, Canada[J]. Isotopes in Environmental and Health Studies, 2004, 40(1):3-19. DOI URL
[25]	SCHAEFER M V, GUO X X, GAN Y Q, et al. Redox controls on arsenic enrichment and release from aquifer sediments in central Yangtze River Basin[J]. Geochimica et Cosmochimica Acta, 2017, 204:104-119. DOI URL
[26]	ERBAN L E, GORELICK S M, ZEBKER H A, et al. Release of arsenic to deep groundwater in the Mekong Delta, Vietnam, linked to pumping-induced land subsidence[J]. Proceedings of the National Academy of Sciences of the United States of America, 2013, 110(34):13751-13756.
[27]	THAMDRUP B. Bacterial manganese and iron reduction in aquatic sediments[J]. Advances in Microbial Ecology, 2000, 16:41-84.
[28]	HENDRY M J, SCHWARTZ F W. An alternative view on the origin of chemical and isotopic patterns in groundwater from the Milk River Aquifer, Canada[J]. Water Resources Research, 1988, 24(10):1747-1763. DOI URL
[29]	LIU Y J, MA T, DU Y. Compaction of muddy sediment and its significance to groundwater chemistry[J]. Procedia Earth and Planetary Science, 2017, 17:392-395. DOI URL
[30]	陈娟, 马腾, 刘妍君, 等. 不同压力条件下淤泥中铵氮的释放特性[J]. 安全与环境工程, 2020, 27(4):110-120.
[31]	周俊丽. 长江口湿地生态系统中有机质的生物地球化学过程研究: 以崇明东滩为例[D]. 上海: 华东师范大学, 2005.
