Formation and evolution of the Yunkai low uplift in the Pearl River Mouth Basin and its structural partition effects

doi:10.13745/j.esf.sf.2024.5.26

Abstract

Abstract:

The Yunkai low uplift is located between two hydrocarbon-rich depressions, with good prospects for oil and gas exploration. It plays a critical role in understanding the differential evolution of the eastern and western Pearl River Mouth Basin. Based on 3D seismic data in the depth domain, this paper focused on the geological structures, fault characteristics and tectonic evolution process of the Yunkai low uplift by combining the characteristics of the growth strata, the results of tectonic evolution profiles and simulations of the subsidence history, as well as analysing the dynamic environment of the tectonic evolution and tectonic zoning role of low uplift. The Yunkai low uplift can be divided into three sections from north to south, with different structural patterns in each section, and the contacts between different sections and between them and depressions are mostly faults. The results of the growth strata characteristics analysis and the simulation of the uplift-descent response features of the low uplift and the depressions on both sides reveal that there are spatial and temporal variations in the uplift rate at different sections of the Yunkai low uplift. The geometric and kinematic characteristics of the faults in the Cenozoic rifting and post-rifting stages are different, and the fault strikes undergo clockwise rotation from early to late. Two-stage late Mesozoic fault systems with extrusion or compression-torsion properties can be identified within the basement and have significantly constrained the Cenozoic faults. Overall, the low uplift experienced two stages of extrusion deformation in the Late Jurassic-Early Cretaceous NW and early-middle Late Cretaceous near-SN directions during the late Mesozoic. It experienced three major formation stages in the Cenozoic: a rapid uplift stage during the Eocene, a slow uplift stage during the Late Eocene-Early Miocene, and a whole sedimentation-subsidence and deep burial stage from the Miocene to the present. Comprehensive analyses suggest that the Yunkai Low uplift, as a tectonic transition zone between the depressions on both sides, is deeply and shallowly superimposed on the southern section of the NW-trending Yangjiang-Yitong Ansha fault zone, which regulates the differential structural deformation of the depressions and the differential evolution of the basin. The NW-trending structural transition zone in which the Yunkai low uplift is situated has a significant deep dynamic setting, and this property results in the partitioning of the dominant Cenozoic NE-trending structures in the basin.

Key words: structural characteristics, formation and evolution, structural partition, Yunkai low uplift, Pearl River Mouth Basin

CLC Number:

P548

QIN Yang, LIU Chiyang, PENG Guangrong, HUANG Lei, LI Hongbo, LIANG Chao, WU Zhe, YANG Lihua. Formation and evolution of the Yunkai low uplift in the Pearl River Mouth Basin and its structural partition effects[J]. Earth Science Frontiers, 2025, 32(4): 422-443.

Figures/Tables 16

Fig. 1 Regional geological background and distribution of typical artificial wells in the Yunkai low uplift and adjacent areas of the Pearl River Mouth Basin. b modified after [27].

Fig.2 Tectonic stratigraphic divisions and the integrated Cenozoic stratigraphic histogram of the Pearl River Mouth Basin. Modified after [12,34,48,52].

Fig.3 Topography of the Yunkai low uplift and the surrounding Tg interface (a) and the structure of the Tg (b) and T50 (c) interfaces

Table 1 A comparison of the associated structural features in different sections of the Yunkai low uplift

对比项目		北段	中段	南段
地层结构构造	基底埋深	低(5 000~7 000 m)	较高(2 500~4 600 m)	高(1 750~4 200 m)
	地层分布	地层沉积序列相对完整 (缺失文6-5段)、地层厚度大	沉积序列部分缺失 (文6-4段、上文昌组大部)、地层厚度较小	沉积序列不完整(文昌组缺失严重)、地层厚度小
	构造形态	断凸结构构造	宽缓背斜构造	大型断阶构造
	生长地层	削截、上超、披覆; 上超期次少、披覆厚度大	上超、披覆;上超期次较多、披覆厚度较小	上超、披覆;上超期次多、披覆厚度小
	与两侧洼陷接触关系	断裂接触 (断裂、断裂-斜坡)	断裂接触关系不明显 (斜坡、断阶)	断裂接触 (大型断裂)
新生代断裂	走向	NW-NNW	NW-NWW、NEE	NW-NWW、NEE
	延伸长度	较小	小	较大
	密度	小	较小	较大
	活动性	较弱	弱	强
晚中生代断裂	走向	NW-NWW	NW-NWW、NEE	NW-NWW、NEE
	延伸长度	较小	小	较大
	密度	小	较小	较大

Fig.4 Seismic profiles A-A' in the NW direction and B-B'in the near SN direction at different sections of the Yunkai low uplift (see Fig.1c for the location of the profiles)

Fig.5 Relationship between different sections of the Yunkai low uplift and the depressions on either side of the stratigraphic contacts (see Fig.1c for location of profiles;legend as in Fig.4a)

Fig.6 Outline diagrams of Cenozoic faults of different structural layers in the study area (a-f) and the fault strikes of different tectonic units (g-i)

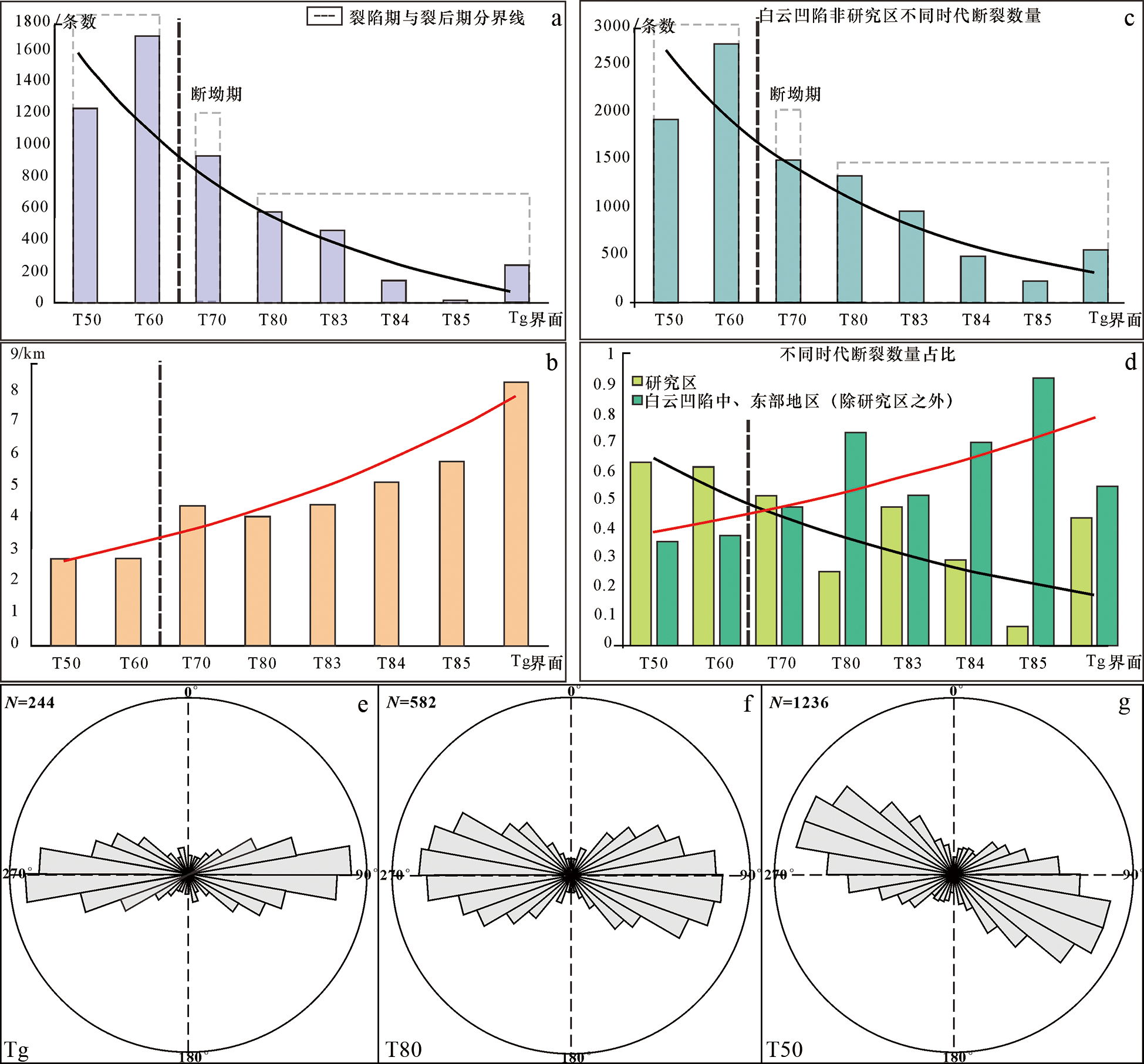

Fig.7 Density of fault development at different structural layers (a), length of extension (b), density of faults in the non-study area (c), percentage of fault development at different structural layers (d), and strike of faults (e-g) at the Yunkai low uplift and its surroundings (for location of faults,see Fig.1c)

Fig.8 Diagrams of paleo-vertical fault throws (a-d, f) and activity rates (e) statistics for basement faults (see Fig.1c for location of faults and line numbers)

Fig.9 Diagram of Late Mesozoic basement pre-existing structures (a), the spatial relationship between the extension directions in different tectonic stages (b) and the direction analysis of the stress field (c) in the study area

Fig.10 Late Mesozoic fault profiles characteristic of the Yunkai low uplift and the surroundings (see Fig.9a for the location of the profiles)

Fig.11 Diagram of subsidence characteristics of the Yunkai low uplift and surrounding sags (a-h) (see Fig.1c for specifics of well locations)

Fig.12 Diagram of the relative uplift rates of the different sections of the Yunkai low uplift

Fig.13 Diagram of the Cenozoic tectonic evolution of the Yunkai low uplift and its surrounding different sections (see Fig.1c for locations of original sections)

Fig.14 Diagram of the Late Mesozoic-Cenozoic tectonic evolutionary pattern of the Yunkai low uplift and its periphery. Sedimentary facies modified after [70].

Fig.15 Contour map of polar magnetic anomalies, Moho surface depth and geothermal heat flow in the study area and its neighboring areas. a-b modified after [20,21,47].

References 71

[1]	SUN W D. Initiation and evolution of the South China Sea: an overview[J]. Acta Geochimica, 2016, 35(3): 215-225.
[2]	YE Q, MEI L F, SHI H S, et al. The influence of pre-existing basement faults on the Cenozoic structure and evolution of the proximal domain, northern South China Sea riftedmargin[J]. Tectonics, 2020, 39(3): e2019TC005845.
[3]	MU D L, PENG G R, ZHU D W, et al. Structure and formation mechanism of the Pearl River mouth basin: insights from multi-phase strike-slip motions in the Yangjiang Sag, SE China[J]. Journal of Asian Earth Sciences, 2022, 226: 105081.
[4]	庞雄, 陈长民, 朱明, 等. 南海北部陆坡白云深水区油气成藏条件探讨[J]. 中国海上油气, 2006, 18(3): 145-149.
[5]	朱俊章, 施和生, 庞雄, 等. 利用流体包裹体方法分析白云凹陷LW3-1-1井油气充注期次和时间[J]. 中国石油勘探, 2010, 15(1): 52-56, 1-2.
[6]	XIE H W, ZHOU D, LI Y P, et al. Cenozoic tectonic subsidence in deepwater sags in the Pearl River Mouth Basin, northern South China Sea[J]. Tectonophysics, 2009, 615: 182-198.
[7]	朱伟林, 吴景富, 张功成, 等. 中国近海新生代盆地构造差异性演化及油气勘探方向[J]. 地学前缘, 2015, 22(1): 88-101. DOI
[8]	BRIAIS A, PATRIAT P, TAPPONNIER P. Updated interpretation of magnetic anomalies and seafloor spreading stages in the South China Sea: implications for the Tertiary tectonics of Southeast Asia[J]. Journal of Geophysical Research: Solid Earth, 1993, 98(B4): 6299-6328.
[9]	NORTHRUP C J, ROYDEN L H, BURCHFIEL B C. Motion of the Pacific plate relative to Eurasia and its potential relation to Cenozoic extension along the eastern margin of Eurasia[J]. Geology, 1995, 23(8): 719-722.
[10]	TSAI C H, HSU S K, YEH Y C, et al. Crustal thinning of the northern continental margin of the South China Sea[J]. Marine Geophysical Researches, 2004, 25(1): 63-78.
[11]	ZHOU D, WANG W Y, WANG J L, et al. Mesozoic subduction-accretion zone in northeastern South China Sea inferred from geophysical interpretations[J]. Science in China Series D, 2006, 49(5): 471-482.
[12]	XIE H, ZHOU D, SHI H C, et al. Lithospheric stretching-style variations and anomalous post-rift subsidence in the deep water sub-basins of the Pearl River Mouth Basin, northern South China Sea[J]. Marine and Petroleum Geology, 2021, 131: 105140.
[13]	FRANKE D, SAVVA D, PUBELLIER M, et al. The final rifting evolution in the South China Sea[J]. Marine and Petroleum Geology, 2014, 58: 704-720.
[14]	BAI Y L, WU S G, LIU Z, et al. Full-fit reconstruction of the South China Sea conjugate margins[J]. Tectonophysics, 2015, 661: 121-135.
[15]	SUN Q L, ALVES T, XIE X N, et al. Free gas accumulations in basal shear zones of mass-transport deposits (Pearl River Mouth Basin, South China Sea): an important geohazard on continental slope basins[J]. Marine and Petroleum Geology, 2017, 81: 17-32.
[16]	NANNI U, PUBELLIER M, CHAN L S, et al. Rifting and reactivation of a Cretaceous structural belt at the northern margin of the South China Sea[J]. Journal of Asian Earth Sciences, 2017, 136: 110-123.
[17]	HUANG K, ZHONG G F, HE M, et al. Growth and linkage of a complex oblique-slip fault zone in the Pearl River Mouth Basin, northern South China Sea[J]. Journal of Structural Geology, 2018, 117: 27-43.
[18]	YE Q, MEI L F, SHI H S, et al. The Late Cretaceous tectonic evolution of the South China Sea area: an overview, and new perspectives from 3D seismic reflection data[J]. Earth-Science Reviews, 2018, 187: 186-204.
[19]	YE Q, MEI L F, SHI H S, et al. A low-angle normal fault and basement structures within the Enping Sag, Pearl River Mouth Basin: insights into late Mesozoic to early Cenozoic tectonic evolution of the South China Sea area[J]. Tectonophysics, 2018, 731: 1-16.
[20]	LI Y H, ZHU R W, LIU H L, et al. The Cenozoic activities of Yangjiang-yitongdong fault: insights from analysis of the tectonic characteristics and evolution processes in western Zhujiang (pearl) river mouth basin[J]. Acta Oceanologica Sinica, 2019, 38(9): 87-101.
[21]	HU J, TIAN Y T, LONG Z L, et al. Thermo-rheological structure of the northern margin of the South China Sea: structural and geodynamic implications[J]. Tectonophysics, 2020, 777: 228338.
[22]	GE J W, ZHU X M, ZHAO X M, et al. Tectono-sedimentary signature of the second rift phase in multiphase rifts: a case study in the Lufeng Depression (38-33.9 Ma), Pearl River Mouth Basin, South China Sea[J]. Marine and Petroleum Geology, 2020, 114: 104218.
[23]	YU Y X, ZHANG T L, ZHANG Z T, et al. Structural characteristics and its significances on hydrocarbon accumulation in the Yunkai low uplift, Pearl River mouth basin[J]. Acta Geologica Sinica - English Edition, 2021, 95(1): 21-29.
[24]	ZHOU J, LI S Z, SUO Y H, et al. NE-trending transtensional faulting in the Pearl River Mouth basin of the Northern South China Sea margin[J]. Gondwana Research, 2023, 120: 4-19.
[25]	TANG X, YU Y X, ZHANG X T, et al. Multiphase faults activation in the southwest Huizhou Sag, Pearl River Mouth basin: insights from 3D seismic data[J]. Marine and Petroleum Geology, 2023, 152: 106257.
[26]	田立新, 刘杰, 张向涛, 等. 珠江口盆地惠州26-6大中型泛潜山油气田勘探发现及成藏模式[J]. 中国海上油气, 2020, 32(4): 1-11.
[27]	蔡国富, 张向涛, 彭光荣, 等. 南海北部阳江-一统暗沙断裂带与新近纪岩浆活动[J]. 大地构造与成矿学, 2021, 45(1): 40-52.
[28]	鲁宝亮, 王璞珺, 张功成, 等. 南海北部陆缘盆地基底结构及其油气勘探意义[J]. 石油学报, 2011, 32(4): 580-587. DOI
[29]	孙晓猛, 张旭庆, 张功成, 等. 南海北部新生代盆地基底结构及构造属性[J]. 中国科学: 地球科学, 2014, 44(6): 1312-1323.
[30]	吕彩丽, 张功成, 杨东升. 珠江口盆地珠二坳陷文昌组构造差异性与动力学成因机制[J]. 地学前缘, 2017, 24(6): 333-341. DOI
[31]	张远泽, 漆家福, 吴景富. 南海北部新生代盆地断裂系统及构造动力学影响因素[J]. 地球科学, 2019, 44(2): 603-625.
[32]	ZHAO F, ALVES T M, XIA S H, et al. Along-strike segmentation of the South China Sea margin imposed by inherited pre-rift basement structures[J]. Earth and Planetary Science Letters, 2020, 530: 115862.
[33]	ZHU W L, HUANG B J, MI L J, et al. Geochemistry, origin, and deep-water exploration potential of natural gases in the Pearl River Mouth and Qiongdongnan basins, South China Sea[J]. AAPG Bulletin, 2009, 93(6): 741-761.
[34]	施和生, 何敏, 张丽丽, 等. 珠江口盆地(东部)油气地质特征、成藏规律及下一步勘探策略[J]. 中国海上油气, 2014, 26(3): 11-22.
[35]	柳保军, 庞雄, 颜承志, 等. 珠江口盆地白云深水区渐新世—中新世陆架坡折带演化及油气勘探意义[J]. 石油学报, 2011, 32(2): 234-242. DOI
[36]	米立军, 张向涛, 庞雄, 等. 珠江口盆地形成机制与油气地质[J]. 石油学报, 2019, 40(增刊1): 1-10.
[37]	钟锴, 张功成, 侯国伟, 等. 云开低凸起: 南海北部深水区油气勘探新领域[J]. 中国海上油气, 2008, 20(1): 15-17, 27.
[38]	龚再升, 李思田. 南海北部大陆边缘盆地油气成藏动力学研究[M]. 北京: 科学出版社, 2004: 9-29.
[39]	陈长民. 珠江口盆地(东部)第三系油气藏形成条件[M]. 北京: 科学出版社, 2003: 1-121.
[40]	SUN Z, ZHOU D, SUN L T, et al. Dynamic analysis on rifting stage of Pearl River Mouth basin through analogue modeling[J]. Journal of Earth Science, 2010, 21(4): 439-454.
[41]	WANG P C, LI S Z, SUO Y H, et al. Structural and kinematic analysis of Cenozoic rift basins in South China Sea: a synthesis[J]. Earth-Science Reviews, 2021, 216: 103522.
[42]	GUO X Y, LI C S, GAO R, et al. The India-Eurasia convergence system: late Oligocene to early Miocene passive roof thrusting driven by deep-rooted duplex stacking[J]. Geosystems and Geoenvironment, 2022, 1(1): 100006.
[43]	YANG F L, ZHOU X F, HU Y Y, et al. Neoproterozoic extensional basins and its control on the distribution of hydrocarbon source rocks in the Yangtze Craton, South China[J]. Geosystems and Geoenvironment, 2022, 1(1): 100015.
[44]	GUAN W, HUANG L, LIU C Y, et al. Interactions between pre-existing structures and rift faults: implications for basin geometry in the northern South China Sea[J]. Basin Research, 2024, 36(1): e12822.
[45]	LI F C, SUN Z, YANG H F. Possible spatial distribution of the Mesozoic volcanic arc in the present-day South China Sea continental margin and its tectonic implications[J]. Journal of Geophysical Research: Solid Earth, 2018, 123: 6215-6235.
[46]	鲁宝亮, 王璞珺, 张功成, 等. 南海区域断裂特征及其基底构造格局[J]. 地球物理学进展, 2015, 30(4): 1544-1553.
[47]	刘海伦, 梅廉夫, 施和生, 等. 珠江口盆地珠-坳陷裂陷结构: 基底属性与区域应力联合制约[J]. 地球科学, 2018: 1-17.
[48]	叶青. 南海北部陆缘晚中生代构造体系: 动力学以及对珠江口盆地新生代构造的制约[D]. 武汉: 中国地质大学(武汉), 2019.
[49]	LI S Z, SUO Y H, SANTOSH M, et al. Mesozoic to Cenozoic intracontinental deformation and dynamics of the North China Craton[J]. Geological Journal, 2013, 48(5): 543-560.
[50]	刘雨晴. 南海周缘新生代盆地结构时空差异及其控制因素[D]. 东营: 中国石油大学(华东), 2019.
[51]	HAN J H, XU G Q, LI Y Y, et al. Evolutionary history and controlling factors of the shelf breaks in the Pearl River Mouth Basin, northern South China Sea[J]. Marine and Petroleum Geology, 2016, 77: 179-189.
[52]	HAQ B U, HARDENBOL J, VAIL P R. Chronology of fluctuating sea levels since the Triassic[J]. Science, 1987, 235(4793): 1156-1167. PMID
[53]	TAPPONNIER P, PELTZER G, LE DAIN A Y, et al. Propagating extrusion tectonics in Asia: new insights from simple experiments with plasticine[J]. Geology, 1982, 10(12): 611.
[54]	ZAHIROVIC S, SETON M, MÜLLER R. The Cretaceous and Cenozoic tectonic evolution of Southeast Asia[J]. Solid Earth, 2013, 5: 227-273.
[55]	ZHOU D, RU K, CHEN H Z. Kinematics of Cenozoic extension on the South China Sea continental margin and its implications for the tectonic evolution of the region[J]. Tectonophysics, 1995, 251(1/2/3/4): 161-177.
[56]	MORLEY C K. Major unconformities/termination of extension events and associated surfaces in the South China Seas: review and implications for tectonic development[J]. Journal of Asian Earth Sciences, 2016, 120: 62-86.
[57]	SHI H S, DU J Y, MEI L F, et al. Huizhou movement and its significance in Pearl River mouth basin, China[J]. Petroleum Exploration and Development, 2020, 47(3): 483-498. DOI
[58]	李平鲁. 珠江口盆地新生代构造运动[J]. 中国海上油气, 1993, 5(6): 11-17.
[59]	庞雄, 陈长民, 邵磊, 等. 白云运动: 南海北部渐新统—中新统重大地质事件及其意义[J]. 地质论评, 2007, 53(2): 145-151.
[60]	庞雄, 陈隽, 戴一丁, 等. 珠江口盆地白云西-开平凹陷油气聚集及勘探目标研究[J]. 中国海上油气(地质), 1995, 7(4): 237-245.
[61]	JIAN Z M, JIN H Y, KAMINSKI M A, et al. Discovery of the marine Eocene in the northern South China Sea[J]. National Science Review, 2019, 6(5): 881-885. DOI
[62]	陈汉宗, 吴湘杰, 周蒂, 等. 珠江口盆地中新生代主要断裂特征和动力背景分析[J]. 热带海洋学报, 2005, 24(2): 52-61.
[63]	马兵山. 南海北部珠江口盆地新生代构造特征及其演化[D]. 北京: 中国石油大学(北京), 2020.
[64]	何敏, 朱伟林, 吴哲, 等. 珠江口盆地新构造运动特征与油气成藏[J]. 中国海上油气, 2019, 31(5): 9-20.
[65]	WEI W, FAURE M, CHEN Y, et al. Back-thrusting response of continental collision: early Cretaceous NW-directed thrusting in the Changle-Nan’ao belt (SouthEast China)[J]. Journal of Asian Earth Sciences, 2015, 100: 98-114.
[66]	HILDE T W C, UYEDA S, KROENKE L. Evolution of the western Pacific and its margin[J]. Tectonophysics, 1977, 38(1/2): 145-165.
[67]	MATTHEWS K J, SETON M, MÜLLER R D. A global-scale plate reorganization event at 105-100 Ma[J]. Earth and Planetary Science Letters, 2012, 355: 283-298.
[68]	MÜLLER R D, SETON M, ZAHIROVIC S, et al. Ocean basin evolution and global-scale plate reorganization events since pangea breakup[J]. Annual Review of Earth and Planetary Sciences, 2016, 44: 107-138.
[69]	高阳东, 彭光荣, 张向涛, 等. 珠江口盆地白云凹陷古近系文昌组源-汇系统特征及演化[J]. 石油与天然气地质, 2023, 44(3): 584-599.
[70]	曾智伟. 南海北部珠江口盆地古近纪源-汇系统耦合研究[D]. 武汉: 中国地质大学(武汉), 2020.
[71]	王家林, 张新兵, 吴健生, 等. 珠江口盆地基底结构的综合地球物理研究[J]. 热带海洋学报, 2002, 21(2): 13-22.
