Quantitative analysis of pore characteristics of natural and electrochemically treated turquoises based on gas adsorption method and X-ray micro-CT 3D imaging technique

doi:10.13745/j.esf.yx.2020.5.51

Abstract

Abstract:

Turquoise is a porous material, its pore characteristics directly affect its color, luster, hardness, durability and other properties important for its market value. The main purpose of electrochemical treatment for the enhanced turquoise is to reduce pores and change the porous properties to make it durable and colorful. In this paper, we used a specialized fully automated surface analyzer and X-ray micro-CT (Micro-CT) imaging technique to analyze the pore characteristics of turquoise before and after electrochemical treatment. We found that the pore volume and total porosity, average pore size, and specific surface area of turquoise after electrochemical treatment were all reduced to a certain extend. The slope of the adsorption curve became larger for natural turquoise in the high-pressure region and smaller for turquoise under electrochemical treatment. The pore size distribution curve is parabolic for natural and concave for electrochemically treated turquoises. Micro-CT investigation reveals that some large pores that run through the rock are not completely filled by electrochemical treatment. Natural turquoise has a “ruffled” pore structure along the “ripple”, while the “ruffled” structure disappears and pore distribution became disordered in the treated samples. Starting from the perspective of pore characteristics, we found in this study that natural and electrochemically treated turquoises have obvious different pore characteristics, including adsorption and pore distribution curve characteristics, pore filling conditions, and internal features in pore diameters above 50 nm. It is possible to effectively identify natural turquoise from those treated by electrochemical process based on potassium contents and pore characteristics.

Key words: turquoise, gas adsorption, pore characteristics, electrochemical treatment, X-ray micro-CT

CLC Number:

LU Taijin, DAI Hui, TIAN Gengfan, LI Ke, ZHANG Jian, CHEN Hua, KE Jie. Quantitative analysis of pore characteristics of natural and electrochemically treated turquoises based on gas adsorption method and X-ray micro-CT 3D imaging technique[J]. Earth Science Frontiers, 2020, 27(5): 247-253.

Figures/Tables 11

Fig.1 Natural (a) and electrochemically treated (b) turquoises

Table 1 Pore properties comparison of natural turquoise and electrochemically treated turquoise

样品	孔容/ (cm³·g^-1)	平均孔径/ nm	80 nm以下总孔隙度/%	比表面积/ (m²·g^-1)
天然绿松石	0.03	10	0.969	10.70
电化学处理绿松石	0.01	7	0.978	5.45

Fig.2 Gas adsorption-desorption curve of natural turquoise

Fig.3 Gas adsorption-desorption curve of electrochemically treated turquoise

Fig.4 Natural turquoise pore size distribution characteristic curve

Fig.5 Pore size distribution characteristic curve of electrochemically treated turquoise

Table 2 Pore characteristics comparison of natural turquoise and electrochemically treated turquoise by X-ray Micro-CT observation

样品	样品体积/ mm³	孔隙体积/ mm³	孔隙度/ %	孔隙特征
天然绿松石	787.22	15.41	1.9	含有表面贯穿至内部孔洞
电化学处理绿松石	812.53	13.00	1.6	孔隙被不完全充填

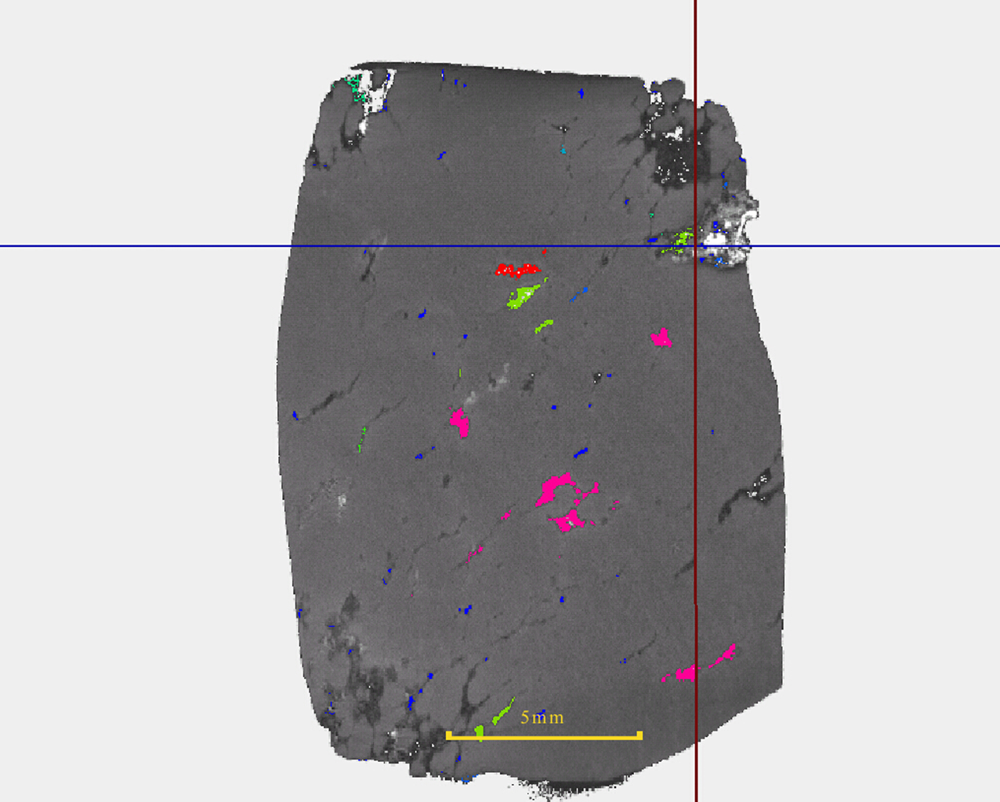

Fig.6 Micro-CT image of a natural turquoise specimen

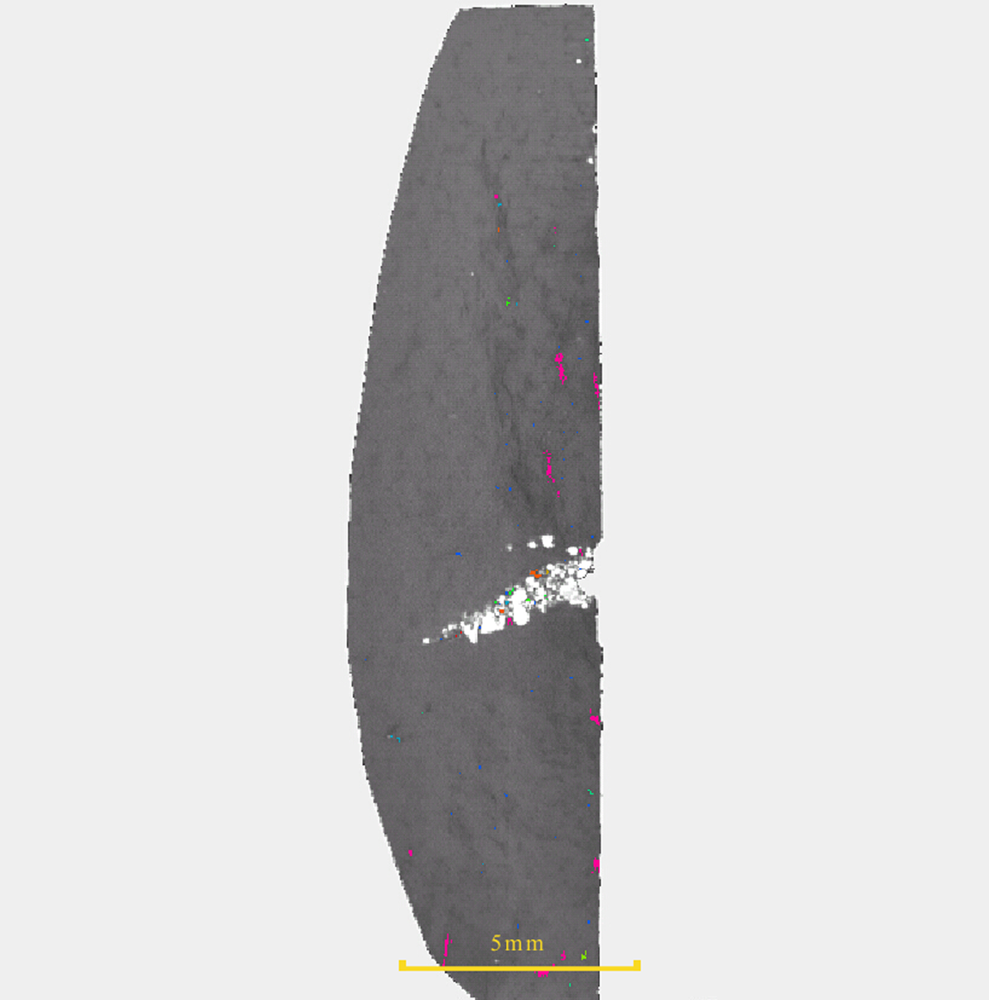

Fig.7 Micro-CT image of an electrochemically treated turquoise specimen

Fig.8 Ripple structure in natural samples

Fig.9 Ripple structure is not obvious in electrochemically treated samples
