Earth Science Frontiers ›› 2020, Vol. 27 ›› Issue (3): 123-132.DOI: 10.13745/j.esf.sf.2020.4.13
Previous Articles Next Articles
ZHANG Zhuoying1,2(), MA Jinlong1,*(
), ZHANG Le1, ZENG Ti3, LIU Ying1, WEI Gangjian1
Received:
2019-06-28
Revised:
2020-02-27
Online:
2020-05-20
Published:
2020-05-20
Contact:
MA Jinlong
CLC Number:
ZHANG Zhuoying, MA Jinlong, ZHANG Le, ZENG Ti, LIU Ying, WEI Gangjian. Advances in rubidium isotope analysis method and applications in geological studies[J]. Earth Science Frontiers, 2020, 27(3): 123-132.
流程 | 树脂类型及体积 | 淋洗酸类型 | 实验流程及用酸量 | 最终残留元素 | 回收率 | 参考文献 |
---|---|---|---|---|---|---|
1 | AG50W-X8(8 mL) | 2.5 mol/L HCl | 9 mL 淋洗 3 mL 接取Rb | Na、K、Mg、 Ca等基体元素 | 约98% | [13,21,26] |
Sr-Spec树脂 (200 μL) | 3 mol/L HNO3 | 蒸干上步接取溶液, 提取至1 mL上样, 1 mL接取Rb | ||||
2 | DGA (1.8 mL) | 1 mol/L HNO3 | 1 mL上样 5 mL接取Rb | K/Rb<2 | 约100% | [27] |
AG50-X12 (20 mL) | 3 mol/L HCl | 蒸干上步接取溶液, 提取至1 mL上样 69 mL淋洗 50 mL接取Rb | ||||
AG50-X12 (10 mL) | 3 mol/L HCl | 蒸干上步接取溶液, 提取至1 mL上样 34 mL淋洗 15 mL接取Rb | ||||
AG50-X8 (1 mL) | 0.5 mol/L HCl | 蒸干上步接取溶液, 提取至0.25 mL上样 26.75 mL淋洗 40接取Rb | ||||
3 | Sr-Spec树脂 (200 μL) | 2 mol/L HNO3+ 0.07 mol/L HF 以及不同浓度HNO3 | 收集分离Ba、Sr、Pb 过程中含Rb及其他 基体元素的混合液 | 未明 | 未明 | [31] |
Cs-Rb树脂 (50 μL) | 2 mol/L HNO3+ 0.07 mol/L HF | 取100 μL混合液上样 150 μL淋洗 | ||||
1 mol/L HNO3 | 600 μL淋洗 | |||||
6 mol/L HNO3 | 1.5 mL接取Rb | |||||

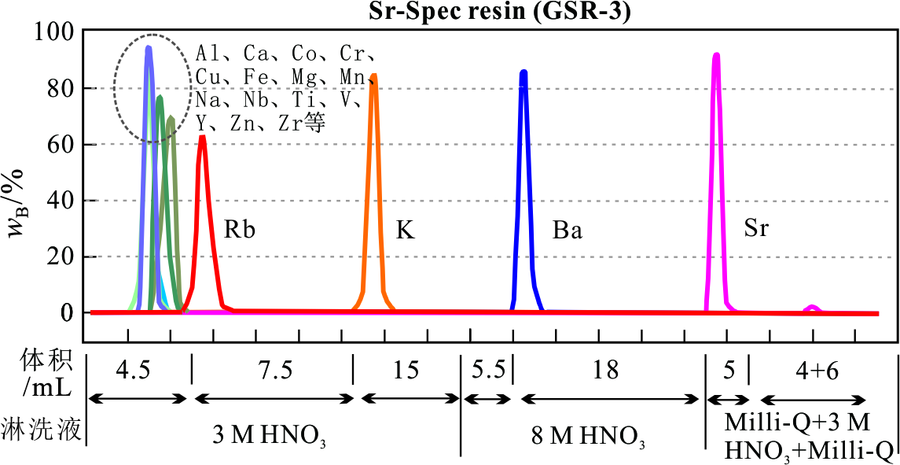

4 | Sr-Spec树脂 (1.5 g) | 3 mol/L HNO3 | 100 μL上样 4.4 mL淋洗 7.5 mL接取Rb | Na/Rb<2、 Ca/Rb<4 | 约100% | [28] |
Table 1 Comparison of published Rb separation procedures
流程 | 树脂类型及体积 | 淋洗酸类型 | 实验流程及用酸量 | 最终残留元素 | 回收率 | 参考文献 |
---|---|---|---|---|---|---|
1 | AG50W-X8(8 mL) | 2.5 mol/L HCl | 9 mL 淋洗 3 mL 接取Rb | Na、K、Mg、 Ca等基体元素 | 约98% | [13,21,26] |
Sr-Spec树脂 (200 μL) | 3 mol/L HNO3 | 蒸干上步接取溶液, 提取至1 mL上样, 1 mL接取Rb | ||||
2 | DGA (1.8 mL) | 1 mol/L HNO3 | 1 mL上样 5 mL接取Rb | K/Rb<2 | 约100% | [27] |
AG50-X12 (20 mL) | 3 mol/L HCl | 蒸干上步接取溶液, 提取至1 mL上样 69 mL淋洗 50 mL接取Rb | ||||
AG50-X12 (10 mL) | 3 mol/L HCl | 蒸干上步接取溶液, 提取至1 mL上样 34 mL淋洗 15 mL接取Rb | ||||
AG50-X8 (1 mL) | 0.5 mol/L HCl | 蒸干上步接取溶液, 提取至0.25 mL上样 26.75 mL淋洗 40接取Rb | ||||
3 | Sr-Spec树脂 (200 μL) | 2 mol/L HNO3+ 0.07 mol/L HF 以及不同浓度HNO3 | 收集分离Ba、Sr、Pb 过程中含Rb及其他 基体元素的混合液 | 未明 | 未明 | [31] |
Cs-Rb树脂 (50 μL) | 2 mol/L HNO3+ 0.07 mol/L HF | 取100 μL混合液上样 150 μL淋洗 | ||||
1 mol/L HNO3 | 600 μL淋洗 | |||||
6 mol/L HNO3 | 1.5 mL接取Rb | |||||
4 | Sr-Spec树脂 (1.5 g) | 3 mol/L HNO3 | 100 μL上样 4.4 mL淋洗 7.5 mL接取Rb | Na/Rb<2、 Ca/Rb<4 | 约100% | [28] |
仪器 | 仪器分馏 校正方法 | 精度(2 SD) | 参考文献 |
---|---|---|---|
VG Sector 54 TIMS | 1.3% | [13] | |
VG Axiom MC-ICP-MS | 外标元素 加入法 | 0.5% | [13] |
Micromass IsoProbe MC-ICP-MS | 外标元素 加入法 | 0.5‰~0.2‰ | [21,26] |
Neptune Plus MC-ICP-MS | SSB | 0.25‰~0.06‰ | [27-28] |
Table 2 Method comparison for Rb isotope measurement by mass spectrometry
仪器 | 仪器分馏 校正方法 | 精度(2 SD) | 参考文献 |
---|---|---|---|
VG Sector 54 TIMS | 1.3% | [13] | |
VG Axiom MC-ICP-MS | 外标元素 加入法 | 0.5% | [13] |
Micromass IsoProbe MC-ICP-MS | 外标元素 加入法 | 0.5‰~0.2‰ | [21,26] |
Neptune Plus MC-ICP-MS | SSB | 0.25‰~0.06‰ | [27-28] |
