Preliminary study on hydrothermal CO2 flux from active fault zones in southern Tibet: Constraints from travertine geochronology and geochemistry

doi:10.13745/j.esf.sf.2025.3.68

Abstract

Abstract:

Active tectonics in southern Tibetan Plateau create favorable pathways for the formation and release of deeply-sourced CO₂-rich fluids, making it a globally significant carbon source at present. However, in the case of southern Tibetan Plateau, estimating the deep carbon outgassing flux for tectonic degassing in the geological past remains challenging but is crucial for reconstructing the geological carbon cycle that operates in the India-Asia continental collision zone. Here, we report, for the first time to our knowledge, the hydrothermal CO₂ fluxes during the Quaternary period for representative active faults in southern Tibetan Plateau based on an integrated dataset of U-Th ages, mineralogical, elemental, and C-O isotopic compositions of travertine deposits. The U-series dating results show that the travertines were formed during the Middle Pleistocene to Holocene periods (267.3-1.8 kyr B.P.), with the deposition rates ranging approximately from 0.02 to 1.49 mm·yr^-1. These Quaternary travertines, primarily composed of calcite with rare samples exhibiting mixed calcite and aragonite in mineral assemblage, have an average CaCO₃ content of 94.2 wt.%. Carbon and oxygen isotopic compositions (δ¹³C_V-PDB=-3.1‰ to +8.6‰; δ¹⁸O_V-SMOW=-0.5‰ to +15.0‰) suggest a thermogenic origin influenced by varying degrees of CO₂ degassing, spring boiling, and evaporation, with deep metamorphic CO₂ being the primary carbon source of the travertines. Based on the volume, porosity, CaCO₃ content, and deposition ages of the travertines, the CO₂ outgassing fluxes accompanied with travertine deposition are estimated to be in the magnitude of 10⁴ to 10⁶ mol·km^-2·yr^-1 for the study areas, comparable to some travertine deposits in tectonically active regions of the central and western Italy. Our results provide new insights into the deposition ages, genesis, and CO₂ outgassing fluxes of Quaternary travertines in southern Tibetan Plateau and would contribute to our understanding of geological carbon cycle in the India-Asia continental collision zone.

Key words: travertine, U-Th dating, carbonate geochemistry, deep carbon release, southern Tibetan Plateau

CLC Number:

CAO Chenxi, ZHANG Maoliang, WANG Lisheng, WANG Xuefeng, DUAN Wuhui, XU Sheng. Preliminary study on hydrothermal CO₂ flux from active fault zones in southern Tibet: Constraints from travertine geochronology and geochemistry[J]. Earth Science Frontiers, 2025, 32(3): 334-349.

Figures/Tables 12

References 76

[1]	DASGUPTA R, HIRSCHMANN M M. The deep carbon cycle and melting in Earth’s interior[J]. Earth and Planetary Science Letters, 2010, 298(1/2): 1-13.
[2]	HAZEN R M, SCHIFFRIES C M. Why deep carbon?[J]. Reviews in Mineralogy and Geochemistry, 2013, 75(1): 1-6.
[3]	LEE C T A, JIANG H, DASGUPTA R, et al. A framework for understanding whole-Earth carbon cycling[M]// ORCUTTB N, DANIELI, DASGUPTAR. Deep carbon:past to present. Cambridge: Cambridge University Press, 2019: 313-357.
[4]	BEKAERT D V, TURNER S J, BROADLEY M W, et al. Subduction-driven volatile recycling: a global mass balance[J]. Annual Review of Earth and Planetary Sciences, 2021, 49: 37-70.
[5]	ZHANG M, XU S, SANO Y. Deep carbon recycling viewed from global plate tectonics[J]. National Science Review, 2024, 11(6): nwae089.
[6]	FRIEDLINGSTEIN P, O’SULLIVAN M, JONES M W, et al. Global carbon budget 2022[J]. Earth System Science Data, 2022, 14(11): 4811-4900.
[7]	FISCHER T P, AIUPPA A. AGU centennial grand challenge: volcanoes and deep carbon global CO₂ emissions from subaerial volcanism: recent progress and future challenges[J]. Geochemistry, Geophysics, Geosystems, 2020, 21(3): e2019GC008690.
[8]	ISSON T T, PLANAVSKY N J, COOGAN L A, et al. Evolution of the global carbon cycle and climate regulation on Earth[J]. Global Biogeochemical Cycles, 2020, 34(2): e2018GB006061.
[9]	BECKER J A, BICKLE M J, GALY A, et al. Himalayan metamorphic CO₂ fluxes: quantitative constraints from hydrothermal springs[J]. Earth and Planetary Science Letters, 2008, 265(3/4): 616-629.
[10]	TAMBURELLO G, PONDRELLI S, CHIODINI G, et al. Global-scale control of extensional tectonics on CO₂ earth degassing[J]. Nature communications, 2018, 9: 4608.
[11]	MUIRHEAD J D, FISCHER T P, OLIVA S J, et al. Displaced cratonic mantle concentrates deep carbon during continental rifting[J]. Nature, 2020, 582: 67-72.
[12]	XU S, GUAN L, ZHANG M, et al. Degassing of deep-sourced CO₂from Xianshuihe-Anninghe fault zones in the eastern Tibetan Plateau[J]. Science China: Earth Sciences, 2022, 65(1): 139-155.
[13]	郭正府, 张茂亮, 成智慧, 等. 中国大陆新生代典型火山区温室气体释放的规模及其成因[J]. 岩石学报, 2014(11): 3467-3480.
[14]	LIAO Z. Thermal springs and geothermal energy in the Qinghai-Tibetan Plateau and the surroundings[M]. Singapore: Springer, 2018: 1-311.
[15]	赵文斌, 郭正府, 李菊景, 等. 青藏高原南部及邻区深部碳释放规模与成因[J]. 岩石学报, 2022, 38(5): 1541-1556.
[16]	LIU W, ZHANG M, LIU Y, et al. Massive crustal carbon mobilization and emission driven by India underthrusting Asia[J]. Communications Earth & Environment, 2024, 5: 271.
[17]	张丽红, 郭正府, 张茂亮, 等. 高温地热区土壤微渗漏的温室气体释放通量研究: 以藏南羊八井地热田为例[J]. 岩石学报, 2014, 30(12): 3612-3626.
[18]	张丽红, 郭正府, 郑国东, 等. 藏南新生代火山-地热区温室气体的释放通量与成因: 以谷露—亚东裂谷为例[J]. 岩石学报, 2017, 33(1): 250-266.
[19]	ZHANG M, GUO Z, ZHANG L, et al. Geochemical constraints on origin of hydrothermal volatiles from southern Tibet and the Himalayas: understanding the degassing systems in the India-Asia continental subduction zone[J]. Chemical Geology, 2017, 469: 19-33.
[20]	ZHANG M, ZHANG L, ZHAO W, et al. Metamorphic CO₂ emissions from the southern Yadong-Gulu rift, Tibetan Plateau: insights into deep carbon cycle in the India-Asia continental collision zone[J]. Chemical Geology, 2021, 584: 120534.
[21]	XIE X G, ZHANG M, LIU W, et al. Active CO₂ emissions from thermal springs in the Karakoram fault system and adjacent regions, western Tibetan Plateau[J]. Applied Geochemistry, 2024, 161: 105896.
[22]	PENTECOST A. Travertine[M]. Berlin: Springer, 2005: 1-445.
[23]	JONES B. Siliceous sinters in thermal spring systems: review of their mineralogy, diagenesis, and fabrics[J]. Sedimentary Geology, 2021, 413: 105820.
[24]	CHIODINI G, PAPPALARDO L, AIUPPA A, et al. The geological CO₂ degassing history of a long-lived caldera[J]. Geology, 2015, 43(9): 767-770.
[25]	D’ALESSANDRO W, GIAMMANCO S, BELLOMO S, et al. Geochemistry and mineralogy of travertine deposits of the SW flank of Mt. Etna (Italy): relationships with past volcanic and degassing activity[J]. Journal of Volcanology and Geothermal Research, 2007, 165(1/2): 64-70.
[26]	HARRISON L N, Hurwitz S, PACES J B, et al. Travertine records climate-induced transformations of the Yellowstone hydrothermal system from the Late Pleistocene to the present[J]. Geological Society of America Bulletin, 2024, 136(9/10): 3605-3618.
[27]	MANCINI A, CAPEZZUOLI E, BROGI A, et al. Geogenie CO₂ flux calculations from the Late Pleistocene Tivoli travertines (Acque Albule Basin, Tivoli, Central Italy)[J]. Italian Journal of Geosciences, 2020, 139(3): 374-382.
[28]	MANCINI A, CORNACCHIA I, LAMAL J, et al. Using stable isotopes in deciphering climate changes from travertine deposits: the case of the Lapis Tiburtinus succession (Acque Albule Basin, Tivoli, Central Italy)[J]. Frontiers in Earth Science, 2024, 12: 1355693.
[29]	MANCINI A, FRONDINI F, CAPEZZUOLI E, et al. Evaluating the geogenic CO₂ flux from geothermal areas by analysing quaternary travertine masses. New data from western central Italy and review of previous CO₂ flux data[J]. Quaternary Science Reviews, 2019, 215: 132-143.
[30]	DING L, KAPP P, CAI F, et al. Timing and mechanisms of Tibetan Plateau uplift[J]. Nature Reviews Earth & Environment, 2022, 3(10): 652-667.
[31]	YIN A, HARRISON T M. Geologic evolution of the Himalayan-Tibetan orogen[J]. Annual Review of Earth and Planetary Sciences, 2000, 28(1): 211-280.
[32]	PAN G, WANG L, LI R, et al. Tectonic evolution of the Qinghai-Tibet Plateau[J]. Journal of Asian Earth Sciences, 2012, 53: 3-14.
[33]	ZHANG H, HOU Z. Metallogenesis within continental collision zones: comparisons of modern collisional orogens[J]. Science China: Earth Sciences, 2018, 61(12): 1737-1760.
[34]	莫宣学, 董国臣, 赵志丹, 等. 西藏冈底斯带花岗岩的时空分布特征及地壳生长演化信息[J]. 高校地质学报, 2005, 11(3): 281-290.
[35]	ZHANG B, BAO X, WU Y, et al. Southern Tibetan rifting since late Miocene enabled by basal shear of the underthrusting Indian lithosphere[J]. Nature Communications, 2023, 14: 2565. DOI PMID
[36]	KAPP P, DECELLES P G. Mesozoic-Cenozoic geological evolution of the Himalayan-Tibetan orogen and working tectonic hypotheses[J]. American Journal of Science, 2019, 319(3): 159-254.
[37]	LI S M, WANG Q, ZHU D C, et al. One or two Early Cretaceous arc systems in the Lhasa Terrane, southern Tibet[J]. Journal of Geophysical Research: Solid Earth, 2018, 123(5): 3391-3413.
[38]	LI S, YIN C, GUILMETTE C, et al. Birth and demise of the Bangong-Nujiang Tethyan Ocean: a review from the Gerze area of central Tibet[J]. Earth-Science Reviews, 2019, 198: 102907.
[39]	PARSONS A J, HOSSEINI K, PALIN R M, et al. Geological, geophysical and plate kinematic constraints for models of the India-Asia collision and the post-Triassic central Tethys oceans[J]. Earth-Science Reviews, 2020, 208: 103084.
[40]	侯增谦, 李振清. 印度大陆俯冲前缘的可能位置: 来自藏南和藏东活动热泉气体He 同位素约束[J]. 地质学报, 2004, 78(4): 482-493.
[41]	CHENG H, EDWARDS R L, SHEN C C, et al. Improvements in ²³⁰Th dating, ²³⁰Th and ²³⁴U half-life values, and U-Th isotopic measurements by multi-collector inductively coupled plasma mass spectrometry[J]. Earth and Planetary Science Letters, 2013, 371: 82-91.
[42]	王立胜, 马志邦, 程海, 等. MC-ICP-MS测定铀系定年标样的²³⁰Th年龄[J]. 质谱学报, 2016, 37(3): 262-272. DOI
[43]	EDWARDS R L, CHEN J H, WASSERBURG G J. ²³⁸U-²³⁴U-²³⁰Th-²³²Th systematics and the precise measurement of time over the past 500000 years[J]. Earth and Planetary Science Letters, 1987, 81(2): 175-192.
[44]	马志邦, 赵希涛, 朱大岗, 等. 西藏纳木错湖相沉积的铀系年代学研究[J]. 地球学报, 2002, 23(4): 311-316.
[45]	BISCHOFF J L, LUDWIG K, GARCIA J F, et al. Dating of the basal Aurignacian sandwich at Abric Romanı (Catalunya, Spain) by radiocarbon and uranium-series[J]. Journal of Archaeological Science, 1994, 21(4): 541-551.
[46]	AULER A S, SMART P L. Late Quaternary paleoclimate in semiarid northeastern Brazil from U-series dating of travertine and water-table speleothems[J]. Quaternary Research, 2001, 55(2): 159-167.
[47]	欧阳慧子. 青藏高原南部全新世早-中期气候变化: 墨竹工卡钙华碳氧同位素记录[D]. 成都: 成都理工大学, 2018.
[48]	王潇. 西藏羊易地热田泉华地球化学特征及其指示意义[D]. 北京: 中国地质科学院, 2018.
[49]	高竞. 地下热水钙华沉积的水化学影响因素和热水钙华微层的气候环境指示意义[D]. 北京: 中国地质大学(北京), 2013.
[50]	HUDSON A M, QUADE J, HUTH T E, et al. Lake level reconstruction for 12.8-2.3 ka of the Ngangla Ring Tso closed-basin lake system, southwest Tibetan Plateau[J]. Quaternary Research, 2015, 83(1): 66-79.
[51]	ZENTMYER R, MYROW P M, NEWELL D L. Travertine deposits from along the South Tibetan fault system near Nyalam, Tibet[J]. Geological Magazine, 2008, 145(6): 753-765.
[52]	赵元艺, 崔玉斌, 赵希涛. 西藏扎布耶盐湖钙华岛钙华的地质地球化学特征及意义[J]. 地质通报, 2010, 29(1): 124-141.
[53]	MEYER M C, ALDENDERFER M S, WANG Z, et al. Permanent human occupation of the central Tibetan Plateau in the early Holocene[J]. Science, 2017, 355(6320): 64-67. DOI PMID
[54]	余石勇. 西藏麻米错盐湖锂矿水化学与钙华年代学和地球化学特征[D]. 北京: 中国地质科学院, 2022.
[55]	CAPEZZUOLI E, GANDIN A, PEDLEY M. Decoding tufa and travertine (fresh water carbonates) in the sedimentary record: the state of the art[J]. Sedimentology, 2014, 61(1): 1-21.
[56]	文华国, 罗连超, 罗晓彤, 等. 陆地热泉钙华研究进展与展望[J]. 沉积学报, 2019, 37(6): 1162-1180.
[57]	刘再华. 表生和内生钙华的气候环境指代意义研究进展[J]. 科学通报, 2014, 59(23): 2229-2239.
[58]	NISHIKAWA O, FURUHASHI K, MASUYAMA M, et al. Radiocarbon dating of residual organic matter in travertine formed along the Yumoto Fault in Oga Peninsula, northeast Japan: implications for long-term hot spring activity under the influence of earthquakes[J]. Sedimentary Geology, 2012, 243: 181-190.
[59]	WANG Y, LV W, XUE K, et al. Grassland changes and adaptive management on the Qinghai-Tibetan Plateau[J]. Nature Reviews Earth & Environment, 2022, 3(10): 668-683.
[60]	汪智军, 殷建军, 蒲俊兵, 等. 钙华生物沉积作用研究进展与展望[J]. 地球科学进展, 2019, 34(6): 606-617. DOI
[61]	SHIRAISHI F, HANZAWA Y, NAKAMURA Y, et al. Abiotic and biotic processes controlling travertine deposition: insights from eight hot springs in Japan[J]. Sedimentology, 2022, 69(2): 592-623.
[62]	PENTECOST A, VILES H. A review and reassessment of travertine classification[J]. Géographie physique et Quaternaire, 1994, 48(3): 305-314.
[63]	FRIEDMAN I. Some investigations of the deposition of travertine from Hot Springs: I. the isotopic chemistry of a travertine-depositing spring[J]. Geochimica et Cosmochimica Acta, 1970, 34(12): 1303-1315.
[64]	FOUKE B W, FARMER J D, DES MARAIS D J, et al. Depositional facies and aqueous-solid geochemistry of travertine-depositing hot springs (Angel Terrace, Mammoth Hot Springs, Yellowstone National Park, USA)[J]. Journal of Sedimentary Research, 2000, 70(3): 565-585.
[65]	UYSAL I T, FENG Y, ZHAO J, et al. Hydrothermal CO₂ degassing in seismically active zones during the late Quaternary[J]. Chemical Geology, 2009, 265(3/4): 442-454.
[66]	DEBOEVER E, JARAMILLO-VOGEL D, BOUVIER A S, et al. The fate of a travertine record: impact of early diagenesis on the Y-10 core (Mammoth Hot Springs, Yellowstone National Park, USA)[J]. The Depositional Record, 2022, 8(1): 220-250.
[67]	LIANG J, YU Y, SHI Z, et al. Geothermal springs with high $\delta^{13} \mathrm{C}_{\mathrm{CO}_{2}}$-DIC along the Xianshuihe fault, Western Sichuan, China: a geochemical signature of enhanced deep tectonic activity[J]. Journal of Hydrology, 2023, 623: 129760.
[68]	SMERAGLIA L, GIUFFRIDA A, GRIMALDI S, et al. Fault-controlled upwelling of low-T hydrothermal fluids tracked by travertines in a fold-and-thrust belt, Monte Alpi, Southern Apennines, Italy[J]. Journal of Structural Geology, 2021, 144: 104276.
[69]	KELE S, ÖZKUL M, FÓRIZS I, et al. Stable isotope geochemical study of Pamukkale travertines: new evidences of low-temperature non-equilibrium calcite-water fractionation[J]. Sedimentary Geology, 2011, 238(1/2): 191-212.
[70]	BOTTINGA Y, CRAIG H. Oxygen isotope fractionation between CO₂ and water, and the isotopic composition of marine atmospheric CO₂[J]. Earth and Planetary Science Letters, 1968, 5: 285-295.
[71]	BISSE S B, EKOMANE E, EYONG J T, et al. Sedimentological and geochemical study of the Bongongo and Ngol travertines located at the Cameroon Volcanic Line[J]. Journal of African Earth Sciences, 2018, 143: 201-214.
[72]	LIU W, GUAN L, LIU Y, et al. Fluid geochemistry and geothermal anomaly along the Yushu-Ganzi-Xianshuihe fault system, eastern Tibetan Plateau: implications for regional seismic activity[J]. Journal of Hydrology, 2022, 607: 127554.
[73]	CHIODINI G, CARDELLINI C, AMATO A, et al. Carbon dioxide Earth degassing and seismogenesis in central and southern Italy[J]. Geophysical Research Letters, 2004, 31(7): L07615.
[74]	CHIODINI G, FRONDINI F, CARDELLINI C, et al. Rate of diffuse carbon dioxide Earth degassing estimated from carbon balance of regional aquifers: the case of central Apennine, Italy[J]. Journal of Geophysical Research: Solid Earth, 2000, 105(B4): 8423-8434.
[75]	KERRICK D M, MCKIBBEN M A, SEWARD T M, et al. Convective hydrothermal CO₂ emission from high heat flow regions[J]. Chemical Geology, 1995, 121(1/2/3/4): 285-293.
[76]	BUONO G, CALIRO S, PAPPALARDO L, et al. Hydrothermal calcite formation in Campi Flegrei caldera, Italy: unraveling carbon sink processes in alkaline volcanic systems[J]. Scientific Reports, 2024, 14(1): 16839. DOI PMID

采样点	温泉编号	断裂带	所属地块	经度/ (°E)	纬度/ (°N)	海拔/m	剖面厚度/cm	出露面积/ m²
贡巴萨巴温泉	GBSB	定日裂谷	喜马拉雅	86.554 4	28.496 5	4 584	458	1.6×10⁵
琼甲利众温泉	QJLZ	吉隆裂谷	喜马拉雅	85.335 2	28.903 5	4 279	142	3.0×10⁴
嘎琼温泉	GQ	仲巴裂谷	拉萨	84.800 5	29.907 6	5 107	246	2.5×10⁵
布多温泉	BD	仲巴裂谷	拉萨	84.405 2	30.403 3	4 868	300	4.0×10⁴
热绒温泉	RR	仲巴裂谷	拉萨	84.435 1	30.709 9	4 749	246	1.0×10⁶
通道温泉	TD	嘉黎断裂	拉萨	93.545 3	30.831 9	4 572	330	5.0×10⁴

采样点	温泉编号	断裂带	所属地块	经度/ (°E)	纬度/ (°N)	海拔/m	剖面厚度/cm	出露面积/ m²
贡巴萨巴温泉	GBSB	定日裂谷	喜马拉雅	86.554 4	28.496 5	4 584	458	1.6×10⁵
琼甲利众温泉	QJLZ	吉隆裂谷	喜马拉雅	85.335 2	28.903 5	4 279	142	3.0×10⁴
嘎琼温泉	GQ	仲巴裂谷	拉萨	84.800 5	29.907 6	5 107	246	2.5×10⁵
布多温泉	BD	仲巴裂谷	拉萨	84.405 2	30.403 3	4 868	300	4.0×10⁴
热绒温泉	RR	仲巴裂谷	拉萨	84.435 1	30.709 9	4 749	246	1.0×10⁶
通道温泉	TD	嘉黎断裂	拉萨	93.545 3	30.831 9	4 572	330	5.0×10⁴

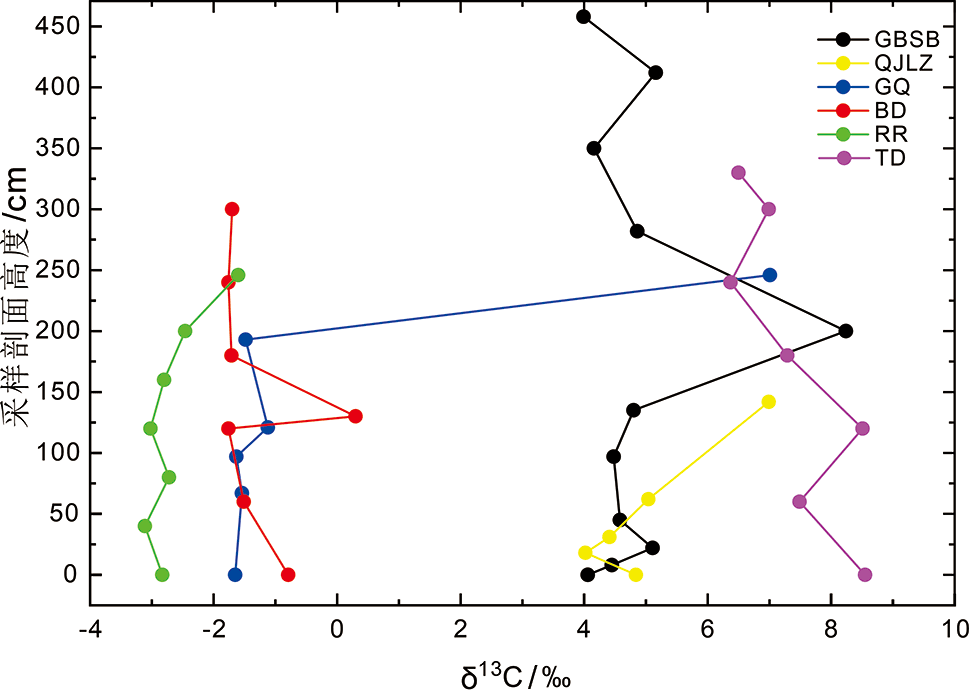

样品编号	w_B/%								δ¹³C_V-PDB/ ‰	δ¹⁸O_V-PDB/ ‰	δ¹⁸O_V-SMOW/ ‰
样品编号	Ca	Al	Fe	K	Na	Mg	Mn	Si	δ¹³C_V-PDB/ ‰	δ¹⁸O_V-PDB/ ‰	δ¹⁸O_V-SMOW/ ‰
GBSB-cal	38.32	0.021	0.041	0.003	0.022	0.192	0.03	0.003	5.8	-22.3	7.9
GBSB 0 cm	39.41	0.04	0.13	0.014	0.028	0.338	0.04	0.025	4.1	-25.9	4.2
GBSB 8 cm	39.75	0.03	0.135	0.006	0.015	0.267	0.041	0.012	4.5	-24.5	5.7
GBSB 22 cm	37.25	0.07	0.147	0.016	0.029	0.231	0.031	0.045	5.1	-22.3	7.9
GBSB 45 cm	40.43	0.032	0.15	0.006	0.016	0.262	0.043	0.01	4.6	-24.7	5.5
GBSB 97 cm	38.22	0.027	0.031	0.005	0.019	0.201	0.05	0.008	4.5	-25.2	4.9
GBSB 135 cm	38.86	0.019	0.051	0.004	0.014	0.197	0.038	0.004	4.8	-25.1	5.0
GBSB 200 cm	38.55	0.051	0.174	0.022	0.031	0.328	0.02	0.056	8.2	-17.5	12.9
GBSB 282 cm	38.09	0.036	0.033	0.006	0.018	0.255	0.044	0.022	4.9	-25.0	5.2
GBSB 350 cm	38.55	0.034	0.071	0.008	0.022	0.252	0.061	0.015	4.2	-26.9	3.2
GBSB 412 cm	38.15	0.017	0.057	0.005	0.017	0.254	0.031	0.012	5.2	-24.8	5.4
GBSB 458 cm	36.81	0.056	0.174	0.019	0.02	0.305	0.045	0.038	4.0	-24.9	5.3
QJLZ 0 cm	37.61	0.011	0.124	0.002	0.006	0.511	0.006	0.004	4.8	-21.5	8.7
QJLZ 18 cm	40.19	0.009	0.109	0.005	0.008	0.783	0.001	0.002	4.0	-23.2	7.0
QJLZ 31 cm	40.49	0.014	0.264	0.007	0.009	0.691	0.004	0.003	4.4	-22.0	8.2
QJLZ 62 cm	40.42	0.028	0.263	0.006	0.008	0.462	0.009	0.012	5.0	-20.9	9.3
QJLZ 142 cm	36.13	0.08	0.387	0.012	0.006	0.259	0.01	0.05	7.0	-17.0	13.4
GQ 0 cm	39.43	0.008	0.278	0.009	0.054	0.767	0.033	0.012	-1.7	-30.3	-0.3
GQ 67 cm	37.91	0.011	0.391	0.007	0.067	0.741	0.055	0.014	-1.5	-30.2	-0.3
GQ 97 cm	40.36	0.009	0.367	0.006	0.024	0.834	0.058	0.012	-1.6	-30.4	-0.5
GQ 121 cm	39.95	0.014	0.212	0.006	0.017	0.764	0.028	0.024	-1.1	-29.4	0.6
GQ 193 cm	37.69	0.008	0.869	0.004	0.026	0.6	0.144	0.007	-1.5	-29.9	0.1
GQ 246 cm	39.22	0.009	0.044	0.005	0.002	0.232	0.008	0.005	7.0	-25.3	4.8
BD 0 cm	38.35	0.054	0.574	0.004	0.066	0.057	0.112	0.001	-0.8	-21.3	9.0
BD 60 cm	40.4	0.038	1.184	0.006	0.04	0.215	0.154	0.012	-1.5	-20.3	10.0
BD 120 cm	37.68	0.052	1.321	0.006	0.056	0.189	0.195	0.001	-1.8	-21.3	9.0
BD 130 cm	34.59	0.024	0.323	0.018	0.111	0.277	0.045	0.021	0.3	-16.7	13.7
BD 180 cm	37.95	0.05	1.191	0.007	0.045	0.238	0.155	0.002	-1.7	-21.4	8.9
BD 240 cm	38.55	0.042	0.995	0.006	0.047	0.243	0.104	0.004	-1.8	-21.1	9.2
BD 300cm	31.28	0.057	1.296	0.005	0.057	0.207	0.161	0.003	-1.7	-20.7	9.6
RR 0 cm	36.26	0.011	0.021	0.005	0.044	0.439	0.524	0.006	-2.8	-25.3	4.9
RR 40 cm	34.67	0.012	0.022	0.006	0.059	0.448	0.532	0.009	-3.1	-25.6	4.5
RR 80 cm	37.68	0.011	0.019	0.006	0.038	0.473	0.448	0.018	-2.7	-25.0	5.2
RR 120 cm	38.02	0.01	0.02	0.005	0.036	0.45	0.563	0.004	-3.0	-25.5	4.7
RR 160 cm	37.41	0.009	0.048	0.003	0.034	0.523	0.461	0.014	-2.8	-24.7	5.5
RR 200 cm	36.77	0.029	0.043	0.027	0.08	0.592	0.423	0.022	-2.5	-24.1	6.1
RR 246 cm	37.01	0.019	0.02	0.007	0.06	0.43	0.151	0.013	-1.6	-21.1	9.2
TD 0 cm	25.72	0.324	0.828	0.105	0.064	0.588	0.046	0.172	8.6	-15.4	15.0
TD 60 cm	38.74	0.007	0.027	0.006	0.026	0.253	0.02	0.004	7.5	-17.7	12.6
TD 120 cm	36.41	0.016	0.389	0.005	0.029	0.353	0.076	0.039	8.5	-17.2	13.2
TD 180 cm	36.2	0.019	0.511	0.007	0.021	0.323	0.095	0.068	7.3	-17.1	13.3
TD 240 cm	38.86	0.013	0.359	0.004	0.019	0.289	0.084	0.031	6.4	-17.4	12.9
TD 300 cm	37.5	0.024	0.262	0.005	0.02	0.274	0.077	0.017	7.0	-17.2	13.2
TD 330 cm	37.88	0.018	0.595	0.006	0.022	0.325	0.097	0.029	6.5	-17.7	12.7

样品编号	w_B/%								δ¹³C_V-PDB/ ‰	δ¹⁸O_V-PDB/ ‰	δ¹⁸O_V-SMOW/ ‰
样品编号	Ca	Al	Fe	K	Na	Mg	Mn	Si	δ¹³C_V-PDB/ ‰	δ¹⁸O_V-PDB/ ‰	δ¹⁸O_V-SMOW/ ‰
GBSB-cal	38.32	0.021	0.041	0.003	0.022	0.192	0.03	0.003	5.8	-22.3	7.9
GBSB 0 cm	39.41	0.04	0.13	0.014	0.028	0.338	0.04	0.025	4.1	-25.9	4.2
GBSB 8 cm	39.75	0.03	0.135	0.006	0.015	0.267	0.041	0.012	4.5	-24.5	5.7
GBSB 22 cm	37.25	0.07	0.147	0.016	0.029	0.231	0.031	0.045	5.1	-22.3	7.9
GBSB 45 cm	40.43	0.032	0.15	0.006	0.016	0.262	0.043	0.01	4.6	-24.7	5.5
GBSB 97 cm	38.22	0.027	0.031	0.005	0.019	0.201	0.05	0.008	4.5	-25.2	4.9
GBSB 135 cm	38.86	0.019	0.051	0.004	0.014	0.197	0.038	0.004	4.8	-25.1	5.0
GBSB 200 cm	38.55	0.051	0.174	0.022	0.031	0.328	0.02	0.056	8.2	-17.5	12.9
GBSB 282 cm	38.09	0.036	0.033	0.006	0.018	0.255	0.044	0.022	4.9	-25.0	5.2
GBSB 350 cm	38.55	0.034	0.071	0.008	0.022	0.252	0.061	0.015	4.2	-26.9	3.2
GBSB 412 cm	38.15	0.017	0.057	0.005	0.017	0.254	0.031	0.012	5.2	-24.8	5.4
GBSB 458 cm	36.81	0.056	0.174	0.019	0.02	0.305	0.045	0.038	4.0	-24.9	5.3
QJLZ 0 cm	37.61	0.011	0.124	0.002	0.006	0.511	0.006	0.004	4.8	-21.5	8.7
QJLZ 18 cm	40.19	0.009	0.109	0.005	0.008	0.783	0.001	0.002	4.0	-23.2	7.0
QJLZ 31 cm	40.49	0.014	0.264	0.007	0.009	0.691	0.004	0.003	4.4	-22.0	8.2
QJLZ 62 cm	40.42	0.028	0.263	0.006	0.008	0.462	0.009	0.012	5.0	-20.9	9.3
QJLZ 142 cm	36.13	0.08	0.387	0.012	0.006	0.259	0.01	0.05	7.0	-17.0	13.4
GQ 0 cm	39.43	0.008	0.278	0.009	0.054	0.767	0.033	0.012	-1.7	-30.3	-0.3
GQ 67 cm	37.91	0.011	0.391	0.007	0.067	0.741	0.055	0.014	-1.5	-30.2	-0.3
GQ 97 cm	40.36	0.009	0.367	0.006	0.024	0.834	0.058	0.012	-1.6	-30.4	-0.5
GQ 121 cm	39.95	0.014	0.212	0.006	0.017	0.764	0.028	0.024	-1.1	-29.4	0.6
GQ 193 cm	37.69	0.008	0.869	0.004	0.026	0.6	0.144	0.007	-1.5	-29.9	0.1
GQ 246 cm	39.22	0.009	0.044	0.005	0.002	0.232	0.008	0.005	7.0	-25.3	4.8
BD 0 cm	38.35	0.054	0.574	0.004	0.066	0.057	0.112	0.001	-0.8	-21.3	9.0
BD 60 cm	40.4	0.038	1.184	0.006	0.04	0.215	0.154	0.012	-1.5	-20.3	10.0
BD 120 cm	37.68	0.052	1.321	0.006	0.056	0.189	0.195	0.001	-1.8	-21.3	9.0
BD 130 cm	34.59	0.024	0.323	0.018	0.111	0.277	0.045	0.021	0.3	-16.7	13.7
BD 180 cm	37.95	0.05	1.191	0.007	0.045	0.238	0.155	0.002	-1.7	-21.4	8.9
BD 240 cm	38.55	0.042	0.995	0.006	0.047	0.243	0.104	0.004	-1.8	-21.1	9.2
BD 300cm	31.28	0.057	1.296	0.005	0.057	0.207	0.161	0.003	-1.7	-20.7	9.6
RR 0 cm	36.26	0.011	0.021	0.005	0.044	0.439	0.524	0.006	-2.8	-25.3	4.9
RR 40 cm	34.67	0.012	0.022	0.006	0.059	0.448	0.532	0.009	-3.1	-25.6	4.5
RR 80 cm	37.68	0.011	0.019	0.006	0.038	0.473	0.448	0.018	-2.7	-25.0	5.2
RR 120 cm	38.02	0.01	0.02	0.005	0.036	0.45	0.563	0.004	-3.0	-25.5	4.7
RR 160 cm	37.41	0.009	0.048	0.003	0.034	0.523	0.461	0.014	-2.8	-24.7	5.5
RR 200 cm	36.77	0.029	0.043	0.027	0.08	0.592	0.423	0.022	-2.5	-24.1	6.1
RR 246 cm	37.01	0.019	0.02	0.007	0.06	0.43	0.151	0.013	-1.6	-21.1	9.2
TD 0 cm	25.72	0.324	0.828	0.105	0.064	0.588	0.046	0.172	8.6	-15.4	15.0
TD 60 cm	38.74	0.007	0.027	0.006	0.026	0.253	0.02	0.004	7.5	-17.7	12.6
TD 120 cm	36.41	0.016	0.389	0.005	0.029	0.353	0.076	0.039	8.5	-17.2	13.2
TD 180 cm	36.2	0.019	0.511	0.007	0.021	0.323	0.095	0.068	7.3	-17.1	13.3
TD 240 cm	38.86	0.013	0.359	0.004	0.019	0.289	0.084	0.031	6.4	-17.4	12.9
TD 300 cm	37.5	0.024	0.262	0.005	0.02	0.274	0.077	0.017	7.0	-17.2	13.2
TD 330 cm	37.88	0.018	0.595	0.006	0.022	0.325	0.097	0.029	6.5	-17.7	12.7

Preliminary study on hydrothermal CO₂ flux from active fault zones in southern Tibet: Constraints from travertine geochronology and geochemistry

RichHTML

PDF (PC)

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 12

References 76

Related Articles 1

Recommended Articles

Metrics

Comments
