Application of 2D-EMD/PCA in gold and key metals prospecting in Jiaodong

doi:10.13745/j.esf.sf.2024.10.26

Abstract

Abstract:

With the continuous rise in global demand for mineral resources in recent years from manufacturing industry and global economy, it is an urgent need to develop new methods for proven and hidden mineral resources. However, multistage mineralization results in complex, overlapping distribution of ore-forming elements in geological units, and most minerals are often associated with multiple elements. To address this problem we used a combination of two-dimensional empirical mode decomposition (2D-EMD) and principal component analysis (PCA) to extract local and regional multielement anomaly components from the drainage sediment geochemical data in the Jiaodong gold polymetallic ore field. The prospective areas were identified from complex, overlapping anomalies, and the multielement mineral resource potential of the study area was evaluated by geochemical block method. The results provide a scientific basis for the exploration and evaluation of symbiotic minerals. Specifically, (1) Au-Ag-Cd and Be-La-Mo-Nb-Th-U-Y multielement combinations were established by PCA; (2) the local and regional anomaly components of the multielement combinations were identified by 2D-EMD based on their principal component scores; (3) the prospective area of the two multielement combinations could be delineated using local anomaly components, and the high background belt could be identified by regional anomaly components. Combined with the local anomaly components and the spatial distribution of granite, we infer that Au-Ag-Cd mineralization is related to the Linglong granite and Guojialing granodiorite intrusions, and Be-La-Mo-Nb-Th-U-Y mineralization is related to the Guojialing granodiorite and Weideshan monzonite intrusions. The Guojialing granodiorite rock mass may have dual metallogenetic characteristics of both precious and critical metals.

Key words: 2D-EMD, PCA, multielement combination anomaly component, Jiaodong gold polymetallic ore field

CLC Number:

CHEN Yongqing, ZHENG Aoyue, FEI Jinna, ZHAO Jie, ZHAO Pengda. Application of 2D-EMD/PCA in gold and key metals prospecting in Jiaodong[J]. Earth Science Frontiers, 2025, 32(1): 266-282.

Figures/Tables 16

References 60

[1]	ALLAHBAKHSHIPOOR A, ALIPOUR-ASLL M, LENTZ D R. Genesis of the Kuh-Panj porphyry copper deposit, Kerman, Iran: constraints from mineralization, geochemistry, fluid inclusion, and zircon U-Pb isotope systematics[J]. Journal of Geochemical Exploration, 2023, 253: 107276.
[2]	DMITRIJEVA M, CIOBANU C L, EHRIG K J, et al. Mineralization-alteration footprints in the Olympic Dam IOCG district, South Australia: the acropolis prospect[J]. Journal of Geochemical Exploration, 2019, 205: 106333.
[3]	翟裕生. 论成矿系统[J]. 地学前缘, 1999, 6(1): 13-27.
[4]	翟裕生. 试论矿床成因的基本模型[J]. 地学前缘, 2014, 21(1): 1-8.
[5]	ESMAEILOGHLI S, TABATABAEI S H, CARRANZA E J M. Infomax-based deep autoencoder network for recognition of multi-element geochemical anomalies linked to mineralization[J]. Computers & Geosciences, 2023, 175: 105341.
[6]	SINCLAIR A J. Selection of threshold values in geochemical data using probability graphs[J]. Journal of Geochemical Exploration, 1974, 3(2): 129-149.
[7]	HAWKES H E, WEBB J S. Geochemistry in mineral exploration[J]. Soil Science, 1963, 95(4): 283.
[8]	VISTELIUS A B. The skew frequency distributions and the fundamental law of the geochemical processes[J]. The Journal of Geology, 1960, 68(1): 1-22.
[9]	REIMANN C, FILZMOSER P. Normal and lognormal data distribution in geochemistry: death of a myth. Consequences for the statistical treatment of geochemical and environmental data[J]. Environmental Geology, 2000, 39(9): 1001-1014.
[10]	AHRENS L H. The lognormal distribution of the elements (2)[J]. Geochimica et Cosmochimica Acta, 1954, 6(2/3): 121-131.
[11]	AHRENS L H. The lognormal distribution of the elements (a fundamental law of geochemistry and its subsidiary)[J]. Geochimica et Cosmochimica Acta, 1954, 5(2): 49-73.
[12]	YU C, SHEN Y, CEN K, et al. Regional geochemical study of Yiliu district, Guangdong Province[M]. Beijing: Geological Publishing House, 1987.
[13]	於崇文. 中华人民共和国地质矿产部地质专报三: 岩石矿物地球化学: 第7号: 南岭地区区域地球化学[M]. 北京: 地质出版社, 1987.
[14]	MEIGOONY M S, AFZAL P, GHOLINEJAD M, et al. Delineation of geochemical anomalies using factor analysis and multifractal modeling based on stream sediments data in Sarajeh 1∶100000 sheet, central Iran[J]. Arabian Journal of Geosciences, 2014, 7(12): 5333-5343.
[15]	CARLSON C A. Spatial distribution of ore deposits[J]. Geology, 1991, 19(2): 111.
[16]	AGTERBERG F. Pareto-lognormal modeling of known and unknown metal resources[J]. Natural Resources Research, 2017, 26(1): 3-20.
[17]	AGTERBERG F. Aspects of regional and worldwide mineral resource prediction[J]. Journal of Earth Science, 2021, 32(2): 279-287.
[18]	AGTERBERG F P, CHENG Q M. Introduction to special issue on “fractals and multifractals”[J]. Computers and Geosciences, 1999, 25(9): 947-948.
[19]	AGTERBERG F P, CHENG Q M, BROWN A, et al. Multifractal modeling of fractures in the lac du bonnet batholith, Manitoba[J]. Computers & Geosciences, 1996, 22(5), 497-507.
[20]	成秋明. 非线性成矿预测理论: 多重分形奇异性-广义自相似性-分形谱系模型与方法[J]. 地球科学: 中国地质大学学报, 2006, 31(3): 337-348.
[21]	CHENG Q M, AGTERBERG F P, BALLANTYNE S B. The separation of geochemical anomalies from background by fractal methods[J]. Journal of Geochemical Exploration, 1994, 51(2): 109-130.
[22]	TURCOTTE D L. Fractals andchaos in geology and geophysics[M]. 2nd ed. Cambridge, UK: Cambridge University Press, 1997.
[23]	TURCOTTE D L. Fractals in petrology[J]. Lithos, 2002, 65(3): 261-271.
[24]	CHENG Q M. Mapping singularities with stream sediment geochemical data for prediction of undiscovered mineral deposits in Gejiu, Yunnan Province, China[J]. Ore Geology Reviews, 2007, 32(1/2): 314-324.
[25]	ZUO R G, WANG J. Fractal/multifractal modeling of geochemical data: a review[J]. Journal of Geochemical Exploration, 2016, 164: 33-41.
[26]	ZUO R G, WANG J, XIONG Y H, et al. The processing methods of geochemical exploration data: past, present, and future[J]. Applied Geochemistry, 2021, 132: 105072.
[27]	ZUO R G. Machine learning of mineralization-related geochemical anomalies: a review of potential methods[J]. Natural Resources Research, 2017, 26(4): 457-464.
[28]	ZUO R G, WANG Z Y. Effects of random negative training samples on mineral prospectivity mapping[J]. Natural Resources Research, 2020, 29(6): 3443-3455.
[29]	JAMES L, DOUGLAS C J, PAUL E. Analyzing multivariate data[J]. Technometrics, 2004, 46(2): 254-255.
[30]	DAVI J C, SAMPSON R J. Statistics and data analysis in geology[M]. 3rd ed. New York: Wiley, 1986.
[31]	CHEN Y Q, ZHAO B N, CHEN C, et al. Identification of ore-finding targets using the anomaly components of ore-forming element associations extracted by SVD and PCA in the Jiaodong gold cluster area, eastern China[J]. Ore Geology Reviews, 2022, 144: 104866.
[32]	ZHENG A Y, CHEN C, CHEN Y Q, et al. Application of SVD combined with PCA in delineation and evaluation of ore-prospecting targets in the Gejiu tin polymetallic cluster region, SW China[J]. Ore Geology Reviews, 2023, 160: 105571.
[33]	王学求, 徐善法, 迟清华, 等. 中国金的地球化学省及其成因的微观解释[J]. 地质学报, 2013, 87(1): 1-8.
[34]	XIE X J, LIU D W, XIANG Y C, et al. Geochemical blocks for predicting large ore deposits: concept and methodology[J]. Journal of Geochemical Exploration, 2004, 84(2): 77-91.
[35]	孙景贵, 胡受奚, 赵懿英, 等. 初论胶东地区金矿成矿模式[J]. 矿床地质, 2000, 19(1): 26-36.
[36]	甄世民, 叶天竺, 庞振山, 等. 胶西北地区金矿床构造控矿规律浅析[J]. 地质论评, 2015, 61(增刊1): 596-597.
[37]	张琪彬, 宋明春, 丁正江, 等. 胶东焦家巨型金矿床的剥露历史与保存[J]. 中国科学: 地球科学, 2022, 52(7): 1391-1408.
[38]	宋明春, 胡文萱, 李杰, 等. 胶东型金矿成矿系列及找矿案例[J]. 地球学报, 2023, 44(5): 781-796.
[39]	杨立强, 邓军, 王中亮, 等. 胶东中生代金成矿系统[J]. 岩石学报, 2014, 30(9): 2447-2467.
[40]	杨立强, 李瑞红, 高雪, 等. 胶东金矿床中关键金属超常富集特征与机理初探[J]. 岩石学报, 2020, 36(5): 1285-1314.
[41]	ZHAO D P, MARUYAMA S, OMORI S. Mantle dynamics of Western Pacific and East Asia: insight from seismic tomography and mineral physics[J]. Gondwana Research, 2007, 11(1/2): 120-131.
[42]	谢士稳, 王世进, 颉颃强, 等. 华北克拉通胶东地区粉子山群碎屑锆石SHRIMP U-Pb定年[J]. 岩石学报, 2014, 30(10): 2989-2998.
[43]	李杰. 胶东地区钼-铜-铅锌多金属矿成矿作用及成矿模式[D]. 成都: 成都理工大学, 2012.
[44]	叶杰, 刘建明, 李永兵, 等. 山东金矿成矿地球动力学背景的初步讨论[J]. 矿床地质, 2002, 21(增刊1): 755-758.
[45]	YANG C X, SANTOSH M. Ancient deep roots for Mesozoic world-class gold deposits in the North China Craton: an integrated genetic perspective[J]. Geoscience Frontiers, 2020, 11(1): 203-214.
[46]	CHEN Y Q, ZHANG L N, ZHAO B B. Application of bi-dimensional empirical mode decomposition (BEMD) modeling for extracting gravity anomaly indicating the ore-controlling geological architectures and granites in the Gejiu tin-copper polymetallic ore field, southwestern China[J]. Ore Geology Reviews, 2017, 88: 832-840.
[47]	CHEN Y Q, ZHANG L N, ZHAO B B. Identification of the anomaly component using BEMD combined with PCA from element concentrations in the Tengchong tin belt, SW China[J]. Geoscience Frontiers, 2019, 10(4): 1561-1576.
[48]	NUNES J C, BOUAOUNE Y, DELECHELLE E, et al. Image analysis by bidimensional empirical mode decomposition[J]. Image and Vision Computing, 2003, 21(12): 1019-1026.
[49]	NUNES J C, GUYOT S, DELÉCHELLE E. Texture analysis based on local analysis of thebidimensional empirical mode decomposition[J]. Machine Vision and Applications, 2005, 16(3): 177-188.
[50]	FREIRE S L M. Application of singular value decomposition to vertical seismic profiling[J]. Geophysics, 1988, 53(6): 778.
[51]	XIE X J, MU X Z, REN T X. Geochemical mapping in China[J]. Journal of Geochemical Exploration, 1997, 60(1): 99-113.
[52]	XIE X J, REN T X. National geochemical mapping and environmental geochemistry: progress in China[J]. Journal of Geochemical Exploration, 1993, 49(1/2): 15-34.
[53]	XIE X J, SUN H Z, REN T X. Regional geochemistry: national reconnaissance project in China[J]. Journal of Geochemical Exploration, 1989, 33(1/2/3): 1-9.
[54]	陈永清, 赵鹏大, 刘红光. 鲁西金矿成矿组分的聚集与演化[J]. 地球科学: 中国地质大学学报, 2001, 26(1): 41-48.
[55]	GAO S, LUO T C, ZHANG B R, et al. Chemical composition of the continental crust as revealed by studies in East China[J]. Geochimica et Cosmochimica Acta, 1998, 62(11): 1959-1975.
[56]	GRUNSKY E C, KJARSGAARD B A. Classification of distinct eruptive phases of the diamondiferous Star kimberlite, Saskatchewan, Canada based on statistical treatment of whole rock geochemical analyses[J]. Applied Geochemistry, 2008, 23(12): 3321-3336.
[57]	黄静宁, 赵鹏大. 滇东地区深层次Pt-Cu-Au矿化异常定量提取与评价[J]. 地球科学: 中国地质大学学报, 2009, 34(2): 365-374.
[58]	ZUO R G, XIA Q L, WANG H C. Compositional data analysis in the study of integrated geochemical anomalies associated with mineralization[J]. Applied Geochemistry, 2013, 28: 202-211.
[59]	AITCHISON J, GREENACRE M. Biplots of compositional data[J]. Journal of the Royal Statistical Society Series C: Applied Statistics, 2002, 51(4): 375-392.
[60]	HOU J, WU C, YU G, et al. Research progress on the deep structure of Jiaodong gold deposit concentration area[J]. Progress in Geophysiscs, 2022, 37(3): 952-963.

组分	有效样品数	最小值	最大值	平均值	标准差	中国东部水系沉积物平均值	富集系数	变异系数
Ag	10 700	7.00	1 537.00	51.64	63.82	55	0.94	1.24
As	10 691	0.59	149.20	5.84	3.38	2.4	2.43	0.58
Au	10 701	0.13	1 887.00	6.00	32.41	0.9	6.60	5.40
B	10 687	2.60	180.00	33.40	14.34	11	3.04	0.43
Ba	10 695	101.00	5 587.00	872.66	351.16	620	1.41	0.40
Be	10 563	0.60	11.00	2.04	0.55	1.40	1.46	0.27
Bi	10 691	0.01	19.00	0.21	0.33	0.15	1.40	1.57
Cd	10 694	1.60	2 460.00	62.70	71.50	100	0.63	1.14
Co	10 690	0.16	92.00	12.18	4.26	19	0.64	0.35
Cr	10 687	5.50	377.80	63.80	25.58	76	0.84	0.40
Cu	10 703	1.00	472.57	20.20	12.96	26	0.78	0.64
F	10 697	29.40	16 000.00	425.70	246.88	540	0.79	0.58
Hg	10 700	1.00	4 184.00	30.89	79.22	7	4.41	2.56
La	10 697	4.10	500.00	42.37	19.82	29	1.46	0.47
Li	10 695	3.50	89.00	24.42	7.62	17	1.44	0.31
Mn	10 694	92.00	3 197.00	601.83	158.53	810	0.74	0.26
Mo	10 701	0.02	23.05	0.56	0.59	0.50	1.12	1.05
Nb	10 702	3.30	192.00	15.57	5.40	10	1.56	0.35
Ni	10 698	1.70	280.00	25.42	12.29	31	0.82	0.48
P	10 695	23.00	4 102.00	493.67	260.21	750	0.66	0.53
Pb	10 688	2.67	1 343.80	24.62	25.17	15	1.64	1.02
Sb	10 691	0.01	22.00	0.39	0.27	0.18	2.17	0.69
Sn	10 689	0.49	51.00	2.52	1.22	1.40	1.80	0.48
Sr	10 696	5.75	7 159.00	259.61	132.05	350	0.74	0.51
Th	10 530	1.10	82.00	10.06	4.94	6	1.68	0.49
Ti	10 697	696.00	10 741.00	4 012.43	793.05	4 000	1.00	0.20
U	10 520	0.06	999.90	2.30	9.78	1.3	1.77	4.25
V	10 695	2.80	357.00	77.81	23.52	112	0.69	0.30
W	10 699	0.05	48.00	1.35	0.99	0.60	2.25	0.73
Y	10 698	5.81	161.10	22.82	5.30	17	1.34	0.23
Zn	10 703	1.00	879.00	50.22	24.37	76	0.66	0.49
Zr	10 698	3.00	3 631.00	408.26	159.92	160	2.55	0.39
Al₂O₃	10 697	0.80	46.55	7.11	1.06	14.83	0.48	0.15
CaO	10 697	0.13	36.00	1.27	0.99	5.37	0.24	0.78
Fe₂O₃	10 697	0.37	16.3	3.03	0.82	6.55	0.46	0.27
K₂O	10 699	1.09	7.76	2.10	0.34	2.31	0.91	0.16
MgO	10 697	0.04	9.30	0.83	0.38	3.19	0.26	0.46
Na₂O	10 697	0.10	5.40	1.59	0.42	3.44	0.46	0.26
SiO₂	10 696	15.11	80.80	32.18	4.56	60.61	0.53	0.14

组分	有效样品数	最小值	最大值	平均值	标准差	中国东部水系沉积物平均值	富集系数	变异系数
Ag	10 700	7.00	1 537.00	51.64	63.82	55	0.94	1.24
As	10 691	0.59	149.20	5.84	3.38	2.4	2.43	0.58
Au	10 701	0.13	1 887.00	6.00	32.41	0.9	6.60	5.40
B	10 687	2.60	180.00	33.40	14.34	11	3.04	0.43
Ba	10 695	101.00	5 587.00	872.66	351.16	620	1.41	0.40
Be	10 563	0.60	11.00	2.04	0.55	1.40	1.46	0.27
Bi	10 691	0.01	19.00	0.21	0.33	0.15	1.40	1.57
Cd	10 694	1.60	2 460.00	62.70	71.50	100	0.63	1.14
Co	10 690	0.16	92.00	12.18	4.26	19	0.64	0.35
Cr	10 687	5.50	377.80	63.80	25.58	76	0.84	0.40
Cu	10 703	1.00	472.57	20.20	12.96	26	0.78	0.64
F	10 697	29.40	16 000.00	425.70	246.88	540	0.79	0.58
Hg	10 700	1.00	4 184.00	30.89	79.22	7	4.41	2.56
La	10 697	4.10	500.00	42.37	19.82	29	1.46	0.47
Li	10 695	3.50	89.00	24.42	7.62	17	1.44	0.31
Mn	10 694	92.00	3 197.00	601.83	158.53	810	0.74	0.26
Mo	10 701	0.02	23.05	0.56	0.59	0.50	1.12	1.05
Nb	10 702	3.30	192.00	15.57	5.40	10	1.56	0.35
Ni	10 698	1.70	280.00	25.42	12.29	31	0.82	0.48
P	10 695	23.00	4 102.00	493.67	260.21	750	0.66	0.53
Pb	10 688	2.67	1 343.80	24.62	25.17	15	1.64	1.02
Sb	10 691	0.01	22.00	0.39	0.27	0.18	2.17	0.69
Sn	10 689	0.49	51.00	2.52	1.22	1.40	1.80	0.48
Sr	10 696	5.75	7 159.00	259.61	132.05	350	0.74	0.51
Th	10 530	1.10	82.00	10.06	4.94	6	1.68	0.49
Ti	10 697	696.00	10 741.00	4 012.43	793.05	4 000	1.00	0.20
U	10 520	0.06	999.90	2.30	9.78	1.3	1.77	4.25
V	10 695	2.80	357.00	77.81	23.52	112	0.69	0.30
W	10 699	0.05	48.00	1.35	0.99	0.60	2.25	0.73
Y	10 698	5.81	161.10	22.82	5.30	17	1.34	0.23
Zn	10 703	1.00	879.00	50.22	24.37	76	0.66	0.49
Zr	10 698	3.00	3 631.00	408.26	159.92	160	2.55	0.39
Al₂O₃	10 697	0.80	46.55	7.11	1.06	14.83	0.48	0.15
CaO	10 697	0.13	36.00	1.27	0.99	5.37	0.24	0.78
Fe₂O₃	10 697	0.37	16.3	3.03	0.82	6.55	0.46	0.27
K₂O	10 699	1.09	7.76	2.10	0.34	2.31	0.91	0.16
MgO	10 697	0.04	9.30	0.83	0.38	3.19	0.26	0.46
Na₂O	10 697	0.10	5.40	1.59	0.42	3.44	0.46	0.26
SiO₂	10 696	15.11	80.80	32.18	4.56	60.61	0.53	0.14

组分	各主成分载荷
组分	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8	PC9
Ag	0.050	0.029	0.113	0.79	-0.06	0.125	0.06	0.000	-0.039
As	0.040	-0.011	0.806	0.10	-0.04	0.052	0.01	-0.036	0.086
Au	0.045	-0.071	0.08	0.61	0.24	0.159	-0.16	-0.035	-0.017
B	-0.004	-0.037	0.789	-0.06	-0.06	0.119	-0.19	-0.163	0.099
Ba	-0.201	0.065	-0.158	0.07	0.82	-0.250	0.06	0.063	-0.142
Be	-0.083	0.688	0.079	-0.11	0.14	0.197	0.22	0.017	0.109
Bi	0.069	0.178	0.188	0.22	-0.14	0.653	0.08	0.000	0.218
Cd	0.241	0.166	0.013	0.64	-0.14	-0.050	0.20	-0.022	0.249
Co	0.816	0.008	0.133	-0.02	-0.07	0.091	0.10	-0.047	-0.006
Cr	0.788	0.003	0.200	-0.02	0.08	-0.003	-0.08	-0.096	-0.158
Cu	0.727	-0.058	0.155	0.22	-0.04	0.314	0.01	-0.026	0.113
F	0.519	0.467	0.016	0.08	0.05	0.025	0.05	-0.405	0.192
Hg	0.063	0.040	0.216	0.01	-0.09	0.066	-0.12	0.015	0.689
La	0.374	0.565	-0.074	-0.02	0.27	0.034	0.06	0.246	0.089
Li	0.410	0.020	0.544	-0.16	-0.10	0.246	0.07	-0.333	0.140
Mn	0.653	0.211	0.049	0.12	-0.06	-0.116	0.15	0.262	0.016
Mo	0.046	0.523	-0.125	0.36	0.02	0.244	0.17	-0.085	-0.234
Nb	0.108	0.697	0.022	0.02	0.05	0.046	0.04	0.310	-0.195
Ni	0.830	-0.078	0.149	-0.08	0.02	0.061	0.08	-0.019	0.074
P	0.681	0.268	-0.268	0.16	0.25	-0.022	-0.09	-0.024	0.117
Pb	0.037	0.228	0.051	0.34	0.33	0.228	0.26	0.044	0.528
Sb	0.114	-0.045	0.707	0.10	-0.17	0.118	0.13	0.152	0.057
Sn	0.027	0.378	0.354	0.17	-0.03	0.054	-0.08	-0.024	0.164
Sr	0.224	-0.022	-0.448	-0.09	0.75	-0.007	-0.03	-0.013	0.099
Th	0.093	0.782	-0.091	-0.02	0.00	0.184	0.00	-0.009	0.121
Ti	0.806	0.249	0.060	0.03	-0.01	0.009	-0.13	0.255	-0.074
U	0.227	0.704	0.034	0.10	-0.11	0.217	-0.12	0.034	-0.012
V	0.864	0.085	0.115	0.03	0.01	0.150	-0.07	0.210	0.052
W	0.157	0.237	0.183	0.12	-0.07	0.752	-0.05	-0.008	-0.025
Y	0.050	0.712	-0.003	0.05	-0.01	-0.232	-0.03	0.028	0.045
Zn	0.579	0.307	-0.094	0.42	0.00	-0.016	0.14	-0.121	0.235
Zr	0.018	0.318	-0.228	-0.09	0.04	0.003	-0.07	0.777	0.065
Al₂O₃	0.204	0.165	-0.264	0.12	0.11	0.069	0.70	-0.181	-0.166
CaO	0.627	-0.117	-0.227	-0.02	-0.05	0.000	-0.22	-0.201	0.357
Fe₂O₃	0.881	0.249	-0.050	0.18	-0.10	0.011	0.07	-0.016	-0.079
K₂O	-0.479	0.397	-0.047	0.13	0.43	-0.012	0.40	-0.003	0.021
MgO	0.840	0.064	0.033	0.10	-0.02	0.020	-0.08	-0.248	0.044
Na₂O	-0.254	-0.039	-0.677	-0.10	0.15	0.013	0.40	0.149	0.120
SiO₂	-0.458	-0.185	0.035	-0.01	-0.37	-0.117	0.52	0.155	0.046
特征值	21.569	11.284	8.812	5.65	5.25	4.236	4.02	3.823	3.679
累积贡献率/%	21.57	32.85	41.67	47.31	52.56	56.80	60.82	64.64	68.32

组分	各主成分载荷
组分	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8	PC9
Ag	0.050	0.029	0.113	0.79	-0.06	0.125	0.06	0.000	-0.039
As	0.040	-0.011	0.806	0.10	-0.04	0.052	0.01	-0.036	0.086
Au	0.045	-0.071	0.08	0.61	0.24	0.159	-0.16	-0.035	-0.017
B	-0.004	-0.037	0.789	-0.06	-0.06	0.119	-0.19	-0.163	0.099
Ba	-0.201	0.065	-0.158	0.07	0.82	-0.250	0.06	0.063	-0.142
Be	-0.083	0.688	0.079	-0.11	0.14	0.197	0.22	0.017	0.109
Bi	0.069	0.178	0.188	0.22	-0.14	0.653	0.08	0.000	0.218
Cd	0.241	0.166	0.013	0.64	-0.14	-0.050	0.20	-0.022	0.249
Co	0.816	0.008	0.133	-0.02	-0.07	0.091	0.10	-0.047	-0.006
Cr	0.788	0.003	0.200	-0.02	0.08	-0.003	-0.08	-0.096	-0.158
Cu	0.727	-0.058	0.155	0.22	-0.04	0.314	0.01	-0.026	0.113
F	0.519	0.467	0.016	0.08	0.05	0.025	0.05	-0.405	0.192
Hg	0.063	0.040	0.216	0.01	-0.09	0.066	-0.12	0.015	0.689
La	0.374	0.565	-0.074	-0.02	0.27	0.034	0.06	0.246	0.089
Li	0.410	0.020	0.544	-0.16	-0.10	0.246	0.07	-0.333	0.140
Mn	0.653	0.211	0.049	0.12	-0.06	-0.116	0.15	0.262	0.016
Mo	0.046	0.523	-0.125	0.36	0.02	0.244	0.17	-0.085	-0.234
Nb	0.108	0.697	0.022	0.02	0.05	0.046	0.04	0.310	-0.195
Ni	0.830	-0.078	0.149	-0.08	0.02	0.061	0.08	-0.019	0.074
P	0.681	0.268	-0.268	0.16	0.25	-0.022	-0.09	-0.024	0.117
Pb	0.037	0.228	0.051	0.34	0.33	0.228	0.26	0.044	0.528
Sb	0.114	-0.045	0.707	0.10	-0.17	0.118	0.13	0.152	0.057
Sn	0.027	0.378	0.354	0.17	-0.03	0.054	-0.08	-0.024	0.164
Sr	0.224	-0.022	-0.448	-0.09	0.75	-0.007	-0.03	-0.013	0.099
Th	0.093	0.782	-0.091	-0.02	0.00	0.184	0.00	-0.009	0.121
Ti	0.806	0.249	0.060	0.03	-0.01	0.009	-0.13	0.255	-0.074
U	0.227	0.704	0.034	0.10	-0.11	0.217	-0.12	0.034	-0.012
V	0.864	0.085	0.115	0.03	0.01	0.150	-0.07	0.210	0.052
W	0.157	0.237	0.183	0.12	-0.07	0.752	-0.05	-0.008	-0.025
Y	0.050	0.712	-0.003	0.05	-0.01	-0.232	-0.03	0.028	0.045
Zn	0.579	0.307	-0.094	0.42	0.00	-0.016	0.14	-0.121	0.235
Zr	0.018	0.318	-0.228	-0.09	0.04	0.003	-0.07	0.777	0.065
Al₂O₃	0.204	0.165	-0.264	0.12	0.11	0.069	0.70	-0.181	-0.166
CaO	0.627	-0.117	-0.227	-0.02	-0.05	0.000	-0.22	-0.201	0.357
Fe₂O₃	0.881	0.249	-0.050	0.18	-0.10	0.011	0.07	-0.016	-0.079
K₂O	-0.479	0.397	-0.047	0.13	0.43	-0.012	0.40	-0.003	0.021
MgO	0.840	0.064	0.033	0.10	-0.02	0.020	-0.08	-0.248	0.044
Na₂O	-0.254	-0.039	-0.677	-0.10	0.15	0.013	0.40	0.149	0.120
SiO₂	-0.458	-0.185	0.035	-0.01	-0.37	-0.117	0.52	0.155	0.046
特征值	21.569	11.284	8.812	5.65	5.25	4.236	4.02	3.823	3.679
累积贡献率/%	21.57	32.85	41.67	47.31	52.56	56.80	60.82	64.64	68.32

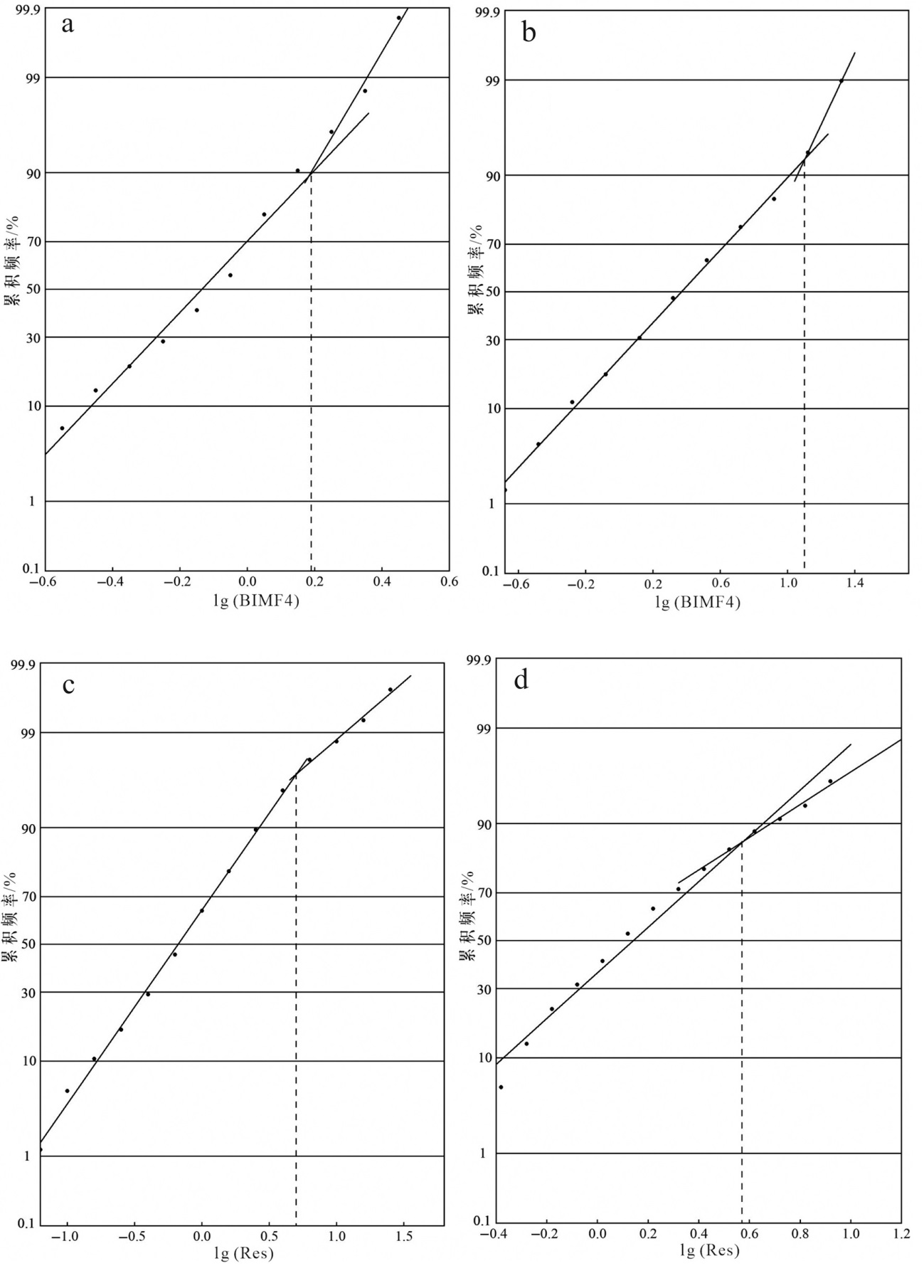

BIMF4				Res
对数间隔	频率数	频率/%	累积频率/%	对数间隔	频率数	频率/%	累积频率/%
>-8~-7.5	13	0.23	0.23	>-7~-6.5	19	0.34	0.34
>-7.5~-7	12	0.22	0.45	>-6.5~-6	12	0.22	0.56
>-7~-6.5	11	0.20	0.65	>-6~-5.5	19	0.34	0.90
>-6.5~-6	22	0.40	1.04	>-5.5~-5	25	0.45	1.35
>-6~-5.5	49	0.88	1.92	>-5~-4.5	62	1.11	2.46
>-5.5~-5	75	1.35	3.27	>-4.5~-4	93	1.67	4.14
>-5~-4.5	120	2.16	5.43	>-4~-3.5	131	2.36	6.49
>-4.5~-4	168	3.02	8.45	>-3.5~-3	236	4.24	10.73
>-4~-3.5	309	5.56	14.01	>-3~-2.5	403	7.25	17.98
>-3.5~-3	481	8.65	22.65	>-2.5~-2	647	11.63	29.61
>-3~-2.5	914	16.43	39.09	>-2~-1.5	626	11.25	40.87
>-2.5~-2	1 426	25.64	64.72	>-1.5~-1	628	11.29	52.16
>-2~-1.5	1 062	19.09	83.82	>-1~-0.5	567	10.19	62.35
>-1.5~-1	653	11.74	95.56	>-0.5~0	665	11.96	74.31
>-1~-0.5	247	4.44	100.00	>0~0.5	567	10.19	84.50
				>0.5~1	471	8.47	92.97
				>1~1.5	391	7.03	100.00
