华南中生代陆内成矿作用

doi:10.13745/j.esf.sf.2024.1.9

摘要/Abstract

摘要：

陆内成矿机制是全球性科学难题。华南陆块中生代成矿大爆发,成矿作用远离活动大陆边缘,形成西部金锑铅锌低温成矿省和东部钨锡多金属高温成矿省,是研究陆内成矿的理想场所。因为空间上的分离,两个成矿省长期被认为是互为独立的体系。研究发现,西部低温成矿(230~200 Ma、160~130 Ma)与东部高温成矿时代一致并显示类似的地球化学指纹,印支期陆内造山和燕山期软流圈上涌是其共有成矿驱动机制,两个成矿省是具有成因联系的整体,共同构成面状展布的巨型多金属陆内成矿区;成矿后华南从西向东剥蚀程度的增强控制了目前近地表矿西部低温、东部高温的空间分布格局,低温成矿省东部区域的深部可能存在高温钨锡多金属矿床。在此基础上,建立了定位于陆内岩石圈先存薄弱区、陆壳供给矿源、高低温矿并重、成矿面状展布从而明显区别于板块边缘成矿机制的华南陆内成矿新理论。

关键词: 华南陆块, 高温成矿省, 低温成矿省, 陆内成矿机制

Abstract:

Intraplate metallogenesis is a significant global scientific issue. The South China block is renowned for its large-scale mineralization occurring far away from active continental margins during the Mesozoic. It formed a low-temperature metallogenic province of gold, antimony, lead, and zinc deposits in the west (Yangtze block) and a high-temperature metallogenic province of tungsten-tin polymetallic deposits in the east (Cathaysia block), making it an ideal natural laboratory for intraplate metallogenesis studies. The two metallogenic provinces of South China have long been considered distinct systems due to their spatial separation. However, our research revealed that the low-temperature mineralization in the west (230-200 Ma and 160-130 Ma) occurred simultaneously with the high-temperature mineralization in the east, and has similar geochemical fingerprints to the latter. Both types of mineralization were probably driven by the Indosinian intracontinental orogeny and Yanshanian asthenosphere upwelling beneath South China. Therefore, there is a genetic linkage between the two metallogenic provinces, and together they constitute a giant polymetallic domain spreading planarly under intraplate setting. The current distribution status of the low- and high-temperature mineralization types in the west and east is controlled by the eastward increase of denudation degree in South China after ore formation. It is predicted that there may exist high-temperature W-Sn polymetallic deposits beneath the eastern region of the low-temperature metallogenic province. A new intraplate metallogenesis model for South China was established. The significant features of the new model include metallogenesis occurring within preexisting weakness zones of lithosphere, continental crust serving as sources for metallogenic elements, and coexistence of high- and low-temperature mineralization exhibiting a distinct planar distribution. The model differs from the metallogenic mechanism in continental plate margins.

Key words: South China block, high-temperature metallogenic province, low-temperature metallogenic province, intraplate metallogenesis

中图分类号:

P611
P618.2

胡瑞忠, 高伟, 付山岭, 苏文超, 彭建堂, 毕献武. 华南中生代陆内成矿作用[J]. 地学前缘, 2024, 31(1): 226-238.

HU Ruizhong, GAO Wei, FU Shanling, SU Wenchao, PENG Jiantang, BI Xianwu. Mesozoic intraplate metallogenesis in South China[J]. Earth Science Frontiers, 2024, 31(1): 226-238.

图/表 11

图1 华南陆块地质构造和中生代矿床分布简图(据文献[7-8]修改)

Fig.1 Simplified tectonic map of the South China block and distribution of Mesozoic ore deposits. Modified from [7-8].

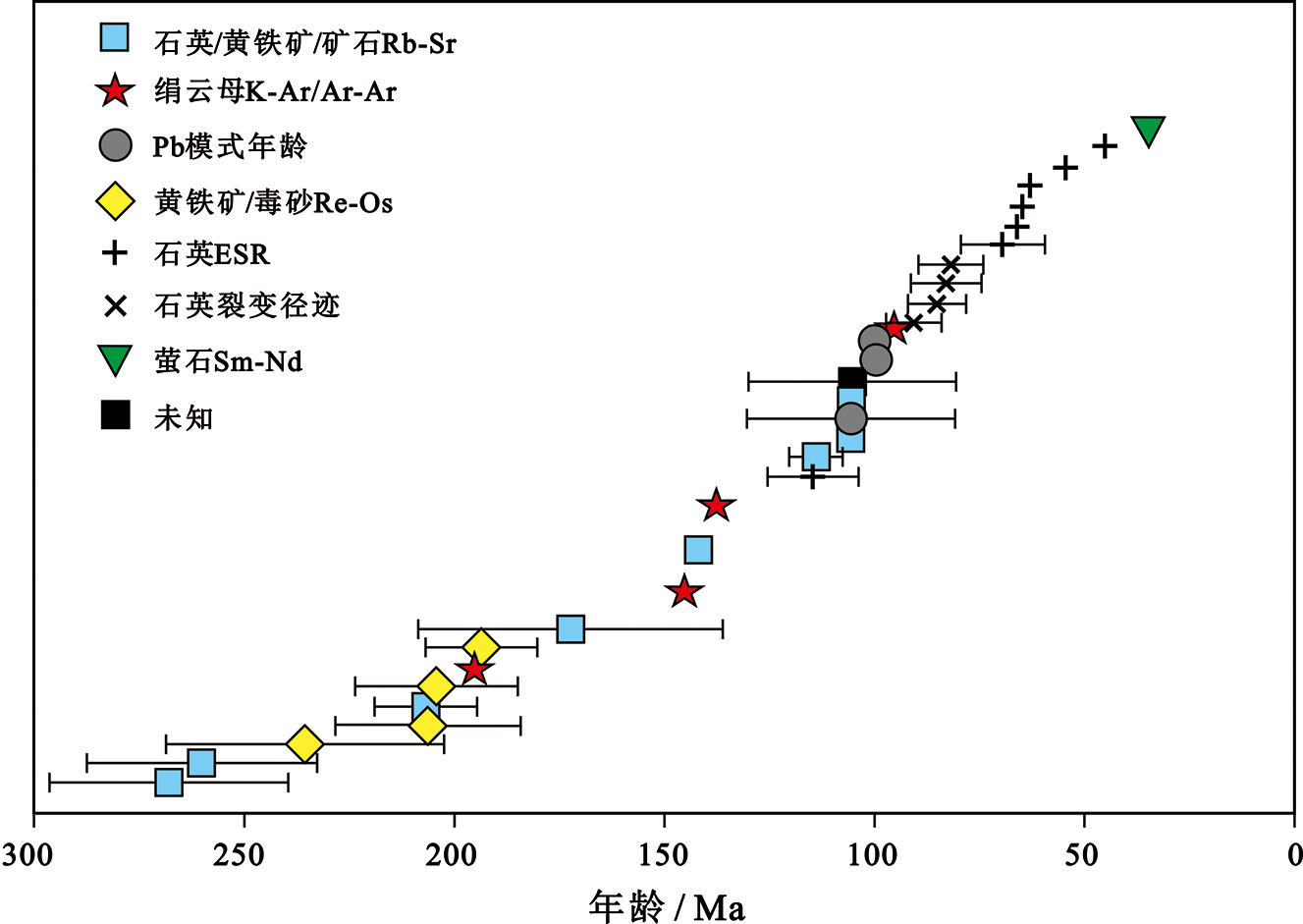

图2 以往确定的华南低温成矿省右江矿集区卡林型金矿床的成矿年龄(据文献[16]修改)

Fig.2 Previous dating results for Carlin-type gold deposits of low-temperature metallogenic province in South China. Modified from [16].

图3 华南陆块中生代大规模低温和高温成矿时代对比(据文献[7,10,22]修改)

Fig.3 Comparison of mineralization ages of the Mesozoic low- and high-temperature metallogenic provinces in South China. Modified from [7,10,22].

图4 右江矿集区卡林型金矿床硫化物矿物硫同位素组成(据文献[17])

Fig.4 Sulfur isotopic compositions of sulfide minerals from Carlin-type gold deposits in the Youjiang Basin. Adapted from [17].

图5 卡林型金矿成矿流体3He/20Ne-4He/20Ne混合模型示意图(据文献[40])

Fig.4 3He/20Ne-4He/20Ne mixing model for ore-forming fluids of Carlin-type gold deposits in the Youjiang Basin. Adapted from [40].

图6 华南低温成矿省金锑汞矿床Δ201Hg-Δ199Hg关系图(据文献[48,52⇓-54]修改)

Fig.6 Plot of Δ201Hg vs. Δ199Hg for gold, antimony, and mercury deposits of low-temperature metallogenic province in South China. Modified from [48,52⇓-54].

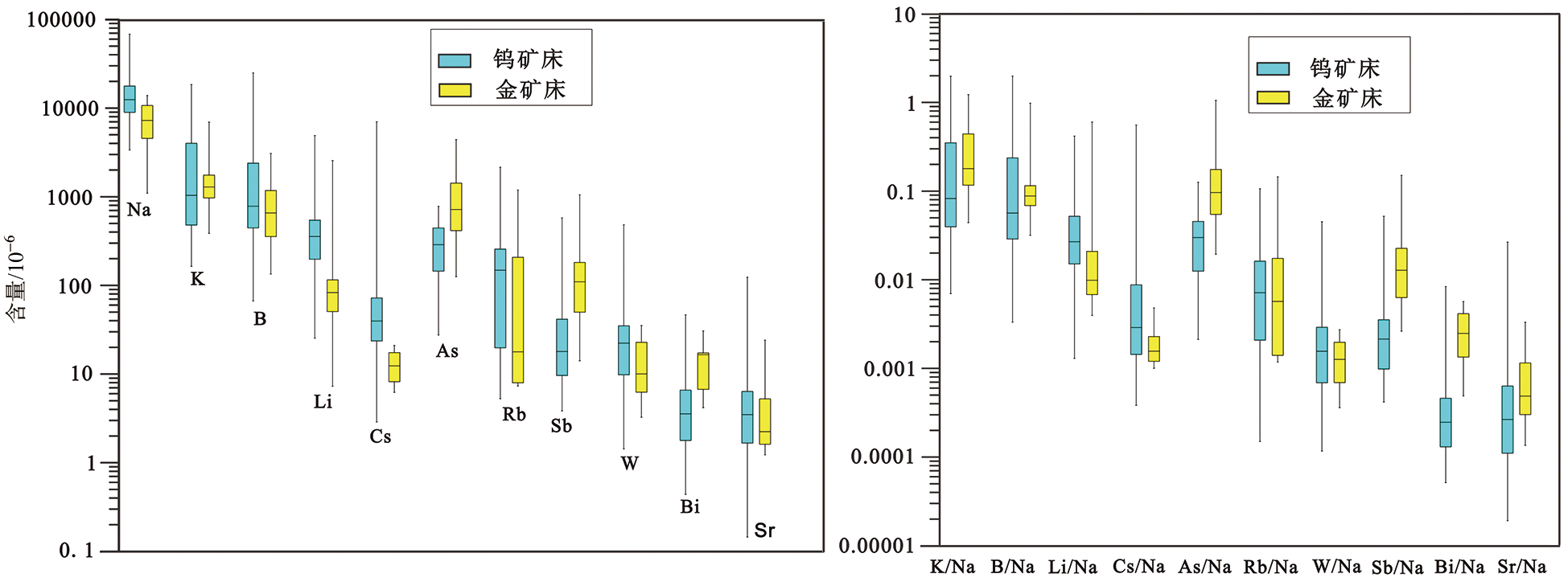

图7 低温金矿床与高温钨矿床成矿流体元素含量和元素/Na比值对比图(据文献[7])

Fig.7 Comparison of elemental concentration and element/Na ratio in ore-forming fluids between low-temperature gold deposit and high-temperature tungsten deposit. Adapted from [7].

图8 低温成矿省右江和湘中矿集区上低温矿、下高温矿的垂向二元结构成矿模式

Fig.8 Vertical binary model for upper low-temperature, lower high-temperature mineralization in the Youjiang and Xiangzhong ore clustes of low-temperature metallogenic province

图9 华南中生代低温和高温成矿省成矿时代和动力学背景(据文献[9]修改)

Fig.9 Mineralization ages and dynamic setting of the Mesozoic low- and high-temperature metallogenic provinces in South China. Modified after [9].

图10 华南印支期(A)和燕山期(B)大规模成矿动力学模型(据文献[7]修改)

Fig.10 Metallogenic dynamic models for large-scale mineralization during the Indosinian (A) and Yanshanian (B) in South China. Modified after [7].

图11 华南低温与高温成矿省的相互关系及其深部找矿预测图(据文献[7]修改)

Fig.11 Genetic relationship between the low- and high-temperature metallogenic provinces in South China and deep prospecting prediction. Modified after [7].

参考文献 55

[1]	PIRAJNO F, ERNST R E, BORISENKO A S, et al. Intraplate magmatism in Central Asia and China and associated metallogeny[J]. Ore Geology Reviews, 2009, 35(2): 114-136. DOI URL
[2]	NALDRETT A J. World-class Ni-Cu-(PGE) deposits: key factors in their genesis[J]. Mineralium Deposita, 1999, 34: 227-240. DOI URL
[3]	RICHARDS J P. Postsubduction porphyry Cu-Au and epithermal Au deposits: products of remelting of subduction-modified lithosphere[J]. Geology, 2009, 37(3): 247-250. DOI URL
[4]	SILLITOE R H. Porphyry copper systems[J]. Economic Geology, 2010, 105: 3-41. DOI URL
[5]	HOU Z Q, YANG Z M, LU Y J, et al. A genetic linkage between subduction- and collision-related porphyry Cu deposits in continental collision zones[J]. Geology, 2015, 43(3): 247-250. DOI URL
[6]	GORCZYK W, VOGT K. Tectonics and melting in intra-continental settings[J]. Gondwana Research, 2015, 27(1): 196-208. DOI URL
[7]	胡瑞忠等. 华南大规模低温成矿作用[M]. 北京: 科学出版社, 2021.
[8]	ZHAO G C, CAWOOD P A. Precambrian geology of China[J]. Precambrian Research, 2015, 222/223: 1-12. DOI URL
[9]	HU R Z, ZHOU M F. Multiple Mesozoic mineralization events in South China: an introduction to the thematic issue[J]. Mineralium Deposita, 2012, 47(6): 579-588. DOI URL
[10]	MAO J W, CHENG Y B, CHEN M H, et al. Major types and time-space distribution of Mesozoic ore deposits in South China and their geodynamic settings[J]. Mineralium Deposita, 2013, 48(3): 267-294. DOI URL
[11]	胡瑞忠, 毛景文, 华仁民, 等. 华南陆块陆内成矿作用[M]. 北京: 科学出版社, 2015.
[12]	XU Y J, CAWOOD P A, DU Y S. Intraplate orogenesis in response to Gondwana assembly: Kwangsian Orogeny, South China[J]. American Journal of Science, 2016, 316(4): 329-362. DOI URL
[13]	WANG Y J, FAN W M, ZANG G W, et al. Phanerozoic tectonics of the South China Block: key observations and controversies[J]. Gondwana Research, 2013, 23(4): 1273-1305. DOI URL
[14]	LI Z X, LI X H. Formation of the 1300-km-wide intracontinent orogen and post-orogenic magmatic province in Mesozoic South China[J]. Geology, 2007, 35(2): 179-182. DOI URL
[15]	NI P, WANG G G, LI W S, et al. A review of the Yanshanian ore-related felsic magmatism and tectonic settings in the Nanling W-Sn and Wuyi Au-Cu metallogenic belts, Cathaysia Block, South China[J]. Ore Geology Reviews, 2021, 133: 104088. DOI URL
[16]	靳晓野. 黔西南泥堡、水银洞和丫他金矿床的成矿作用特征与矿床成因研究[D]. 武汉: 中国地质大学(武汉), 2017.
[17]	HU R Z, FU S L, HUANG Y, et al. The giant South China Mesozoic low-temperature metallogenic domain: reviews and a new geodynamic model[J]. Journal of Asian Earth Sciences, 2017, 137: 9-34. DOI URL
[18]	PI Q H, HU R Z, XIONG B, et al. In situ SIMS U-Pb dating of hydrothermal rutile: reliable age for the Zhesang Carlin-type gold deposit in the golden triangle region, SW China[J]. Mineralium Deposita, 2017, 52(8): 1179-1190. DOI URL
[19]	GAO W, HU R Z, HOFSTRA A H, et al. Dating on hydrothermal rutile and monazite from the Badu gold deposit supports an Early Cretaceous age for Carlin-type gold mineralization in the Youjiang Basin, southwestern China[J]. Economic Geology, 2021, 116(6): 1355-1385. DOI URL
[20]	GAO W, HU R Z, HUANG Y, et al. Hydrothermal apatite as a robust U-Th-Pb chronometer for the Carlin-type gold deposits in the Youjiang Basin, SW China[J]. Mineralium Deposita, 2024, 59. https://doi.org/10.1007/s00126-023-01196-6.
[21]	GAO W, MEI L, HU R Z, et al. Age of Carlin-type gold mineralization in the Youjiang Basin, South China: constraint from hydrothermal zircon geochronology in the Badu dolerite-hosted gold deposit[J]. Ore Geology Reviews, 2023, 163: 105771. DOI URL
[22]	高伟, 胡瑞忠, 李秋立, 等. 右江盆地卡林型金矿成矿年代学研究进展[J]. 地学前缘, 2024, 31(1): 267-283.
[23]	中国科学院地球化学研究所. 华南花岗岩类地球化学及其成矿作用[M]. 北京: 科学出版社, 1979.
[24]	南京大学地质系. 华南不同时代花岗岩类及其与成矿关系[M]. 北京: 科学出版社, 1981.
[25]	HU R Z, BI X W, JIANG G H, et al. Mantle-derived noble gases in ore-forming fluids of the granite-related Yaogangxian tungsten deposit, southeastern China[J]. Mineralium Deposita, 47: 623-632. DOI URL
[26]	WEI W F, HU R Z, BI X W, et al. Infrared microthermometric and stable isotopic study of fluid inclusions in wolframite at the Xihuashan tungsten deposit, Jiangxi Province, China[J]. Mineralium Deposita, 2012, 47: 589-605. DOI URL
[27]	ROMER R F, KRONER U. Phanerozoic tin and tungsten mineralization: tectonic controls on the distribution of enriched protoliths and heat sources for crustal melting[J]. Gondwana Research, 2017, 31: 60-95. DOI URL
[28]	SU W C, XIA B, ZHANG H T, et al. Visible gold in arsenian pyrite at the Shuiyindong Carlin-type gold deposit, Guizhou, China: implications for the environment and processes of ore formation[J]. Ore Geology Reviews, 2008. 33(3/4): 667-679. DOI URL
[29]	SU W C, HEINRICH C A, PETTKE T, et al. Sediment-hosted gold deposits in Guizhou, China: products of wall-rock sulfidation by deep crustal fluids[J]. Economic Geology, 2009, 104(1): 73-93. DOI URL
[30]	YAN J, HU R Z, LIU S, et al. NanoSIMS element mapping and sulfur isotope analysis of Au-bearing pyrite from Lannigou Carlin-type Au deposit in SW China: new insights into the origin and evolution of Au-bearing fluids[J]. Ore Geology Reviews, 2018, 92: 29-41. DOI URL
[31]	XIE Z J, XIA Y, CLINE J, et al. Magmatic origin for sediment-hosted Au deposits, Guizhou province, China: in situ chemistry and sulfur isotope composition of pyrites, Shuiyindong and Jinfeng deposits[J]. Economic Geology, 2018, 113(7), 1625-1652.
[32]	LL J X, HU R Z, ZHAO C H, et al. Sulfur isotope and trace element compositions of pyrite determined by NanoSIMS and LA-ICP-MS: new constraints on the genesis of the Shuiyindong Carlin-like gold deposit in SW China[J]. Mineralium Deposita, 2020, 55: 1279-1298. DOI
[33]	GAO W, HU R Z, MEI L, et al. Monitoring the evolution of sulfur isotope and metal concentrations across gold-bearing pyrite of Carlin-type gold deposits in the Youjiang Basin. SW China[J]. Ore Geology Reviews, 2022, 147: 104990. DOI URL
[34]	TURNER G, BURNARD P G, FORD J L. Tracing fluid sources and interaction: discussion[J]. Physical Sciences and Engineering, 1993, 344(1670): 127-140.
[35]	胡瑞忠, 毕献武, TURNER G, 等. 哀牢山金矿带金成矿流体He和Ar同位素地球化学[J]. 中国科学D辑: 地球科学, 1999, 29(4): 321-330.
[36]	Hu R Z, BURNARD P G, et al. Helium and argon isotope geochemistry of alkaline intrusion-associated gold and copper deposits along the Red River-Jinshajiang fault belt, SW China[J]. Chemical Geology, 2004, 203(3/4): 305-317. DOI URL
[37]	STUART F M, BURNARD P G, TAYLOR R P, et al. Resolving mantle and crustal contributions to ancient hydrothermal fluids: He-Ar isotopes in fluid inclusions from Dae Hwa W-Mo mineralization, South Korea[J]. Geochimica et Cosmochimica Acta, 1995, 59(22): 4663-4673. DOI URL
[38]	BURNARD P G, HU R Z, TURNER G, et al. Mantle, crustal and atmospheric noble gases in Ailaoshan gold deposits, Yunnan Province, China[J]. Geochimica et Cosmochimica Acta, 1999, 63(10): 1595-1604. DOI URL
[39]	HU R Z, BURNARD P G, Bi X W, et al. Mantle-derived gaseous components in ore-forming fluids of the Xiangshan uranium deposit, Jiangxi Province, China: evidence from He, Ar and C isotopes[J]. Chemical Geology, 2009, 266(1/2): 86-95. DOI URL
[40]	JIN X Y, HOFSTRA A H, ANDREW G H, et al. Noble gases fingerprint the source and evolution of ore-forming fluids of Carlin-type gold deposits in the Golden Triangle, South China[J]. Economic Geology, 2020, 115(2): 455-469. DOI URL
[41]	GROVES D I, ZHANG L, SANTOSH M. Subduction, mantle metasomatism, and gold: a dynamic and genetic conjunction[J]. Geological Society of America Bulletin, 2020, 132(7/8): 1419-1426. DOI URL
[42]	胡瑞忠, 陈伟, 毕献武, 等. 扬子克拉通前寒武纪基底对中生代大面积低温成矿的制约[J]. 地学前缘, 2020, 27(2): 137-150. DOI
[43]	ZHU J, ZHANG Z C, SANTOSH M, et al. Carlin-style gold province linked to the extinct E’meishan Plume[J]. Earth and Planetary Science Letters, 530: 115940. DOI URL
[44]	BLUM J D, SHERMAN L S, JOHNSON M W. Mercury isotopes in earth and environmental sciences[J]. Annual Review of Earth and Planetary Sciences, 2014, 42: 249-269. DOI URL
[45]	SHERMAN L S, BLUM J D, NORDSTROM D K, et al. Mercury isotopic composition of hydrothermal systems in the Yellowstone Plateau volcanic field and Guaymas Basin sea-floor rift[J]. Earth and Planetary Science Letters, 2009, 279(1/2): 86-96. DOI URL
[46]	MOYNIER F, JACKSON M, ZHANG K, et al. The mercury isotopic composition of earth's mantle and the use of mass independently fractionated Hg to test for recycled crust[J]. Geophysical Research Letters, 2020, 48(17): e2021GL094301.
[47]	GRASBY S E, THEM T R, CHEN Z H, et al. Mercury as a proxy for volcanic emissions in the geologic record[J]. Earth-Science Reviews, 2019, 196: 102880. DOI URL
[48]	DENG C Z, SUN G Y, RONG Y M, et al. Recycling of mercury from the atmosphere-ocean system into volcanic-arc-associated epithermal gold systems[J]. Geology, 2021, 49(3): 309-313. DOI URL
[49]	YIN R S, CHEN D, PAN X, et al. Mantle Hg isotopic heterogeneity and evidence of oceanic Hg recycling into the mantle[J]. Nature Communications, 2022, 13: 948. DOI PMID
[50]	HU R Z, SU W C, BI X W, et al. Geology and geochemistry of Carlin-type gold deposits in China[J]. Mineralium Deposita, 2002, 37(3/4): 378-392. DOI URL
[51]	CLINE J S, HOFSTRA A H, MUNTEAN J L, et al. Carlin-type gold deposits in Nevada: critical geologic characteristics and viable models[M]//HEDENQUIST J W, THOMPSON J F H, GOLDFARB R J, et al. Economic Geology 100th Anniversary Volume. Littleton: Society of Economic Geologists, 2005: 451-484.
[52]	GAO W, HU R Z, WANF X Y, et al. Large-scale basement mobilization endows the giant Carlin-type gold mineralization in the Youjiang Basin, South China: insights from mercury isotopes[J]. Geological Society of America Bulletin, 2023, 135(11/12): 3163-3172.
[53]	FU S L, HU R Z, YIN R S, et al. Mercury and in situ sulfur isotopes as constraints on the metal and sulfur sources for the world's largest Sb deposit at Xikuangshan, southern China[J]. Mineralium Deposita, 2020, 55: 1353-1364. DOI
[54]	DENG C Z, ZHANG J W, HU R Z, et al. Mercury isotope constraints on the genesis of Late Mesozoic Sb deposits in South China[J]. Science China: Earth Sciences, 2022, 65(2): 269-281. DOI
[55]	胡凯. 右江盆地卡林型金矿成矿流体性质与成矿模式研究[D]. 南京: 南京大学, 2015.
