基于沉积模拟的总可容空间定量分析

沈禄银¹^,²(), 潘仁芳², 吕海涛¹, 段太忠³^,^*(), 贺婷婷⁴, 刘义生¹^,², 赵磊³

1.中国石化西北油田分公司, 新疆乌鲁木齐 830011
2.长江大学地球科学学院, 湖北武汉 430100
3.中国石化石油勘探开发研究院, 北京 102260
4.中国石化集团新星石油有限责任公司, 北京 100083

收稿日期:2022-04-12 修回日期:2023-09-03 出版日期:2024-03-25 发布日期:2024-04-18
通讯作者: *段太忠(1961—),男,博士,教授,主要从事储层表征与建模工作。E-mail: duantz.syky@sinopec.com
作者简介:沈禄银(1989—),男,博士,主要从事综合地质建模工作。E-mail: 201673023@yangtzeu.edu.cn
基金资助:
中国科学院战略先导A项目子课题“深层碳酸盐岩油气储层地质建模”;(XDA14010204);中国石化西北油田分公司科技部项目“塔北地区寒武系沉积结构模拟”(KJ202333)

Quantitative analysis of total accommodation space based on sedimentary simulation

SHEN Luyin¹^,²(), PAN Renfang², LÜ Haitao¹, DUAN Taizhong³^,^*(), HE Tingting⁴, LIU Yisheng¹^,², ZHAO Lei³

1. Northwest Oilfield Company, SINOPEC, Ürümqi 830011, China
2. College of Earth Sciences, Yangtze University, Wuhan 430100, China
3. Petroleum Exploration & Production Research Institute, SINOPEC, Beijing 102260, China
4. Star Petroleum Co.Ltd., SINOPEC, Beijing 100083, China

Received:2022-04-12 Revised:2023-09-03 Online:2024-03-25 Published:2024-04-18

摘要/Abstract

摘要：

为了解决可容空间控制因素多、定量分析难的问题,在沉积过程中为沉积物提供可容空间的因素总结归纳为总可容空间,将影响总可容空间的多种因素总结为初始地形、全球(绝对)海平面变化和总沉降3种主控因素。基于总可容空间的提供量和充填量相符原则,建立了初始地形、全球海平面变化和总沉降与沉积厚度、水深的定量关系;分析了可容空间主控因素对地层结构的影响,提出了总可容空间定量分析方法。总可容空间定量分析不仅可以计算总沉降,降低了三维沉积参数的恢复和表征难度,保障了沉积正、反演过程中提供的总可容空间量符合预期,还可以建立主控因素之间的定量关系,快速恢复合理的地层沉积参数,有利于沉积模型的建立。该研究不仅对可容空间主控因素之间的定量关系有着更直观的认识,还为定量研究有效可容空间奠定了基础。

关键词: 初始地形, 全球海平面变化, 总沉降, 可容空间, 沉积过程模拟

Abstract:

Sediment accommodation space has many controlling factors and is difficult to analyze quantitively. To address this issue, we designate a “total accommodation space”, which is the sum of all accommodation spaces during the deposition process, and summarize various controlling factors into three main factors: initial topography, global (absolute) sea level change, and total settlement. Based on the principle that the volume of the total accommodation space equals its fill volume, a quantitative relationship between the initial topography, global sea level change, total settlement/sedimentary thickness, and water depth is established. The influence of the main controlling factors on the stratum structure is analyzed, and a method for quantitative analysis of total accommodation space is proposed. This method can be applied to not only calculate the total settlement—thus reducing the difficulty in recovery and characterization of 3D sedimentary parameters, and ensuring the total accommodation space provided by sedimentary forward and inversion modeling is in line with expectations—but also establish the quantitative relationship between the main controlling factors and quickly recover the reasonable stratigraphic sedimentary parameters, which is conducive to establishing a sedimentary model. This study not only provides a more intuitive understanding of the quantitative relationship between the main controlling factors of accommodation space, but also lays a foundation for the quantitative study of effective accommodation spaces.

Key words: initial topography, eustatic change, total subsidence, accommodation space, sedimentary process simulation

中图分类号:

沈禄银, 潘仁芳, 吕海涛, 段太忠, 贺婷婷, 刘义生, 赵磊. 基于沉积模拟的总可容空间定量分析[J]. 地学前缘, 2024, 31(2): 391-401.

SHEN Luyin, PAN Renfang, LÜ Haitao, DUAN Taizhong, HE Tingting, LIU Yisheng, ZHAO Lei. Quantitative analysis of total accommodation space based on sedimentary simulation[J]. Earth Science Frontiers, 2024, 31(2): 391-401.

图/表 13

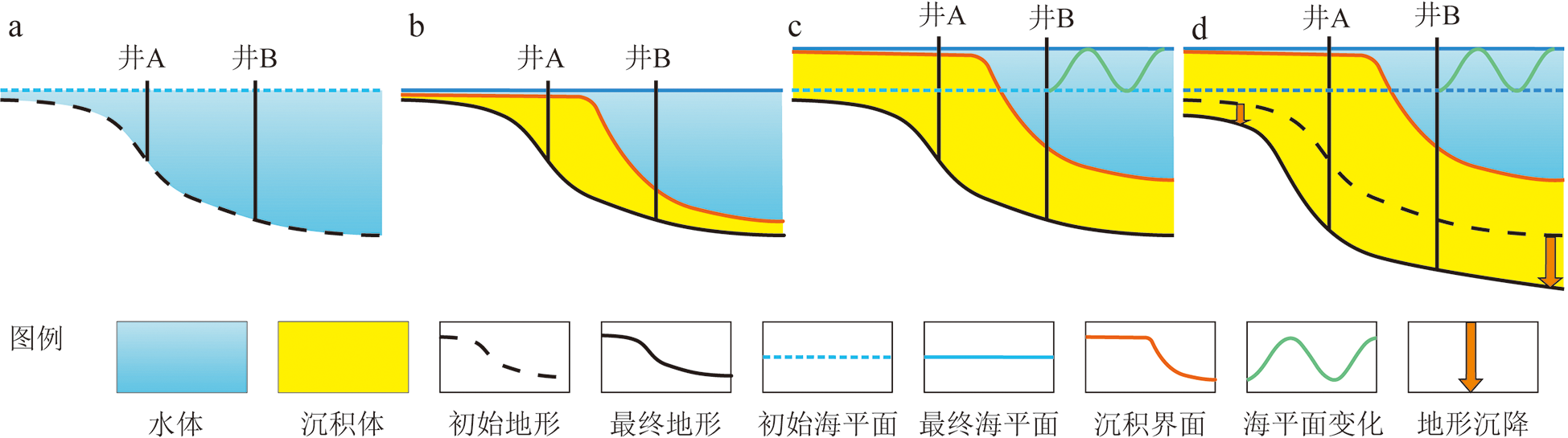

图1 不同因素提供总可容空间的理论示意图 a—充填模型框架;b—初始地形提供总可容空间;c—初始地形和全球海平面变化提供总可容空间;d—初始地形、全球海平面变化和总沉降提供总可容空间。

Fig.1 Theoretical model oftotal accommodation provided by different factors

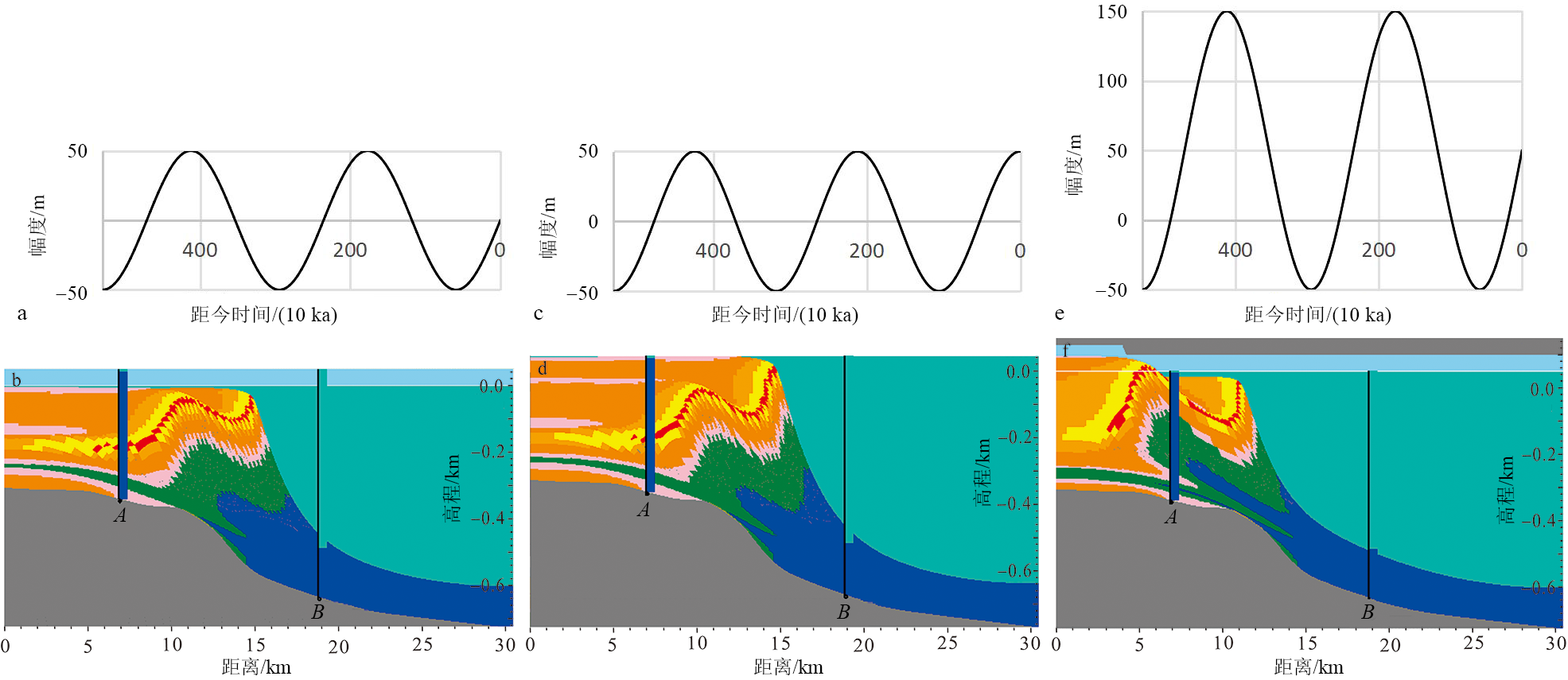

图2 初始地形、总沉降对模型地层结构的影响 a—测试对比模型;b—初始地形提供总可容空间差异量;c—总沉降提供总可容空间差异量。

Fig.2 Effect of initial topography and total subsidence on model stratigraphic architecture

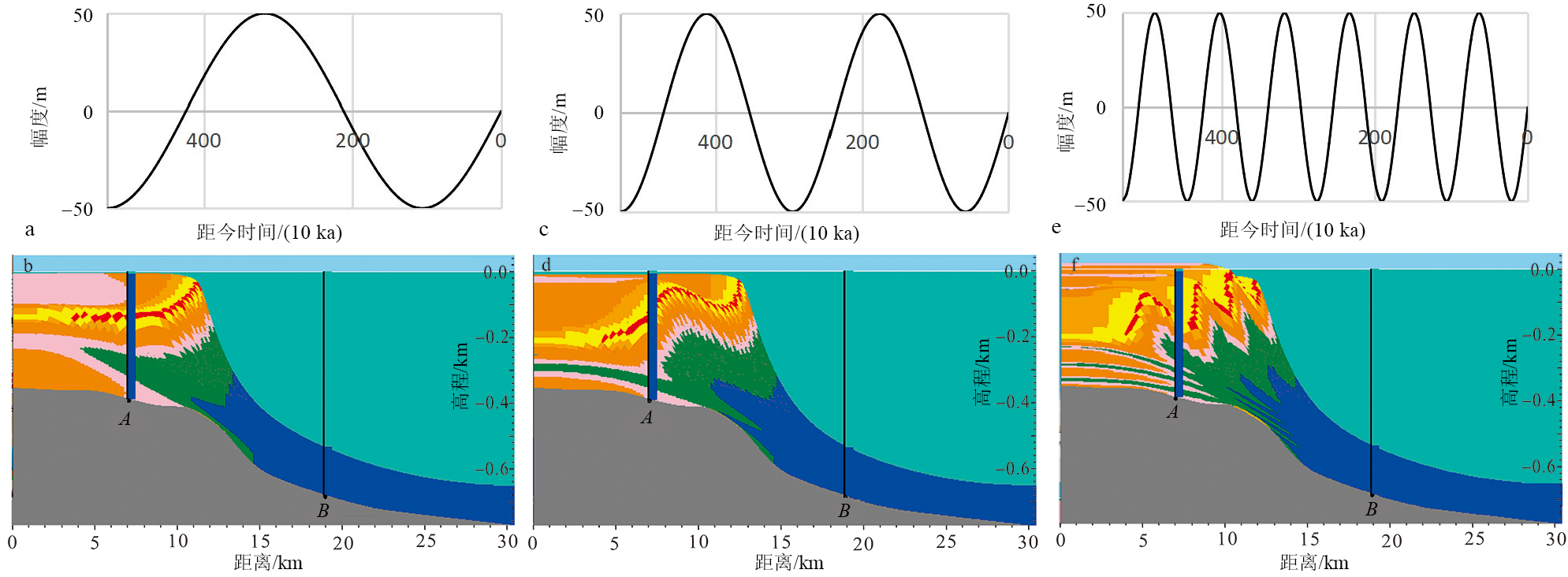

图3 全球海平面变化对地层结构的影响 a—旋回数为2.25的海平面变化;b—测试对比模型;c—旋回数为2.5的海平面变化;d—旋回数为2.5的海平面变化的沉积模型;e—振幅为100 m的海平面变化;f—振幅为100 m的海平面变化的沉积模型。

Fig.3 The influence of global eustatic change on stratigraphic architecture

图4 海平面变化旋回个数对地层结构的影响

Fig.4 The influence of the number of sea level cycles on the stratigraphic architecture

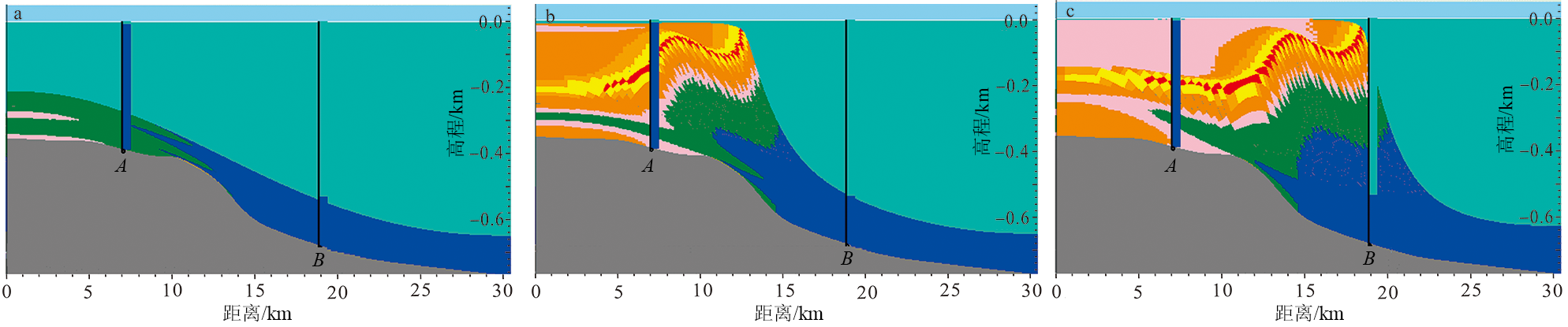

图5 总供给速率对地层结构的影响 a—0.5倍总供给速率时的沉积模型,b—原始对比模型;c—1.5倍总供给速率时的沉积模型。

Fig.5 The influence of sedimentary rate on the stratigraphic architecture

图6 总沉降自动校正对沉积反演的优化

Fig.6 The optimization of stratigraphic inverse modeling by automatic correction of total subsidence

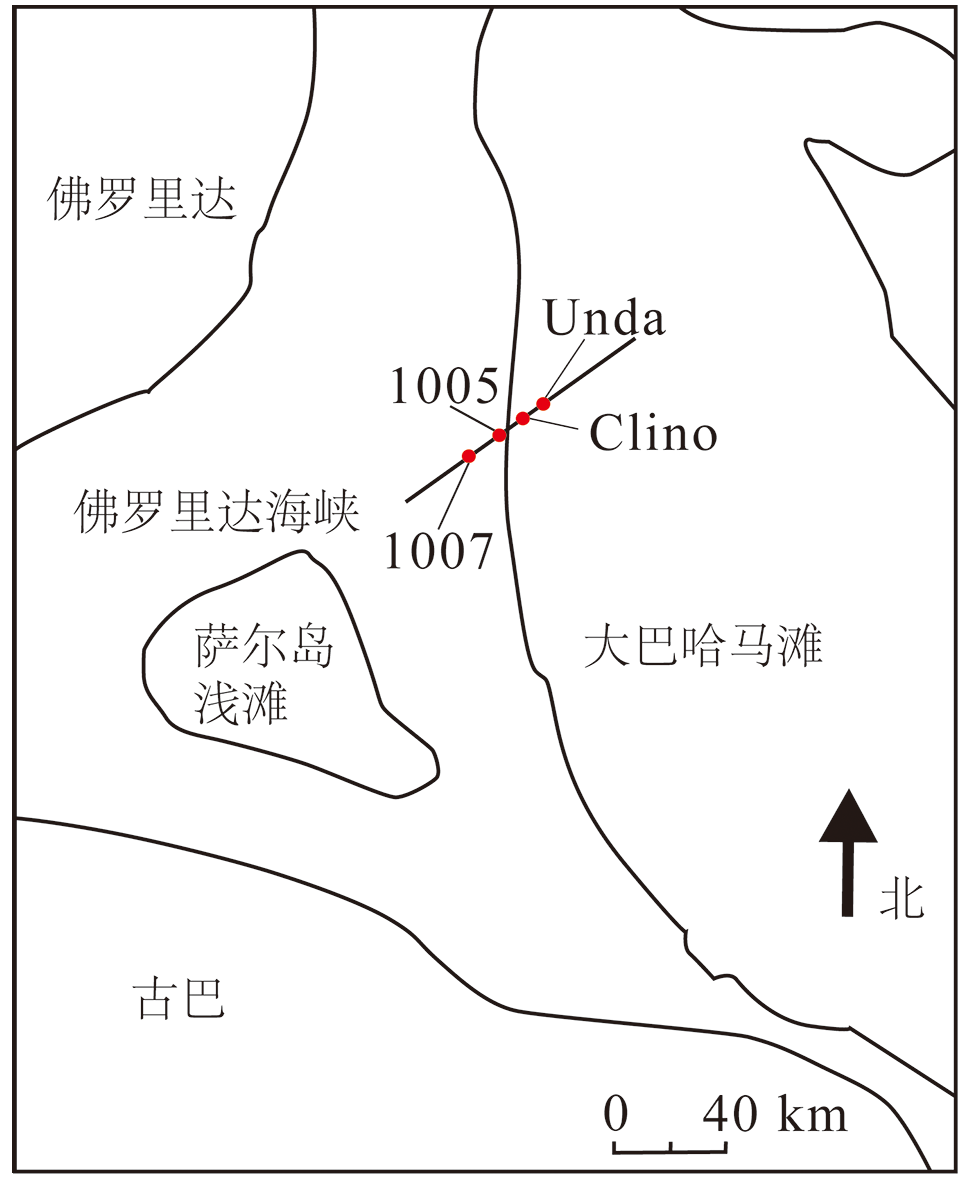

图7 巴哈马滩工区位置

Fig.7 Location of Bahama beach area

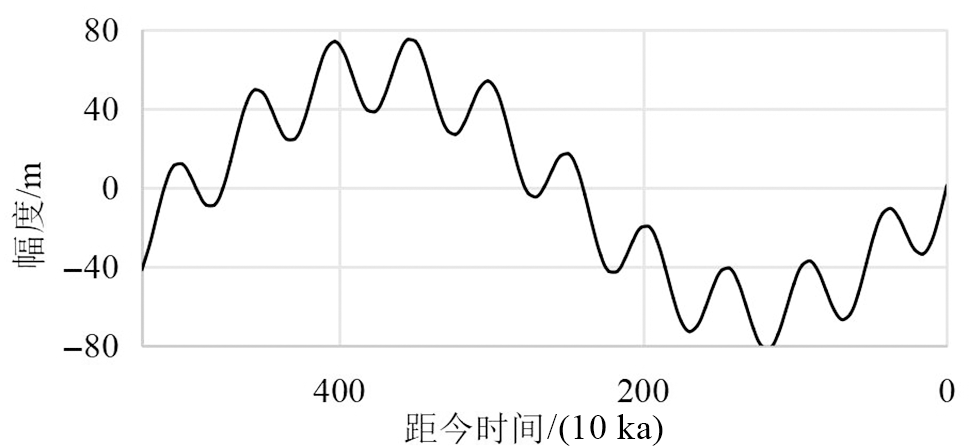

图8 全球海面升降变化

Fig.8 Eustatic change

表1 总沉降量计算

Table1 Calculation of total subsidence

井名	观测数据						总沉降速率 R/(m·ka^-1)
	沉积厚度	水深	初始地形	全球海平面变化		总沉降量
	H/m	W_t/m	W₀/m	L_t/m	L₀/m	S/m
Unda	280.7	6.7	-161.5	0	-40	-85.9	-1.62
Clino	521.1	7.6	-402.6	0	-40	-86.1	-1.62
1005	415	352	-631.2	0	-40	-95.8	-1.81
1007	302	650	-760.8	0	-40	-151.2	-2.85

图9 初始地形

Fig.9 Initial topography and well location distribution

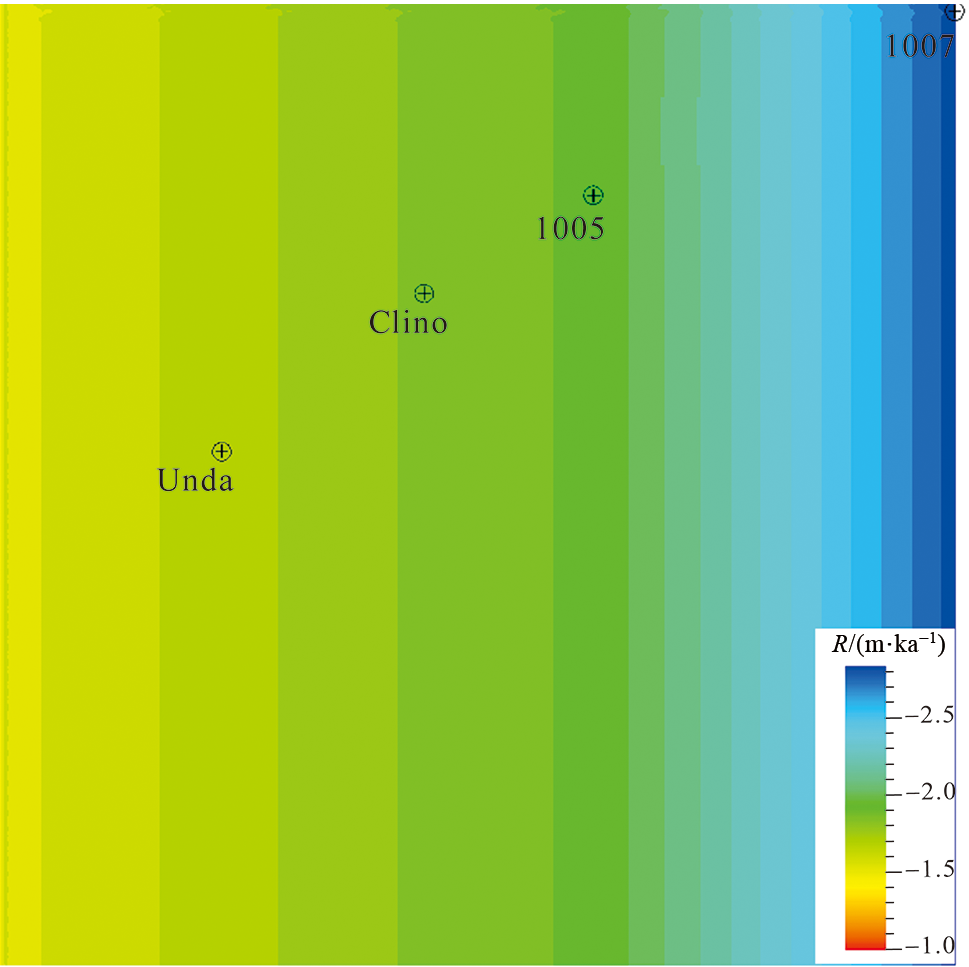

图10 总沉降速率

Fig.10 Total subsidence rate

表2 模拟厚度和实际厚度对比

Table 2 Comparison between simulated thickness and actual thickness

井名	总可容空间/m	观测资料		模拟结果		沉积厚度差异/m	厚度误差/%
井名	总可容空间/m	沉积厚度/m	水深/m	沉积厚度/m	水深/m	沉积厚度差异/m	厚度误差/%
Unda	287.4	280.7	6.7	279.76	7.64	0.94	0.33
Clino	528.7	521.1	7.6	519.59	9.11	1.51	0.29
1005	767	415	352	414.72	352.28	0.28	0.07
1007	952	302	650	301.95	650.05	0.05	0.02

图11 巴哈马滩台地沉积正演模拟结果

Fig.11 Forward modeling results of Bahama beach platform sedimentation
