普定岩溶水-碳循环模拟试验场水体双碳同位素特征(δ13C-Δ14C)与碳足迹

doi:10.13745/j.esf.sf.2022.1.35

地学前缘 ›› 2022, Vol. 29 ›› Issue (3): 155-166.DOI: 10.13745/j.esf.sf.2022.1.35

普定岩溶水-碳循环模拟试验场水体双碳同位素特征(δ¹³C-Δ¹⁴C)与碳足迹

李栋¹^,²^,³(), 赵敏¹^,²^,^*(), 刘再华¹^,²^,^*(), 陈波⁴

1.中国科学院地球化学研究所环境地球化学国家重点实验室, 贵州贵阳 550081
2.中国科学院中国生态系统研究网络普定喀斯特生态系统研究站, 贵州普定 562100
3.中国科学院大学, 北京 100049
4.贵州财经大学, 贵州贵阳 550025

收稿日期:2021-12-05 修回日期:2022-01-12 出版日期:2022-05-25 发布日期:2022-04-28
通讯作者: 赵敏,刘再华
作者简介:李栋(1995—),男,博士研究生,主要研究方向为岩溶作用碳循环。E-mail: lidong@mail.gyig.ac.cn
基金资助:
国家自然科学基金项目(42130501);国家自然科学基金项目(42177248);国家自然科学基金项目(U1612441);中国科学院战略性先导科技专项(B 类)(XDB40000000);贵州省科技支撑计划项目(黔科合支撑[2021]一般456)

Dual carbon isotope (δ13C-Δ14C) characteristics and carbon footprint in the spring-pond systems at the Puding Karst Water-Carbon Cycle Test Site

LI Dong¹^,²^,³(), ZHAO Min¹^,²^,^*(), LIU Zaihua¹^,²^,^*(), CHEN Bo⁴

1. State Key Laboratory of Environmental Geochemistry, Institute of Geochemistry, Chinese Academy of Sciences, Guiyang 550081, China
2. Puding Karst Ecosystem Research Station, Chinese Ecosystem Research Network, Chinese Academy of Sciences, Puding 562100, China
3. University of Chinese Academy of Sciences, Beijing 100049, China
4. Guizhou University of Finance and Economics, Guiyang 550025, China

Received:2021-12-05 Revised:2022-01-12 Online:2022-05-25 Published:2022-04-28
Contact: ZHAO Min,LIU Zaihua

摘要/Abstract

摘要：

河流输送到海洋的溶解无机碳(DIC)和有机碳(OC)受自然和人为双重因素的影响。了解DIC和OC的年龄、来源和转化,有助于掌握全球碳收支和提高现在以及未来自然和人类对河流碳循环影响的估算精度。本研究以普定岩溶水-碳循环试验场泉(地下水)-池(地表水)耦联系统为研究对象,利用双碳同位素(¹³C-¹⁴C)方法,结合水生植物生长和传统水文地球化学特征,揭示了地下水-地表水系统中DIC和颗粒有机碳(POC)的来源及其转化机制。研究发现:(1)泉-池系统中DIC和POC的Δ¹⁴C具有相同的变化趋势,泉水中Δ¹⁴C值低于池水中Δ¹⁴C值,反映后者可能有“较年轻”的CO₂的加入;(2)池水水化学和碳同位素变化由土地利用类型和池中水生植物共同控制;(3)池水中颗粒有机碳(POC)浓度明显高于泉水,且其Δ¹⁴C值表现出与沉水植物和DIC的一致性(表观年龄均为3 200900 a),说明池水POC主要源于池中水生植物光合作用利用了碳酸盐风化产生的老碳(DIC),使新形成的有机质在表观年龄上“偏老”;(4)池水水体内源有机碳对水体POC的贡献在75%以上,内源有机碳通量(以C计)在250 t·km^-2·a^-1至660 t·km^-2·a^-1之间,相对于其他土地利用类型,草地对应的地表水系统具有最大的内源有机碳占比和通量,指示了沉水植物控制型浅水水体初级生产对有机碳循环的重要作用。综上,我们认为在岩溶区通过土地利用调整来调控水生植物群落对于增加碳汇具有重要潜力。

关键词: 溶解无机碳, 颗粒有机碳, 内源有机碳, 双碳同位素, 碳足迹, 普定岩溶水-碳循环模拟试验场

Abstract:

The dissolved inorganic carbon (DIC) and organic carbon (OC) transported to the ocean by rivers are affected by natural and anthropogenic factors. Understanding the influence of these factors on the age, source, and transformation of DIC and OC can help constrain global carbon budget and improve the assessments of natural and human impacts on the riverine carbon cycle. The present study uses dual carbon isotopes (δ¹³C-Δ¹⁴C) of DIC, particulate organic carbon (POC), and aquatic plants with traditional hydrogeochemical characteristics in the spring (groundwater) and spring-fed pond (surface water) systems at the Puding Karst Water-Carbon Cycle Test Site to identify the relavent carbon sources and carbon transformation processes. The results showed that (1) the Δ¹⁴C of DIC and POC in the spring-pond systems displayed the same trend, that is, the Δ¹⁴C value is lower in the spring water than in the pond water, indicating likely a younger CO₂ invasion of the pond system. (2) The changes in water chemistry and carbon isotope of pond water were controlled by different land use and aquatic plants. (3) The OC concentrations were significantly higher in pond water than in spring water, and the Δ¹⁴C values of POC were close to those of submerged plants and DIC (apparent ages of 3200-900 years). Such finding indicates that the POC in the pond water was mainly derived from aquatic photosynthesis, which involved old carbon (DIC)—produced by the weathering of carbonate rocks—as carbon source to generate new autochthonous OC (AOC) with negative Δ¹⁴C values and “old” apparent age. (4) The contribution percentage of AOC to POC in surface water was more than 75%. Meanwhile, the AOC flux in the spring-pond systems was between 250-656 t C km^-2 a^-1, and the surface water system of grassland contributed the most AOC and had the highest AOC flux relative to other land use. Such finding indicates the important role of primary production in the organic carbon cycle in shallow water controlled by submerged plants. Overall, the regulation of aquatic plant communities through land use adjustment in karst areas can have major impact on the increasing of carbon sink capacity in these areas.

Key words: dissolved inorganic carbon, particulate organic carbon, autochthonous organic carbon, dual carbon isotopes, carbon footprint, the Puding Karst Water-Carbon Cycle Test Site

中图分类号:

李栋, 赵敏, 刘再华, 陈波. 普定岩溶水-碳循环模拟试验场水体双碳同位素特征(δ¹³C-Δ¹⁴C)与碳足迹[J]. 地学前缘, 2022, 29(3): 155-166.

LI Dong, ZHAO Min, LIU Zaihua, CHEN Bo. Dual carbon isotope (δ13C-Δ14C) characteristics and carbon footprint in the spring-pond systems at the Puding Karst Water-Carbon Cycle Test Site[J]. Earth Science Frontiers, 2022, 29(3): 155-166.

图/表 8

图1 贵州普定沙湾水-碳循环大型模拟试验场(左图底图来自国家标准地图服务系统 http://bzdt.ch.mnr.gov.cn) S—泉水;P—池水。

Fig.1 Geographic location and layout of the Shawan Karst Water-Carbon Cycle Test Site, Puding, Guizhou. Basemap from China online national standard map service.

表1 研究区泉-池系统水化学特征(2015年7月20日,16:00)

Table 1 Hydrochemical properties of spring and spring fed pond systems at the study sites (16:00,20th, Jul, 2015)

表2 5种土地利用类型对应的泉-池系统DIC和POC的碳同位素组成

Table 2 Carbon isotopic compositions of DIC and POC in spring and spring fed systems under five land uses

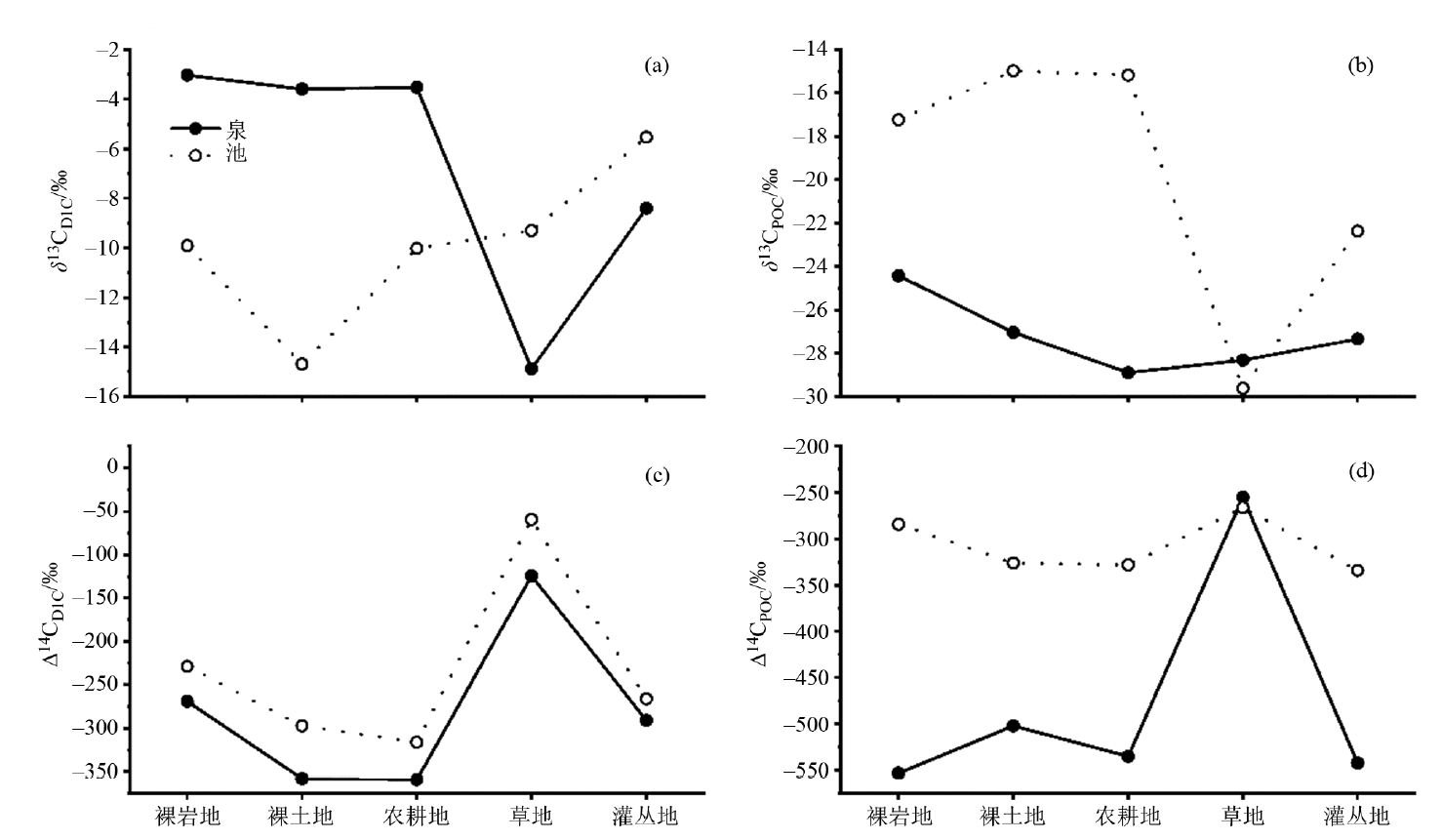

图2 不同土地利用下泉-池系统碳(Δ14C-δ13C)同位素特征对比 a—δ13CDIC对比;b—δ13CPOC对比; c—Δ14CDIC对比; d—Δ14CPOC对比。

Fig.2 Comparisons of Δ14C-δ13C characteristics between spring and spring-fed pond systems under different land uses. (a)δ13CDIC comparison; (b) δ13CPOC comparison; (c) Δ14CDIC comparison;(d) Δ14CPOC comparison

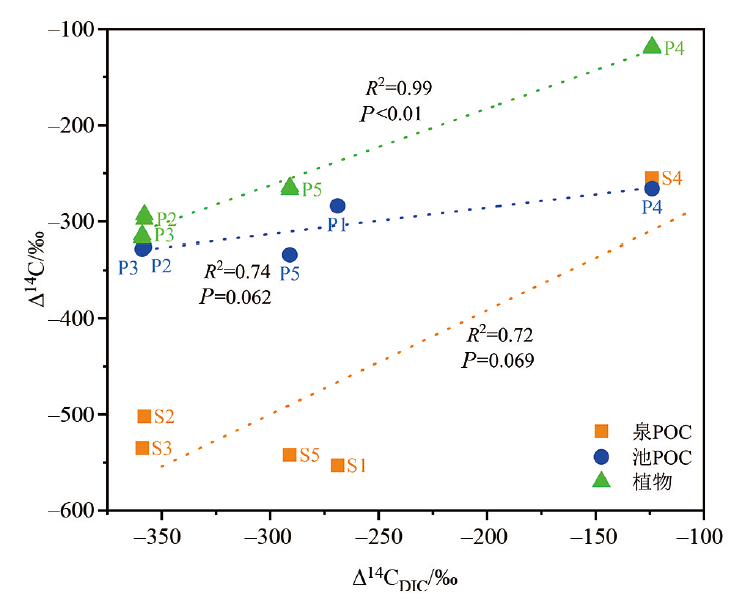

图3 不同土地利用类型下泉-池系统溶解无机碳(DIC)、沉水植物和颗粒碳(POC)的Δ14C特征

Fig.3 Relationships between Δ14Cplant, Δ14CPOC and Δ14CDIC in spring and sping-fed pond systems under different land uses

表3 4个试验池中植物同位素组成特征

Table 3 Isotopic composition of aquatic plants in four experimental ponds

监测池	水生植物	δ¹³C_植物/‰	Δ¹⁴ $C D I C 泉水$ /‰	Δ¹⁴ $C D I C 池水$ /‰	Δ¹⁴C_植物/‰	植物年龄/a BP
P2	轮藻(Hydrilla verticillata)	-16.47	-358±2	-297±4	-293±3	2 897
P2	水绵(Spirogyra)	-8.14	-358±2		-298±2	2 963
P3	轮藻(Hydrilla verticillata)	-10.58	-359±3	-316±6	-317±3	3 261
P3	金鱼藻(Hornwort)	-13.44	-359±3		-314±3	3 220
P4	轮藻(Hydrilla verticillata)	-16.36	-124±1	-59±3	-120±1	935
P4	水绵(Spirogyra)	-6.72	-124±1		-118±1	903
P5	轮藻(Hydrilla verticillata)	-22.93	-291±2	-266±2	-264±2	2 544
P5	金鱼藻(Hornwort)	-16.34	-291±2		-267±2	2 570

表3 4个试验池中植物同位素组成特征

Table 3 Isotopic composition of aquatic plants in four experimental ponds

监测池	水生植物	δ¹³C_植物/‰	Δ¹⁴ $C D I C 泉水$ /‰	Δ¹⁴ $C D I C 池水$ /‰	Δ¹⁴C_植物/‰	植物年龄/a BP
P2	轮藻(Hydrilla verticillata)	-16.47	-358±2	-297±4	-293±3	2 897
P2	水绵(Spirogyra)	-8.14	-358±2		-298±2	2 963
P3	轮藻(Hydrilla verticillata)	-10.58	-359±3	-316±6	-317±3	3 261
P3	金鱼藻(Hornwort)	-13.44	-359±3		-314±3	3 220
P4	轮藻(Hydrilla verticillata)	-16.36	-124±1	-59±3	-120±1	935
P4	水绵(Spirogyra)	-6.72	-124±1		-118±1	903
P5	轮藻(Hydrilla verticillata)	-22.93	-291±2	-266±2	-264±2	2 544
P5	金鱼藻(Hornwort)	-16.34	-291±2		-267±2	2 570

图4 不同土地利用类型下试验池水有机碳内、外源比例

Fig.4 The autochthonous and allochthonous contribution percentages of organic carbon in the five experimental ponds under different land uses

图5 不同土地利用类型下地表水中植被生成状况

Fig.5 The growth status of aquatic plants in the five experimental ponds under different land uses

参考文献 45

[1]	BROECKER W S, TAKAHASHI T, SIMPSON H J, et al. Fate of fossil fuel carbon dioxide and the global carbon budget[J]. Science, 1979, 206(4417): 409-418. DOI URL
[2]	SUNDQUIST E T. The global carbon dioxide budget[J]. Science, 1993, 259(5097): 934-941. DOI URL
[3]	JOOS F. Imbalance in the budget[J]. Nature, 1994, 370(6486): 181-182. DOI URL
[4]	SCHINDLER D W. Carbon cycling: the mysterious missing sink[J]. Nature, 1999, 398(6723): 105-107. DOI URL
[5]	LIU Z H, DREYBRODT W. Significance of the carbon sink produced by H₂O-carbonate-CO₂-aquatic phototroph interaction on land[J]. Science Bulletin, 2015, 60(2): 182-191. DOI URL
[6]	LIU Z H, DREYBRODT W, WANG H J. A new direction in effective accounting for the atmospheric CO₂ budget: considering the combined action of carbonate dissolution, the global water cycle and photosynthetic uptake of DIC by aquatic organisms[J]. Earth-Science Reviews, 2010, 99(3/4): 162-172. DOI URL
[7]	袁道先. “岩溶作用与碳循环”研究进展[J]. 地球科学进展, 1999, 14(5): 425-432.
[8]	LIU Z, ZHAO J. Contribution of carbonate rock weathering to the atmospheric CO₂ sink[J]. Environmental Geology, 2000, 39(9): 1053-1058. DOI URL
[9]	LIU Y, LIU Z H, ZHANG J L, et al. Experimental study on the utilization of DIC by Oocystis solitaria Wittr and its influence on the precipitation of calcium carbonate in karst and non-karst waters[J]. Carbonates and Evaporites, 2010, 25(1): 21-26. DOI URL
[10]	LIU Z H, MACPHERSON G L, GROVES C, et al. Large and active CO₂uptake by coupled carbonate weathering[J]. Earth-Science Reviews, 2018, 182: 42-49. DOI URL
[11]	ZHAO M, ZENG C, LIU Z H, et al. Effect of different land use/land cover on karst hydrogeochemistry: a paired catchment study of Chenqi and Dengzhanhe, Puding, Guizhou, SW China[J]. Journal of Hydrology, 2010, 388(1/2): 121-130. DOI URL
[12]	ZHAO M, LIU Z H, LI H C, et al. Response of dissolved inorganic carbon (DIC) and δ¹³C_DIC to changes in climate and land cover in SW China karst catchments[J]. Geochimica et Cosmochimica Acta, 2015, 165: 123-136. DOI URL
[13]	YANG R, LIU Z H, ZENG C, et al. Response of epikarst hydrochemical changes to soil CO₂ and weather conditions at Chenqi, Puding, SW China[J]. Journal of Hydrology, 2012, 468/469: 151-158. DOI URL
[14]	YANG R, CHEN B, LIU H, et al. Carbon sequestration and decreased CO₂emission caused by terrestrial aquatic photosynthesis: insights from diel hydrochemical variations in an epikarst spring and two spring-fed ponds in different seasons[J]. Applied Geochemistry, 2015, 63: 248-260. DOI URL
[15]	ZENG S B, LIU H, LIU Z H, et al. Seasonal and diurnal variations in DIC, $NO_{3}^{-}$ and TOC concentrations in spring-pond ecosystems under different land-uses at the Shawan Karst Test Site, SW China: carbon limitation of aquatic photosynthesis[J]. Journal of Hydrology, 2019, 574: 811-821. DOI URL
[16]	CHEN B, YANG R, LIU Z H, et al. Coupled control of land uses and aquatic biological processes on the diurnal hydrochemical variations in the five ponds at the Shawan Karst Test Site, China: implications for the carbonate weathering-related carbon sink[J]. Chemical Geology, 2017, 456: 58-71. DOI URL
[17]	BUESSELER K O, BALL L, ANDREWS J, et al. Upper Ocean export of particulate organic carbon and biogenic silica in the Southern Ocean along 170° W[J]. Deep Sea Research Part Ⅱ-Topical Studies in Oceanography, 2001, 48(19/20): 4275-4297.
[18]	RAYMOND P A, BAUER J E. Use of ¹⁴C and ¹³C natural abundances for evaluating riverine, estuarine, and coastal DOC and POC sources and cycling: a review and synthesis[J]. Organic Geochemistry, 2001, 32(4): 469-485. DOI URL
[19]	RAYMOND P A, BAUER J E, CARACO N F, et al. Controls on the variability of organic matter and dissolved inorganic carbon ages in northeast US rivers[J]. Marine Chemistry, 2004, 92(1/2/3/4): 353-366. DOI URL
[20]	BUTMAN D E, WILSON H F, BARNES R T, et al. Increased mobilization of aged carbon to rivers by human disturbance[J]. Nature Geoscience, 2015, 8(2): 112-116. DOI URL
[21]	MARWICK T R, TAMOOH F, TEODORU C R, et al. The age of river-transported carbon: a global perspective[J]. Global Biogeochemical Cycles, 2015, 29(2): 122-137. DOI URL
[22]	CHEN J G, YANG H Q, ZENG Y, et al. Combined use of radiocarbon and stable carbon isotope to constrain the sources and cycling of particulate organic carbon in a large freshwater lake, China[J]. Science of the Total Environment, 2018, 625: 27-38. DOI URL
[23]	WEI X G, YI W X, SHEN C D, et al. ¹⁴C as a tool for evaluating riverine POC sources and erosion of the Zhujiang (Pearl River) drainage basin, South China[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions With Materials and Atoms, 2010, 268(7/8): 1094-1097. DOI URL
[24]	LIU Z H, ZHAO M, SUN H L, et al. “Old” carbon entering the South China Sea from the carbonate-rich Pearl River Basin: coupled action of carbonate weathering and aquatic photosynthesis[J]. Applied Geochemistry, 2017, 78: 96-104. DOI URL
[25]	CHEN S, ZHONG J, LI S L, et al. Multiple controls on carbon dynamics in mixed karst and non-karst mountainous rivers, Southwest China, revealed by carbon isotopes (δ¹³C and Δ¹⁴C)[J]. Science of the Total Environment, 2021, 791: 148347. DOI URL
[26]	ATEKWANA E A, KRISHNAMURTHY R V. Seasonal variations of dissolved inorganic carbon and δ¹³C of surface waters: application of a modified gas evolution technique[J]. Journal of Hydrology, 1998, 205(3/4): 265-278. DOI URL
[27]	STUIVER M, REIMER P J. Extended ¹⁴C data-base and revised CALIB 3.0 ¹⁴C age calibration program[J]. Radiocarbon, 1993, 35(1): 215-230. DOI URL
[28]	PARKHURST D L, APPELO C A J. User’s guide to PHREEQC (version 2): a computer program for speciation, batch-reaction, one-dimensional transport, and inverse geochemical calculations[R]. Denver: US Geological Survey Earth Science Information Center, 1999.
[29]	ZENG Q R, LIU Z H, CHEN B, et al. Carbonate weathering-related carbon sink fluxes under different land uses: a case study from the Shawan Simulation Test Site, Puding, Southwest China[J]. Chemical Geology, 2017, 474: 58-71. DOI URL
[30]	DREYBRODT W. Processes in karst system[M]. Heidelberg: Springer, 1988.
[31]	BAO Q, LIU Z H, ZHAO M, et al. Primary productivity and seasonal dynamics of planktonic algae species composition in karst surface waters under different land uses[J]. Journal of Hydrology, 2020, 591: 125295. DOI URL
[32]	DEINES P, LANGMUIR D, HARMON R S. Stable carbon isotope ratios and the existence of a gas phase in the evolution of carbonate ground waters[J]. Geochimica et Cosmochimica Acta, 1974, 38(7): 1147-1164. DOI URL
[33]	SPIRO B, PENTECOST A. One day in the life of a stream: a diurnal inorganic carbon mass balance for a travertine-depositing stream (waterfall beck, Yorkshire)[J]. Geomicrobiology Journal, 1991, 9(1): 1-11. DOI URL
[34]	FALKWSK P G, RAVEN J A. Aquatic photosynthesis[M]. Malden: Blackwell Science, 1997.
[35]	HERCZEG A L, FAIRBANKS R G. Anomalous carbon isotope fractionation between atmospheric CO₂ and dissolved inorganic carbon induced by intense photosynthesis[J]. Geochimica et Cosmochimica Acta, 1987, 51(4): 895-899. DOI URL
[36]	KOMADA T, DRUFFEL E R M, TRUMBORE S E. Oceanic export of relict carbon by small mountainous rivers[J]. Geophysical Research Letters, 2004, 31(7) : L07504.
[37]	GUO L D, MACDONALD R W. Source and transport of terrigenous organic matter in the upper Yukon River: evidence from isotope (δ¹³C, Δ¹⁴C, and δ¹⁵N) composition of dissolved, colloidal, and particulate phases[J]. Global Biogeochemical Cycles, 2006, 20(2) : GB2011.
[38]	CLARK K E, HILTON R G, WEST A J, et al. New views on “old” carbon in the Amazon River: insight from the source of organic carbon eroded from the Peruvian Andes[J]. Geochemistry, Geophysics, Geosystems, 2013, 14(5): 1644-1659. DOI URL
[39]	GALY V, PEUCKER-EHRENBRINK B, EGLINTON T. Global carbon export from the terrestrial biosphere controlled by erosion[J]. Nature, 2015, 521(7551): 204-207. DOI URL
[40]	林清, 王绍令. 沉水植物稳定碳同位素组成及影响因素分析[J]. 生态学报, 2001, 21(5): 806-809.
[41]	VAN T K, HALLER W T, BOWES G. Comparison of the photosynthetic characteristics of three submersed aquatic plants[J]. Plant Physiology, 1976, 58(6): 761-768. DOI URL
[42]	DEEVEY E S Jr, GROSS M S, HUTCHINSON G E, et al. The natural ¹⁴C contents of materials from hard-water lakes[J]. Proceedings of the National Academy of Sciences of the United States of America, 1954, 40(5): 285-288.
[43]	NIELSEN E S. Diffusion of dissolved substances through thalli and leaves of aquatic plants[J]. Nature, 1947, 160(4063): 376-377. DOI URL
[44]	OLSSON I U, KAUP E. The varying radiocarbon activity of some recent submerged Estonian plants grown in the early 1990s[J]. Radiocarbon, 2001, 43(2B): 809-820. DOI URL
[45]	FLANAGAN K M, MCCAULEY E, WRONA F. Freshwater food webs control carbon dioxide saturation through sedimentation[J]. Global Change Biology, 2006, 12(4): 644-651. DOI URL
